Everlast EV720 User manual

Owner’s Manual
EV720 Treadmill
Model No.
16005107200
- Assembly
- Operation
- Adjustments
- Parts
- Warranty
CAUTION:
You must read and
understand this
owner’s manual
before operating
unit.
Keep this manual for
future reference.
Serial number
Write the serial
number in the space
above for reference.
Serial number can be
found at the front
bottom section of the
Treadmill.
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATING YOUR NEW TREADMILL!

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
1
TABLE OF CONTENTS
Important Safety Instructions.........................................................................3
Important Electrical Instructions ....................................................................5
Assembly Instructions...................................................................................6
Operation of Your Treadmill.........................................................................12
Parts Diagram and List................................................................................23
General Maintenance .................................................................................27
Service Checklist - Diagnosis Guide …………………………………………...31
Troubleshooting ..........................................................................................32
Training Guidelines .....................................................................................33
Manufacturer's Limited Warranty.................................................................39
ATTENTION
THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR
THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
2
BEFORE YOU BEGIN
Thank you for choosing the Everlast EV720 Treadmill. We take great pride in producing this quality
product and hope it will provide many hours of quality exercise to make you feel better, look better,
and enjoy life to its fullest. It is a proven fact that a regular exercise program can improve your
physical and mental health. Too often, our busy lifestyles limit our time and opportunity to exercise.
The Everlast EV720 Treadmill provides a convenient and simple method to begin your assault on
getting your body in shape and achieving a happier and healthier lifestyle. Before reading further,
please review the drawing below and familiarize yourself with the parts that are labeled.
Read this manual carefully before using the Everlast EV720 Treadmill. Although Dyaco Canada
Inc. constructs its products with the finest materials and uses the highest standards of
manufacturing and quality control, there can sometimes be missing parts or incorrectly sized parts.
If you have any questions or problems with the parts included with your Everlast EV720 Treadmill,
please do not return the product. Contact us FIRST! If a part is missing or defective call us toll free
at 1-888-707-1880. Our Customer Service Staff are available to assist you from 8:30 A.M. to 5:00
P.M. (Eastern Time) Monday through Friday. Be sure to have the name and model number of the
product available when you contact us.
Incline Adjustment
Switch
Speed
Adjustment
Switch
Console
Safety Key
Running Belt
Main Frame
Wheels
Adjusting Bolt
Foot Rail
Wheels
On/Off Switch
Circuit Breaker
Power Cord
MAX. USER WEIGHT LIMIT 159 KGS (350 LBS)

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
3
IMPORTANT SAFETY INSTRUCTIONS
THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY
READ ALL INSTRUCTIONS BEFORE USING THIS TREADMILL
CAUTION: Before starting any exercise program, it is recommended that you consult your
physician.
WARNING:Connect this unit to a properly grounded outlet only.
DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical
outlet immediately after using and before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:

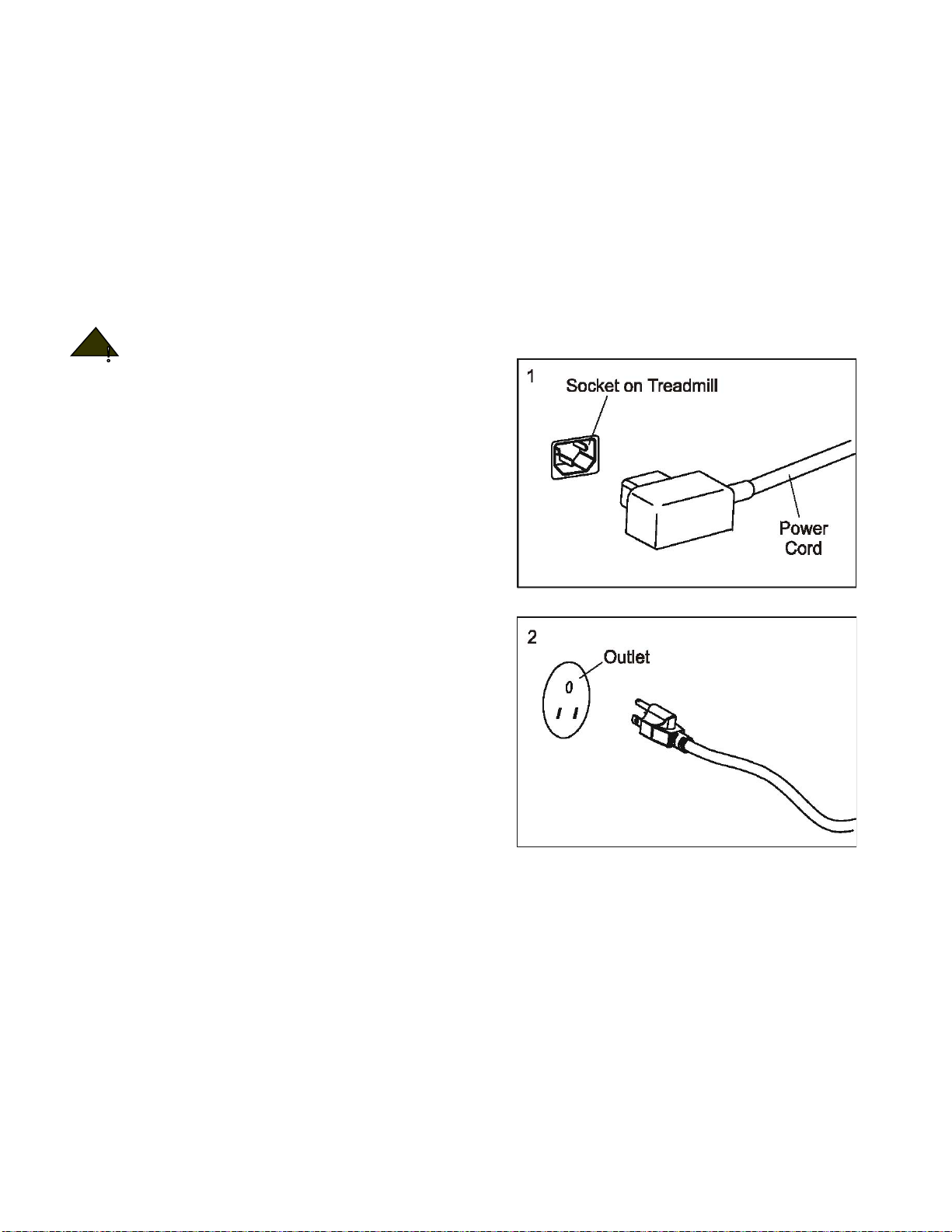

Grounding Instructions
This product must be grounded. If it should malfunction or break down, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. See the diagram below for grounding methods.
1. Use 120-volt AC household current on a dedicated circuit.
2. It is the owner's responsibility to ensure that all users of this treadmill are adequately informed
of all warnings and precautions.
3. The use of an extension cord with this product is not recommended. If an extension cord is
needed, use a short (less than 10 feet) heavy gauge (14 gauge or better) extension cord with
a three-prong (grounded) plug and receptacle.
4. Never leave the treadmill unattended when plugged in. Remove the safety key and unplug the
unit from the outlet when not in use and before removing or replacing parts.
5. Never operate the treadmill if it has a damaged cord or plug if it is not working properly, if it
has been dropped, damaged, or exposed to water. Never move the treadmill belt while the
power is turned off.
6. Do not pull the treadmill by the power supply cord or use the cord as a handle. Keep the cord
away from heated surfaces and open flames.
7. Fitness equipment must always be installed and used on a flat surface. Do not use outdoors or
near water. Do not place the unit on a loose rug or uneven surface. It is recommended to use
an equipment mat to prevent the unit from moving while it is being used, which could possibly
scratch or damage the surface of your floor. It is recommended to have a minimum of 3 meters
of safe clearance on all sides of the treadmill while in use.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
4
8. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage,
covered patio or near water.
9. Do not operate the treadmill where aerosol products are used or where oxygen is being
administered.
10. Read, understand, and test the emergency stop procedure before using the treadmill. Do not
insert any objects into any openings.
11. Inspect and properly tighten all parts of the treadmill regularly.
12. Keep children and pets away from this equipment at all times while exercising.
13. Individuals with a disability should have medical approval and close supervision when using
this treadmill.
14. Do not place hands or feet under the treadmill. Always keep hands and legs off the treadmill
when others are using it.
15. Never turn on the treadmill while standing on the treadbelt. Always hold the handrails while
using the treadmill. Always return the treadmill to the slowest speed to provide for safe
dismount and low-speed restart.
16. To disconnect, turn all controls to the off position, then remove the plug from the outlet.
17. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. See
assembly instructions in this manual to fold and move the treadmill. Care must be taken
when lifting or moving the equipment so as not to injure your back. Always use proper lifting
techniques.
18. Use the treadmill only for its intended use as described in this manual. Do not use any
attachments that the manufacturer does not recommend.
19. User weight should not exceed 350lbs (159 kg).
20. Never allow more than one person on the treadmill at once.
21. Warm up 5 to 10 minutes before each workout and cool down 5 to 10 minutes afterward.
This allows your heart rate to increase and decrease gradually and will help prevent straining
muscles.
22. Never hold your breath while exercising. Breathing should remain at a normal rate in
conjunction with the level of exercise being performed. If dizziness, nausea, chest pains, or
any other abnormal symptoms are experienced while using this equipment, STOP the
workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
23. Start your program slowly and very gradually, increase your speed and distance.
24. Always wear suitable clothing and footwear while exercising. Do not wear loose-fitting clothing
that could become entangled with the moving parts of your treadmill. Do not walk or jog
barefoot, in stocking feet or loose-fitting shoes or slippers.
25. This treadmill is intended for in-home use only. Do not use the treadmill in any commercial,
rental, or institutional setting.
26. This exercise equipment is not intended for use by persons with reduced physical, sensory, or
mental capabilities or lack of experience and knowledge.
27. Close supervision is necessary when this appliance is used by, on, or near children, invalids, or
disabled persons.
WARNING: Before beginning any exercise program consult your physician. This is especially
important for individuals over the age of 35 or persons with preexisting health problems. Read
all instructions before using any fitness equipment. We assume no responsibility from personal
injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS - THINK SAFETY!

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
5
IMPORTANT ELECTRICAL INSTRUCTIONS
WARNING!
●NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the
power cord away from any moving part of the treadmill, including the elevation mechanism and
transport wheels.
●NEVER remove any cover without first disconnecting AC power.
●If voltage varies by ten percent (10%) or more, the performance of your treadmill may be
affected. Such conditions are not covered under your warranty. If you suspect the voltage is
low, contact your local power company or a licensed electrician for proper testing. See Diagnosis
Guide, page 31.
●NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity environment.
This product must be grounded. If the treadmill should malfunction or break down, grounding
provides a path of least resistance for electric current, reducing the risk of electric shock. This
product is equipped with a cord having an equipment-grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided with the
product if it will not fit the outlet; haveaproper outlet installed by a qualified electrician.
●NEVER operate this treadmill without reading and thoroughly understanding the results of any
operational change you request from the computer.
●Understand that changes in speed and incline do not occur immediately. Set your desired work
level on the computer console and release the adjustment key. The computer will obey the
command gradually.
●NEVER use your treadmill during an electrical storm. Surges may occur in your household power
supply that could damage treadmill components.
●Use caution while participating in other activities while walking on your treadmill, such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in
the center of the belt, which may result in serious injury.
●NEVER mount or dismount the treadmill while the belt is moving. Our treadmills start at a low
speed, and it is unnecessary to straddle the belt during startup. Simply standing on the belt during
slow acceleration is proper after you have learned to operate the unit.
●Always hold on to a handrail or hand bar while making control changes (incline, speed, etc.).
Do not use excessive pressure on console control keys. They are precision set to function properly
with little finger pressure. Pushing harder is not going to make the unit go faster or slower. If you
feel the buttons are not functioning properly with normal pressure, contact your dealer.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
6
ASSEMBLY INSTRUCTIONS
!!ATTENTION: IMPORTANT UNPACKING INSTRUCTIONS.
PLEASE READ BEFORE UNPACKING YOUR FOLDING TREADMILL!!
Serious injury could occur if this folding treadmill is not unpacked properly.
There is a Velcro strap installed around the treadmill base that prevents the treadmill from unfolding
accidentally during shipping. If this strap is not removed correctly, the treadmill could spring open
unexpectedly and cause injury if someone is standing near the treadmill when the strap is removed.
To ensure your personal safety during the removal of the shipping strap, please make sure the
treadmill is positioned flat on the ground, in the orientation it would be in if you were using the
treadmill. Do not turn the treadmill up on its side while removing the shipping strap. This could
cause the treadmill's folding mechanism to spring open. If the end of the Velcro strap (that you
need to grab to remove it) happens to be under the treadmill deck, reach under the deck to grab it,
but do not tilt the treadmill up to gain access to the strap end.
Unpack the treadmill and locate the hardware pack.

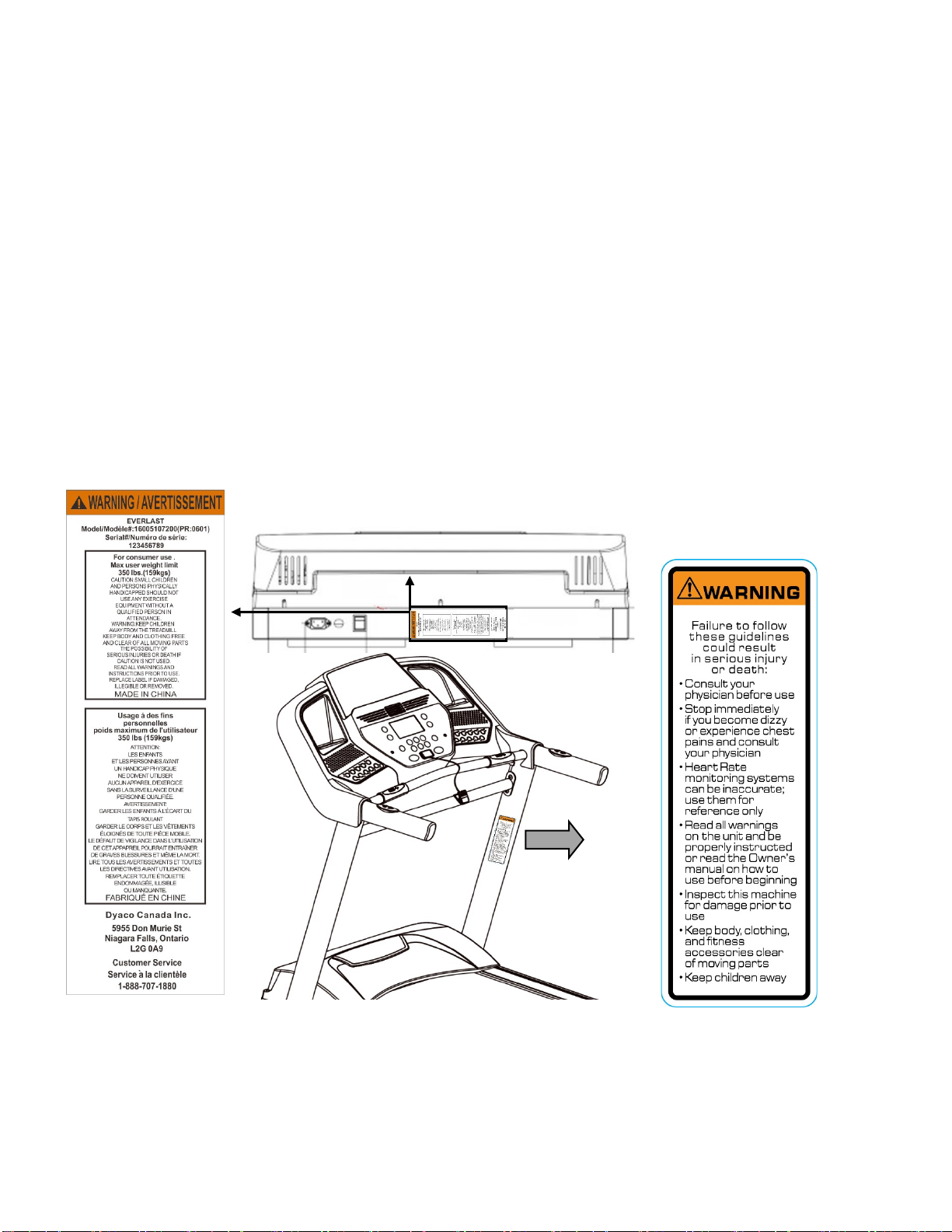

Serial Number Decal
The decals shown have been placed on the treadmill. If a decal is missing or illegible,
please call our Customer Service Department, to order a free replacement decal.
(see ORDERING REPLACEMENT PARTS at page 2.). Apply the decal in the location
shown. Note: The decal shown at the right is 50% of actual size.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
7
HARDWARE PACKING
#103. M6 (66 × 86)
L Allen Wrench (1pc)
#102.Combination M5 Allen Wrench
& Phillips Head Screwdriver (1pc)
#80.Ø8 × 1.5m/m
Split Washer (4pcs)
#99.5/16" × UNC18 × 1/2"
Hex Head Bolt (8pcs)
#44. Safety Key (1pc)
#104.Lubricant (1pc)
#100.Ø8 × Ø18 × 1.5m/m
Flat Washer (8pcs)
#125.5/16" × UNC18 × 3/4"
Button Head Socket Bolt (8pcs)
#90. 13L Wrench (1pc)

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
8
ASSEMBLY INSTRUCTIONS
Step 1.
Remove the treadmill from the carton and lay it on a smooth level surface.
Step2.
Connect Computer Cable (Middle) (54) with Computer Cable (Lower) (55) then insert Right and
Left Uprights (4) and (5) into the Frame Base (2) and use 13m/m Wrench (90) to tighten 8 pcs
of 5/16" × UNC18 × 1/2"_ Hex Head Bolts (99) and 8pcs of Ø8 × Ø18 × 1.5T Flat Washers
(100). Tip: Avoid pinching wires.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
9

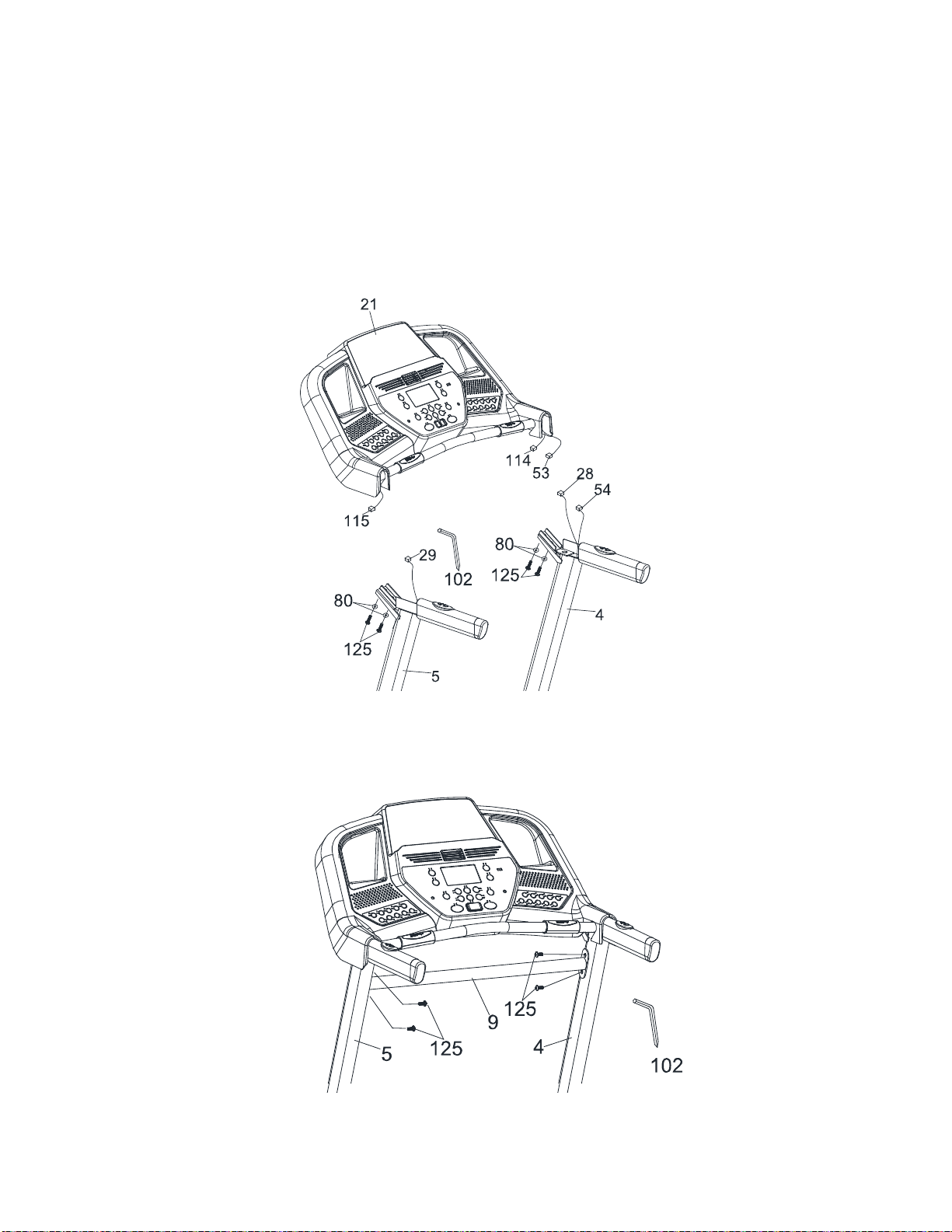

Step 3
1. Connect the Computer Cable (Middle) (54) to the Computer Cable (Upper) (53).
2. Connect the Speed Adjustment Switch W/Cable (Upper) (114) to the Speed/Hand Pulse
Complex (28).
3. Connect the Incline Adjustment Switch W/Cable (Upper) (115) to the Incline/Hand Pulse
Complex (29).
4. Insert the Console Assembly (21) into the right and left Uprights (4) and (5) and secure with 4
pcs of 5/16" × UNC18 × 3/4" Button Head Socket Bolts (125) with 4 pcs of Ø8 × 1.5T Split
Washers (80) by using the Combination M5 Allen Wrench & Phillips Head Screwdriver (102).
Tip: Avoid pinching wires.
Step 4.
Install the Handrail Support (9) between the left and right Uprights (5) and (4) and use the
Combination M5 Allen Wrench & Phillips Head Screwdriver (102) to tighten 4 pcs of 5/16" ×
UNC18 × 3/4" Button Head Socket Bolts (125).
Your unit is now fully assembled. Ensure all nuts and bolts are firmly tightened prior to use.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
10

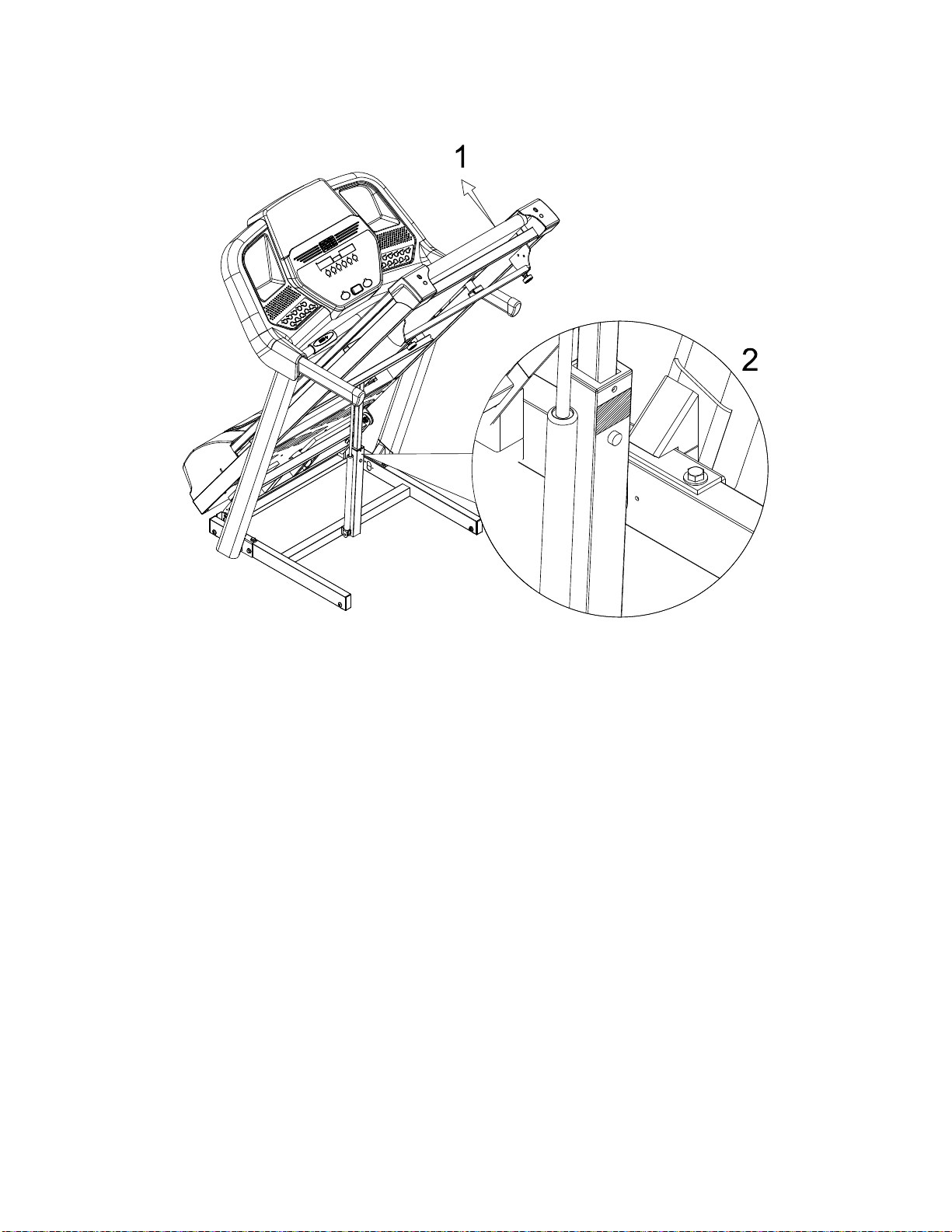

FOLDING INSTRUCTIONS
Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power
cord is secured to avoid possible damage. Use both handrails to maneuver the unit to the desired
position.
■TO FOLD THE TREADMILL
Lift the deck until the latch clicks in place.
■TO UNFOLD THE TREADMILL
Press the tube with your foot at the yellow sticker.
To release latch, see picture to the right.
Transportation
The treadmill is equipped with four transportation wheels. After folding simply roll the treadmill
away.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
11
TREADMILL OPERATION
Your treadmill features a walking belt coated with a lubricant. IMPORTANT: Never apply silicone
spray or other substances to the walking belt or walking board. Such substances will deteriorate
the walking belt and cause excessive wear.
How to plug in the power cord
GROUNDING INSTRUCTIONS.
This product must be grounded.
WARNING:
Improper connection of the equipment-grounding
conductor can result in a risk of an electric shock.
Check with a qualified electrician if you are in doubt as
to whether the product is properly grounded. Do not
modify the plug provided with the product if it will not
fit the outlet; have a proper outlet installed by a
qualified electrician. The use of an extension cord with
this product is not recommended. If an extension cord
is needed, use a short (less than 10 feet) heavy gauge
(14 gauge or better) extension cord with a three-prong
(grounded) plug and receptacle.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended power
cord.
1. Plug the indicated end of the power cord into
the socket of the treadmill. See drawing on the
right.
2. Plug the power cord into an appropriate outlet
that is properly installed and grounded. See
drawing on the right. IMPORTANT : The
treadmill is not compatible with GFCI-equipped
outlets.
Note: Your power cord and outlet may appear different.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
12
OPERATION OF YOUR TREADMILL
GETTING STARTED:
CAUTION: Before operating the console, read the following precautions:
1. Do not stand on the walking belt when turning on the treadmill.
2. Always wear the safety key. Pulling the safety key will stop treadbelt movement.
3. Adjust the speed in small increments to avoid sudden jumps in speed.
4. To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the
console and place only sealed water bottles in the water bottle holders.
5. Do not use excessive pressure on console control keys. They are precision set to function
properly with little finger pressure. Pushing harder is not going to make the unit go faster or
slower.
6. Understand that changes in speed and incline do not occur immediately. Set your
desired speed on the computer console and release the adjustment key. The computer
will obey the command gradually.
LUBE MESSAGE
When "Lube" appears on the LCD check lubrication under walking belt. (Use a total of 90 hours.)
After application hold PROGRAM for 3 seconds to reset the message.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
13
TO OPERATE TREADMILL
CAUTION: To avoid injury, hold onto the handrails while mounting and dismounting the
treadmill. Hold onto the handrails and place feet on side rails before starting. Step onto the walking
belt only at the slowest speed. Always hold on to a handrail or hand bar while making control
changes (incline, speed, etc.). Before operating the console, make sure that the power cord is
properly plugged in and the on/off button is on. Attach the magnet or prong end of the safety key
onto the monitor and attach the clip end of the safety key to your clothing (i.e., waistband). If you
should slip or fall while exercising, the safety key will pull out of the console, shutting off the
treadmill.
Getting started:
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch
located at the front of the treadmill below the motor hood.

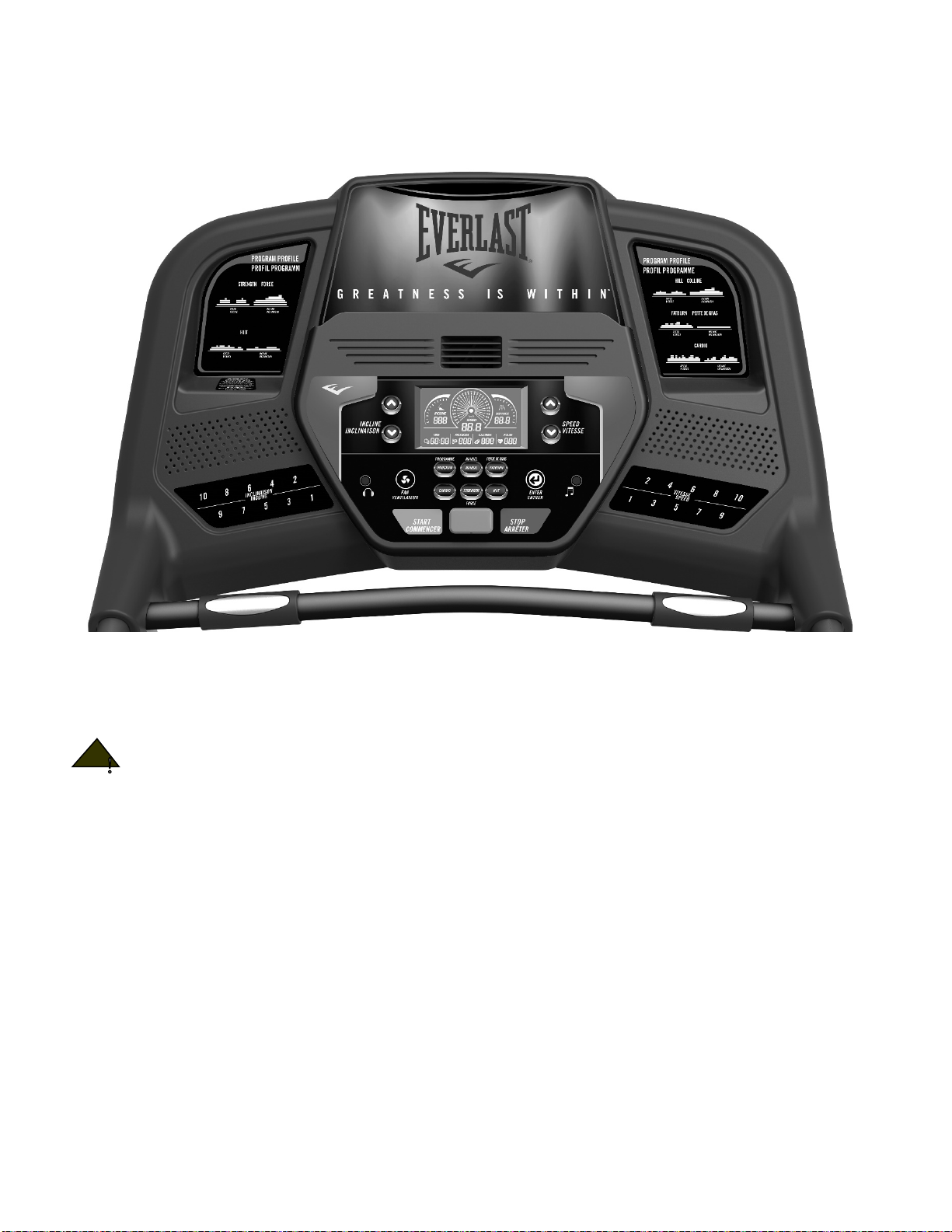

WINDOW DISPLAY
Speed: Displays the current speed from starting at 0.5 mph to 12.0 mph.
Time: Displays your elapsed workout time in minutes up to 99:59.
Counts down from your preset target time to 0:00 during your workout.
Distance: Displays the distance traveled in miles.
Calories: Displays the cumulative calories burned at any given time during your workout.
Note: This is a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
Pulse: Displays the user's current heart rate in beats per minute during the workout. To
display your heart rate, you must hold both handrails.
Note: This is a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
Incline: Displays the incline level during your workout from 0 to 12.
Program: Displays the program selected, between Manual, P1-P24, Fatburn-P9, Cardio-P12,
Hill-P14, Strength-P17, HIIT-P22, HR1, HR2, User1 or User2
Fan: The fan is used to cool you down during your workout.
Audio System: There is an Audio Input Jack on the front of the console and built-in speakers. You
may plug any low-level audio source signal into this port.Audio sources include
MP3 player, iPod, portable radio, CD player or even a TV or computer.
The exercise equipment is configured with Bluetooth wireless music receive function, using a
mobile phone or tablet to open the Bluetooth device, search for the name "BT-Speaker" Bluetooth,
click on the connection can transmit the phone or tablet music to the exercise equipment.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
14
BUTTON FUNCTION
SPEED ▲(FAST)：Pressing this button increases the speed by 0.1 mph. Press and hold this
button for 3 seconds to increase speed rapidly. Press this button during setting the program to
adjust the value (to increase).
SPEED ▼(SLOW)：Pressing this button decreases the speed by 0.1 mph. Press and hold this
button for 3 seconds to decrease speed rapidly. Press this button during setting the program to
adjust the value (to decrease).
INCLINE ▲(UP)：Pressing this button increases the incline level by 1. Press and hold this button
for 3 seconds to increase the incline level rapidly. Press this button during setting the program to
adjust the value (to increase).
INCLINE ▼(DOWN)：Pressing this button decreases the incline level by 1. Press and hold this
button for 3 seconds to decrease the incline level rapidly. Press this button during setting the
program to adjust the value (to decrease).
ENTER: Press this button to set Time, Distance, Calorie, and other functions for program setting.
PROGRAM: Press to select one of the preset programs: MANUAL, P1-P24, FATBURN- P9,
CARDIO- P12, HILL-P14, STRENGTH- P17, HIIT- P22, USER1-USER2 or HR1-HR2
START: Press this button to start the treadmill at 0.5 mph start speed.
STOP: Press key once during training mode and the treadmill will enter pause mode, slowing
down to a complete stop. Incline will also return to starting position while in pause mode. Press
start key again to resume training, resuming all set values (speed and incline) prior to entering
pause mode.
FAN: Press this button to turn on the fan.
QUICK SPEED & INCLINE BUTTONS
Speed shortcut key 1-10：Press one of the buttons to set the speed rapidly.
Incline shortcut key 1-10: Press one of the buttons to set the incline rapidly.
BLUETOOTH
The EV720 Treadmill is equipped with Bluetooth technology that will allow the user to pair 3rd party
exercise apps with your machine. Open desired app, then search for your treadmill to successfully
pair and begin workout.
Connect treadmill speakers to your device via Bluetooth. Within Bluetooth settings on your device,
search for ‘EV720’ to pair.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
15
TREADMILL OPERATION
QUICKSTART:
After the treadmill is powered on and the safety key is in place, simply press the START key. The
treadmill will start at the minimum speed of 0.5 mph, the time will count up from zero, and all data will
begin to accrue. You can adjust the speed manually by pressing the Fast and Slow buttons, and you
can adjust the Incline with the Up and Down buttons.
PROGRAMS
STEP 1: Press Program button to scroll through from Manual preset programs. Press Enter to select
the program you desire.
STEP 2: Preset time for programs is 30 minutes. Press the SPEED ▲ / ▼ button to modify the time
value.
STEP 3 Press START button to begin your workout.
STEP 4: During the program, you can adjust the SPEED and INCLINE by pressing "SPEED ▲ / ▼
button and INCLINE ▲/▼button or use rapid keys to jump directly to a setting.
STEP 5: Press "STOP" button to stop your workout or pull safety key away from its position to shut
down the computer.
USER PROGRAMS
STEP 1: Press Program button to scroll to USER 1 or USER 2 press Enter.
STEP 2: Use the SPEED ▲ / ▼ button to adjust the time up from 30 minutes (if desired). Press
the Enter key.
STEP 3: Press the SPEED ▲ / button to adjust the speed level to your desired effort and press
the INCLINE ▲/ ▼button to adjust the incline level to your desired effort hen press Enter.
Repeat the above process until all 20 segments have been programmed.
STEP 4: Press the Start button to begin the workout.
TARGET HRC1 HRC2
STEP 1: Press Program button to scroll to HR1 (preset value (220-age*60%)) and HR2.
(preset value (220 – age) *80%)), press Enter
HRC1 adjust the speed to keep the heart rate at the target value.
HRC2 adjust the incline to keep the heart rate at the target value.
STEP 2: Press SPEED ▲ / ▼ button to adjust the age and press enter.
STEP 3: Press SPEED ▲ / ▼ button to adjust target Heart Rate, then press ENTER
button to proceed to the next step.
STEP 4: The preset value of time is 30:00, and the range is from 5:00 to 99:00. Press
SPEED ▲ / ▼ button to modify.
STEP 5: Press START to execute your program.
STEP 6: Press "STOP" button to stop your workout or pull safety key away from its position to
shut down the computer.
Note: Hand pulse sensor to be used. If no heart rate detected the program will stop.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
16
When the heart rate is lower than the target, incline or speed will increase to increase the level of
workout raising the heart rate. When heart rate reaches the target, no changes will be made.
When the heart rate is higher than the target, incline or speed will decrease to lower heart rate.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
17

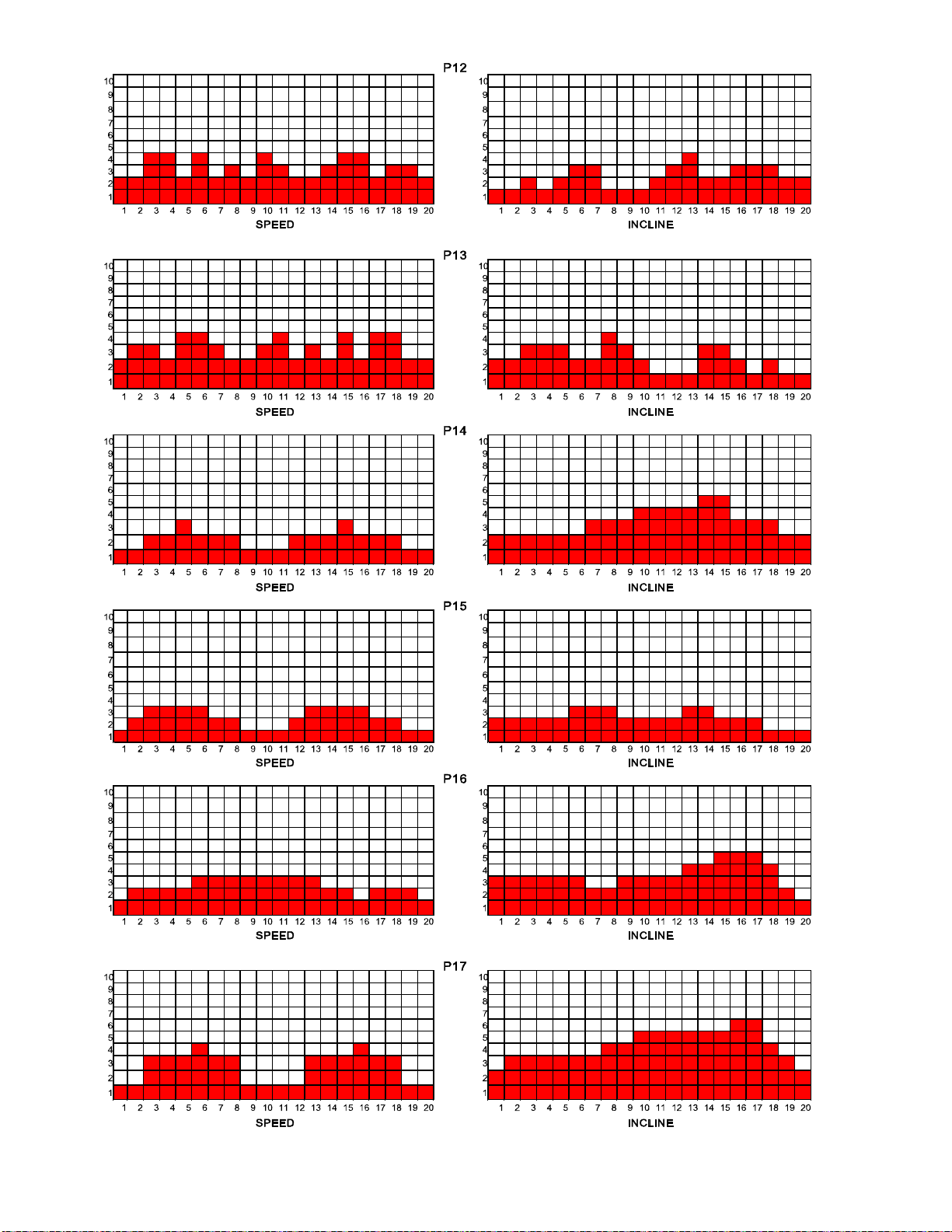

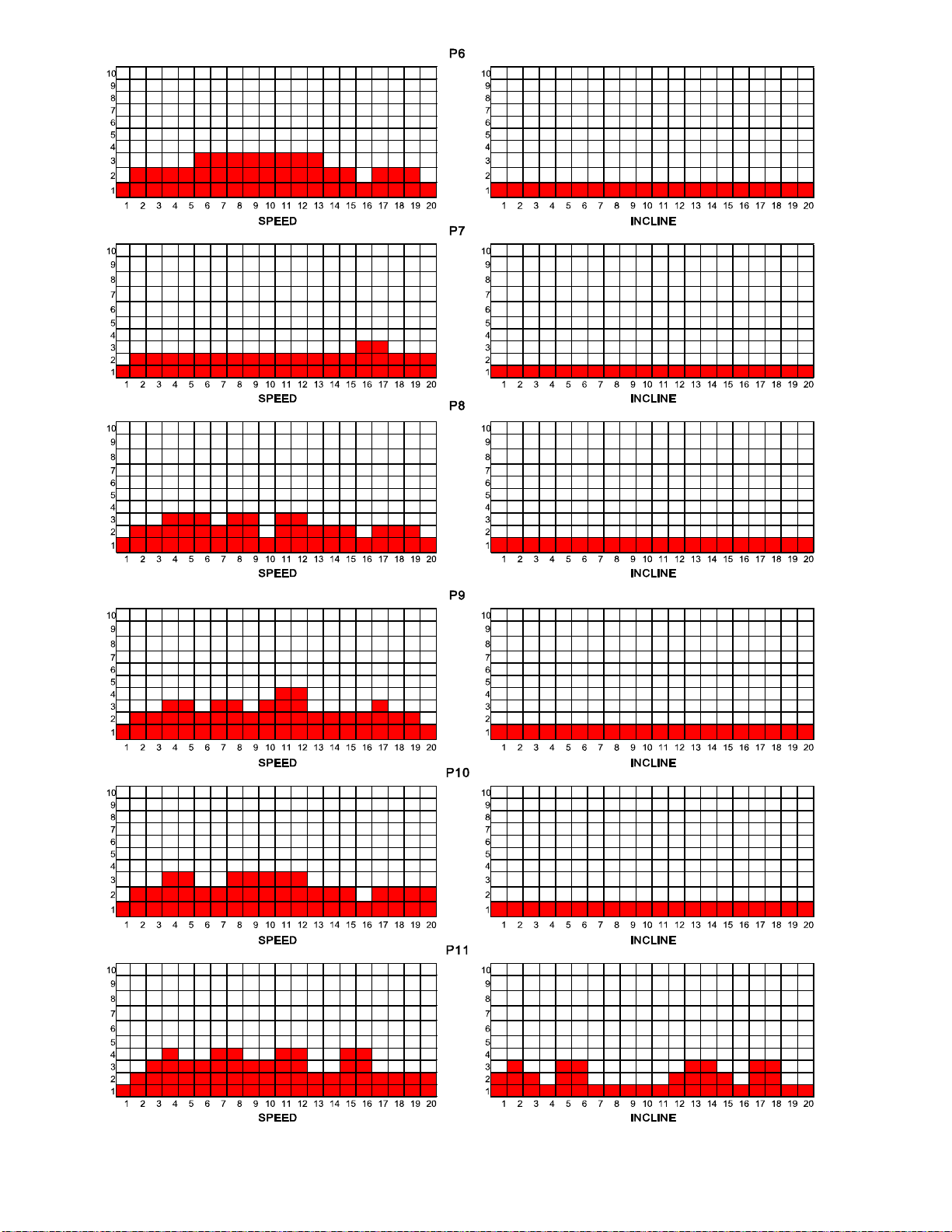

PRESET PROGRAMS
The treadmill has 24 different programs that have been designed for a variety of workouts.
These 24 programs have factory preset work level profiles for achieving different goals.

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
18

Customer Service 1-888-707-
1880 Dyaco Canada Inc. 2021
Email: [e-mail]
19
