Exile XM12.1 User manual

AMPLIFIER
Owner’s Manual
Models:
XM12.1
XM15.4
XM30.2
JAVELIN

© 2013 Exile Audio • www.exileaudio.com Amplifier Manual
SPECIFICATIONS Multichannel
Amplier Class Class D
Frequency Response: 30 - 200Hz
Total Harmonic Distortion <0.5%
Signal to Noise Ratio: 92dB
Gain Range 0.2 - 6V
Low Pass Crossover Range 50 - 250Hz
Subsonic Crossover Range 15 - 250Hz
Bass Boost @ 45Hz: 0 to +18dB
Operational Efciency > 85%
Remote Bass Control Yes
Damping Factor: > 200
CEA-2006 Compliant Yes
SPECIFICATIONS Monoblock
Amplier Class Class D
Frequency Response: 30 - 200Hz
Total Harmonic Distortion < 0.5%
Signal to Noise Ratio: 92dB
Gain Range 0.2 - 6V
Low Pass Crossover Range 50 - 250Hz
Subsonic Crossover Range 15 - 250Hz
Bass Boost @ 45Hz: 0 to +18dB
Operational Efciency > 85%
Remote Bass Control Yes
Damping Factor: > 200
CEA-2006 Compliant Yes
XM12.1
Channels 1
Into 1 ohm 1200w x 1
Into 2 ohm 880w x 1
Fuse Size: 40A x 3
Power/Ground Wire Size: 4 Gauge
Dimensions: 15.0in L x 7.5in W x 2.3in H
XM15.4
Channels 4
Into 4 ohm 150w x 4
Into 2 ohm 225w x 4
In to 4 ohm Bridged 450w x 2
Fuse Size 40Ax2
Power/Ground Wire Size 4 AWG
Dimensions 12.7in L x7.5in W x 2.3in H
XM30.2
Channels 2
Into 4 ohm 300w x 2
Into 2 ohm 420w x 2
In to 4 ohm Bridged 840w x 1
Fuse Size 40Ax2
Power/Ground Wire Size 4 AWG
Dimensions 10.8in L x 7.5in W x 2.3in H
JAVELIN
Channels 5
Into 4 ohm 80w x 4
Into 2 ohm 120w x 4
In to 4 ohm Bridged 240w x 2
Into 2 ohm (Sub CH) 800w x 1
Into 4 ohm (Sub CH) 500w x 1
Fuse Size 40Ax3
Power/Ground Wire Size 4 AWG
Dimensions 15.0in L x 7.5in W x 2.3in H
Power Amplier XM SERIES
All amplifer power specications listed
are CEA-2006 compliant and have
been rated accordingly.
Ampliers were tested at 14.4V with
a 4 ohm load and ≤ 1% THD+N

© 2013 Exile Audio • www.exileaudio.com Amplifier Manual
JAVELIN 5 Channel Power Amplier
OUTPUT
Connect preamp signal cables from the head unit to
these terminals.
FRONT AND REAR
Connect preamp signal cables from the head unit to
these terminals.
GAIN
Used to reach maximum amplier power with a wide
variety of headunits.
HPF
Controls the high pass crossover point for the
speaker outputs.
LPF
Controls the low pass crossover point for the
speaker outputs.
BASS BOOST
Variable bass boost from 0 to +18dB @ 45 Hz.
SUB INPUT
Switch to Front if using the FRONT input.
Switch to Sub if using the SUB input.
SUB
Connect subwoofer preamp signal cables from the head unit to
this terminal.
REMOTE
This port is for connecting the optional remote level control
(XMRB1). This allows up to 20dB of volume adjustment. This is
not a bass boost, it controls the level of the low pass signal.
POWER/PROTECT
Indicates if the amplier is working correctly (BLUE) or gone into
protect mode (RED).
SPEAKER OUTPUTS
Used to connect the amplier to the speakers. Use the
left channel positive (+) and the right channel negative (-) for
bridged mode.
12V+
This must be connected to the fused positive terminal (+12V) of
the car’s battery.
REMOTE
This must be connected to switched +12V, usually a trigger wire
coming from the head unit or ignition.
GND
This must be connected to the negative terminal of the car’s
battery or bolted to a clean, unpainted part of the chassis of
the vehicle.

© 2013 Exile Audio • www.exileaudio.com Amplifier Manual
2 Channel Power Amplier XM30.2
OUTPUT
Connect preamp signal cables from the head unit to
these terminals.
INPUT
Connect preamp signal cables from the head unit to
this terminal.
HPF
Controls the high pass crossover point for the
speaker outputs.
XOVER
HF - Sends high frequency signal to speakers.
FULL - Sends a full range signal to speakers.
LF - Sends low frequency signal to subwoofer.
LPF
Controls the low pass crossover point for the
speaker outputs.
BASS BOOST
Variable bass boost from 0 to +18dB @ 45 Hz.
GAIN
Used to reach maximum amplier power with a wide
variety of headunits.
POWER/PROTECT
Indicates if the amplier is working correctly (BLUE) or gone into
protect mode (RED).
SPEAKER OUTPUTS
Used to connect the amplier to the speakers. Use the
left channel positive (+) and the right channel negative (-) for
bridged mode.
FUSE
This amplier requires two 40A fuses.
12V+
This must be connected to the fused positive terminal (+12V) of
the car’s battery.
REMOTE
This must be connected to switched +12V, usually a trigger wire
coming from the head unit or ignition.
GND
This must be connected to the negative terminal of the car’s
battery or bolted to a clean, unpainted part of the chassis of
the vehicle.
tower speakers
4ohm
2ohm
2ohm
Cabin
Amplifier Subwoofer Amplifier
Tower
Amplifier
cabin speakers
subwoofer
Stereo
Battery Starting
Battery
Perko
Battery
Selector
Switch
ANL Fuse
Holder
2
2
1
1
L R L R
R L
1/0 ga.
4 ga.
Ground
Distribution
Block
MANL Fused
Power
Distribution
Block
InputInput
Input:
Source Unit
ZLD
zoned line driver
Aux Input:
phone/
mp3 player
R L R L
L RL R
XMRB1 Bass Control
111
SWITCH
L R
Input

© 2013 Exile Audio • www.exileaudio.com Amplifier Manual

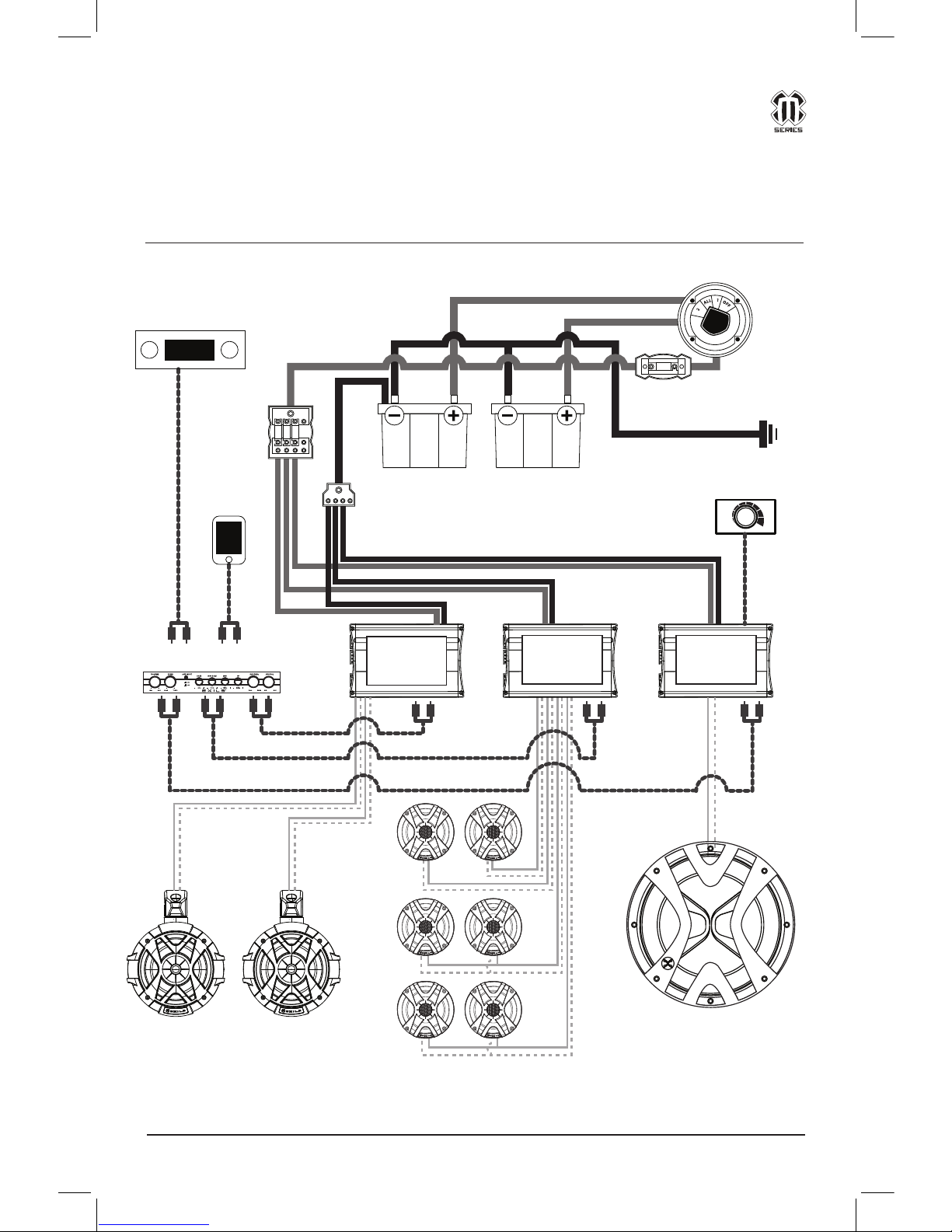

Marine Installation Guide POWERFLOW
XM SERIES Power Amplier
tower speakers
4ohm
2ohm
2ohm
Cabin
Amplifier Subwoofer Amplifier
Tower
Amplifier
cabin speakers
subwoofer
Stereo
Battery Starting Battery
Perko
Battery
Selector
Switch
ANL Fuse
Holder
2
2
1
1
L R L R
R L
1/0 ga.
4 ga.
Ground
Distribution
Block
MANL Fused
Power
Distribution
Block
InputInput
Input:
Source Unit
ZLD
zoned line driver
Aux Input:
phone/
mp3 player
R L R L
L RL R
XMRB1 Bass Control
111
SWITCH
L R
Input

© 2013 Exile Audio • www.exileaudio.com

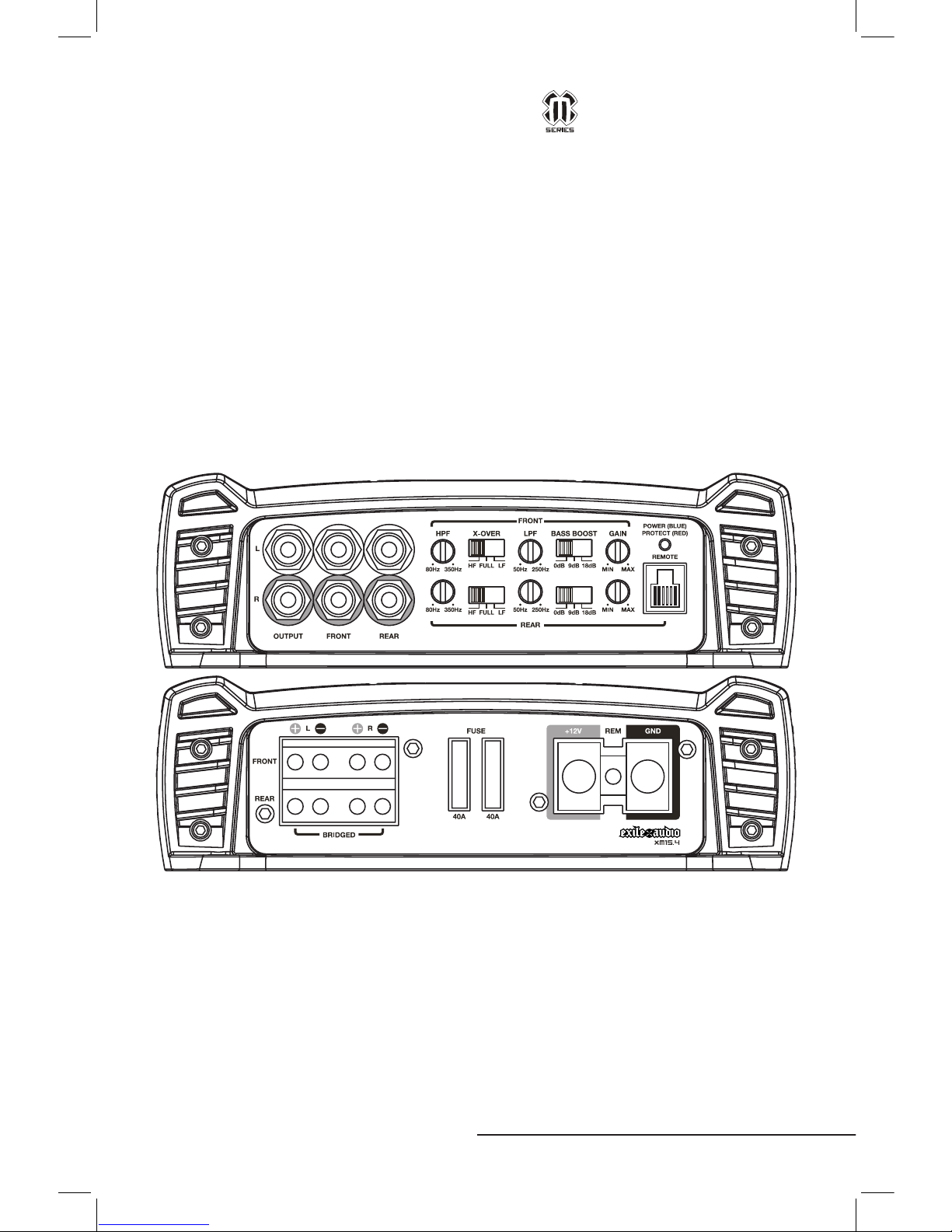

XM15.4 4 Channel Power Amplier
OUTPUT
Connect preamp signal cables from the head unit to
these terminals.
INPUT (FRONT AND REAR)
Connect preamp signal cables from the head unit to
these terminals.
HPF
Controls the high pass crossover point for the
speaker outputs.
XOVER
HF - Sends high frequency signal to speakers.
FULL - Sends a full range signal to speakers.
LF - Sends low frequency signal to subwoofer.
LPF
Controls the low pass crossover point for the
speaker outputs.
BASS BOOST
Variable bass boost from 0 to +18dB @ 45 Hz.
GAIN
Used to reach maximum amplier power with a wide
variety of headunits.
POWER/PROTECT
Indicates if the amplier is working correctly (BLUE) or gone into
protect mode (RED).
REMOTE
This port is for connecting the optional remote level control
(XMRB1). This allows up to 20dB of volume adjustment. This is
not a bass boost, it controls the level of the low pass signal.
SPEAKER OUTPUTS
Used to connect the amplier to the speakers. Use the
left channel positive (+) and the right channel negative (-) for
bridged mode.
FUSE
This amplier requires two 40A fuses.
12V+
This must be connected to the fused positive terminal (+12V) of
the car’s battery.
REMOTE
This must be connected to switched +12V, usually a trigger wire
coming from the head unit or ignition.
GND
This must be connected to the negative terminal of the car’s
battery or bolted to a clean, unpainted part of the chassis of
the vehicle.

© 2013 Exile Audio • www.exileaudio.com

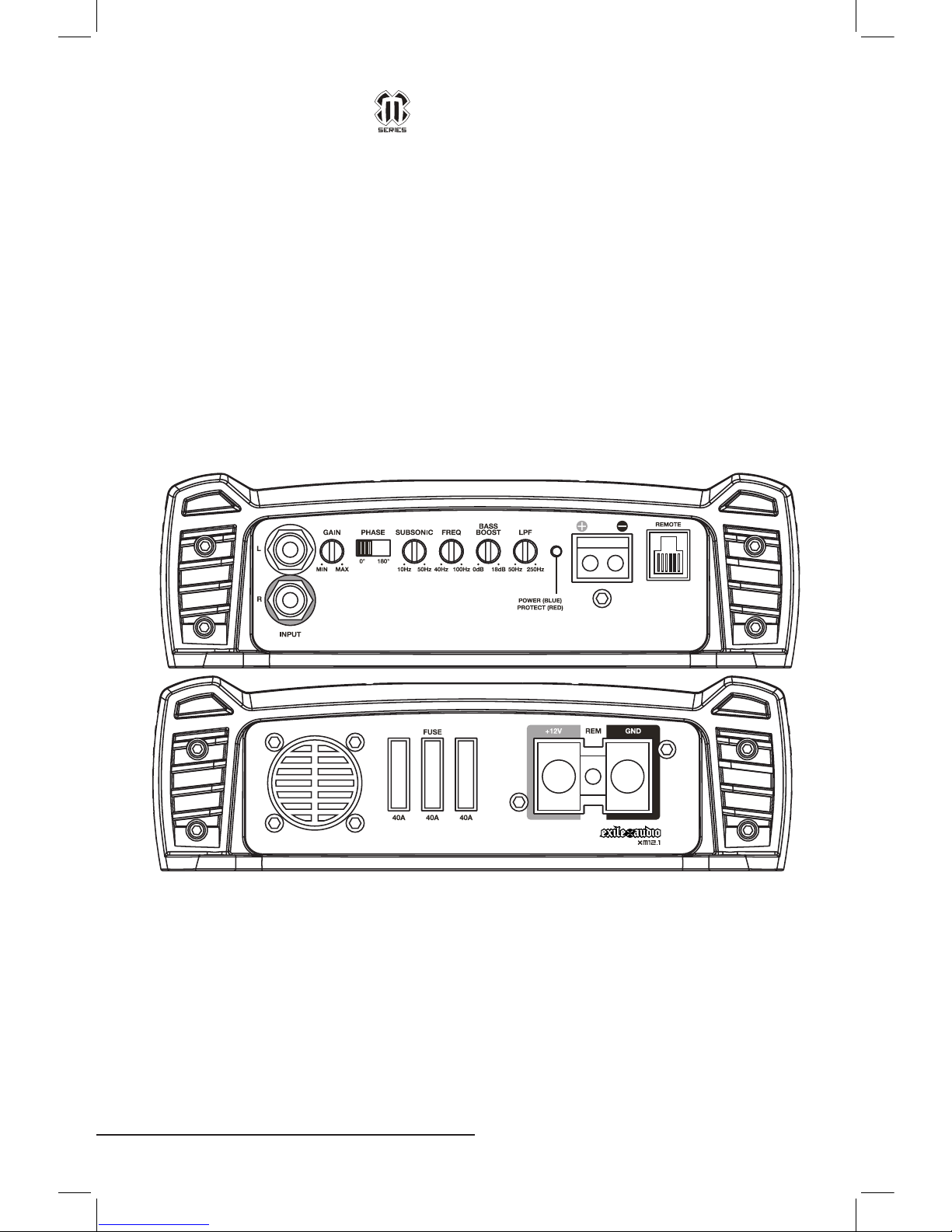

INPUT
Connect preamp signal cables from the head unit to
these terminals.
GAIN
Used to reach maximum amplier power with a wide
variety of headunits.
PHASE
Switches the output signal 180°.
SUBSONIC
Controls the highpass crossover point for the speaker outputs to
eliminate extreme low frequencies.
FREQ
Controls the lowpass crossover point for the
speaker outputs.
BASS BOOST
Variable bass boost from 0 to +12dB @ 45 Hz.
LPF
Variable bass boost from 0 to +12dB @ 45 Hz.
POWER/PROTECT
Indicates if the amplier is working correctly (BLUE) or gone into
protect mode (RED).
SPEAKER OUTPUTS
Used to connect the amplier to speakers. SM600.1 minimum
impedance of 2 ohm.
REMOTE
This port is for connecting the optional remote level control
(XMRB1). This allows up to 20dB of volume adjustment. This is
not a bass boost, it controls the level of the low pass signal.
FUSE
This amplier requires three 40A fuses.
12V+
This must be connected to the fused positive terminal (+12V) of
the car’s battery.
REMOTE
This must be connected to switched +12V, usually a trigger wire
coming from the head unit or ignition.
GND
This must be connected to the negative terminal of the car’s
battery or bolted to a clean, unpainted part of the chassis of the
vehicle.
Monoblock Power Amplier XM12.1

© 2013 Exile Audio • www.exileaudio.com Amplifier Manual
LIMITED WARRANTY
Exile warrants this product to be free from defects in material and workmanship under normal use for a period of one year from date of original purchase when
purchased from an Authorized Exile Dealer. If the product is labeled B Stock/Refurbished and purchased from an Authorized Exile Dealer, it is warranted for 90
days from date of purchase, regardless of place of installation. Should service be necessary under this warranty for any reason due to manufacturing defect
or malfunction during the warranty period, Exile will replace or repair (at its discretion) the defective merchandise with equivalent merchandise at no charge.
Warranty replacements on B-Stock merchandise may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current
equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any
applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at
retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties, therefore
these exclusions may not apply to you. This warranty gives you specic legal rights; however you may have other rights that vary from state to state. This
warranty is only valid within the USA, for warranties outside of the USA consult the appropriate international distributor.
PORTLAND, OR USA
WWW.EXILEAUDIO.COM
DESIGNED AND ENGINEERED IN THE USA
