Exile Xm15.1 User manual

AMPLIFIER

Owner’s Manual

Models:

XM15.1

XM15.4

XM30.2

JAVELIN

SPECIFICATIONS Multichannel

Amplier Class Class D

Frequency Response: 30 - 200Hz

Total Harmonic Distortion <0.5%

Signal to Noise Ratio: 92dB

Gain Range 0.2 - 6V

Low Pass Crossover Range 50 - 250Hz

Subsonic Crossover Range 15 - 250Hz

Bass Boost @ 45Hz: 0 to +18dB

Operational Eciency > 85%

Remote Bass Control Yes

Damping Factor: > 200

CEA-2006 Compliant Yes

SPECIFICATIONS Monoblock

Amplier Class Class D

Frequency Response: 30 - 200Hz

Total Harmonic Distortion < 0.5%

Signal to Noise Ratio: 92dB

Gain Range 0.2 - 6V

Low Pass Crossover Range 50 - 250Hz

Subsonic Crossover Range 15 - 250Hz

Bass Boost @ 45Hz: 0 to +18dB

Operational Eciency > 85%

Remote Bass Control Yes

Damping Factor: > 200

CEA-2006 Compliant Yes

XM15.4

Channels 4

Into 4 ohm 150w x 4

Into 2 ohm 225w x 4

In to 4 ohm Bridged 450w x 2

Fuse Size 40Ax2

Power/Ground Wire Size 4 AWG

Dimensions 12.7in L x7.5in W x 2.3in H

XM30.2

Channels 2

Into 4 ohm 300w x 2

Into 2 ohm 420w x 2

In to 4 ohm Bridged 840w x 1

Fuse Size 40Ax2

Power/Ground Wire Size 4 AWG

Dimensions 10.8in L x 7.5in W x 2.3in H

JAVELIN

Channels 5

Into 4 ohm 100w x 4

Into 2 ohm 150w x 4

In to 4 ohm Bridged 300w x 2

Into 2 ohm (Sub CH) 800w x 1

Into 4 ohm (Sub CH) 500w x 1

Fuse Size 40Ax3

Power/Ground Wire Size 4 AWG

Dimensions 15.0in L x 7.5in W x 2.3in H

Power Amplier XM SERIES

XM15.1

Channels 1

Into 1 ohm 1500w x 1

Into 2 ohm 1050w x 1

Fuse Size: N/A

Power/Ground Wire Size: 4 Gauge

Dimensions: 15.0 in L x 7.5in W x 2.3in H

JAVELIN 5 Channel Power Amplier

CONFIG

2 - Set to 2 when only 1 RCA input is available from the source.

This drives all three channels from either the Front, Rear

or Sub input on the amplier.

4 - Set to 4 when only 2 RCA inputs (Front/Rear) are availble

from the source.This drives the Front and Rear channels

from either the Front or Rear RCA input on the amplier,

and the Subwoofer channels from the Subwoofer RCA

input on the amplier.

6 - Set to 6 when 3 RCA inputs (Front/Rear/Sub) are available

from the source. All channels have their own specic input.

FRONT, REAR AND SUB INPUTS

Connect preamp signal cables from the head unit to

these terminals.

DIFF INPUT

Turn ON if your source unit has dierential outputs.

GAIN (FRONT, REAR AND SUB CHANNELS)

Used to reach maximum amplier power with a wide

variety of headunits.

HPF (FRONT AND REAR CHANNELS)

Controls the high pass crossover point for the

speaker outputs.

LPF (SUB CHANNEL)

Controls the low pass crossover point for the

speaker outputs.

BASS BOOST (SUB CHANNEL)

Variable bass boost from 0 to +18dB @ 45 Hz.

REMOTE

This port is for connecting the optional remote level control

(XMRB1). This allows up to 20dB of volume adjustment. This is

not a bass boost, it controls the level of the low pass signal.

POWER/PROTECT

Indicates if the amplier is working correctly (BLUE) or gone into

protect mode (RED).

SPEAKER OUTPUTS

Used to connect the amplier to the speakers. Use the

left channel positive (+) and the right channel negative (-) for

bridged mode.

12V+

This must be connected to the fused positive terminal (+12V) of

the car’s battery.

REMOTE

This must be connected to switched +12V, usually a trigger wire

coming from the head unit or ignition.

GND

This must be connected to the negative terminal of the car’s

battery or bolted to a clean, unpainted part of the chassis of

the vehicle.

2 Channel Power Amplier XM30.2

OUTPUT

Connect preamp signal cables from the head unit to

these terminals.

INPUT

Connect preamp signal cables from the head unit to

this terminal.

DIFF INPUT

Turn ON if your source unit has dierential outputs.

HPF

Controls the high pass crossover point for the

speaker outputs.

GAIN

Used to reach maximum amplier power with a wide

variety of headunits.

POWER/PROTECT

Indicates if the amplier is working correctly (BLUE) or gone into

protect mode (RED).

SPEAKER OUTPUTS

Used to connect the amplier to the speakers. Use the

left channel positive (+) and the right channel negative (-) for

bridged mode.

FUSE

This amplier requires two 40A fuses.

12V+

This must be connected to the fused positive terminal (+12V) of

the car’s battery.

REMOTE

This must be connected to switched +12V, usually a trigger wire

coming from the head unit or ignition.

GND

This must be connected to the negative terminal of the car’s

battery or bolted to a clean, unpainted part of the chassis of

the vehicle.

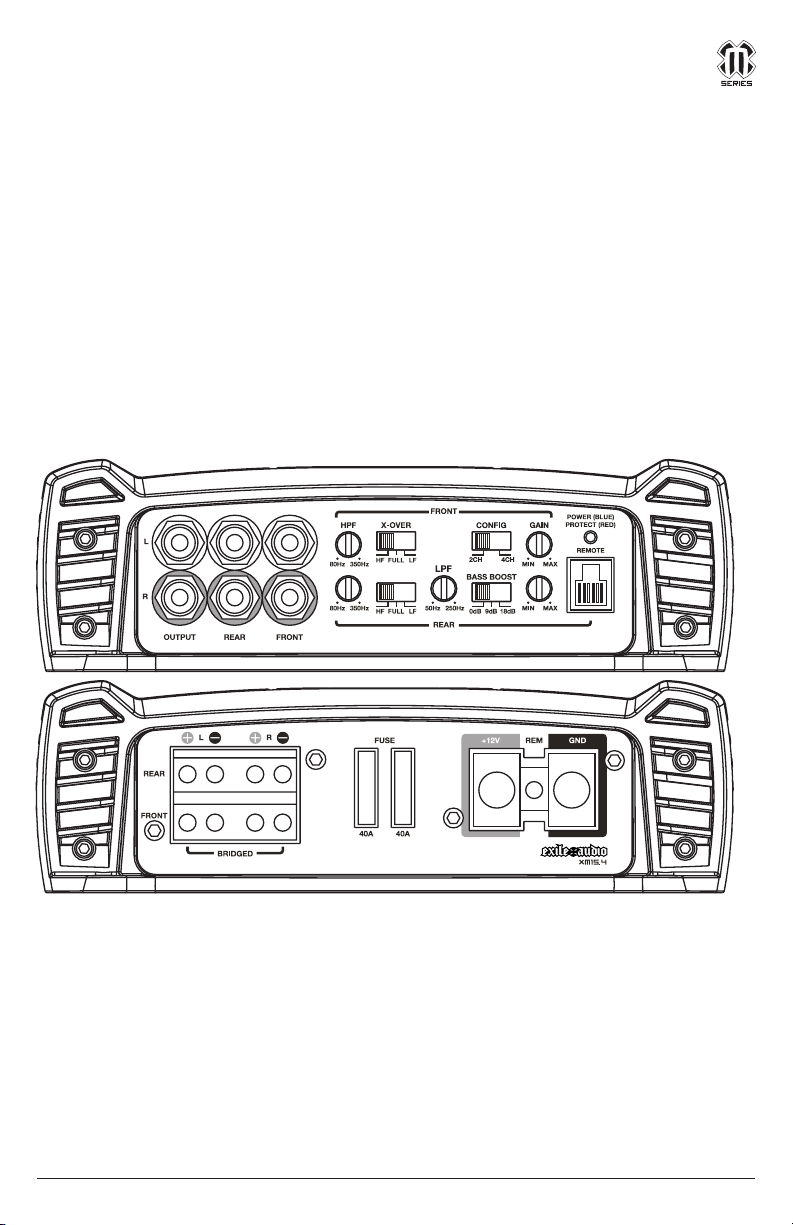

XM15.4 4 Channel Power Amplier

OUTPUT

Connect preamp signal cables from the head unit to

these terminals.

INPUT (FRONT AND REAR)

Connect preamp signal cables from the head unit to

these terminals.

HPF

Controls the high pass crossover point for the

speaker outputs.

XOVER

HF - Sends high frequency signal to speakers.

FULL - Sends a full range signal to speakers.

LF - Sends low frequency signal to subwoofer.

CONFIG

Switches the amplier from 4 Channel to 2 Channel

(Bridged) mode

LPF

Controls the low pass crossover point for the

speaker outputs.

BASS BOOST

Variable bass boost from 0 to +18dB @ 45 Hz.

GAIN

Used to reach maximum amplier power with a wide

variety of headunits.

POWER/PROTECT

Indicates if the amplier is working correctly (BLUE) or gone into

protect mode (RED).

REMOTE

This port is for connecting the optional remote level control

(XMRB1). This allows up to 20dB of volume adjustment. This is

not a bass boost, it controls the level of the low pass signal.

SPEAKER OUTPUTS

Used to connect the amplier to the speakers. Use the

left channel positive (+) and the right channel negative (-) for

bridged mode.

FUSE

This amplier requires two 40A fuses.

12V+

This must be connected to the fused positive terminal (+12V) of

the car’s battery.

REMOTE

This must be connected to switched +12V, usually a trigger wire

coming from the head unit or ignition.

GND

This must be connected to the negative terminal of the car’s

battery or bolted to a clean, unpainted part of the chassis of

the vehicle.

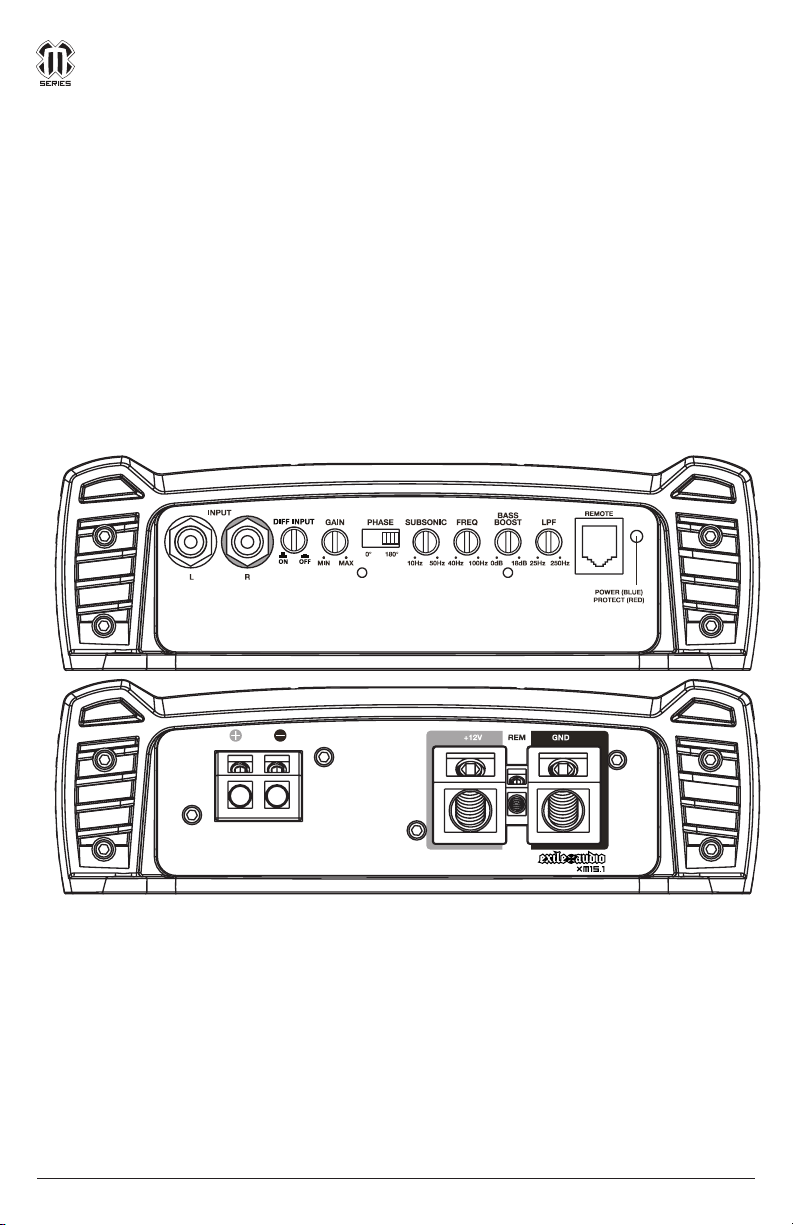

XM15.1 Monoblock Power Amplier

INPUT

Connect preamp signal cables from the head unit to

these terminals.

DIFF INPUT

Turn ON if your source unit has dierential outputs.

GAIN

Used to reach maximum amplier power with a wide

variety of headunits.

PHASE

Switches the output signal 180°.

SUBSONIC

Controls the highpass crossover point for the speaker outputs to

eliminate extreme low frequencies.

FREQ

Controls the lowpass crossover point for the

speaker outputs.

BASS BOOST

Variable bass boost from 0 to +18dB @ 45 Hz.

LPF

Low Pass Filter 25 to 250 Hz.

POWER/PROTECT

Indicates if the amplier is working correctly (BLUE) or gone into

protect mode (RED).

REMOTE

This port is for connecting the optional remote level control

(XMRB1). This allows up to 20dB of volume adjustment. This is

not a bass boost, it controls the level of the low pass signal.

SPEAKER OUTPUT

Used to connect the amplier to speakers.

12V+

This must be connected to the fused positive terminal (+12V) of

the car’s battery.

REMOTE

This must be connected to switched +12V, usually a trigger wire

coming from the head unit or ignition.

GND

This must be connected to the negative terminal of the car’s

battery or bolted to a clean, unpainted part of the chassis of the

vehicle.

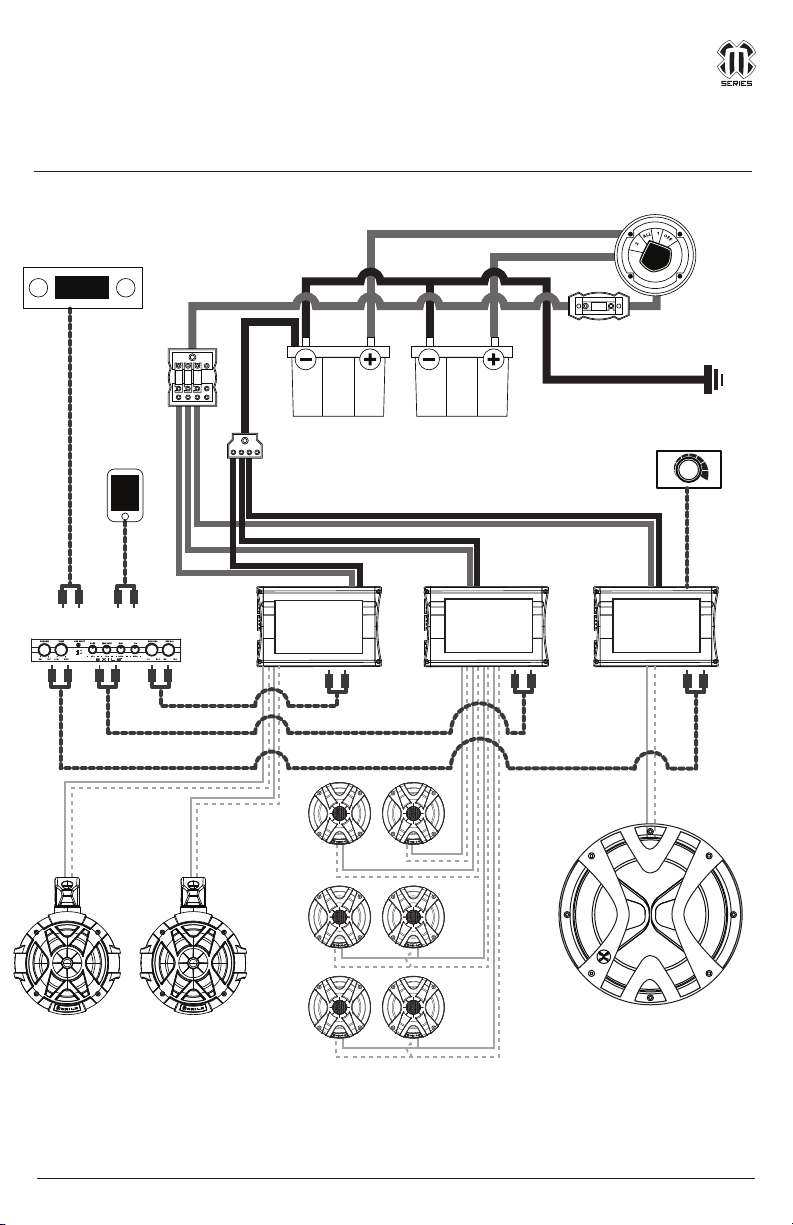

Marine Installation Guide POWERFLOW

Power Amplier XM SERIES

tower speakers

4ohm

2ohm

Cabin

Amplifier Subwoofer

Amplifier

Tower

Amplifier

cabin speakers

subwoofer

Stereo

Battery Starting

Battery

Perko

Battery

Selector

Switch

ANL Fuse

Holder

L R L R

R L

1/0 ga.

4 ga.

Ground

Distribution

Block

MANL Fused

Power

Distribution

Block

InputInput

Input:

Source Unit

ZLD

zoned line driver

Aux Input:

phone/

mp3 player

R L R L

L RL R

XMRB1 Bass Control

111

SWITCH

L R

Input

System Includes:

1 Javelin

4 pr. Tower Speakers

1 Subwoofer

4 gauge power and ground required.

Front Left

Subwoofer

Left

Channel

RCA

Right

Channel

RCA

Front Right

Rear Left Rear Right

120W @ 2ohms 120W @ 2ohms

120W @ 2ohms

800W @ 2ohms 120W @ 2ohms

TERMINAL SIDE

SIGNAL SIDE

Note: Recommended system settings are indicated by the arrows on the silkscreen shown above. The amplifier should come preset to

these positions. To get back to the recommended settings first turn the knob all the way counter clockwise, then turn it clockwise

untill you reach the arrow indicated for each knob.

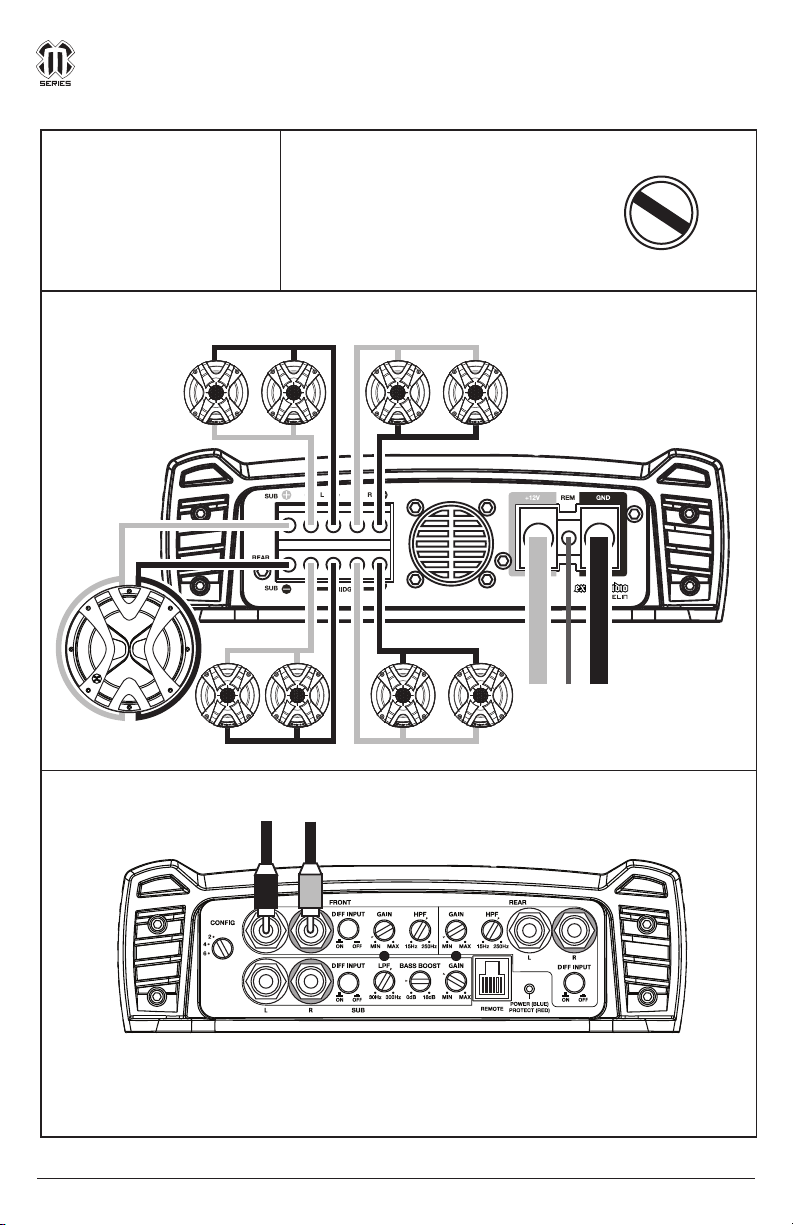

When you only have 1 set

of input RCA’s coming from

your source unit to the

Javelin amplier set the

Cong switch to “2”

Installation Diagrams Javelin

Javelin Installation Diagram

System Includes:

1 Javelin

4 pr. Tower Speakers

1 Subwoofer

4 gauge power and ground required.

Front Left

Subwoofer

Front Right

Rear Left Rear Right

120W @ 2ohms 120W @ 2ohms

120W @ 2ohms

800W @ 2ohms 120W @ 2ohms

TERMINAL SIDE

SIGNAL SIDE

Left

Channel

RCA

Right

Channel

RCA

Left Subwoofer

Channel RCA Right Subwoofer

Channel RCA

Note: Recommended system settings are indicated by the arrows

on the silkscreen shown above. The amplifier should come preset

to these positions. To get back to the recommended settings first

turn the knob all the way counter clockwise, then turn it clockwise

untill you reach the arrow indicated for each knob.

Remote

Bass Control

When you have 2 sets of

input RCA’s coming from

your source unit to the

Javelin amplier set the

Cong switch to “4”

Installation Diagrams Javelin

System Includes:

1 Javelin

4 pr. Tower Speakers

1 Subwoofer

4 gauge power and ground required.

Front Left

Subwoofer

Front Right

Rear Left Rear Right

120W @ 2ohms 120W @ 2ohms

120W @ 2ohms

800W @ 2ohms 120W @ 2ohms

TERMINAL SIDE

Front Left

Channel

RCA

Front Right

Channel

RCA

Rear Left

Channel

RCA

Rear Right

Channel

RCA

Left Subwoofer

Channel RCA Right Subwoofer

Channel RCA

Note: Recommended system settings are indicated by the arrows

on the silkscreen shown above. The amplifier should come preset

to these positions. To get back to the recommended settings first

turn the knob all the way counter clockwise, then turn it clockwise

untill you reach the arrow indicated for each knob.

Remote

Bass Control

SIGNAL SIDE

When you have 3 sets of

input RCA’s coming from

your source unit to the

Javelin amplier set the

Cong switch to “6”

LIMITED WARRANTY

Exile warrants this product to be free from defects in material and workmanship under normal use for a period of one year from date of original purchase when

purchased from an Authorized Exile Dealer. If the product is labeled B Stock/Refurbished and purchased from an Authorized Exile Dealer, it is warranted for 90

days from date of purchase, regardless of place of installation. Should service be necessary under this warranty for any reason due to manufacturing defect

or malfunction during the warranty period, Exile will replace or repair (at its discretion) the defective merchandise with equivalent merchandise at no charge.

Warranty replacements on B-Stock merchandise may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current

equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any

applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at

retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties, therefore

these exclusions may not apply to you. This warranty gives you specic legal rights; however you may have other rights that vary from state to state. This

warranty is only valid within the USA, for warranties outside of the USA consult the appropriate international distributor.

LAKE OSWEGO, OR USA

WWW.EXILEAUDIO.COM

DESIGNED AND ENGINEERED IN THE USA

V5 11/30/2017

This manual suits for next models

Table of contents

Other Exile Amplifier manuals
