Exor eTOP500 Glass Series User manual

eTOP500 Glass Series
Operating Instructions
User’s Manual for eTOP500 Glass Series Products
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A.

2
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
Copyright © 2015-2019 Exor International S.p.A. – Verona, Italy
Subject to change without notice
The information contained in this document is provided for informational purposes only. While efforts were made to verify the accuracy of the information
contained in this documentation, it is provided “as is” without warranty of any kind.
Third-party brands and names are the property of their respective owners.
www.exorint.com

3
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
Table of Contents
Introduction 4
1 Product Overview 6
2 Standards and Approvals 7
3 Technical Specications 9
4 Technical Data 11
4.1 Dimensions 13
4.2 Installation Environment 16
4.3 Safety instruction 17
4.4 Installation Procedure 17

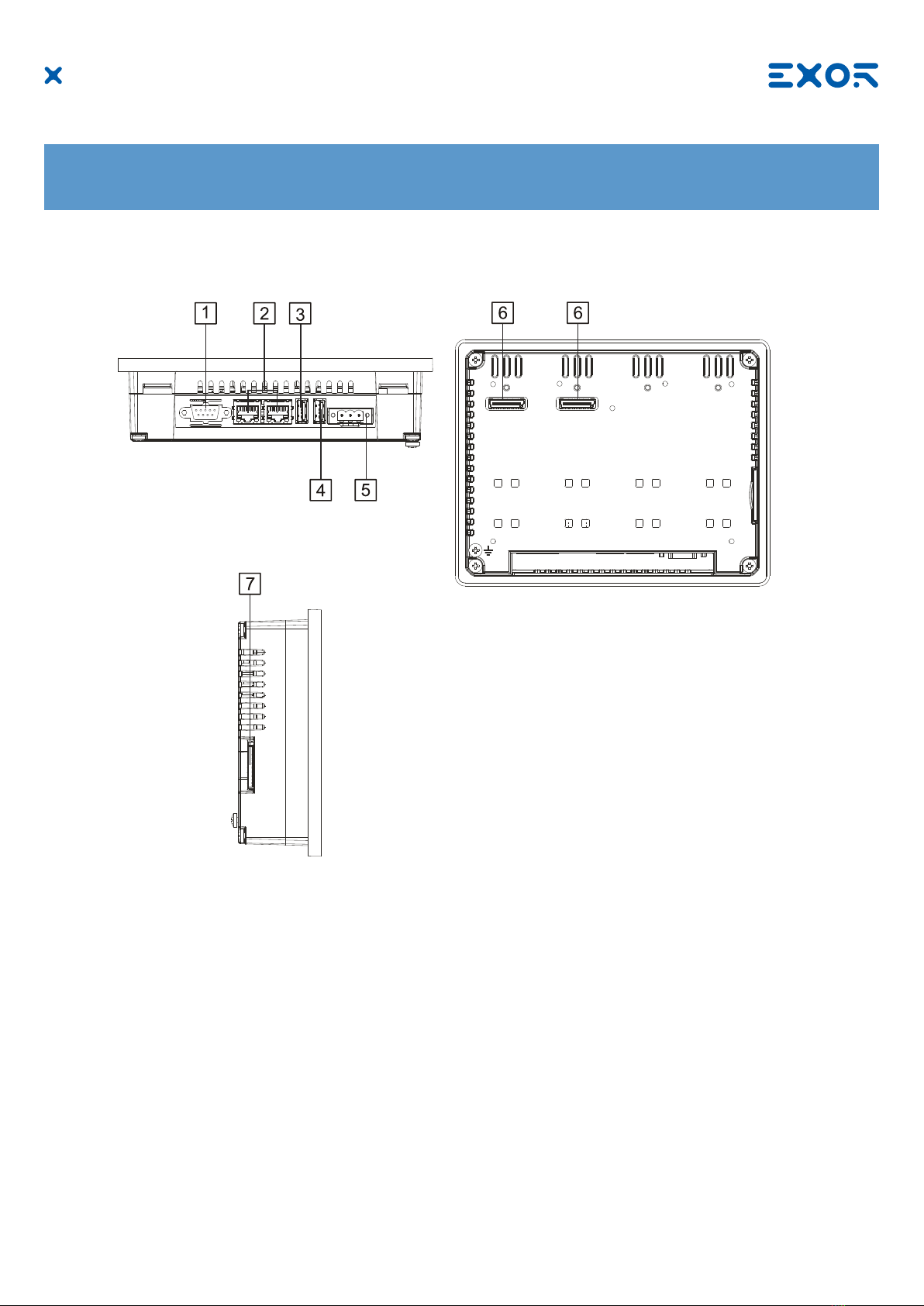

5 Connections 18
5.1 Serial Port 20
5.2 Ethernet Port 20
5.3 Optional plugin module 21
5.4 Optional plugin module identication 22
5.5 Optional plugin module installation procedure 23
6 Power Supply, Grounding and Shielding 25
7 Battery 26
8 Special Instruction for Use 27
9 Getting Started 27
10 System Settings 28
11 Unpacking and Packing Instructions 31

4
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
Introduction
The operational guidelines described below is information which relates to the device, installation, transpor-
tation, storage, assembly, use and maintenance.
This Operating Instruction describes the main features of the Exor operator panels. The Manual refers to the
following models:
eTOP507G Operator interface with TFT color 7” widescreen display touchscreen
eTOP507MG Operator interface with TFT color 7” widescreen display touchscreen, 1GHz CPU
eTOP510G Operator interface with TFT color 10.1” widescreen display touchscreen
eTOP515G Operator interface with TFT color 15” display touchscreen

5
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
Safety Guide
The manual contains safety standards that must be respected for the personal safety and to avoid damage.
Indications of attention are divided into three levels of severity:
DANGER: indicates a failure to observe safety rules and such failure may cause death or serious injuries.
ATTENTION: indicates a failure to observe safety rules and that deciency may cause damage.
CAUTION: indicates a failure to observe safety rules and that deciency may cause defects to the equipment
or inconsistencies.
CAUTION
ATTENTION
DANGER

!
!

6
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
1 Product Overview
The Exor eTOP Series 500 Glass HMI products combine state-of-the-art features and top performance with
an oustanding design. They are the ideal choice for all demanding HMI applications including factory energy
and marine applications.
The eTOP Series 500 Glass features a high-brightness, contrast-enhanced ruggedized TFT display with a
fully dimmable LED backlight. The product has been designed for use in harsh environments and outdoor
applications.Glass bonding assembly and anti-reflective (AR) glass surface treatment provide for superior
optical performance. The durable glass touchscreen requires the human touch, eliminating false activations,
and offers high reliability and durability; it will continue to work even surface is scratched or contaminated.
The eTOP Series 500 Glass HMI panels have been designed to run the JMobile software.
• Designed for use with JMobile HMI software.
• Full vector graphic support. Native support of SVG graphic objects. Trasparency and alpha blending.
• Full object dynamics: control visibility and transparency, move, resize, rotate any object on screen. Change
properties of basic and complex objects.
• TrueType fonts.
• Multilanguage applications. Easily create and manage your applications in multiple languages to meet global
requirements. Far East languages are supported. Tools available in JMobile Studio support easy third-party
translations and help reducing development and maintenance costs of the application.
• Data display in numerical, text, bargraph, analog gauges and graphic image formats.
• Rich set of state-of-the-art HMI features: data acquisition, alarm handling, scheduler and timed actions (daily
and weekly schedulers, exception dates), recipes, users and passwords, RSS feeds, rotating menus.
• Includes support for a wide range of communication drivers for Factory systems.
• Multiple drivers communication capability.
• Remote monitoring and control. Client-Server functionality.
• Remote maintenance and support with VNC-based functionality.
• On-line and Off-line simulation with JMobile Studio.
• Powerful scripting language for automating HMI applications. Script debugging improves efciency in
application development.
• Rich gallery of vector symbols and objects.
• Optional plug-in modules for eldbus systems, I/O and controllers.
• Display backlight dimmable to 0%.

7
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
The products have been designed for use in an industrial environment in compliance with the 2014/30/EU
EMC Directive.
The products have been designed in compliance with:
EN 61000-6-4 EN 55011 Class A
EN 61000-6-2 EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN60945
IECEx IECEx: IECEx ULD 16.0007X
IEC 60079-0, Ed.6 Ex nA IIC T4 Gc
IEC 60079-15, Ed.4 Ex tc IIIC T105°C Dc
IEC 60079-31, Ed.2
ATEX DEMKO 16 ATEX 1683X
EN 60079-0: 2012+A11:2013 II 3G Ex nA IIC T4 Gc
EN 60079-15: 2010 II 3D Ex tc IIIC T105°C Dc
EN 60079-31: 2014
The installation of these devices into the residential, commercial and light-industrial environments is allowed
only in the case that special in measures are taken in order to ensure conformity to EN 61000-6-3.
The products are in compliance with the Restrictions on Certain Hazardous Substances (RoHS) Directive
2011/65/EU
In compliance with the above regulations the products are CE marked.
2 Standards and Approvals

8
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
Product Identication
The product may be identied through a plate attached to the rear cover. You will have to know the type of
unit you are using for correct usage of the information contained in the guide.
An example of this plate is shown in the gure below:
Note: the eTOP507G label is used as an example for eTOP500 Glass Series
product model name eTOP507G
product part number ETOP507U5P1
year/week of production 1816
serial number AA00001L7000000561AA
version id of the product 041315A15011000
manufacturer address Exor International S.p.A.
Via Monte Fiorino 9
IT-37057 San Giovanni Lupatoto (VR)
ATEX Marking DEMKO 16 ATEX 1683X
II 3G Ex nA IIC T4 Gc
II 3D Ex tc IIIC T105°C Dc
IECEx Marking IECEx: IECEx ULD 16.0007X
Ex nA IIC T4 Gc
Ex tc IIIC T105°C Dc
2 Standards and Approvals

9
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
3 Technical Specications
Electromagnetic Compatibility (EMC)
Radiated disturbance test Class A EN 55011
EN 61000-4-2
Electrostatic discharge immunity test 8 kV (air electrostatic discharge) EN 61000-4-2
4 kV (contact electrostatic discharge)
Radiated, radio-frequency, 80 MHz ÷ 1 GHz, 10V/m EN 61000-4-3
electromagnetic eld immunity test 1,4 GHz ÷ 2 GHz, 3 V/m
2 GHz ÷ 2.7 GHz, 1 V/m
Burst immunity test ± 2 KV dc power port EN 61000-4-4
± 1 KV signal line
Surge immunity test ± 0,5 KV dc power port (line to earth) EN 61000-4-5
± 0,5 KV dc power port (line to line)
± 1 KV signal line (line to earth)
Immunity to conducted disturbances
inducted by radiofrequency eld 0.15 ÷ 80 MHz, 10V EN 61000-4-6
Environmental conditions
Operating temperature (surrounding -20 ÷ +60°C (vertical installation) EN 60068-2-14
air temperature) -20 ÷ +50°C (horizontal installation)
Plug-in modules and USB devices
may limit max temperature to +50°C
Storage temperature -40 ÷ +85°C EN 60068-2-14
Operating and storage humidity 5 ÷ 85 % RH not-condensing EN 60068-2-30
Vibrations 5 ÷ 9 Hz, 7 mm p-p EN 60068-2-6
9 ÷ 150 Hz, 1 g
Shock ± 50 g, 11 ms, 3 pulses per axis EN 60068-2-27
Protection class Front panel IP69, Rear IP20 EN 60529
Touchscreen technology Projected capacitive
Back-up battery 3V 50mAh Lithium, rechargeable, not user-replaceable,
model VL2330.
Fuse Automatic
Serial Port RS-232, RS-485, RS-422 software congurable
Flash 128MB for eTOP507G, 256MB for eTOP507MG, eTOP510G,
eTOP515G
RAM 256MB
Hardware clock Clock/Calendar with back-up battery
Accuracy RTC (at 25°C) <100ppm

10
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
Voltage dips, short interruptions and
voltage variations immunity test Port: AC mains; Level:
100% duration: 1 cycle and 250 cycles (50Hz);
1 cycle and 300 cycles (60Hz);
40% duration: 10 cycles (50Hz);
70% duration: 25 cycles (50Hz);
Phase: 0°-180°
Test executed on the 230Vac side of the Exor International S.p.A. Power Supply EN 61000-4-11
Durability information
Backlight service life 40000 Hrs. or more
(LED type) (Time of continuos operation until the brightness of the
backlight reaches 50% of the rated value when the
sorrounding air temperature is 25°C) - see Note 1
Note 1: Extended use in environments where the surrounding air temperature is 40°C or higher may degrade
backlight quality/reliability/durability.
3 Technical Specications

11
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
4 Technical Data
Model eTOP507G eTOP507MG
Display / Backlight TFT Color / LED TFT Color / LED
Colors 64K 64K
Resolution 800x480 800x480
Diagonal (inches) 7” widescreen 7” widescreen
Dimming yes yes
Flash 128MB 128MB
SD card slot yes yes
RAM 256MB 256MB
Serial Port RS-232,RS-485, RS-422
software congurable
RS-232,RS-485, RS-422
software congurable
Ethernet port 2 10/100Mb with integrated
switch
2 10/100Mb with integrated
switch
USB port 2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
Expansion slot 2 Optional Plugin 2 Optional Plugin
Battery rechargeable rechargeable
Real Time Clock yes yes
Voltage 24Vdc (*) 24Vdc (*)
Current rating (at
24VDC) 0.8A 0.9A
Weight 1 Kg 1 Kg
(*) 10-32Vdc
For applications requiring compliance with EN 61131-2 and specically in reference to 10 ms voltage dips, the
power supply range voltage is 18-32Vdc.

12
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
Model eTOP510G eTOP515G
Display / Backlight TFT Color / LED TFT Color / LED
Colors 64K 64K
Resolution 1280x800 1024x768
Diagonal (inches) 10.1” widescreen 15”
Dimming yes yes
Flash 256MB 256MB
SD card slot yes yes
RAM 256MB 256MB
Serial Port RS-232,RS-485, RS-422
software congurable
RS-232,RS-485, RS-422
software congurable
Ethernet port 2 10/100Mb with integrated
switch
2 10/100Mb with integrated
switch
USB port 2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
Expansion slot 2 Optional Plugin 2 Optional Plugin
Battery rechargeable rechargeable
Real Time Clock yes yes
Voltage 24Vdc (*) 24Vdc (*)
Current rating (at
24VDC) 1.00A 1.40A
Weight 1.7 Kg 4 Kg
(*) 10-32Vdc
For applications requiring compliance with EN 61131-2 and specically in reference to 10 ms voltage dips, the
power supply range voltage is 18-32Vdc.

13
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice

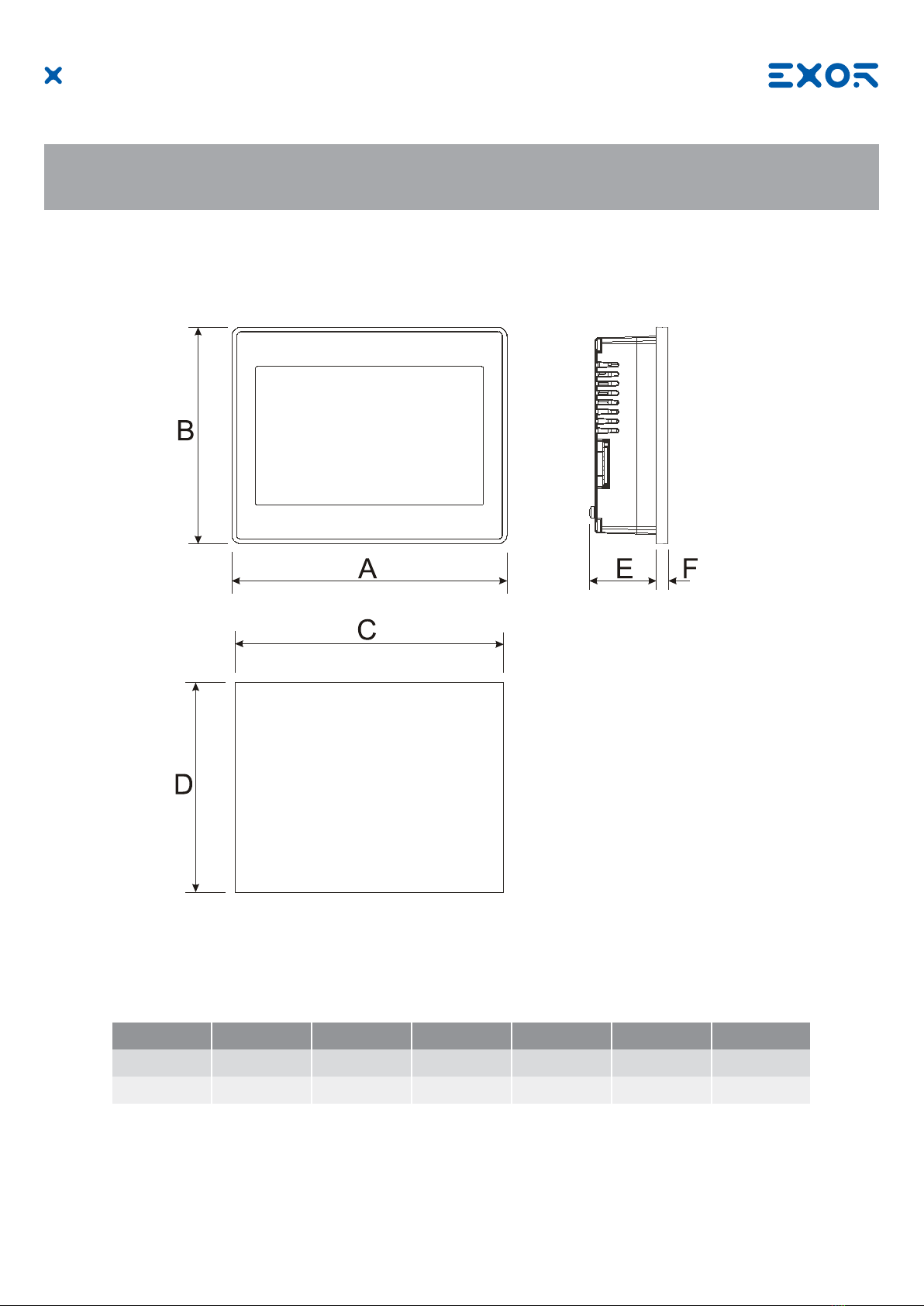

4.1 Dimensions
MODEL A B C D E F
eTOP507G 187mm/7.36” 147mm/5.79” 176mm/6.90” 136mm/5.35” 47mm/1.85” 8mm/0.31”
eTOP507MG 187mm/7.36” 147mm/5.79” 176mm/6.90” 136mm/5.35” 47mm/1.85” 8mm/0.31”
4 Technical Data
Cut out

14
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
MODEL A B C D E F
eTOP510G 282mm/11.10” 197mm/7.80” 271mm/10.67” 186mm/7.32” 56mm/2.20” 8mm/0.31”
4 Technical Data
Cut out

15
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
MODEL A B C D E F
eTOP515G 392mm/15.43” 307mm/12.08” 381mm/15” 296mm/11.65” 56mm/2.20” 8mm/0.31”
4 Technical Data
Cut out

16
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
4.2 Installation Environment
Avoid prolonged exposition to direct sunlight to avoid the risk of overheating the device.
The equipment is not intended for installation in contact with corrosive chemical compounds. Check the
resistance of the front panel to a specic compound before installation.
Do not use tools of any kind (screwdrivers, etc.) to operate the touch screen of the panel.
In order to meet the front panel protection classications, proper installation procedure must be followed:
•the borders of the cutout must be flat
• screw up each xing screw until the bezel corner get in contact with the panel.
•the cutout for the panel must be of the dimensions indicated in this manual.
The IP69 is guaranteed only if:
• max deviation from the plane surface to the cut-out: O0.5mm
• thickness of the case where is mounted the equipment: from 1,5mm to 6mm
•max surface roughness where the gasket is applied: O120 um
Applying the gasket
A. Gasket
B. Installation cut-out

17
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
4.4 Installation Procedure
Place the xing brackets contained in the xing kit as shown in gure
4.3 Safety instruction
For all installation notes, please refer to the Installation Guide provided with the product.
!
CAUTION
Tightening torque: 130Ncm or screw each xing screw until the bezel corner gets in contact with
the panel.


18
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
Fig. 5.1
eTOP507G, eTOP507MG
1. Serial Port
2. 2x Ethernet Port
3. USB Port (version 2.0 - 1.1)
4. USB Port (version 2.0 High speed only)
5. Power Supply
6. Expansion slot for Plugin module
7. SD Card Slot
5 Connections

19
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
1. Serial Port
2. 2x Ethernet Port
3. USB Port (version 2.0 - 1.1)
4. USB Port (version 2.0 High speed only)
5. Power Supply
6. 2x Expansion slot for Plugin module
7. SD Card Slot
Fig. 5.2
eTOP510G, eTOP515G
5 Connections

20
MANUGENETOP5xxG - Version 1.05
© 2015-2019 EXOR International S.p.A. - Subject to change without notice
The serial port is used to communicate with the PLC or with another type of controller.
Different electrical standards are available for the signals in the PLC port connector: RS-232, RS-422, RS-485.
The serial port is software programmable. Make sure you select the appropriate interface in the program-
ming software.
The communication cable must be chosen for the type of device being connected.
SERIAL PORT
To operate in RS-485 pins
3-4 and 7-8 must be con-
nected externally.
Pin Description
1 GND
2
3 CHA-
4 CHB-
5
6 +5V output
7 CHB+
8 CHA+
9
1 8
OFF: Valid link has NOT been detected
ON: Valid link has been detected
ON: No activity
BLINKING: Activity
The Ethernet port have two status indicators. Please see description in gure.
RS-232 RS-422, RS-485
5 Connections
5.1 Serial Port
5.2 Ethernet Port
Pin Description
1 GND
2
3 TX
4 RX
5
6 +5V output
7CTS
8RTS
9
