Explore One Aurora II User manual

AURORA II
88-20114
1
Flat Black 114mm Telescope w/
Slow Motion AZ Mount
Instruction Manual
Aurora II Telescope Specifications
Optical Design
Magnification
Front Lens (clear aperture)
Focal Length
Standard Eyepieces
Finish
Tripod
Newtonian Reflector
20-52x
114mm
500mm
Plossl 26mm & 9.7mm
Flat Black
Slow Motion Alt-Azimuth Mount
SUN HAZARD — Never look directly at the sun
with this device.
WARNING:
CHOKING HAZARD — Small parts.
Not for children under 3 years.
WARNING:
Contains button or coin cell battery.
Hazardous if swallowed — see instructions.
WARNING:
INCLUDED
X1
CR2032
3V
AGES
10
+

2
Customer Service: Call 1-866-252-3811
WARNING: NEVER ATTEMPT TO OBSERVE THE SUN WITH THIS DEVICE!
OBSERVING THE SUN – EVEN FOR A MOMENT – WILL CAUSE INSTANT AND
IRREVERSIBLE DAMAGE TO YOUR EYE OR EVEN BLINDNESS. Eye damage is often
painless, so there is no warning to the observer that the damage has occurred until it
is too late. Do not point the device at or near the Sun. Do not look through the device
as it is moving. Children should always have adult supervision while observing.
SUN WARNING
SAFETY WARNINGS
• RESPECT PRIVACY: WHEN
USING THIS DEVICE,
RESPECT THE PRIVACY
OF OTHER PEOPLE. FOR
EXAMPLE, DO NOT USE
THEM TO LOOK INTO
PEOPLE’S HOMES.
• CHOKING HAZARD:
CHILDREN SHOULD ONLY
USE DEVICE UNDER ADULT
SUPERVISION. KEEP
PACKAGING MATERIALS
LIKE PLASTIC BAGS AND
RUBBER BANDS OUT OF
THE REACH OF CHILDREN
AS THESE MATERIALS
POSE A CHOKING HAZARD.
• RISK OF BLINDNESS:
NEVER USE THIS DEVICE
TO LOOK DIRECTLY AT
THE SUN OR IN THE
DIRECT PROXIMITY OF
THE SUN. DOING SO MAY
RESULT IN A PERMANENT
LOSS OF VISION.
• RISK OF FIRE: DO
NOT PLACE DEVICE,
PARTICULARLY THE
LENSES, IN DIRECT
SUNLIGHT. THE
CONCENTRATION OF
LIGHT RAYS COULD
CAUSE A FIRE.
• DO NOT DISASSEMBLE
THIS DEVICE. IN THE
EVENT OF A DEFECT,
PLEASE CONTACT YOUR
DEALER. THE DEALER
WILL CONTACT THE
CUSTOMER SERVICE
DEPARTMENT AND
CAN SEND THE DEVICE
IN TO BE REPAIRED
IF NECESSARY.
• DO NOT SUBJECT
THE DEVICE TO
TEMPERATURES
EXCEEDING 60° C 140° F.
• DISPOSAL: KEEP
PACKAGING MATERIALS,
LIKE PLASTIC BAGS
AND RUBBER BANDS,
AWAY FROM CHILDREN
AS THEY A POSE A
RISK OF SUFFOCATION.
DISPOSE OF PACKAGING
MATERIALS AS LEGALLY
REQUIRED. CONSULT
THE LOCAL AUTHORITY
ON THE MATTER IF
NECESSARY AND
RECYCLE MATERIALS
WHEN POSSIBLE.
Read and follow the instructions, safety rules, and first aid information.
Instruction Manual, &
Downloadable Planisphere Visit:
www.exploreone.com/pages/product-manuals
BUTTON/COIN BATTERY WARNING
WARNING:
This product contains a Button or Coin Cell Battery. A swallowed
Button or Coin Cell Battery can cause internal chemical burns in as little
as two hours and lead to death. Dispose of used batteries immediately.
Keep new and used batteries away from children. If you think batteries
might have been swallowed or placed inside any part of the body, seek
immediate medical attention.

3
Parts Overview
1. 114mm Telescope Optics
2. Red Dot ViewFinder
3. Focuser
4. Flexible Shaft (Altitude Up and Down)
5. Flexible Shaft (Azimuth Left and Right)
6. 26mm & 9.7mm Plossl Eyepieces
7. Tripod
8. Tripod Accessory Tray
3
1
4
5
62
6
7
8
2

4
How To Set Up
Assembly:
Note: We recommend assembling your telescope for the first time in the daylight or in a lit room so that you can familiarize
yourself with assembly steps and all components.
1. General Information regarding Assembly, Positioning
Before beginning with the assembly, choose a suitable position for your telescope.
It will help if you assemble this apparatus at a spot from where you have a clear view of the sky, a sturdy
surface beneath you, and enough space.
Important: Tighten screws only as much as you can by hand - do not “over-tighten“ the screws.
2. Tripod
Take the three-legged tripod and set it vertically on the floor with the feet pointing downwards. Now take
two of the tripod legs and pull these legs carefully out away from each other, until they have reached
their fully opened position. During this time, the entire weight of the tripod rests on one leg. Finally, set
the tripod down on all legs, so that it stands straight.
Loosen the three locking clips on the tripod legs, pull each individual tripod leg out until it has reached
the desired length close up the locking clips and set the tripod down on a sturdy, even surface.
NOTE: A small water level on the accessory tray can help you position your tripod horizontally.
3. Mounting The Tray
The accessory tray must be positioned with its flat side down in the middle of the tripod leg brace, and
then must be mounted by turning it 60° in a clockwise direction.
The three projections on the tray plate must match up to the mounting brackets on the division bars
(and must snap into place. If necessary, you may push the tripod leg brace down-wards a little.
Now set the tube (and holder) onto the mount with the objective opening in the direction marked
(N-marking on the tripod head, north point and telescope figure on the mount). Then fasten the tube
holder with the clamping screw of the dovetail adapter on the mount head.
4. Inserting the Eyepiece
Two Plossl eyepieces 26 mm and 9.7 mm come with your telescope. With the eyepieces, you can control
the magnification of your telescope.
Before installing the eyepieces and the focuser, take the lens cap out of the eyepiece holder.
NOTE: Make sure the focuser is closest to the object which you are trying to view. If the focuser is not
closest to the object the telescope is facing backwards and the view will not of the ground and dark or
black.
5. Flexible shafts
In order to facilitate the exact fine adjustment of the declination- and right ascension shafts, the flexible
shafts have been placed on the holders of both these shafts, in the places designed for that purpose.
The long flexible shaft is mounted parallel to the telescope tube. It is secured with a clamp screw on the
designated indentation on the shaft.
The short flexible shaft is mounted sideways. It is secured with a clamp screw on the designated
indentation on the shaft. Your telescope is now ready for use.

5
Telescope Terms To Know:
Diagonal: A mirror that deflects the ray of light 90 degrees.
With a horizontal telescope tube, this device deflects the light upwards so
that you can comfortably observe by looking downwards into the eyepiece.
The image in a diagonal mirror appears upright, but rotated around its
vertical axis (mirror image).
Focal length: Everything that magnifies an object via an optic lens has a certain focal length. The focal
length is the length of the path the light travels from the surface of the lens to its focal point. The focal
point is also referred to as the focus. In focus, the image is clear. In the case of a telescope, the focal
length of the telescope tube and the eyepieces are used to determine magnification.
Lens: The lens turns the light that falls on it around in such a way so that the light gives a clear image in
the focal point after it has traveled a certain distance (focal length).
Eyepiece: An eyepiece is a system made for your eye and comprised of one or more lenses. In an
eyepiece, the clear image that is generated in the focal point of a lens is captured and magnified still
more.
Magnification: The magnification corresponds to the difference between observation with the naked
eye and observation through a magnifying device like a telescope. If a telescope configuration has a
magnification of 30x, then an object viewed through the telescope will appear 30 times larger than it
would with the naked eye. To calculate the magnification of your telescope setup, divide the focal length
of the telescope tube by the focal length of the eyepiece.
Using/Aligning the Red Dot Viewfinder:
The viewfinder is powered by a CR-2032
battery that is included. Before using the
viewfinder for the first time, remember to
remove the plastic insulator that is blocking
the battery from connecting.
When it is time to replace the battery,
remove the battery cap by loosening the set
screw. Take out the old battery and slide a
new battery in place with the positive side
showing. Replace the cap, and tighten the
set screw.
For The Viewfinder To Be
Effective, It Must Be Aligned. To
do this:
• Insert the 26 mm eyepiece into the
diagonal and power on the viewfinder by
sliding the switch on its right side to an
“On” position.

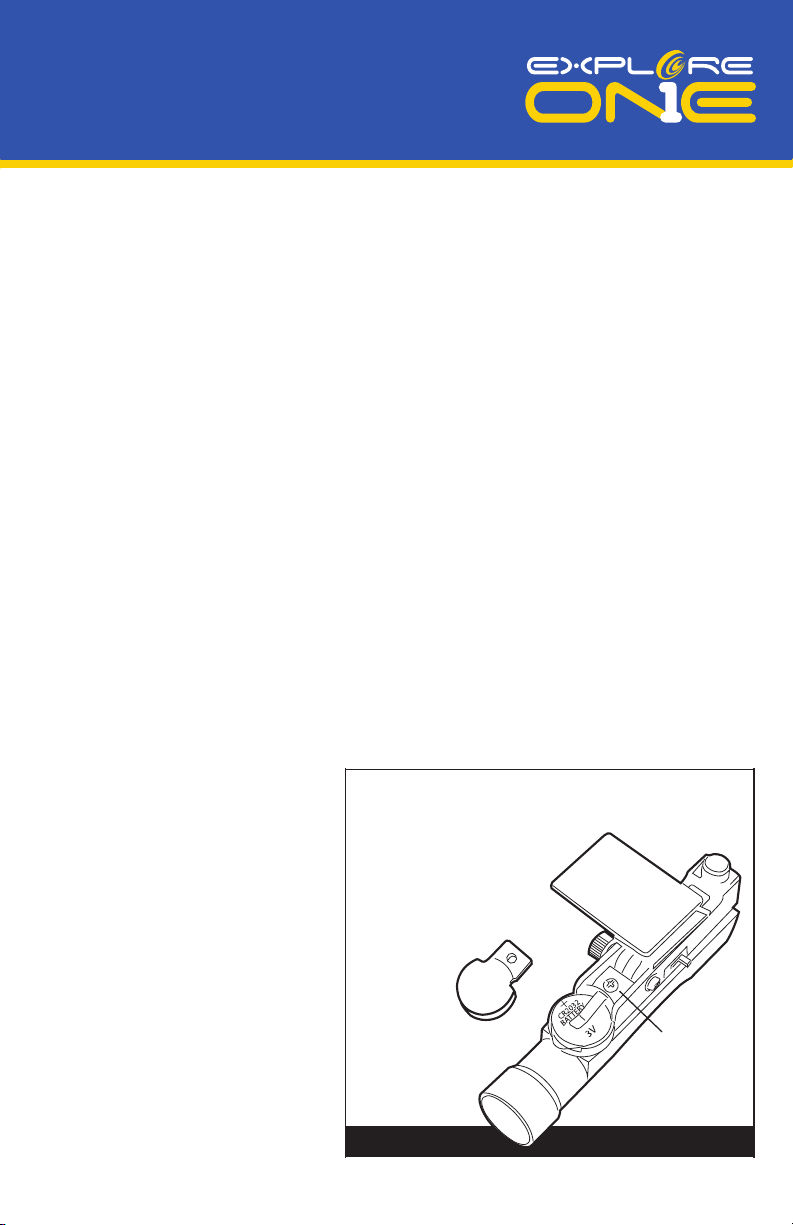

The Red Dot Viewfinder is
powered by a battery type
CR-2032 (3V); if a replacement is
necessary, remove cap (Fig. 1) by
unscrewing set screw (Fig. 2) and
sliding battery towards the front.
Slide new battery in place with the
positive (+) side showing. Replace
cap and tighten with
set screw (Fig. 2).
Fig. 1 Fig. 2
Front
Red Dot Viewfinder
(bottom view)
El Visor Red Dot es
impulsado por un tipo de batería
CR-2032 (3V); si un reemplazo es
necesario, retire la tapa (fig. 1),
desenroscando el tornillo de ajuste
(fig. 2) y la batería de deslizamiento
hacia la parte delantera. Deslice la
pila en el lugar con la positiva
proyección lateral (+). Reemplace
la tapa y apriete con
el tornillo de
fijación (fig. 2).
fig. 1 fig. 2
frente
Red Dot visor
(vista desde abajo)
English
Le Dot Viseur rouge est
alimenté par une batterie de type
CR-2032 (3V), si un remplacement
est nécessaire, enlever le bouchon
(Fig. 1) en dévissant la vis de
réglage (Fig. 2) et la batterie de
glissement vers l'avant. Glisser la
nouvelle pile en place avec la
borne positive (+) côté montrant.
Remettre le bouchon et
le serrer avec
la vis de
pression
(Fig. 2).
Fig. 1 Fig. 2
de devant
Red Dot Viseur
(vue de dessous)
FrenchSpanish

6
• Point the eyepiece at an easy to identify target like a telephone pole that is approximately 200 yards
away. Center the object in the eyepiece. Lock the telescope into place by tightening the panhandle.
• Without moving the telescope, position the red dot using the two adjustment screws so that it shares
the same view as the one in your eyepiece. The front screw will move the viewfinder up and down, and
the other will move it side to side. Your viewfinder is now aligned.
Note: To preserve battery life, don’t forget to turn off the viewfinder after use.
Using Your Telescope:
After you have assembled your telescope, you are ready to start observing. Put the 26 mm eyepiece
into the diagonal to get the widest field of view. This wider field of view will make it easier to locate
and track objects.
To move the scope up, down and side to side, loosen the locking screws slightly and grip the telescope
near where the tube meets the focuser and steadily move the tube until your target comes into view
in the eyepiece. Once you have found and focused on your desired target, you can lock the telescope
into position by tightening the two locating screws. It is important to remember that the rotation of the
Earth means objects will move out of your eyepiece fairly quickly.
For a closer look at an object, you can insert the 9.7 mm eyepiece. The magnification will increase
from 20x to 52x.
Cleaning:
Your telescope is a precision optical device and keeping the optics free of dust and dirt is crucial for
optimal performance. To clean the lenses (objective and eyepiece) use only a photo-grade soft brush
or a lint-free cloth, like a microfiber cloth. Do not press down too hard while cleaning, as this might
scratch the lens. Ask your parents to help if your telescope is really dirty. If necessary, the cleaning
cloth can be moistened with an optical glass cleaning fluid and the lens wiped clean using very little
pressure. Do not use harsh detergents!
Make sure your telescope is always protected against dust and dirt.
After use, leave it in a warm room to dry off before storing.
Possible Objects For Observation:
Terrestrial Objects
Take note of the examples below, including Mount Rushmore and the
golf course. Start with the 26 mm eyepiece and focus until the image
is clear. After mastering the 26 mm eyepiece, switch to the 9.7 mm
eyepiece and practice scanning and focusing until the image is clear.
Choose several terrestrial objects to practice focusing on, but never
point your telescope at or near the sun, or you risk blindness.
f=26 mm f=9.7 mm
Terrestrial Images

7
The Moon
Diameter: 3,476 km
Distance: Approximately 384,401 km
The Moon is the Earth’s only natural satellite, and it is the second brightest object
in the sky (after the Sun). Although it is our closest neighbor, a lot of people
have never really taken a good long like at the Moon. With your telescope, you
should be able to see several interesting lunar features. These include lunar
maria, which appear as vast plains, and some of the larger craters. The best views will be found
along the terminator, which is the edge where the visible and cloaked portions of the Moon meet.
Orion Nebula (M 42)
M 42 in the Orion constellation
Right ascension: 05:35 (Hours: Minutes)
Declination: -5:22 (Degrees: Minutes)
Distance from Earth: 1,500 light years
Located about 1,500 light years from Earth, the Orion Nebula (Messier 42, abbreviation: M 42) is the
brightest diffuse nebula in the sky – visible with the naked eye, and a worthwhile object for telescopes of
all types and sizes, from the smallest field glass to the largest earthbound observatories and the Hubble
Space Telescope.
When talking about Orion, we‘re actually referring to the main part of a much larger cloud of hydrogen
gas and dust, which spreads out over half of the Orion constellation. The expanse of this enormous
cloud stretches several hundred light years.
Ring Nebula (M 57)
M 57 in the Lyra constellation
Right ascension: 18:53 (Hours: Minutes)
Declination: -33:02 (Degrees: Minutes)
Distance from Earth: 2,400 light years
The famous Ring Nebula M 57 in the constellation of Lyra is often viewed as the prototype of a planetary
nebula; it is one of the magnificent features of the Northern Hemisphere’s summer sky. Recent studies
have shown that it is probably comprised of a ring (torus) of brightly shining material that surrounds the
central star (only visible with larger telescopes), and not of a gas structure in the form of a sphere or
an ellipsis. If you were to look at the Ring Nebula from the side, it would look like the Dumbbell Nebula
(M27). When viewed from Earth, we are looking directly at the pole of the nebula.
Dumbbell Nebula (M 27)
M 27 in the Fox constellation
Right ascension: 19:59.6 (Hours: Minutes)
Declination: -+22:43 (Degrees: Minutes)
Distance from Earth: 1,360 light years
The Dumbbell Nebula (M 27) in Fox was the first planetary nebula ever discovered. On July 12, 1764,
Charles Messier discovered this new and fascinating class of objects. We see this nebula almost directly
from its equatorial plane. If we could see the Dumbbell Nebula from one of its poles, we would see the
shape of a ring, and we would see something very similar to what we know as the Ring Nebula (M 57). In
reasonably good weather, we can see this object well even with low magnifications.
f=26 mm f=9.7 mm
Orion Nebula M 42
f=26 mm f=9.7 mm
Ring Nebula in Lyra
Constellation M 57
f=26 mm f=9.7 mm
Dumbbell Nebula in Fox
Constellation M 27
f=26 mm f=9.7 mm
The Moon

8
© 2017 Explore Scientific®, LLC.
1010 S 48th Street, Springdale, AR 72762
exploreone.com | 866.252.3811
All rights reserved. Made in China.
CONFORMS TO THE SAFETY
REQUIREMENTS OF ASTM F963
Troubleshooting Guide:
Problem Solution
No picture Remove dust protection cap and sun-shield from the objective opening.
Blurred picture Adjust focus using focus ring.
No focus possible Wait for temperature to balance out.
Bad quality Never observe through a glass surface such as a window.
Viewing object visible in the finder, but not
through the telescope Align finder to telescope (see instructions)
Despite using star diagonal prism the picture is
“crooked” The star diagonal prism should be vertical in the eyepiece connection.
Colors and styles may vary.
