Extreme Flight RC YAK-54 User manual

68 INCH
YAK-54
Instruction Manual

Thank you for your purchase of the Extreme Flight RC 68 inch Yak-54. Please
take a few moments to read this instruction manual before beginning assembly.
We have outlined a fast, clear and easy method to assemble this aircraft and
familiarizing yourself with this process will aid in a quick, easy build.
Please read the following paragraph before beginning assembly of your aircraft!
THIS IS NOT A TOY! Serious injury, destruction of property, or even death may
result from the misuse of this product. Extreme Flight RC is providing you, the
buyer with a very high quality model aircraft component kit, from which you, the
buyer, will assemble a flying model. However it is beyond our control to monitor
the finished aircraft you produce. Extreme Flight RC will in no way accept or
assume responsibility or liability for damages resulting from the use of this user
assembled product. This aircraft should be flown in accordance to the AMA
safety code. It is highly recommended that you join the Academy of Model
Aeronautics in order to be properly insured, and to operate your model at AMA
sanctioned flying fields only. If you are not willing to accept ALL liability for the
use of this product, please return it to the place of purchase immediately.
Extreme Flight RC, Ltd. guarantees this kit to be free of defects in materials and
workmanship for a period of 90 days from the date of purchase. All warranty
claims must be accompanied by the original dated receipt. This warranty is
extended to the original purchaser of the aircraft kit only.
Extreme Flight RC in no way warranties its aircraft against flutter. We have put
these aircraft through the most grueling flight tests imaginable and have not
experienced any control surface flutter. Proper servo selection and linkage set-
up is absolutely essential. Inadequate servos or improper linkage set up may
result in flutter and possibly the complete destruction of your aircraft. If you are
not experienced in this type of linkage set-up or have questions regarding servo
choices, please consult an experienced pilot or contact us. It is your
responsibility to ensure the airworthiness of your model.
Additional items needed to complete assembly.
.91-1.40 2 stroke or .91-1.50 4 stroke engine
3” spinner (We used a Tru-turn 2 7/8” Ultimate on our prototype)
Propeller
4 channel radio with five 90+ oz. in. torque servos for control surfaces and one
standard torque servo for throttle. We used the Hitec 5645 digital servos in our
prototype.
Servo arms (we highly recommend the Du-bro Super Strength servo arms for this
aircraft).
Fuel tubing
Foam padding for receiver
Nylon cable ties or Velcro straps
Servo extensions (see text for proper lengths)
2

A few words about the Extreme Flight RC 68” Yak-54
The current production version of the 68” Yak-54 represents a milestone in ARF
model aircraft production techniques and performance ability. This version is the
result of a lot of time and effort testing various configurations and materials to
achieve the lightest, yet strongest airframe possible. Ultra-modern interlocking
laser cut construction techniques combined with carbon fiber and composite
components help to achieve a lightweight, yet robust airframe. Each component
of the Du-bro hardware package was selected because of the high quality
associated with these products. These components have been proven over a
year of very aggressive flight testing. We highly recommend that you use the
included hardware.
We are very proud of the high quality Oracover finish on this aircraft, as well as
the beautiful, perfectly matched paint job on the cowl. The extremely lightweight
wheel pants are white gel-coated to eliminate the need for paint, thus saving
weight. In an airplane this size, every gram counts. We hope you will consider
this during your assembly of this aircraft. Resist the urge to “beef-up” the
structure and use caution when applying glue, using only the proper amount
needed for the task.
Flight performance of the 68” Yak is simply stunning! It tracks through precision
maneuvers much like a fine tuned pattern ship, easily performing any of the F3A
or Unlimited class IMAC schedules. The 3D performance of the Yak is unheard
of in a plane this size. The 68” Yak-54 is truly unlimited in its performance
capabilities.
By the time the Yak arrives in your shop, it will have endured several climate
changes. As a result you may find some wrinkles in the covering. This is not a
manufacturing defect. Please take a few moments with your iron or heat gun and
remove any wrinkles. Iron over all the edges to ensure they are sealed.
A high quality vinyl graphics package has been included with this aircraft. For
best results it is highly recommended that you spray the surface of the aircraft
where the graphic is to be applied with Windex or a soap/water solution to allow
for proper positioning of the graphics. When satisfied with their position, use a
credit card or rubber squeegee to remove excess fluid from under the graphic
and allow to dry overnight.
It is highly recommended that you keep your aircraft under a shelter, away from
direct sunlight between flights, or use some form of cover to prevent damage to
the canopy/hatch. Intense heat from the sun can distort the canopy/hatch, and
you want to take caution to prevent this from happening.
3

ATTENTION!
Due to a communication error, there are some extra hardware components
included with this aircraft. In addition to the Du-bro hardware package
located next to the cowl, you will find a second hardware package in the
cardboard divider containing the composite landing gear. You may choose
to discard this metric hardware, but there are five components in this
hardware package that are essential to the assembly of this aircraft. Please
do not discard the following items:
1. Four carbon fiber anti-rotation pins.
2. Nylon engine mount.
3. Tailwheel assembly.
4. Throttle linkage.
5. CA hinges.
Also please note that the 4-40 pushrods have been taped to the
cardboard divider separating the cowl from the fuselage. Do not
discard.
4

WING ASSEMBLY
1. We will begin by hinging the aileron to the wing. There are 7 CA hinges that
will be installed per wing/aileron. Use a ruler and measure from the root (closest
to fuselage) of the aileron to the tip and locate the hinge slots, then slit the
covering to access the slot (already cut) for the hinge. The following are the
hinge slot locations from the aileron root.
NOTE: All hinge slots are in the center of the bevel on all surfaces.
1. 1 ¾ 2. 7 ½” 3. 11 ½” 4. 13 ½” 5. 17 ½” 6. 22 ½” 7. 28 ¼”

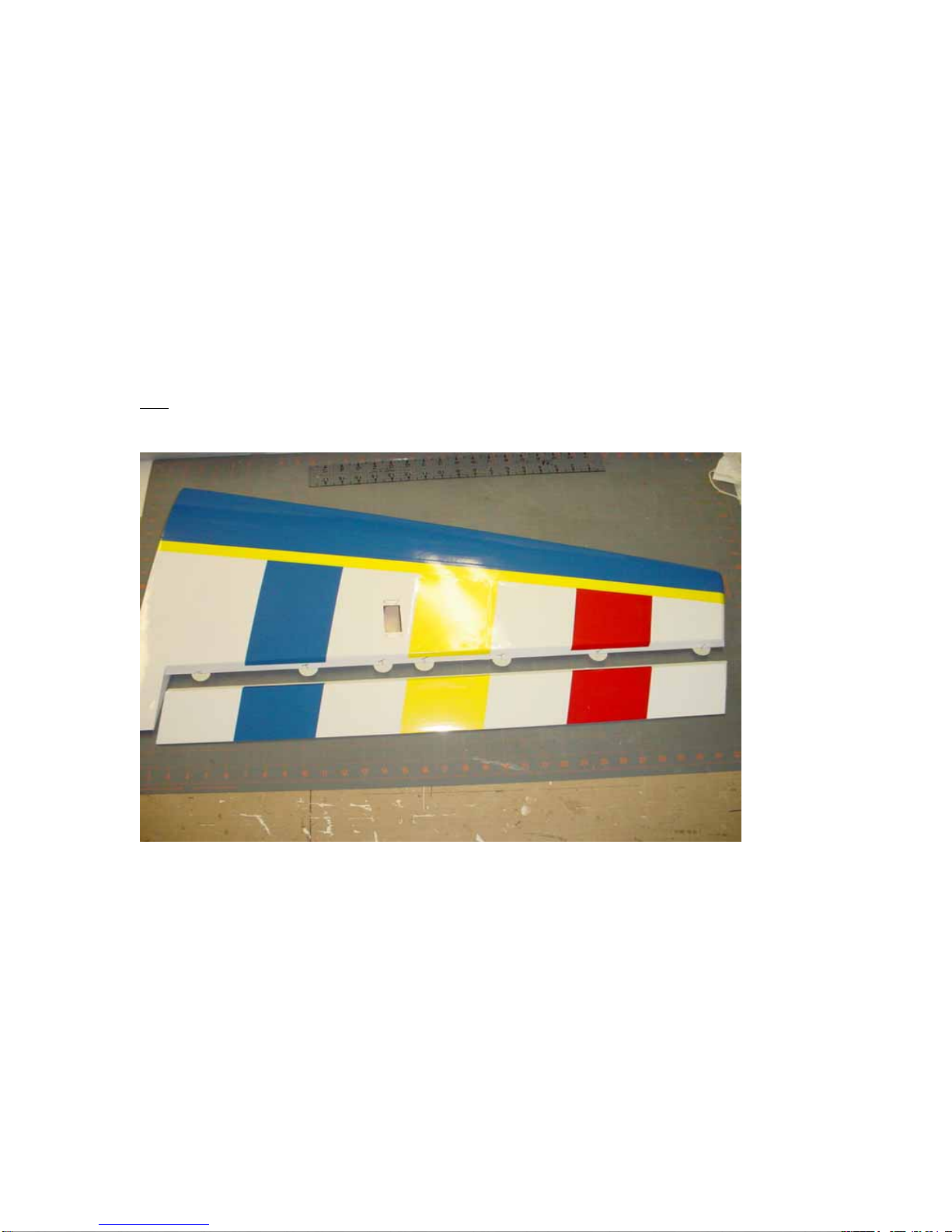

Now transfer the slot locations to the wing.
Install the hinges halfway into the wing, then mate the aileron. Be sure the hinges
stay centered. Refer to figure 1.
TIP: To aid in keeping the hinges centered I insert a t-pin or draw a line in the
middle of the hinge.
Figure 1
2. We will now glue the CA hinges using thin CA. Be sure that the aileron stays
mated to the wing, do not allow more than 1/16” gap while gluing. I like to bend
the surface about 40° each direction while gluing. Apply glue to both sides of the
hinge, this method will also be the way we do the rudder and elevator hinging
later in the assembly process. Refer to figure 2 for my method, also you will
notice I have an extended tip on my CA glue bottle, this allows me to get the glue
in the exact area.
5

Figure 2
3. Locate the servo bay (bottom of wing near center) under the covering by
feel, once located cut the covering to expose the opening. You will need a 6” or
12” wire extension hooked to your servo lead so it will be able to go inside the
fuselage once the wings are installed to reach the receiver. Feed your servo wire
thru the wing to the root and let it protrude. See figure 3.
Figure 3
6

4. Secure your servo in the wing’s mounts with the output shaft closest to the
hinge line. Measure on the bottom side, at the root of the aileron 11 ½”, you will
feel a small hole under the covering where the 6-32 control horn bolt will be
located, remove the covering from this hole. Locate the control horn package
and use one of the 6-32 bolts and black mounting plate (with circle hole on the
top for the bolt head to set down into it). Insert the bolt thru the mounting plate
and screw the bolt down into the topside hole, you may need to drill the hole to
9/64”. Now secure the other mounting plate with hex nut onto the bottom side
and tighten. Take the 4-40 all thread rod and cut a piece 1 ½” long and install the
4-40 jamb nut and clevis to one end allowing about 2 – 5 threads showing thru
the clevis. Hold the control surface centered, also make sure the servo arm is
parallel to the hinge line and install the other jamb nut and clevis to the servo arm.
Use a thread locking compound to secure jamb nuts. Refer to figure 4.
Figure 4
5. Locate the package with the carbon fiber alignment pins, use two of them
per wing. The alignment pins fit into the two smallest holes in the wing root. Trial
fit before gluing. Using 30 minute epoxy lather all but ¼” of the pin and apply
some epoxy inside the hole. Insert the pin into the hole and there is another hole
in the number two rib that the pin will go into also. Leave about ¼” of the pin
7

without epoxy protruded from the wing, allow to dry. Take the included ¼” X 20
plastic wing bolts and cut them to ¾” long from the bottom of the washer head.

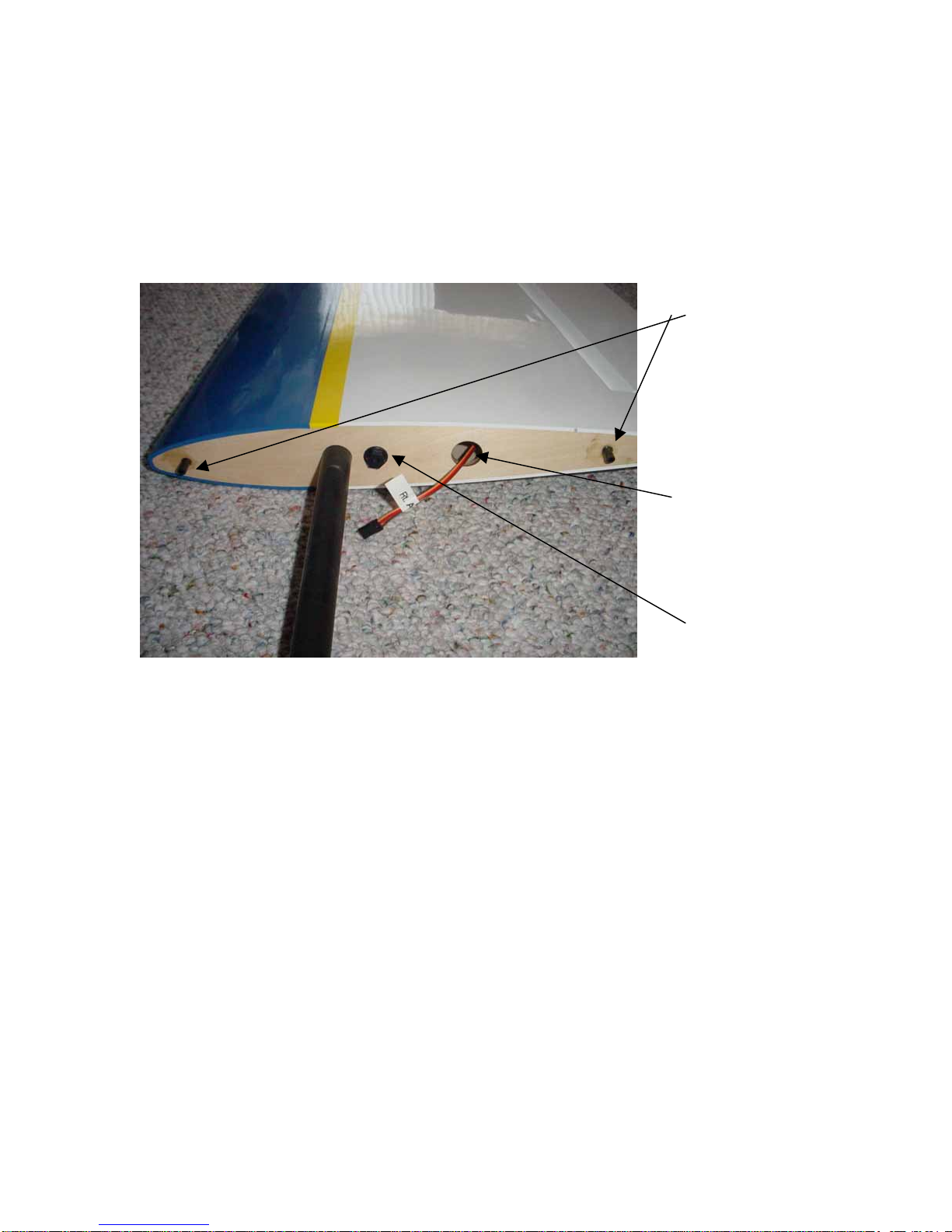

Refer to figure 5, it will show how the wing root will look when completed. From
left to right you will see the first alignment pin, then the carbon fiber wing tube
location, followed by the wing bolt, then the aileron wire and finally the rear
alignment pin. Repeat these 5 steps on the other wing panel. This will complete
the wing assembly. Figure 5 shows the wing completed at the root.
Alignment
pins
Servo wire
Wing bolt
Figure 5
FUSELAGE ASSMEBLY
6. Locate the gear, 4 of the 6-32 X ¾” bolts, washers and nylon insert hex nuts.
Hold the gear, with the slant forward, to the fuselage bottom in the gear slot and
center it. Now mark the location of the bolt holes onto the gear from inside the
fuselage, drill the holes slightly larger than the bolt. It is highly recommended
that you place a wood block behind the gear before drilling to prevent damage to
the rear side of the gear when the drill bit exits. Install a washer on each bolt and
slide the bolt from the gear’s bottom up into the aluminum gear mounts. Secure a
nylon insert nut onto each of the 4 bolts and tighten. See figure 6 and 7.
8

Figure 6 Figure 7
7. Trim the covering around the wing slot, elevator servos and horizontal
stabilizer locations. EF suggests that you leave 1/8” of covering at the wing slot
(see figure 8) and iron that into the slot. At the horizontal, leave 1/16” of covering
and iron into the slot. The elevator servo slots may be cut and ironed as desired.
1/8” covering
left that may
be ironed to
inside of
fuselage
Figure 8
8. Locate the horizontal stabilizer and both elevators. First lets find the hinge
slots using the same methods as the ailerons. The hinge slots will be found by
measuring from the tip of the horizontal inward to the root. See figure 12.
1. 1 ½” 2. 3 ¾” 3. 6 ¾” 4. 8 ¾”
DO NOT GLUE THE HINGES AT THIS TIME
9

Figure 9
9. We will now prepare to mount the horizontal into the fuselage. First locate
the exact center of the horizontal, next take the measurements of the front and
back widths of the stabilizer slot in the fuselage and transfer those to the
horizontal. Gently cut that covering making sure you do not cut into the sheeting
and leave about 1/16” extra covering when finished. See figure 10.
10. Read and understand this step completely before proceeding. Install the
wings onto the fuselage. You may dry fit the horizontal and find where it centers
and mark it with tape or similar material or proceed with the gluing process. We
will now glue the horizontal stabilizer into place, if you did dry fit the horizontal,
remove it at this time. Mix ample 30 minute epoxy and apply to the inside of the
fuselage slots and to the bare wood on the horizontal. There is no need to apply
epoxy to the exact center of the horizontal, only the areas that will make contact.
Have a cloth/paper towel soaked in rubbing alcohol ready, now slide the
horizontal into the slot and center it in the fuselage. Wipe the excess epoxy with
the cloth. Use a ruler to measure from a common point on each side of the
horizontal to a common point on the fuselage to be sure it is centered. Prop the
tail up so the fuselage is level and view the wing and horizontal from the front
and back to make sure they are aligned. If the horizontal is not aligned, take
some masking tape and pull one side up or down and tape it in place to hold it
while the glue dries. Finally, you may add some glue to the inside thru the
elevator cutout holes. Allow this to dry completely before proceeding. Refer to
figures 10, 11 and 12 to help with this important step. Hinge both elevators.
10

In this picture I have
located the center and cut
the covering away but,
have left 1/16” extra to
keep bare balsa from
showing. At this point the
horizontal should be
ready to install.
Figure 10
I have now installed the
horizontal with 30 minute
epoxy and wiped the
excess away. I now
continue to center the
horizontal by measuring
each leading and trailing
edge to be sure I have an
equal amount of surface on
each side of the fuselage.
This will ensure I am
centered, but not
necessarily aligned.
Figure 11
11

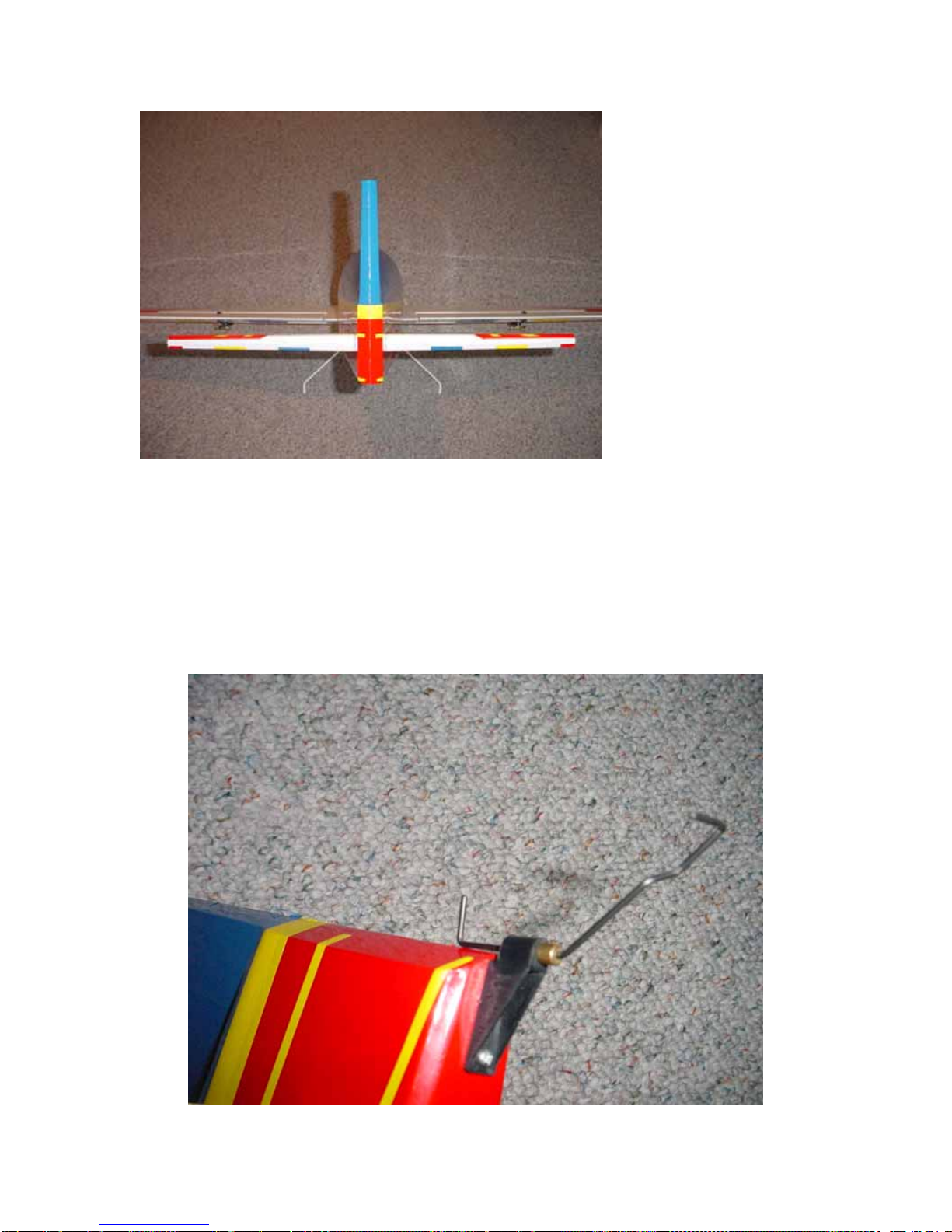

I now tip the plane
onto its nose and
view it from behind
to be sure I am
parallel with the
wing. In figure 11
you will notice the
tail is propped up
onto a box to make it
level. You may use
that method to view
it from the front and
back to be sure the
tail is aligned with
the wing.
Figure 12
11. Next we will install the tailwheel, locate that package. Hold the mounting
bracket onto the bottom rear flat spot on the fuselage such that the wire “L”
portion will be able to insert itself into the rudder later in the process. Drill small
pilot holes and install the wood screws. Position the tail wheel onto the wire and
file a flat portion on the outer side of the wheel. This allows the wheel collar to
have a flat spot to drive the setscrew against. See figure 13 and 15.
Figure 13
12

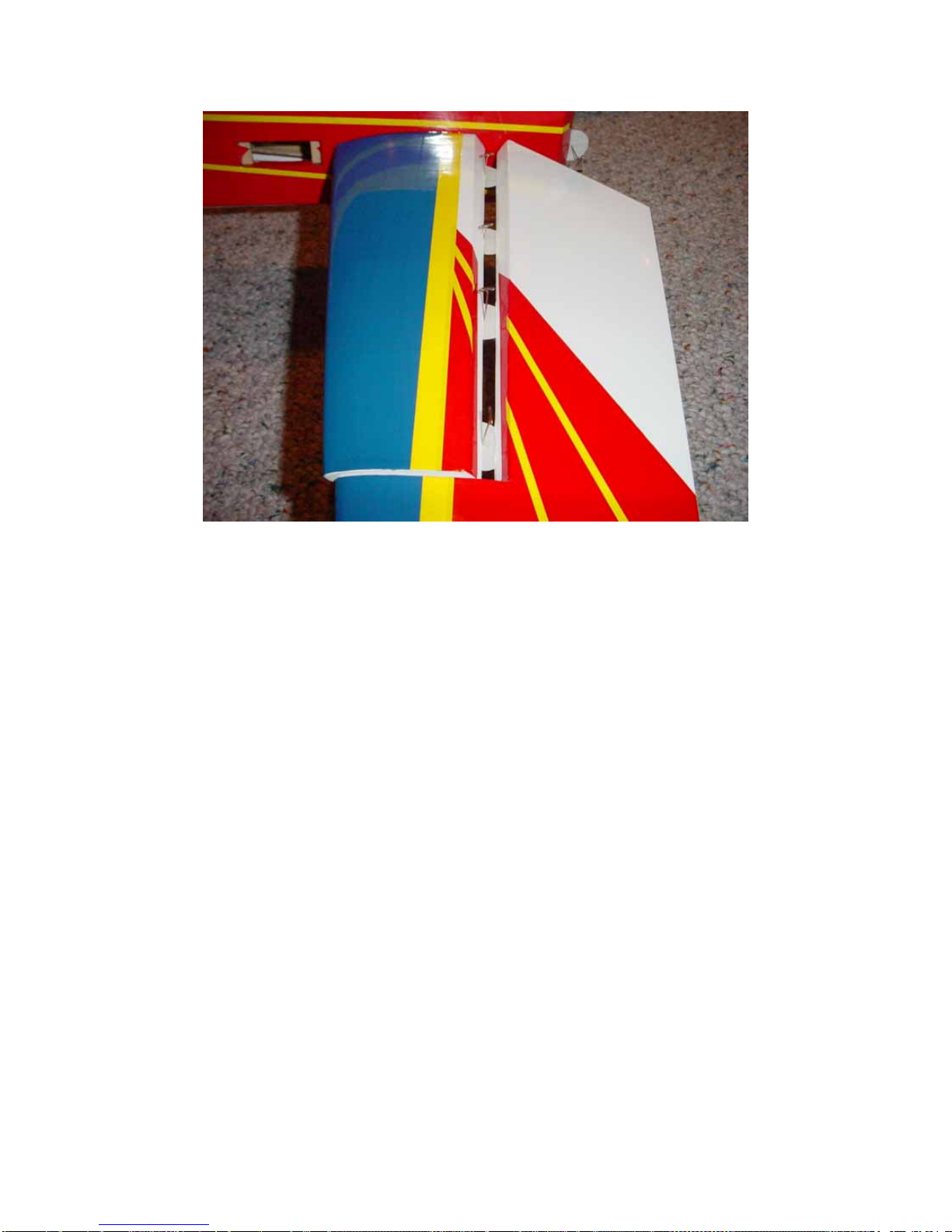

12. Take the rudder and locate the hinge slots in the same manner that we did
the ailerons. The following are the measurements for the hinge locations,
measure from the bottom upwards on the rudder. (There are four slots.
1. 1 ½” 2. 4” 3. 6 ¾” 4. 9 ¼” See figure 14.
Figure 14

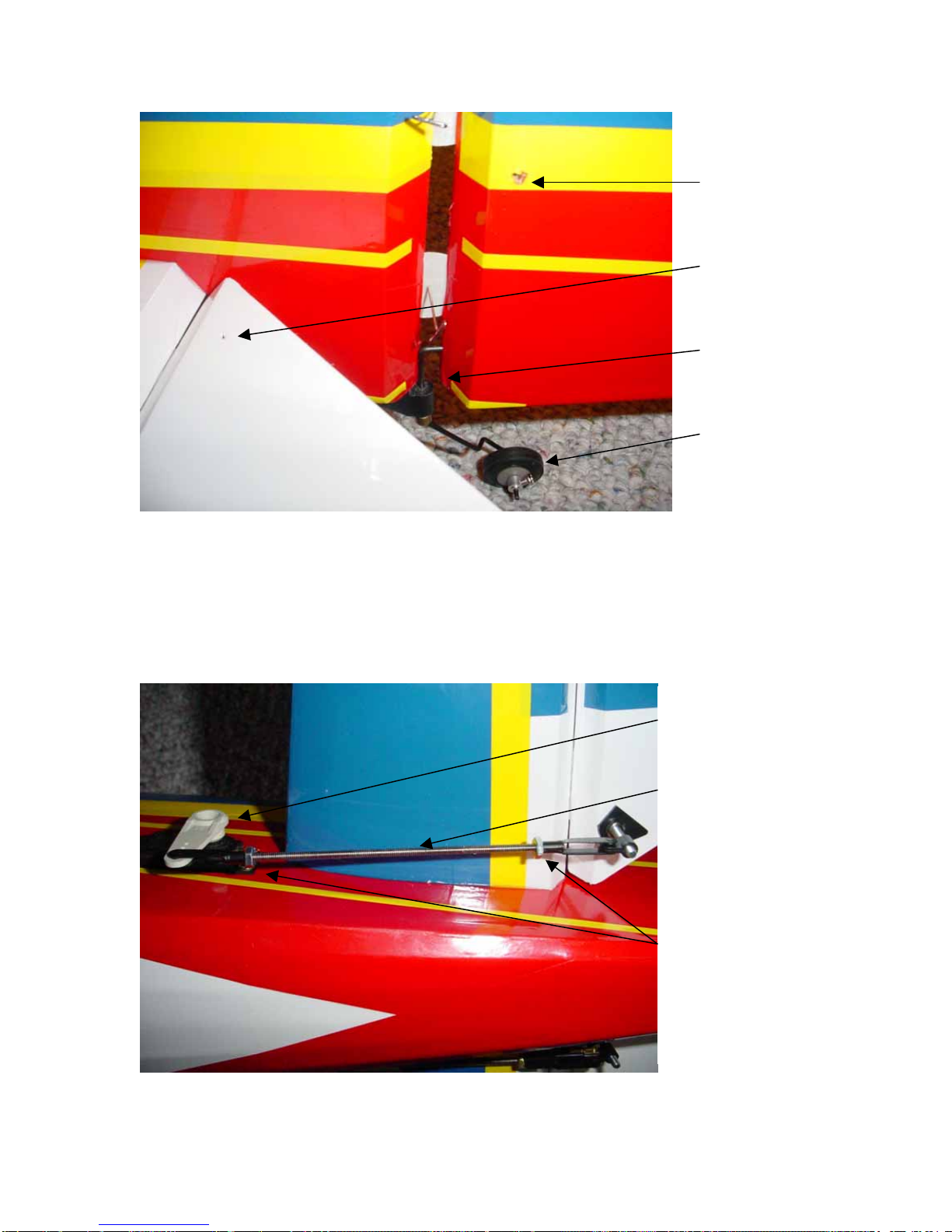

Dry fit the rudder to the fuselage and mark a spot where the tailwheel will go into
the rudder, drill that hole.
TIP: You may cut a small groove in the front of the bevel at the bottom of the
rudder to accommodate the wire tail wheel.
Now hinge the rudder using the same technique we did with the ailerons, be sure
to observe the same precautions. See figures 14 and 15.
13

Figure 15
13. Now lets install the elevator servo. Attach a 12 – 18” extension to the servo
and fit into either bay to begin. Secure the servo with mounting screws. Use the
same techniques in step 4 to install the control horn and pushrod with clevis. Cut
the 4-40 all thread so you have two 4 ¼” pieces. Refer to figure 16.
The small groove
may be cut here.
Here is the tail
wheel assembly.
Elevator control
horn location.
Output shaft
closest to the
horizontal.
4-40 all thread
that’s 4¼” long.
Jamb nut
secured
against the
clevis.
Figure 16
This is the hole for
the 6-32 control
horn. This will be
later in the
assembly process.
Do the same for the installation of the other elevator servo.
14

TIP: You may run your servo wires thru the fuselage formers to the receiver. This
will aid to keep them secured during flight.
14. The rudder runs on a pull pull set up that is very easy to install. Lets begin
by mounting the servo in the rails just under the canopy. Again, we will mount our
servo with the output shaft towards the tail, secure with screws. Locate the
hardware package containing all the items for the rudder system. Cut a piece of
coated wire 36” long, this will give you approximately 5” extra on each end. Just
above the elevator servos there is ¼” tall by 6” long slot, that can be seen inside
the fuselage from the canopy area. Open this slot, you may iron it to the inside if
you wish. Locate the hard point in the rudder. It can be found by measuring from
the bottom of the rudder upwards to a point 3 3/8” (see figure 15) and you will
feel the hole under the covering. Drill this hole using a 9/64” bit and install the
precut 3 ¾” all thread into the hole leaving equal amounts on each side of rudder.
Slide the cupped washer onto the all thread, then the cone shaped nut followed
by the hex nut and tighten (thread lock is permissible), do this to both sides.
Finally thread the clear horn onto the all thread to the desired distance on both
sides. Feed the coated wire thru the slot and towards the servo leaving some on
the outside of the fuselage to secure to the rudder horn. Cut a piece of heat
shrink tubing about ¾” to 1” long. Slide this tubing onto the wire, then the crimp
and then the rigging coupler and back thru the crimp leaving about 1/8” wire
beyond the crimp. Use a pliers or similar and squeeze the crimp flat. Slide the
heat shrink over the crimp and part of the rigging coupler and shrink it with a heat
gun. Feed a hex nut and clevis onto the rigging coupler, tighten and secure it to
the horn. Proceed to the servo and finish it there in the same manner, be sure
the servo is centered before cutting the excess wire to its final length. Do the
other side of the pull pull using the same procedures. See figures 17 and 18.
TIP: The rudder hardware package also has installations recommendations.
Figure 17
Heat shrink
Crimp
Rigging coupler
2/56 clevis
Jamb nut
15

NOTE: In figure 17 the heat shrink has not been slid onto the crimp and rigging
coupler and has not been shrunk. This shows it before shrinking.
Cupped washer
Cone nut
Hex nut
Clear control horn
Figure 18
15. In this step we will mount a YS 110 engine, although other motors would
work EF feels the best performance will be attained with this engine choice.
Therefore, all measurements will be with regard to the YS 110, but check them
before you make the final mount to be sure there are no abnormalities.
NOTE: Pumped engines, such as the YS 110, should be mounted inverted, non-
pumped engines should be side mounted.
Locate your engine mounts, (4) 6-32 X 1” bolts, washer and blind nuts, (4) 8-32 X
1” bolts, washer and lock nuts. The goal is to have your engine protruding from
the front of the cowling by ¾” (that is the front of the cowling to the back plate).
With the YS 110 you will need to measure from the front of the black engine
mounts ¾” back and make a reference mark. This will be where the front of the
engines mounting bearers will align.
16. The hole in the firewall represents the center of the fuselage. You will need
to find the location for your engine mounts using the hole as your benchmark for
measurements. For the YS 110 here is how to find the location for your mounts.
The firewall has 3º right thrust already built into it, therefore your final mounting
spot will be offset to the left half of the firewall. Refer to figure 19 for
measurements, if using the YS 110 these measurements will give you the correct
engine mounting position. Other brand engines you may use the vertical and
horizontal centerline marks and then reference your specific engine dimensions
from these centerlines.
16

Figure 19
This vertical
centerline is
2 5/32” from the
side.
This horizontal
centerline is
2 1/32”from the
top.
This mark is 9/32”
from the vertical
centerline and
should be used to
center engine.
The right engine
mount is 1” from
the right side.
17. Hold one of the mounts to the firewall on the inside of the 1’ line. The side
of the mount has a reference mark in the center of the mount, use it to center it
vertically (see figure 20, I used masking tape to highlight the mark). Once you are
satisfied with the location, drill the top and bottom holes. I now mount the engine
to the one mount (read tip below) and then bolt it to the firewall with the 6-32
bolts and blind nuts. The shank of the blind nut may protrude through the front of
the firewall. Open the hole in the rear of the engine mount to accommodate the
protruding shank. Now take your other engine mount and hold it in place to the
other side of the engine and mark the holes for the firewall and engine boltholes.
You may now finish the mounting process.
TIP: We like to drill and tap the fiberglass engine mounts plus use the provided
nylon insert nuts to secure the engine to the mounts.
17

Figure 20
20. Locate the cowl, 4 #4 bonded sealing washers and socket head mounting
screws. The YS 110 will stick thru the bottom of the cowl so you will need to trim
as desired. (EF also recommends cutting out the bottom portion only of the oil
cooler located on the very bottom of the cowl for proper cooling.) The cowl needs
to go onto the fuselage until it is 1/8” in front of the wing slot in the fuselage. Now
center the cowl in reference to your engine shaft/back plate. There are four
fingers that protrude from the front bulkhead that will secure the cowl, drill your
holes into the center of these and use the provided screws and bonded sealing
washers to hold the cowling. See figure 21.
18

Figure 21

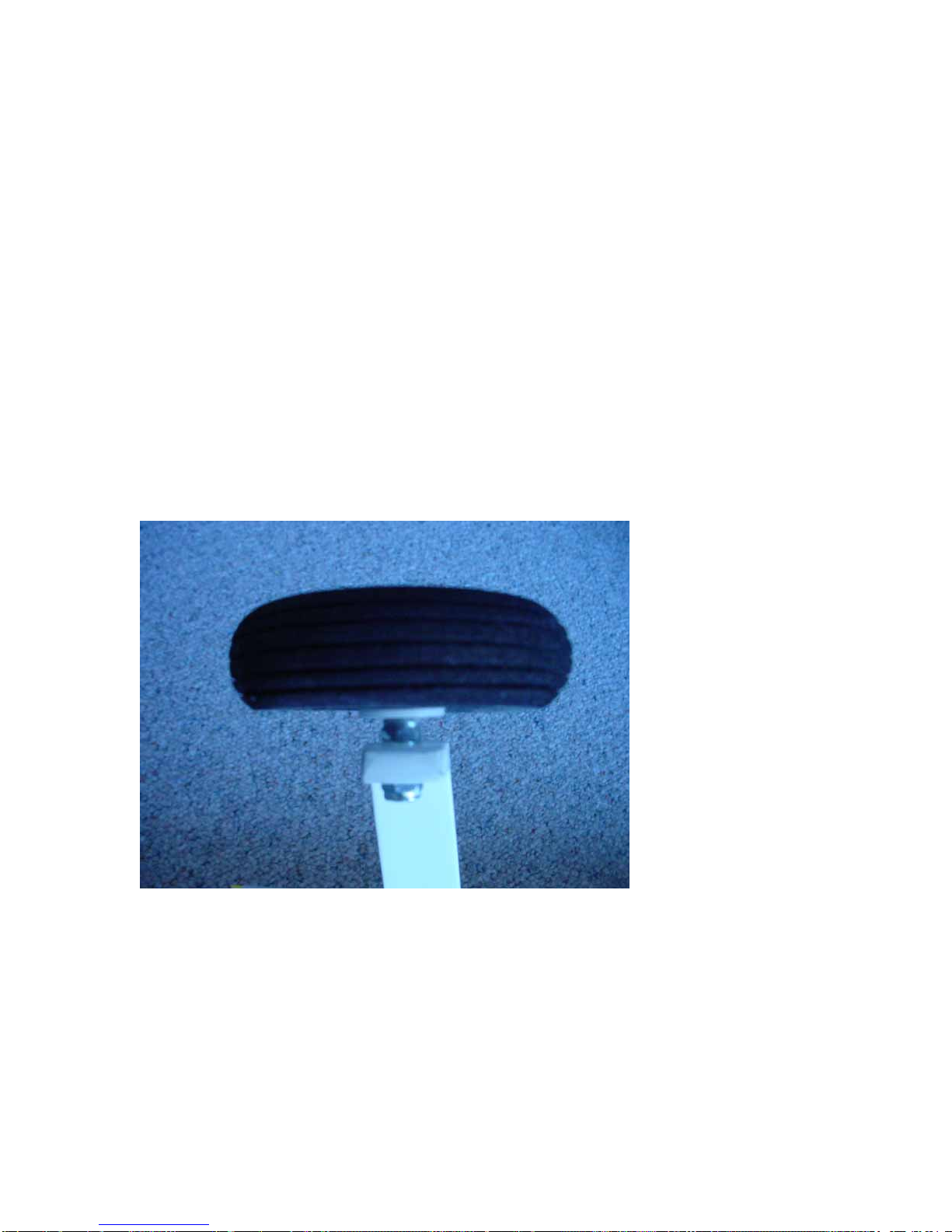

21. Locate the tire/wheel pant hardware package. Begin by inserting the 6-32 X
1 ½” bolt thru one tire, followed by a #6 nylon washer and nylon insert nut
(locknut), tighten the nut but leave it loose enough that the tire spins freely. Drill a
9/64” hole in the landing gear about 3/8” up from the bottom and centered. Insert
the tire axle assembly into the hole and install a washer/locknut and tighten, see
figure 22. Take the wheel pant and file out enough of the slot on the side so it will
slide onto the locknut that is closest to the tire. (It will slide onto the locknut
similar in principle to the way an adjustable wrench fits onto a hex nut.) Take the
time to make this a snug fit. Now slide the wheel pant onto the nut and over the
tire, you may need to trim the outer side of the pant so it will fit. Now align the
pant as you desire (EF suggests it be parallel with the fuselage) and drill a 7/64”
hole (approximately ½”), above the axle bolt, be sure not to go too high or you
will miss the plywood plate inside the pant. Remove the pant and insert the blind
nut inside the pant as shown in figure 23. Reinstall the pant and trial fit everything
together, make adjustments as necessary. Refer to figures 22, 23 and 24.
Figure 22
19

4-40 blind nut
Slot that fits
over locknut
Figure 23
6-32 locknut
Slot fits over
locknut
Figure 24
22. Assemble the fuel tank according to instructions and mount it onto the tray
in front of the wing tube. It can be secured with Velcro or nylon cable ties.
23. The throttle servo may be installed in the same tray as the fuel tank if you
use a mini servo. There is a rod with prebent Z bend and housing that may be
used to connect to the engine. The servo end has an EZ connector that may be
20
