User Guide
DAC 102
Audio Products
Two Input, One Output Digital to Analog Audio Decoder
68-3382-01 Rev. B
01 23

Safety Instructions

Copyright
© 2019-2023 Extron. All rights reserved. www.extron.com
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks(®), registered service marks(SM), and trademarks(TM) are the property of RGBSystems, Inc. or Extron
(see the current list of trademarks on the Terms of Use page at www.extron.com):
Registered Trademarks (®)
Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Flat Field, FlexOS, Glitch Free,
GlobalConfigurator, GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink,
MediaPort, NAV, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount,
SpeedSwitch, StudioStation, SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VN-Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP,
XTPSystems, and ZipClip
Registered Service Mark(SM) : S3 Service Support Solutions
Trademarks (™)
AAP, AFL (Accu-RATEFrameLock), ADSP(Advanced Digital Sync Processing), AVEdge, CableCover, CDRS(ClassD Ripple Suppression),
Codec Connect, DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator,
DSVP(Digital Sync Validation Processing), EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk, MAAP,
MicroDigital, Opti-Torque, PendantConnect, ProDSP, QS-FPC(QuickSwitch Front Panel Controller), RoomAgent, Scope-Trigger, SIS,
SimpleInstructionSet, Skew-Free, SpeedNav, Triple-Action Switching, True4K, True8K, Vector™ 4K, WebShare, XTRA, and ZipCaddy


FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause interference. This interference must be corrected at the expense of the user.
ATTENTION:
• This unit was tested with shielded I/O cables on the peripheral devices. Shielded
cables must be used to ensure compliance with FCC emissions limits.
• For more information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics see the Extron Safety and
Regulatory Compliance Guide on the Extron website.

Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
CAUTION: Risk of minor personal injury.
ATTENTION : Risque de blessuremineure.
ATTENTION:
• Risk of property damage.
• Risque de dommages matériels.
NOTE: A note draws attention to important information.
TIP: A tip provides a suggestion to make working with the application easier.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
EX! *X1&*X2)*X2#*X2! CE}
NOTE: For commands and examples of computer or device responses mentioned
in this guide, the character “0” is used for the number zero and “O” is the capital
letter “o.”
Computer responses and directory paths that do not have variables are written in the font
shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in slanted form as shown here:
ping xxx.xxx.xxx.xxx —t
SOH R Data STX Command ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and field names are
written in the font shown here:
From the File menu, select New.
Click the OK button.
Specifications Availability
Product specifications are available on the Extron website, www.extron.com.
Extron Glossary of Terms
A glossary of terms is available at https://www.extron.com/technology/glossary.aspx.

viiDAC 102 • Table of Contents
Contents
Introduction ................................................ 1
About this Guide.................................................. 1
Product Description............................................. 1
Features .............................................................. 2
Application Diagram ............................................ 2
Installation .................................................. 3
Installation Overview ........................................... 3
Rear Panel Features ............................................ 4
Operation.................................................... 5
Front Panel Features ........................................... 5
Operation ............................................................ 5
Audio Delay .................................................... 5
TOSLINK and S/PDIF RCA Inputs ................... 5
Product Configuration Software................... 7
Software/Firmware Installation ............................ 7
PCS Overview .................................................... 9
Software Menu ................................................ 9
Connecting to PCS ........................................... 11
Device Discovery Panel.................................. 11
Offline Device Preview ................................... 12
Configuring the DAC 102 using PCS ................ 13
Device Menu ................................................. 13
Input/Output Configuration ........................... 15
SIS Configuration and Control .................. 16
Host Control Port ............................................. 16
Rear Panel Configuration USB Port ............... 16
Simple Instruction Set Control .......................... 16
Host-to-Unit Instructions................................ 16
Device-Initiated Power-Up Message .............. 16
Timeout ......................................................... 16
Using the Command and Response Table ..... 17
Symbol Definitions ......................................... 17
Command and Response Table for SIS
Commands ...................................................... 18
Equipment Mounting ................................. 19
Mounting the DAC 102...................................... 19
Furniture Mounting ........................................ 19
Rack Rail Mounting ....................................... 20

DAC 102 • Table of Contents viii

DAC 102 • Introduction 1
Introduction
This section gives an overview of the DAC 102 and its features. Topics include:
• About this Guide
• Product Description
• Features
• Application Diagram
About this Guide
This user guide contains installation, configuration, and operating information for the device.
NOTE: Throughout this guide, the general terms “decoder” and “audio decoder” are
used interchangeably to refer to the DAC 102.
Product Description
The Extron DAC 102 audio decoder is a two input, one output digital to analog audio
decoder. It accepts 2-channel LPCM audio signals (up to 192kbps) from either a TOSLINK
or S/PDIF coaxial source and converts the signal to balanced/unbalanced 2-channel audio.
An integrated remote volume control port allows for output level adjustment and mute
control when used with volume controllers such as the VCM series of products.
The DAC 102 bridges digital S/PDIF sources with external analog audio devices such as
amplifiers and audio switchers. It accepts digital audio S/PDIF connections over coaxial
RCA or optical TOSLINK and converts them to 2-channel analog audio. Balanced/
unbalanced analog stereo 2-channel outputs are available over a single 5-pole captive
screw connection. Only uncompressed PCM/LPCM formatted (up to 192kbps) audio
signals are supported as the DAC 102 does not accept multichannel audio and does not
have the ability to downmix. The integrated remote volume control port allows for output
level adjustment and mute when used with analog volume controllers such as the VCM
series of volume controllers.
To accommodate installation in tight locations, the DAC 102 is housed in a small, low profile
1.3 inch tall plastic enclosure with a mini Type B USB connection.

DAC 102 • Introduction 2
Features
• Provides two channel digital audio to analog conversion from a TOSLINK
or coaxial S/PDIF source — TOSLINK takes priority when both digital inputs are
connected
• Balanced and unbalanced analog outputs
• Remote volume port — Compatible with volume controllers such as the MLC 55 RS
VC, MLC 64 RS VC D, MLC 64 RS VC, MLA VC10 Plus, and VCM series
• Small form factor
• Lip sync correction up to 100 ms — Adjustable from 0 to 100 ms in 1 ms steps.
Configurable via SIS commands and PCS.
• ZipClip 25 included
• USB configuration and power port

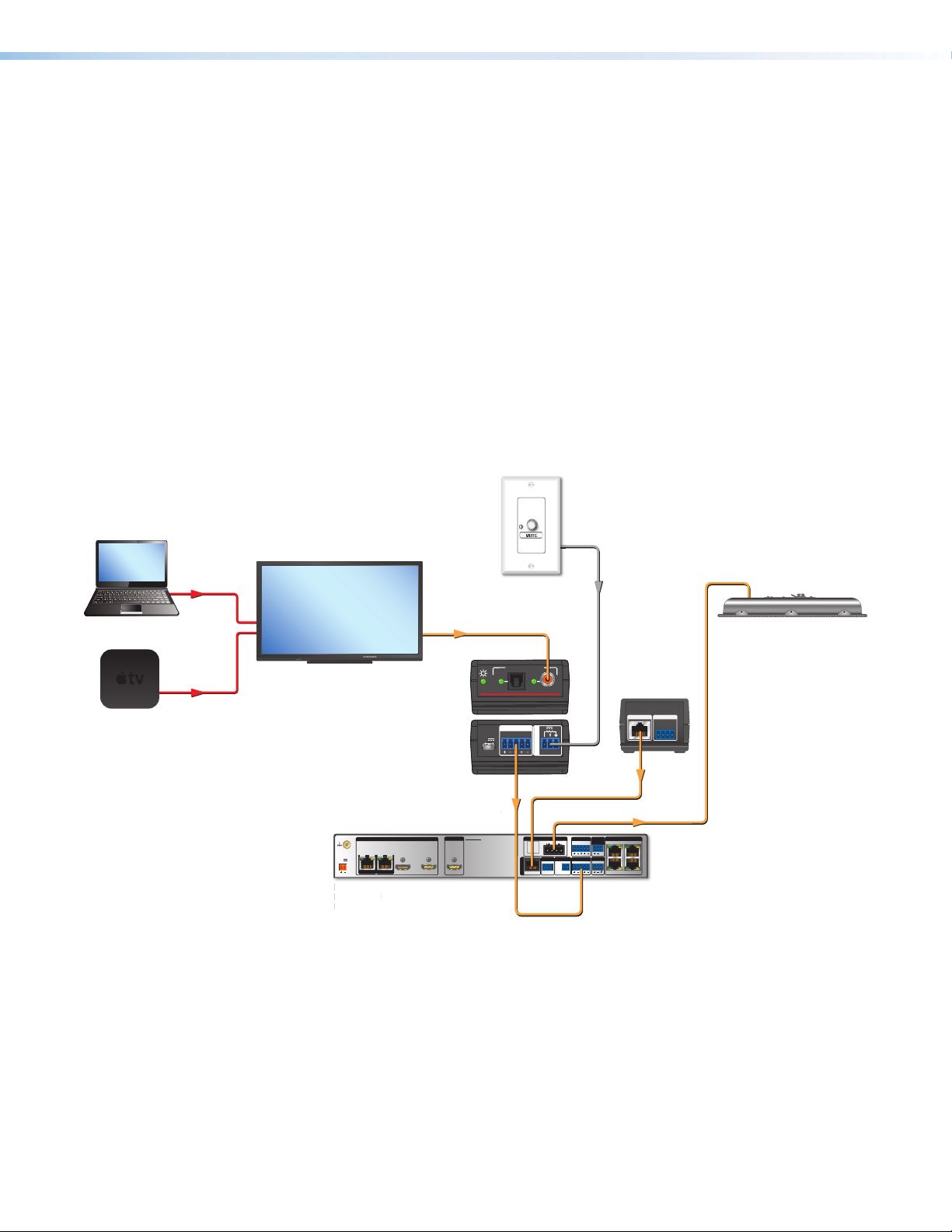

Application Diagram
The following diagram shows a typical application for a DAC 102.
E
DIGITAL INPUTS
DAC 102
12
OUTPUT
REMOTE
LR
VCG
POWER
5V
CONFIG
10V 50m
HDMI Analog
Control
HDMI
S/PDIF
Coax or TOSLINK
Analog
Audio
OUTPUT
1C C2
RELAY
Display
La
ptop
Apple TV
MODEL80
FLATPANEL
Extron
VCM 200 D
Volume and Mute
Controller
Extron
VLR 302
VoiceLift Pro
Receiver
Extron
DAC 102
Digital to Analog
Audio Decoder
Extron
FF 120T
Plenum Flat Field
Ceiling Speaker
Extron
PVS 407D
PoleVault Switcher
Audio
Audio
Analog
Audi
o
Extron
PVS407D
PoleVault
S
witche
r
A
udi
o
LAN 1 LAN 3
LAN 2 LAN 4
DO NOT
GROUND
OR SHORT
SPEAKER
OUTPUTS
4/8
Ω
HDMI HDMI
1/2
SIGLINKSIG LINK
3/4 56
INPUTS OUTPUT AUDIO OUT
PVS 407D AMPLIFIED AUDIO OUT PAGING
SENSOR
PVT IN PVT IN
LR
AUX
OVER PVTREMOTE
VOICELIFT
LAN
INPUT 7
+V
LR
RS-232
Tx Rx
IR
SGG
CLASS 2 WIRING
LAN
- - A MAX
POWER
12V
LR
VOLUME
MUTE
VOLUME
MUTE
Figure 1. Typical Application Diagram of the DAC 102
1

DAC 102 • Installation 3
Installation
This section details the installation of the DAC 102, including:
• Installation Overview
• Rear Panel Features
Installation Overview
ATTENTION:
• The installation must always be in accordance with the applicable provisions of
National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical
Code part 1, section 16. The power supply shall not be permanently fixed to
building structure or similar structure.
• Cette installation doit toujours être conforme aux dispositions applicables du Code
américain de l’électricité (National Electrical Code) ANSI/NFPA 70, article 725, et
du Code canadien de l’électricité, partie 1, section 16. La source d’alimentation ne
devra pas être fi xée de façon permanente à une structure de bâtiment ou à une
structure similaire.
• This product is intended to be powered by a UL Listed power source marked
“Class 2” or “LPS”, output rated 5Vdc or from a USB port on a Listed device.
• Ce produit doit être alimenté par une source d’alimentation certifi ée UL de classe
2 ou LPS, avec une tension nominale 5 Vcc ou depuis un port USB d’un appareil
certifi é.
Follow these steps to install and set up the DAC 102 for operation:
1. Turn off all equipment and disconnect from the power source.
2. If desired, mount the decoder (see Equipment Mounting on page19).
3. Connect source devices via the TOSLINK or S/PDIF RCA inputs.
4. Connect the output of the DAC 102 to an audio amplifier or audio processor (see
figure2, Bon page4).
5. Connect a volume controller (such as a compatible VCM and MLC analog volume
controller) to the 3-pole, 3.5 mm blue captive screw connector (C) for remote volume
control.
6. Connect power to the decoder by connecting the included USB-A to USB mini-B
cable to the rear female USB mini-B port (A). The mini USB port allows the audio
decoder to be powered from a 5 V USB power source.
To configure the unit, connect your computer to the POWER/CONFIG USB mini-B port
(A). Use the Product Configuration Software (PCS) or Simple Instruction Set (SIS) to
adjust settings.
7. Power on the products connected downstream from the DAC 102.
Attention

DAC 102 • Installation 4

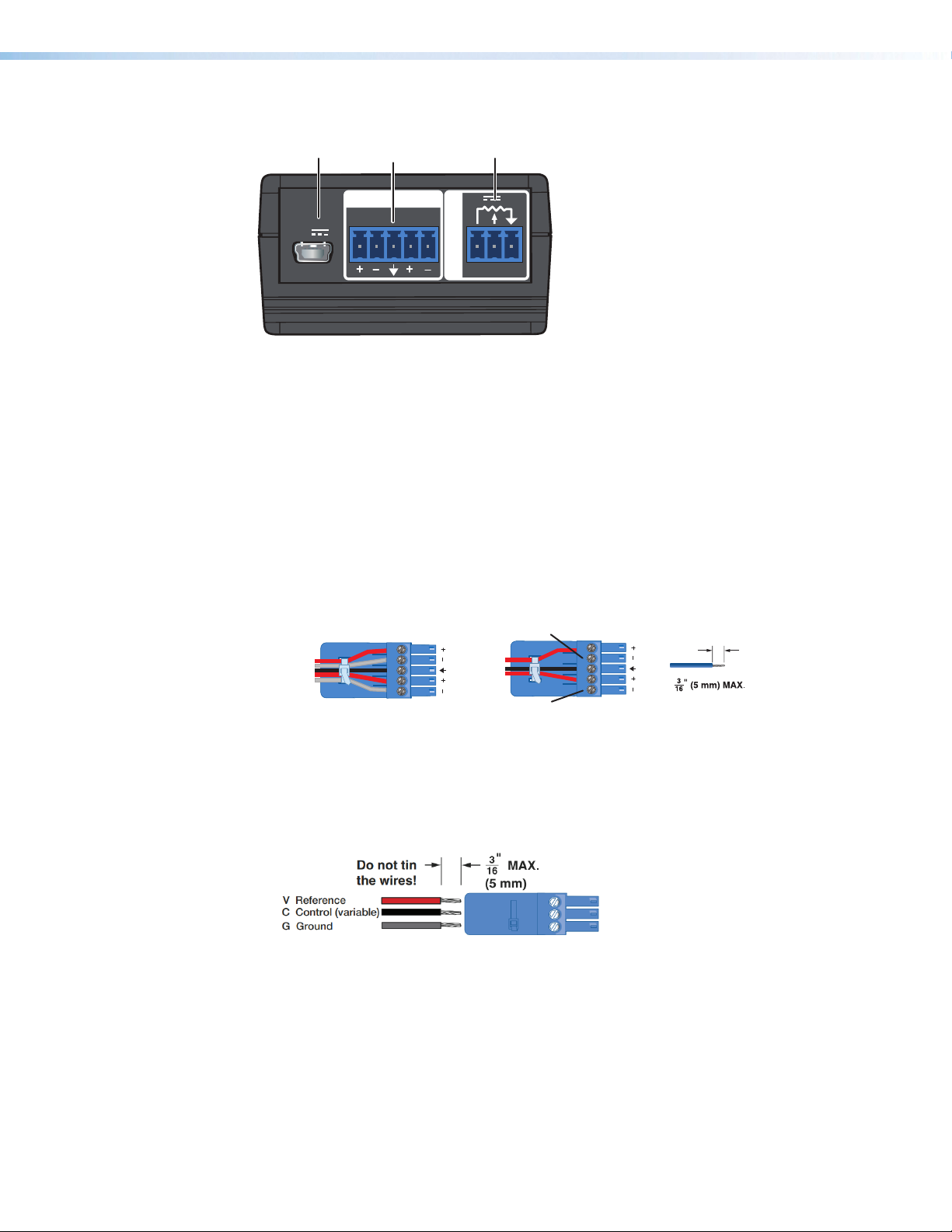

Rear Panel Features
OUTPUT
REMOTE
Rear Panel
LR
VCG
POWER
5V
CONFIG
10V 50m
A
B
C
OUTPUT
REMOTE
LR
VCG
POWER
5V
CONFIG
10V 50m
Figure 2. DAC 102 Rear Panel
APower/Config USB mini-B port —
• Power — Connect a 5 V power source to this USB mini-B port. The port allows the
device to be powered by a third party USB power source, such as the USB port on
a display or a dedicated USB power supply.
• Control — The USB connection may also be used with a PC for configuration and
firmware updates when needed.
BAudio output — Connect a balanced or unbalanced audio device, such as an audio
amplifier or powered speakers, to this 3.5 mm, 5-pole captive screw connector (see
figure3 for details on wiring).
• Nominal output level +6 dBV consumer level unbalanced.
• Nominal output level +12 dBV when wired for balanced output.
Do not tin
the wires!
Balanced Audio Output
Tip
Ring
Tip
Ring
Slee
ves
Unbalanced Audio Output
Tip
No Ground Here
No Ground Here
Tip
Sleeves
LR
LR
Figure 3. Audio Output Wiring
CRemote volume control port — (Optional) Connect a volume controller, such as the
Extron MLA VC10 Plus, VCM series products, MLC 64 RS VC D, and MLC 55 RS VC,
to this 3.5 mm, 3-pole captive screw connector. This port allows for optional analog
volume and mute control (see figure4 for wiring details).
Figure 4. Remote Wiring
2
Power/Config USB mini-B port
Audio output
3
Remote volume control port
4

DAC 102 • Operation 5
Operation
This section describes the operation of the DAC 102. Topics include:
• Front Panel Features
• Operation
Front Panel Features
E
DIGITAL INPUTS
DAC 102
12
Front Panel
A
B
C
D
E

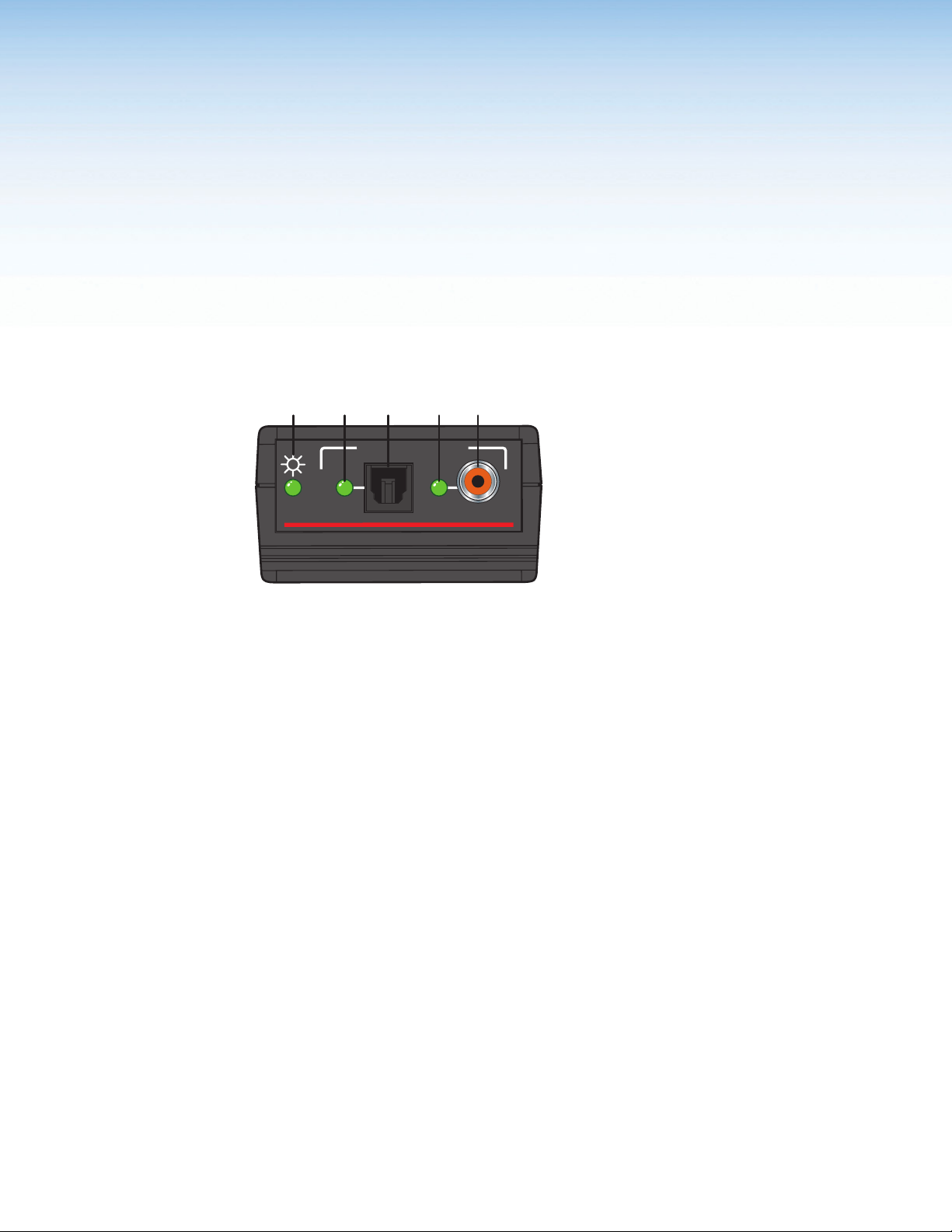

Figure 5. Front Panel Features
APower status LED — Lights green to indicate the unit is powered.
BTOSLINK input status LED (1)— Lights green to indicate active TOSLINK input.
CTOSLINK fiber optic input — Connect a digital audio source using a TOSLINK fiber
optic cable to convert S/PDIF digital audio to analog audio.
DS/PDIF RCA input status LED (2) — Lights green to indicate active S/PDIF RCA
input.
ES/PDIF RCA input — Connect a digital audio source using a coaxial RCA cable to
convert S/PDIF digital audio to analog audio.
Operation
Audio Delay
The DAC 102 supports up to 100 ms of audio delay for correcting lip sync issues. Lip sync
issues occur when the video content does not match the timing of the audio.
Audio delay can be adjusted from a PC via SIS commands (see Set audio delay on
page18) or PCS (see Output Configuration on page15).
TOSLINK and S/PDIF RCA Inputs
Digital PCM/LPCM 2-channel audio from either coaxial RCA or TOSLINK source devices
can be used.
5

DAC 102 • Operation 6
Supported digital audio formats
• Supports 2-channel uncompressed digital PCM/LPCM audio at 32 kHz, 44.1 kHz, 48
kHz, 96 kHz, and 192 kHz sample rates at up to 24-bit resolution
• Input signals that are not the PCM/LPCM rates listed above will not be supported.
When incompatible formats are detected, the DAC 102 will mute the output to prevent
damage to speakers downstream.
Input Priority
• Incoming digital audio formats and sample rates are automatically detected.
• Only one input signal can be processed at a time.
• Inputs are automatically switched based on priority and cannot be selected manually.
See the table below for input status, priority, and LED states.
State Active Input Input 1 LED
(TOSLINK/Optical)
Input 2 LED
(S/PDIF RCA)
Input 1: No Signal
Input 2: No Signal
— OFF OFF
Input 1: Compatible Source
Input 2: No Signal
1 Solid OFF
Input 1: No Signal
Input 2: Compatible Source
2 OFF Solid
Input 1: Compatible Source
Input 2: Compatible Source
1 Solid Slow Blink
Input 1: Compatible Source
Input 2: Incompatible Source
1 Solid Fast Blink
Input 1: Incompatible Source
Input 2: Compatible Source
2 Fast Blink Solid
Input 1: Incompatible Source
Input 2: No Signal
— Fast Blink OFF
Input 1: No Signal
Input 2: Incompatible Source
— OFF Fast Blink
Input 1: Incompatible Source
Input 2: Incompatible Source
— Fast Blink Fast Blink

DAC 102 • Product Configuration Software 7
Product
Configuration
Software
The DCA 102 can be easily configured using Extron Product Configuration Software (PCS).
This section describes the software installation and communication. Topics include:
• Software/Firmware Installation
• PCS Overview
• Connecting to PCS
• Configuring the DAC 102 using PCS
Software/Firmware Installation
Visit www.extron.com to download and install the PCS software.
NOTES:
• Download the latest version of software and firmware of your product.
• An Extron Insider account is required to download and use the firmware or software.
1. Hover over the Download tab at the top of the homepage (see figure6, 1).

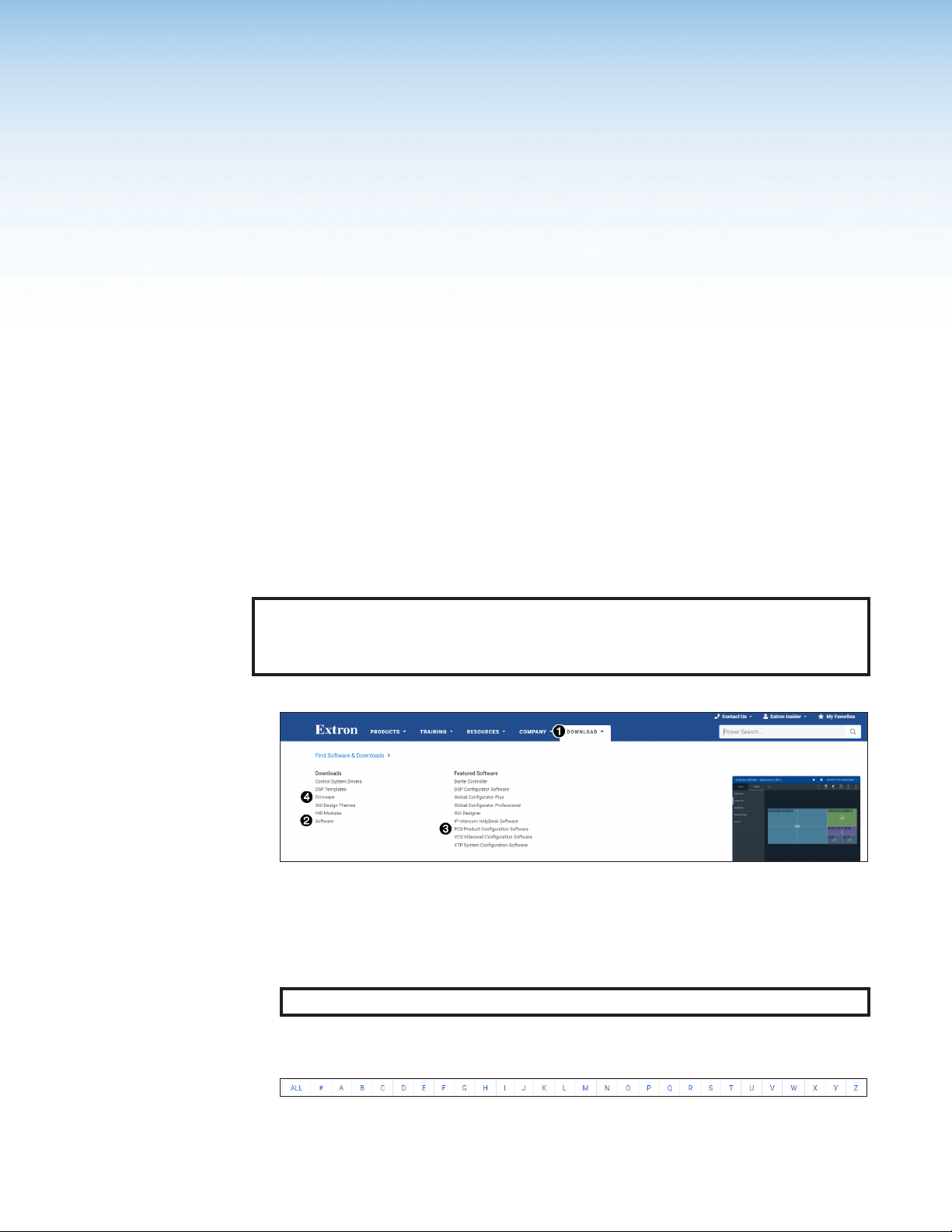

Figure 6. Software Links on Download Screen
2. Click the appropriate link on the drop-down list. The Download Center page opens.
For software, either click the Software link (2) or, if the software is listed, click
directly on that link (see the PCS Product Configuration Software link 3) and
skip to step 5 on page8.
NOTE: If there is no direct link to your software, click the Software link (2).
For firmware, click the Firmware link (4).
3. Scroll down to the alphabetic navigation bar (see figure7).
Figure 7. Alphabetic Navigation Bar
6
7

DAC 102 • Product Configuration Software 8
4. Click the appropriate letter to locate the software or firmware.
NOTE: See the ATTENTION: on page13 before downloading firmware.
5. Click Download (see figure8, 1). The Download Center page of the selected
software/firmware opens and an executable (.exe) file is downloaded to the PC. Make
a note of the folder where the software/firmware file was saved.
ATTENTION:
• The extension of the firmware file must be .s19. Opening a file with an
incorrect extension may cause the device to stop functioning.
• L’extension du fichier firmware doit être .s19. Si un fichier est ouvert avec une
mauvaise extension, l’appareil peut arrêter de fonctionner.
NOTES:
• (Optional) Click Release Notes (2) for more information about the software or
firmware update.
• Firmware is listed only if your device has a firmware update.

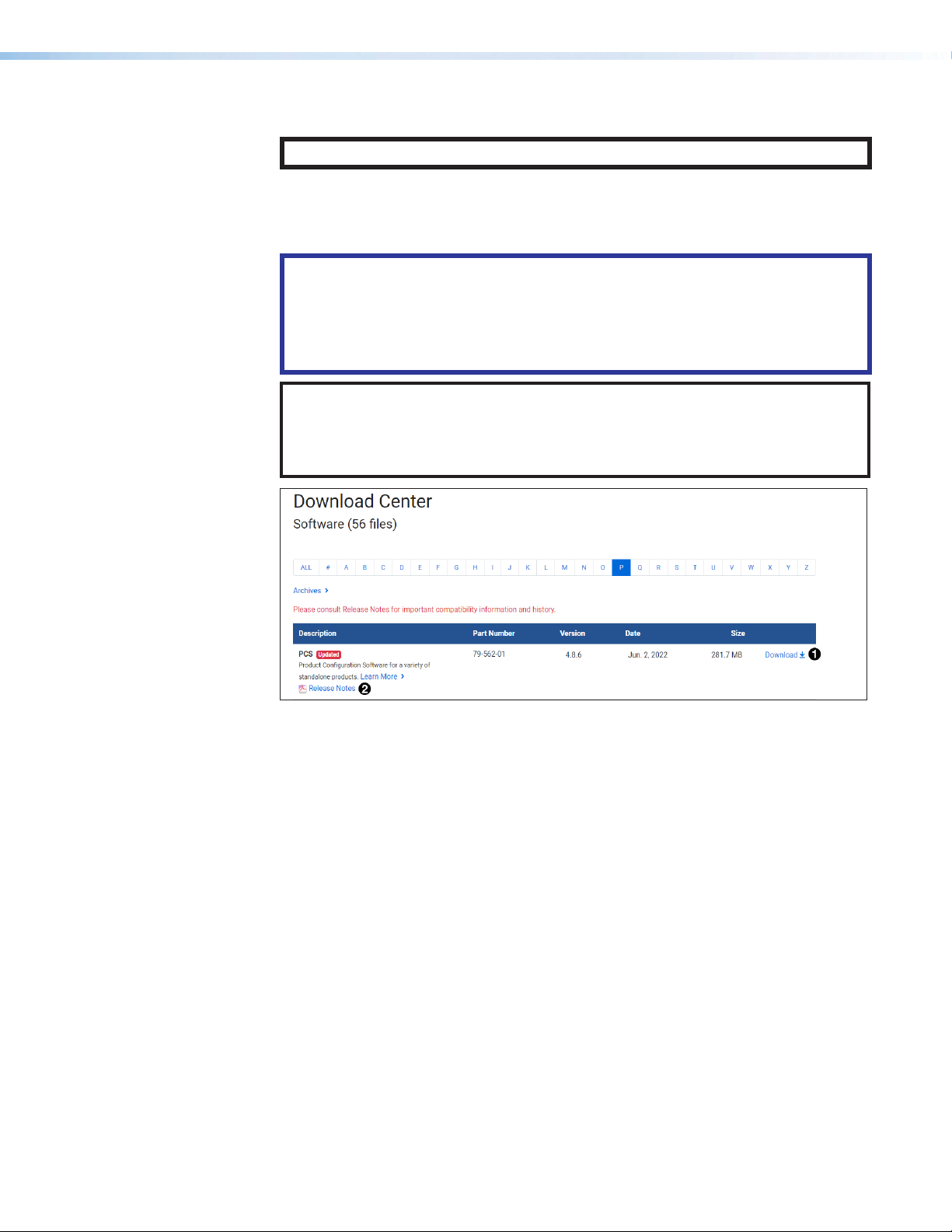

Figure 8. PCS Software Download
6. Install the software.
a. Navigate to the folder where the software file was downloaded.
b. Double-click the executable file and follow the on-screen directions to install the
software.
For firmware:
a. To install via PCS, see Updating the firmware on page13.
step 5
8

DAC 102 • Product Configuration Software 9
PCS Overview
Software Menu
Figure 9. Software Menu
The software menu contains options pertaining to PCS
settings (see figure9).
Show Expanded Device Tabs
Selecting Show Expanded Device Tabs from the
software menu displays the device IP address or
connection method in the Device tab (see figure10).
Figure 10. Expanded Device Tab
Software Settings
This option resets all disabled confirmation dialogs to the default settings.
1. From the Software menu, select
Software Settings. The Software
Settings dialog box opens.
2. Click the Re-enable Confirmation
Dialog button (see figure11, 1). The
dialog box closes and the re-enable is
complete.
Alternatively, click the Close button
(2) to close the dialog box without re-
enabling the confirmation dialogs.
Figure 11. Settings Dialog Box
Tutorial
Display a general overview of where to find features in the PCS framework.
1. From the Software menu, select Tutorial. The Tutorial dialog box opens.
2. Click the I Get It! button to close the dialog box.
Extron PCS Help
Open the PCS help file for general PCS operations.
From the Software menu, select Extron PCS Help.
9
10
11

DAC 102 • Product Configuration Software 10
About Extron PCS
Display information about the current PCS version.
1. From the Software menu, select About Extron PCS. The About - Extron PCS
dialog box opens.
Figure 12. About - Extron PCS Dialog Box
2. Click the Details button (see figure12, 1) for more information.
3. To display details about third-party software packages and associated licensing, click
Licenses (2).
4. Click OK (3) to close the dialog box.
Exit
Disconnect connected devices and close the application.
1. From the Software menu, select Exit. If the device tabs are open, the Exit dialog
box opens (see figure13).
Figure 13. Exit Dialog Box
2. Click the Close Session(s) and Exit button (1) to disconnect the software from
connected devices, close all offline device tabs, and close the software.
Alternatively, click the Cancel button (2) to leave the software open.
12
13

DAC 102 • Product Configuration Software 11
Connecting to PCS
The Extron Product Configuration Software window opens with the Device Discovery
panel open. Connect to the device using the Device Discovery panel.
Device Discovery Panel
The Device Discovery panel displays accessible Extron devices connected directly to the
PC or to a LAN. Devices are identified and sorted by model, IP address, device name, or
connection method.
1. Connect the control PC to the device. The Windows-based PCS communicates with
the device via the rear panel configuration port with a standard USB-B port.
2. Open the Product Configuration Software program from the desktop shortcut. The
Extron PCS window opens to the Device Discovery panel (see figure14).
Figure 14. Device Discovery Screen
3. Select the DAC 102 device by clicking on it to highlight it in the list (1).
4. Click Connect (2). The DAC 102 device tab and main screen opens (see figure15).
Figure 15. DAC 102 PCS Main Window
NOTE: For details on device configuration, see Configuring the DAC 102 using
PCS on page7.
14
15

DAC 102 • Product Configuration Software 12
Offline Device Preview
Opening a new device tab for an offline device displays the interface and configuration
options for the device without connecting to it. However, settings cannot be changed.
To open the decoder in offline mode:
1. From the blue configuration file drop-down list, select New Configuration File (see
figure16).
Figure 16. Configuration File Drop-Down List
The New Configuration File dialog box opens (see figure17).
Figure 17. New Configuration File Dialog Box
2. Select the desired device model from the Device Models list (see figure17).
3. Click Configure.
A new offline device configuration tab opens.
NOTE: The DAC 102 device tab (see the image below) has a grayed out indicator
(circle) to indicate that there is no device connected and the software is running in
offline configuration mode.
16
17
