DVC RGB-HD A • Introduction 1
Introduction
This section gives an overview of the Extron DVC RGB-HD A Digital Video Converter. Topics
include:
• About this Guide
• About the DVC RGB-HD A Converter
• Features
• Application Diagram
About this Guide
This guide provides information for experienced installers on how to install, configure, and
operate the DVC RGB-HD A converter.
In this guide, the terms “DVC,” “DVC RGB-HD A,” and “converter” are used interchangeably
to refer to the DVC RGB-HD A converter.
About the DVC RGB-HD A Converter
The Extron DVC RGB-HD A is a one VGA input, one HDMI output converter that digitizes
analog RGBHV video to HDMI, with analog stereo audio embedding. A USB port allows
for system configuration and firmware updates using Extron Simple Instruction Set (SIS)
commands or PCS Product Configuration Software. The DVC RGB-HD A allows the
adaptation or integration of legacy VGA products into an all-digital audio-video system.
Features
The DVC RGB-HD A provides the following features:
• Conversion of analog RGBHV to HDMI — Adapts analog computer video for use in
digital video systems.
• Analog stereo audio embedding — Converts analog audio signals to digital HDMI
audio.
• Input resolutions — Accepts computer video resolutions from 640x480 up to 1080p
@ 60 Hz and 1920x1200 @ 60 Hz with reduced blanking.
• EDID Minder — EDID Minder automatically manages EDID communication between
connected devices and ensures that all sources power up output content for display
properly and reliably.
• Automatic output format selection — By default, outputs the signal as HDMI format
when input audio is present, or as DVI when no input audio is detected. (You can
change the output selection manually using SIS commands.)
• Status LED — A front panel LED provides power and signal status.
• Configuration port — A rear panel USB port enables system configuration via SIS
commands or the PCS Configuration Software.

DVC RGB-HD A • Introduction 2
• Low profile form factor — Has a compact, 1-inch (2.5 cm) high, one-eighth rack wide
metal enclosure.
• Extron mounting kit — An Extron MBU 125 Low-Profile Mount Kit is provided with
this product.
• LockIt HDMI cable lacing bracket — A LockIt bracket is included to securely attach
the HDMI output connector.
• Extron PCS Product Configuration Software — Enables configuration of multiple
products using a single software application.
Application Diagram
The following diagram shows an example of a DVC RGB-HD A application.
HDMI with Audio
DVC RGB-HD A
INPUT
CONFIG
DTP CROSSPOINT 4K SERIES
DIGITAL PRESENTATION SWITCHER
Extron
CONTROL I/O
AUDIO
VIDEO
LOGO
SELECT ENTERPRESET VIEW ESC
1234
1234
5678MIC VOLUME VOLUME
INPUTS
OUTPUTS
eBUS
COM
112
12 2334
12
34
IR/S I/ORELAYS
SLIMIT
OVER
RTS
CTS
Tx
Rx
DTP HDMI 330 Rx
OVER DTP
RS-232 IR
Tx Rx Tx RxG
MODEL 80
FLAT PANEL
CAT× Cable
up to 330'
(100 m)
HDMI with Audio
VGAAudio
Laptop
Display
Ext
ron
DVC
RGB-HD A
RG
B to HDMI Converter
with Audio Embedding
Extron
DTP CrossPoint 82 4K IPCP SA
8×2 Seamless 4K Scaling Presentation
Matrix Switcher
Extron
DTP HDMI 330 Rx
Receiver
Figure 1. Connection Diagram for a DVC RGB-HD A

DVC RGB-HD A • Installation 3
Installation
This section gives the steps for installing the DVC RGB-HD A. It also provides a description
of the rear panel connectors and instructions for cabling. Topics include:
• Installation Overview
• Front and Rear Panel Features
• Wiring the Power Connector
• Securing the HDMI Connector Using the LockIt Cable Lacing Bracket
• Connecting for USB Control
• EDID Minder
Installation Overview
ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L’installation et l’entretien doivent être effectués par le personnel autorisé
uniquement.
Follow these steps to install and set up the DVC RGB-HD A :
1. Disconnect power from the converter and ensure that all other devices that will be
connected to it are powered off.
2. (Optional) Mount the unit in a rack or to furniture (see Mounting, beginning on
page 32).
3. Connect the input. Connect an RGBHV source to the front panel VGA input
connector (see figure 2, B, on the next page).
4. (Optional) Connect the audio input. Connect analog audio to the 3.5 mm TRS jack on
the front panel (see figure 2, C).
5. Connect the digital output. Connect an HDMI sink to the rear panel HDMI output
connector (see figure 3, B, on page 5).
6. Connect a control device. Connect a computer or control system to the rear panel
USB Config port (see figure 3, C) to configure and control the converter via SIS
commands or the PCS Configuration Software.
7. Connect a 12 VDC power supply to the 2-pole captive screw power connector (see
figure 3, A).
NOTE: The 12 VDC power supply is not included, but can be ordered at
www.extron.com.
8. Configure the DVC RGB-HD A as needed, using SIS commands (see the Remote
Configuration and Control section, beginning on page 11) or the PCS software (see
the program help file).

DVC RGB-HD A • Installation 4
Front and Rear Panel Features
The illustrations below show the connectors and indicators on the DVC RGB-HD A front and
rear panels.
CAUTION: Remove power from the unit before making any connections.
ATTENTION : Couper l’alimentation de l’unité avant de faire l’installation électrique.
ATTENTION:
• Use electrostatic discharge precautions (be electrically grounded) when making
connections. Electrostatic discharge (ESD) can damage equipment, although you
may not feel, see, or hear it.
• Prenez des précautions contre les décharges électrostatiques (soyez
électriquement relié à la terre) lorsque vous effectuez des connexions. Les
décharges électrostatiques (ESD) peuvent endommager l’équipement, même si
vous ne pouvez pas le sentir, le voir ou l’entendre.
Front Panel
DVC RGB-HD A
A
A
AC
C
C
INPUT
B
B
B
Figure 2. DVC RGB-HD A Front Panel
APower and signal status LED — This bicolor LED lights as follows:
• Amber while the unit is powered by a 12 VDC external power supply
• Green when the DVC detects horizontal sync on the input
BVGA input — Connect an RGBHV input, such as a computer, to this 15-pin VGA
connector (a male-to-male, 15 pin mini VGA cable is provided for this connection). The
DVC digitizes and converts the RGB input signal to DVI or HDMI format.
CAudio input — Connect an analog audio input to this 3.5 mm TRS jack.
The analog audio input can be embedded onto the TMDS output. TMDS output with
embedded analog audio (HDMI RGB Full 4:4:4) is the default setting.

DVC RGB-HD A • Installation 5
Rear Panel
OUTPUT
POWER
12V
0.2A MAX
CONFIG
C
C
C
A
A
A
B
B
B
Figure 3. DVC RGB-HD A Rear Panel
APower connector — Connect a 12 VDC power supply between this 2-pole, 3.5 mm
captive screw connector and a 100 to 240 VAC, 50 Hz or 60 Hz power source. See
Wiring the Power Connector for the connection procedure.
BHDMI output connector — Connect an HDMI sink to this female HDMI connector.
• No input signal — When there is no input signal present, this connector does not
output TMDS data or clock activity. This ensures that any downstream device does
not erroneously detect a signal.
• Output 5 V mode — This mode is configurable via SIS commands (see the
5 V Output Hot Plug Mode commands on page 16). Select either of the following:
• Always enabled — The 5 V pin is always active, regardless of the input signal
status. This enables the unit to detect hot-plug assertion and read the EDID
from a connected sink.
• Auto — 5 V output is active only when a source is connected to the input. If
no source is connected the 5 V output is disabled. (This may be necessary for
some sinks to enter power save mode.)
Secure the HDMI output cable to the HDMI connector using the LockIt bracket (see
Securing the HDMI Connector Using the LockIt Cable Lacing Bracket on
page 7).
CConfig port — Use a USB A-to-mini B cable to connect this port to a USB port on the
computer.
Wiring the Power Connector
The DVC RGB-HD A requires a 12 VDC, 1 A power supply to power it.
CAUTION: The wires must be kept separate while the power supply is plugged in.
Remove power before wiring.
ATTENTION : Les deux cordons d’alimentation doivent être tenus à l’écart l’un
de l’autre quand l’alimentation est branchée. Couper l’alimentation avant de faire
l’installation électrique.
ATTENTION:
• Do not connect any external power supplies until you have read the Attention
notifications beginning on the next page.
• Ne branchez pas de sources d’alimentation externes avant d’avoir lu les mises en
garde sur la page suivante.
NOTE: The 12 VDC power supply is not included, but can be ordered at
www.extron.com.

DVC RGB-HD A • Installation 6
Follow these instructions to wire the provided 2-pole captive screw connector to your power
supply:
1. Cut the DC output cord to the length needed.
2. Strip the jacket to expose 3/16” (5 mm) of the conductors.
3. Slide the leads into the supplied 2-pole captive screw plug and secure them, using a
small screwdriver.
4. To verify the power cord polarity before applying power to the unit, connect the power
supply to AC power with no load and check the output with a voltmeter.
5. Use the supplied tie wrap to strap the power cord to the extended tail of the connector.
Captive Screw Connector
Tie Wrap
Heat
Shrink 1/8"
(3 mm)
7/8"
(22 mm)
3/16"
(5 mm) Max.
AA
Power Supply
Output Cord
Ridges
Smooth
SECTION A–A
Figure 4. Wiring the Power Connector
ATTENTION:
• Always use a power supply supplied and or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification and may
cause damage to the supply and the end product.
• Utilisez toujours une source d’alimentation fournie ou recommandée par Extron.
L’utilisation d’une source d’alimentation non autorisée annule toute conformité
réglementaire et peut endommager la source d’alimentation ainsi que le produit
final.
• If not provided with a power supply, this product is intended to be supplied by a
UL Listed power source marked “Class 2” or “LPS” and rated output 12 VDC,
minimum 0.2 A.
• Si le produit n’est pas fourni avec une source d’alimentation, il doit être alimenté
par une source d’alimentation certifiée UL de classe 2 ou LPS, avec une tension
nominale 12 Vcc, 0.2 A minimum.
• The installation must always be in accordance with the applicable provisions of
National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical
Code part 1, section 16. The power supply shall not be permanently fixed to
building structure or similar structure.
• Cette installation doit toujours être en accord avec les mesures qui s’applique
au National Electrical Code ANSI/NFPA70, article725, et au Canadian Electrical
Code, partie1, section16. La source d’alimentation ne devra pas être fixée de
façon permanente à une structure de bâtiment ou à une structure similaire.
• Power supply voltage polarity is critical. Incorrect voltage polarity can damage
the power supply and the unit. The ridges on the side of the cord (see figure 4)
identify the power cord negative lead.
• La polarité de la source d’alimentation est primordiale. Une polarité incorrecte
pourrait endommager la source d’alimentation et l’unité. Les stries sur le côté du
cordon permettent de repérer le pôle négatif du cordon d’alimentation.
• To verify the polarity before connection, plug in the power supply with no load
and check the output with a voltmeter.
• Pour vérifier la polarité avant la connexion, brancher l’alimentation hors charge et
mesurer sa sortie avec un voltmètre.

DVC RGB-HD A • Installation 7
ATTENTION:
• The length of the exposed (stripped) copper wires is important.
The ideal length is 3/16 inch (5 mm). Longer bare wires can short together.
Shorter wires are not as secure in the connectors and could be pulled out.
• La longueur des câbles exposés est primordiale lorsque l’on entreprend de les
dénuder. La longueur idéale est de 5mm (3/16inches). S’ils sont un peu
plus longs, les câbles exposés pourraient se toucher et provoquer un court
circuit. S’ils sont un peu plus courts, ils pourraient sortir, même s’ils sont attachés
par les vis captives.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air
handling spaces or in wall cavities.
• Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une
utilisation dans les espaces d’aération ou dans les cavités murales.

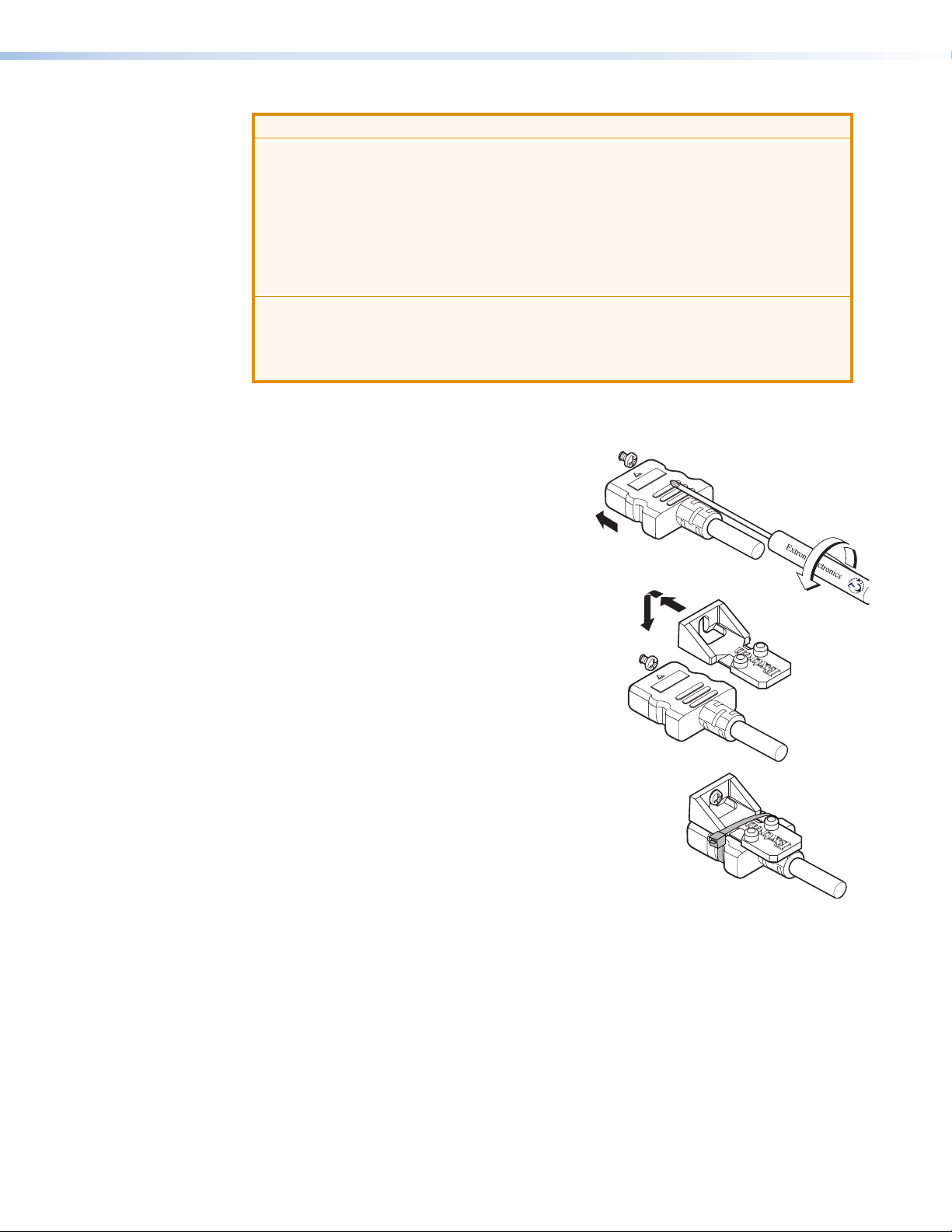

Securing the HDMI Connector Using the LockIt Cable Lacing Bracket
After connecting an input or output device to
an HDMI connector, secure the connector in
place with the provided LockIt bracket as follows:
1. Plug the HDMI cable into the panel
connection (1).
2. Loosen the HDMI connection mounting
screw from the panel enough to allow the
LockIt lacing bracket to be placed over it
(2).
3. Place the LockIt lacing bracket onto the
screw and slide it up against the HDMI
connector. Tighten the screw to secure the
bracket (3).
4. Loosely place the included tie wrap around
the HDMI connector and LockIt lacing
bracket (4).
5. While holding the connector securely against
the lacing bracket, tighten the tie wrap, then
remove any excess length.
3
333
222
444
111

DVC RGB-HD A • Installation 8
Connecting for USB Control
The USB mini B Config port is located on the DVC rear panel. It can be used to configure
the converter via SIS commands or the PCS configuration software.
1. Connect the DVC rear panel USB Config port to a USB port on the computer.
USB Cable
USB A
USB Mini B USB 1
USB
Ports
Computer
DVC RGB-HD Rear Panel
OUTPUT
POWER
12V
A MAX
CONFIG
Figure 5. Connecting to the Config Port
2. When the DVC is first connected to a particular USB port on the computer, one of the
following windows may open.
NOTE: If you have uploaded the PCS software to your computer, the USB driver is
already installed and the screens do not appear.
• Windows XP and earlier: If the following window opens, specify whether
Windows Update will search the Web for the driver needed for the computer to
communicate with the DVC via the USB port (this is not necessary if the USB driver
already exists on the computer).
Figure 6. Found New Hardware Wizard Opening Screen

DVC RGB-HD A • Installation 9
Select one of the following radio buttons:
• Select the Yes, this time only radio button for the computer to connect to
Windows Update only this one time.
• Select the Yes, now and every time Iconnect adevice radio button to
automatically connect to Windows Update every time the DVC is connected to
this USB port.
• Select the No, not this time radio button to not connect to Windows Update
at this time (for example, if the driver is already installed).
NOTE: This wizard appears only the first time the DVC is connected to each
USB port. It does not reopen until you connect the DVC to a different USB port.
• Windows 7 and later: A pop-up notification appears on the Windows taskbar
informing you that Windows Update is searching the Web for the USB driver and
installing it. If desired, click the USB icon on the computer desktop to view the
progress of the search.
3. Click Next. On the next screen, make sure that the Install the software
automatically (Recommended) radio button is selected, then click Next (you do not
need to insert a disc).
Figure 7. Selecting the Radio Button to Install the USB Driver Automatically
The Driver Software Installation window appears:
Figure 8. Driver Software Installation Window for USB Software

DVC RGB-HD A • Installation 10
4. (Windows XP and earlier only) Click Next. On the next screen, if asked whether to
install the driver automatically or from a specific location, select to install the software
automatically
The computer locates the driver needed for it to communicate with the DVC via the
USB port.
5. Windows XP or earlier: When the Completed window appears, click Finish to close
the wizard.
Windows 7 or later: When the USB software has been located and downloaded, the
message Ready to use appears on the Driver Software Installation screen (a
pop-up message appears above the Windows taskbar if the screen is closed). Click
Close to close the status window.
6. Configure the DVC as desired, using SIS commands (see Remote Configuration and
Control, beginning on page 11) or the PCS configuration program (see the program
help file).
EDID Minder
EDID information consists of the display resolution, refresh rate, data rate type, and video
format. EDID Minder maintains EDID communication to the connected source, ensuring that
the source continuously sees the EDID of a sink device, regardless of the input that is being
selected or is actually connected. You can assign a unique EDID file to an input, emulating a
sink device that has the desired characteristics.
The DVC has nine slots to which EDIDs can be assigned:
• VGA EDIDs (slots 1 through 7) — These factory-provided EDID files can be
assigned to slots 1 through 7 via SIS commands. Each EDID file contains a unique
native resolution. See the EDID Minder SIS commands on page 15 or the PCS
Configuration Software help file for more information.
• Output slot (slot 8, default EDID) — This slot contains the EDID of the connected
sink. When a sink is detected, this slot also detects the HDMI format EDID of the sink
and converts it to VGA format before saving it to the output slot. When the sink is
disconnected and power is cycled to the DVC, the EDID is removed from this slot and
replaced by the default EDID: 1280 x 720 @ 60 Hz. You can assign a different EDID to
this slot only via the PCS software (see the program help file).
• User-assigned EDID (slot 9) — This slot is available to import an EDID. The user slot
can be assigned only to the VGA input and initially contains the default VGA EDID. You
can assign an EDID to this slot only using the PCS software (see the program help file).
The following table shows the provided EDIDs and slot assignments.
Slot Native Resolution Refresh Rate Rate Type Video Format
11280 x 720 60 Hz IT VGA
21280 x 800 60 Hz IT VGA
31440 x 900 60 Hz IT VGA
41600 x 900 60 Hz IT VGA
51680 x 1050 60 Hz IT VGA
61920 x 1080 60 Hz IT VGA
71920 x 1200 60 Hz IT VGA
8* Output (current display EDID)
9User-assigned
*Default

DVC RGB-HD A • Remote Configuration and Control 11
Remote
Configuration and
Control
This section describes the connections through which the DVC RGB-HD A can be
configured and controlled remotely via SIS commands and the Product Configuration
Software (PCS), as well as the available commands and screen selections. Topics include:
• Communication Port
• Using SIS Commands
• Product Configuration Software (PCS)
• Firmware Loader
Communication Port
The DVC RGB-HD A can be remotely controlled via a host computer or other device (such
as a control system) that is connected to the rear panel USB Config port. With a USB
connection, you can configure and control the DVC using SIS commands or the PCS
software.
See Connecting for USB Control on page 8 to connect to the USB port.
Using SIS Commands
SIS commands consist of one or more characters per command field. They do not require
any special characters to begin or end the command character sequence. When the DVC
determines that a command is valid, it executes the command and sends a response to the
host device. Each converter response to an SIS command ends with a carriage return and
a line feed (CR/LF = ]), which signals the end of the response character string. A string is
one or more characters.
DVC-initiated Message
When power is cycled to the DVC (or at initial power-up) while the unit is connected to
the computer, the converter responds by sending the following message to the host. No
response is required from the host.
©Copyright 20nn,Extron Electronics DVC RGB-HD A, Vn.nn,60-1614-01 ]
20nn is the year, and Vn.nn is the firmware version number.

DVC RGB-HD A • Remote Configuration and Control 12
Error Responses
When the DVC receives a valid command, it executes the command and sends a response
to the host device. If the unit is unable to execute the command because the command
contains invalid parameters, it returns an error response to the host. The responses include:
• E01 — Invalid input number
• E10 — Invalid command
• E13 — Invalid parameter
• E14 — Not valid for this configuration
• E17 — Invalid command for signal type
Using the Command and Response Table
The Command and Response Table for SIS Commands, beginning on page 15, lists
the commands that the DVC RGB-HD A converter recognizes as valid, the responses that
are returned to the host, a description of the command function or the results of executing
the command, and command examples.
NOTE: If the unit does not support or recognize a command that is entered, no action is
taken and no response is returned.
ASCII to Hex Conversion Table
•
Space
Figure 9. ASCII to Hexadecimal Character Conversion Table
NOTE: Upper- and lowercase text can be used interchangeably.

DVC RGB-HD A • Remote Configuration and Control 13
Symbol Definitions
• = Space
]]= Carriage return with line feed
}}= Carriage return with no line feed
E= Escape
|= Pipe (vertical bar) character. Has the same function as }}.
W= Has the same function as E.
X!X! = On or off, enable or disable, detected or not detected
0= Off, not detected, or disable
1= On, detected, or enable
X@X@ = Unit name — Text string of up to 24 characters: Athrough Z, 0through 9, and hyphen or
minus sign (-). The default is DVC-RGB-HD-A.
NOTE: No blank or space characters are permitted. The first character must be a letter
and the last character cannot be a hyphen.
X#X# = Verbose mode
0= None
1= Verbose mode (default)
2= Tagged response for queries
3= Verbose mode and tagged response for queries
NOTES:
• In verbose mode, the DVC responds with unsolicited responses for value and
setting changes that may result from a signal change, or a setting adjustment made
via another interface.
For example, the DVC can send out a notice of a change in some setting without
receiving a query via your PC. That change could have been a result of an internal
process or a power cycle. This is an example of a verbose (wordy) relationship
between the controller and a connected device.
• If tagged responses are enabled, all “view” commands return the command string
plus the data, the same as in responses for setting a value. For example, for the
View EDID assignment command:
Command: EAEDID }
Response: EdidA X$ ](tagged response)
or X$ ](untagged response)
X$X$ = EDID slot number (1through 9). The following table shows descriptions of the factory
provided EDIDs and slot assignments:
X$ Native Resolution Refresh Rate Rate Type Video Format
11280 x 720 60 Hz IT VGA
21280 x 800 60 Hz IT VGA
31440 x 900 60 Hz IT VGA
41600 x 900 60 Hz IT VGA
51680 x 1050 60 Hz IT VGA
61920 x 1080 60 Hz IT VGA
71920 x 1200 60 Hz IT VGA
8* Output (current display EDID)
9User-assigned
*Default
