1.3 Product Specifications............................................................................... 3

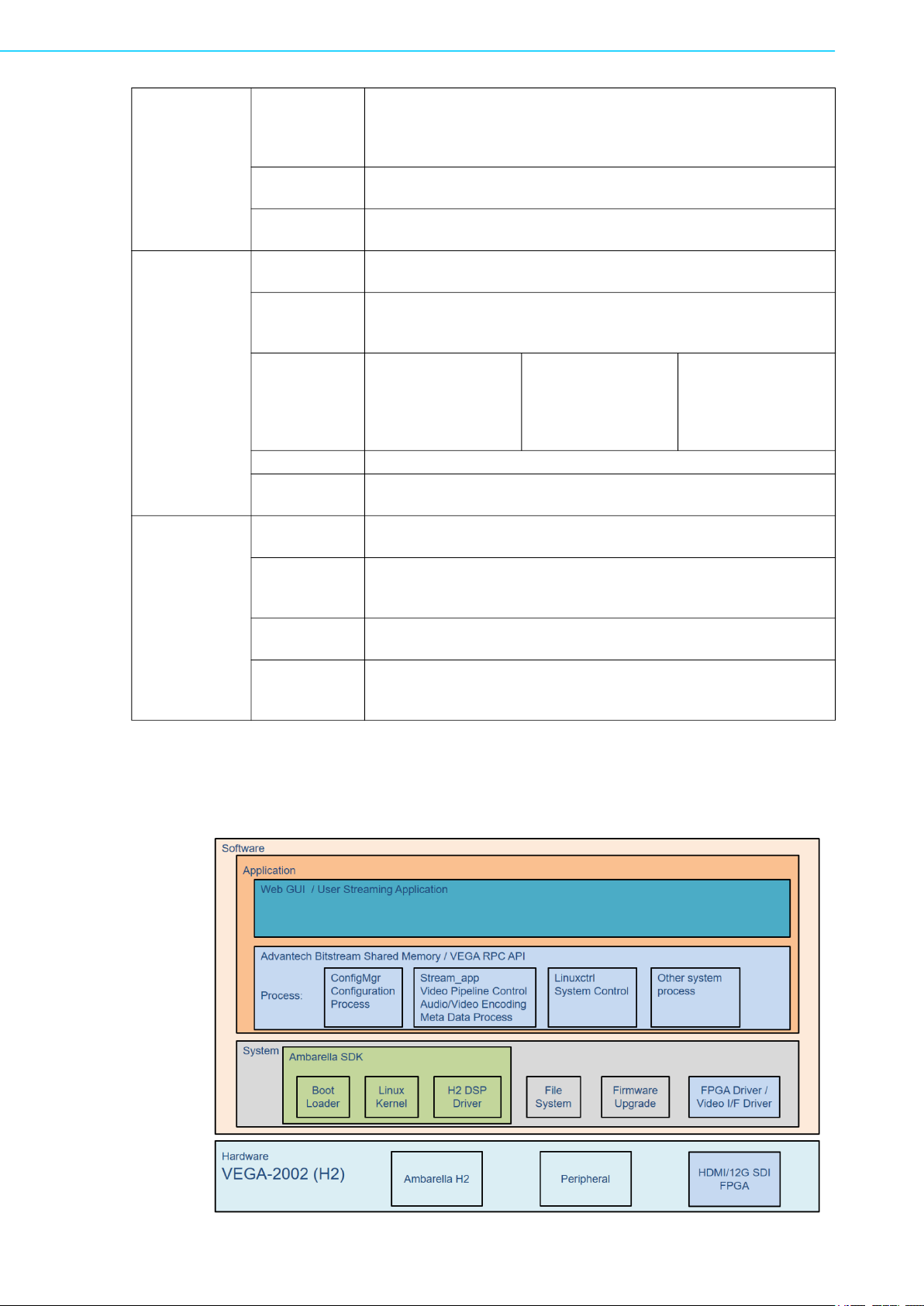

1.4 Software Architecture................................................................................ 4
1.5 Module Board Dimension.......................................................................... 5
Chapter 2 Installing VEGA-2002 ..........................7
2.1 Start working with VEGA-2002................................................................ 10
2.1.1 Accessing the Module Across Wired Network Using the Web
Browser....................................................................................... 10
2.1.2 Upgrading Firmware ................................................................... 10
2.1.3 LED for Video Source Connection .............................................. 11
Chapter 3 VEGA-2002 Web GUI .........................13
3.1 Live Page ................................................................................................ 14
3.2 System Page........................................................................................... 14
3.3 Broadcast ................................................................................................ 16
3.3.1 Wowza Live................................................................................. 16
3.3.2 ESPxMedia ................................................................................. 17
3.4 Stream Settings Page ............................................................................. 18
3.4.1 Customize - Video Setting .......................................................... 19
3.4.2 Protocol....................................................................................... 20
3.5 Video/Audio............................................................................................. 24
3.6 Network settings...................................................................................... 25
3.7 Record settings ...................................................................................... 26
3.8 OSD (Under Development) ..................................................................... 27
Chapter 4 How to stream....................................29
4.1 RTSP/RTP .............................................................................................. 30
4.2 MPEG-TS................................................................................................ 32
4.3 RTMP ...................................................................................................... 34
4.4 HTTP Live Streaming.............................................................................. 35
4.5 Zixi Live Streaming.................................................................................. 36
Appendix A Hardware/Software Support List......37
A.1 VEGA2002 Video Encoding Performance .............................................. 38

VEGA-2002 User Manual viii

Chapter 1
1Product Introduction

VEGA-2002 User Manual 2
1.1 General Introduction
With video streaming thriving recently, new concepts such as social media and live
streaming are gaining popularity among video professionals. The VEGA-2002 is able
to leverage the ubiquity of mobile networks and the flexibility of over-the-top delivery
without jeopardizing the video quality by providing a professional-grade 4K HEVC
engine that can be easily integrated as a portable broadcasting solution. The VEGA-
2002 is a great and powerful module to opens new online media opportunities
enabling live event streaming even in the most challenging scenarios where a tradi-
tional outside broadcasting setup is not a feasible option.
The VEGA-2002 is a small, low power, real-time encoding module based on
Ambarella's video compression technology which supports UHD resolution with
HEVC and AVC codecs.
It captures 4K video content through the SDI or HDMI inputs then encodes the video
content by the Ambarella's H2 processor. The encoded video content can be
streamed to the cloud server with several protocols such as RTSP, RTMP or even
HLS. The VEGA-2002 can create multiple output streams from a single video input
and encode it individually by using different codecs with different resolutions.
The VEGA-2002 offers a user-friendly HTTP interface and can be remotely controlled
by using a web-based Common Gate Interface (CGI). It supports multiple streaming
protocols that commonly used by CDNs, which make it easier for users to deliver
their video over-the-top.
1.2 Packing List
Before you begin installing your card, please make sure that the following items have
been shipped:
1 VEGA-2002
1 Power Adapter
If any of these items are missing or damaged, please contact to your distributor or
sales representative immediately.
Note! Acrobat Reader is required to view any PDF file. Acrobat Reader can be
downloaded at: http://www.adobe.com/Products/acrobat/readstep2

3 VEGA-2002 User Manual
Chapter 1 Product Introduction
1.3 Product Specifications
3GS 4X3GS 12GS
Video Input
Format
Channels/
interface
1x 3G-SDI or HDMI
2.0, up to 4Kp60 8/10
bit 4:2:2
4 x 3G-SDI, up to
4Kp60 8/10 bit 4:2:2
1 x 12G-SDI or
HDMI2.0, up to
4Kp60 8/10 bit 4:2:2
Video formats
HDMI 2.0 Interface
3840x2160:
60p/59.94p/ 50p/30p /
29.97p/25p
1920x1080: 60p/
59.94p/50p/30p/
29.97p/25p/24p
1920x1080: 60i/
59.94i/50i
1280x720: 60p/
59.94p/50p
BNC (3GS-SDI) Inter-
face
1920x1080: 60p/
59.94p/50p/30p/
29.97p/25p
1920x1080:
60i/59.94i/50i
1280x720: 60p/
59.94p/50p/30p/
29.97p/25p
BNC (3GS-SDI) Inter-
face
3840x2160: 60P/
59.94p/50p/30p/
29.97p
1920x1080: 60p/
59.94p/50p/30p/
29.97p/25p
1920x1080:
60i/59.94i/50i
1280x720: 60p/
59.94p/50p/30p/
29.97p/25p
(Note: 3840x2160
support by 4 x 3G-
SDI Quad Link)
HDMI 2.0 Interface
3840x2160:
60p/59.94p/ 50p/30p /
29.97p/25p
1920x1080: 60p/
59.94p/50p/30p/
29.97p/25p/24p
1920x1080:
60i/59.94i/50i
1280x720:
60p/59.94p/50p
BNC (12G-SDI) Inter-
face
3840x2160:
60P/59.94p/50p/30p/
29.97p
1920x1080: 60p/
59.94p/50p/30p/
29.97p/25p
1920x1080:
60i/59.94i/50i
1280x720: 60p/
59.94p/50p/30p/
29.97p/25p
Compression
Compression HEVC (H.265) / AVC (H.264) up to 4Kp60
AVC or HEVC
profile
AVC BP/MP/HP Level 5.1
HEVC Main Level 5.1
HEVC Tier Main
Bitrate 64kbps~32Mbps
Bit Depth 8, 10 bit(only HEVC)
Chroma
Sampling
Format
4:2:0
Bit Rate
Control CBR
Audio Input &
Compression
Channels
Line-In: stereo
3G-SDI: 4 stereo
HDMI: 4 stereo
Line-In: stereo
3G-SDI: 2 stereo
(Only supports the
SDI port next to the
line in)
Line-In: stereo
12G(3G)-SDI: 2 ste-
reo
HDMI: 2 stereo
Audio
Compressing
Format
AAC-LC, AAC-HE, AAC-HEv2
Sampling
Rates
HDMI/SDI: 44.1/48Khz-16bit
Line in: 32/44.1/48Khz-16bit
Self View Video Output
Frame PAL

VEGA-2002 User Manual 4
1.4 Software Architecture
VEGA-2002 provides Web GUI to control encode, stream, record and other parame-
ters. Below is software architecture for reference.
Video Stream
Features
Dynamic
Video Stream
Resolution
Change
Yes
Streaming
Protocol RTSP/RTP/RTMP/HLS/TS over IP/SRT/NDI HX2(option)
GOP
Definition I, IP, IPB, IBBP
Module
Characteristic
Operation
System Embedded Linux
Management
& Control
Interface
Remote from Web GUI interface
Power
Consumption
(Base on
4Kp60 Video
Encoding)
10.7W 17.8W 9.4W
Power Input DC12V
System
Dimension 130 x 48x 94.1(mm)
Environmental
Operating
Temperature 0 to 40 degrees Celsius
Non-
operating
Temperature
-40 to 70 degrees Celsius
Operating
Humidity 50 to 95% (non-condensing)
Non-
operating
Humidity
50 to 95% (non-condensing)

5 VEGA-2002 User Manual
Chapter 1 Product Introduction
1.5 Module Board Dimension
VEGA-2002-12G SDI/HDMI
VEGA-2002-4X3G SDI
VEGA-2002-3G SDI/HDMI

VEGA-2002 User Manual 6

Chapter 2
2Installing VEGA-2002

VEGA-2002 User Manual 8

9 VEGA-2002 User Manual
Chapter 2 Installing VEGA-2002
Following these steps below:
1. Connect a video source to SDI or HDMI video inputs.
2. Connect the power adapter to power jack.(When power on ,the power LED is
Blue)
3. Connect the LAN cable to the Internet HUB. Please make sure your PC's LAN
cable is also connected to the HUB as well.(If you want your PC serves as a
decoder)
4. Connect your USB flash drive to the USB1 or USB2 for the recording function.

VEGA-2002 User Manual 10
2.1 Start working with VEGA-2002
2.1.1 Accessing the Module Across Wired Network Using the Web
Browser
1. The default IP address of the Ethernet port is 192.168.1.10.
2. Please setup your PC to the same domain to connect VEGA-2002
(192.168.1.x).
3. Start the Web browser on your PC and type in 192.168.1.10 in the URL address
bar.
4. Enter username and password to login Web UI, VEGA-2002 has a default user-
name of admin and default password of admin.
5. The Live page should be displayed as below.
2.1.2 Upgrading Firmware
The VEGA-2002 firmware can be automatically updated by connecting a USB flash
drive to VEGA-2002 using the USB port.
1. Prepare an empty USB flash drive (FAT32).
2. Download or get firmware file from your Advantech contact.
3. Put firmware file, “vega2002_XXXX.upd.xz” to the root directory of your USB
flash drive.
4. Power-OFF the VEGA-2002, insert your USB flash drive to the VEGA-2002 and
remove other devices (LAN & video input source, except the power adapter).
5. Power-ON the VEGA-2002, the firmware upgrading will start automatically.
6. Once upgrade finished, the power button LED will stop blinking and keep in
green.
7. Please remember to remove the USB flash drive. Then, execute a power cycle
by using the power button.
8. Check the software version from Web, System → Information → Software ver-
sion.

11 VEGA-2002 User Manual
Chapter 2 Installing VEGA-2002

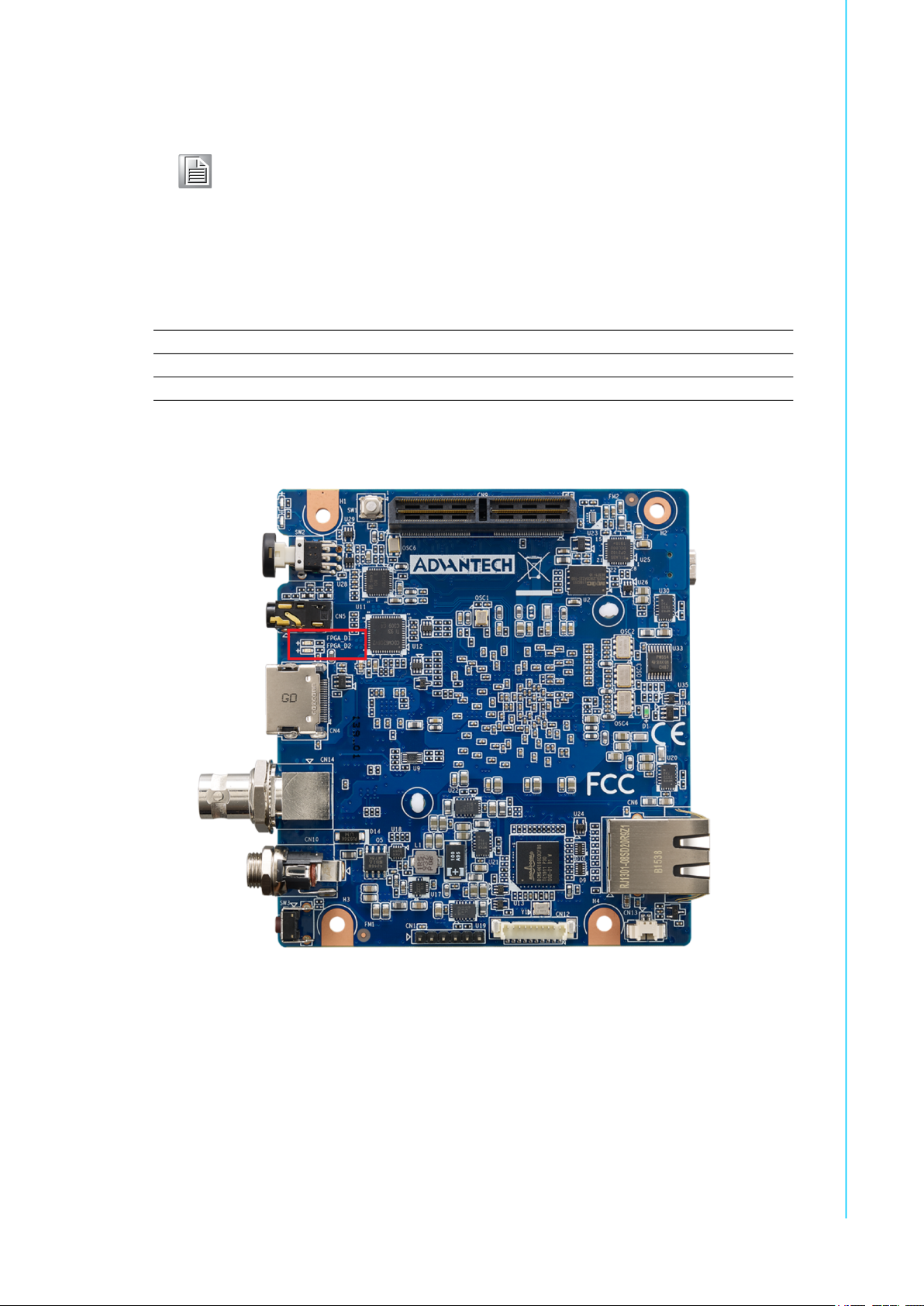

2.1.3 LED for Video Source Connection
There are two LED which can indicate connection status of video source. Below is
LED behavior table for reference.
LED Status Table
LED Location
–VEGA-2002-12GS
Note! Users can also use Web GUI to upgrade Firmware, please refer to
chapter 3.2
Video Source Non-Connected Connected
HDMI(FPGA_D1) Light-on Light-blink
SDI(FPGA_D2) Light-on Light-off

VEGA-2002 User Manual 12
–VEGA-2002-4X3GS
–VEGA-2002-3GS
