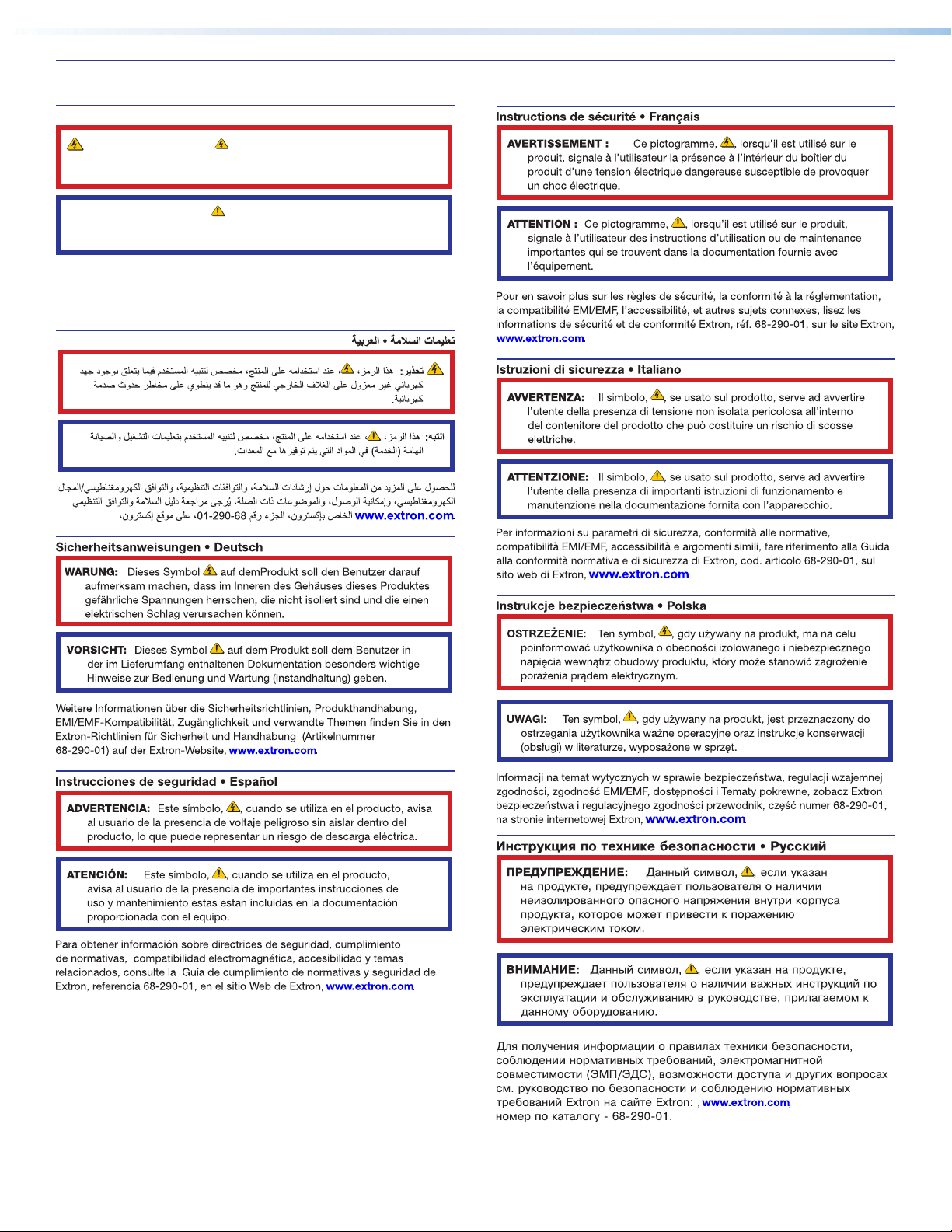

Safety Instructions
Safety Instructions • English
WARNING: This symbol, , when used on the product, is intended to
alert the user of the presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of electric shock.
ATTENTION: This symbol, , when used on the product, is intended
to alert the user of important operating and maintenance (servicing)
instructions in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and
Regulatory Compliance Guide, part number 68-290-01, on the Extron website,
www.extron.com.


Copyright
© 2016-2022 Extron. All rights reserved. www.extron.com
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks (®), registered service marks (SM), and trademarks (TM) are the property of RGBSystems, Inc. or Extron (see the
current list of trademarks on the Terms of Use page at www.extron.com):
Registered Trademarks (®)
Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Flat Field, FlexOS, Glitch Free, GlobalConfigurator,
GlobalScripter, GlobalViewer, Hideaway, HyperLane, IPIntercom, IPLink, KeyMinder, LinkLicense, LockIt, MediaLink, MediaPort, NAV,
NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation,
SystemINTEGRATOR, TeamWork, TouchLink, V-Lock, VN-Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTPSystems, and ZipClip
Registered Service Mark(SM) : S3 Service Support Solutions
Trademarks (™)
AAP, AFL (Accu-RATEFrameLock), ADSP(Advanced Digital Sync Processing), AVEdge, CableCover, CDRS(ClassD Ripple Suppression),
CodecConnect, DDSP(Digital Display Sync Processing), DMI (DynamicMotionInterpolation), DriverConfigurator, DSPConfigurator, DSVP(Digital
Sync Validation Processing), EQIP, Everlast, FastBite, Flex55, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, Opti-Torque,
PendantConnect, ProDSP, QS-FPC(QuickSwitch Front Panel Controller), RoomAgent, Scope-Trigger, SIS, SimpleInstructionSet, Skew-Free,
SpeedNav, Triple-Action Switching, True4K, True8K, Vector™ 4K, WebShare, XTRA, and ZipCaddy

FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause interference. This interference must be corrected at the expense of the user.
NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF
compatibility, accessibility, and related topics, see the Extron Safety and Regulatory
Compliance Guide on the Extron website.
VCCI-A Notice

Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
ATTENTION:
• Risk of property damage.
• Risque de dommages matériels.
NOTE: A note draws attention to important information.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
EX!*X1&*X2)*X2#*X2!CE}
NOTE: For commands and examples of computer or device responses used in this
guide, the character “0” is the number zero and “O” is the capital letter “o.”
Computer responses and directory paths that do not have variables are written in the font
shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in slanted form as shown here:
ping xxx.xxx.xxx.xxx —t
SOH R Data STX Command ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and field names are
written in the font shown here:
From the File menu, select New.
Click the OK button.
Specifications Availability
Product specifications are available on the Extron website, www.extron.com.
Extron Glossary of Terms
A glossary of terms is available at https://www.extron.com/technology/glossary.aspx.

Contents
Introduction............................................................ 1
DSC 301 HD Description.................................... 1
Key Features ...................................................... 2
Inputs ............................................................. 2
Outputs .......................................................... 2
General........................................................... 3
Installation.............................................................. 5
Rear Panel Connections ..................................... 5
Operation................................................................ 8
Front Panel Overview.......................................... 8
DSC 301 HD OSD Menu System —
Configuration and Adjustments.......................... 9
OSD Menu Navigation Using Front Panel
Controls......................................................... 9
Menu Overview............................................... 9
Resolutions and Refresh Rates ..................... 20
Custom EDIDs or Custom Output
Resolution ................................................... 21
Power Save .................................................. 21
Output Rate Reset........................................ 21
Front Panel Lockout (Executive Modes) ............ 21
SIS Communication and Control.................... 22
Host-to-Scaler Communications....................... 22
Scaler-initiated Messages ............................. 22
Copyright Information ................................... 22
Error Responses........................................... 23
Commands and Responses ............................. 23
Using the Command and Response Table .... 23
Symbol Definitions ........................................ 24
SIS Command and Response Table ................. 28
Product Configuration Software..................... 39
Downloading and Installing PCS ....................... 39
Starting the Software........................................ 41
Device Discovery Panel................................. 41
TCP/IP Panel ................................................ 41
Offline Device Preview................................... 42
Using the Software ........................................... 43
Device Menu................................................. 44
Software Menu ............................................. 47
AV Controls Panel............................................. 49
AV Input Buttons .......................................... 50
Configuration Pages ......................................... 50
Input and Output Configuration Page............ 51
Image Settings Page..................................... 56
Size and Position Page ................................. 60
Audio Configuration Page ............................. 61
Preset Management ..................................... 62
General Settings Page .................................. 63
Mounting............................................................... 65
Rack Mounting ................................................ 65
Consignes UL pour le Montage en Rack....... 66
Under-furniture Mounting ................................. 66
DSC 301 HD • Contents ii

DSC 301 HD • Contents iii

Introduction
This guide contains information about the Extron DSC 301 HD Digital Scaling Converter
with instructions on how to install, configure, and operate the equipment.
In this guide the terms digital scaler and scaler are used interchangeably and refer to the
DSC 301 HD scaler.
This section gives a basic description and the key features of the DSC 301 HD scaler.
• DSC 301 HD Description
• Key Features
DSC 301 HD Description
The DSC 301 HD is a 1-inch high, half rack wide, three input, HDCP-compliant video
scaler that includes an HDMI input, configurable high resolution analog, and composite
video inputs, and a single HDMI output.
The DSC 301 HD accepts a wide variety of video formats including HDMI, HDTV, RGB,
component, and standard definition video. It features advanced Extron video signal
processing with 1080i deinterlacing, EDID Minder, Key Minder, and automatic input
switching. Audio from any of three stereo inputs may be embedded onto the HDMI
output. Front panel controls, an intuitive on-screen display, plus USB and RS-232
connections provide flexible control and monitoring.
The unit can be rack mounted or installed under a desk using the optional MBU 125 rack
mounting brackets.
The DSC 301 HD features advanced video processing with the ability to scale HDMI,
HDTV, RGB, and standard definition video signals to a common high resolution output.
It accepts and outputs signals up to 1920x1200, including HDTV 1080p/60 and
2048x1080. The DSC 301 HD also features Deep Color processing and high performance
deinterlacing of 1080i to deliver optimal image quality through advanced motion
compensation. In addition, the color space and chroma subsampling of the HDMI output
can be automatically set to ensure compatibility with a connected DVI or HDMI display.
Output scan rates are available from VGA (640x480) to 1920x1200 resolution, as well as
HDTV at 720p, 1080i, 1080p/60 Hz, and 2k/60 Hz.
NOTE: See the Resolutions and Refresh Rates table on page 20 for a complete
list.
The DSC 301 HD features automatic 3:2 and 2:2 pulldown detection, which maximizes
the image detail and sharpness for content sources originating from film. The scaler also
uses a digital 3D adaptive comb filter that optimizes decoding of NTSC, PAL, and SECAM
sources for integration into systems worldwide.
DSC 301 HD • Introduction 1

Key Features
Inputs
• Video — The DSC 301 HD has the following connectors: one HDMI connector,
one 15-pin HD connector for RGBHV or HD/SD component video, and one BNC
connector for composite video.
• Auto-Image setup — When activated, the unit automatically detects the resolution
of the incoming video signal and sets the total pixels, phase, active pixels, and active
lines, as well as the horizontal and vertical starting points.
• Auto Input memory — When activated, the unit automatically saves input sampling
and picture settings based on the incoming signal. When the same signal is detected
again, these image settings are automatically recalled from memory.
• Auto-switching between inputs — Auto-switching allows for simple, unmanaged
installation in locations such as in a lectern or under a conference table. When
multiple inputs are active, the switching priority is configurable.
• HDMI, RGB, HDTV, and video scaling to HDMI — Digital and analog video sources
can all be scaled to high resolution HDMI output.
• Clean switching — Clean cut through black and fade through black transition
effects are available to enhance presentations by eliminating distractions during input
switching.
• Audio — The DSC 301 HD has the following connectors: three 3.5 mm stereo mini
jacks for analog audio input, and an embedded HDMI digital audio input.
• HDMI audio embedding — Analog input audio signals can be embedded onto the
HDMI output signal.
• Audio input gain and attenuation — Gain or attenuation can be adjusted for each
analog audio input to eliminate noticeable differences when switching between
sources.
• Audio input assignment — Each video input can be assigned to any analog audio
input. This enables all three video inputs to share a single analog audio input. The
HDMI input can be set to pass incoming digital audio, embed the analog audio, or to
automatically embed the analog audio when no digital audio is detected.
Outputs
• Video and Audio — The DSC 301 HD has one HDMI output.
• Selectable output — Available output rates include computer-video 640x480 up to
1920x1200, HDTV rates up to 1080p/60, and 2048x1080.
• Output Standby Mode — Can be set to automatically mute video and sync
output to the display device when no active input signal is detected. This allows
the projector or flat-panel display to automatically enter into standby mode to save
energy and enhance lamp or panel life.
• Aspect ratio control — The aspect ratio of the video output can be controlled by
selecting a Fill mode, which provides a full screen output, or a Follow mode, which
preserves the original aspect ratio of the input signal.
• HDCP authentication and signal presence confirmation — Provides real-time
verification of HDCP status for each digital video input and output. This allows for
simple, quick, and easy signal and HDCP verification through front panel LEDs or
RS-232, providing valuable feedback to a system operator or helpdesk support staff.
DSC 301 HD • Introduction 2

• HDCP Visual Confirmation — This provides a full screen green output signal when
HDCP-encrypted content is transmitted to a non-HDCP compliant display, providing
immediate visual confirmation that protected content cannot be viewed on the
display.
• HDMI to DVI Interface Format Correction — Automatically enables or disables
embedded audio and infoframes, and sets the correct color space for proper
connection to HDMI and DVI displays.
• AFL (Accu-RATE Frame Lock) — A patented technology exclusive to Extron that
locks the output frame rate to a designated input to eliminate stuttering caused by
frame rate conversion.
• Audio switching transitions — The audio output level automatically ramps down
and then ramps up during switching transitions.
• Integrated audio delay — The audio output is automatically delayed to compensate
for latency introduced by the video processing.
General
• Advanced scaling engine with 30-bit processing and 1080i deinterlacing —
Image scaling and video format conversion are performed at 30-bit precision for
enhanced color accuracy and picture detail. High performance deinterlacing for 1080i
signals from HD sources delivers optimized image quality.
• HDCP compliant — Fully supports HDCP-encrypted sources, with selectable
authorization for unencrypted content.
• Supported HDMI — This features include data rates up to 6.75 Gbps, Deep Color,
and HD lossless audio formats
• Key Minder — Key Minder authenticates and maintains continuous HDCP
encryption between input and output devices to ensure quick and reliable switching in
professional AV environments.
• EDID Minder — EDID Minder automatically manages EDID communication and
ensures that all sources power up properly and reliably output content for display.
• Image freeze control — A live image can be frozen using RS-232 serial control.
• On-screen display — Displays status information pertaining to the currently selected
input, including resolution, format, and HDCP status, and facilitates easy system
setup and troubleshooting.
• Power Save Mode — Can be placed in a low power standby state to conserve
energy when not in use.
• Picture control adjustment — Used for brightness, contrast, color, tint, and detail
settings, as well as horizontal and vertical positioning, and sizing.
• Automatic 3:2 and 2:2 pulldown detection — Advanced film mode processing
techniques that help maximize image detail and sharpness for NTSC, PAL, and HDTV
1080i sources that originated from film.
• Quad standard, 3D composite video decoding — A temporal, 3D adaptive comb
filter provides advanced decoding of composite NTSC 3.58, NTSC 4.43, PAL, and
SECAM for integration into systems worldwide.
• User presets — Memory presets are available for each input to store and recall
optimized image settings.
• Internal test patterns for calibration and setup — The DSC 301 HD offers a crop
pattern, crosshatch, grayscale, color bars, alternating pixels, blue mode, and audio
pink noise.
DSC 301 HD • Introduction 3

• Front panel security lockout — This feature can block all front panel control, or limit
front panel to input selection only. All functions however, are available through RS-232
control.
• RS-232 control port — Enables the use of serial commands for complete control
and configuration or integrated into a control system. Extron products use the SIS™ -
Simple Instruction Set command protocol, a set of basic ASCII code commands that
allow for quick and easy programming.
• Front-panel USB configuration port — Enables easy configuration without having
to access the rear panel.
• 1 inch (2.5 cm) high, half rack width metal enclosure
• Includes LockIt HDMI cable lacing brackets
• Energy-efficient external universal power supply included — Provides worldwide
power compatibility, low power consumption, and reduced operating costs.
ATTENTION:
• If not provided with a power supply, this product is intended to be supplied by
a UL Listed power source marked Class 2 or LPS and rated output 12 VDC,
minimum 1.0 A.
• Si ce produit ne dispose pas de sa propre source d’alimentation électrique,
il doit être alimenté par une source d’alimentation certifiée UL de classe 2 ou
LPS et paramétré à 12 V et 1,0 A minimum
DSC 301 HD • Introduction 4

Installation
This section provides a description of the DSC 301 HD rear panel connectors and
instructions for cabling.
ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L’installation et l’entretien doivent être effectués uniquement par un électricien
qualifié.
Rear Panel Connections
This section describes how to connect cables to a DSC 301 HD scaler.
1.5A MAX
POWER
12V 1
VIDEO RGB/R-Y, Y,B-YHDMI
DSC 301 HD
AUDIO
23
1RS-232
Tx Rx G
23
INPUTS
OUTPUT
REMOTE
1.5A MAX
POWER
12V 1
VIDEO RGB/R-Y, Y,B-YHDMI
DSC 301 HD
AUDIO
23
1RS-232
Tx Rx G
23
INPUTS
OUTPUT
REMOTE
DSC 301 HD
GAB CDE
F
Figure 1. DSC 301 HD Rear Panel Features
Inputs and Outputs Control and Power
AInput 1 (BNC connector) EHDMI output
BInput 2 (15-pin HD connector) FRemote RS-232 control port
CInput 3 (HDMI connector) GPower input
DAudio inputs 1-3
AInput 1 — Connect a composite video input to this BNC connector.
BInput 2 — Connect an input to this configurable analog 15-pin HD (VGA) connector
for RGBHV, HD component video, or YUVi signals.
The analog input port can be configured to accept RGB (RGBHV, RGBs) or
component video (bi- or tri-level) signals. The default setting is for RGB. The table
on the next page shows the pinouts for each format type on the 15-pin HD (VGA)
connector. The 15-pin HD supports EDID emulation.
DSC 301 HD • Installation 5

Pinout Table for 15-pin HD Connector
Pin RGBHV RGBs Component
1 Red Red R-Y
2 Green Green Y
3 Blue Blue B-Y
4 No Connection No Connection
5 No Connection No Connection
6 Red Return Red Return R-Y Return
7 Green Return Green Return Y Return
8 Blue Return Blue Return B-Y Return
9
10 Ground Ground
11 No Connection No Connection
12 EDID/DDC EDID/DDC 1
5
11
15
13 H Sync C Sync
14 V Sync
15 EDID/DDC EDID/DDC
CInput 3 — Connect an HDMI source to this HDMI connector (see figure 1 on the
previous page).
Audio from the HDMI input can be de-embedded from the HDMI source. This allows
you to choose to select audio either from the HDMI input or the analog audio
3.5 mm TRS inputs. Default selection is 2-channel digital audio from the HDMI input.
Secure the HDMI input to the HDMI connector using the LockIt bracket as follows:
1. Plug the HDMI cable into the panel connection.
2. Loosen the HDMI connection mounting screw
from the panel enough to allow the LockIt lacing
bracket to be placed over it.
3. Place the LockIt lacing bracket onto the screw
and slide it up against the HDMI connector.
Tighten the screw to secure the bracket.
4. Loosely place the included tie wrap around the
HDMI connector and LockIt lacing bracket.
5. While holding the connector securely against the
lacing bracket, tighten the tie wrap, then remove
any excess length.
ATTENTION:
• Do not overtighten the HDMI connection mounting screw. The shield it
fastens to is very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage
auquel elle est attachée est très fin et peut facilement être dénudé.
DAudio inputs 1-3 — Connect audio sources to these
three 3.5 mm stereo mini jack TRS connectors (see
connector image at right).
3
1
1
1
2
2
2
3
3
3
4and 5
4and 5
4and 5
Sleeve ( )
Ring ( - )
Tip (+)
3.5 mm Stereo Plug Connector
(balanced)
DSC 301 HD • Installation 6

EHDMI output — Connect an HDMI display device to this HDMI connector. Secure
the HDMI input to the HDMI connector using the LockIt bracket (see Input 3 on the
previous page for instructions).
FRS-232 port — For serial RS-232 control, connect a host computer or control
system to the 3-pole captive screw connector (see the wiring in figure 2).
RS-232
Tx Rx G
REMOTE
TransmitReceive
ReceiveTransmit
GroundGround
DB9 Pin Locations
Female
51
96
Pin 2 = Rx
Pin 3 = Tx
Pin 5 = G
Computer

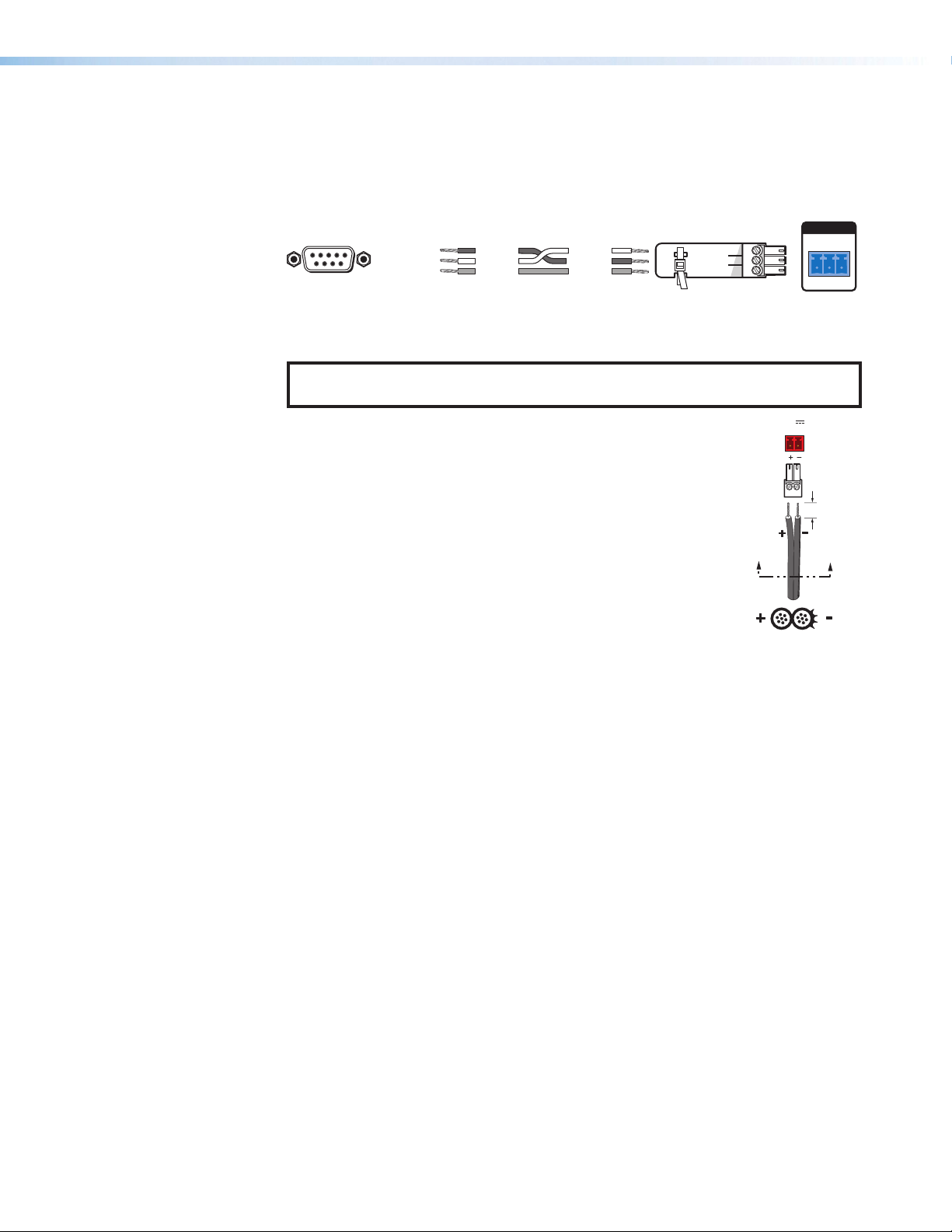

Figure 2. Wiring the RS-232 Port
NOTE: The default protocol is 9600 baud, 1 stop bit, no parity, 8 data bits, no
flow control.
GPower input — Insert the cord from the supplied 12 V, 1.5 A
power source into this 2-pole connector. The front panel control and
input selection buttons light in sequence during power-up (see the
wiring in the image at right).
SECTION A–A
Ridges
Smoot
h
AA
3/16"
(5 mm) Max.
POWER
12V
1.5A MAX
DSC 301 HD • Installation 7

Operation
This section of the manual discusses the operation of a DSC 301 HD device, and is
divided into the following sections:
• Front Panel Overview
• DSC 301 HD Menu System — Configuration and Adjustments
• Front Panel Lockout (Executive Modes)
Front Panel Overview
ADJUST
DSC 301 HD
CONFIG
132HDCP
MENU ENTER
INPUT
OUTPUT
Extron
ADJUST
DSC 301 HD
CONFIG
132HDCP
MENU ENTER
INPUT
OUTPUT
Extron
A
B
C
D
EF

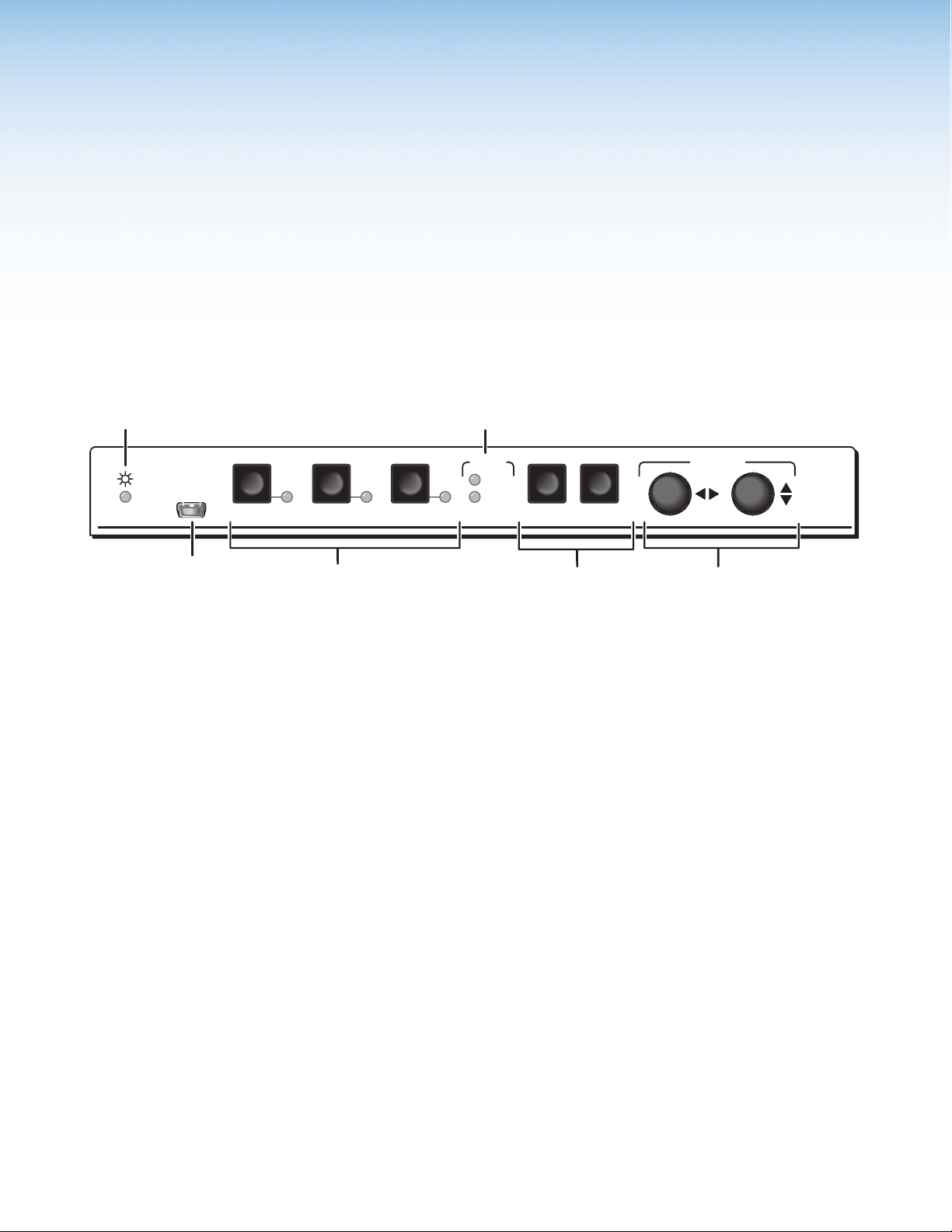

Figure 3. DSC 301 HD Front Panel Features
AStatus LED (power and signal) — This LED lights amber when power is present
but no signal is detected, and green when power and signal are both present.
BUSB mini-B configuration port — Connect a computer to this USB mini-B port for
device configuration, control, and firmware upgrades.
CInput selection buttons and LEDs (1-3) —
• Input LEDs — The LED of the selected input lights when the button is pressed.
• Input 1 (composite video input button) — Input 1 selects the composite video
input.
• Input 2 (configurable input button) — Input 2 selects the RGB (RGBHV,
RGBS) or YUV (YUV-HD, YUVp, YUVi) input.
• Input 3 (HDMI/DVI button) — Input 3 selects the HDMI or DVI input signal.
DHDCP content LEDs — These LEDs indicate HDCP status for inputs and output
• Light green when the input or connected display is HDCP encrypted.
• Remain unlit when the current input or HDMI output is not HDCP encrypted.
• Blink amber when the video output has been disabled (such as when in sync
mute or screen saver mode).
EMenu Navigation buttons (Menu and Enter) —
• Menu — Press this button to access and move through the OSD menu system.
• Enter — Press this button to step through the OSD submenus (see the
DSC 301 HD OSD Menu System — Configuration and Adjustments section
on the next page).
FAdjustment knobs (horizontal [and vertical {)— When using the menu
system, rotate either of these two knobs to scroll through the menu options and to
make any adjustments.
DSC 301 HD • Operation 8

DSC 301 HD OSD Menu System — Configuration and Adjustments
Scaler configuration and adjustments can be performed by using the On-screen Display
(OSD) menu or the Extron SIS commands (see the SIS Communication and Control
section, starting on page 22).
The OSD menu can be seen on the connected display device.
OSD Menu Navigation Using Front Panel Controls
• Menu button — Press the Menu button (see figure 3, Eon the previous page)
to activate or deactivate the main menu.
• Enter button — Press the Enter button (E) to move between the submenus of
a selected main menu item and to exit and accept the setting.
• Adjust ({, [)knobs — In the menu configuration mode, rotate the
horizontal ([) and vertical ({) Adjust knobs (F) to scroll through submenu
options and to make adjustment selections.
Menu Overview
The OSD menu has nine configuration submenus, two of which are read-only information
pages.
Using each of the submenus, the video and audio inputs and the HDMI output of the
DSC 301 HD can be configured. In addition, you can save and recall the input
configuration as a user preset. The Advanced submenu allows you to choose a test
pattern to aid in the system setup and to set up a screen saver display when there are
no active input signals. Use the remote control port configuration to view the read-only
Communication submenu. Use the read-only Device Info screen to view device status
elements.
All submenu screens show the model name (DSC 301 HD) and firmware version in the
header, and the input and output resolution information in the footer.
NOTES:
• Input xrefers to the selected input, for example, Input 2.
• The Device Info menu and the Communication menu are read-only and give
current device status.
To navigate and use the OSD menu:
1. Press the Menu button (E) once to open the menu on the display. The menu opens
with the Quick Setup submenu (see figure 4 on the next page).
2. If the desired submenu is not showing, use the Adjust knobs ({, [)(see figure 3,
F)to navigate to the desired menu.
3. Press the Enter button to access the submenu (E).
4. Rotate either Adjust knob to cycle through the submenu to the desired option.
NOTE: Default values are indicated on the OSD by an asterisk (*).
5. Press the Enter button to access the submenu item.
6. Rotate either Adjust knob to adjust the value as desired.
7. Press Enter to accept the new value. Press it again if action confirmation is required.
8. Press Menu to exit the submenu. Press it again to exit and close the main menu.
NOTE: In any submenu, values that do not apply to the current input are shown as
N/A.
DSC 301 HD • Operation 9

Quick Setup submenu
This submenu (see figure 4) allows you to make basic configuration adjustments to the
DSC 301 HD.
1
2
3
4
5
6
7
Figure 4. OSD Menu — Quick Setup Submenu
The configurable variables are:
Auto-Image — Select this option (1) to start a one-time Auto-Image on the current
input.
INx:Input Format — Select this option (2) to change the input format.
NOTES:
• INxrefers to the selected input, for example, Input 2, as shown in figure 3.
• View only for inputs 1 (composite video) and 3 (HDMI), selectable for input 2
(RGB or YUV).
IN2: EDID — Select this option (3) to match the output rate or to set a discrete EDID
(see the Resolutions and Refresh Rates table on page 20 on page 20 for EDID data).
IN3: EDID — Select this option (4)to match the output rate or to set a discrete EDID
(see the Resolutions and Refresh Rates table for EDID data).
Output Resolution — Select this (5) to set the resolution and refresh rate for the
output. There are a number of factory installed output resolutions and rates, plus three
custom user defined blocks (see the presets table on the next page for details).
Audio Mute — Select this option (6) to turn the audio mute option on or off.
Test Pattern — Select this option (7) to choose a suitable test pattern when setting
up the DSC 301 HD and the corresponding output display. Available patterns are: Off (no
test pattern), Crop, Alternating Pixels, Color Bars, Gray Scale, Blue Mode, and
Audio Test (pink noise).
DSC 301 HD • Operation 10

User Preset submenu
This submenu allows you to save centering and sizing information and picture
adjustments as a user preset for future recall (see figure 5).
Figure 5. OSD Menu — User Presets Submenu
Up to three user presets per input can be saved or recalled. The submenu also has a
clear preset setting.
Select Save, Recall, or Clear and use the adjust knobs to select the applicable user
preset. Press the Enter button (see figure 3, E, on page 8) to recall, save or clear the
preset as required. Press Enter again to confirm the chosen action.
A user preset can be saved on one input resolution (for example saved on 480p) and later
recalled onto another resolution (for example, recalled onto 1080p).
NOTE: If an unsaved user preset is recalled, INVALID PRESET is displayed.
An additional 128 global input presets are available via SIS commands (see the SIS
Communication and Controls section, starting on page 22, for commands), or PCS
(see Preset Management on page 62).
A summary and comparison of the user and input presets stored values is shown below.
User Presets Input Presets
Color H Image Size Input Type Color H Start H Image Size
Tint V Image Size Preset Name Tint V Start V Image Size
Contrast H Image Position Audio Gain/Attenuation Contrast H Active H Image Position
Brightness V Image Position Film Mode Brightness V Active V Image Position
Detail Preset Name Detail Phase Total Pixels
DSC 301 HD • Operation 11

Picture Controls submenu

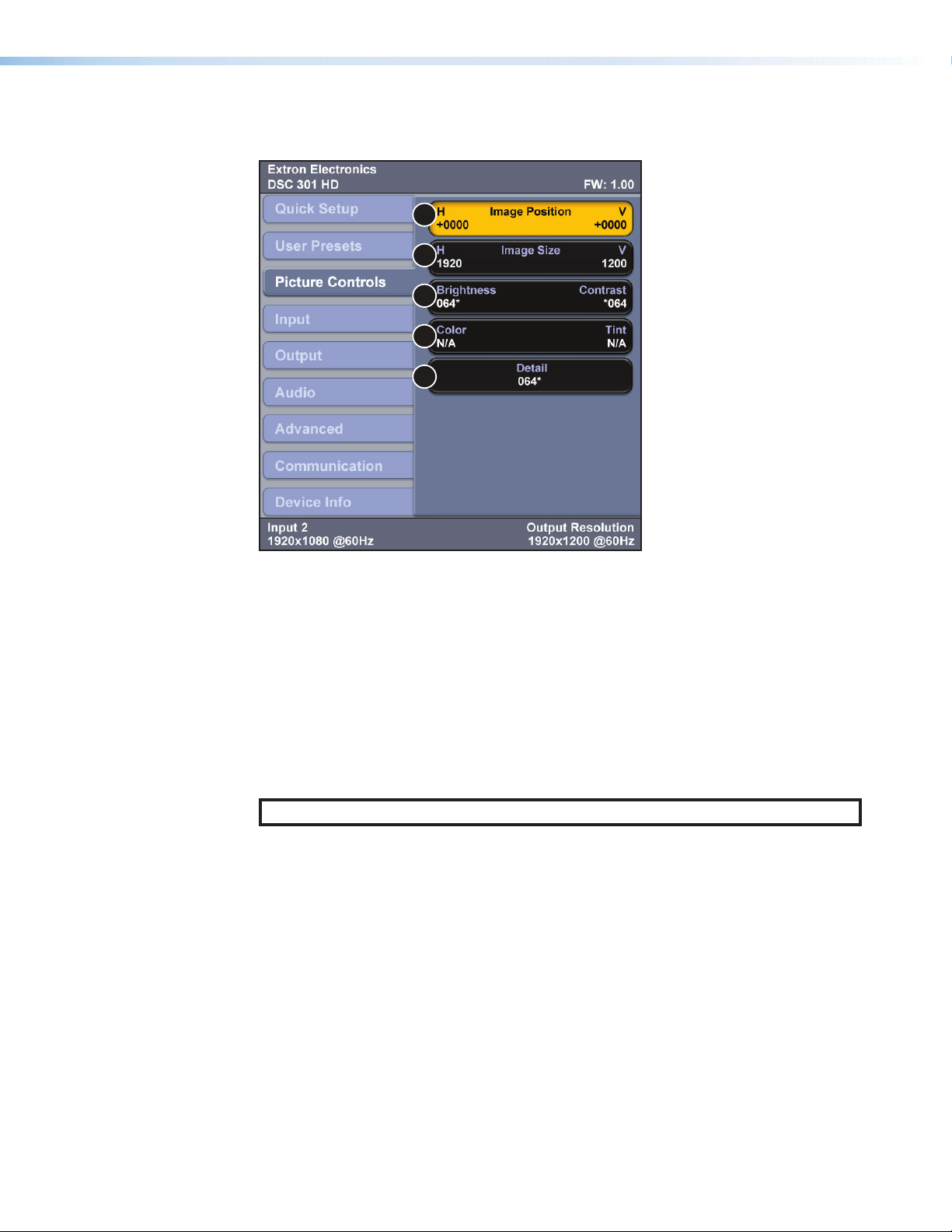

This submenu allows the user to adjust all of the picture settings (see figure 6).
1
2
3
4
5
Figure 6. OSD Menu — Picture Controls Submenu
Image Position — Select this option (1) to adjust the horizontal and vertical position of
the image (range depends on the current output rate).
Image Size — Select this option (2) to adjust the horizontal and vertical size of the
image. The range is limited by the output resolution (the maximum size is two times the
output resolution).
Brightness and Contrast — Select this option (3) to independently adjust brightness
and contrast (the range is 0to 127, the default is 64).
Color and Tint — Select this option (4) to adjust the color and tint (the range is 0to
127, default is 64).
NOTE: Color and Tint only apply to NTSC inputs.
Detail — Select this option (5) to adjust the detail (the range is 0to 127, the default is
64).
DSC 301 HD • Operation 12
