Setup Guide — RGB 560 AKM
The Extron RGB 560 AKM Architectural Interface is an analog, computer video and audio
interface with 300 MHz video bandwidth. It installs in an Ackermann floorbox. This guide
provides basic instructions for setting up the RGB 560 AKM.
Step 1 — Set the DIP switches behind the access cover
a. Using a small Philips screwdriver, remove one screw to take off
the access cover.
b. Set DIP switches 1 through 8 to On (up) or Off (down) as desired.
1 — Sync on green 2 — DDSP (up) or ADSP (down [default])
3 — Serration pulse 4 — Composite sync output
5 — Force negative horizontal and 6 — Vertical sync pulse width
vertical sync polarity
7 and 8 — Composite sync routing for Macintosh monitors:
• For Macintosh 13": Set 7 to Off (down) and 8 to On (up).
• For all other Macintosh: Set 7 to On (up) and 8 to Off (down).
No other combinations are valid.
c. Replace the access cover.
Step 2 — Set the gaining and peaking adjustment jumpers
If using cable runs over 125 feet (38 m) you may need to adjust the gain and peaking jumpers
(located inside the unit) to compensate for signal loss, as follows:
a. Disconnect power
from the RGB 560.
b. Remove six front
panel screws and take
off the faceplate. Do
not pull the output
cables out of the
enclosure.
c. Use needlenose pliers
to move gain/peaking
jumpers J16 (blue), J17
(red), and J18 (green).
Place the jumpers on
the pins that yield the
best image display:
• Pins 3 and 4: Increase the output signal and add 50% of the maximum peaking.
• Pins 2 and 3: Provide unity output (0.7 volts with no peaking [default]).
• Pins 1 and 2: Increase the output signal and add 100% of the maximum peaking (for very
long cable runs).
d. Reattach the faceplate and replace the screws removed in step 2b.
(Continued on reverse side)
slide
1 2 345 6 78
ON
RGB 560 AKM with ADSP
TM
BUFFERED
LOCAL OUT
MIN/MAX
H. SHIFT
AUDIO
ID PIN 4
ID PIN 11
INPUT
J16
J17
J18
Use Needlenose Pliers
to Move Jumpers
Remove (2)
Screws
Remove (2)
Screws
Remove (2)
Screws
PC Board
(Inside)
Front Face
Gain and Peaking
Jumpers
RGB 560 AKM with ADSP
TM
BUFFERED
LOCAL OUT
MIN/MAX
H. SHIFT
AUDIO
ID PIN 4
ID PIN 11
INPUT

Setup Guide — RGB 560 AKM, cont’d
© 2009 Extron Electronics. All rights reserved.
www.extron.com
Extron USA - West
Headquarters
+800.63 3.9876
Inside USA / Canada Only
+1.714.491.1500
+1.714.491.1517 FA X
Extron USA - East
+800.63 3.9876
Inside USA / Canada Only
+1.919.863.1794
+1.919.863.1797 FA X
Extron Europe
+800.39 87.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+800.7339.8766
Inside Asia Only
+65.638 3.44 00
+65.638 3.46 64 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+400.883.1568
Inside China Only
+86.21.3760.1568
+86.21.3760.1566 FA X
Extron Middle East
+971.4.2991800
+971.4.2991880 FAX
Step 3 — Set the ID bit DIP switches
Set the Pin 4 and the Pin 11 ID bit DIP switches on the front panel to On (up) if no local monitor
is connected to the Buffered Local Out connector, or to Off (down) if a local monitor is attached.
Step 4 — Connect the video and audio output cables
a. Connect the output device to the BNC connectors on the RGB 560’s 6 inch output cable.

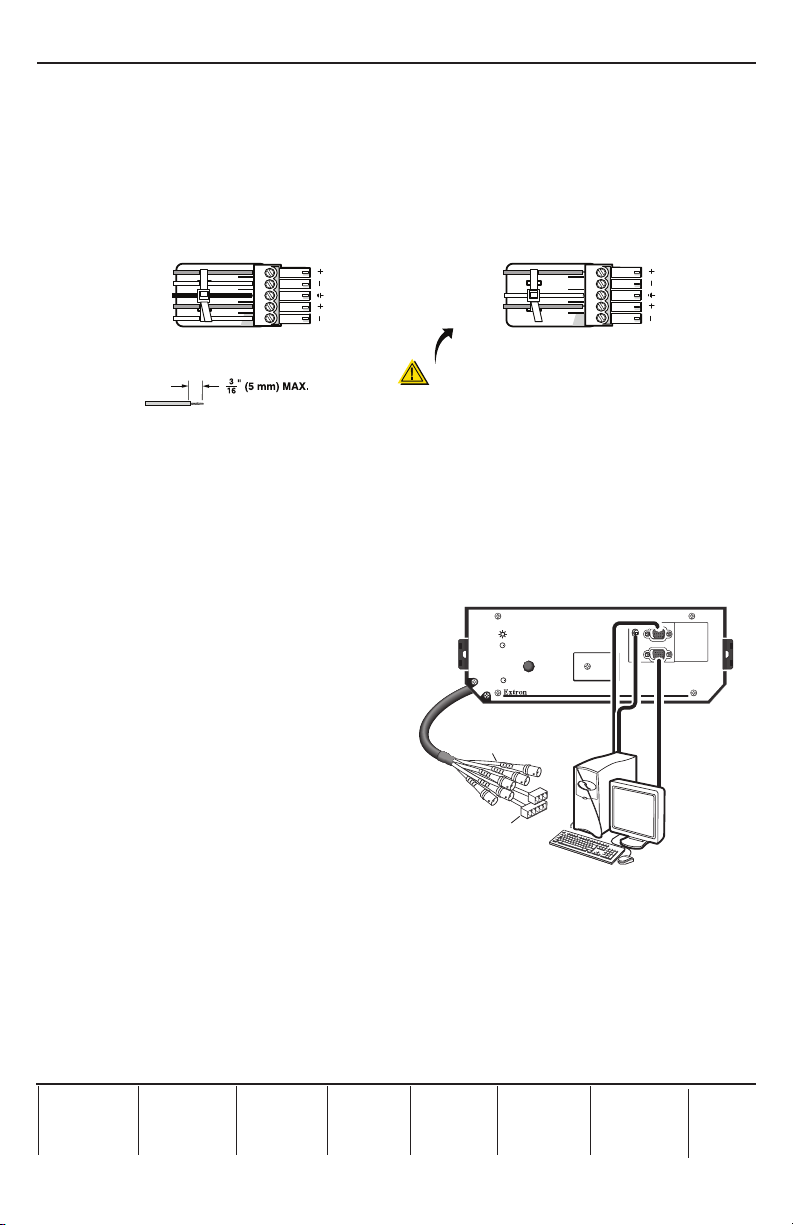

b. Wire the ground, left channel, and right channel wires to the provided 5-pin captive screw
connector as shown below. Connect the audio output cable to the 5-pin captive connector
on the 6 inch output cable.
Step 4 — Connect power
a. Wire the provided 3-pin captive screw connector to a 12 to 24 VDC or 12 to 24 VAC,
minimum 0.5 A external power supply. Plug the power supply cable into the 3-pin captive
screw connector on the RGB 560 6 inch output cable.
b. Connect power to the input and output devices and turn them on.
Step 5 — Temporarily connect input and local monitor output cables
To test the system, connect the audio input,
computer video input, and local monitor
output cables to the front panel Audio jack
and to the 15-pin HD Input and Buffered
Local Out connectors.
Step 7 — Check and adjust the
Check the image on the screen. If necessary,
make adjustments to cables, DIP switches,
and jumpers. Adjust the horizontal shift
(H. Shift knob) as needed.
Step 8 — Disconnect the input and
local monitor output cables
Temporarily disconnect the audio and video
input cables and the local monitor output cable.
Step 9 — Install the interface in the Ackermann floorbox
You can install up to three interfaces in the Ackermann floorbox. Refer to the instructions
provided with the floorbox for the procedure.
Step 10 — Reconnect the input and local monitor cables
Reconnect the input device audio and video cables and the local monitor’s output cable to the
front panel. Use the front panel H. Shift knob to readjust the horizontal centering as needed.
68-468-50
Rev. A
12 09
CAUTION
For unbalanced audio, connect the
sleeve(s) to the ground contact.
DO NOT connect the sleeve(s) to the
negative (-) contacts.
Tip
Ring
Tip
Ring
L R
Sleeve(s)
Do not tin the wires!
Tip
NO Ground Here
Sleeve(s)
NO Ground Here
Tip
L R
Balanced Audio Output Unbalanced Audio Output
RGB 560 AKM with ADSP
TM
BUFFERED
LOCAL OUT
MIN/MAX
H. SHIFT
AUDIO
ID PIN 4
ID PIN 11
INPUT
RGB 560 AKM
SVGA Compatible Computer w/ Audio
6" BNC Female (RGBHV)
To Projection System
Cable
PC Audio and
Power Cable
Application diagram
