Toa DI-100 User manual

1
DI-100
DIRECT SELECT INTERFACE DI-110
INSTALLATION MANUAL
Please follow the instructins in this manual to obtain the optimum results from these units.
We also recommend that you keep this manual handy for future reference.
TOA Electronics, Inc.

2
WARNING : (For USA only)
This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used
in accordance with the instructions manual, may cause interference to radio communications. It has
been tested and found to comply with the limits for a Class A computing device pursuant to Subject J
of Part 15 of FCC Rules, which are designed to provide reasonable protection from such interference
when operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference, in which case the
user, at his own expense, will be required to take whatever measures may be required to correct the
interference.
CONTENTS
1. INSTALLATION PRECAUTIONS................................................................................................................................................................... 2
2. GENERAL DESCRIPTION............................................................................................................................................................................... 3
3. SYSTEM CONFIGURATION ........................................................................................................................................................................... 3
4. PRINCIPLE OF OPERATION AND BLOCK DIAGRAM............................................................................................................................ 4
4.1 Principle of Operation
4.2 Block Diagram
5. SYSTEM DESIGNING PROCEDURE............................................................................................................................................................. 4
6. INSTALLATION
6.1 DIÐ100Õs Address Setting ...................................................................................................................................................................... 5
6.2 DIÐ110Õs Address Setting and Card Connection............................................................................................................................5 ~ 6
6.3 Wiring the LEDÕs.................................................................................................................................................................................... 7
6.4 Control Panel Switch Wiring...........................................................................................................................................................7 ~ 8
6.5 Wiring of Relay Outputs ........................................................................................................................................................................ 8
6.6 Wiring to the ASÐ110 ............................................................................................................................................................................. 8
6.7 Wiring to the ASÐ100A........................................................................................................................................................................... 9
6.8 Wiring to the LU Cards.......................................................................................................................................................................... 9
6.9 Power Supply Connection ..................................................................................................................................................................... 9
7. PERFORMANCE TESTING
7.1 Test Program Initiation .......................................................................................................................................................................... 9
7.2 Testing Contents .................................................................................................................................................................................. 10
8. PROGRAMMING
8.1 Equipment Connection......................................................................................................................................................................... 10
8.2 Programming with the IBM Personal Computer ............................................................................................................................... 11
8.3 ASÐ100A/ASÐ110 Programming......................................................................................................................................................... 11
9. OPERATION
9.1 Calling................................................................................................................................................................................................... 12
9.2 Being Called (When in Continuous Call Tone Mode) ....................................................................................................................... 12
9.3 To Terminate the Conversation .......................................................................................................................................................... 12
9.4 Other Functions.................................................................................................................................................................................... 12
10. PROGRAMMING SHEET.......................................................................................................................................................................13 ~ 18
11. SPECIFICATIONS ........................................................................................................................................................................................... 19
1. INSTALLATION PRECAUTIONS
• Use a regulated power supply (24V DC, +/- 4 volts) to ensure correct operation without overload.
• Wire only the rated switches to the switch terminals, or damage could result.
• Wire only LEDÕs to the LED terminals, or damage could result.
• Do not exceed voltage rating to the relays, or severe damage could result.

3
2. GENERAL DESCRIPTION
The DIÐ100 and DIÐ110 interface boards are designed to be used in conjunction with the ICÐ100 Institutional
Communication System and ASÐ100A/ASÐ110 Control Stations. This will allow a control station operator to make or
receive calls from other stations with the push of (1) switch on custom or off-the-shelf control panels. Calls to or from
corresponding sub-stations can be announciated by flashing LEDÕs on the control panel or numerically in the associated
ASÐ100A or ASÐ110.
3. SYSTEM CONFIGURATION
MU-110
2 x Twisted
pair cable
2 x Twisted pair cable
+ 3 conductors
IC-100
DIRECT SELECT
CONTROL STATION
LU-100
LU-200 DI-100 AS-100A
AS-110
SWITCH
&
LED
POWER
SUPPLY
(24V DC)
DI-110
DI-110
DI-110
(Fig. 1)

4
4. PRINCIPLE OF OPERATION AND BLOCK DIAGRAM
4.1 Principle of Operation
The DIÐ100 outputs dial pulse to the ASÐ100A/AsÐ110 according to control data transmitting from the MUÐ110. The DIÐ
100 also transmits a flashing or steady LED signal, relay control signal, etc. to the DIÐ110, and can periodically scan the
control panel switches.
4.2 Block Diagram
CPU
(Z80) ROM EEPROM RAM MODEM TO MU-110
DI-100
DI-110
OUTPUT
PORT
DI-110
CONTROL
INPUT
PORT
STATION
CONTROL
CONTROL
LATCH
LATCH
LATCH
DRIVER
DRIVER
DRIVER
CALL-IN
LED
BUSY
LED
CCTV
RELAY
INPUT
PORT
TO AS-100A/
AS-110
(Fig. 2)
5. SYSTEM DESIGNING PROCEDURE
(1) Determine number of ports needed in the system. (LED indications, relay outputs, etc.)
(2) Determine number of the DIÐ110 cards needed.
(3) Calculate power requirements and select a power supply.
(4) Select LEDÕs and switches to be used.
(5) Fill out the programming sheet. (See pages 13~18.)

5
6. INSTALLATION
WARNING : TURN OFF ALL POWER TO THE SYSTEM BEFORE UNPLUGGING OR PLUGGING
IN CONNECTORS TO THE CARDS. THESE CARDS CONTAIN CMOS ICÕS AND MAY BE
DAMAGED BY STATIC DISCHARGE. IT IS ADVISABLE TO WEAR AN EARTH GROUNDED
WRIST STRAP WHEN HANDLING THE CARDS.
6.1 DIÐ100Õs Address Setting
Set SW1 corresponding to the LU card number connected to the DIÐ100, referring to Fig. 3 and Table 1.
(SW1 is factory-preset to the LU card's No. 1.)
LU Card No.
1
2
3
4
OFF
OFF
OFF
OFF
SW 1
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
LU Card No.
5
6
7
8
OFF
OFF
OFF
OFF
SW 1
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
6.2 DIÐ110Õs Address Setting and Card Connection
(1) DIÐ110Õs Address Setting
Set SW1 and SW2 corresponding to the DIÐ110 card number, referring to Fig. 4 and Table 2.
DIÐ100
SW1
(Fig. 3)
(Table 1)
DIÐ110
S
W 2
(Fig. 4)
SW 1

6
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
61
DI-110
No.
1
2
3
4
5
6
7
8
9
10
11
12
(SW1 and SW2 are factory-preset to the DI-110 No. 1.)
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
SW 1 SW 2 DI-110
No. SW 1 SW 2 DI-110 No. SW 1 SW 2
(2) DIÐ100/DIÐ110 Card Rack Installation
Install the DIÐ100/DIÐ110Õs inside the control panel shown in Fig. 5 with stand-offs or use the CKÐ100 and install at
the equipment rack. Connect the cards with the ribbon cables as shown below.
DI-110 (4)
DI-110 (3)
DI-110 (2)
DI-110 (1)
DI-100
DI-110 (8)
DI-110 (7)
DI-110 (6)
DI-110 (5)
(Fig. 9)
(Table 2)
(Fig. 5)

7

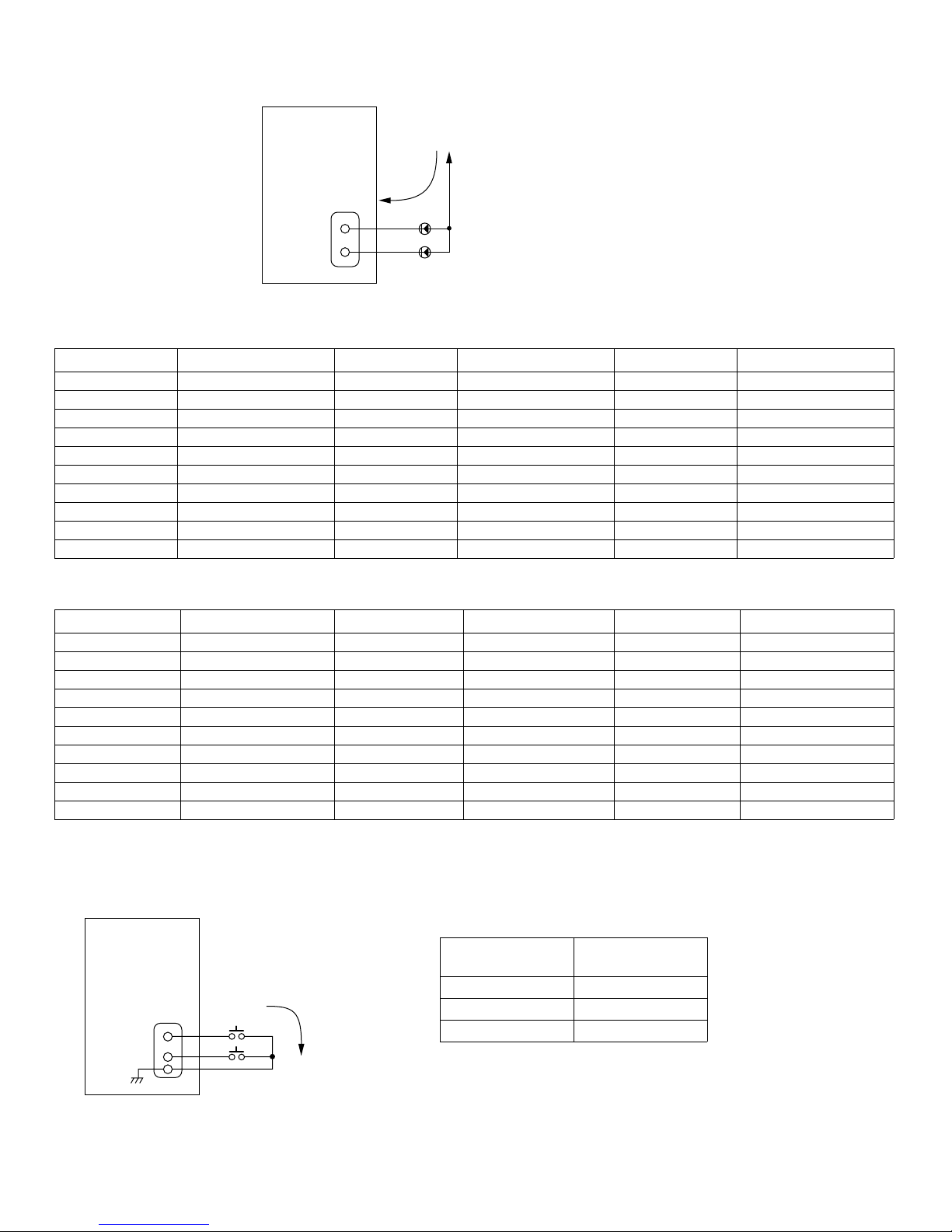

6.3 Wiring the LEDÕs
Wire the CALL-IN and BUSY LEDÕs as shown in Fig. 6 and Tables 3 and 4
DI-110
CN3,4
24V DC
LED
10 mA
(Fig. 6)
CALL-IN LED No. CONNECTOR PIN No. CALL-IN LED No. CONNECTOR PIN No. CALL-IN LED No. CONNECTOR PIN No.
1 CN3-1 11 CN3-11 21 CN3-21
2 CN3-2 12 CN3-12 22 CN3-22
3 CN3-3 13 CN3-13 23 CN3-23
4 CN3-4 14 CN3-14 24 CN3-24
5 CN3-5 15 CN3-15 25 CN3-25
6 CN3-6 16 CN3-16 26 CN3-26
7 CN3-7 17 CN3-17 27 CN3-27
8 CN3-8 18 CN3-18 28 CN3-28
9 CN3-9 19 CN3-19 29 CN3-29
10 CN3-10 20 CN3-20 30 CN3-30
(Table 3)
Busy LED No. CONNECTOR PIN No. Busy LED No. CONNECTOR PIN No. Busy LED No. CONNECTOR PIN No.
1 CN3-33 11 CN3-43 21 CN4-3
2 CN3-34 12 CN3-44 22 CN4-4
3 CN3-35 13 CN3-45 23 CN4-5
4 CN3-36 14 CN3-46 24 CN4-6
5 CN3-37 15 CN3-47 25 CN4-7
6 CN3-38 16 CN3-48 26 CN4-8
7 CN3-39 17 CN3-49 27 CN4-9
8 CN3-40 18 CN3-50 28 CN4-10
9 CN3-41 19 CN4-1 29 CN4-11
10 CN3-42 20 CN4-2 30 CN4-12
(Table 4)
6.4 Control Panel Switch Wiring
Wire switches (PTT, indication reset to the DIÐ100 and direct call, response, etc. to the DIÐ110) as shown in Fig 7
and Tables 5 and 6. Use an alternate (locked) type switch for the INHIBIT switch.
DI-100/110
CN4
COMMON
1 mA
(Fig. 7)
SW NAME CONNECTOR PIN
No.
PTT CN4-4
Indication Reset CN4-5
Common CN4-6
(Table 5)

8
SELECT SW No. CONNECTOR PIN
No.
SELECT SW No. CONNECTOR PIN
No.
SELECT SW No. CONNECTOR PIN
No.
1 CN4-15 11 CN4-25 21 CN4-35
2 CN4-16 12 CN4-26 22 CN4-36
3 CN4-17 13 CN4-27 23 CN4-37
4 CN4-18 14 CN4-28 24 CN4-38
5 CN4-19 15 CN4-29 25 CN4-39
6 CN4-20 16 CN4-30 26 CN4-40
7 CN4-21 17 CN4-31 27 CN4-41
8 CN4-22 18 CN4-32 28 CN4-42
9 CN4-23 19 CN4-33 29 CN4-43
10 CN4-24 20 CN4-34 30 CN4-44
INHIBIT CN4-45
INDICATION TEST CN4-46
COMMON CN4-47~50
(Table 6)
6.5 Wiring of Relay Outputs
Wire relay outputs to the DI-110 as shown in Fig. 8 and Table 7.
DI-110
CN5
CCTV
EQUIPMENT
COMMON
Relay
(Fig. 8)
CONTROL OUTPUT
No.
CONNECTOR PIN
No.
CONTROL OUTPUT
No.
CONNECTOR PIN
No.
CONTROL OUTPUT
No.
CONNECTOR PIN
No.
1 CN5-1 11 CN5-11 21 CN5-21
2 CN5-2 12 CN5-12 22 CN5-22
3 CN5-3 13 CN5-13 23 CN5-23
4 CN5-4 14 CN5-14 24 CN5-24
5 CN5-5 15 CN5-15 25 CN5-25
6 CN5-6 16 CN5-16 26 CN5-26
7 CN5-7 17 CN5-17 27 CN5-27
8 CN5-8 18 CN5-18 28 CN5-28
9 CN5-9 19 CN5-19 29 CN5-29
10 CN5-10 20 CN5-20 30 CN5-30
COMMON CN5-31~50
Table 7)
6.6 Wiring to the ASÐ110
Wire as shown in Fig. 9
DI-100
CN3
TWISTED PAIR CABLE
D1
D2
S1
S2
CN4
1
2
3
AS-11O TERMINAL
EXT. SP DATA VOICE 3 2 1
(Fig. 9)

9

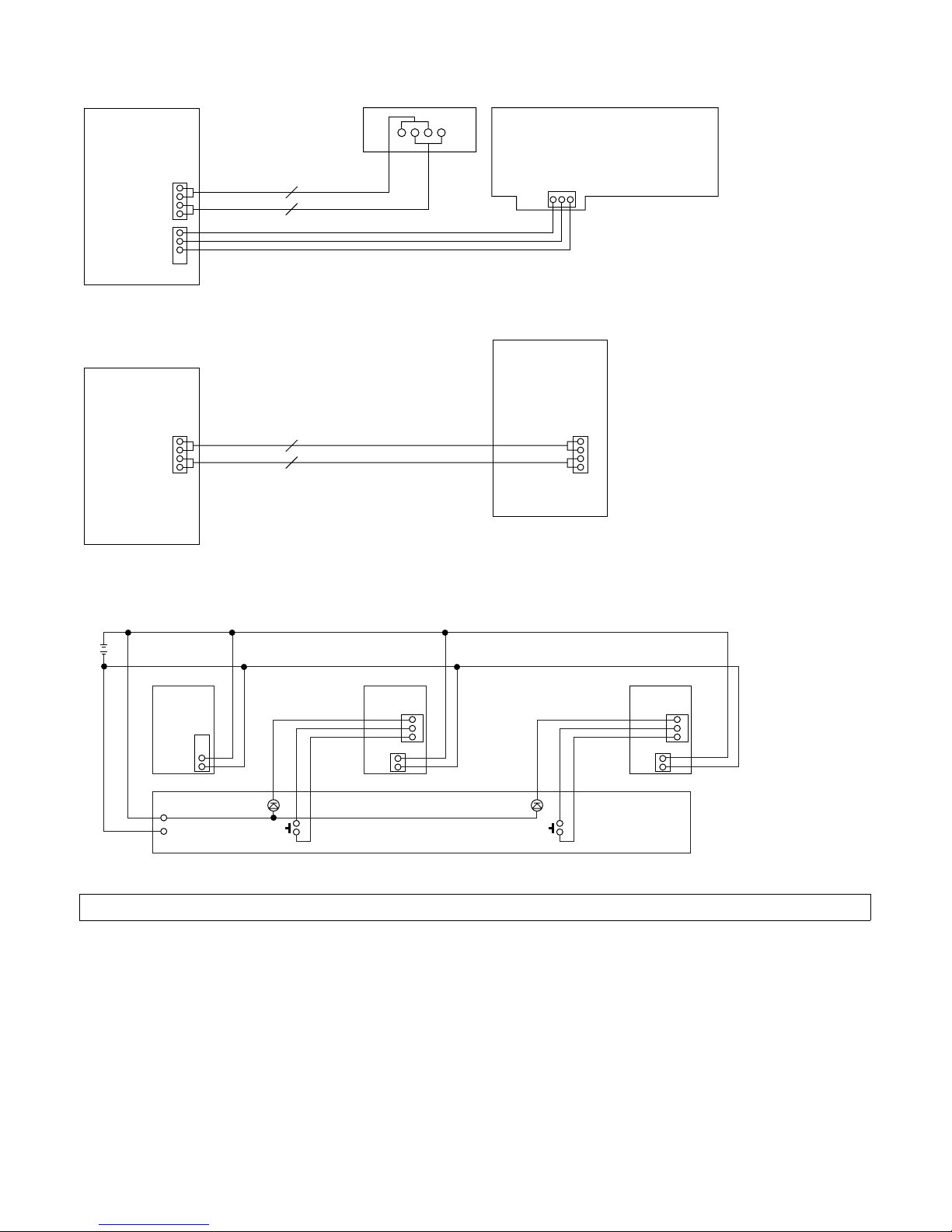

6.7 Wiring TO THE ASÐ100A
Wire as shown in Fig. 10
DI-100
CN3
TWISTED PAIR CABLE
D1
D2
S1
S2
CN4
1
2
3
1 2 3
AS-100A MAIN PCB
AS-100A REAR PCB
DATA
VOICE
(Fig. 10)
6.8 Wiring to the LU Cards
Wire between the DIÐ100 and the LU card as shown in Fig. 11
DI-100 LU-100
LU-200
CN2
CN5
TWISTED PAIR CABLE
D1
D2
S1
S2
D1
D2
S1
S2
(Fig. 11)
6.9 Power Supply Connection
DI-110
CN4
+
–
+
–
DI-110
+
–
+
–
DI-110
CN5
24V +
–4V
SW
CN3,4
+
–
CN5
CN3,4
LED
SW
LED
CONTROL PANEL
(Fig. 12)
7. PERFORMANCE TESTING
The DIÐ100 provides a diagnostic program for testing all LEDÕs, switches, relays, etc. to assure correct connection.
7.1 Test Program Initiation
(1) General Switch, LED, and Relay Wiring Confirmation Test Program
Wire the DIÐ100Õs CN-5 (No. 2 pin) to ground, and turn the power on.
(2) CALL-IN and BUSY LED Wiring Confirmation Test Program
Wire the DIÐ100Õs CN-5 (No. 2 pin) to ground, and turn the power on while holding down the PTT switch.
(3) Relay Wiring Confirmation Test Program
Wire the DIÐ100Õs CN-5 (No. 2 pin) to ground, and turn the power on while holding down the INDICATION RESET switch.
(4) Registered Data Confirmation Test Program
Connect the MUÐ110, and wire the DIÐ100Õs CN-5 (No. 2 pin) to ground, then turn the power on while holding down both the PTT and INDICATION
RESET switches.

10
7.2 Testing Contents
(1) General Switch, LED, and Relay Wiring Test
Press the switch to light the corresponding CALL-IN and BUSY LEDÕs, closing their relay contacts.
(2) CALL-IN and BUSY LED Wiring Test
All CALL-IN and BUSY LEDÕs are tested in sequence from 1 to 30. Holding down the PTT switch advances testing from one LED to the next at
one-second intervals. Releasing the PTT switch stops progress at the current LED.
(3) Relay Control Output Wiring Test
Relays 1Ð30 are tested for each of the DIÐ110 cards wired to the DIÐ100. Holding down the INDICATION RESET switch advances testing from
relay to relay at one-second intervals. Releasing the INDICATION RESET switch stops progress at the current relay until the INDICATION
RESET switch is pressed again.
(4) Registered Data Test
The corresponding registered data for each depressed switch is displayed on the ASÐ110 LCD display.
Select Switch : * 1 : ( X X ) X X (XX) XX : Register No.
8. PROGRAMMING
8.1 Equipment Connection
Direct select switches are programmed to a designated number. (Refer to pages 13Ð18 Programming Sheet.)
Programming can be performed with either the ASÐ100A/ASÐ110 control station or a personal computer.
MU-110
2 x Twisted
pair cable
2 x Twisted pair cable
+ 3 conductors
IC-100
DIRECT SELECT
CONTROL STATION
PERSONAL
COMPUTER
(IBM PC)
LU-100
LU-200 DI-100 AS-100A
AS-110
SWITCH
&
LED
POWER
SUPPLY
(24V DC)
DI-110
DI-110
DI-110
(Fig. 13)

8.2 Programming with the IBM Person Computer
Perform programming according to ÔIC-100 Control Software V2.00Ó manual.
8.3 AS-100A/AS-110 Programming
¥ System Programming
1) Station digit number registration
2) Relay output mode setting
3) Registration of number of DI-100 cards to be connected to the DI-100
4) Switch/station number assignment
¥ Registration
1) Station digit number registration
* 1 1 X : [ X : 2,3,4 (initial setting = 3]
2 : 2-digit, 3 : 3-digit, 4 : 4-digit
2) Relay output mode setting
* 7 1 X [X : 1,2 (initial setting = 1]
1 : Dry contact at conversation start
2 : Dry contact at CALL-IN reception
3) Registration of number of DI 11- cards to be connected to the DI-100
Whenever programming each DI-100, register number of DI-110 cards to be
connected to the DI-100
* 7 2 d d dd : Number of DI-110Õs (01 ~ 36, initial setting = 01)
01 ~ 03 (01 ~ 90) 2-digit
04 ~ 33 (001 ~ 990) 3-digit
34 ~ 36 (0001 ~ 1080) 4-digit
4) Switch/station number assignment (individual registration)
* 7 3 D ( X X ) X X ( Y Y ) Y Y
D : di-100 NO. (1 ~ 8)
(XX)XX : FIRST SWITCH NO. [(00)01 ~ 1080)
(YY)YY : FIRST STATION NO. [(00)00 ~ (99)99]
(SS)SS : LAST SWITCH NO. [(00)01 ~ 1080)
¥ Cancellation
* 7 0 c PTT (Cancellation of function code 70)
* 7 1 c PTT (Cancellation of function code 71)
* 7 2 c PTT (Cancellation of function code 72)
* 7 3 c PTT (Cancellation of function code 73)
11

12
9. OPERATION
9.1 Calling
(1) Dial the desired station number with dial keys, or
(2) Press the corresponding SELECT switch on the control panel (instantaneous call).
9.2 Being Called (When in Continuous Call Tone Mode)
(1) The corresponding CALL-IN LED flashes simultaneously with a call tone. Flashing speed differs depending on the
priority level assigned to each station.
(2) To answer
(1) Lift the handset
(2) Press the PUSH TO TALK key, or
(3) Press the SELECT switch corresponding to a flashing LED. (When there are two or more simultaneous
incoming calls, as indicated on the panel, by simply pressing this switch, the desired station can be
instantaneously selected for answer.) The calling partyÕs CALL-IN LED and BUSY LED will both light.
9.3 To Terminate the Conversation
(1) Replace the handset,
(2) Press the C/# key, or
(3) Press the conversation partnerÕs SELECT switch as indicated by its corresponding CALL-IN LED.
9.4 Other Functions
(1) BUSY LED
This LED lights to indicate that its station is busy. When speech links wishing to use are occupied, however, a
busy tone is heard from the called station even if its BUSY LED does not light.
(2) INHIBIT switch
Setting this switch to ON disables all SELECT switches. Operations by the control stationÕs dial keys or
PUSH TO TALK key are still possible.
(3) Indication test switch
As long as this switch is pressed, all LEDÕs on the control panel light connected to the DI-110.
No test can be performed during conversation or while receiving CALL-IN.

13
10. PROGRAMMING SHEET
DIÐ110 (1) DIÐ110 (2) DIÐ110 (3)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
13161
23262
33363
43464
53565
63666
73767
83868
93969
10 40 70
11 41 71
12 42 72
13 43 73
14 44 74
15 45 75
16 46 76
17 47 77
18 48 78
19 49 79
20 50 80
21 51 81
22 52 82
23 53 83
24 54 84
25 55 85
26 56 86
27 57 87
28 58 88
29 59 89
30 60 90
DIÐ110 (4) DIÐ110 (5) DIÐ110 (6)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
91 121 151
92 122 152
93 123 153
94 124 154
95 125 155
96 126 156
97 127 157
98 128 158
99 129 159
100 130 160
101 131 161
102 132 162
103 133 163
104 134 164
105 135 165
106 136 166
107 137 167
108 138 168
109 139 169
110 140 170
111 141 171
112 142 172
113 143 173
114 144 174
115 145 175
116 146 176
117 147 177
118 148 178
119 149 179
120 150 180

14
DIÐ110 (7) DIÐ110 (8) DIÐ110 (9)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
181 211 241
182 212 242
183 213 243
184 214 244
185 215 245
186 216 246
187 217 247
188 218 248
189 219 249
190 220 250
191 221 251
192 222 252
193 223 253
194 224 254
195 225 255
196 226 256
197 227 257
198 228 258
199 229 259
200 230 260
201 231 261
202 232 262
203 233 263
204 234 264
205 235 265
206 236 266
207 237 267
208 238 268
209 239 269
210 240 270
DIÐ110 (10) DIÐ110 (11) DIÐ110 (12)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
271 301 331
272 302 332
273 303 333
274 304 334
275 305 335
276 306 336
277 307 337
278 308 338
279 309 339
280 310 340
281 311 341
282 312 342
283 313 343
284 314 344
285 315 345
286 316 346
287 317 347
288 318 348
289 319 349
290 320 350
291 321 351
292 322 352
293 323 353
294 324 354
295 325 355
296 326 356
297 327 357
298 328 358
299 329 359
300 330 360

15
DIÐ110 (13) DIÐ110 (14) DIÐ110 (15)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
361 391 421
362 392 422
363 393 423
364 394 424
365 395 425
366 396 426
367 397 427
368 398 428
369 399 429
370 400 430
371 401 431
372 402 432
373 403 433
374 404 434
375 405 435
376 406 436
377 407 437
378 408 438
379 409 439
380 410 440
381 411 441
382 412 442
383 413 443
384 414 444
385 415 445
386 416 446
387 417 447
388 418 448
389 419 449
390 420 450
DIÐ110 (16) DIÐ110 (17) DIÐ110 (18)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
451 481 511
452 482 512
453 483 513
454 484 514
455 485 515
456 486 516
457 487 517
458 488 518
459 489 519
460 490 520
461 491 521
462 492 522
463 493 523
464 494 524
465 495 525
466 496 526
467 497 527
468 498 528
469 499 529
470 500 530
471 501 531
472 502 532
473 503 533
474 504 534
475 505 535
476 506 536
477 507 537
478 508 538
479 509 539
480 510 540

16
DIÐ110 (19) DIÐ110 (20) DIÐ110 (21)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
541 571 601
542 572 602
543 573 603
544 574 604
545 575 605
546 576 606
547 577 607
548 578 608
549 579 609
550 580 610
551 581 611
552 582 612
553 583 613
554 584 614
555 585 615
556 586 616
557 587 617
558 588 618
559 589 619
560 590 620
561 591 621
562 592 622
563 593 623
564 594 624
565 595 625
566 596 626
567 597 627
568 598 628
569 599 629
570 600 630
DIÐ110 (22) DIÐ110 (23) DIÐ110 (24)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
631 661 691
632 662 692
633 663 693
634 664 694
635 665 695
636 666 696
637 667 697
638 668 698
639 669 699
640 670 700
641 671 701
642 672 702
643 673 703
644 674 704
645 675 705
646 676 706
647 677 707
648 678 708
649 679 709
650 680 710
651 681 711
652 682 712
653 683 713
654 684 714
655 685 715
656 686 716
657 687 717
658 688 718
659 689 719
660 690 720

17
DIÐ110 (25) DIÐ110 (26) DIÐ110 (27)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
721 751 781
722 752 782
723 753 783
724 754 784
725 755 785
726 756 786
727 757 787
728 758 788
729 759 789
730 760 790
731 761 791
732 762 792
733 763 793
734 764 794
735 765 795
736 766 796
737 767 797
738 768 798
739 769 799
740 770 800
741 771 801
742 772 802
743 773 803
744 774 804
745 775 805
746 776 806
747 777 807
748 778 808
749 779 809
750 780 810
DIÐ110 (28) DIÐ110 (29) DIÐ110 (30)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
811 841 871
812 842 872
813 843 873
814 844 874
815 845 875
816 846 876
817 847 877
818 848 878
819 849 879
820 850 880
821 851 881
822 852 882
823 853 883
824 854 884
825 855 885
826 856 886
827 857 887
828 858 888
829 859 889
830 860 890
831 861 891
832 862 892
833 863 893
834 864 894
835 865 895
836 866 896
837 867 897
838 868 898
839 869 899
840 870 900

18
DIÐ110 (31) DIÐ110 (32) DIÐ110 (33)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
901 931 961
902 932 962
903 933 963
904 934 964
905 935 965
906 936 966
907 937 967
908 938 968
909 939 969
910 940 970
911 941 971
912 942 972
913 943 973
914 944 974
915 945 975
916 946 976
917 947 977
918 948 978
919 949 979
920 950 980
921 951 981
922 952 982
923 953 983
924 954 984
925 955 985
926 956 986
927 957 987
928 958 988
929 959 989
930 960 990
DIÐ110 (34) DIÐ110 (35) DIÐ110 (36)
SW No. SUBSTATION No. SW No. SUBSTATION No. SW No. SUBSTATION No.
991 1021 1051
992 1022 1052
993 1023 1053
994 1024 1054
995 1025 1055
996 1026 1056
997 1027 1057
998 1028 1058
999 1029 1059
1000 1030 1060
1001 1031 1061
1002 1032 1062
1003 1033 1063
1004 1034 1064
1005 1035 1065
1006 1036 1066
1007 1037 1067
1008 1038 1068
1009 1039 1069
1010 1040 1070
1011 1041 1071
1012 1042 1072
1013 1043 1073
1014 1044 1074
1015 1045 1075
1016 1046 1076
1017 1047 1077
1018 1048 1078
1019 1049 1079
1020 1050 1080

19
11. SPECIFICATIONS
Master stations Used with DI–100/DI–110 : AS–100A/AS–110
Maximum number of interface cards DI–100 : 8 per CK–100 exchange; 72 per system (9 tie-lined exchanges)
DI–110 : 4 per CK–100 exchange; 36 per system (9 tie-lined exchanges)
Maximum number of ports per DI–110 30
Maximum number of ports per system 1080
Maximum distance, exchange to DI–100/DI–110
and to AS–100A/AS–110 3000 ft. (1km) 22 AWG
DI–100 inputs
(a) Dry contact : 1 for PTT switch
1 for indication reset switch
(b) Control lines : 1 for exchange (LU card)
1 for station connection (AS–100A/AS–110)
(c) Power supply : 24V DC
DI–100 outputs (a) Open collector : 2 for corridor lamp control (24V DC, approx. 10mA).
1 for buzzer control (24V DC, approx. 50mA).
DI–110 inputs (a) Dry contact : 30 for calling and response switch connection 1 for inhibit switch
1 for indication test switch
(b) Power supply : 24V DC
DI–110 outputs
(a) Open collector : 30 for LED indication of calling, response to call,
priority level. (24V DC, approx. 10mA)
(b) Open collector: 30 for LED indication of busy ports. 24V DC,
approx. 10mA)
(c) N/O relay contact : 30 for general purpose control rating : 30V DC,
10mA (resistive load)
(d) Power supply : 24V DC
Power requirement (a) Voltage : 24V DC (+/- 4 volts) (b) Current : DI–100 (500mA)
DI–110 (300mA)
Custom or off-the-street control panel switch rating (a) Operating voltage : 5V DC
(b) Operating Current : 1mA
(c) Contact resistance : less than 50 Ω
Functions
(a) Calling/priority level indication : Determined by LED flash rate.
(b) Call make/response : Steady LED
(c) Busy indication : Steady LED
(d) Selected station’s signal output (selected station, response, PTT
and termination signal) : 140pps dial pulse (programming station
number/select switch relationship)
(e) Exchange/station interface function
Terminations
(a) Screwless terminal : DI–100 to switches, power supply, AS–
100A/ AS–110
DI–110 to power supply
(b) Ribbon cable connector : DI–100 to DI–110, DI–110 to DI–110
(c) “CHAMP®” IDC connector : DI–110 to switches, LED’s, control outputs
* Specifications are subject to change without notice.

11
