Extron electronics DMP 64 User manual

IMPORTANT:
Go to www.extron.com for the
complete user guide, installation
instructions, and specifications.
Receive (Rx)
Transmit (Tx)
Ground ( )
Bidirectional
RS-232
Device
Ground ( )
Receive (Rx)
Transmit (Tx)
RxTx
Do not tin
the wires!
Disconnect Power and Mount the DMP64
Disconnect power to the DMP64 and turn off all devices connected to it. The DMP64 is housed in a half rack width, 9.5 inches
deep, 1U high metal enclosure that can sit on a table with the provided rubber feet or can be rack mounted. Select a suitable
mounting location, then choose an appropriate mounting option.
Connections
aConnect the Power Supply — The included power supply is prewired.
Plug the captive screw connector into the DMP64 power jack.
bMic/Line Inputs — Attach up to six microphone or mono line level
devices, balanced or unbalanced, to the DMP64 using the audio input
wiring diagram shown at right.
cConnect the Audio Outputs — For balanced or unbalanced mono audio
output, connect an audio output device to each of the four outputs. Wire
the connectors as shown in the audio output wiring diagram shown at
right.
dConnect the I/O Ports — To control or monitor external devices, connect
up to six digital I/O ports (connections not shown). See the DMP64 User
Guide for additional information.
RESET
DMP 64
POWER
12V
1.0A MAX
LAN
123
456
456
12
34
Tx Rx G
RS-232 (2)
Tx Rx G
RS-232 (1)
456 G
123 G
MIC
+48V
13
2
MIC/LINE INPUTS
OUTPUTS
I/O
REMOTE
This guide provides basic instructions for an experienced technician
to install the DMP64 ProDSP™Digital Matrix Processor and
DSPCongurator™software. For additional information see the
DMP64 User Guide found at www.extron.com.
IP Address: 192.168.254.254
Subnet Mask: 255.255.0.0
Default Gateway: 0.0.0.0
DHCP: OFF
DMP 64 • Setup Guide
ATTENTION:
• For unbalanced audio outputs, connect
the sleeves to ground.
• DO NOT connect the sleeves to the
negative (–) contacts.
eConnect a Control System — There are three options to connect a
control system: LAN, RS‑232, and USB. Extron recommends using the
LAN port for conguration and remote control of the DMP64.
LAN — Using a standard Ethernet cable, connect to a network via the LAN port (â). The
table at right shows the default network settings.
NOTE: To connect the DMP64 directly to a computer, use a crossover Ethernet
cable.
RS-232 — Connect the host RS‑232 cable to the rear panel of the switcher (à) using the
provided 3‑pole captive screw connector (see the wiring diagram at right).
USB — Connect the host USB port to the front panel conguration port, (notshown), using
a USB A to mini‑B cable. The USB connection should be used only for conguration. Use
the RS‑232 or LAN port for remote control of the DMP64.
When all connections have been made, power up the input and output devices, then apply
power to the DMP64.
"
(5 mm) MAX. (typ)
3
16
Audio OUTPUT Wiring
Unbalanced Output
Tip
Sleeve
NO Ground Here
Balanced Output
Tip
Sleev
e
Ring
Audio INPUT Wiring
Balanced Input
Sleeve
Ring
Tip Tip
Sleeve
Jumper
Unbalanced Input

DMP 64 • Setup Guide (continued)
DSPConfigurator Software Installation
There are no hardware controls for the DMP64. All conguration and control is done using the DSPCongurator software. Install
DSP Congurator on a PC running Microsoft®Windows®2000 or later. For full details about computer requirements, see the
DMP64 User Guide on the Extron website (www.extron.com).
To Download the DSPConfigurator Software from the Extron website:
1. On the Extron home page, click the Download tab. The Download page opens.
2. Under Software in the left column, select DSP  . The DSP   page opens.
3. Click the Download Now button and follow the on‑screen instructions.
NOTE: On the first installation of DSP Configurator, the USB driver automatically loads. Follow the on‑screen instructions.
Once the USB driver has loaded, the DSP Configurator software continues to load.
By default, the program installs in the folder  and an icon is placed on the
desktop.
68-1790-50
Rev. C
10 13
DMP64 Setup and Control Software Configuration
When the DMP64 is connected to power, an audio source, a power amplier, and speakers, it produces an audio output that can
easily be tailored to the listening environment. When a different conguration is required, change it using the setup and control
software, DSPCongurator.
To Configure the DMP64:
1. Ensure the control computer is connected to the Ethernet port
(recommended), RS‑232 port, or front panel USBCong port
of the DMP64 (see “Connect a Control System” on page1).

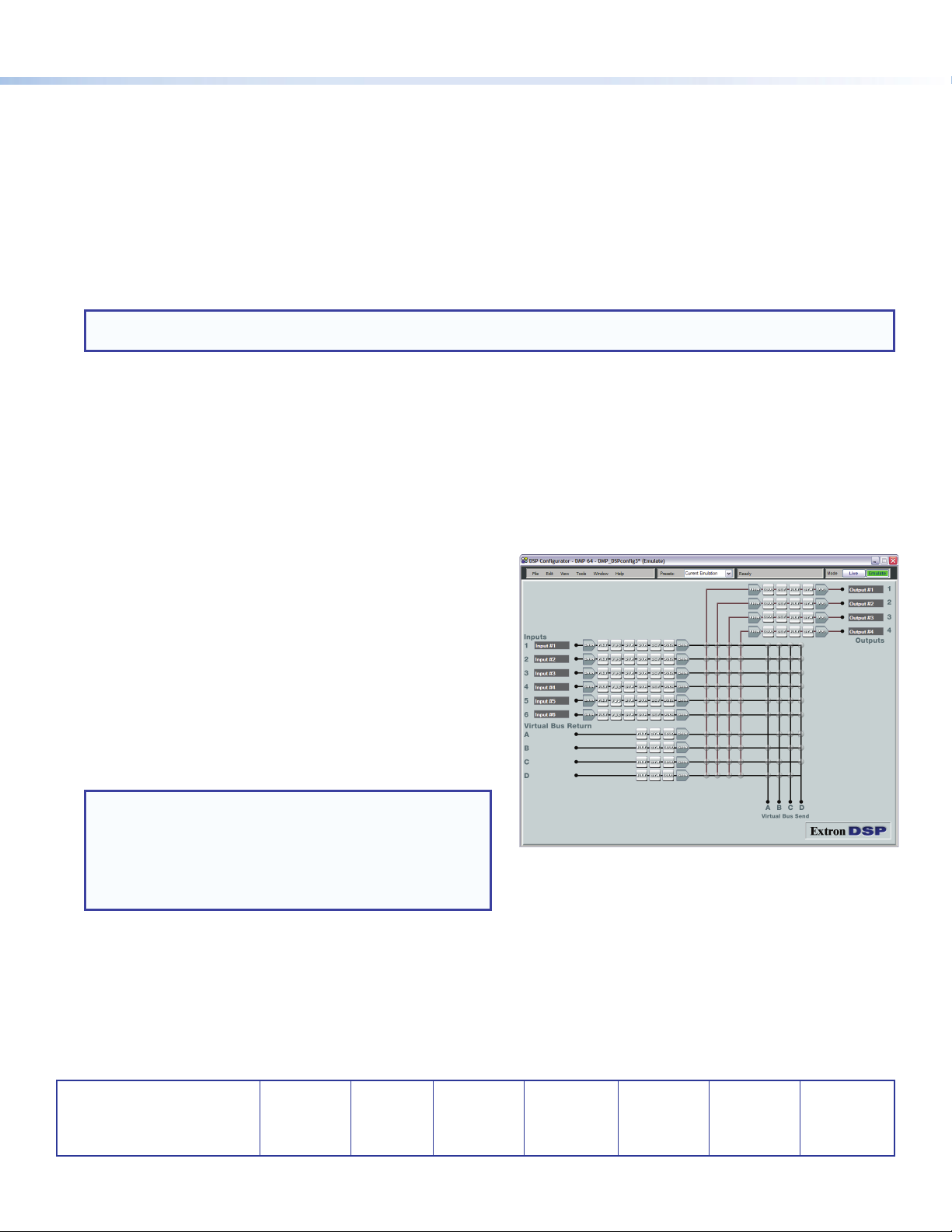

2. Start the DMPCongurator software. Select DMP 64 as the
device being connected to. The main DMP64 screen opens.
3. The program starts in  mode.
a. To create a conguration ofine and upload (push) those
changes to the DMP64 at a later time, remain in emulate
mode.
b. To push a conguration to the device, or to make
immediate changes to the conguration or operation,
select  mode.
NOTES:
• When live mode is selected, a connection dialog box
appears. Select the desired connection and follow the
on‑screen prompts.
• The connection can be changed from the Tools menu
by selecting , or by pressing F5.
For more information about live and emulate modes, see the DMP64 User Guide.
The main screen provides access to all the features of the DMP64. Full details about using the DSPCongurator software
can be found in the DMP64 User Guide on the Extron website at www.extron.com or in the help le for the program.
