Eyedaptic EYE5 User manual

www.eyedaptic.com
EYE5
Eyedaptic Glasses User Manual
Version 5.0.0/0
EYE5 MD3
Enhancing Vision To Revitalize Life
®
1

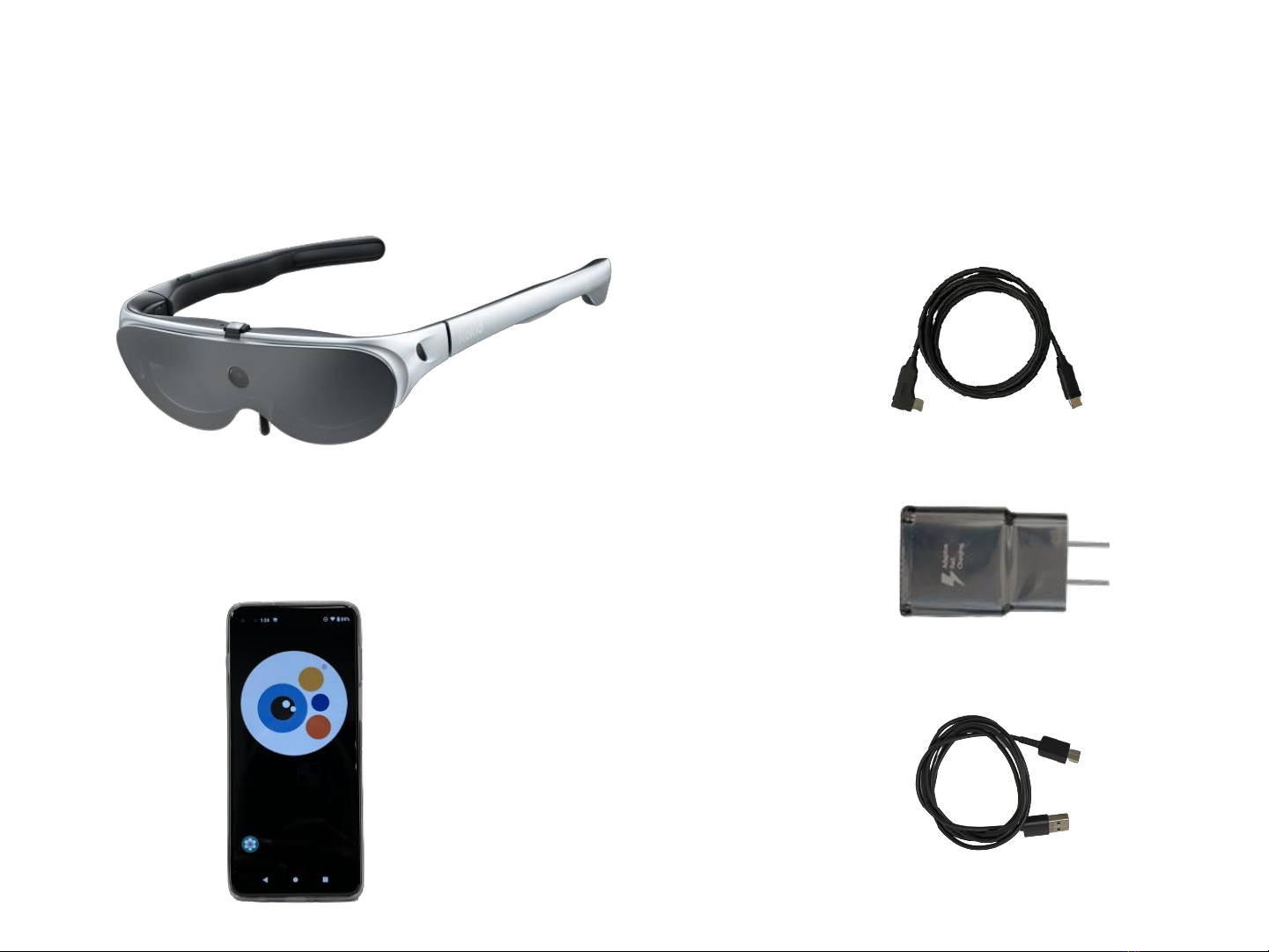

Package Contents
(A) EYE5 glasses
2
(B) Mobile phone with pre-installed
software to control EYE5 glasses
(C) Data cable to connect glasses to
phone (L shaped plug)
(D) USB charger block
(E) Charging cable for the PHONE only
*Cables (C) and (E) are NOT interchangeable

3
EYE5 Glasses (A) - Parts Overview
EYE5 connection port
Use the included data cable to
connect the phone to the glasses
EyeSwitch toggle button
L shaped side of the data cable (C)
plugs into glasses - must use this
data cable for the glasses to work
Adjustable nose pad

EYE5 Phone (B) –Parts Overview
Charging and connection port
This same port is used for charging the phone
and for connecting the phone to the glasses
EYE5 control app icon
(visible when powered on)
Power save mode
Press once to turn off
the phone display, but
leave the glasses on
Press again to turn
phone display back on Sleep mode and
power button
Press button once
to turn off glasses
and phone screen
Hold down button
for 5 seconds to
power on/off
phone and glasses
entirely
4
Zoom adjuster
Press the up/down
buttons to adjust
zoom level

•To power on the phone: hold the power button for
5 seconds, or until the screen lights up
•To power off the phone: hold the power button
for 5 seconds, click on the "Power Off" option, and
the screen will go dark
How to Power On/Off
5
Power button
(lower button)
"Power Off"

6
How to Charge the Phone
Only the phone needs to be charged, the glasses do not need to be charged
1. Plug the charging cable (E)
into the charging block (D)
2. Plug the charging cable (E)
into the phone (B)
DO NOT USE THE DATA CABLE FOR CHARGING
3. Plug the charger into an outlet
4. Charge until the phone
battery reaches 100%
*The phone will always stay ON while charging, it cannot be turned off
(A)
(D)
(E)

7
Sleep Mode
To activate sleep mode: press the power button once (top
right) - the phone screen AND glasses will go dark
To exit sleep mode: press the power button again (top right)
- the phone screen AND glasses will turn back on
Sleep mode puts the phone display and the glasses to sleep, but does not
completely turn off the device –this will save battery
Power
button
Phone is in sleep mode,
glasses are off

To activate power save mode: press the top left button once
–the screen will go dark and a flashing arrow will appear
To exit power save mode: press the top left button again –
the screen will turn back on
8
Power Save Mode
Power save mode turns the phone screen off, but the glasses remain on
This mode is ideal for situations where the phone screen is distracting (ie. movie theaters)
Power save
button
Phone is in power save
mode, glasses are still on

Setting up the Phone & Glasses
1. Before using EYE5 glasses for the first time:
a) Fully charge the phone battery, until light at the top of the
phone turns green or percentage on the phone is 100%
2. After the battery is charged:
a) Make sure the phone is not connected to any cables
b) Power on the phone by holding down the power button
c) This phone takes several seconds to start up and shows
various screens before it is ready to use
9
READY TOGO

Setting up the Phone & Glasses
1. Connect the phone to the glasses:
a) To do this, plug the L shaped side of the data
connection cable (C) into the glasses (A) and the other side
into the phone (B)
2. Wait for the EYE5 app to launch automatically or press the
Eyedaptic logo to start the app
a) If the app does not open, unplug the cable from the phone, wait 5 seconds,
plug the cable back in, and try again
3. The first time the app is opened, a EULA acceptance will pop
up –this must be accepted to use the app
10
(A)
(B)
(C)

11
Home Page Overview
Toggles
autozoom
on/off
Toggles
Britext
on/off
Opens up
the settings
menu
Scroll up or down to see
additional features
Set favorite
features
Slide along the bar to
manually change magnification
(when autozoom is OFF)
Turns
EyeSwitch
on
Home Page

12
EyeSwitch changes the mode of viewing from the camera on
the glasses to the camera on the phone
Turns
EyeSwitch
on
Turns
EyeSwitch
off
In EyeSwitch mode
the settings options
are simplified to just
Autozoom and Britext
Home Page

13

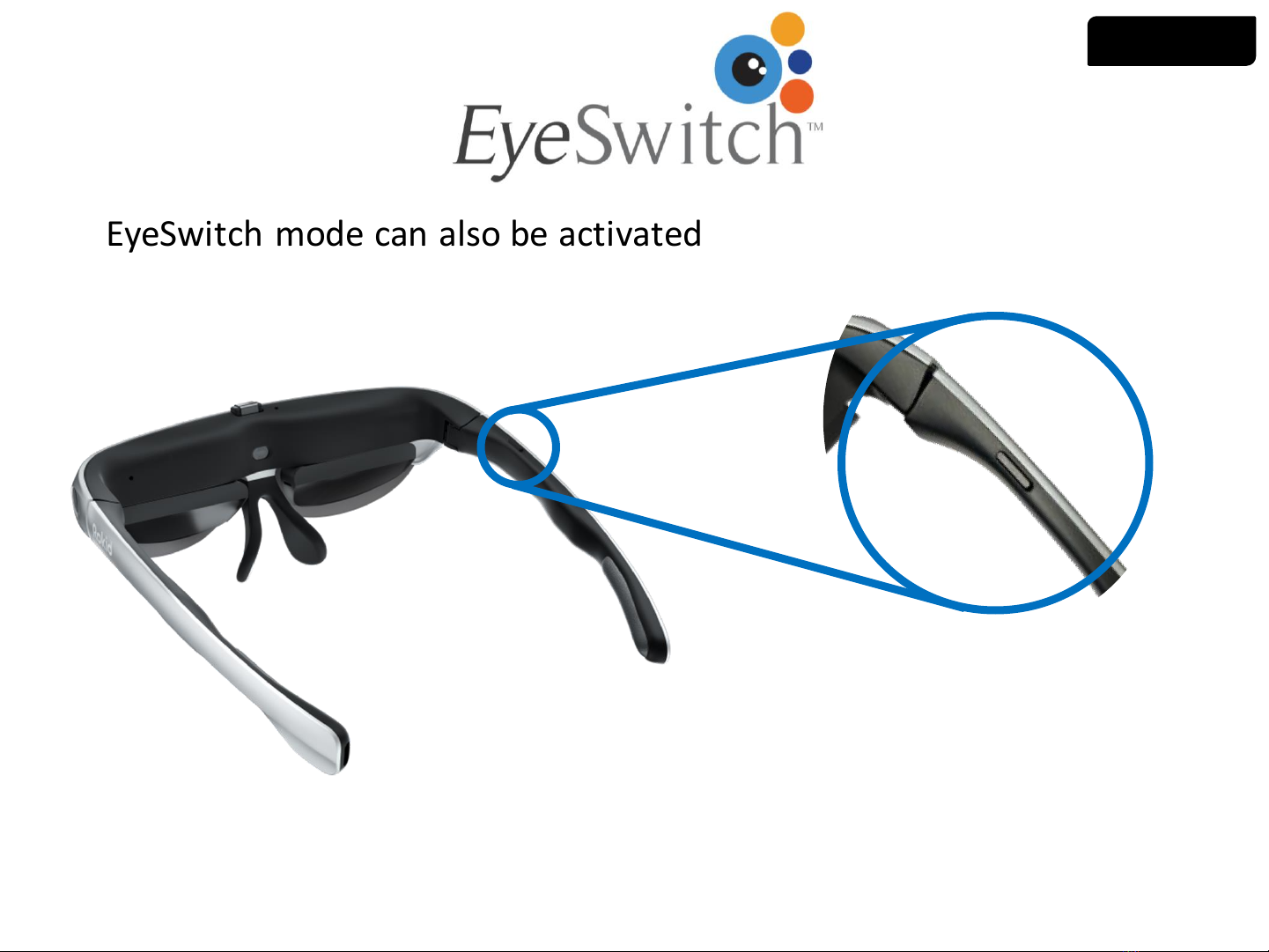

EyeSwitch mode can also be activated by the button on the glasses
Press and this button and
once released, it will
activate EyeSwitch mode
It may take a second to
change modes - you will get an
audio confirmation
Home Page

14

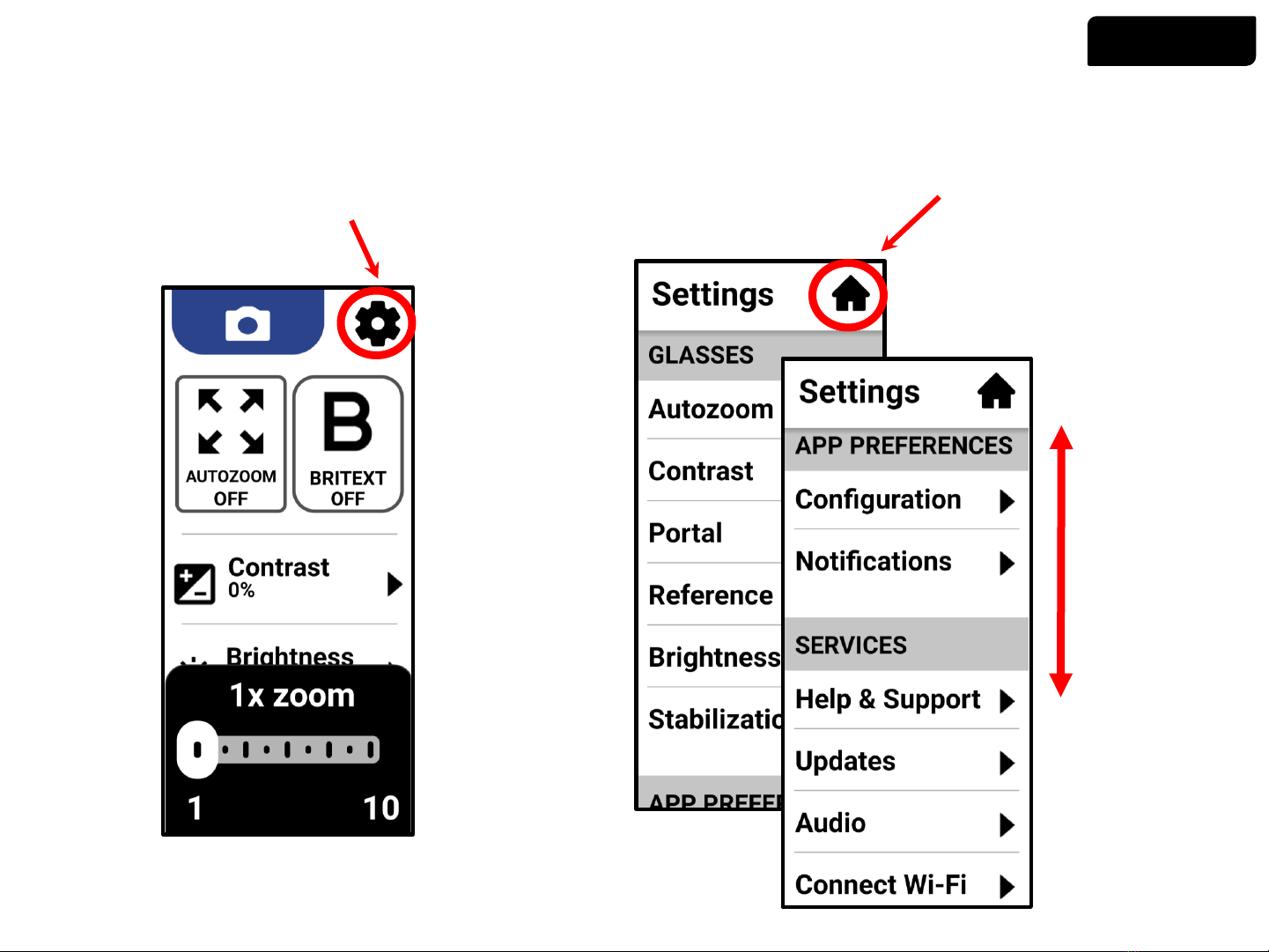

Settings
Opens up the
settings page
Returns to
home page
Scroll up or
down to see
all menu
options
Home Page

15
Manual Zoom
Slide along the bar to
manually change magnification
(when autozoom is OFF)
Manual zoom allows the user to control full-screen magnification
by adjusting the zoom slider at the bottom of the home screen
Magnification –fades,
reappears when adjusted
Home Page

16
Autozoom
Toggles
autozoom
on/off
Autozoom mode prompts the glasses to automatically zoom in on
TEXT and FACES when detected
To switch
between text
and facial
detection
Toggle
between
text and
faces
Home Page

17
Autozoom - Text
A box will appear on
the screen and
prompt the zoom
Read text with slow
head motion
It will zoom to preferred
text size, which is
rememberedwhen
manually adjusted
Large head movement
or a quick shake will
zoom back out
Autozoom in text mode prompts the glasses to automatically zoom in
on text when detected
Home Page

18
Autozoom - Faces
A box will appear on the
screen and prompt
the zoom - this box will
fade after a few seconds
and will reappear with
head movement
Facial recognition will only work if the
target is stationary
Autozoom will adjust according to the
distance from the target
Large head movement
or a quick shake will
zoom back out
Autozoom in text mode prompts the glasses to automatically zoom in
on faces when detected
Home Page

19
Autozoom - Settings
Additional autozoom settings can be adjusted from the settings page
Toggles
autozoom
on/off
Switch
between text
and faces
Adjust how much head
motion is needed to
zoom out of autozoom
Controls how
quickly the
glasses
recognize text
Settings

20
Britext
Britext mode is a contrast enhancement that outlines the edges of text
and objects, making them easier to distinguish
Toggles
Britext
on/off
Britext off
Britext on
Home Page
