EZ Dock EZ Port & Stow Operating instructions

EZ Port & Stow™
Personal Watercraft Port
Owners Manual and Installation Instructions for EZ Port & Stow™
Model: 206016PW-EZ
Installation Instructions
The first dock of its kind...The last dock you’ll ever need®.
For questions about features, operation/performance, parts, accessories
or service, call your local dealer or your nearest EZ Dock distributor at
1-800-654-8168 or [phone] for international customers.
Additional information regarding EZ Dock products and services can be
found on the internet at www.ez-dock.com

2
Table of Contents
Assembly, Installation, Maintenance and Safety.………………………………………………………………..…...…..…………………...3
EZ Port & Stow Specifications………………………………….…………………………...………………………………………………......3
Site Preparation.……………………………………………………………………………………………………...…………………………...4
Selecting Your Installation/Attachment Methods…………………………………………………………………………………………….4-7
1a Coupler installation for EZ Dock Attachment.……………………………………………………….....…………..…………..4
2a Anchoring with Integrated Pipe Brackets for stand-alone mount...…….....………..………………………………………..6
2b Pipe Stand-Off Brackets for fixed pier or dock mount...….....………………..……..……………….………………………..6
3a Hinge Kit 100750 for Floating Dock Mount.……………….…………………..…..…………...………………………………7
Roller Adjustment for EZ Port & Stow…………………………………………………...……………………..…….…...………………...….8
Porting Techniques……………………………………………….………………………………………………….....……...…………………9

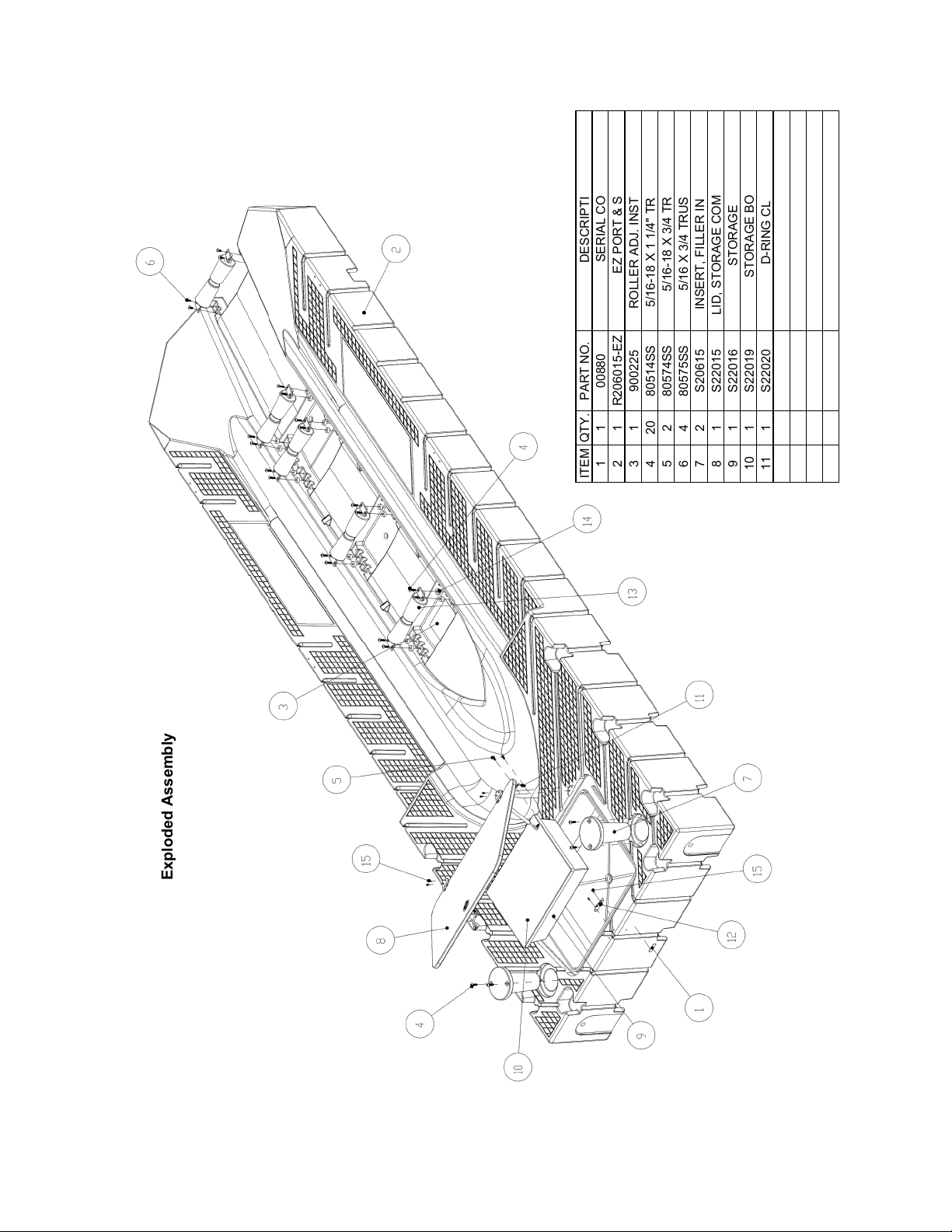

Exploded Assembly.……………………...…………………………………………………………………..…..……………………………..10
Storage Area......…………………………………………….……………...………….……………………..……..…………………………..11
Warning……………………………………...…………………………………………………………………....……………………………...11

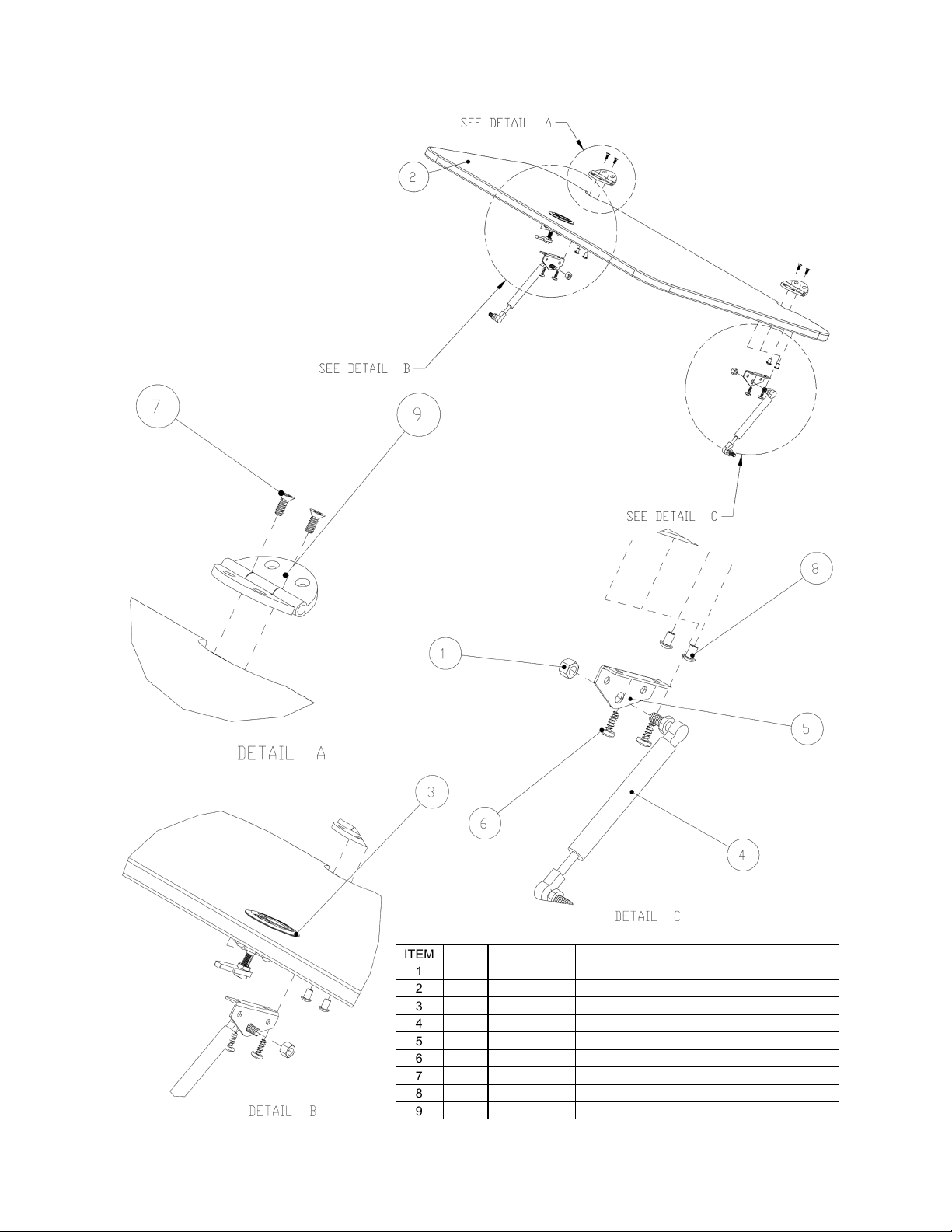

Storage Lid Exploded Assembly....…………………………………………………………………………………………………………….12
Warranty/Customer Service...….……………………………………………………………………………..……..…………………………13
Maintaining your EZ Port & Stow...….…...…….…………………………………………………………..……...…………………………..13
Serial Code……………………………………………………………………………………………………………………………………….13
Dear Port & Stow Customer,
The EZ Dock team thanks you for your purchase. We know that you had other choices of personal watercraft ports, and we ap-
preciate your decision to purchase a EZ Port & Stow.
You will find it easy to maintain your EZ Port & Stow and to add accessories and other components to your port in the future. The
EZ Port & Stow is the most durable port on the market, and your friends and family will enjoy this port for many years to come.
Before you install your new EZ Port & Stow, please take a moment and fill out the registration card. To save time, you can also
register online at www.ez-dock.com. By registering your product, you will activate your product warranty and thereby protect your
purchase against covered product defects. Please feel free to give your EZ Dock customer service department a call with any
issues that you may have with your EZ Port & Stow. You can reach our customer service department by dialing:
USA/Canada: 1-800-654-8168
Int’l: [phone]
Europe: [phone]

3
IMPORTANT! Assembly, Installation, Maintenance and Safety:
You should read these instructions thoroughly before assembling and installing your EZ Port & Stow. Please adhere to all recom-
mendations and cautionary suggestions appearing in this manual and always follow the instructions precisely. Please save these
instructions and refer to them as needed for future reference.
Tools and Requirements:
As with any assembly and installation, some tools are required to assemble and install your EZ Port & Stow. You may not need
every tool listed below for your particular installation, but the following tools are generally helpful in the installation process (for
professional installation, call your local EZ Dock distributor or dealer):
EZ Dock in-water installation tool (900010)(only needed for EZ Dock mounting)
1/2” drive ratchet
socket set (especially 1/2”, 9/16:, 5/8”, 11/16”,15/16” sq. HD. or 19mm - 12pt)
open-end, boxed-end wrench set (above mentioned sizes)
screwdrivers (Phillips and standard)
pliers
adjustable wrenches
hammer
pry-bar (small and large)
rope (at least 3/8” braided nylon)
power drill and bits
utility knife
EZ Port & Stow Specifications
Length: 184” (4.7 m)
Width: 60” (1.5 m)
Height: 15” (38 cm)
Weight: 520 lbs. (236 kg)
Floatation Capacity: 1450 lbs. (658 kg)
Because of the rotomolding process, weights and dimensions may vary.

4
Site Preparation
Every EZ Port & Stow installation will be site specific and must be configured specifically for the end user’s intended application.
Some factors that must be taken into consideration when determining the components necessary for a proper installation are:
intended usage, water conditions, soil and bed conditions, and climatic conditions. There are a few simple rules to follow when
determining layout configuration.
Be certain that your installation configuration is designed to accommodate the daily intended use of your EZ Port & Stow. Please
take into account the following:
commercial application needs
public access requirements
private docking needs
scale of operation and use (size of PWCs, number of people, etc.)
other special considerations affecting your daily use
Be aware of the unique characteristics of the specific body of water and consider how such conditions will affect the installation.
Take into account:
overall area of the body of water
water depth (at the shore and at the furthest point from shore)
normal and greatest wave action
water level fluctuation
Understand and consider your maintenance and performance requirements and evaluate your ability to fulfill them.
Determine whether your installation will be attended and inspected on a regular basis.
Become acquainted with the normal movement associated with floating structures.
Determine whether you are capable of performing your own installation, or whether it is best to hire a professional.
Once you have considered and worked out the issues above, the next step is to select the installation mounting method that is
best for you. Since no two installations are ever exactly the same, each and every EZ Port & Stow installation must be designed
and configured for the specific and intended application.
Selecting your Installation/Attachment Method
There are a number of anchoring/mounting methods available for use with the EZ Port & Stow.
EZ Dock System mount (1a): If the EZ Port & Stow is used in conjunction with an EZ Dock system, simply use a coupler set to
attach the EZ Port & Stow (refer to the coupler installation instruction 1a).
Stand-alone (2a) or fixed pier or dock mount (2b): Anchor EZ Port & Stow to a stationary or fixed pier using the integrated pipe
bracket or pipe stand-off brackets (refer to the installation instruction 2a or 2b).
Floating dock mount (3a): EZ Port & Stow can be attached to a floating dock with the floating dock adapter hinge kit (refer to the
installation instruction 3a).

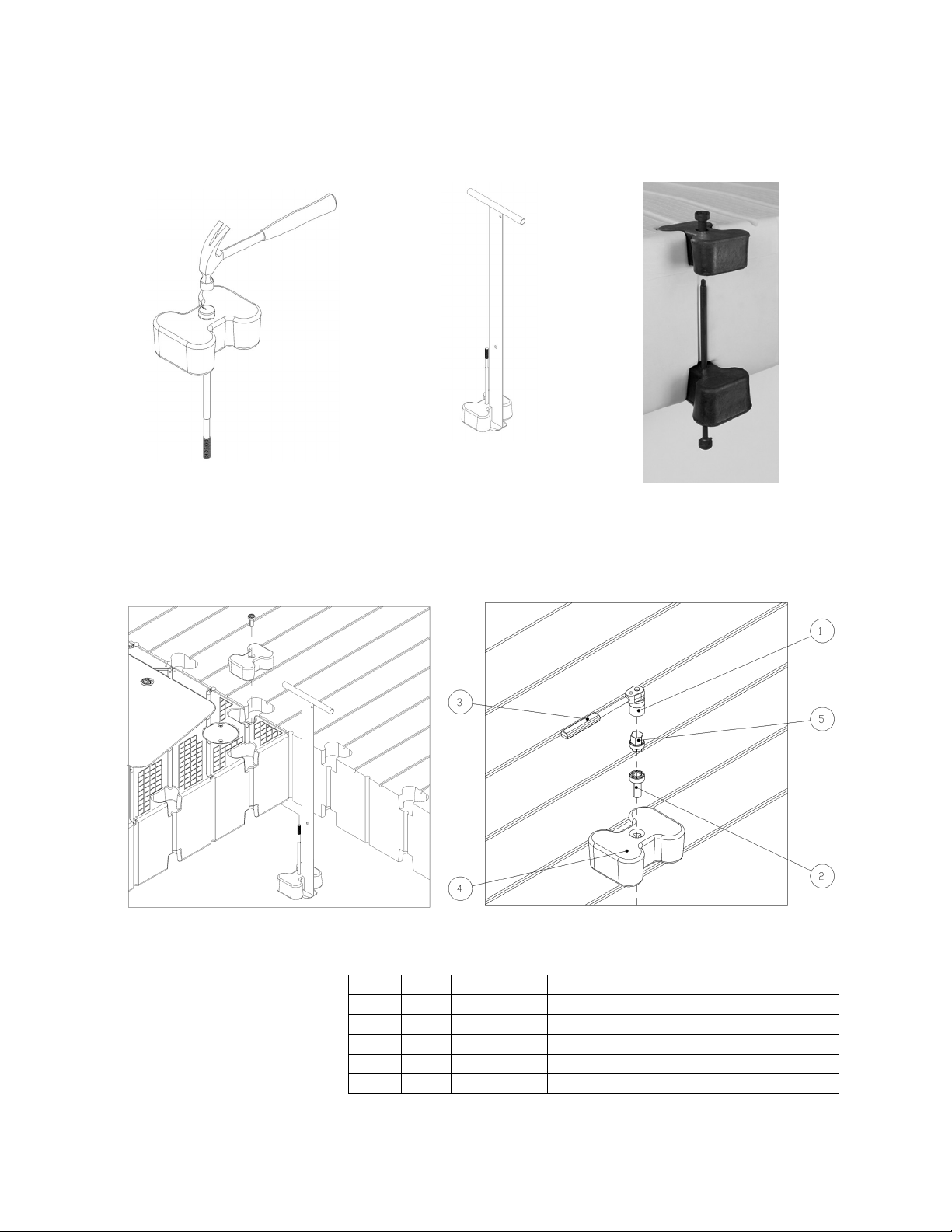

1a Coupler Installation for EZ Dock Attachment
Align dock sections so coupler pockets are adjacent to each other (see Figure 1).
Figure 1

5
Pull up on the in-water installation tool to seat the bottom coupler. While holding pressure insert the top coupler into the opposing
pocket. Finish the assembly by aligning the hole in the top coupler over the rod and push the coupler into the pocket (Figure 4).
Using the coupler installation tool, fully thread the nut onto the bolt. The installation drive tool is splined to be inserted into the nut,
allowing a 15/16” socket to access it (Figure 5). When using the composite hardware, it is apparent when the bolt is tightened
properly. The top of the bolt will be visible through the hole in the nut, and the bolt should be flush with the top of the dock.
Torque to15 ft-lb, top of bolt should be 1/2” below top of nut. DO NOT OVER TIGHTEN THE NUT!
Insert coupler bolt into coupler; align the index mark on the head of the bolt so that the splines line up into the notched pockets in
the coupler. Using a hammer seat the bolt into the coupler (figure 2). Next, using the in-water installation tool (figure 3) insert the
coupler and bolt assembly into the bottom pocket with the bolt pointing upward.
Figure 2 Figure 3
ITEM QTY. PART NO. DESCRIPTION
1 1 15/16" SOCKET
2 2 22003 EZ DOCK COUPLER NUT
3 1 RATCHET
4 4 311010 COUPLER
5 1 900005 TOOL, COMPOSITE COUPLER INSTALLATION
Figure 4 Figure 5

6
Pipes can be used to secure your new EZ Port & Stow. When pipes are used, they must be sufficiently driven or screwed into
the lake-, river-, or ocean-bed to a minimum depth of 1/3 the water depth.
It is recommended to use pipe augers, except in rocky or shale bottoms. Augers allow the pipe to be turned into the lake,
river, or ocean bed like a cork screw by using a pipe wrench, or by drilling a hole in the pipe and using a T-handle.
Pipe needs to be plumb and sufficiently driven to remain vertical.
Pipe diameter: Your EZ Port & Stow is designed to use 3.0” pipe with an outside diameter of 3.5”. It is recommended that
pipe be sleeved with 4.0” PVC pipe to act as a wear sleeve.
In salt- or brackish-water conditions, it is recommended that steel pipe be sleeved with PVC pipe. This will help prevent abra-
sion and wear on the pipe bracket, rust, and improve appearance.
2a Anchoring EZ Port & Stow with Integrated Pipe Brackets (Stand-alone Mount)
Your EZ Port & Stow comes equipped with pipe bracket fillers. These covers are located toward the front of the unit. These will
need to be removed for this mounting option (see below).
Remove 2 screws and lift pipe bracket filler out.PVC pipe can be sleeved over steel pipe to act as a wear sleeve.
2b Pipe Stand-Off Brackets Installation (Fixed Pier or Dock Mount)
When installing a EZ Port & Stow (for fixed pier/dock mount) next to a concrete abutment or fixed dock, it is recommended that the
top of the pipe be secured to the abutment by a “pipe stand-off bracket” (Figure 6 & 7).
1. Install the pipe stand-off bracket high enough to maintain clearance between it and the pipe bracket at high-water level.
2. Determine the position of the pipe stand-off bracket on the existing dock, pier or abutment.
3. Place the pipe stand-off bracket into the installed pipe, mark, and then drill corresponding holes into abutment and attach.
4. Attach the “pipe stand-off bracket” using four wood screws or concrete anchors.
Figure 6 Figure 7

7

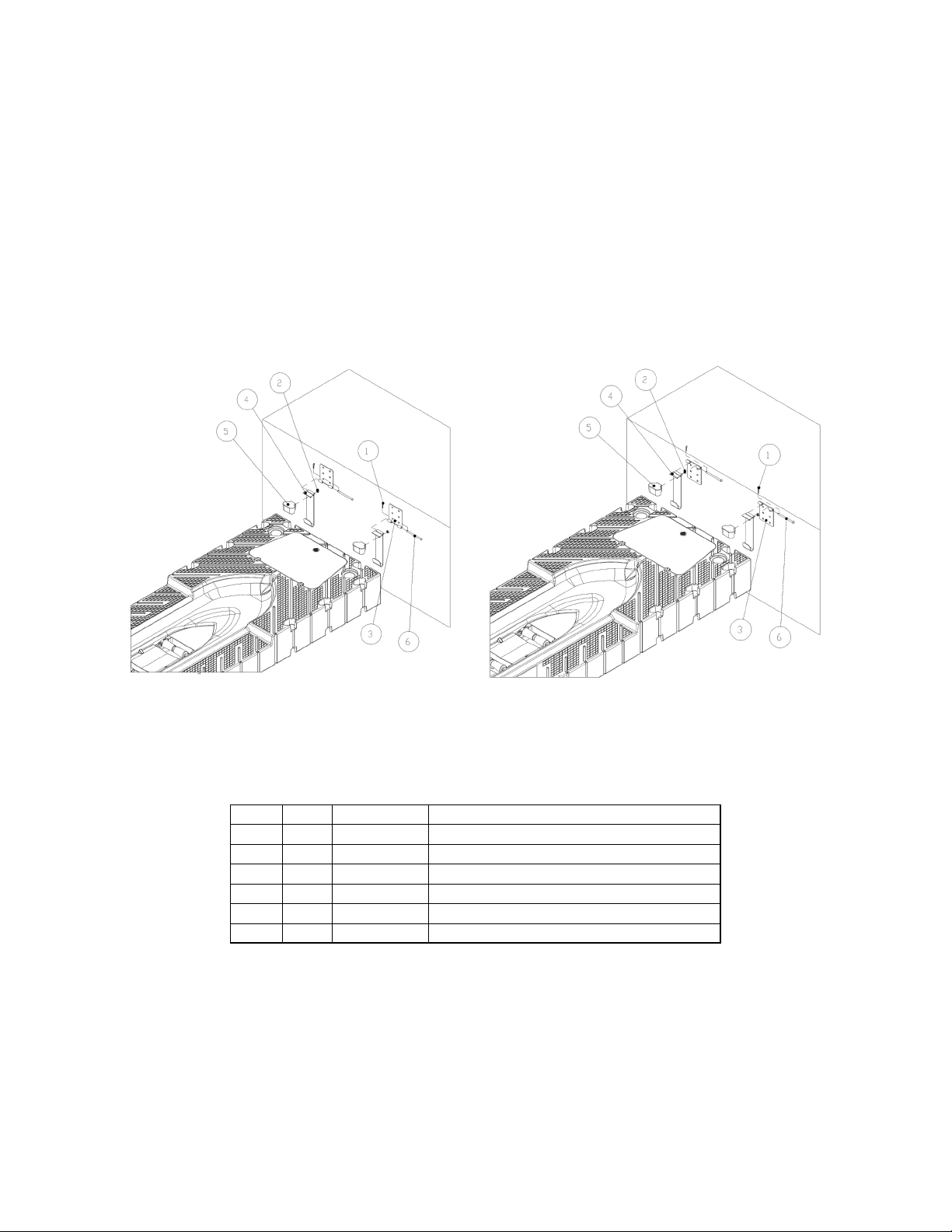

3a Hinge Kit Installation Instructions 100750 (for Floating Dock Mount)
1. Measure the freeboard of the fascia or concrete abutment where the connection will be made.
2. Determine the best position for the hinge adapter plate. The plate can be above (Figure 8), perpendicular, or directly in front
of the hinge adapter bracket (Figure 9).
3. No additional weight should be on the port while measuring hinge adapter plate location.
4. When attaching to a wooden structure, use carriage bolts (not included) to attach the adapter plate. If attaching to a steel or
aluminum structure, it maybe necessary to first attach a 2” X 8” (5cm X 20cm) wooden fascia.
5. When attaching to a concrete abutment, concrete anchor bolts (not included) are needed.
6. When the adapter hinge plate is securely in place, float the EZ Port & Stow into position and secure the hinge pin.
ITEM QTY. PART NO. DESCRIPTION
1 2 80011 CLIP HINGE PIN #11
2 2 80580 NUT 5/8-11 LOCK
3 2 S10712 EZ DOCK FLOATING DOCK ADAPTER
4 2 S10713 EZ DOCK FLOATING DOCK ADAPTER
5 2 S21140 CONNECTOR HARDWARE W/SS
6 2 S80968SS HINGE PIN
Figure 8 Figure 9

8
Roller Adjustment for EZ Port & Stow
The EZ Port & Stow comes from the factory with the rollers in their recommended roller position. For some personal watercraft
(PWC) models, it may be necessary to adjust the rollers on your new EZ Port & Stow. Your EZ Port & Stow can be adjusted to fit
most PWCs. Each roller is adjustable and can be placed in any one of eight positions. The illustrations below show each of the
eight positions. A roller placed too high may cause your PWC to tip to one side. A roller placed too low may cause difficulty in
launching and docking your PWC. Your EZ Port & Stow is designed to make launching and docking fast, fun, and easy. This
process may take several adjustments before getting the correct position for your PWC model.
#1 Position
A. Upper roller tray
B. Axle plate down
C. Spacers below plate
#5 Position
A. Upper roller tray
B. Axle plate down
C. Spacers above plate
#3 Position
A. Upper roller tray
B. Axle plate up
C. Spacers below plate
#7 Position
A. Upper roller tray
B. Axle plate up
C. Spacers above plate
#2 Position
A. Lower roller tray
B. Axle plate down
C. Spacers below plate
#6 Position
A. Lower roller tray
B. Axle plate down
C. Spacers above plate
#4 Position
A. Lower roller tray
B. Axle plate up
C. Spacers below plate
#8 Position
A. Lower roller tray
B. Axle plate up
C. Spacers above plate

9

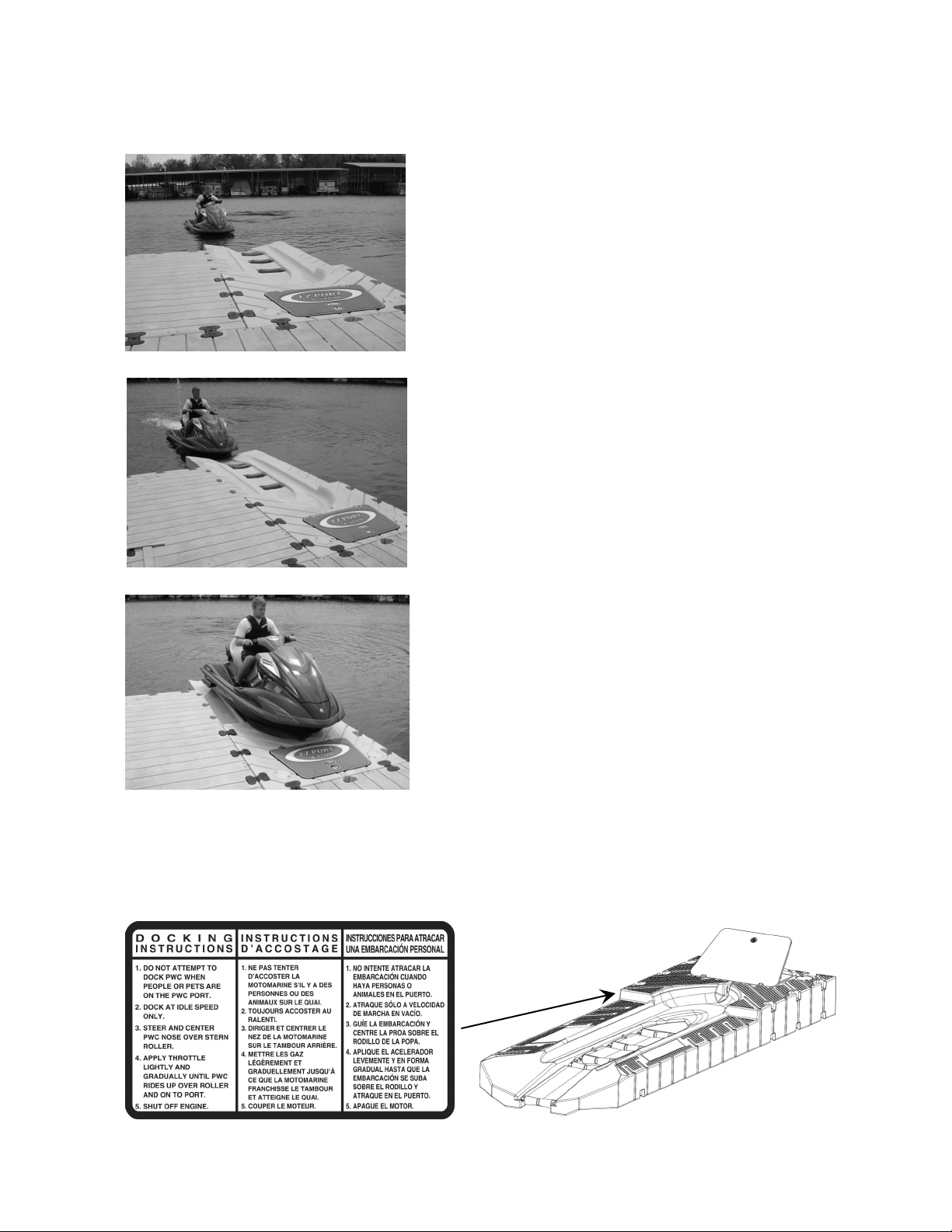

#1 Idle Up to Port Stern
Idle the nose of the watercraft to the stern roller of the EZ Port & Stow.
Come to a complete stop and allow the watercraft to center itself with
the keel in-line with the center of the rollers.
It is not recommended or necessary to build up momentum to dock on
the EZ Port & Stow.
#2 Ease into the Throttle
Once the watercraft is in-line with the rollers, simply ease into the
throttle and allow the machine to port in the proper position.
There is a learning curve with this technique and it may take you sev-
eral attempts to get the watercraft into the proper position.
#3 Roll Aboard
When docking is complete, your watercraft should be all the way out of
the water and stable on the port. The watercraft should also be se-
cured to the tie-up cleat when not in use.
If the watercraft is not stable, roller adjustments may be necessary.
The EZ Port & Stow is a simple drive-on, push-off method of dry docking your PWC. The self floating EZ Port & Stow moves with
the changing water levels and protects your watercraft from wind, wave, or other environmental conditions. The EZ Port & Stow
comes from the factory with the rollers in their recommended roller position. However, you still may need to make minor roller
adjustments. It is very important to ensure that the watercraft enters the port and disembarks with the weight distributed on the
rollers and not rubbing on the polyethylene port walls. The rollers should be adjusted accordingly to get optimum results. Launch-
ing your watercraft should also be effortless and one person should be able to shove the watercraft back into the water. If your
watercraft is difficult to launch, seek help and contact your local dealer for roller set-up. Do not try to launch a "stuck" port by your-
self.
Porting Techniques

10
ITEM QTY. PART NO. DESCRIPTION
1 1 00880 SERIAL CODE 2 1 R206015-EZ EZ PORT & STOW 3 1 900225 ROLLER ADJ. INSTRUCTIONS 4 20 80514SS 5/16-18 X 1 1/4" TRUSS HEAD 5 2 80574SS 5/16-18 X 3/4 TRUSS HD 6 4 80575SS 5/16 X 3/4 TRUSS HEAD 7 2 S20615 INSERT, FILLER INTEGRATED 8 1 S22015 LID, STORAGE COMPARTMENT 9 1 S22016 STORAGE BOX
10 1 S22019 STORAGE BOX LID 11 1 S22020 D-RING CLEAT 12 1 S22021 ANGLE, LATCH AND STRUT 13 5 S25012 12" KEEL ROLLER ASSEMBLY 14 16 S32050 BLACK PE SPACER 15 6 S40012 10-24 X 1/2" SS SCREW
Exploded Assembly
