EZCast Pro QuattroPod User manual

QuattroPod
Quick Start Guide
Rev. 1.055

Introduction
Firstly, thanks for choosing QuattroPod as wireless presentation facility. It integrates
powerful dual core SoC and advanced 802.11ac 5G Wi-Fi/Bluetooth (GFSK,п/4-DQPSK,
8DPSK) to provide you a smooth wireless display experience, and it supports almost
all devices. Our features not only support ‘’Split Screens Display”, “ Host Control
System” but also let cross platform devices throw the contents in APP-independence.
It provides a more friendly and efficient environment for BYOD (Bring Your Own
Devices) with wireless projection in legacy/ existing projectors or monitors you have!
Enjoy them and help you to achieve more collaboration!

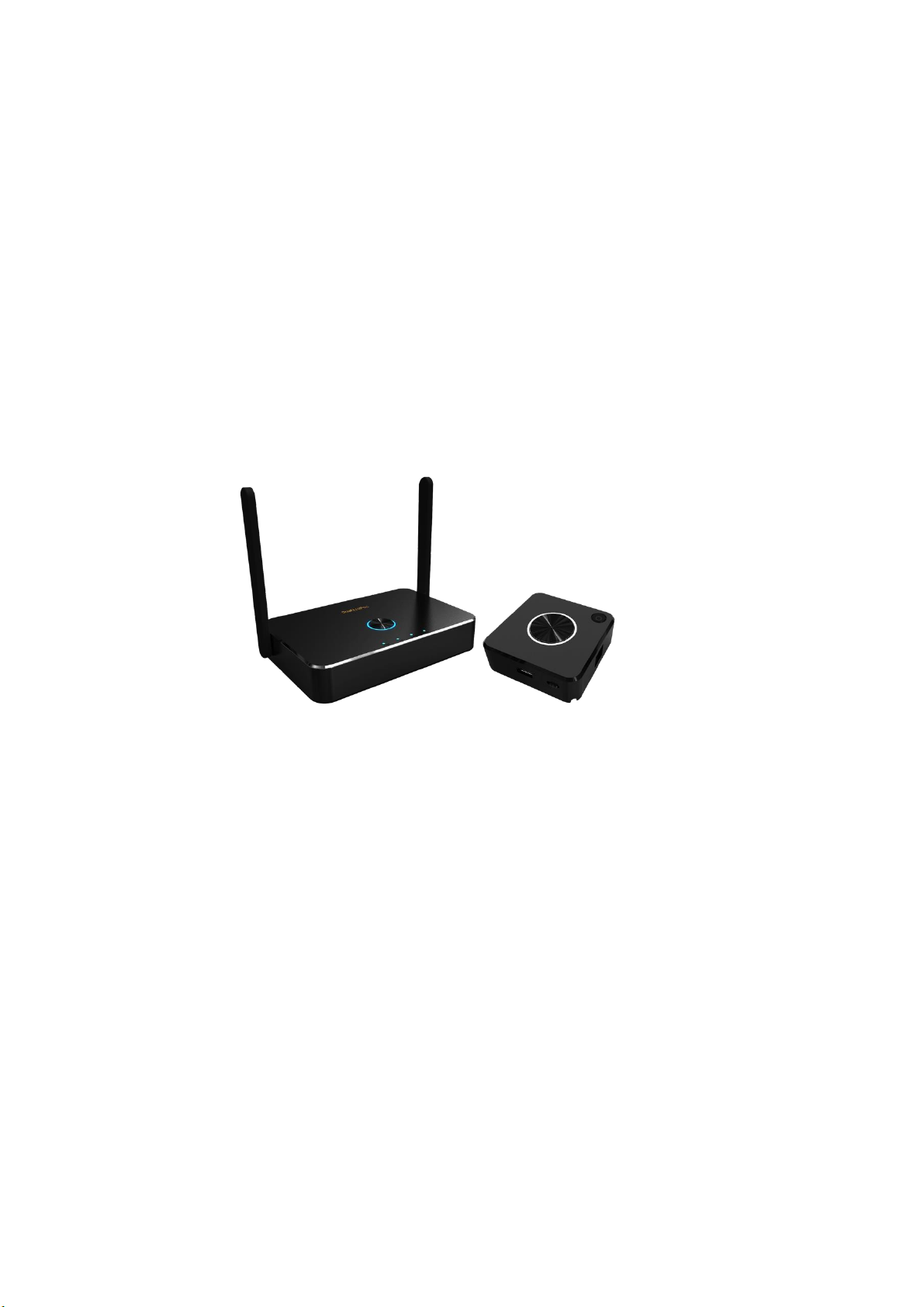

What’s in the box?
When you open the box, it contains
QuattroPod Receiver (hereinafter called Rx) with external antennas, x1
QuattroPod Transmitter (hereinafter called Tx) with USB cable, x2
5V Universal Adapter, x1
HDMI Cable for Rx, L 100cm, x1
HDMI Cable for Tx, L 30cm, x1
DP Cable for Tx, L 30cm, x1
Quick Start Guide, x1
System Requirement:
-PC: Any PC or laptops with HDMI output or mini DP (DP2.0) output
-Tablet/Smart Phone: iOS 10 above and Android 5.0 above
*Important: Android device must turn ADB mode in advance
Installation:

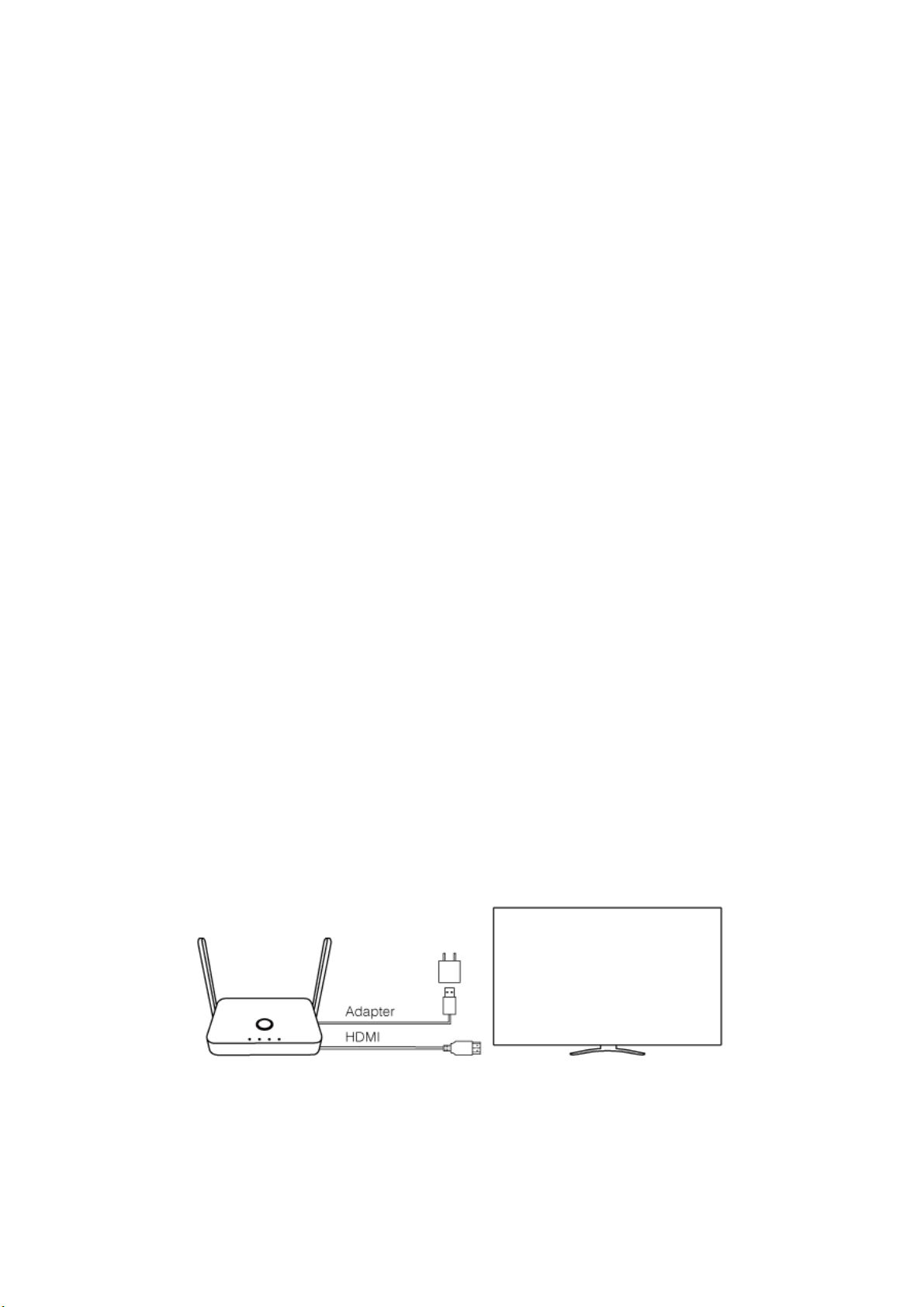

QuattroPod RX:
1. Connect Power with the adaptor
2. Connect HDMI with HDMI port with the projectors or displays.
*Notice: Rx is compatible with VESA mounting screw holes. Please use the 5x5 bracket
and M4 screws.
QuattroPod TX:
1. There are 2 ways to supply power to TX.

-Through USB 5V(required 1A at least, through adaptors or USB ports of laptops)
or
-Through POE (Power over Ethernet): Ethernet switch or router needs to support
standard POE (Power over Ethernet) function and keep it active.
2. To connect TX with Laptops, to connect HDMI or DP2 ports with proper cables.
To connect TX with Smart phones, to connect USB port with proper cable with
phone’s connectors such as micro USB, Lighting or USB type C.

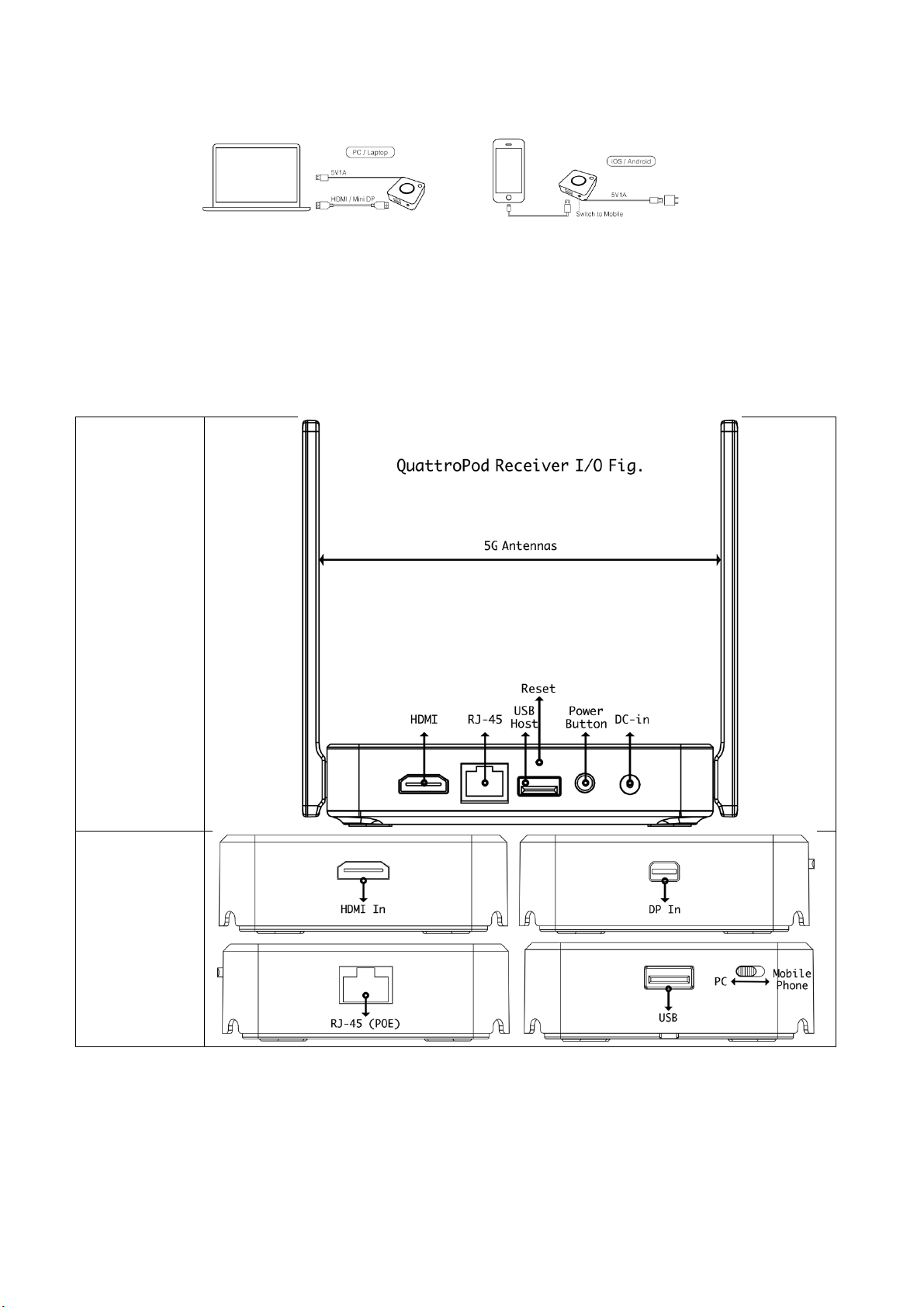

I/O Descriptions:
QuattroPod
Receiver
QuattroPod
Transmitter
LED Indication:

QuattroPod
Receiver
QuattroPod
Transmitter
Pairing:
To pair Quattro TX with RX for first time use may be needed. It’s suggested if you are not sure
QuattroPod TX has ever paired with the Quattro RX you want to cast.
1. Adjust the switch of the side to right .
Plug Quattro TX’s USB cable onto Quattro RX’s USB port in the rear.
2. The Main LED and Side LED will start blinking while pairing, after pairing is done, the Rx’s
main LED will turn to White and Tx LED will stop blinking.
3. LED indicator’s sequence will be
Notice: when you see main button & side button remain blinking for while , it
has 3 possibilities, Upgrading, Pairing, or Error (Disconnecting).

Finger Tips
Before understanding the status of our Quattro, let us introduce the definition of the LED Lights.
There are 2 LED indicators on Quattro RX upside surface. One is in central named Main Button. The
smaller button named Side Button.
Main Button indicated the projection status. There are 4 models and meanings are-
No Light - no Source for projecting
White Light on - in projecting
Red Light on - no projecting
Red Light Blink - ask for projecting or yet connecting to Quattro RX(*)
Side Button indicated the role status, Host or Guest. There are 3 models and meanings are-
Green Light on - role of Host
Red Light on - role of Guest
Red Light Blink - yet connecting to Quattro RX(*)
* If both Main Button & Side Button are blinking in red simultaneously, which means waiting for connecting to
Quattro TX. If it lasts too long, please remove power plug and re-plug again.
1. Make sure Quattro RX has been turned on and Quattro TX has been paired and well
powered.
2. Connect device either Laptop or mobile phones** with powered Quattro TX. The device
that is regarded as “Host” should complete connecting to Quattro TX to Quattro RX. The
Quattro TX light will be turn to and click once, turn to and Host’s
content will show on screen.
** When connect to smart phones, make sure the USB side switch adjust to left.
TX OTA (Over The Air) Functions-
The TX’s Firmware can be updated through connecting to Internet. We provide several ways to
activate the OTA procedure,

LED Status list
Activate Host
without source
input
Activate Guest
without source input
Activate Host & in
projecting
Host received request
of projection
Guest standby
without projecting
Host standby without
projecting
Guest send request
of projection and
wait for allow
1. Under connection
2. Pairing/TX OTA
3. Fail to connection
(blinking over
1minutes)
Activate Guest & in
projecting
Pairing done
TX OTA Complete
TX OTA Fail
When Quattro RX is successfully turned on, below screen will be shown on display-
Function & Link Status
Manual Download
Quattro Rx IP

Function & Link Status-
* Outbound link can select only one of Wi-Fi and RJ45 wire line (LAN).
Airplay activated after web setting. (Default is off)
Quattro RX has been powered on, however, there is
neither Quattro TX nor device linked.
Shift in 3, which means “under pairing” or “building the
connection”.
Complete pairing or connection, the number showed total
Quattro TX or Device linked.
RJ45 wire line disconnected.
Shift in 3, which means “building the connection”.
RJ45 wire line connected and IP acquired
IP conflict or other network error.
Outbound Wi-Fi disconnected.
Shift in 3, outbound Wi-Fi is connecting.
Outbound Wi-Fi connected with the router name shown
underline.
Wi-Fi connection Fail, Invalid password or other Errors
Web Setting
Quattro RX IP- when Devices (either laptops or mobile phones) connect with Quattro RX with SSID
& Password directly, applying the IP in web browser can enter Admin setting page for more
advance setting.
1. Preparation-
To access the setting page, you have to choose either way to connect the devices.

1.1 Direct link- you can apply notebook or mobile phone to search Quattro RX by wifi and key in
relative SSID and Password. Turn on web browser and enter “192.168.168.1” in the address
bar.
1.2 Through Wifi AP or Routers- if your Quattro RX has been connected to a certain networking
device, you can apply notebook or mobile phone to connect the same device. Turn on web
browser and enter the address show in mainpage in the Quattro Rx IP shown below.
Once done, the page will show as below-
Function & Link Status
Manual Download
Quattro Rx IP

- to indicate menu icon.
-to indicate log-in icon.
2. Log in-
Press the on the right up
corner to log in.

3. Start to set up
3.1 Click the menu button on the left up corner and there are drawer show 3 setting functions.
They are Device Management, Network Management, and Admin Setting, and About
which indicates device version, IP addresses and wifi frequency..etc.
4. Device Management-
This section helps to manage user interface language, output resolutions, Max connection and
QuattroPod Receiver & Transmitter pairing file download.

4.1 Language- click it and choose the language you prefer to show in the webpage.

4.2 Resolution-
4.3 Max Connection- to set the maximum users of the Receiver. Default is 20 users.

4.4 Pair File Download- down load the pairing file from here and copy to USB drive. Plug in
Transmitter for pairing* when the Receiver has been installed on the ceiling or wherever
difficult to plug directly.
The switch of USB on Transmitter shall be adjusted to “mobile”.

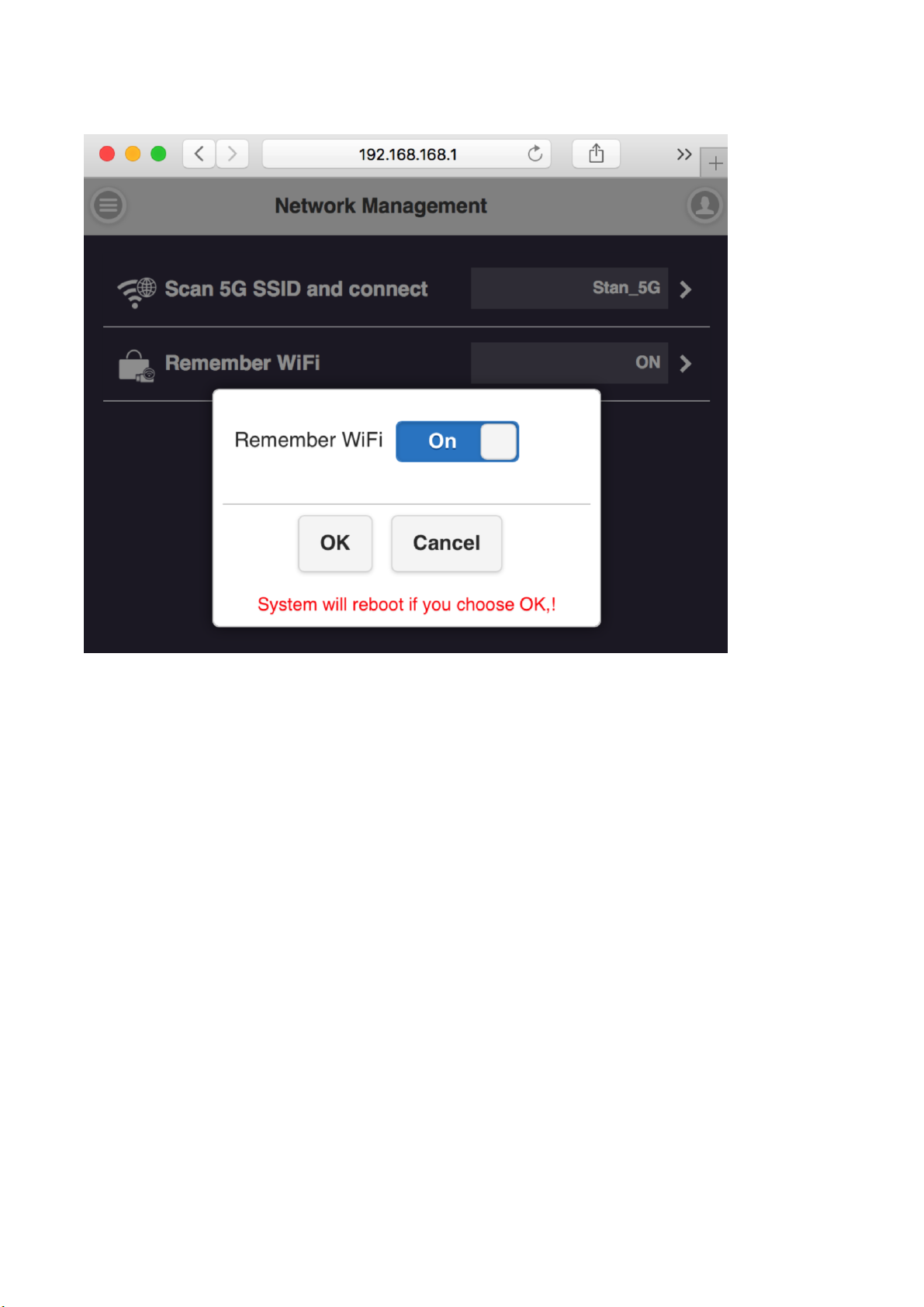

5. Network Management- mainly provide outbound Wi-Fi setting.
5.1 Scan 5G SSID and Connect- this function can help you to scan available Wi-Fi AP and join.

5.2 Remember Wi-Fi- it to provide options to remember the AP setting parameter or not.
6. Admin Setting-

6.1 Wi-Fi Channel- to select the channel between QuattroPod Receiver & Transmitter to adjust
the performance.

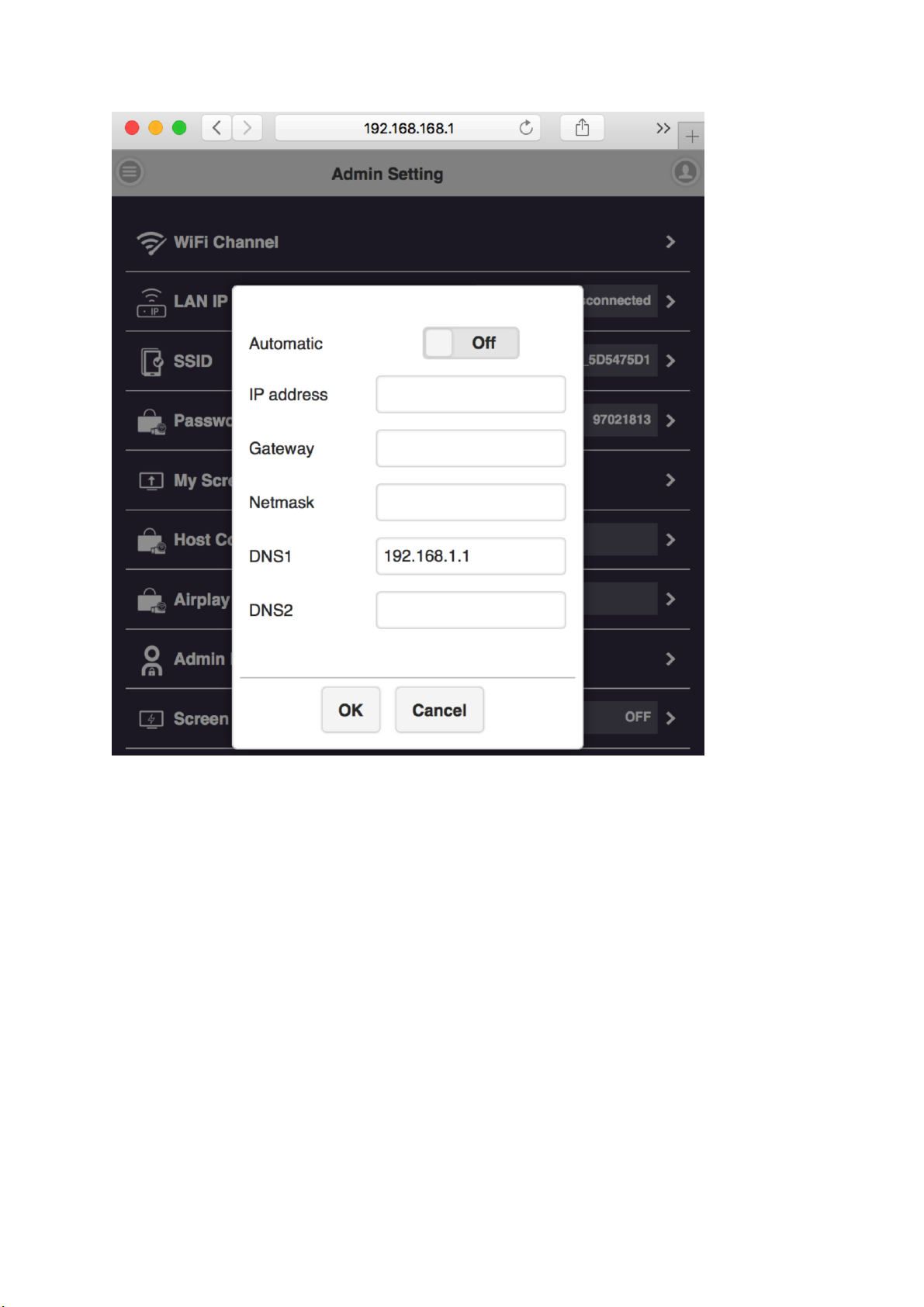

6.2 LAN IP Setting- to configure the wire line connection through LAN cable. *we can support
only one connection, either LAN or Wi-Fi at one time.

6.3 SSID- to set the SSID indication of the Receiver on the main screen.

6.4 users can change password of the Receiver, or hide the password to avoid connections
without authorization.
6.5 My Screen- Users can replace the theme of the main page of Receiver by uploading graphic
or photos.

6.6 Host Control- it can be selected the mode of cast request. Auto Allow means the new
request will be cast on screen directly. Share screen will present in screen split when it was on.
If set it off, the new casting will be full screen mode.
6.7 Airplay- to turn on/off the iOS /Mac devices can cast without QuattroPod Transmitters.
6.8 Change Admin Password- to change the web setting’s log in password.
