i3 i3board User manual

MANUAL
i3BOARD
versie V3 (15/05)

Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com
2
I. Index
II. I3BOARD basic questions & answer p3
III. Hardware installation manual p4
1. Wall Mount p5
2. Mount on i3HAWM p8
3. Important mounting remarks p8
4. Installation drawings p9
5. Mounting i3BOARD with any projector p10

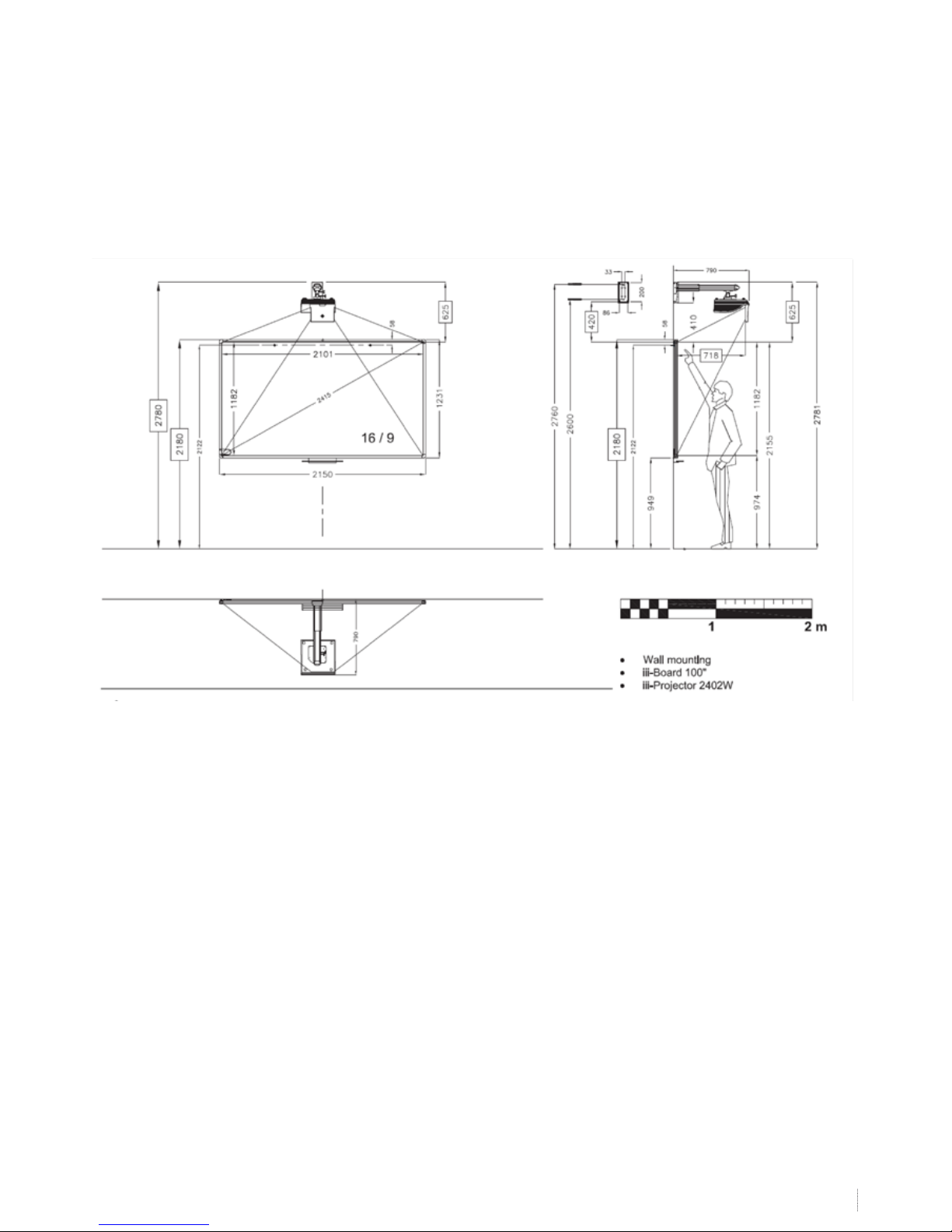

6. Mounting plan I3BOARD 100inch p11
IV. Conguration & driver installation p12

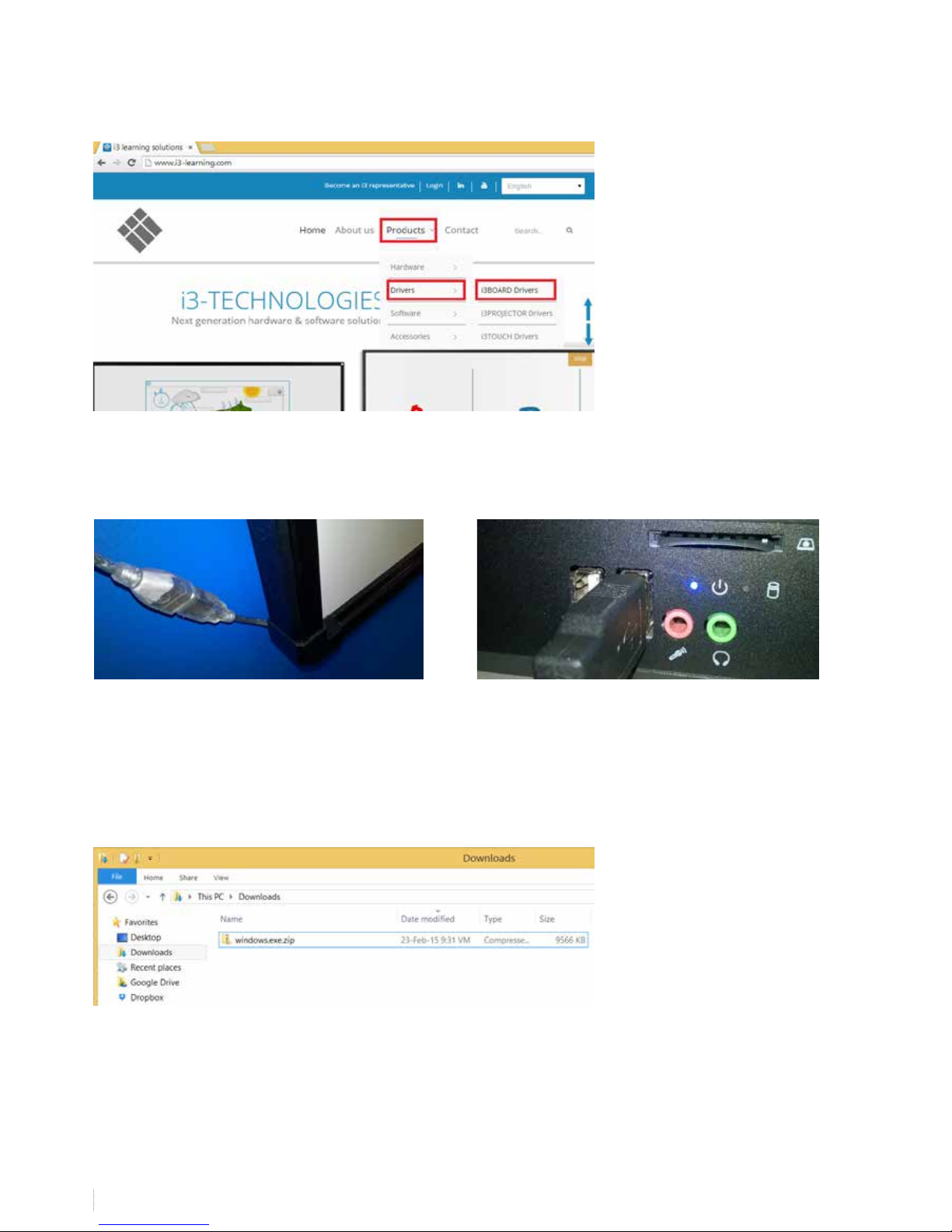

1. Driver download p12
2. Connecting the board p12
3. Installing the drivers p12
4. What to check when drivers can’t be installed p14
5. Power supply p14

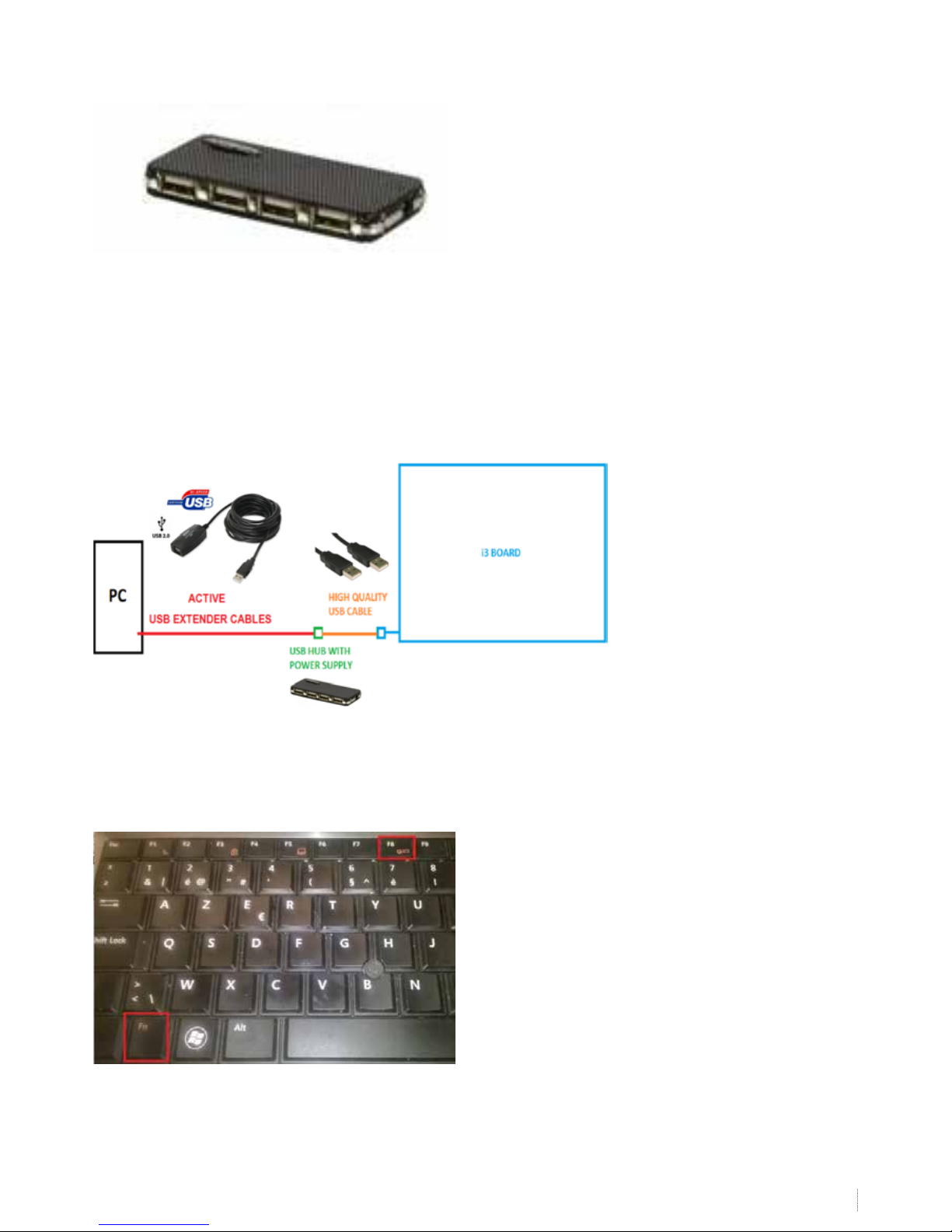

6. USB-cabling of the i3BOARD p15

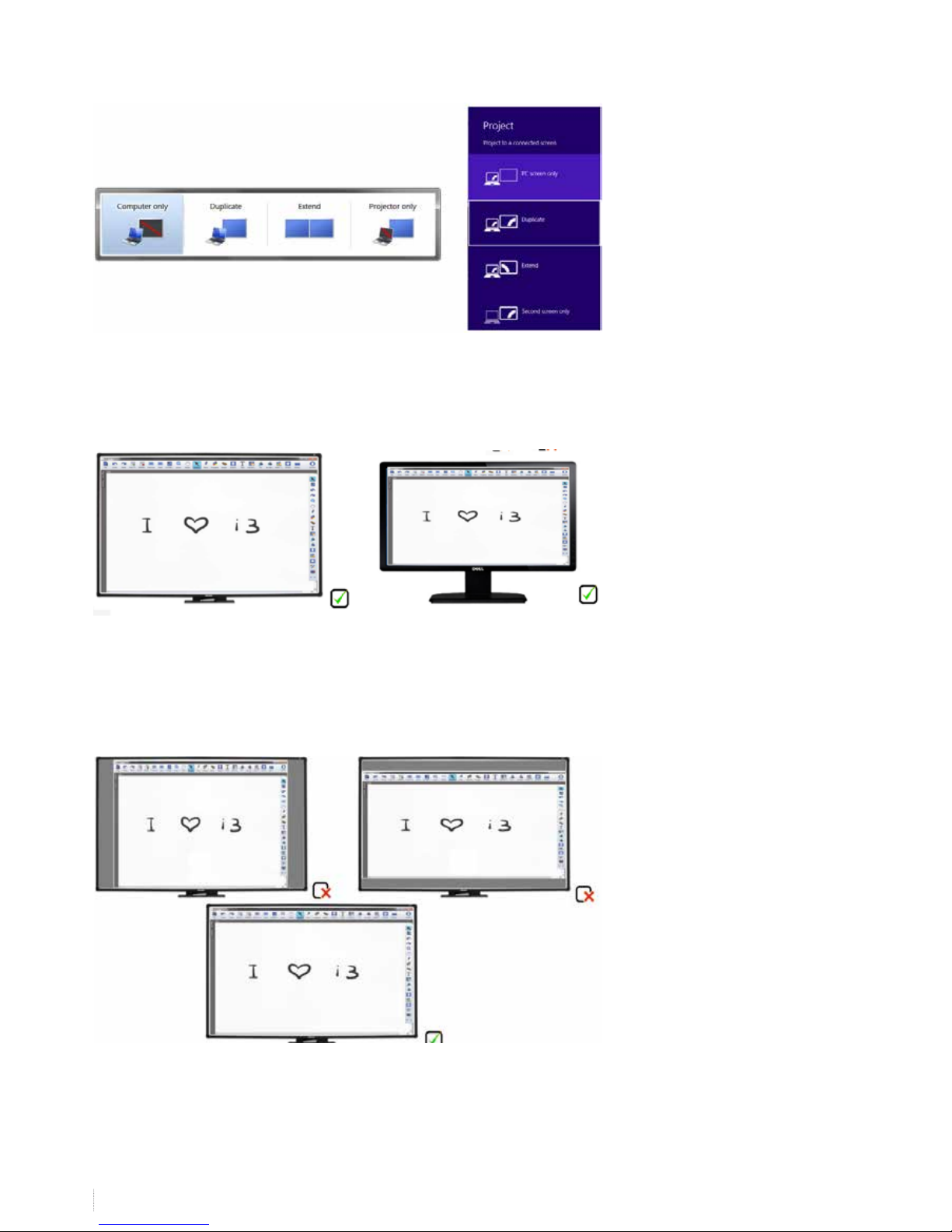

7. Connecting the projector p15

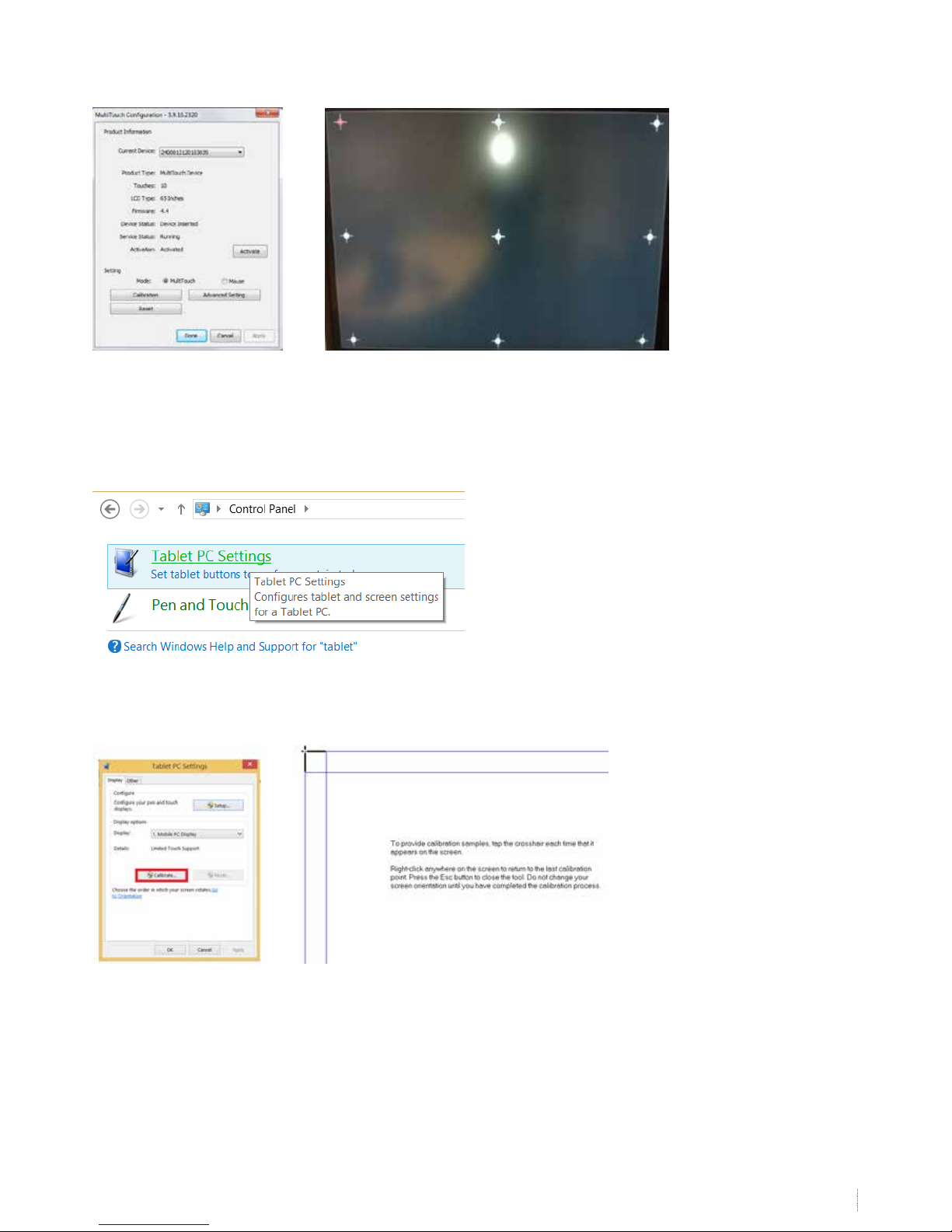

8. Calibrating the I3BOARD p18
9. What to do if calibration is still inaccurate p20
10. What to do if windows calibration does not start p21
11.Disabling “USB Selective suspend setting” p23
12. No touch after installing the driver p24

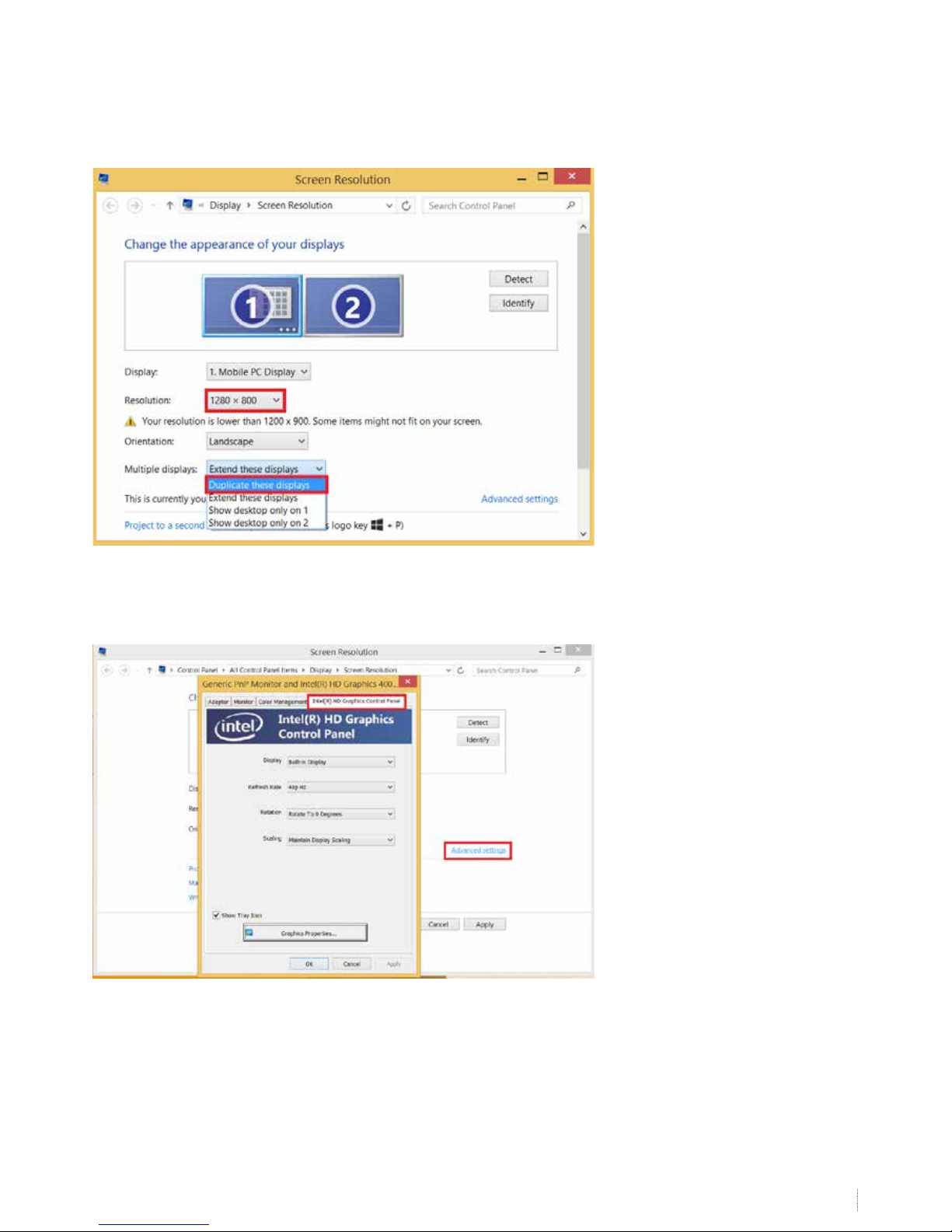

13. What to do if you can’t duplicate your screen p26

II. i3BOARD basic questions & answers
How does i3BOARD works
An i3BOARD is connected to a PC or laptop via a USB cable. This requires no additional power since power
comes directly from the computer through the USB connection. When you turn on your computer the board
automatically starts. By connecting your computer to a projector you can project the computer image on the
i3BOARD. Touch recognition can work without drivers (starting from Win 7), but we always recommend to install
them.
Can you right-click on an i3BOARD?
Yes. Hold your nger for 3 seconds on the desired point of activation.
Do I need a special computer for an i3BOARD?
A recent computer (see i3-learning.com for computer specs) equipped with Windows7 Home Premium or Win-
dows 7 Ultimate or higher is perfect for an i3BOARD. Computers with Windows XP will also work, but will not
have multi touch capability.
Can I work on an i3Board without drivers?
Yes, this is possible in Windows 7 and higher

Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com
4
7309LT
III. Hardware installation manual

5
i3BOARD Manual

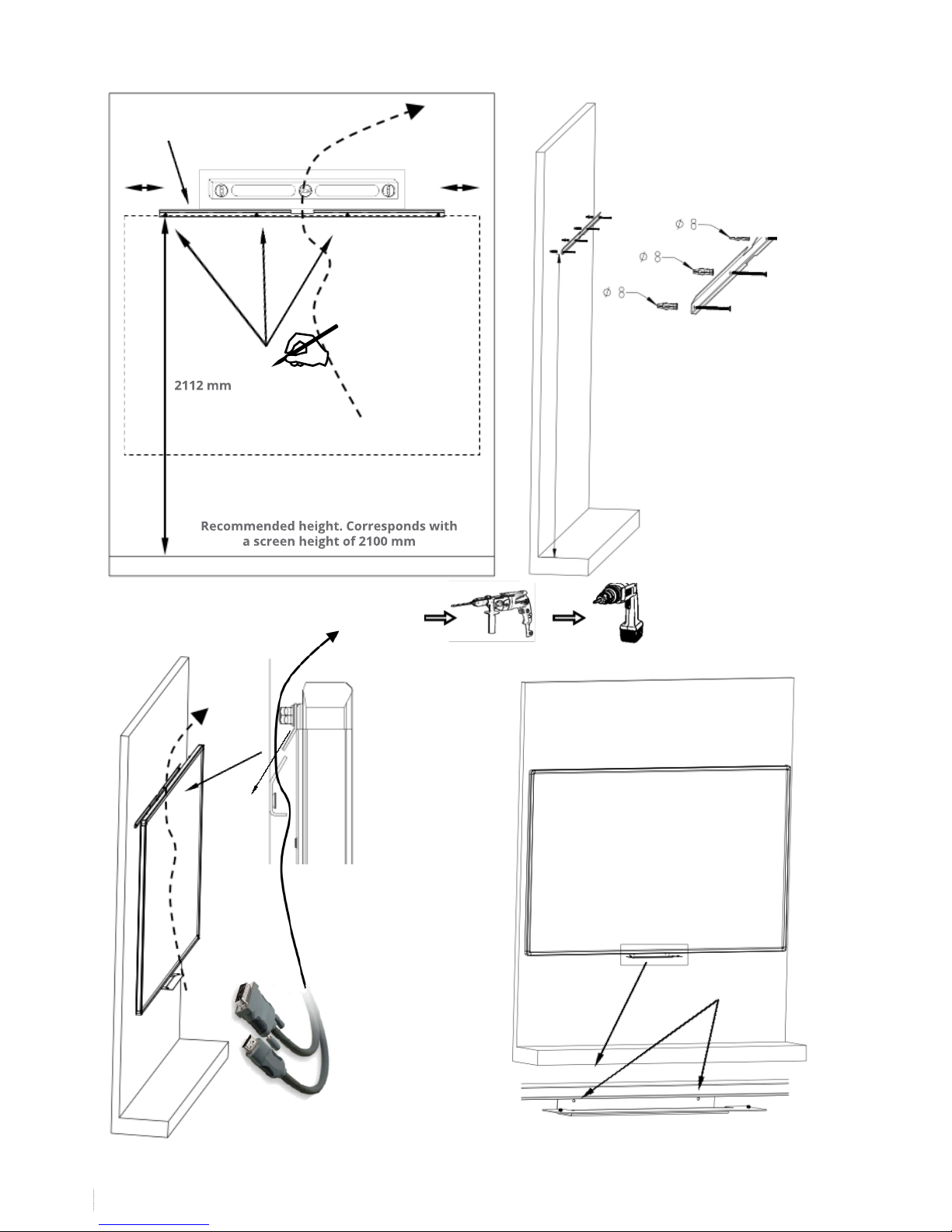

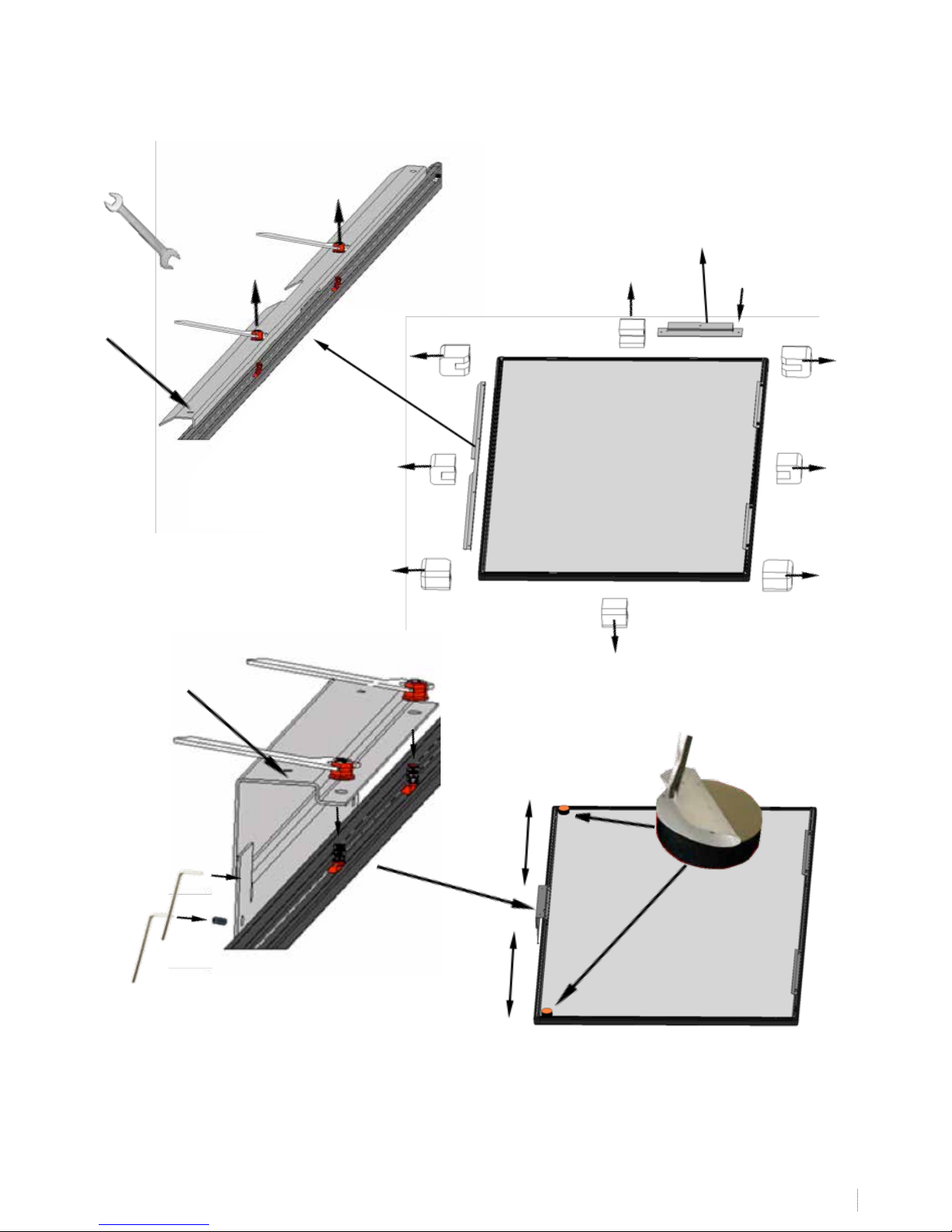

1. Wall Mount
A
B
1
2
2

Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com
6
1
C
DE
?
?
2

?
7
i3BOARD Manual
F
G

Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com
8
2. Mount on i3HAWM
Please consult the mounting instructions in the HAWM guide.

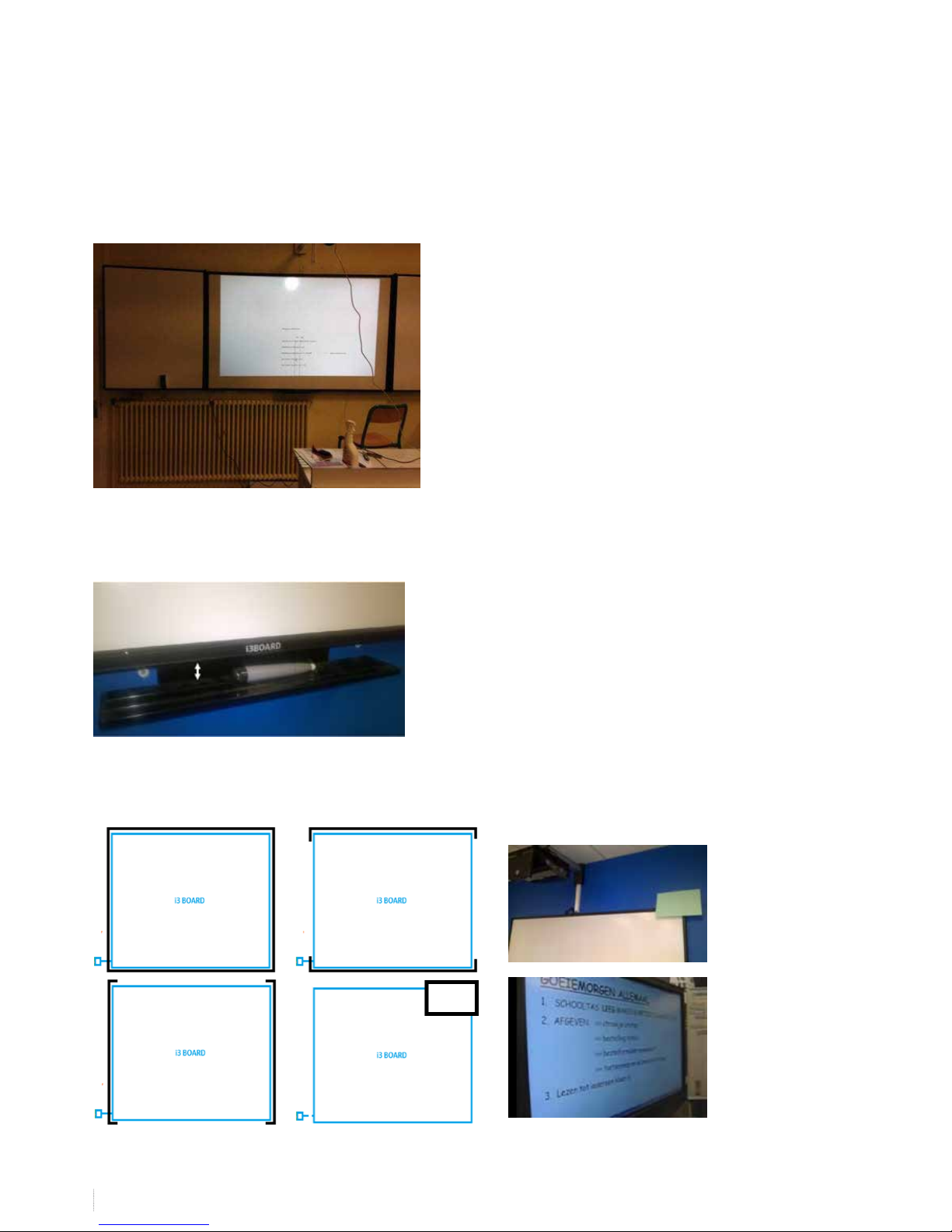

3. Important mounting remarks
1. Please do not install the i3BOARD on top of a radiator or central heating
2. Please mount the pentray exactly as described in the installation guide, respecting enough distance between
the board and the pentray in order not to create conicts with the touch sensor of the board frame.
3. Make sure there are no objects all around the i3BOARD, on the left/right or top/bottom sides that could block
the leds in the i3BOARD frame or cause light reection.

9
i3BOARD Manual
I3PROJECTOR 2402W
309 mm
654 mm
Height below ceiling

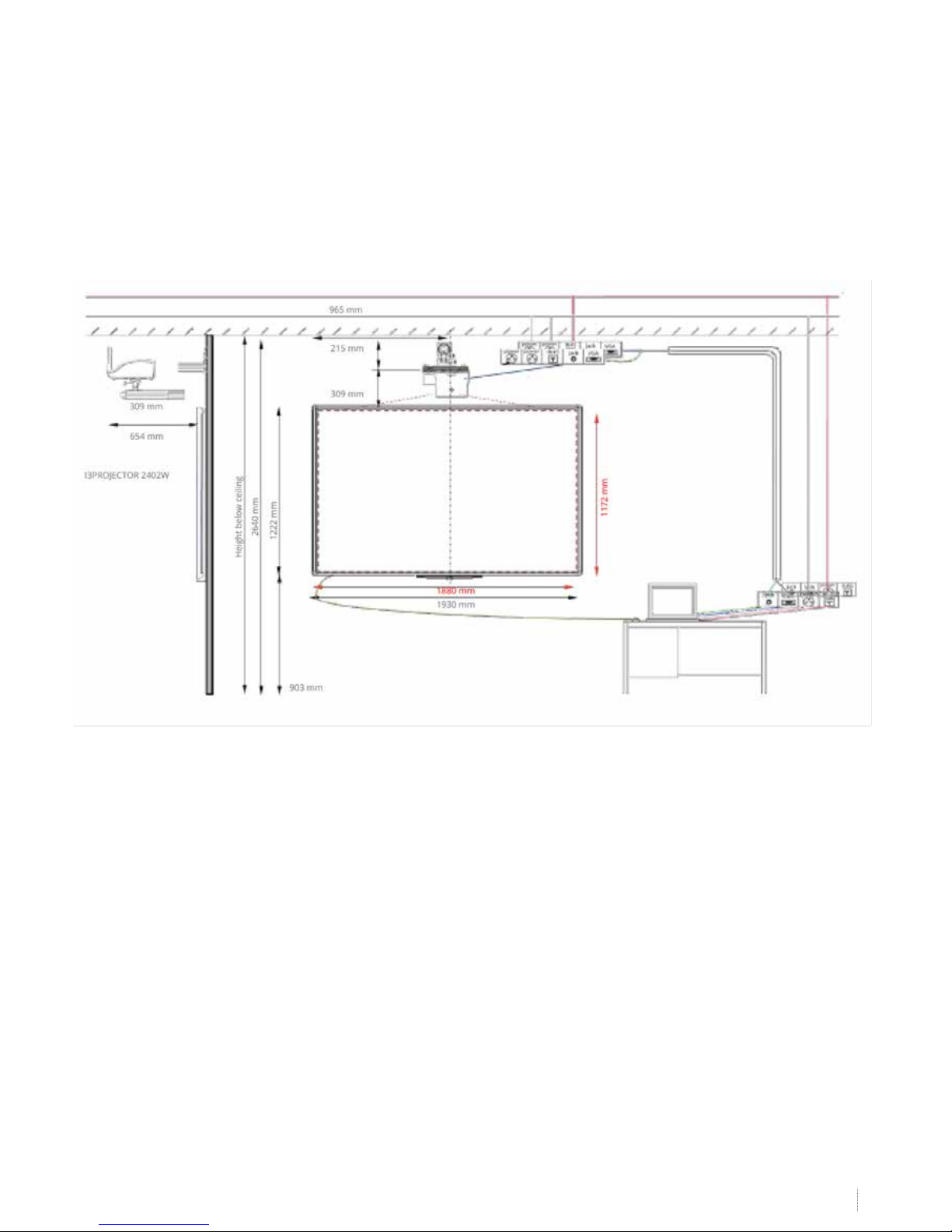

4. Installation drawings
The below drawing indicates the best installation
of a i3BOARD 87inch & i3PROJECTOR 2402W.
For the i3BOARD 77inch the projector distance (309mm & 654mm) is the same.
The board has the same height but another width (4:3).
On the drawing the use of VGA is similar to HDMI. The use of RJ45 is optional.
When using VGA you should also use a jack to use the speakers of the projector.
The i3BOARD is not delivered with the VGA/HDMI cables for the projector or
USB extender cables.
2640 mm
1222 mm
903 mm
215 mm
309 mm
965 mm
1880 mm
1172 mm
1930 mm

Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com
10
Mounting i3BOARD with any projector
When installing an i3BOARD with another projector already installed (not i3PROJECTOR) you can use the follow-
ing method to nd the exact locations to locate the drill holes for the horizontal mounting brackets.
Hold the board with 2 persons on the correct location where the projection is full-screen. Open a folder on the
computer where the top border is exactly on top of the projection.
Remove the board and draw a line on top of the projection. The folder can help you to distinguish the exact top
of the projection and draw the line.
Draw a second line 1.1 centimeters lower than the line you have drawn. This line height is the height where
the holes of the horizontal bracket needs to be drilled. For further information, please refer to the i3BOARD
mounting instructions.
