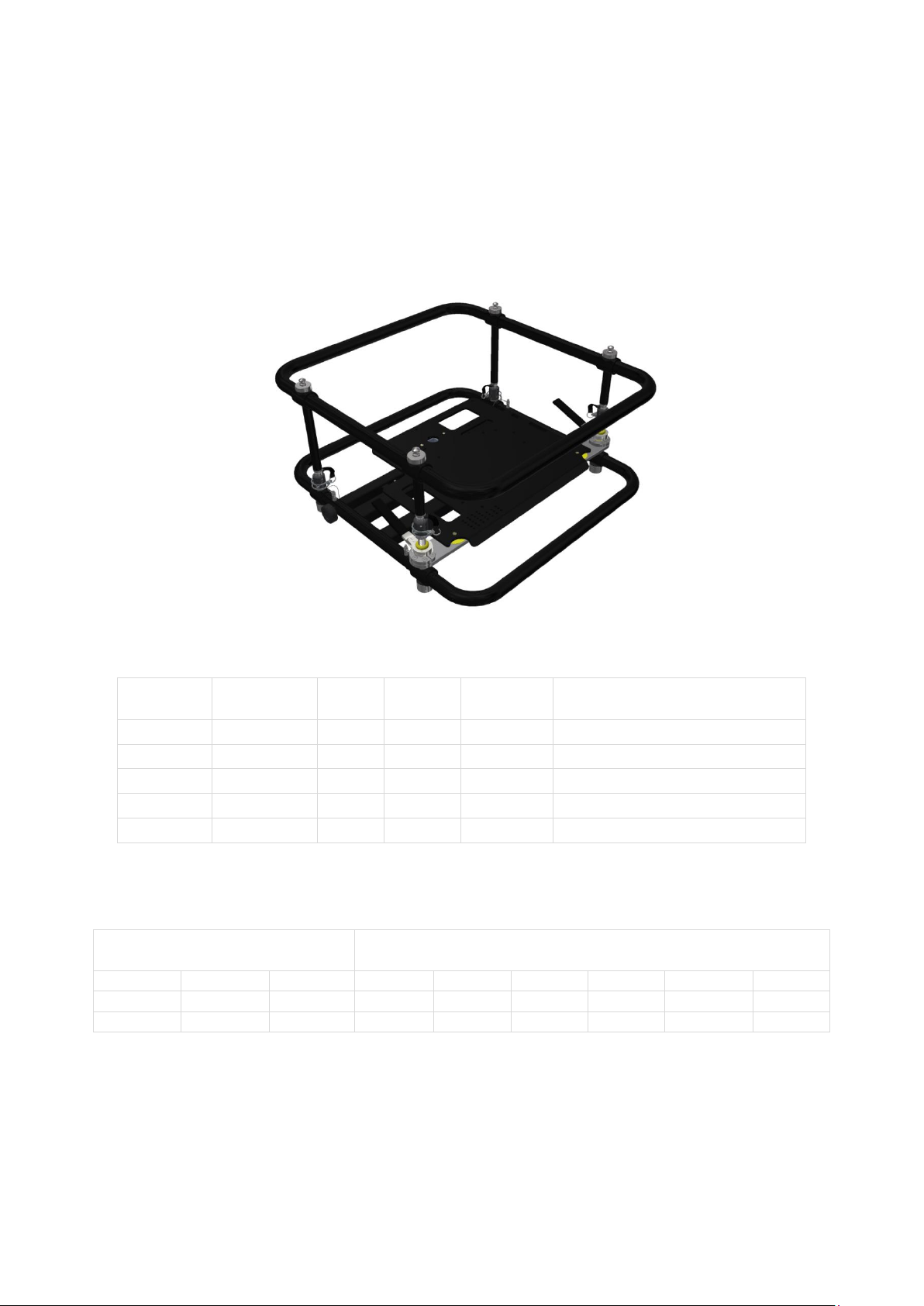

Exact solutions FRAME-EVO-P10 User manual

FRAME-EVO-P10 / P10-US
Mounting frame for projectors
Manual Version 1.9
Date
Revision No.
Author
Checked
Approved
Description
16.05.2019
1.5
DWN
DWN
DWN
PORAD compatible
02.09.2019
1.6
VIU
TSN
DWN
PT-RCQ10/RCQ80 added
11.03.2020
1.7
DWN
VIU
DWN
EVO-LINK added
18.05.2020
1.8
DWN
GJN
DWN
Update rigging slings
08.09.2021
1.9
VIU
GJN
TSN
PT-RDQ10/RZ990 series added
The following projectors can be mounted in this frame:
3 Chip DLP*
1 Chip DLP*
PT-DZ13K
PT-DS12K
PT-DW11K
PT-RZ120
PT-RZ870
PT-RZ660
PT-RCQ10
PT-RDQ90
PT-RZ990
PT-DZ110XE
PT-DS100XE
PT-DW90XE
PT-RZ970
PT-RW930
PT-RZ770
PT-RCQ80
PT-RDQ80
PT-RZ790
PT-DZ10K
PT-DZ870
PT-DZ780
PT-RX110
PT-RDQ10
PT-RZ890
PT-RZ690
* All compatible projector models can be found on page 15
Contact
Tel.: [phone]
E-Mail: [email protected]
Web: www.exactsolutions.de

Manual FRAME-EVO-P10 / P10-US
Page 1of 39
08.09.2021

Manual FRAME-EVO-P10 / P10-US
Page 2of 39
08.09.2021
Table of content
1. Preamble.................................................................................................... 3
1.1 FRAME-EVO-P10 / P10-US designation......................................................................................... 3
1.2 Optional accessory designation..................................................................................................... 4
1.3 Tools required ............................................................................................................................... 4
2. Safety instructions...................................................................................... 5
3. What’s in the box? ..................................................................................... 9
4. Optional Accessories .................................................................................10
5. Fitting the projectors in the frame.............................................................13
6. Removing the Upper Ring - Installation Version ........................................17
7. Reinstalling the Upper Ring.......................................................................20
8. Adjustment options...................................................................................22
9. Stacking frames.........................................................................................24
10. Mounting the frame on a truss................................................................25
11. Maximum stacking information...............................................................27
12. System maintenance and inspection (Re-examination) ...........................33
13. Declaration of Conformity.......................................................................36
14. Dimensions..............................................................................................37
14.1 FRAME-EVO-P10 / P10-US......................................................................................................... 37
14.2 FRAME-EVO-P10 / P10-US Installation Version - without the Upper Ring................................ 38
Imprint..........................................................................................................39

Manual FRAME-EVO-P10 / P10-US
Page 3of 39
08.09.2021
1. Preamble
Congratulations on your purchase of the FRAME-EVO-P10 / P10-US projector frame from
EXACT solutions GmbH.
Please read very carefully the instructions provided in this manual. In the following pages
you will find all the information needed for a safe and fast installation.
After the installation is done properly, you can enjoy all the features of your new product.
Please consider keeping the original box and packaging materials, in case you ever need to
ship the frame.
Model number: FRAME-EVO-P10 / P10-US
Copyright © 2020 EXACT solutions GmbH. All rights reserved.
1.1 FRAME-EVO-P10 / P10-US designation
European market
Non-European market
Manufacturer m.no.: FRAME-EVO-P10
Panasonic EU m.no.: ET-RFD40
Manufacturer m.no.: FRAME-EVO-P10-US
Panasonic USA m.no.: ET-PFD365
m.no. = model number
Note: In this manual, when reference is made to the manufacturer model number it is also
automatically a reference to the Panasonic EU / USA model number like described in the
table above

Manual FRAME-EVO-P10 / P10-US
Page 4of 39
08.09.2021
1.2 Optional accessory designation
European market
Non-European market
Manufacturer m.no.: FRAME-PF-UNI-PORAD
Panasonic EU m.no.: ET-CLP-P
Manufacturer m.no.: FRAME-PF-UNI-PORAD
Panasonic USA m.no.: - (non-USA product)
Manufacturer m.no.: FRAME-PF-UNI-CLP5030
Panasonic EU m.no.: ET-CLP50
Manufacturer m.no.: FRAME-PF-UNI-CLP5030
Panasonic USA m.no.: ET-PFD50CLAMP
Manufacturer m.no.: FRAME-PF-UNI-CLP30PT
Panasonic EU m.no.: ET-CLP30
Manufacturer m.no.: FRAME-PF-UNI-CLP30PT
Panasonic USA m.no.: ET-PFD30CLAMP
Manufacturer m.no.: EVO-LINK-200
Panasonic EU m.no.: TBD
Manufacturer m.no.: EVO-LINK-200-US
Panasonic USA m.no.: ET-PFD065TMS2
Manufacturer m.no.: EVO-LINK-201
Panasonic EU m.no.: TBD
Manufacturer m.no.: EVO-LINK-201-US
Panasonic USA m.no.: ET-PFD165TMS2
Manufacturer m.no.: EVO-LINK-210
Panasonic EU m.no.: TBD
Manufacturer m.no.: EVO-LINK-210-US
Panasonic USA m.no.: ET-PFD265TMCX2
Manufacturer m.no.: EVO-LINK-211
Panasonic EU m.no.: TBD
Manufacturer m.no.: EVO-LINK-211-US
Panasonic USA m.no.: ET-PFD365TMCX2
m.no. = model number
Note: In this manual, when reference is made to the manufacturer model number it is also
automatically a reference to the Panasonic EU / USA model number like described in the
table above.

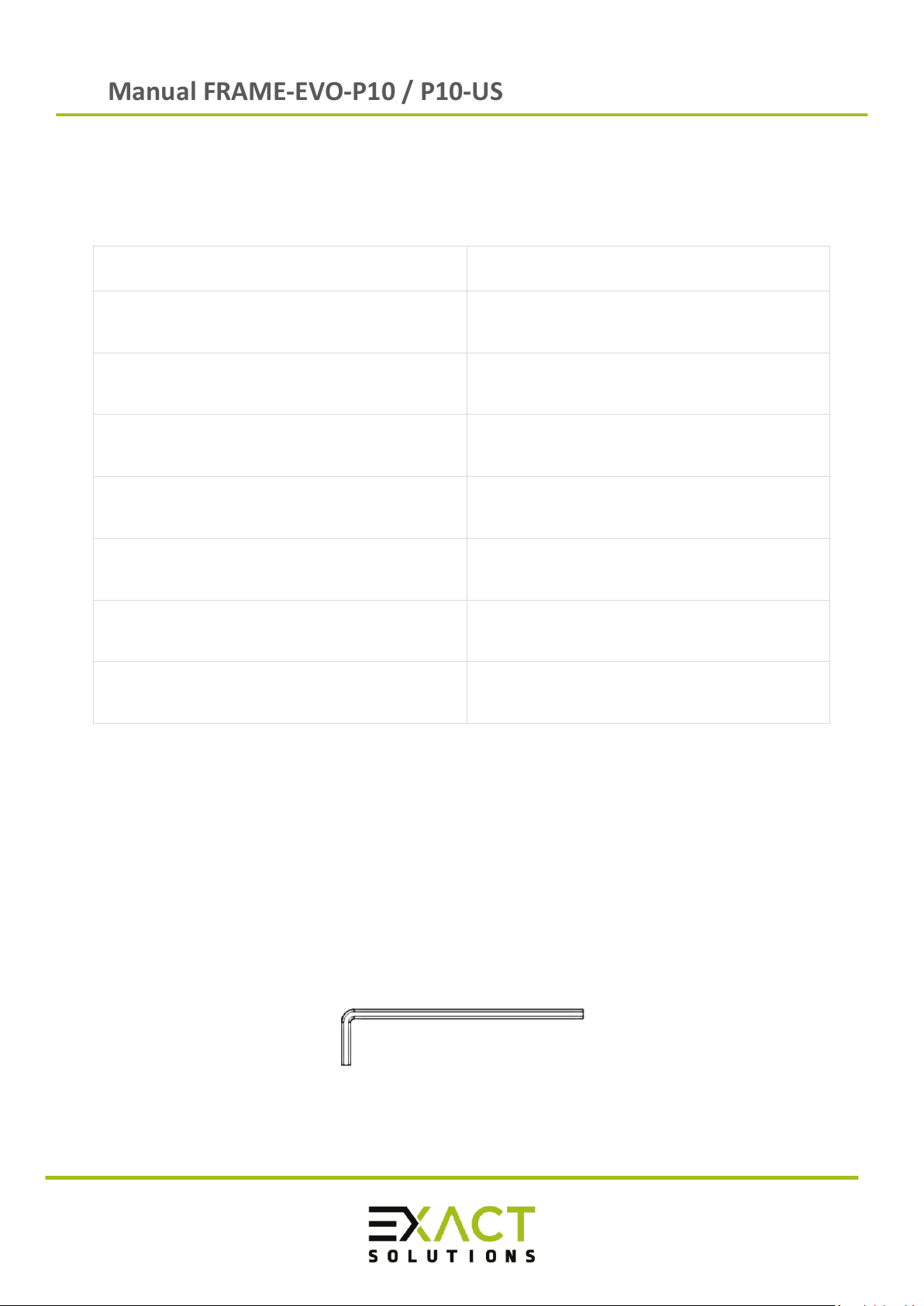

1.3 Tools required
The only tool required is a 4 mm hex key to mount the projector in the FRAME-EVO-P10 /
P10-US.
4 mm hex key (Allen key)

Manual FRAME-EVO-P10 / P10-US
Page 5of 39
08.09.2021
2. Safety instructions
These installation instructions must always be handed over to the installing person.
1
Read these instructions carefully before installing the system.
INTENDED USE
The FRAME-EVO-P10 / P10-US frame is intended for use by fully qualified, trained and
competent persons to provide safe and secure transportation, installation and adjustment
of projectors.
Only use the frame with projector in a closed environment (conference rooms, theatres,
convention halls, etc.) where there is no wind, moisture, excessive heat etc.
Make sure that only the corresponding projectors are installed in this frame! Do not try to
use it with other projectors because serious accidents can occur!
WARNINGS
Installation work should only be carried out by a qualified technician.
•If this product is not installed correctly, serious accidents may result.
Do not use the FRAME-EVO-P10 / P10-US frame outdoors.
•This product is made only for indoor usage. If the FRAME-EVO-P10 / P10-US frame is
mounted outdoor, there are many influences like wind or rain that can have an effect
on the stability of the whole system. This can cause serious accidents and property
damage.
Do not place the frame on top of unstable surfaces.
•If the frame is placed on top of a surface which is sloped or unstable, it may fall down
or tip over and injury or damage could result. Make sure that the surface can support
a load of 175 kg (385.81 lbs)
2
plus the weight of all additional equipment as well as
other potential systems.
1
Only a qualified person should install this product
2
175 kg (385.81 lbs) = 3 x (weight of heaviest projector + weight of heaviest lens + weight of FRAME-EVO-P10 / P10-US)

Manual FRAME-EVO-P10 / P10-US
Page 6of 39
08.09.2021
Do not hang the frame from unstable or inappropriate structures.
•If the frame is hung on an unstable structure, the entire system can fall down and
injuries may occur. Make sure that the construction can support a total weight of 175
kg (385.81 lbs) plus the weight of all additional equipment as well as other potential
systems.
Make sure to not exceed max. weight loads for ceiling mounting.
•For suspended installations, use only designated hanging accessories, like EVO-LINK-
200 series, FRAME-PF-UNI-PORAD Portrait Adapter and FRAME-PF-UNI-CLP5030,
FRAME-PF-UNI-CLP30PT rigging clamps for a max. weight load of 175 kg (385.81 lbs).
Please refer to the corresponding instructions for the accessories used. Please also
refer to chapter “4. Optional Accessories” and “11. Maximum stacking information”.
For stacking, make sure that all four locking pins pass completely through the female
stacking bolt.
•Make sure the four male bolts enter into the correspondent female bolts and are
locked.
Do not install the FRAME-EVO-P10 / P10-US or the projector while people are present
under the mounting zone during the installation process.
•When installing the projector, make sure no one is in the area underneath the
installation zone.
Always secure the frame to the rigging truss with rigging slings with steel cable insert and
shackles (two sets of rigging sling and shackle are recommended).
•The frame must always be secured with an appropriate rigging sling and shackle so
that in case of a malfunction it doesn’t fall more than 10 cm. It is recommended to
use two sets of rigging sling and shackle to avoid too much dynamic forces as well as
the projector swinging. Please consult the local laws or regulations regarding the
additional safety of hanging equipment.
CAUTION
Before installing the projector in the FRAME-EVO-P10 / P10-US frame, please read the
projector’s user manual. When the projector has a lens attached, please remove it.
•The FRAME-EVO-P10 / P10-US frame with the projector inside must be installed only
in an environment that is recommended by the projector manufacturer.
Minimum two persons are required to install the FRAME-EVO-P10 / P10-US frame.

Manual FRAME-EVO-P10 / P10-US
Page 7of 39
08.09.2021
•With regard to the overall weight of all necessary installation devices, make sure to
handle those with at least two people.
Make sure that the structure from which you hang up to 3 FRAME-EVO-P10 / P10-US
frames including projectors is capable of carrying the overall weight of approx. 175 kg
(385.81 lbs) plus the weight of all additional equipment as well as other potential systems.
•Prior to any installation, you must do a visual inspection to make sure that the system
is in a good condition. For more information please refer to chapter
“12. System maintenance and inspection (Re-examination)”.
RISK SITUATIONS
Risk of injury due to the possibility of falling objects during the assembly or disassembly of
the FRAME-EVO-P10 / P10-US frame.
•Protection objective: avoid injury from falling parts.
•Wear appropriate safety shoes, gloves and helmet.
•Make sure the area is clear under the frame during installation.
Risk of hitting the head with the FRAME-EVO-P10 / P10-US frame during the hanging set
up process.
•Protection objective: avoid injury from hitting the head.
•Wear a helmet.
Incorrect installation may lead to certain parts of the FRAME-EVO-P10 / P10-US frame or
the entire FRAME-EVO-P10 / P10-USframe to fall down.
•Protection objective: prevent personal injury and property damage.
•Double check the FRAME-EVO-P10 / P10-US frame and its installation.
Insufficient load capacity of the supporting structure may lead to certain parts of the
FRAME-EVO-P10 / P10-US frame or the entire FRAME-EVO-P10 / P10-US frame to fall
down.
•Protection objective: prevent personal injury and property damage.
•Provide adequate dimensioning of the supporting structure. The supporting structure
must be able to support the combined weight of all the equipment attached to, or
hung from it.
•Ensure correct installation of the supporting structure.

Manual FRAME-EVO-P10 / P10-US
Page 8of 39
08.09.2021
The fingers or the hand of the user can be caught between the outer rings and the plates
or projector.
•Protection objective: Prevent personal injury by using safety gloves.
•When the adjustment of the image is made, the user must always keep his hands on
the hand levers (see picture below).
•Because the spring of the spring clip is strong, please be careful not to clamp your
fingers between the spring and the attachment nut.

Manual FRAME-EVO-P10 / P10-US
Page 9of 39
08.09.2021
3. What’s in the box?
FRAME-EVO-P10 / P10-US
•Used for projector installation
•Number of units: 1
•Weight: 13,4 kg / 29.54 lbs
1) 7 x M6x20 ISO 7380 screws
(galvanized steel 10.9)
2) 7xØ6 Schnorr Washer
Used to secure the projector
in the frame
User manual and installation guide
for FRAME-EVO-P10 / P10-US
Make sure your box contains everything you ordered. If any pieces are missing, contact the
vendor.
1
2

Manual FRAME-EVO-P10 / P10-US
Page 10 of 39
08.09.2021
4. Optional Accessories
Please refer to “1.1 FRAME-EVO-P10 / P10-US designation”to assign the Panasonic EU and
USA model numbers to the model numbers below.
Please refer to chapter “10. Mounting the frame on a truss” and the following for
information regarding the usability of the optional accessories.

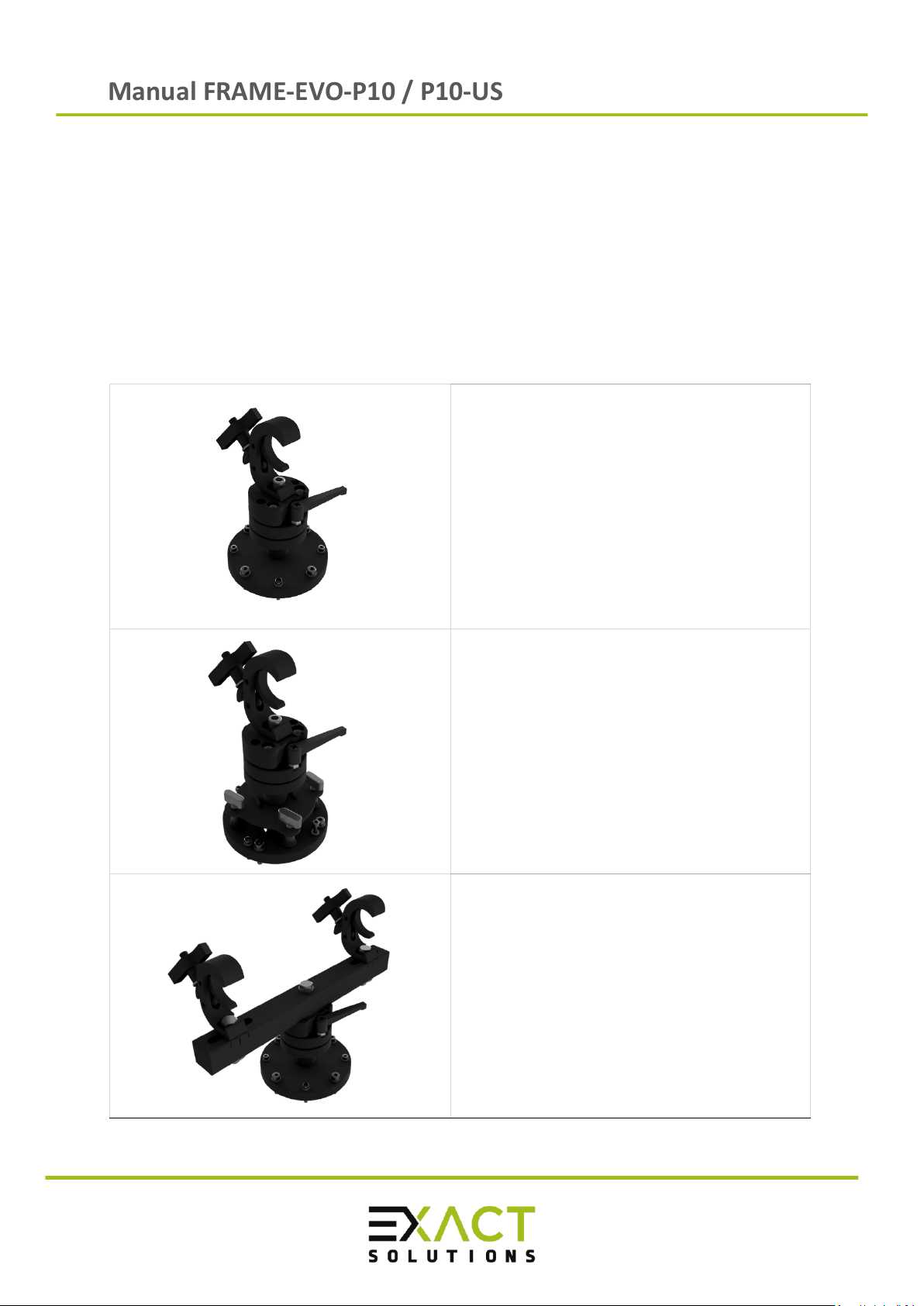

EVO-LINK-200
Optional accessory for truss mount
installations.
More information can be found in the
EVO-LINK-200 series installation manual.
EVO-LINK-201
Optional accessory for truss mount
installations.
More information can be found in the
EVO-LINK-200 series installation manual.
EVO-LINK-210
Optional accessory for truss mount
installations.
More information can be found in the
EVO-LINK-200 series installation manual.

Manual FRAME-EVO-P10 / P10-US
Page 11 of 39
08.09.2021
EVO-LINK-211
Optional accessory for truss mount
installations.
More information can be found in the
EVO-LINK-200 series installation manual.
FRAME-PF-UNI-PORAD
Portrait Adapter for Projector Frames
Optional accessory for portrait mode truss
mount installations.
Does not include the EVO-LINK-200 series
More information can be found in the
FRAME-PF-UNI-PORAD installation manual.

Manual FRAME-EVO-P10 / P10-US
Page 12 of 39
08.09.2021

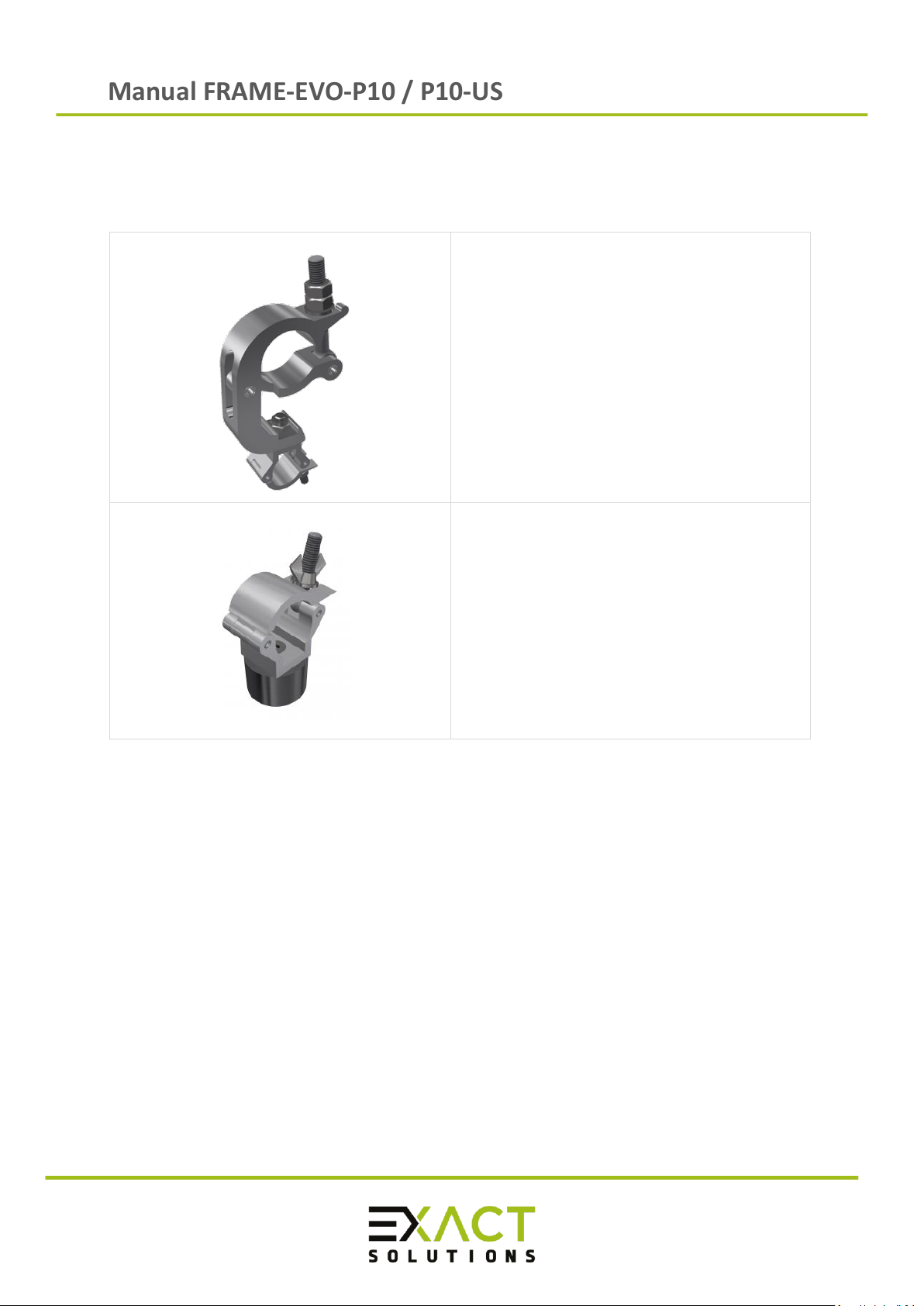

FRAME-PF-UNI-CLP5030
Optional accessory for hanging one FRAME-
EVO-P10 / P10-US or two in tandem mode
on a truss.
FRAME-PF-UNI-CLP5030 represents a
complete set of 4 pieces.
FRAME-PF-UNI-CLP30PT
Optional accessory for portrait mode table
installation.
FRAME-PF-UNI-CLP30PT represents a
complete set of 4 pieces.
The optional accessories must be purchased separately. They are not included in the
standard package!

Manual FRAME-EVO-P10 / P10-US
Page 13 of 39
08.09.2021
5. Fitting the projectors in the frame

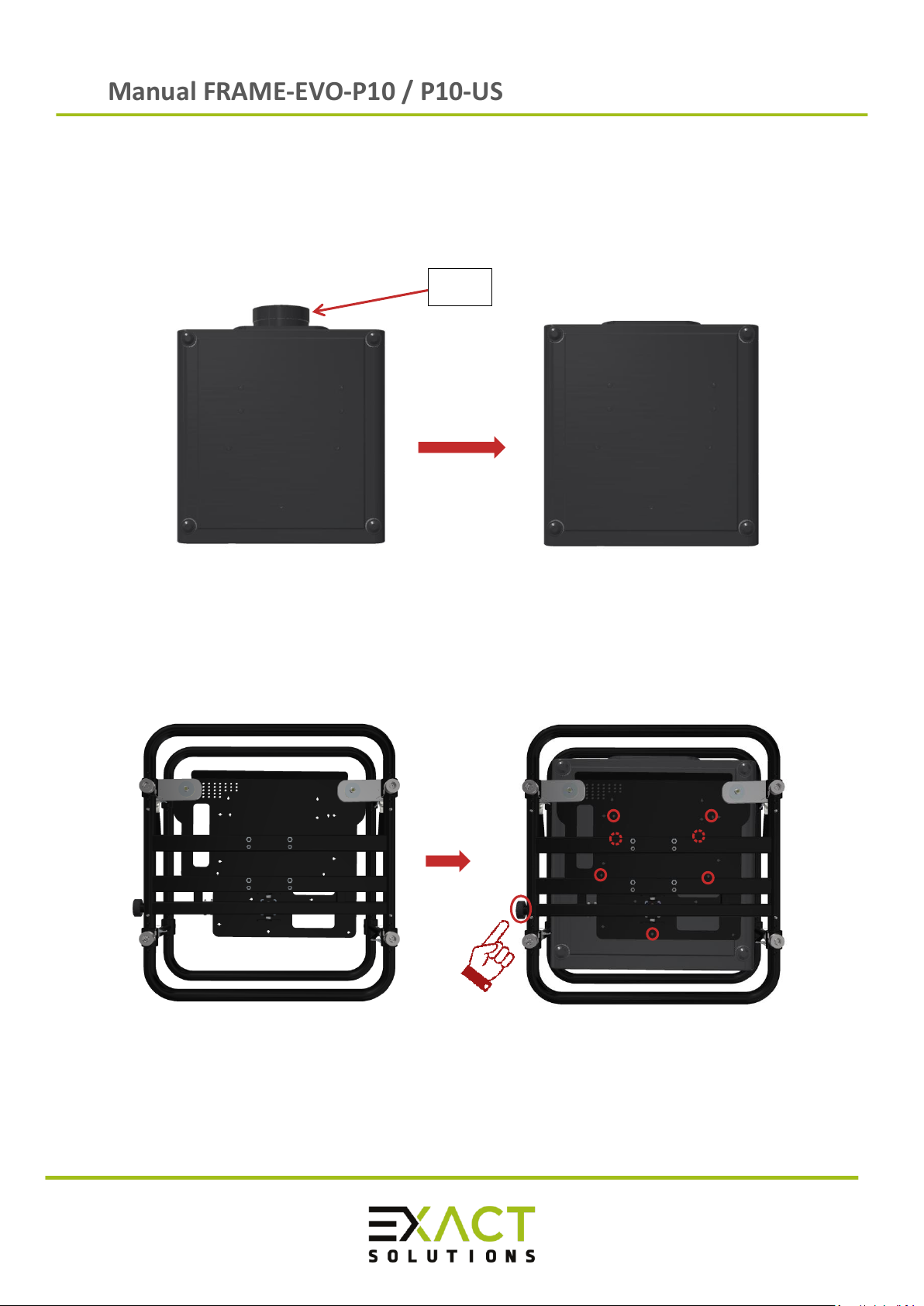

Step 1: Place the projector upside down on a suitable flat surface then remove the lens
(if it is pre-installed). For easier access you may first remove the upper ring before mounting
the projector. Please refer to chapter “6. Removing the Upper Ring - Installation Version”.
Otherwise it is recommended to place an appropriate material underneath the projector so
that it is lifted up for about 10 cm. This will help during the following process.
Step 2: Position the frame over the projector so that the adjustment screw is at the back,
aligning the M6 screw holes. Please put the projector in the right position so that the
front/back position is correct when installing. Otherweise the position of the holes will not
match.
Lens

Manual FRAME-EVO-P10 / P10-US
Page 14 of 39
08.09.2021

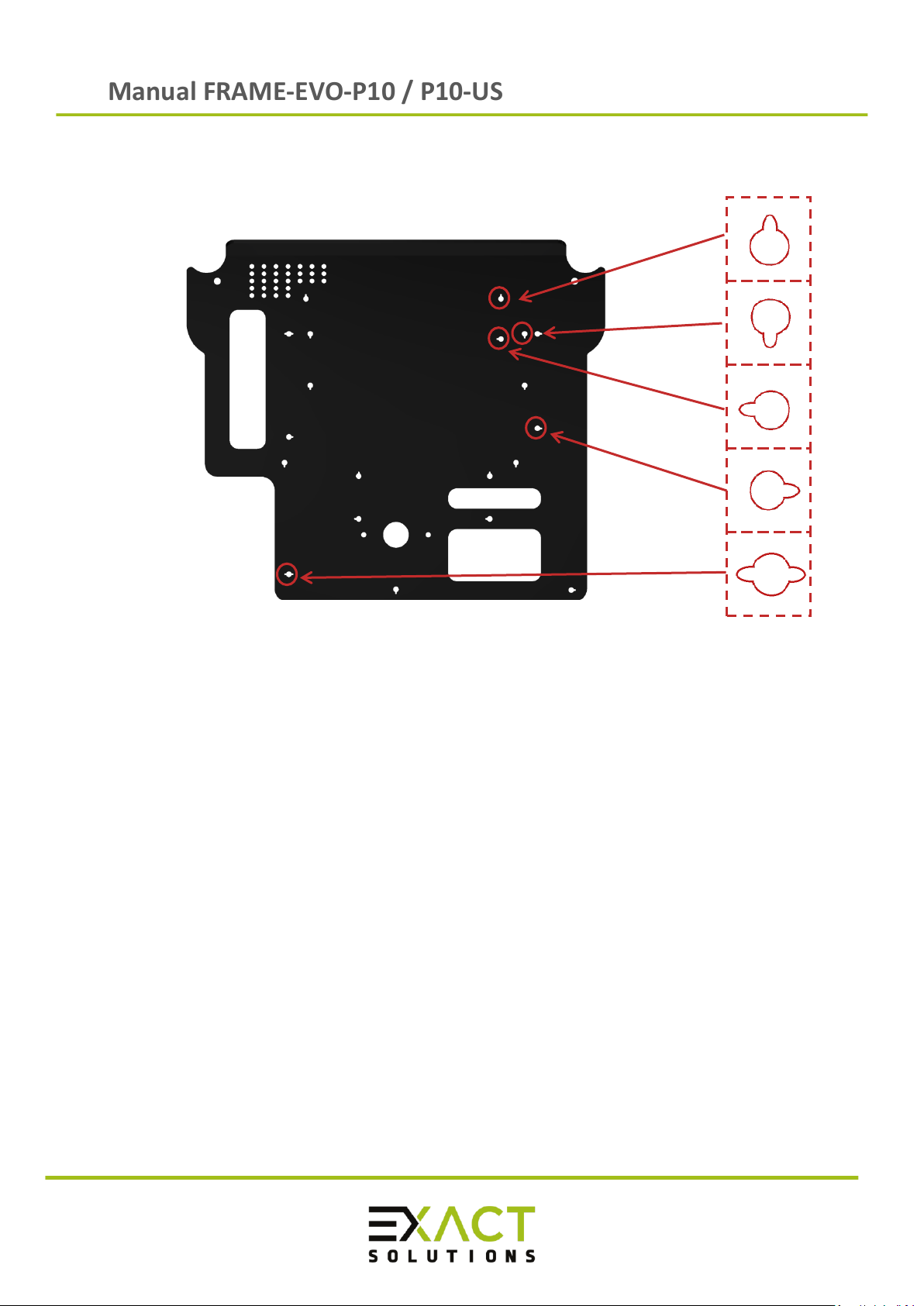

Because a smooth and easy installation of all the compatible projectors in the FRAME-EVO-
P10 / P10-US is required, the base plate was design with a variety of symbols.
A list with the corresponding symbols can be found on the following page.

Manual FRAME-EVO-P10 / P10-US
Page 15 of 39
08.09.2021
Symbols on FRAME-
EVO-P10 / P10-US
base plate:
3
These projector
models can be
mounted with
included screws:
PT-DZ780
PT-DZ13K
PT-DS12K
PT-DW11K
PT-DZ10K
PT-DZ110XE/
PT-DZ8700U
PT-DS100XE/
PT-DS8500U
PT-DW90XE/
PT-DW8300U
PT-RZ970
PT-RZ870
PT-RZ770
PT-RZ660
PT-RZ120
PT-RW930
PT-RX110
PT-RCQ10
PT-RCQ80
PT-RDQ10
PT-RDQ80
PT-RDQ90
PT-RZ890
PT-RZ990
PT-RZ790
PT-RZ690
PT-DZ870
PT-RZ970*
PT-RZ870*
PT-RZ770*
PT-RZ660*
PT-RZ120*
PT-RW930*
PT-RX110*
PT-RZ890*
PT-RZ990*
PT-RZ790*
PT-RZ690*
PT-DZ780*
PT-DZ870**
PT-RCQ10*
PT-RCQ80*
PT-RDQ10*
PT-RDQ80*
PT-RDQ90*
Please check
threads
at projector side,
2 mm shorter
screws
may be needed for
these projector
models:
PT-DZ770
PT-DW740
PT-DX810
PT-DW730
PT-DX800
PT-DZ680
PT-DW640
PT-DX610
PT-DZ6710
PT-DZ6700
PT-DW6300
PT-D6000
PT-D5000
PT-DW750
PT-DX820
PT-DW750
PT-DZ770
PT-RW730
PT-RW620
PT-RZ670
PT-RW630
PT-DW830
PT-DX100
PT-RW730*
PT-RW620*
PT-RZ670*
PT-RW630*
PT-DZ770*
PT-DW740*
PT-DX810*
PT-DW730*
PT-DX800*
PT-DZ680*
PT-DW640*
PT-DX610*
PT-DZ6710*
PT-DZ6700*
PT-DW6300*
PT-D6000*
PT-D5000*
PT-DW750*
PT-DX820*
PT-DW750*
PT-DZ770*
PT-DW830**
PT-DX100**
Number of screws:
5
7
5
6
*5 **6
3
This symbol represents the common hole shared by two types of projectors.

Manual FRAME-EVO-P10 / P10-US
Page 16 of 39
08.09.2021
Step 3: Place the recommended number of Ø6 Schnorr Washers (2) over each
corresponding hole. Secure the recommended number of M6x20 ISO 7380 screws (1) into
each hole with 4 Nm torque. Ensure each screw runs through the plate and catches into the
corresponding M6 hole in the projector surface. Please make sure to use only the
correspondent screw holes when installing a projector!
Do not forget to use the Ø6 Schnorr Washers (2) as they are preventing the screws to loose
themselves!
In case you removed the upper ring during Step 1 please now refer to chapter
“7. Reinstalling the Upper Ring”and attach the upper ring back to the base.
Step 4: The lens can be attached back to the projector.
Torque: 4±0.5 Nm
1
2

Manual FRAME-EVO-P10 / P10-US
Page 17 of 39
08.09.2021
6. Removing the Upper Ring - Installation Version
The purpose of the Installation Version is to have a quick, simple and tool free possibility to
install the ET-D75LE90 or ET-D75LE95 ultra-short throw lens, or any other short throw
lenses, without any limitation regarding the frame.

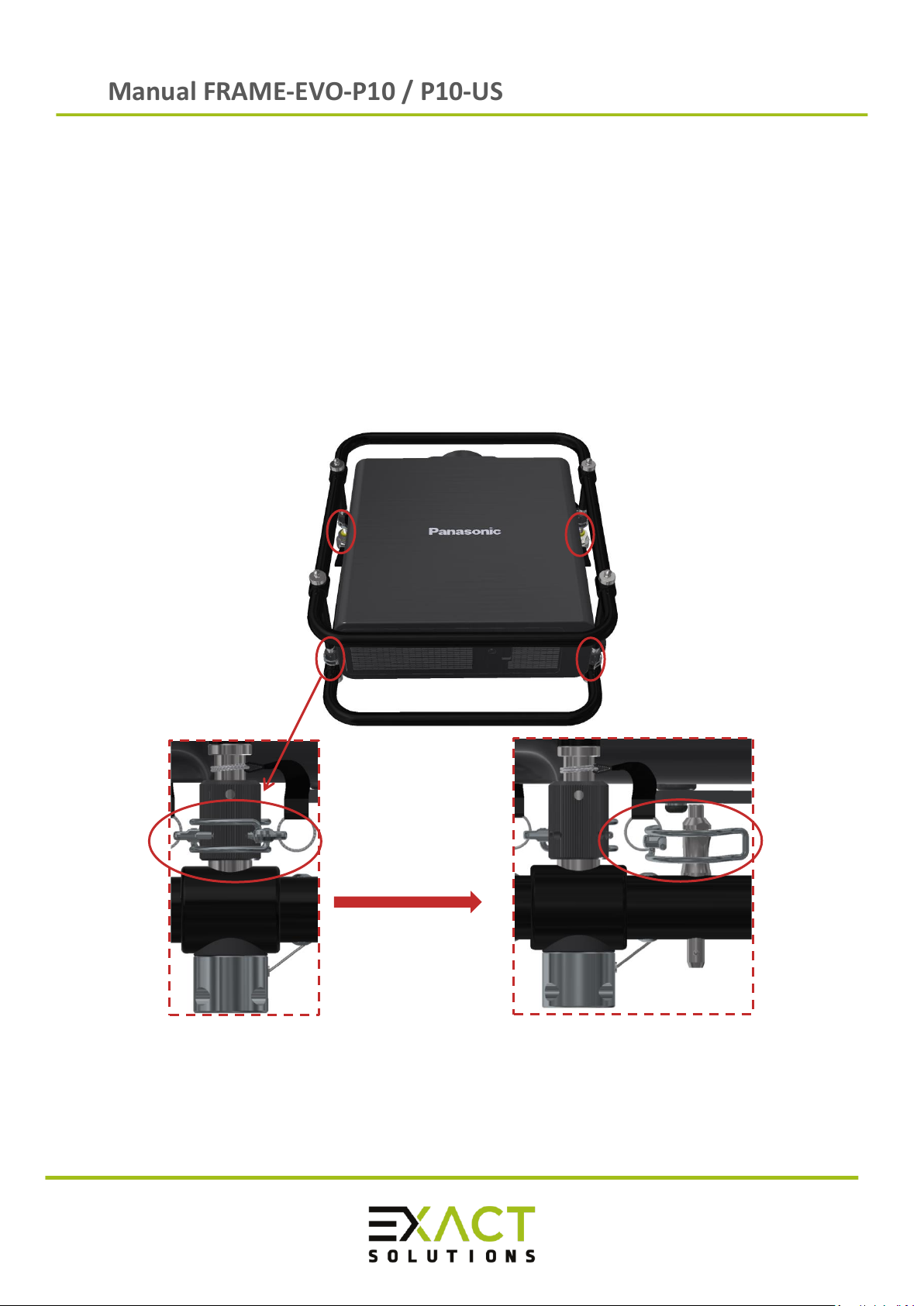

Step 1: Remove the 4 x spring clips as presented in the above picture. Because the spring of
the spring clip is strong, please be careful not to clamp your fingers between the spring and
the attachment nut

Manual FRAME-EVO-P10 / P10-US
Page 18 of 39
08.09.2021

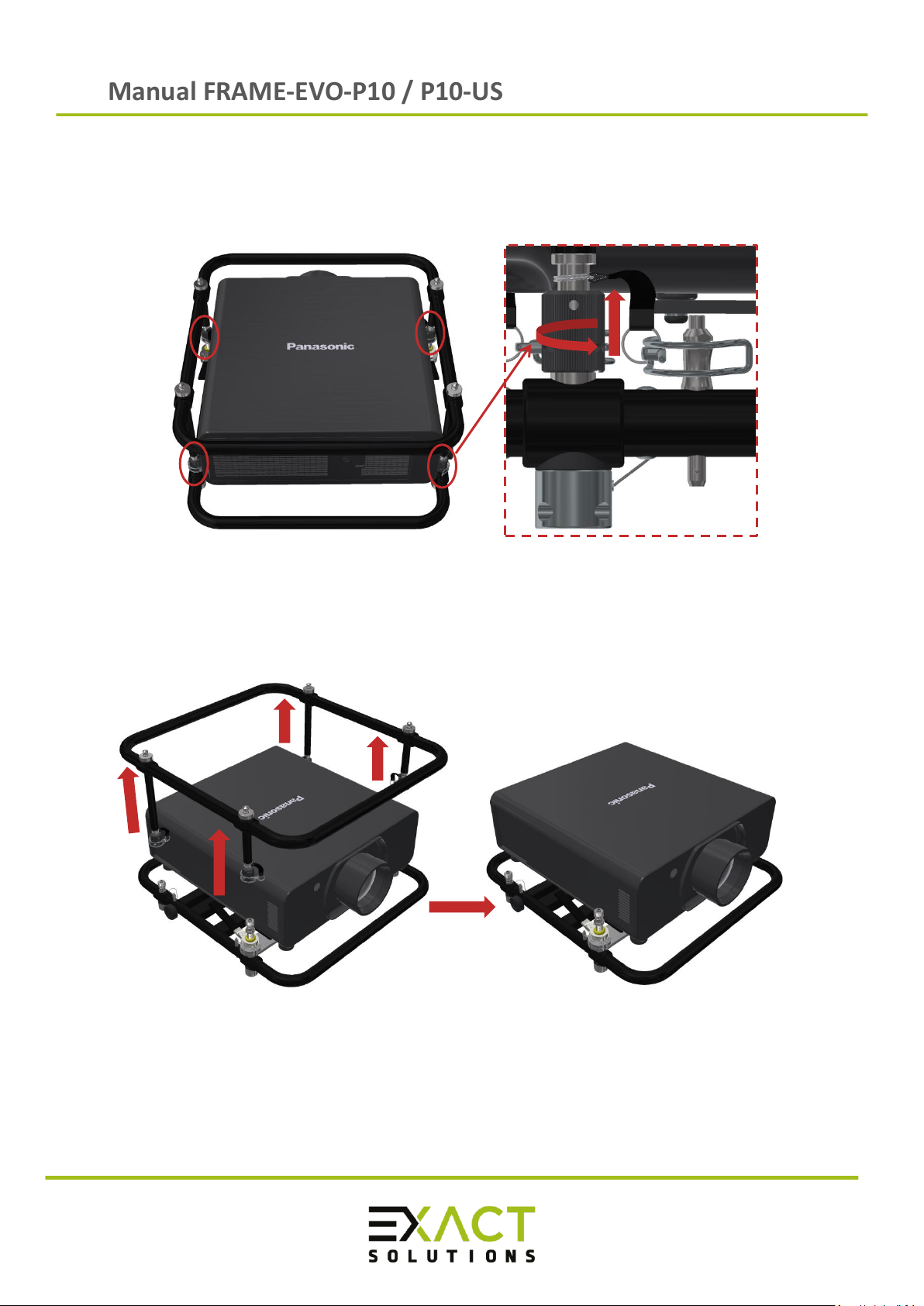

Step 2: Unscrew the 4 x attachment nuts (as presented in the above picture) until they are
completely loose and can be move up and down freely.
Step 3: Remove the Upper Ring and you will have the Installation Version of the frame

Manual FRAME-EVO-P10 / P10-US
Page 19 of 39
08.09.2021
Step 4: Now the ET-D75LE90 or ET-D75LE95 ultra-short throw lens can be attached to the
projector
