EZCast Pro Box B02 User manual

EZCast Pro Box
B02

User’s Manual
Rev. 1.01
Histrory:
Revision
Change Note
Date
V1.00
Initial version
2016/4/14
V1.01
Miscellaneous
Modification
2016/4/26

Introduction
Thanks for choosing EZCast Pro Box B02, it is based on popular
EZCast Pro app and adding new dual WiFi to support 2.4Ghz and
5Ghz at the same time. It’s the most advanced WiFi Display device
ever, which supports most Wireless display standards like Miracast,
DLNA and AirPlay, Multimedia decoding, PDF/Office Viewer, Web
browser, Real object projection (Live camera), as well as our
advanced split screen control. It also embedded 10M/100M
Ethernet, which will provide stable connection and easier setup
steps. The USB port supports HID device and USB disk, and the
extended control port helps you to control projectors or other
devices at one time. With the regularly firmware update, it will keep
compatible with latest OS platforms and keep improving features.
This will be the best device for classroom, and conference rooms!!
What’s in Box
EZCast Pro Box x1
Antenna x2

5V-1.5A DC adapter with cable x1
VGA cable x1
HDMI cable x1
Audio out cable x1
UART cable x1
QSG x1
Manual x1

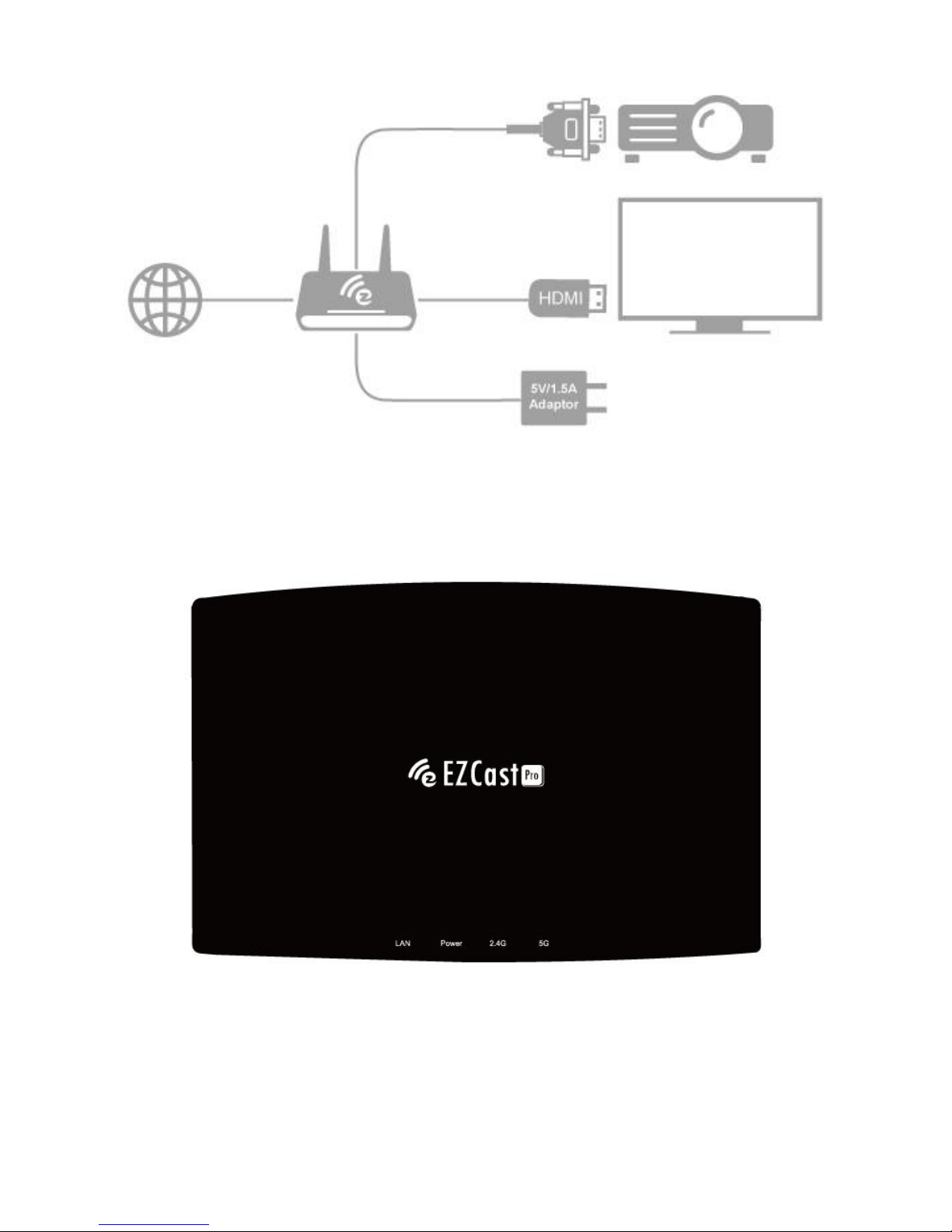

Hardware Installation
There will be an HDMI cable and USB adapter inside of the box, use
the 5V-1.5A DC adapter to power up EZCast Pro Box, and plug
HDMI or VGA cable to your TV or Projector. We also suggest
connect RJ-45 port with your router to simplify setup procedures
and get stable connection.

LED Indication
There will be 4 different LEDs color for different status in front of
EZCast Pro Box, you can refer to it to know the working status:

2.4Ghz: Stays on while 802.11n 2.4Ghz WiFi is working
5Ghz: Stays on while 802.11ac 5Ghz WiFi is working
LAN: Turns on when LAN port is connected
DC: Power on/off indication
App Installation
IOS and Android users:
Please search “EZCast Pro” in Apple’s App Store or Google Play and
install it.
Or Use the QR scanner app to scan the QR code on EZCast Pro Box’s
main page.
*Supports iOS8 and Android 4.2 above
Windows and Mac OS users:
Please download it from our official website: www.iezcast.com or
www.iezvu.com
*Supports from Windows 7/8.1, and Mac OS 10.9 and after.
Get Started

Enter your NB/PC/Smartphone/Tablet’s WiFi setting, find the
SSID (ProBox_xxxxxxxx) or (ProBox5G_xxxxxxxx) and connect
with it.
The Dev means device’s host name, you can change it in the
setting later.
You may connect Pro Box’s 2.4Ghz or 5Ghz WiFi with
different devices but they are under different subnet.
Open EZCast Pro app on your device. Once you’ve connected to
EZCast Pro Box, the on-screen link status will be updated and
show how many devices are linking to it directly.
If there is any new FW available, the updated icon will be shown

on device.
The Miracode is a direct IP link shortcut, you can turn it off in
administrator mode later.
The main screen may change based on different connecting
methods (direct or via router)
There may be another 4 digits CastCode, which is a display gate
keeper to let users who can see this code to cast content.

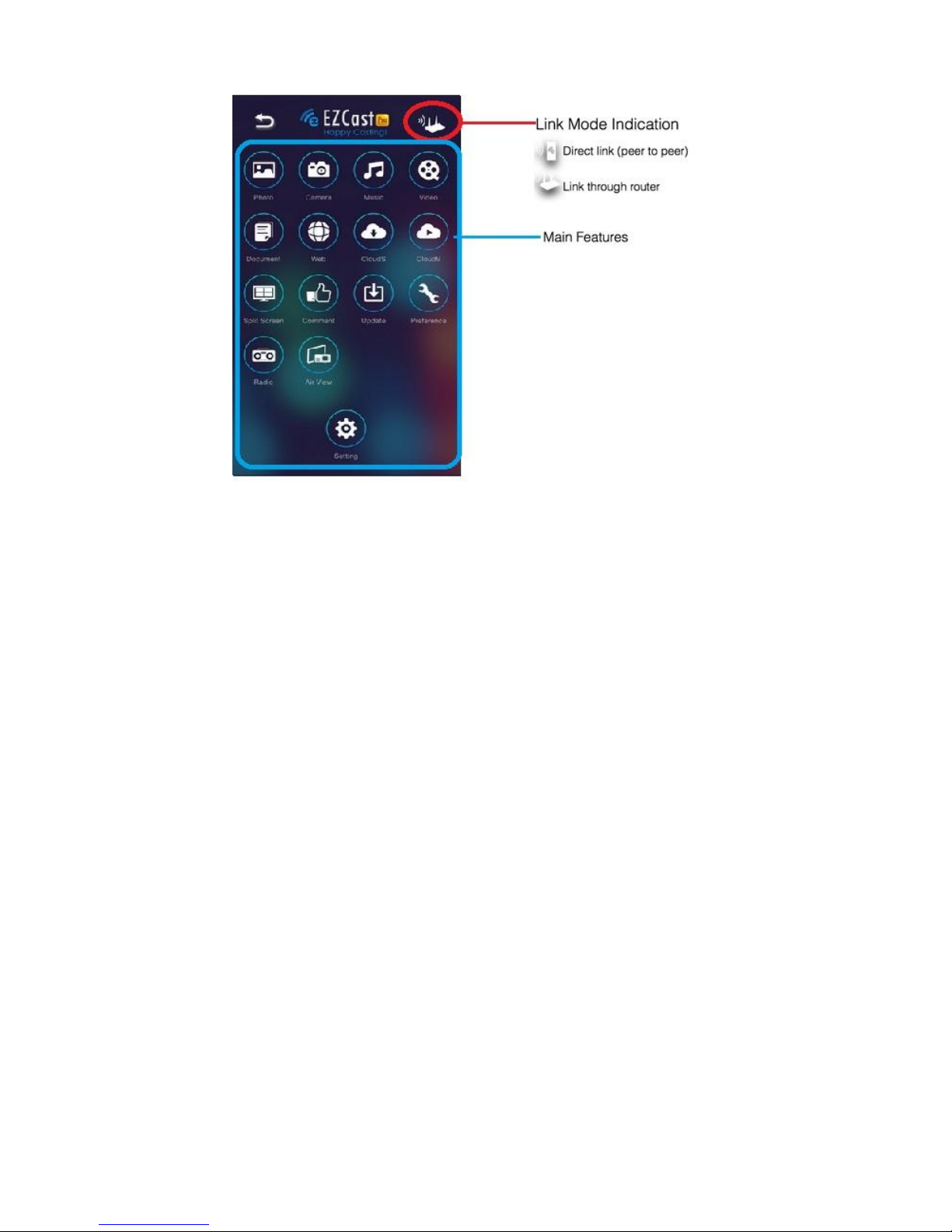

App starts (below photos are based on ios version)
Discover device
Input Miracode to link
directly
Work under offline mode
Click “EZCastPro” icon, the device will be listed, you can select

the device you like to cast if there are more than one.
If you are not linking to EZCast Pro, you can only use several
functions in offline mode.
*Note: EZCast Pro app only works with EZCast Pro hardware now, it’s not compatible
with normal EZCast products.

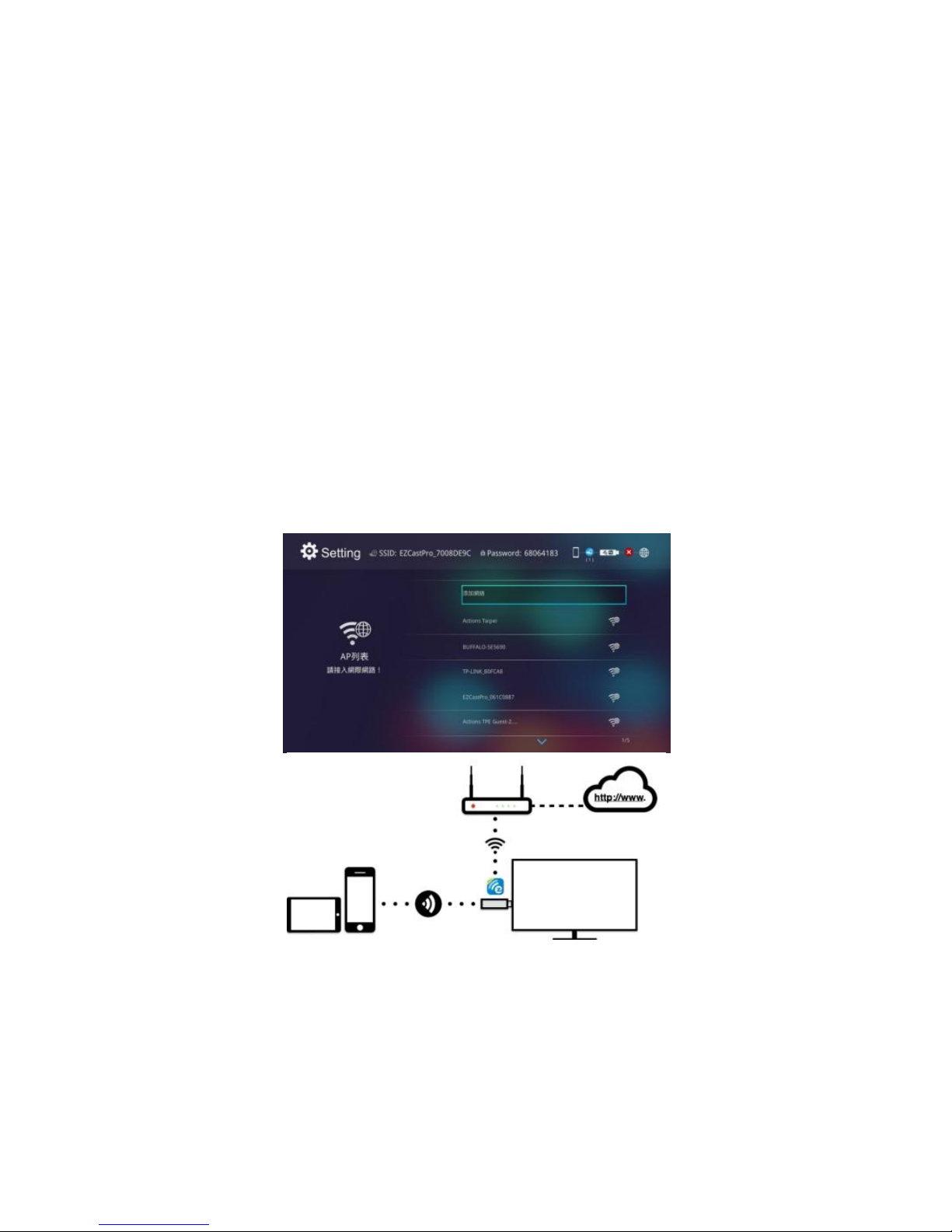

In the first time of app launching, there will be a pop up WiFi
router list so that you can link with your WiFi router through
EZCast Pro device to keep internet surfing.
*Note: After setting up your internet, sometimes the connection between EZCast Pro and
your mobile phone might be disconnected because of different WiFi router channel.
Please remember to reconnect again.

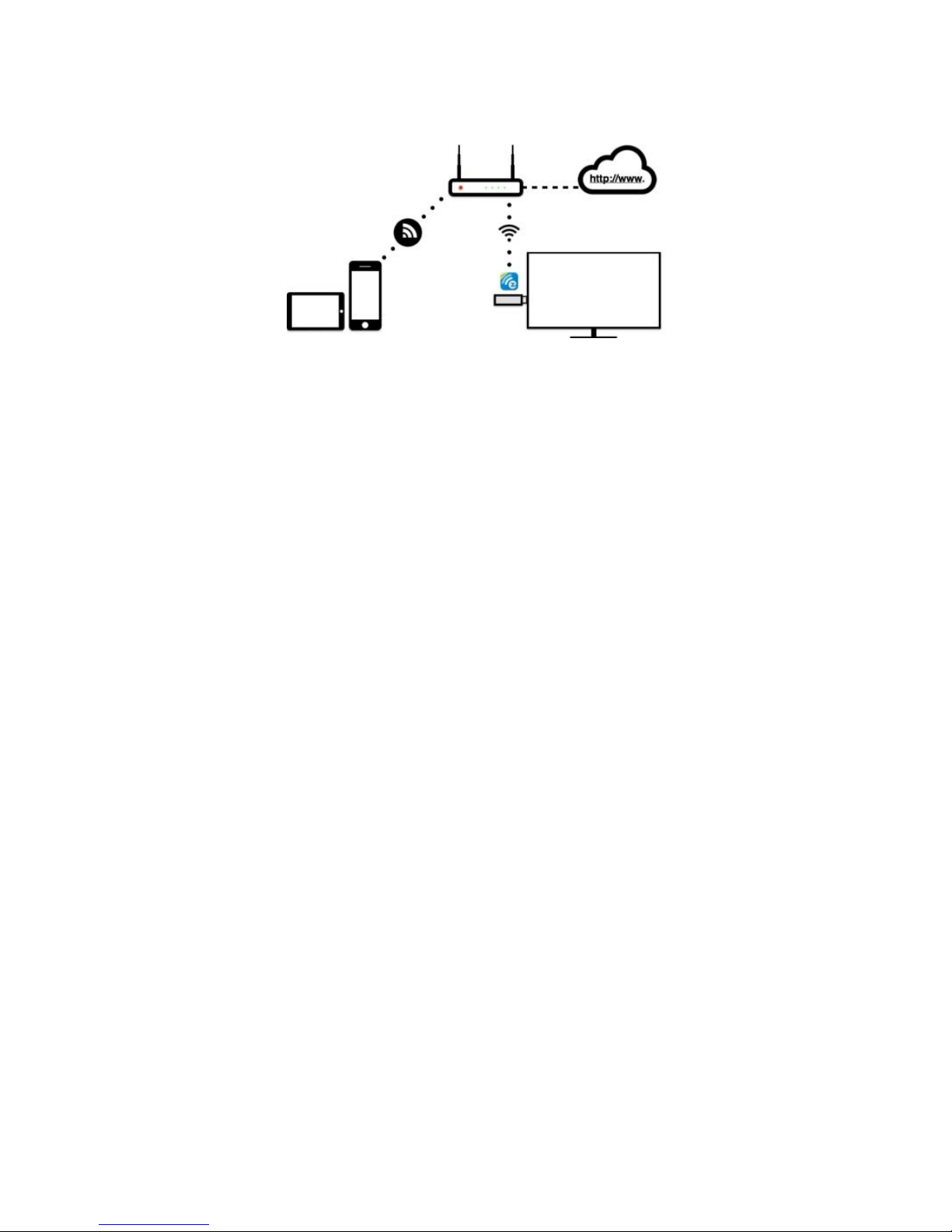

There is another link mode “Infrastructure mode”, which allows
you to link with EZCast Pro Box through router. However, the

performance may not as good as direct link, and you will need
to enter the setting to enable it if need it.
There is a special mode for WiFi connections, we added a
“Router only”to shut down Soft AP mode, in this mode the soft
AP (SSID) will be turned off so that no one can search it directly
to prevent some hacker’s attack. Please be careful you will need
to connect device through router under this mode.
App Tips

You can cast your multimedia data wirelessly now, however,
please be noted some features like cloud video or web will
require internet connection.
Please be noted EZMirror(Miracast) mode will disconnect
current WiFi and you will need to connect to internet by your
phone (3G or WiFi) if you want to keep internet surfing.
App Features
Photo
You will have to allow EZCast Pro to share your camera roll and

enable the location service before using Photo function.
In Photo viewer, you can select photo and it will be displayed on your
TV/Projector. You can also use gesture control to zoom in/out or
change photos.
We developed a practical Sketch tool ,you can draw on the photo you
picked, and save it if you like.
Video
There are 2 sources to video streaming. One is to sync the video you
like through iTunes (iTunes File Syncing), or you can select video from
your recorded video (Camera Roll)
Please be noted iOS will compress the recorded video before
streaming to save the bandwidth, you can decide if you want to save
it in EZCast Pro app for future use.
You can also sync subtitle file to EZCast Pro, just make sure the

filename is the same with your video and sync through iTunes, it will
be automatically shown with video playing.
＊It only supports MPEG1/2/4/H.264, and RMVB video formats. For subtitle, wesupport
srt, smi, ssa and cdg formats with UTF-8 coding.
For subtitle support, please see demo video: http://goo.gl/0yq5Z8
Music
The music player allows you to stream music through WiFi, and we
can support playlist.
＊Please be noted EZCast Pro can’t access your iTunes music library due to iOS
limitation, so you must use iTunes to sync the audio you like to our app.
Live Camera
Live camera is a real object camera which allows you to stream the
image from mobile device’s camera, and take a snap shot to edit.
You can adjust image quality, switch from Front/Rear camera. You can
enable Sketch and save the current image to album.
Document

The document viewer can support MS-office, PDF, and Apple’s
iWorks. Before you start to cast, please remember to sync the
document files to your iOS device through iTunes.
The document viewer supports sketch as well, that means you can
make some note on the document, and save the page to camera roll.
＊Please be noted some documents may not be displayed the same as shown on PC.
Web

EZCast Pro comes with a built-in browser, and we also categorize
several popular websites for you.
The web page will dynamically change with different country setting
in your device.
Sketch function is also supported.
Cloud Video
Cloud video is a shortcut for all major web video sites, you can link to
Youtube, Vimeo and other on-line video sites with the existing
shortcuts.
Cloud Storage
We will link to your personal Dropbox and *Google Drive account to
let you access your cloud storage anywhere. All content will be shown
for you to download and display.
You can enable sketch function if you download and decode a
document file

Comment
We treasure your feedback either good or bad, so we created an
innovative way to communicate with you. You can send some
comments, suggestions or even bugs to us directly, and all the inputs
will make our product better.
Radio
We’ve built in more than 1000+ radio stations in the radio function,
you can enjoy any kind of music you like!

Split Screen and Host Control
When you are the first user link to EZCast Pro and open the app, you
will become the “Host”.
Host has the authority to control the display, that means Host role
can use all features without limitation

The next or later coming users will be treated as “Guest”, some
functions will be disabled under Guest mode, and you will need to
get Host’s permission to display.
EZCast Pro device will allow max. 4 users to display on screen
together, but only Host can decide the position he wants, other
guest’s screens will be placed automatically after the request is
allowed.
Preference
Except Preferred device setting, you can also enable/disable the
inquiry from guests, or automatically allow all display requests from
guests without showing pop-up message.

AirView
You can enable AirView function to see the current display content on
EZCast Pro hardware, this is a great tool for display sharing.
This function will not need Host’s permission to enable.
＊This feature doesn’t support video or audio streaming.
EZChannel

Once you enter EZChannel, you can enjoy default featured channel,
public channel or your friend’s channel. Please be noted some
features will require logging in.
You can subscribe your channel here, review your playlists(collections)
or install Chrome plug-in in the setting.
