EZTRUNK 1921 0084 User manual

PATENT NO. : 10,981,588 & PATENT PENDING
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
Page 1
PO#
:
Print the latest manual &
Watch the EZTRUNK Video
Scan QR CODE for Video &
PDF MANUALS
MAKE IT
#19210084 \ 1900 0084
A814
WE CAN HELP YOU!
Customer Service
Any questions? WE ARE HERE TO HELP!
EMAIL US: [email protected]
Text or Call203-901-0055 / Call 203-591-9060
7 days a week 8:00 AM - 8:00 PM EST
EZ- FOLDING / ROLLING
DOOR CART- 4 DOOR
1921 0084 & 1900 0084-A814-Ver. C
06/16/22

Page 2 1921 0084 & 1900 0084-A814-Ver. C
06/16/22
PATENT NO. : 10,981,588 & PATENT PENDING
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
BEFORE BEGINNING, SEE THE ASSEMBLY INSTRUCTION VIDEO ON EZTRUNK.NET
Please read instructions fully before beginning assembly
110418ebuTemarFreppU1
220418ebuTemarFesaB2
3
4
440418etalPediS
5
6
Door Hinge Pin Bracket 81406 6
7
8
Wheel Castor 81408 4
9
Bottom Wheel Castor Plate 81409 4
10
601418tloBU
11
Thumb Turn Nut 81411 2
12
Rectangle Plate 81412 2
13
425380niPgnikcoL
14
Side Plate / Base Frame Tube Bolt
08452 8
15
16
Nylon Washer 140801016+ 2 extra
8+ 2 extra
4
Washer (On U Bolt)
M8 Washer (On Wheel)
1206010
1608010
17
Plastic Cap For Nut 20082 4
18
Large Lock Nut 1008212+ 2 extra
Small Lock Nut 1006210+ 2 extra
#5 Allen Wrench #5 1
#10 & #13 Wrench #10 1
NO Illustration Description Part # QTY.
19

31
1206010
Page 3
PATENT NO. : 10,981,588 PATENT PENDING
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
BEFORE BEGINNING, SEE THE ASSEMBLY INSTRUCTION VIDEO ON EZTRUNK.NET
PATENT NO. : 10,981,588 &
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
4

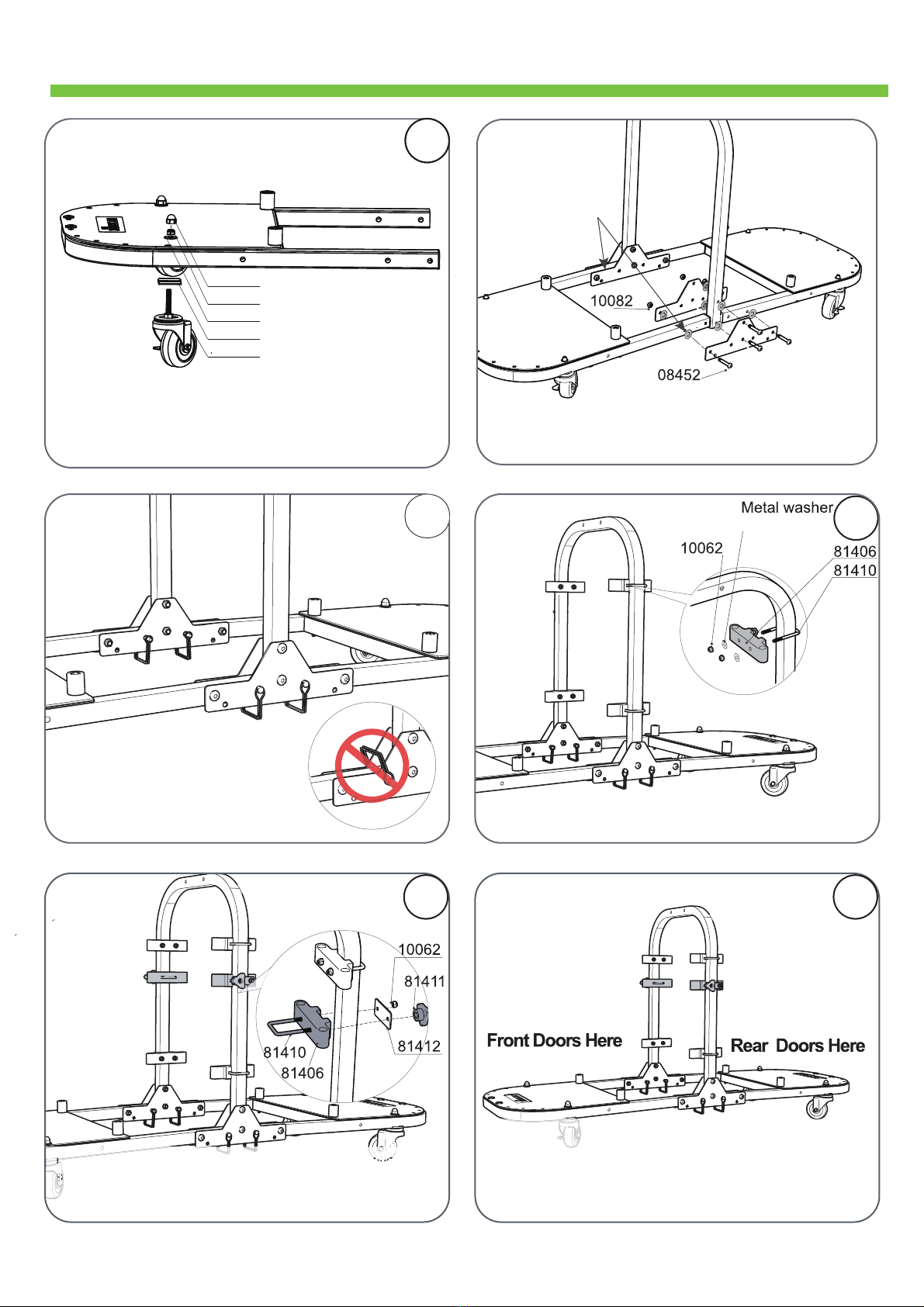

Clip the wheel plate to the Base Frame Tube, tighten the nuts on the wheels.
Place plastic caps on the wheel nuts.
Place middle door hinge pin bracket on the upright tubes and snug the nuts
so they are adjustable to lock your door in the next steps. The Middle bracket
is a locking mechanism.This protects the doors from falling off when moving
the cart.
Insert the locking pins to secure the base. Place door hinge pin bracket on the upright tubes and snug the nuts so they
are adjustable to your door in the next steps.
5 6
Roll your windows down before disconnecting the electrical plugs.
Place the rear door from one side of the vehicle on the EZ-Door Holder Cart first. Then
put the same side front door on EZ-Door Holder Cart. SLIDE THE MIDDLE LOCK IN
THE DOWN POSITION when moving the cart to the other side. Take the doors from the
other side off the same way. This distributes the weight on the cart.
1921 0084 & 1900 0084-A814-Ver. C
06/16/22
2
Put the Nylon washers on the
inside of the plates on both
sides as shown
Connect the two plates and tubes together. Tighten the two middle upright
tube screws.The folding outside screws should be snug not tight, so the
bottom folding base swings up easily. The base should not drop down unless
you pull it down.
3
20082
10082
1608010
81409
81408

Page 4
PATENT NO.:10,981,588 PATENT PENDING
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
BEFORE BEGINNING, SEE THE ASSEMBLY INSTRUCTION VIDEO ON EZTRUNK.NET
7
Make sure the cart is on level ground when loading the doors. Place the doors on the
cart with the bumpers on the outside and adjust the brackets so they are hitting the top
of the door hinge brackets. Tighten the cart hinge brackets so they do not move.
8
Lock the wheels for storage.
9
Do not store the front doors this way. Store the doors side by side.
Take the pins out and fold.
Front Door Front Door
UC
TI
O
N VIDE
O
O
N
8
Roll your windows
down before
disconnecting the
electrical plugs.
Make sure the cart is on level
ground when loading the doors
Slide down the safety hinge lock and thumb turn to tighten.
This locks the doors in place for moving and storage.
1921 0084 & 1900 0084-A814-Ver. C
06/16/22
H
o
w
T
o
L
oc
k
T
h
e
C
astor
10
11
Folding the EZ-DOOR CART
12
Place the pins in the bottom locking holes.
