EZ - BRONCO FOLDING DOOR CART - 4 DR
#5121 0084 - #5100 0084
A
SS
EMBL
Y
We have made
INSTALLATION EZ!
Scan the QR Code below for Step-by-
Step Video Installation
Scan QR CODE for all other
Videos & PDF MANUALS
WE CAN HELP YOU WITH YOUR INSTALL !
SCAN ME
7 days a week 8:30 am EST
Any question? WE ARE HERE TO HELP!

BEFORE BEGINNING,Watch the Latest Video Manual
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
Page 2 EZ Bronco Folding Door Cart - 4Dr
Ver A_5/24/23
Please read instructions fully before beginning assembly

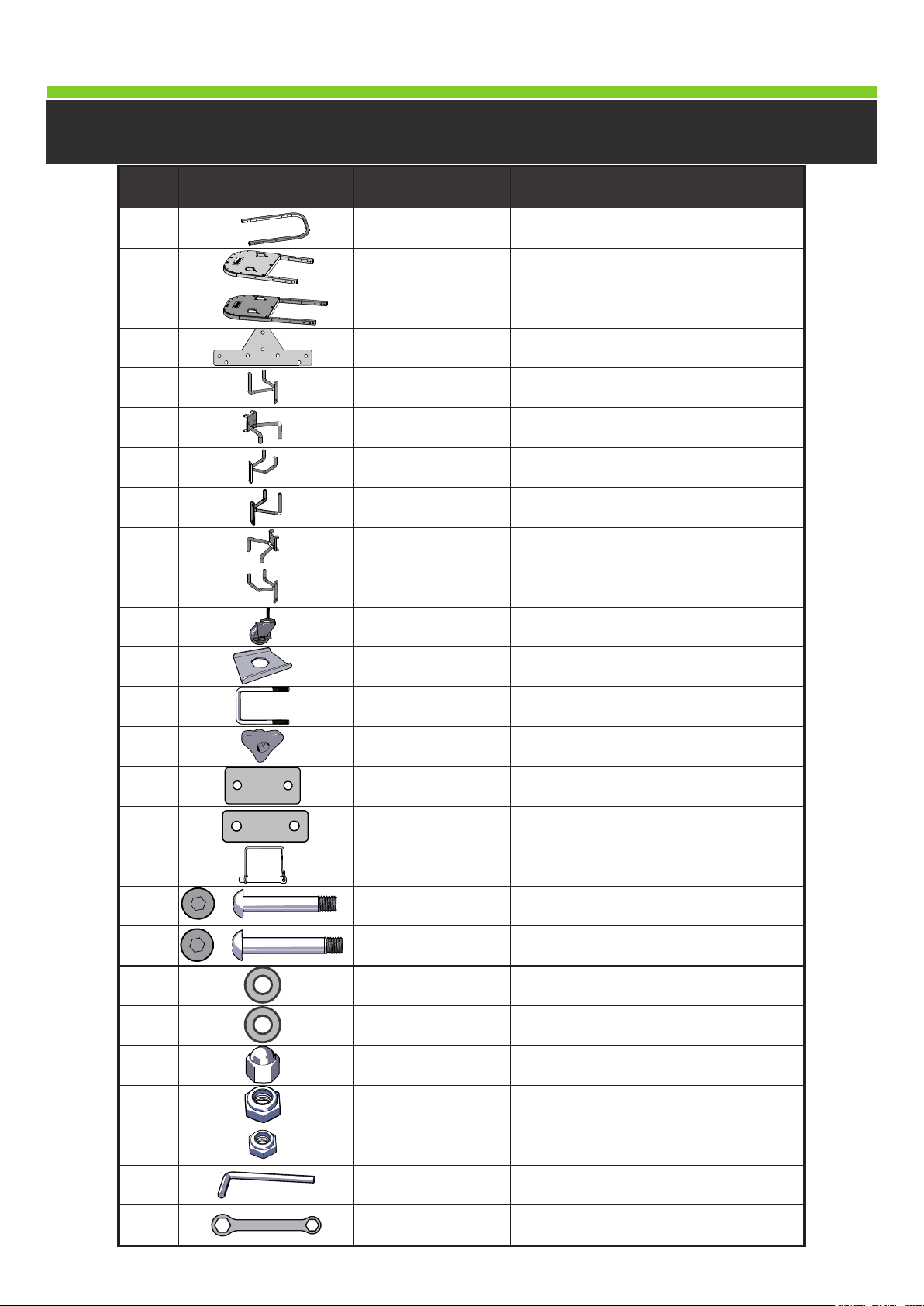

NO Illustration Description Part# QTY.
1
Upper Frame Tube 511401 1
2
2 Wheels Base Frame 511402 1
3
3 Wheels Base Frame 511403 1
4
Side Plate 511404 4
5
Top Door Hook #A 511405 1
6
Middle Door Hook #B 511406 1
7
Low Door Hook #C 511407 1
8
Top Door Hook #D 511408 1
9
Middle Door Hook #E 511409 1
10
Low Door Hook #F 511410 1
11
Wheel Cstor 511411 1
12
Bottom Wheel Castor Plaste 81409 5
13
U Bolt 511412 2
14
Thumb Turn Nut 81411 2
15
Rectangle Plate 511413 2
16
Rectangle Plate for Hook 511414 4
17
Locking Pin 08352 4
19
Side Plate / Base Frame Tube Bolt 08452 ( 1.75" ) 8
20
Bolt 08502 ( 2" ) 8
21
Washer 1408010 5
22
Nylon Washer 1206010 16+ 2 extra
23
Plastic Cap For Nut 20082 5
23
Large Lock Nut 10082 21+ 2 extra
24 Small Lock Nut 10062 2+ 1 extra
25 #5 Allen Wrench #5 1
26 #10 & #13 Wrench #10 1

BEFORE BEGINNING,Watch the Latest Video Manual
EZ Bronco Folding Door Cart - 4Dr
Ver A_5/24/23
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
Page 3
1
23
45
511401
511403
511403
08502 (2 ")
511402
511402
511411
511408
511406
511412
511407
511403
3 Wheels Base Frame
10082
10082
08452 (1.75 ")
08452 (1.75 ")
511414
511414
511413
10062
81411
81409
1408010
10082
20082
1206010
Plastic
1206010 / Plastic
10082
511404
511404
Connect the two plates and tubes together. Tighten the two middle upright tube screws.The folding
outside screws should be snug not tight, so the bottom folding base swings up easily. The base
should not drop down unless you pull it down.
Insert the locking pins to secure the base.
Clip the wheel plate to the Base Frame Tube, tighten the nuts onthewheels.Place plastic caps on the
wheel nuts.
Place door hooks on the upright tubes and snug the nuts for Middle door hook easy lock the door in
next steps. ATTENTION looking the part #
511403 ( 3 Wheels Base Frame) direction and
place door hooks #511408, 511406 and 511407 as drawing show.
Put the Nylon washers on the
inside of the plates on both
sides as shown

BEFORE BEGINNING,Watch the Latest Video Manual
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
Page 4 EZ Bronco Folding Door Cart - 4Dr
Ver A_5/24/23
511408 511405
511406 511409
511407
511403
3 Wheels Base Frame
Front Door Here
511403
3 Wheels Base Frame
511403
3 Wheels Base Frame
Rear Door Here
511402
2 Wheels Base Frame
511402
2 Wheels Base Frame
Make sure the cart is on level ground
when loading the doors
511410
6
8
7
9
Make sure the cart is on level ground when loading the doors. Place the doors on the cart with the
stopper on the outside and Ensure hook the door top and bottom hinge hole hook on door cart hooks.
Lock the wheels for storage.
Roll your windows down before disconnecting the electrical plugs.
Place the rear door from one side of the vehicle on the EZ-Door Holder Cart rst.Then put the same
side front door on EZ-Door Holder Cart. SLIDETHE MIDDLE LOCK IN THE DOWN POSITION
when moving the cart to the other side.Take the doors from the other side off the same way.This
distributes the weight on the cart.
Place
door hooks #511405, 511410 and 511409 on
the upright tubes and snug the nuts for
Middle door hook easy lock the door in next steps.
as drawing show.
Slide down the middle safety hinge lock and thumb turn to tighten. This locks the doors in place for
moving and storage.
Take the pins out and fold.
Folding the EZ-DOOR CART
Lock The Castor 1110

BEFORE BEGINNING,Watch the Latest Video Manual
EZ Bronco Folding Door Cart - 4Dr
Ver A_5/24/23
CUSTOMER SERVICE: [email protected]
Text & Call : 203-901-0055 / Call 203-591-9060
Page 5
Place the pins in the bottom locking holes.
Folding the EZ-DOOR CART 12
