INSTRUCTION MANUAL
HEAVY DUTY EXHAUST FAN
5.10 To avoid the air flow back into inside from air duct or any
equipment, the wind-pressure type shutter only be opened by air.
Advise to install wind-resistant cover outside to avoid strong wind.
5.11 When the power is connected with charging directly, all-polarity
switch that the contact gap is 3mm at least must be installed in the
charging line. The yellow/green wire must be connected with ground.
Blue wire must be connected with “N”, to be avoided danger, please
replace the fan by professional worker.
5.12 This appliance is not intended for use by person(including
children) with reduce physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
5.13 Children should be supervised to ensure that they do not play with
the appliance.
5.14 If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
5.15 This instructions for fixed appliances shall state how the appliance
is to be fixed to its support.
Remark: Only English version of instruction manual provided and
checked.
6. Maintenance
6.1 Cleaned the surface of the product indefinitely. Removing the dust
with a soft cloth.
(WARNING: Never use any causticity liquid for cleaning
the exhaust fan).

Powerful pure copper motor heavy duty exhaust fan can provide a
long service life. This product can exhaust stuffy indoor air and pull
in fresh outdoor air.
1. Use
This product is compliant to install inside of the porthole or on the
professional bracket, regulating air and eliminating dust from one
side of partition to another side in order to remove grime and warm
gas, prevent gassing. It has enough air delivery, excellent
performance, operation quietly, safety, reliability and so on. This
product is apply to the normal factory, storage, public building place
and so on.
2. Specification
Product specification and other information are subject to change
without notice.
Heavy
Duty
Exhaust
Fan

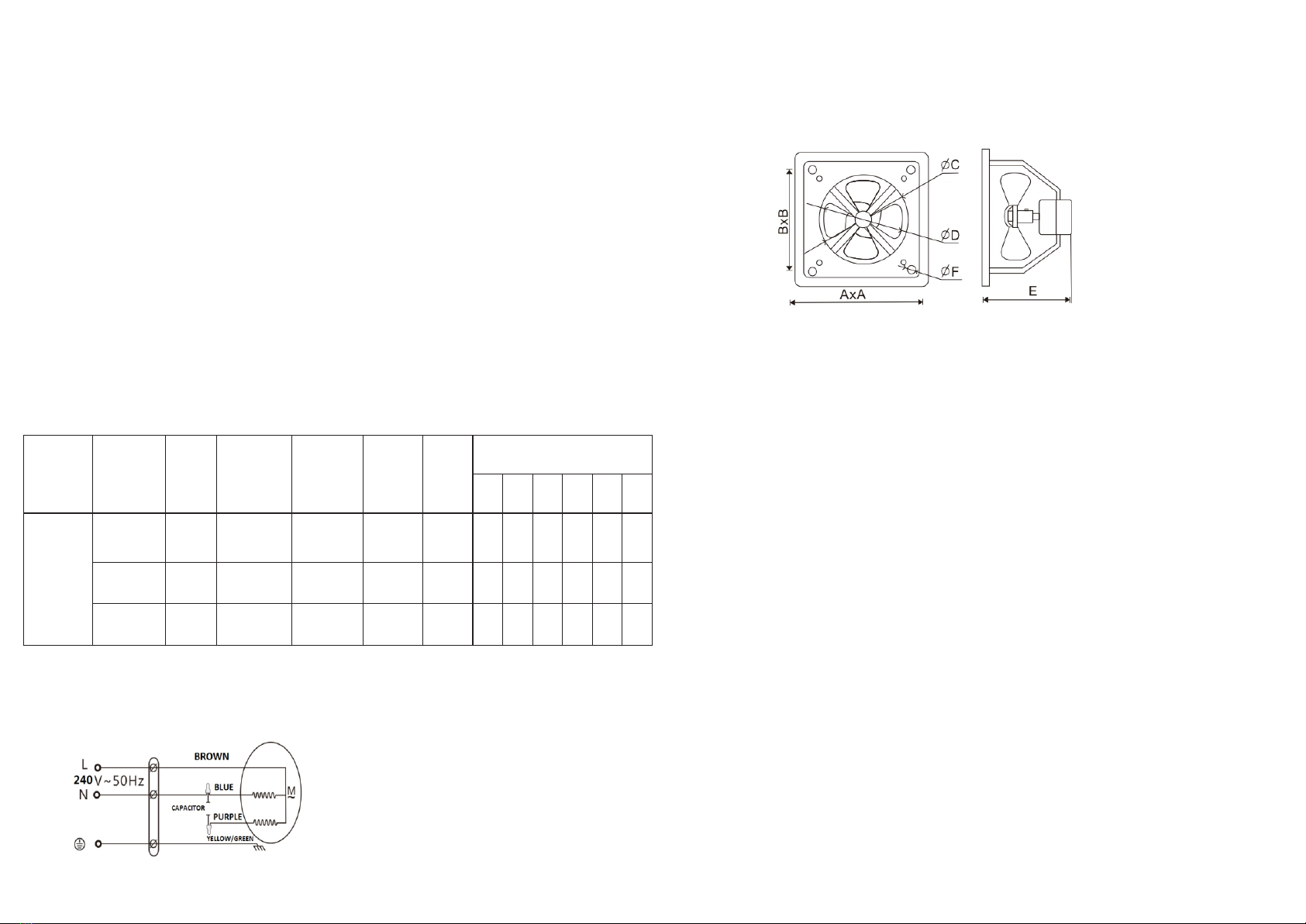

3. Electric Wiring
4. Installation Diagram
5. Cautions
5.1 To be installed by professional worker.
5.2 Checked the voltage and frequency on the rating lable if
according with the local power supply.
5.3 Checked the parts of the shape if distortion.
5.4 Checked the fitting quality and checked the motor if
operated well by turn the blades before install, don’t press or
change the blades in random.
5.5 The distance between fan and floor is 2.5m at least. To be
fastened on the wall or professional bracket with bolt and
confirm fastness and safety before using.
5.6 Supply cord should be connected with national standards
plug. When the power is connected with charging directly, all-
polarity switch that the contact gap is 3mm at least must be
installed in the charging line.
5.7 The yellow wire in the supply cord should be connection,
and the product must be connected with the earth well.
5.8 If the supply cord damaged, should be sent to our company
or exhange by appoint prefessional maintenance station, to be
avoided danger.
Name Model NO. Size Voltage Frequency Power RPM
FEF 12HD
FEF 16HD
FEF 18HD
(Hz) (W)
12
16
18
220-240V~
220-240V~
220-240V~
50
50
50
100
180
230
1400
1400
1400
Installation Size (mm)
A B C D E F
390 315 320 295 250 8
480 385 410 395 275 8
560 436 470 495 300 8
