Original User Manual –FableKids Stroller Wagon

Thank you for purchasing our product. Please read the
operating instructions carefully before using the product for the
first time. If you give the product to a third party, this manual
must be handed over with it. Keep the instruction manual for
future reference. The drawings in this manual may not match
the physical objects. Please refer to the physical objects.
1. Product Overview
Canopy with
Retractable
Canopy Rods
Pull Handle with
Spring Bounce
Push handle
Seat with
5-Point
Harnesses
Metal
Frame
Rods
Front Wheels
with Bearings Rear Wheels with
Spring Suspension
& Bearings
One-Step Foot
Brake
Removable
Storage Bag
(PLUS)
Removable
Storage Bag
(LITE)
Button to adjust
handle height
1
Original User Manual –FableKids Stroller Wagon

•NEVER exceed the maximum person limit on the product.
•Rear basket maximum weight limit: 5KG.
•DO NOT carry more than two (2) (2XLITE/2XPLUS) / four (4) children (4XLITE /
4XPLUS).
•DO NOT exceed per seat limit: 20 kg.
•Avoid serious Injury to children from falling or sliding out. Always use 5 point harness
to secure each child.
•NEVER leave children unattended.
•Always set parking brake while loading and unloading children.
•This seating unit is NOT for children under 6 months.
•Avoid serious Injury to children, ensure all locking mechanisms are correctly
engaged before use.
•DO NOT use stroller on stairs or escalators with children in it.
•This product is not suitable for running or skating or similar activities.
•DO NOT allow children to play unsupervised next to the product.
•DO NOT let your children play with the product.
•DO NOT overload stroller as it can become unstable.
•DO NOT hang items on the product and place anything on top of the canopy at any
time. The product may become unstable parts that have not been supplied by
original manufacturer.
•Distribute weight as evenly as possible on each side of the stroller.
•Regularly check hardware and parts. Do not use the product if any hardware or parts
are damaged or broken.
•Never leave children in the stroller while ascending or descending stairs.
•Ensure that all the locking devices are engaged before use.
•NEVER leave stroller unattended on a hill or incline even when parking brake is set.
•Always use caution on uneven surfaces. Contents may become unstable and children
could be injured by them.
•Always set parking brake when the stroller is stationary.
•Please keep fingers clear of hinged joints when folding / unfolding of the product or
when making adjustments to avoid pinch injury.
•Keep your children away from the product when folding and unfolding to avoid
injuries.
ATTENTIONS!
•This manual can not cover all instances and unforeseen situations that may occur.
•It is important that everyone who uses the wagon understands the warnings.
•This product must not be operated by children under the age of 12.
•Do not use accessories which are not approved by the manufacturer.
•Only use replacement parts supplied and recommended by the manufacturer.
•Any violations will void your warranty and may cause instability or structural
damage to the product or personal injuries.
WARNING
2. Important Safety Information
2
Original User Manual –FableKids Stroller Wagon

3. Product Assembly
To assemble the front wheels:
•Insert front wheels into front
wheel housing.
•Please ensure you test your
installation by pulling the front
wheel down a few times before
using.
To assemble the rear wheels:
•To attach the rear wheels simply press the center button whilst
pushing on to each side of the rear wheel axle.
•Test this by trying to remove the wheels without pressing the
center button.
•To disassemble the wheels, push the center button and pull.
•Connect the rear wheel to the rear
tube joint.
•Check the clips are in place on both
sides of the wheel housing. 3
Make sure that the
wheels are securely
locked in place.
Original User Manual –FableKids Stroller Wagon

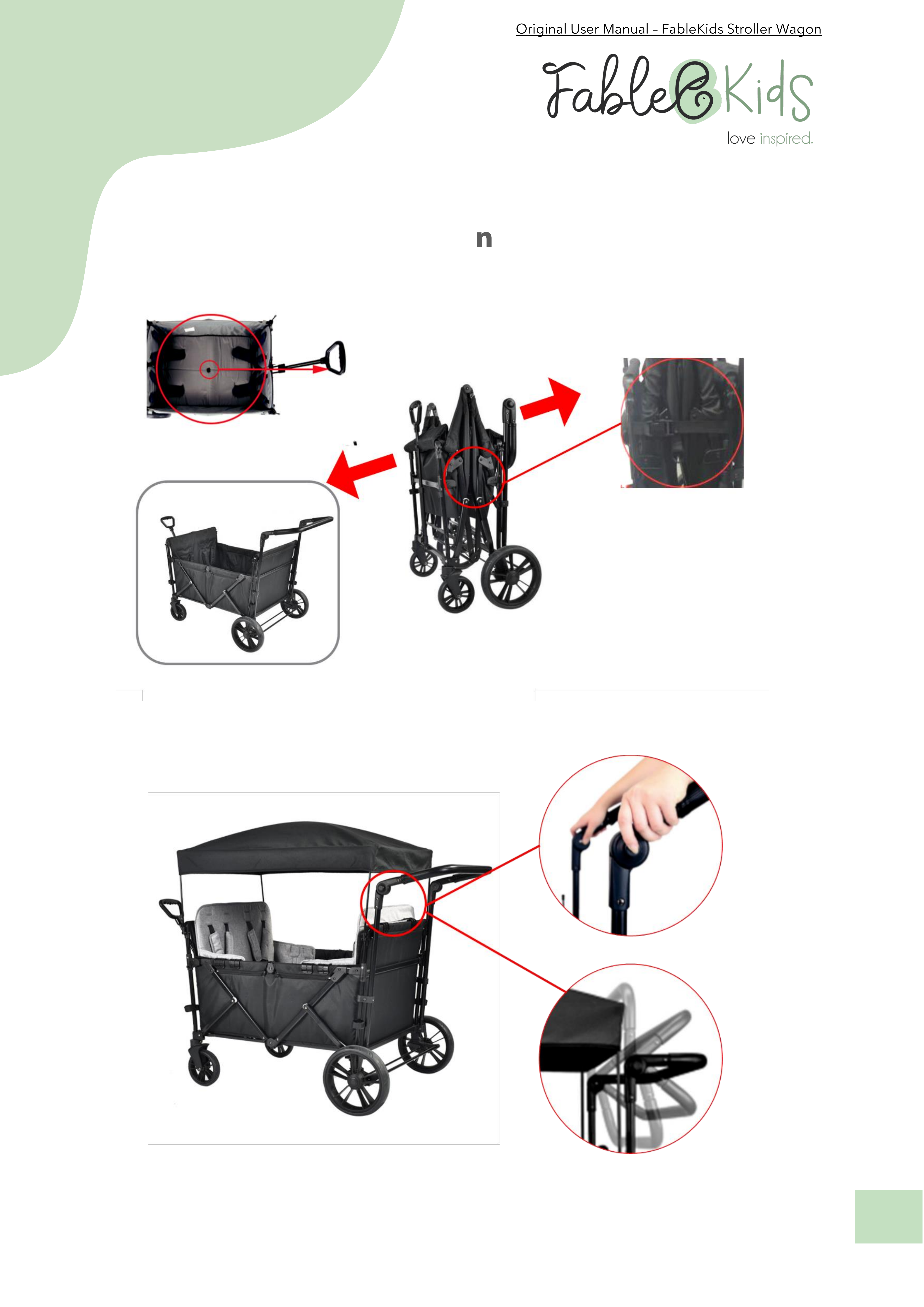

4. Unfold/Fold the wagon
Unbuckle the
strap on the side
to unfold
Lift/pull the
middle strap to
fold
Push the adjustable handle buttons on
both sides simultaneously to adjust
the height of the handle
5. Adjust the Push Handle Height
4
Original User Manual –FableKids Stroller Wagon

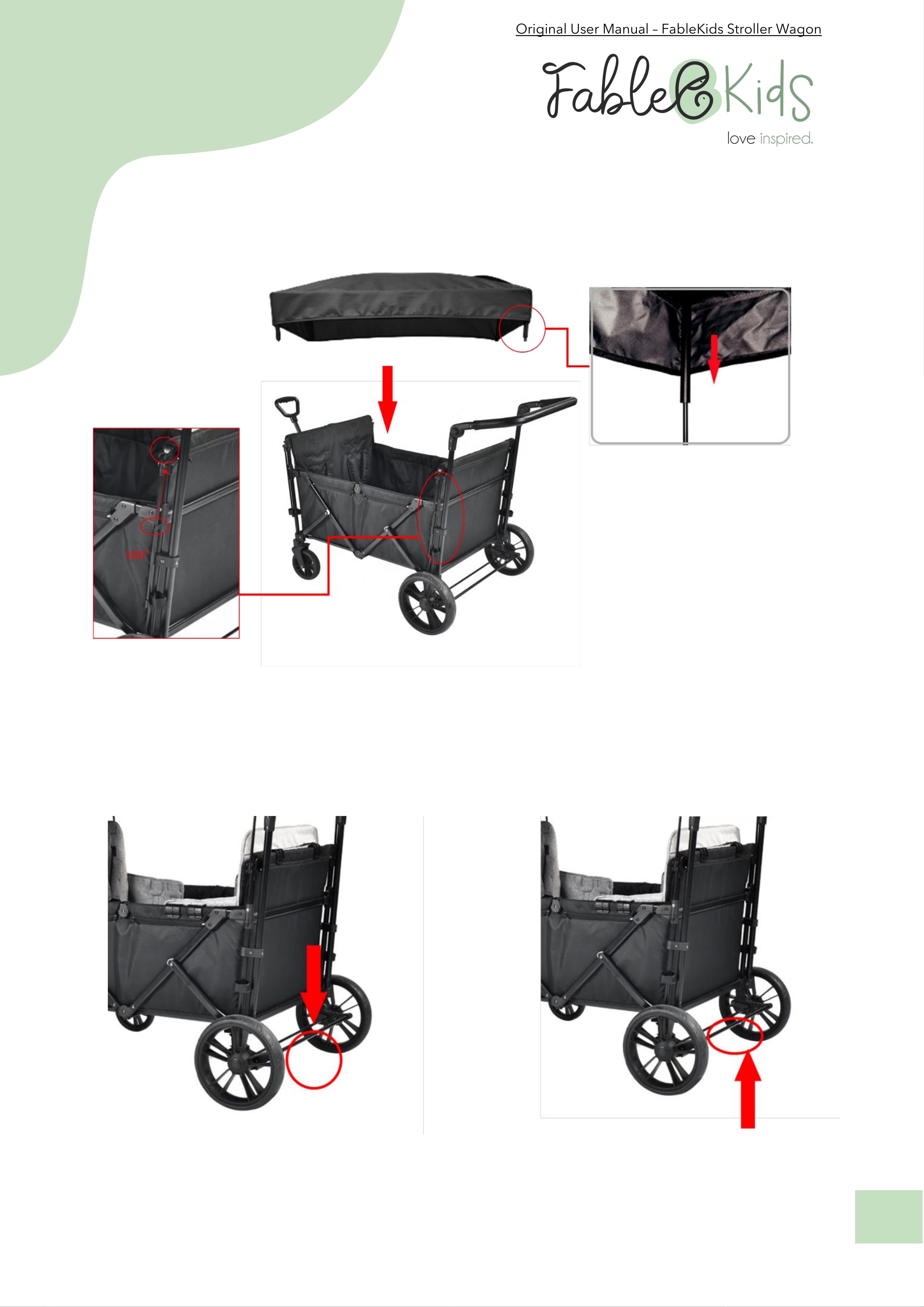

6. Canopy Installation
•Pull out the 4x canopy rods and
secure them 180 degrees upwards
to the upper plastic clips in place
on four corners of the wagon
•Place canopy tubes over the
canopy rods to hold canopy in
place.
•Reverse operation to disassemble.
•Step down on the brake pedal to lock
•Test the brake to ensure it is locked by trying to push the stroller
•Push the parking brake pedal upwards with your foot to release it.
7. Brake Operation
5
Original User Manual –FableKids Stroller Wagon

8. Seat Installation (applied to 2XPLUS/4XPLUS)
•Place the seat into one end of the stroller.
•Fix the hooks on both sides of the seat onto the side rail and
back rail of the stroller frame.
•Repeat on the other end to assemble the other seat.
•With harness unbuckled, place child in seat.
•Secure child with harness by placing shoulder and waist belts over shoulders
and over thighs. Snap buckle tongues into crotch strap buckle.
•Adjust each strap by pulling on the free end of the strap and moving the
•slide adjuster along strap.
Attention: Version 2XLITE / 4XLITE has built-in 5-point hardness, please
direct to Chapter 8.
DO NOT exceed per
seat limit: 20 kg.
Safety Harness
Insert A onto B.
Put A, B and C
together and
click into place.
Repeat on the
opposite side.
Harness
Release
Press button D
to release. Slide
adjuster along
strap.
9. Secure the hardness
6
DO NOT exceed per seat limit: 20 kg.
The seat is suitable for children from 6
to 36 months.
Original User Manual –FableKids Stroller Wagon

10. Storage Bag Assembly
•Slide the storage bag hooks into the plastic
slots on the rear frame tubes.
•Gently adjust the bag to level it. Assembly
completed.
•Reverse operation to disassemble. .
DO NOT place more than
5 kg in storage bag.
11. Maintenance and care
•The product should be checked and cleaned regularly.
•Please regularly check all essential parts for damage. Make sure that the
mechanical
•components are working correctly.
•Please regularly check that all screws, rivets, bolts and other fastenings are tight.
•Do not use grease or oil for lubrication, but a silicone-based spray.
•Overload, improper folding or the use of unauthorized accessories can damage
or destroy the wagon.
•Store the folded wagon only in a well-ventilated place to prevent mold growth.
•The textile parts may lose color if exposed to heavy use over an extended
period (e.g. intensive sunlight); however, this does not constitute a reason for
complaint.
•Do not use the wagon if parts are bent, worn or broken.
•Do not use accessories that have not been approved original manufacturer
CARE INSTRUCTION:
•The textiles of the wagon can be cleaned with a sponge and warm soapy water.
Do not use any harsh or abrasive cleaning agents (chlorine, etc.) to clean the
textile cover. Use only a light soap solution or a special textile cleaning agent.
•The plastic parts, as well as the chassis, should be cleaned with a soap solution.
•After using the wagon in rain or wet, always clean and dry the frame. If the fabric
upholstery is soaked, allow the wagon to dry in the upright or stretched state.
•Please remove the wheels regularly and treat the axles and all articulated joints
and suspension with a silicone-based spray (no grease or oil), which can ensure
the wagon runs smoothly and quietly and limit premature wear and tear.
•By taking care of this wagon, make sure that no rust film is formed, as this is not
a reason for complaint. 7
