FagronLab™ PRO DMS – User Manual | 4

1. Introduction

2. Service

3. Warranty

Thank you for purchasing the digital magnetic hotplate stirrer FagronLab™ PRO-DMS. This manual contains important

operating and safety information. You must carefully read and understand the contents of this manual prior to operating

this device.

In case of any problem, you can always contact the Service Department for technical support. Please provide the customer

care representative with the following information:

•Serial number (on the rear panel).

•Certification.

•Description of problem.

•Methods and procedures adopted to resolve the problems.

•Your contact information.

This device is under warranty and free from defects in materials and workmanship, under normal use and service, for a

period of 24 months from the date of invoice. The warranty is extended only to the original purchaser. Warranty is not

valid on device which has been damaged on account of improper installation, improper connections, misuse, accident or

abnormal conditions of operation.

For claims under the warranty please contact your local supplier.

FagronLab™ PRO-DMS

FagronLab™ PRO DMS – User Manual | 5

4. Safety instructions

Always wear protective gloves, clothes, and glasses to avoid the risk of:

•Splashing and evaporation of liquids.

•Release of toxic or combustible gases.

Place the device in a spacious and on a stable, clean, non slip, dry and fireproof surface. Do not use the device in explosive

atmospheres, with hazardous substances or under water.

Gradually increase the speed, reduce the speed if:

•Splashing, due to high speed of the stirring bar.

•The device is not running smoothly, or container moves on the base plate.

Temperature must always be set to at least 50°C lower than the ignition point.

Be aware of hazards due to:

•Flammable materials or utensil with a low boiling temperature.

•Overfilling of utensil.

•Unsafe container.

Process pathogenic materials only in closed vessels.

In case the stirrer bar is PTFE, please note:

•Elemental fluorine, three fluoride and alkali metals will corrode the PTFE and halogen alkanes make it expansion at room

temperature.

•Molten alkali, alkaline earth metals or their solution, as well as the powder in second and third ethnic of the Periodic

Table of Elements will have chemical reaction with PTFE when temperature reaches 300 - 400°C.

•Check the device and accessories prior to each use. Do not use damaged components. Safe operation is only guaranteed

with the accessories described in the “Accessories” chapter. Accessories must be securely attached to the device and can

not come off by themselves. Always disconnect the plug before fitting accessories.

•When the external temperature sensor needed, the tip of the measuring sensor must be at least 5-10mm from vessel

bottom and wall.

•The device can only be disconnected from the main power supply by pulling out the main or the connector plug.

•The voltage stated on the label must correspond to the main power supply.

•Ensure that the main power supply cable does not touch the hotplate. Do not cover the device.

•The device can only be disassembled by experts.

Keep away from high magnetic field.

Warning!

•Read the operating instructions carefully before use.

•Ensure that only trained staff works with the device.

Risk of burn!

•Caution when touch the housing parts and the hotplate which can reach temperature of 340°C.

•Attention on the remaining high temperature after switching off.

Protective ground contact!

•Make sure that the power supply is grounded before use.

FagronLab™ PRO-DMS

FagronLab™ PRO DMS – User Manual | 6

Items Qty

Main unit 1

Power cable 1

Magnetic stirrer 1

User manual 1

5. Proper use

Unpacking

Unpack the equipment carefully and check for any

damages may have arisen during transport. Please contact

supplier for technical support.

6. Review

Listing of items

The package includes the following items:

The device is specially designed for mixing and/or heating

liquids in pharmacies, laboratories or factories.

•Observe the minimum distances between the devices,

between the device and the wall and above the

assembly (min. 100 mm).

> 100 mm

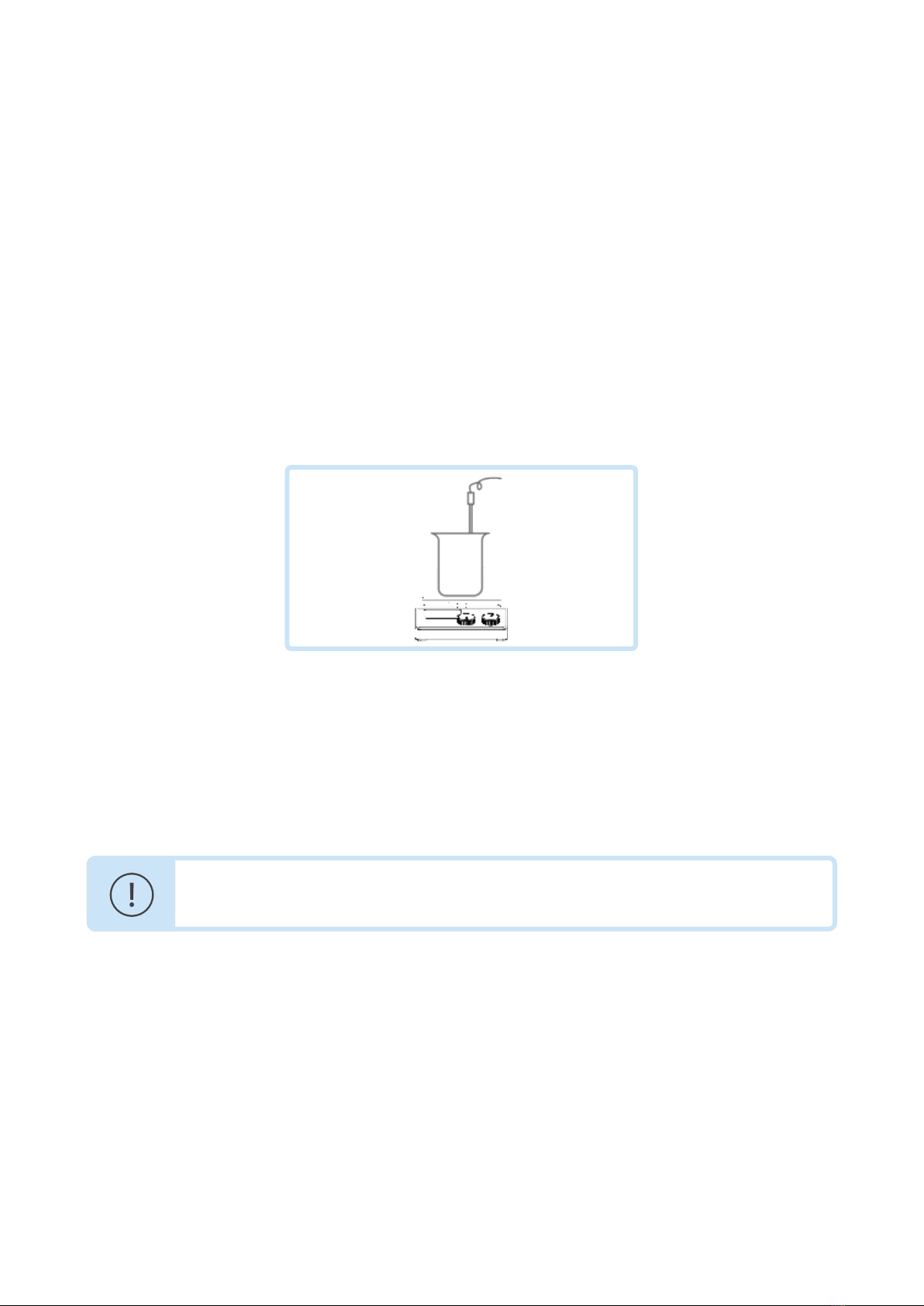

Figure 1. Minimum distance between the devices

7. Trial and custom use

•Make sure that the required operating voltage matches

with the power supply voltage.

•Ensure that the socket is properly grounded.

•Plug in the power cable, ensure the power is on and

begin initializing.

•Add the medium into the vessel with an appropriate

stirring bar.

•Place vessel on the work plate.

•Set the desirable stirring speed.

•Set the desirable temperature.

•Stop both heating and stirring functions. If these

operations above are normal, the device is ready for use.

If these operations are not normal, the device may be

damaged during transportation, please contact supplier

for technical support.

•Use a FagronLab™ magnetic rod to remove safely the

stirring bar from the vessel.

Warning:

•Forbid to transfer the vessel when the

device working.

FagronLab™ PRO-DMS

Note:

•If there is any apparent damage to the

system, please do not plug it into the

power cable.

FagronLab™ PRO DMS – User Manual | 7

1

52

3 4

6

No Description

1 LED heat

2 LED stir

3 Heating knob

4 Stirring knob

5 LCD display

6 Sensor holder

Control elements

8. Control

Figure 2. Device’s control elements Figure 3. Power switch

Power switch

Control panel

Items Description

Stirring knob stir Set the rated rotary speed. The function “stirring” is switched ON or OFF via

pushing ON/OFF the knob

Heating knob heat Set the rated temperature. The function “heating” is switched ON or OFF via

pushing ON/OFF the knob

LCD display LCD displays the real working state and all settings

LED heat When the heating function is switched ON, the LED Heat is lit

LED stir When the stirring function is switched ON, the LED Stir is lit

Power switch Switch ON or OFF the device

FagronLab™ PRO-DMS

FagronLab™ PRO DMS – User Manual | 8

Display

Err

StirTemp

B CARemote Probe Hot

oC Set

Real value Temperature Stir

Mode

Remote control External probe

Hotplate warning

Settings

Rated value

Error

Heating

The device is controlled by digital temperature control technology, with two separate safe circuits. The hotplate is kept

at a constant temperature by a digital control circuit. The hotplate temperature can also be monitored from a separate,

adjustable safe circuit. The two temperature sensors (PT1000) internal for temperature control are built into the hotplate.

The single external PT1000 can monitor the temperature of the sample.

9.Function

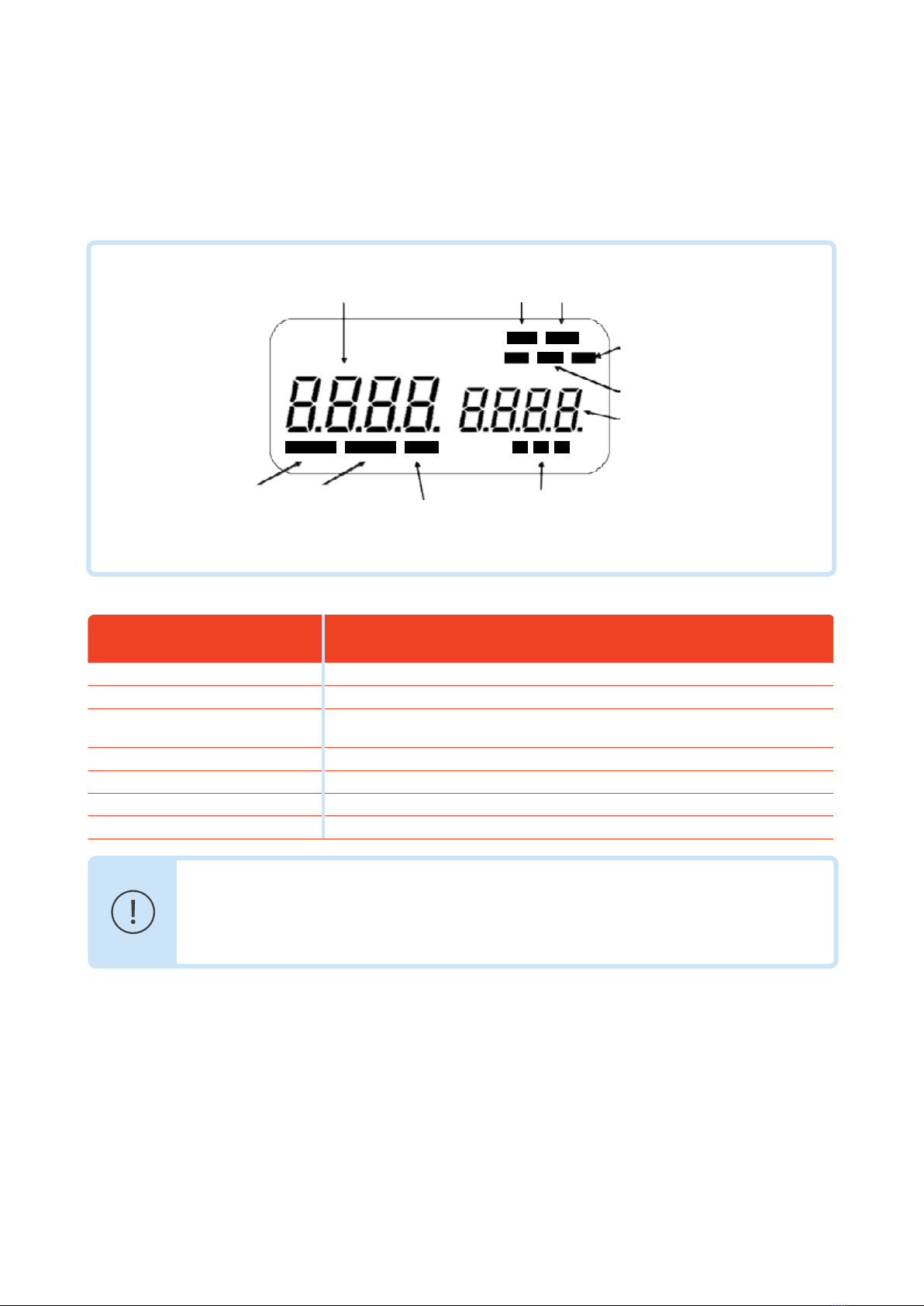

Figure 4. Device display

Note:

•If both heating and stirring functions have been started at the same time, heating function always

has higher priority. If in this case speed is changed via the stirring knob, it displays stirring speed and

reverses to temperature in the duration of 5 seconds.

Characters Description

Temp and °C Display temperature when the heating function is switched ON

Stir Display stirring state when the stirring function is switched ON

Hot Display hot warning if the heating plate temperature is above 50°C after switch-

ing OFF the heating function

Probe Display when using external probe

Remote Display in case of remote control

Err Display in case of an error

Rated value/Real value Display the value of heating or stirring when function is ON

FagronLab™ PRO-DMS

FagronLab™ PRO DMS – User Manual | 9

Working with external temperature sensor

The external temperature sensor FagronLab™ PT1000 is the manufacture’s standard accessory. If the sensor is plugged in,

“Probe” will be shown on the digital display to indicate that the sensor is operating. The value of external temperature sensor

and the actual temperature are displayed. Safe circuit controls hotplate temperature. Comparing with the temperature control

of the hotplate, the external temperature sensor can control the medium’s temperature more precisely.

To plug in the sensor's holder you have to remove the plastic cover.

•Turn off the device with power ON/OFF button.

•Plug in the external sensor PT1000 and follow the previous steps.

Residual heat warning (HOT)

In order to prevent the risk of burns from the hotplate, digital hotplate has a residual heat warning function. When the

heating function is switched off and the hotplate temperature is still above 50°C, “Hot” will flash on the display to warn

that there is a hazard of burns from the hotplate. When the hotplate temperature drops to below 50°C, the unit will

automatically switch off. If users want to turn off the LCD immediately, just unplug the power cable. When the power cable

is pulled out, the residual heat warning function cannot be visual.

10. Stirring

The function “stirring” is switched on or off via pushing the stirring knob. The speed can be set by the knob (100 to 1500 rpm

in steps of 10 rpm). When both of functions heating and stirring are switched on , the LCD will shift to the speed value and

come back to the temperature value in about 5 seconds.

Figure 5. External temperature sensor

•Set the temperature via rotating the temperature control knob slowly to the target value.

•When the heating function is switched on, the LED “Heat” will light up and the LCD will display the real temperature.

•The rated temperature will be displayed on the right-hand side of the LCD as well as Temp and °C characters.

•The heating function is switched on or off by pushing heating knob.

When setting the temperature, be aware that the display temperature and the actual temperature may have the following differences:

•Hotplate center and outer edge.

•The sample container and the container.

In order to ensure the accuracy of the temperature inside the container, please use the external temperature sensor PT1000.

FagronLab™ PRO-DMS

Note:

•Forbid to insert or remove the PT1000 sensor when device is switched ON!

FagronLab™ PRO DMS – User Manual | 10

12. Faults

Device can not be switched ON.

•Check whether the power cable is unplugged.

•Check whether the fuse is broken or loose.

Fault in power on self test.

•Switch OFF the unit, then switch it ON again.

Stir speed cannot reach set point.

•Excessive medium viscosity may cause abnormal speed on the motor.

Heating or stirring function is not starting when knob is turning to ON.

•Switch the device OFF and then switch it ON again.

•Electronic problem, refer the problem to your supplier.

Device can not be switched OFF.

•Check if the residual heat warning function is still ON and hotplate temperature is above 50o(the LCD still work and “Hot”

flash).

If the fault is still remaining, please contact supplier.

The unit can be controlled from an external PC (using the dedicated software) via the RS232C serial interface fitted to the

unit. Data communication from laboratory device to computer is only possible on demand of the computer.

•The functions of the interface lines between laboratory device and automation system are selected from the specified

signals of the EIA-standard RS232C, corresponding with DIN66020 Part 1. The allotment of the bushing can be taken from

Figure 6.

•Transmission method: Asynchronous signal transmission in start-stop-operation.

•Mode of transmission: Fully Duplex. 1 start bit; 7 character bits; 1 parity bit [straight (even]); 1 stop bit.

•Transmission speed: 9600 bit/s.

•Start remote control knob LCD display “ Remote ”.

Figure 6. Connection and data communication

Note:

•Forbid to insert or remove the RS232C communication line when device is switched ON!

11. Remote control

FagronLab™ PRO-DMS

FagronLab™ PRO DMS – User Manual | 11

14. Associated standards and regulations

Construction in accordance with the following safety standards:

EN 61010-1

UL 3101-1

CAN/CSA C22.2(1010-1)

EN 61010-2-10

Construction in accordance with the following EMC standards:

EN 61326-1

Associated EU guidelines:

EMC-guidelines: 89/336/EWG

Instrument guidelines: 73/023/EWG

Note:

•Electronic device can not clean with cleanser.

•If you require maintenance service, the device must be cleaned in advance to avoid pollution, and be

sent back into original packaging.

•If the device is going to be out of use for a long time, please switch the device off and place it in a

stable, dry, room temperature and clean location.

13. Maintenance and cleaning

•Proper maintenance can keep the device working properly and lengthen its lifetime.

•Do not spray cleanser into the device when cleaning.

•Unplug the power cable when cleaning.

•Only use recommended cleansers to maximize the life of your FagronLab™PRO-DMS device.

•Before using other method for cleaning or decontamination, the user must ascertain according to the manufacturer that

this method will not harm the device. Wear the proper protective gloves during cleaning the device.

Substance Cleaning agent

Dyes Isopropyl alcohol

Construction materials Water containing tenside / Isopropyl alcohol

Cosmetics Water containing tenside / Isopropyl alcohol

Foodstus Water containing tenside

Fuels Water containing tenside

FagronLab™ PRO-DMS

FagronLab™ PRO DMS – User Manual | 12

15. Speciﬁcations

Speciﬁcations Measuraments

Voltage [VAC] 100-120/200-240

Frequency [Hz] 50/60

Power [W] *550 / 50

Stirring point position quantity 1

Max. stirring quantity (H2O) [l] 20

Max. magnetic bar [L×Ø, mm] 80×10

Motor type DC brushless motor

Max. power input of motor [W] 18

Max. power output of motor [W] 10

Speed range [rpm] 100-1500, increment: 10

Rotary speed display LCD

Plate material Stainless steel/Ceramic coated

Dimensions of workplate (mm) Ø 135

*Heating power [W] 500

*Temperature range [°C] RT-340, increment: 1

*Temperature display [°C] LCD

*Temperature display accuracy [°C] ±0.1

*The safe temperature of hotplate [°C] 360

*Temperature sensor in medium PT1000

*Control accuracy of heating temp with temp sensor [°C] ±0.2

*Residual heat warning 50°C

Device Dimensions [LxWxH, mm] 280×160×100

Weight [kg] 3

Permitted ambient temperature [°C] 5-40

Permitted relative humidity 80%

Protection class acc. to DIN 60529 IP42

RS232 interface Yes

FagronLab™ PRO-DMS

Notes

..............................................................................................................................................................................................................................

FagronLab™ PRO-DMS

Notes

..............................................................................................................................................................................................................................

Together

we create the future

of personalized medicine.

Fagron Hellas

12 km N.R. Trikala - Larisa

P.C. 42100, P.O. Box 32

Trikala, Greece

T +30 24310 836335

F +30 24310 83615

www.fagron.gr

PRODMSUM01

Fagron FagronLab PRO-DMS User manual

Popular Laboratory Equipment manuals by other brands
