Fairchild SMC/DO-214AB User manual

SMCJ5.0(C)A - SMCJ170(C)A
SMCJ5.0(C)A-SMCJ170(C)A, Rev. C
SMCJ5.0(C)A - SMCJ170(C)A
1500 Watt Transient Voltage Suppressors
Absolute Maximum Ratings* TA= 25°C unless otherwise noted
2001 Fairchild Semiconductor Corporation
Symbol Parameter Value Units
PPPM Peak Pulse Power Dissipation on 10/1000 µs waveform minimum 1500 W
IPPM Peak Pulse Current on 10/1000 µs waveform see table A
IFSM Non-repetitive Peak Forward Surge Current
superimposed on rated load (JEDEC method) (Note 1)
200 A
Tstg Storage Temperature Range -55 to +150 °C
TJOperating Junction Temperature -55 to +150 °C
Features
•Glass passivated junction.
•1500 W Peak Pulse Power capability
on 10/1000 µs waveform.
•Excellent clamping capability.
•Low incremental surge resistance.
•Fast response time; typically less
than 1.0 ps from 0 volts to BV for
unidirectional and 5.0 ns for
bidirectional.
•Typical IRless than 1.0 µAabove 10V.
•UL certified, UL #E210467.
DEVICES FOR BIPOLARAPPLICATIONS
- Bidirectional types use CA suffix.
- Electrical Characteristics apply in both directions.
*Theseratingsarelimitingvalues abovewhich the serviceabilityof any semiconductordevice may beimpaired.
Note 1: Measuredon8.3ms singlehalf-sine wave orequivalent squarewave; Duty cycle= 4pulses per minutemaximum.
SMC/DO-214AB
COLOR BAND DENOTES CATHODE
ON UNIDIRECTIONAL DEVICES ONLY.
NO COLOR BAND ON BIDIRECTIONAL
DEVICES.

SMCJ5.0(C)A - SMCJ170(C)A
SMCJ5.0(C)A-SMCJ170(C)A, Rev. C
Transient Voltage Supressors
(continued)
Electrical Characteristics TA=25°C unless otherwise noted
Uni-directional
Bi-directional (C)
Device
Part
Marking* Reverse Stand-off Voltage
VRWM (V)
Breakdown Voltage
VBR (V)
min max
Test
Current
IT (mA)
Max Clamping
Voltage @IPPM
VC (V)
Max Peak Pulse
Surge Current
IPPM (A)
Max Reverse
Leakage VRWM
IR (uA)**
SMCJ5.0(C)A GDE 5.0 6.40 7.0 10 9.2 163.0 1000
SMCJ6.0(C)A GDG 6.0 6.67 7.37 10 10.3 145.6 1000
SMCJ6.5(C)A GDK(BDK) 6.5 7.22 7.98 10 11.2 133.9 500
SMCJ7.0(C)A GDM 7.0 7.78 8.60 10 12.0 125.0 200
SMCJ7.5(C)A GDP(BDP) 7.5 8.33 9.21 1 12.9 116.3 100
SMCJ8.0(C)A GDR(BDR) 8.0 8.89 9.83 1 13.6 110.3 50
SMCJ8.5(C)A GDT(BDT) 8.5 9.44 10.4 1 14.4 104.2 20
SMCJ9.0(C)A GDV(BDV) 9.0 10.0 11.1 1 15.4 97.4 10
SMCJ10(C)A GDX(BDX) 10 11.1 12.3 1 17.0 88.2 5
SMCJ11(C)A GDZ 11 12.2 13.5 1 18.2 82.4 5
SMCJ12(C)A GEE(BEE) 12 13.3 14.7 1 19.9 75.3 5
SMCJ13(C)A GEG 13 14.4 15.9 1 21.5 69.8 5
SMCJ14(C)A GEK(BEK) 14 15.6 17.2 1 23.2 64.7 5
SMCJ15(C)A GEM(BEM) 15 16.7 18.5 1 24.4 61.5 5
SMCJ16(C)A GEP 16 17.8 19.7 1 26.0 57.7 5
SMCJ17(C)A GER 17 18.9 20.9 1 27.6 54.3 5
SMCJ18(C)A GET(BET) 18 20.0 22.1 1 29.2 51.4 5
SMCJ20(C)A GEV(BEV) 20 22.2 24.5 1 32.4 46.3 5
SMCJ22(C)A GEX(BEX) 22 24.4 26.9 1 35.5 42.3 5
SMCJ24(C)A GEZ(BEZ) 24 26.7 29.5 1 38.9 38.6 5
SMCJ26(C)A GFE(BFE) 26 28.9 31.9 1 42.1 35.6 5
SMCJ28(C)A GFG(BFG) 28 31.1 34.4 1 45.4 33.0 5
SMCJ30(C)A GFK(BFK) 30 33.3 36.8 1 48.4 31.0 5
SMCJ33(C)A GFM(BFM) 33 36.7 40.6 1 53.3 28.1 5
SMCJ36(C)A GFP(BFP) 36 40.0 44.2 1 58.1 25.8 5
SMCJ40(C)A GFR(BFR) 40 44.4 49.1 1 64.5 23.3 5
SMCJ43(C)A GFT(BFT) 43 47.8 52.8 1 69.4 21.6 5
SMCJ45(C)A GFV 45 50.0 55.3 1 72.7 20.6 5
SMCJ48(C)A GFX 48 53.3 58.9 1 77.4 19.4 5
SMCJ51(C)A GFZ 51 56.7 62.7 1 82.4 18.2 5
SMCJ54(C)A GGE 54 60.0 66.3 1 87.1 17.2 5
SMCJ58(C)A GGG 58 64.4 71.2 1 93.6 16.0 5
SMCJ60(C)A GGK 60 66.7 73.7 1 96.8 15.5 5
SMCJ64(C)A GGM 64 71.1 78.6 1 103.0 14.6 5
SMCJ70(C)A GGP 70 77.8 86.0 1 113.0 13.3 5
SMCJ75(C)A GGR 75 83.3 92.1 1 121.0 12.4 5
SMCJ78(C)A GGT 78 86.7 95.8 1 126.0 11.9 5
SMCJ85(C)A GGV 85 94.4 104.0 1 137.0 10.9 5
SMCJ90(C)A GGX 90 100.0 111.1 1 146.0 10.3 5
SMCJ100(C)A GGZ 100 111.0 123.0 1 162.0 9.3 5
SMCJ110(C)A GHE 110 122.0 135.0 1 177.0 8.5 5
SMCJ120(C)A GHG 120 133.0 147.0 1 193.0 7.8 5
SMCJ130(C)A GHK 130 144.0 159.0 1 209.0 7.2 5
SMCJ150(C)A GHM 150 167.0 185.0 1 243.0 6.2 5
SMCJ160(C)A GHP 160 178.0 197.0 1 259.0 5.8 5
SMCJ170(C)A GHR 170 189.0 209.0 1 275.0 5.5 5
* Color band denotes cathode on unidirectional devices only. No color band on bidirectional
devices.
** For bidirectional parts with VRWM<10V, the IRmax limit is doubled.

SMCJ5.0(C)A - SMCJ170(C)A
SMCJ5.0(C)A-SMCJ170(C)A, Rev. C
Transient Voltage Supressors
(continued)

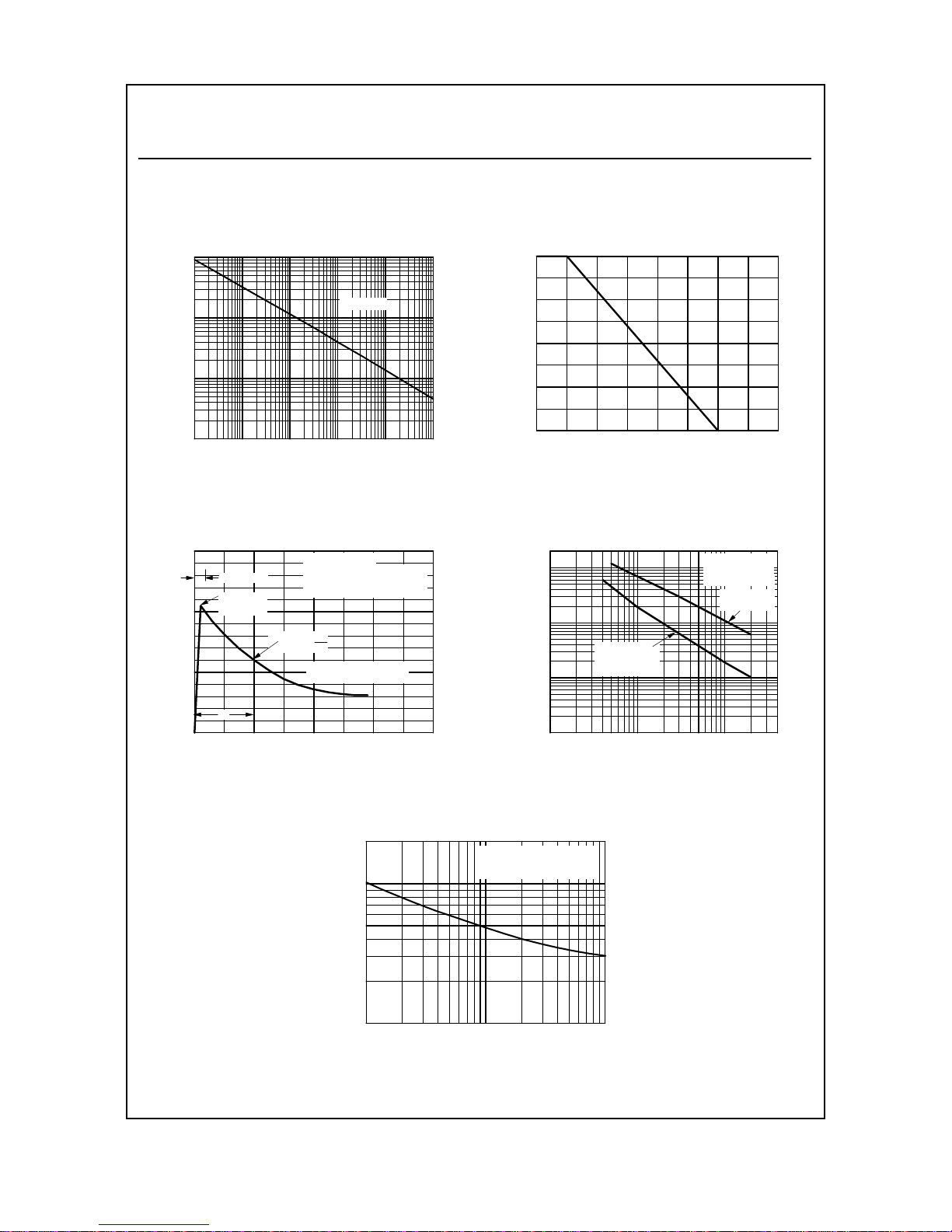

Typical Characteristics
Pulse Derating Curve
0 25 50 75 100 125 150 175 200
0
25
50
75
100
AMBIENT TEMPERATURE ( C)
PULSE POWER (%)
º
Non-Repetitive Surge Current
12 51020 50100
10
20
50
100
200
NUMBER OF CYCLES AT 60Hz
FORWARD SURGE CURRENT (A)
T = T max
8.3ms Single Half Sine-Wave
JEDEC Method
A A
Peak Pulse Power Rating Curve
0.0001 0.001 0.01 0.1 1 10
0.1
1
10
100
PULSE WIDTH (ms)
PULSE POWER (kW)
T = 25 C
º
A
Junction Capacitance
1 5 10 50 100 200 400
10
100
1000
10000
20000
REVERSE VOLTAGE (V)
CAPACITANCE (pF)
T = 25 C
º
A
f = 1.0 MHz
Visg = 50m Vp-p
Measured at
Zero Bias
Measured at
Stand-Off
Voltage (V mw)
Pulse Waveform
01234
0
50
100
150
TIME (ms)
PEAK PULSE CURRENT (%)
T = 25 C
º
A
Pulse Width (td) is Defined
as the Point Where the Peak
Current Decays to 50% of Ipp
10/1000µ
µµ
µsec Waveform
as Definedby R.E.A.
tf = 10µ
µµ
µsec
e-kt
Peak Value
Ippm
Half Value-Ipp
2
td

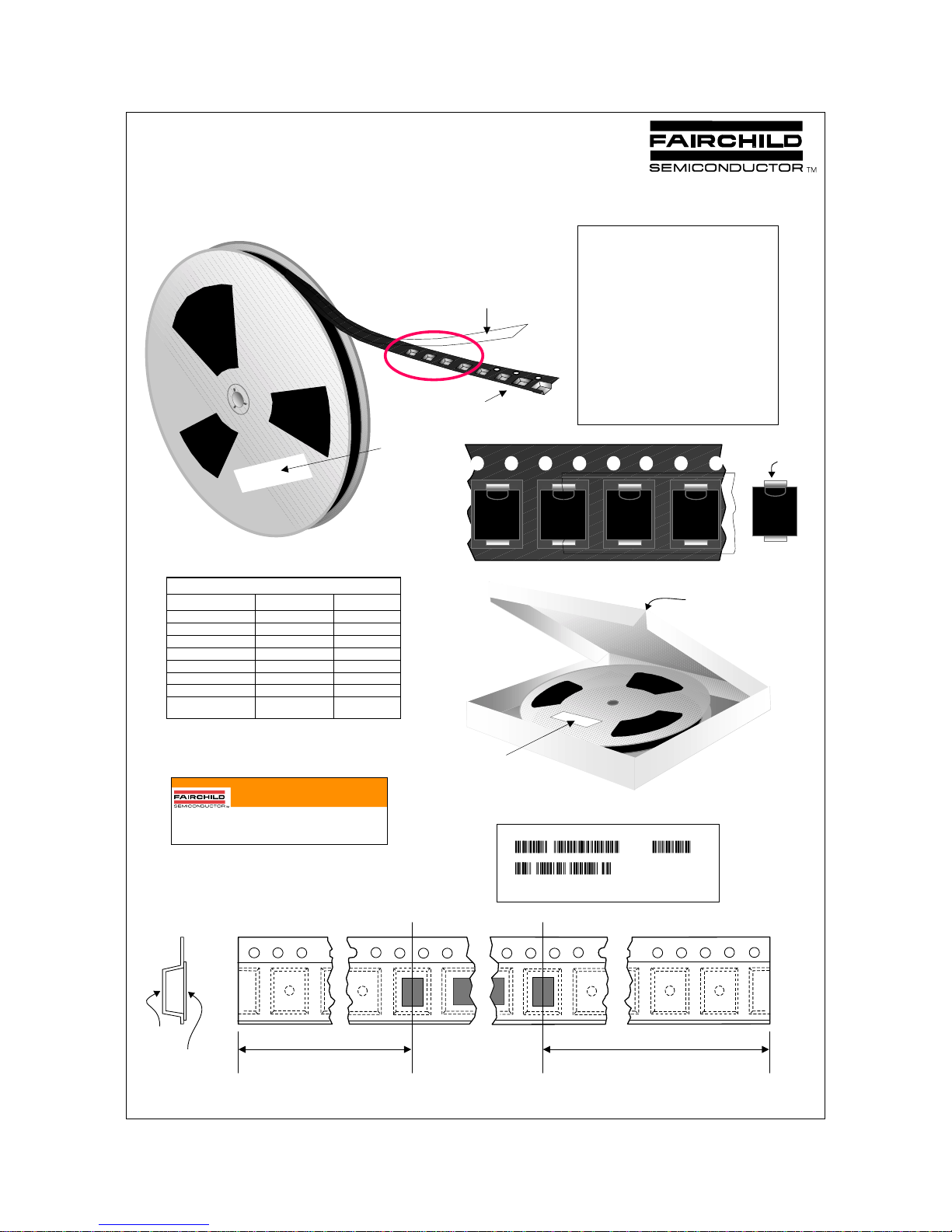

DO-214AB(SMC) Tape and Reel Data
July2000,Rev.A©2000Fairchild Semiconductor International
Configuration: Figure 1.0
Components Leader Tape
390mm minimum
Trailer Tape
160mm minimum or
Configuration: Figure 2.0
Cover Tape
Carrier Tape
F63TNR Label sample
Cathode
F
924
B34
F
924
B34
F
924
B34
F
924
B34
F
924
B34
Human Readable Label sample Human readable/barcode Label
336mm x 336mm x 38mm
Intermediate container for 13" reel option
Human
Readable/
Barcode
Label
Antistatic Cover Tape
Embossed Carrier Tape
Human readable label
Under package
code P5
TNR
13
3,000
336x336x38
6,000
0.210
1.130
Barcode label
Under package
code MA
TNR
13
3,000
336X336X38
6,000
0.210
1.130
Human
Readable/Barcode
Label (on top)
Note/Comments
Packaging Option
Packaging type
Reel Size (inch diameter)
Qty per Reel/Tube/Bag
Box Dimension (mm)
Max qty per Box
Weight per unit (gm)
Weight per Reel (kg)
DO-214AB(SMC) Packaging
DO-214AB(SMC) Tape Leader and Trailer
DO-214AB(SMC) Packaging Information
Packaging Description:
DO-214AB(SMC) parts are shipped in tape. The carrier
tape is made from a dissipative (carbon filled)
polycarbonate resin. Alternate carrier tape is made of anti-
static plastic. The cover tape is a multilayer film (Heat
Activated Adhesive in nature) primarily composed of
polyester film, adhesive layer, sealant, and anti-static
sprayed agent. These reeled parts in standard option are
shipped with 7,500 units per 13" or 330cm diameter reel.
The reel comes in plastic or carton which is made of
polystyrene plastic (anti-static coated) and thick white
paper respectively. Further information is described in the
Packaging Information table.
These full reels are individually labeled and placed inside
a bleach box (illustrated in figure 1.0) made of recyclable
carton paper with a Fairchild logo printing. One box
contains two reels maximum. Certain number of these
boxes are placed inside shipping box which comes in
different sizes depending on the number of parts shipped.
DO-214AB(SMC) unit orientation
LOT: CBVK741B019
FSID: MBRS340
D/C1: T0012 QTY1: SPEC REV:
SPEC:
QTY: 3000
D/C2: QTY2: CPN:
FAIRCHILD SEMICONDUCTOR INTERNATIONAL
(F63TNR)3.2
CAUTION: This container provides protection for static sensitive devices. Handle devices with caution upon removal.
MADE IN ONE OR MORE OF THE FOLLOWING COUNTRIES: PHILIPPINES (MACTAN,
EXPORT PROCESSING ZONE), MALAYSIA, CHINA, S. KOREA,TAIWAN,THAILAND,
SINGAPORE AND JAPAN.
ANTI-STATIC
MBRS340
I.D.Qty
D/C Lot
T0012 CBVK741B019
3000

July2000,Rev. A
DO-214AB(SMC) Tape and Reel Data, continued
Dimensions are inmillimeter
Pkgtype
A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc
6.00
+/-0.15 8.25 +/-0.20 16.0 +/-0.3 1.55 +/-0.05 1.125 +/-0.125 1.75 +/-0.10 10.25 min 7.5 +/-0.05 8.0 +/-0.1 4.0 +/-0.1 2.4 +/-0.30 0.40 +/-0.10 13.0 +/-0.3 0.06 +/-0.02
P1
A0 D1
P0
F
W
E1
D0
E2
B0
Tc
Wc
K0
T
Dimensions are in inches and millimeters
Tape Size Reel
Option DimA DimB DimC DimD DimN Dim W1 DimW2
12mm 13" Dia 13.0
330 0.059 1.5 512 +0.020/-0.008 13 +0.5/-0.2 0.795 20.2 1.97 50 min 0.646 +0.078/-0.000 16.4 +2/-0 0.724 18.4
See detail AA
Dim A
max
13" Diameter Option W2 max Measured at Hub
W1Measured at Hub
Dim N Dim D
min
Dim C
B Min
DETAIL AA
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
20 deg maximum component rotation
0.5mm
maximum
0.5mm
maximum
Sketch C (Top View)
Component lateral movement
Typical
component
cavity
center line
20 deg maximum
Typical
component
center line
B0
A0
Sketch B (Top View)
Component Rotation
Sketch A (Side or Front Sectional View)
Component Rotation
User Direction of Feed
Configuration: Figure 3.0
DO-214AB(SMC)
(12mm)
DO-214AB(SMC) Embossed Carrier Tape
DO-214AB(SMC) Reel Configuration:
Figure 4.0

DO-214AB(SMC) (FS PKG Code P7)
DO-214AB(SMC) Package Dimensions
August 1999, Rev. A
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 0.21
©2000Fairchild Semiconductor International
21
0.320 (8.128)
0.305 (7.747)
0.280 (7.112)
0.260 (6.604)
0.103 (2.616)
0.079 (2.007)
0.245 (6.223)
0.220 (5.588)
0.008 (0.203)
0.002 (0.51)
0.012 (0.305)
0.006 (0.152)
0.060 (1.524)
0.030 (0.762)
0.128 (3.25)
0.108 (2.743)
+
6.18
5.98
3.27
3.07
4.69
4.49
7.67
7.47
Minimum Recommended
Land Pattern

TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICESORSYSTEMSWITHOUTTHEEXPRESSWRITTENAPPROVALOFFAIRCHILDSEMICONDUCTORCORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCTSTATUSDEFINITIONS
Definition of Terms
Datasheet Identification Product Status Definition
Advance Information
Preliminary
No Identification Needed
Obsolete
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Formative or
In Design
First Production
Full Production
Not In Production
DISCLAIMER
FAIRCHILDSEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUTFURTHER
NOTICETOANYPRODUCTS HEREIN TOIMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOESNOTASSUMEANYLIABILITYARISING OUTOF THEAPPLICATION OR USEOFANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES ITCONVEYANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
PACMAN™
POP™
PowerTrench
QFET™
QS™
QTOptoelectronics™
QuietSeries™
SILENTSWITCHER
SMARTSTART™
Star*Power™
Stealth™
FAST
FASTr™
GlobalOptoisolator™
GTO™
HiSeC™
ISOPLANAR™
LittleFET™
MicroFET™
MICROWIRE™
OPTOLOGIC™
OPTOPLANAR™
Rev. H1

ACEx™
Bottomless™
CoolFET™
CROSSVOLT™
DenseTrench™
DOME™
EcoSPARK™
E2CMOSTM
EnSignaTM
FACT™
FACTQuietSeries™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic™
UHC™
UltraFET
VCX™



