Gemmy Fire & Ice Giant Animated Reaper User manual

ANIMATED FIGURE INSTRUCTIONS
229689
Congratulations! You are the proud owner of a Fire & IceTM Giant Animated Reaper.
Please read the directions carefully before use.
Please keep these instructions for future reference because they contain important information.
PACKAGE CONTENTS
A Base 1 piece
B Poles 4 pieces
C Poles 2 pieces
D Poles 2 pieces
E Poles 2 pieces
F Triangular Support 1 piece
G Breast Support 1 piece
H Shoulder Support 1 piece
I Wais 1 piece
J Head 1 piece
K Arms 2 pieces
L Right Hand 1 piece
M Left Hand 1 piece
N Yard Stakes 1 piece
O Coat 1 piece
Q Try Me Button 1 piece
R Adaptor 1 piece
Input: 100--240V 50/60Hz 0.5A Max
Output: 5.9V 1.5A
AB C D E F G
M N O
H I
J K L
x1 x1
x1 x2 x1 x1 x1 x1
x4 x2 x2 x2 x1 x1 x1
Q
x1
R
x1
Try me button
UL Power Adapter Spec
Input:100-240V-50/60Hz
Output:5.9V 2A
pg.1

PREPARATION
Estimated assembly time: 15-20 minutes.
Before beginning assembly, remove all parts from carton. Compare parts list and diagram above.
If any part is missing or damaged, do not attempt to assemble or use the product.
ASSEMBLY INSTRUCTIONS
1. Set base (A) and pieces on a clear, flat surface. Places poles (C) on the top in the holes of the base (A), and
make sure the clips on the top of the poles face towards the outsides of the base (A). Places poles(D) on the top
in the holes of the poles (C), and make sure the clips on the top of the poles face towards the top of the base
(A), then connect the cord from the poles (C) to the cord from the poles (D). See illustration 1.
2. Places poles (E) on the top in the holes of the poles (C), and make sure the clips on the top of the poles face
towards the top of the base (A), then connect the cord from the poles (D) to the cord from the poles (E). See
illustration 2.

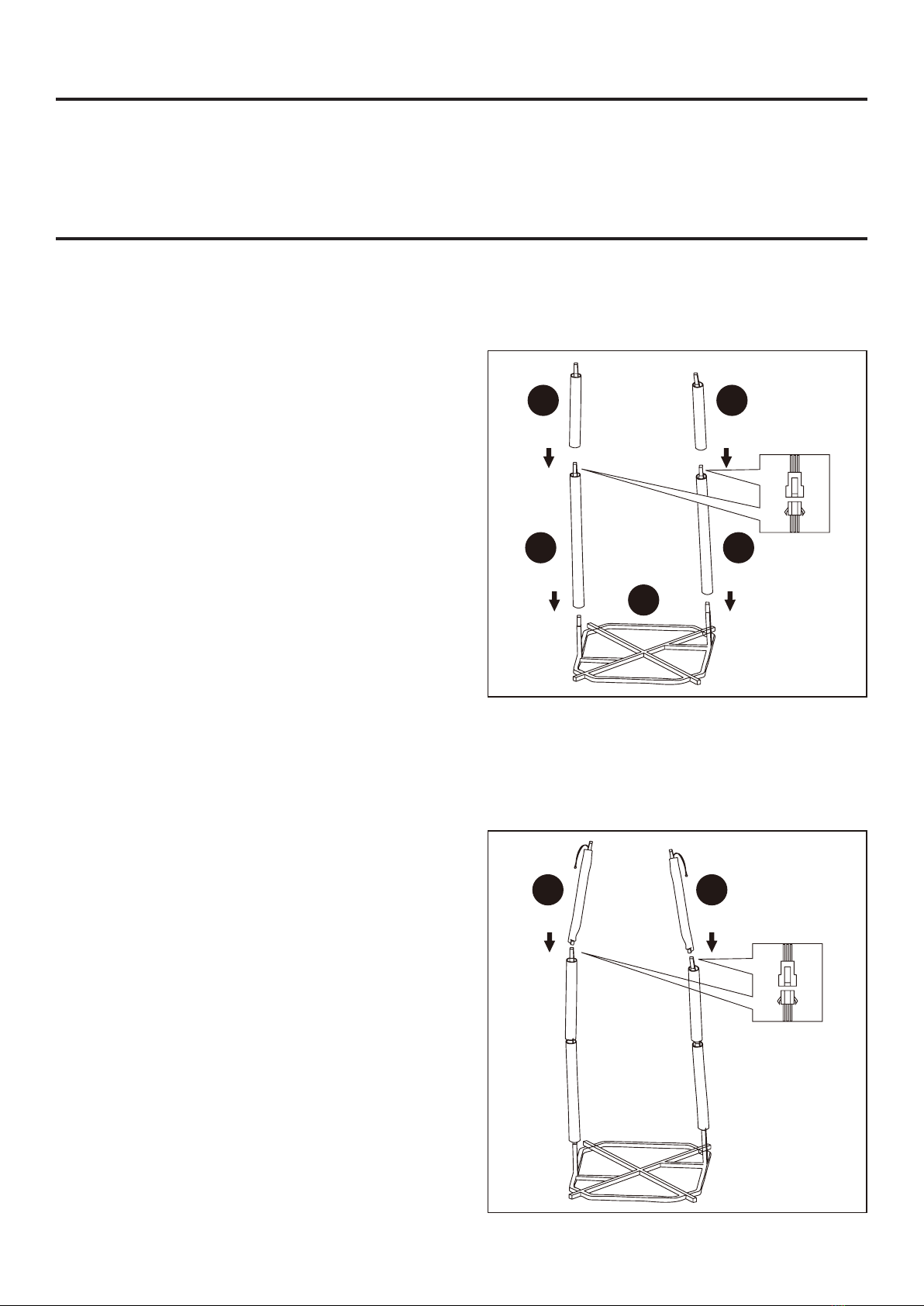

A
C C
D D
E E
Illustration 1
Illustration 2
pg.2

3. Place the triangular support (F) on the top of the poles, and make sure the clips on the top of the poles face
towards the outsides of the base (A), then connect the cord from the triangular support (F) to the cord from the
poles (E). Place waist (I) on the top of the triangular support (F). Then untie the ropes. At the same time, put the
end of the adapter (the other end is fixed on the back of triangle support) and the end of the TRY ME button
through the trousers (the other end is connected to the back of triangle support). Places poles (E) on the top in
the holes of the poles (D), and make sure the clips on the top of the poles face towards the top of the base (A),
then connect the cord from the poles (D) to the cord from the poles (E). Then put the assembled parts in laying
position and the front of the parts should face towards the outsides. See illustration 3.
4. Take out the shoulder support (H). Then connect the shoulder support(H) to the breast support (G), and make
sure the clips on the top of the poles face towards the outsides of the base (A), then connect the cord from the
shoulder support (H) to the cord from the breast support (G). See illustration 4.

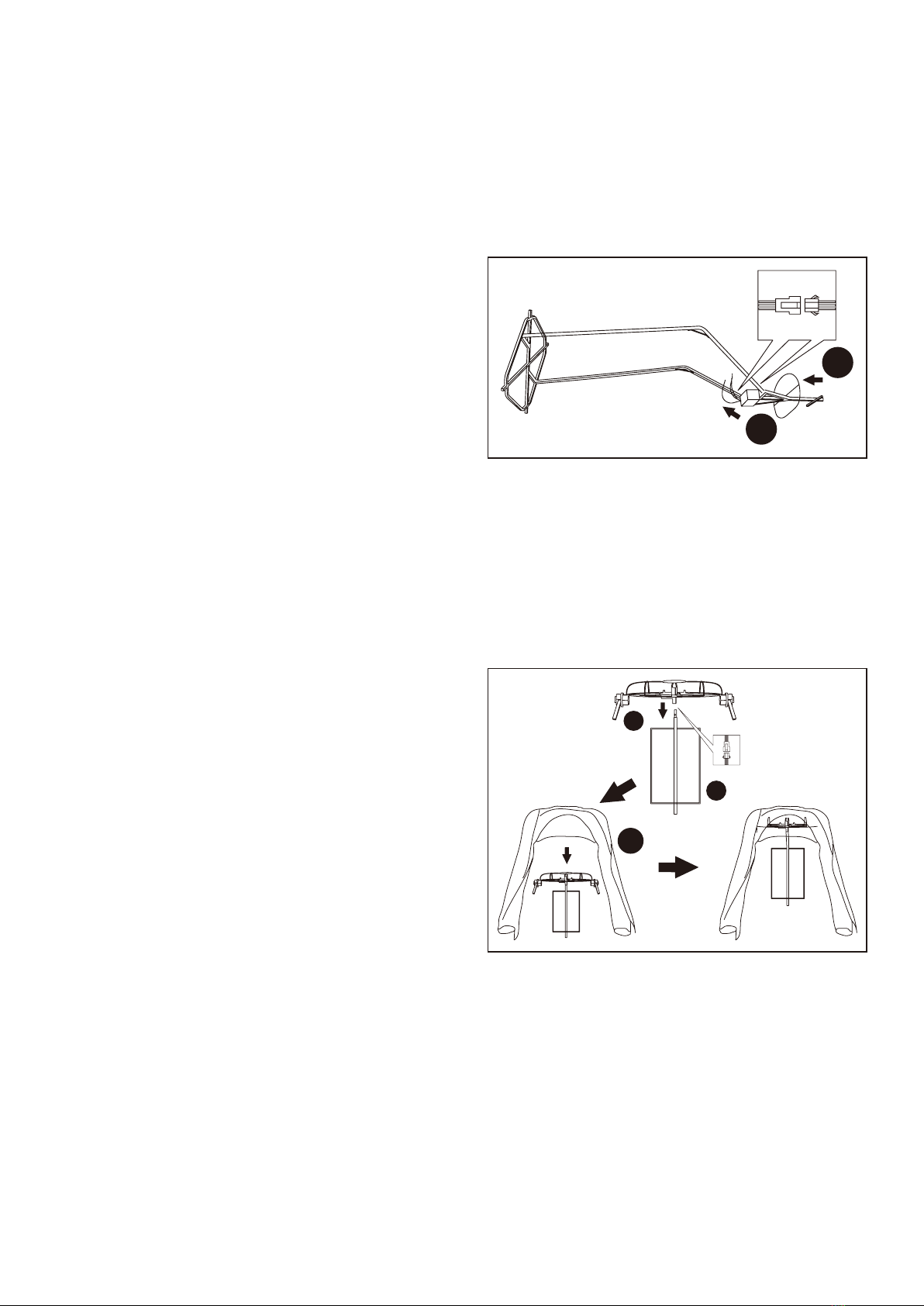

F
I
Illustration 3
Illustration 4
O
G
H
pg.2 pg.3

5. Connect the assembled torso to the breast support (G), and make sure the clips on the top of the poles face
towards the outsides of the base (A), then connect the cord from the shoulder support (H) to the cord from the
breast support (G). See illustration 5.
6. Place arms (K) on the sides of the shoulder support (H), and make sure the clips on the top of the poles face
towards the outsides of the base (A), then connect the cord from the arms (K) to the cord from the shoulder
support (H). See illustration 6.
7. Attach the left hand (M) on the left arm and the right hand (L) on the right arm, then secure the sleeves on the
sides of the arms with the hook-and loop fasteners. Adjust as desired. See illustration 7.

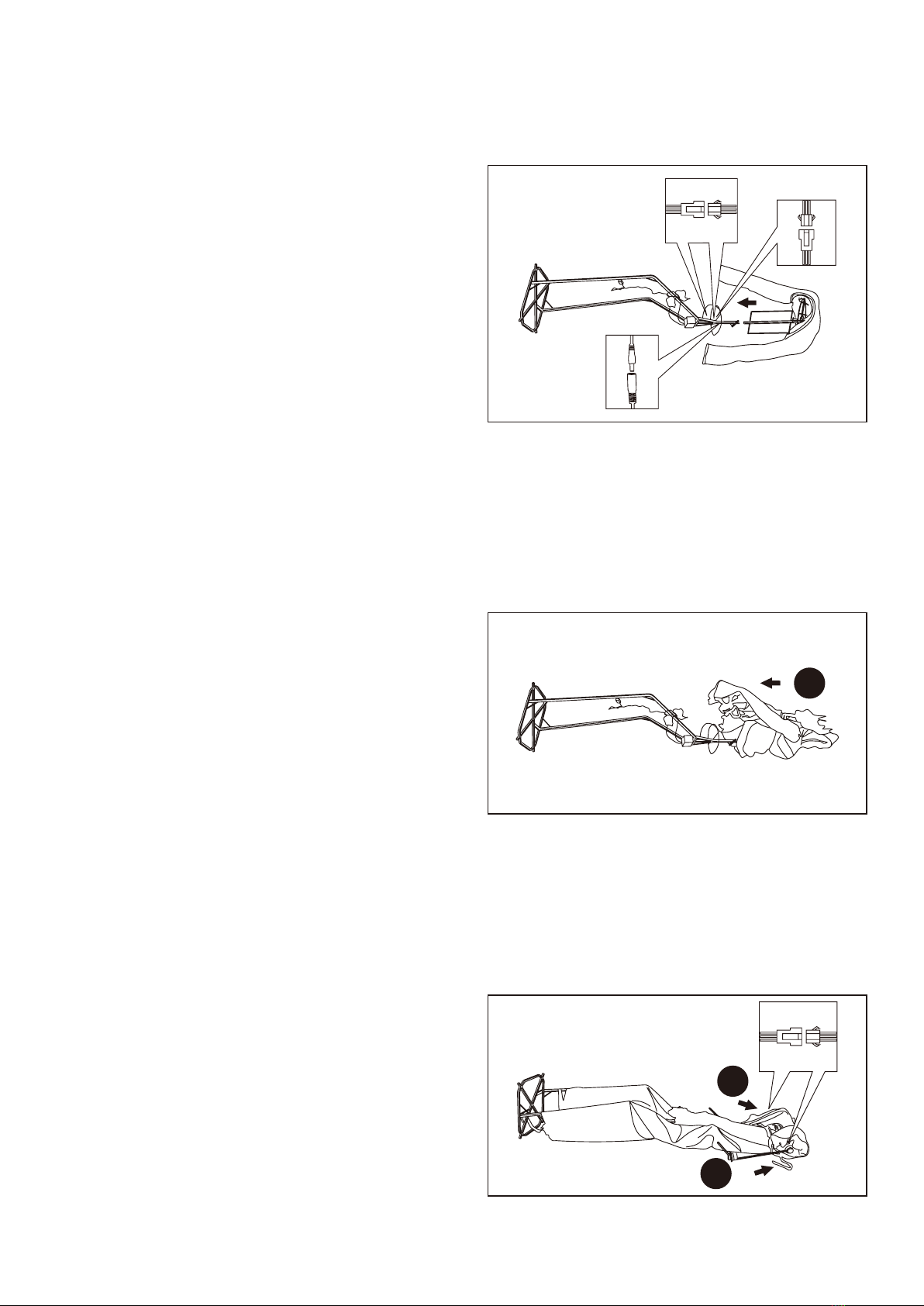

K
K
Illustration 7
O
Illustration 6
Illustration 5
pg.4

8. Attach the head (J) as shown, making sure it clicks securely into place. Then connect the cord from the
shoulder support (H) to the cord from the head (J). Adjust as desired. See illustration 8.
9. The upper body of the 12 foot skeleton needs to be lifted while in its laying position. More than 2 people
are strongly recommended for this step. See illustration 9.
10. There are two ropes from the triangular support (F) that will secure the item firmly to the ground using helix
yard stakes, and secure the base to the ground using yard stakes. Connect poles (B) to the side of the base (A),
and make sure the clips on the top of the poles face towards the top of the base (A). See illustration 10.
11. Unplug adapter when not in use.
L
M
J
B
Q
R
Illustration 8
Illustration 9
Illustration 10
pg.4 pg.5

FIGURE FUNCTIONALITY
(Sensor) - This switch mode will activate sound animation and lighting when sound.
(OFF/Try Me) - This switch mode allows the item to be activated only if triggered by using
a Try Me button. The item will operate for one audio cycle with each Try Me activation.
(Timer) - This switch mode will be in the timer setting, the built-in timer function will continually
operate for 6 hours ON and 18 hours OFF, In 6 hours ON, lighting and movement will
work per 15 sec on and off automatically.
Raise or lower the volume using the volume control turn dial; turn all the way down
to turn the volume off.
STORAGE
Do not discard box as it should be used for storage. Return all parts to the original
packaging. Store in a cool, dry location.
TROUBLE SHOOTING
If you have assembled the Life-Size Figure according to the instructions, but the head does
not function properly, the problem could be:
• The item is not securely plugged into a functioning wall outlet or extension cord
• The outlet or extension cord the unit is plugged into has no power
• The head may not be firmly attached; remove head and then reattach
FREQUENTLY ASKED QUESTIONS (FAQ’s)
1. I switched Figure on and it does not work. What can I do?
• First, ensure that the unit is plugged in. Next, ensure the toggle switch is in the desired position. Third, ensure
the outlet your unit is plugged into has power. Last, disconnect and reconnect head and check all adapter
connections.
2. I see a hole on the back of body. What is it for?
• This can simply be ignored. This was designed for “In-Store” Demonstration, allowing the retailer to plug in
a ‘TRY-ME’ button.
SAFETY WARNING
Remove all plastic fasteners and tags. These are part of the packaging and should be discarded.For indoor use
only. This item is not a toy and should be used for decorative purposes only.
WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This
equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the distance between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
THESE INSTRUCTIONS APPLY TO THE FOLLOWING ITEM NUMBER
229689
Visit WWW.GEMMY.COM for more information.
©2022 GEMMY INDUSTRIES CORP.
117 WRANGLER DRIVE. SUITE 100
COPPELL, TX 75019 U.S.A.
1-877-250-9032
MADE IN CHINA
PRINTED IN CHINA
