Faithtech FT68200 Series User manual

Faithtech
Ultra-high-power Electronic Load
User’s Manual
( FT68200 Series )
©Copyright Faithtech
Version V2.0
2021-06

Faithtech FT68200 Operation Manual
I
Preface
Dear Sirs,
Thank you for purchasing Faithtech FT68200 Series ultra-high-power electronic loads. This manual
contains detailed information about FT68200 Series’ installation, operation, and specifications, etc..
Please read this manual carefully for using this product safely and correctly, especially safety
precautions.
Please keep this manual properly for future use.
Notice
All rights are reserved by Faithtech. This manual is only for reference and is subject to change
without notice.
Faithtech shall not be held liable for the errors that may be contained in this manual or the damage
caused by furnishing, execution or use of this manual.
Warranty Services
Faithtech promises that specifications and features of FT68200 Series Loads have completely met all
technical indexes claimed in this manual. We strictly check raw materials and manufacturing
technology to ensure the stability and credulity of products.
From the date of purchase warranty, within the one-year warranty period, Faithtech will provide free
repair for all faults in the normal usage and maintenance of the product. The user need prepay
one-way freight for sending the product to the service department. The return freight will be paid
by Faithtech. If products are returned from other countries for maintenance service, then the user
should pay all freight, duties and other taxes.
Warranty Limitation
The warranty is only limited to the electronic load host (excluding fuses). Faithtech will not provide
free repair if the product is damaged due to misuse, negligence, unauthorized modifications,
abnormal application environment or force majeure, instead Faithtech shall provide estimated
maintenance cost before the repair.
This warranty is in lieu of all other warranties. Faithtech does not make any other warranties,
expressed or implied, including guarantees of merchantability, reasonableness and applicability of
certain specific applications, which might arise in the contract, civil negligence or others.
Faithtech assumes no responsibility for its product being used in a hazardous or dangerous manner
either alone or in conjunction with other equipment. Faithtech assumes no liability for any special,
incidental or indirect damages.

Faithtech FT68200 Operation Manual
II
Safety Abstract
Please observe safety instructions strictly in the process of operating and repairing the power
supply. Not observing safety precautions or warnings in this manual will probably weaken
protective functions provided by the power supply, or even cause more severe consequences.
Faithtech will not assume any liability for damages if the user does not observe those
safety precautions.
Important Safety Instructions
◆The AC input of the load must be a three-core wire, and ensure reliable grounding,
otherwise it may cause injury to or death of personnel and other potential electric shock
hazards.
◆Operators are not allowed to open the shell of the load. Non-professionals are not allowed
to repair or adjust. Disconnect the AC input before moving electronic load.
◆Ensure the correct fuse has been installed before power on the load.
◆To avoid load damage or personnel injury, please do not use it in flammable or explosive
environment.
◆To ensure the safety of the electronic load, please do not install replacement parts or
perform any unauthorized modification by yourself.
◆To avoid fire or permanent damage, please ensure that the load AC INPUT voltage does not
exceed 50% more than the rated value.
Safety Symbols

Faithtech FT68200 Operation Manual
III
Version Revision History
Date
Version
Amendment
2020-6
1.0
Initial version
2020-9
1.01
Add functions
2020-12
1.02
Adjust overpower loading
2021-03
1.03
Dimension revision for 36kW or above
2021-05
1.04
Add appendix B
2021-06
2.00
Adjust battery inner resistance function, CR range

Faithtech FT68200 Operation Manual
IV
Table of Contents
1. Overview.......................................................................................................................................1
1.1. Introduction........................................................................................................................1
1.2. Features...............................................................................................................................1
1.3. Dimension...........................................................................................................................2
1.3.1. 4U-6kW.................................................................................................................... 2
1.3.2. 7U-8kW/10kW/12kW.............................................................................................3
1.3.3. 11U-14kW/16kW/18kW.........................................................................................4
1.3.4. 14U-20kW/22kW/24kW.........................................................................................5

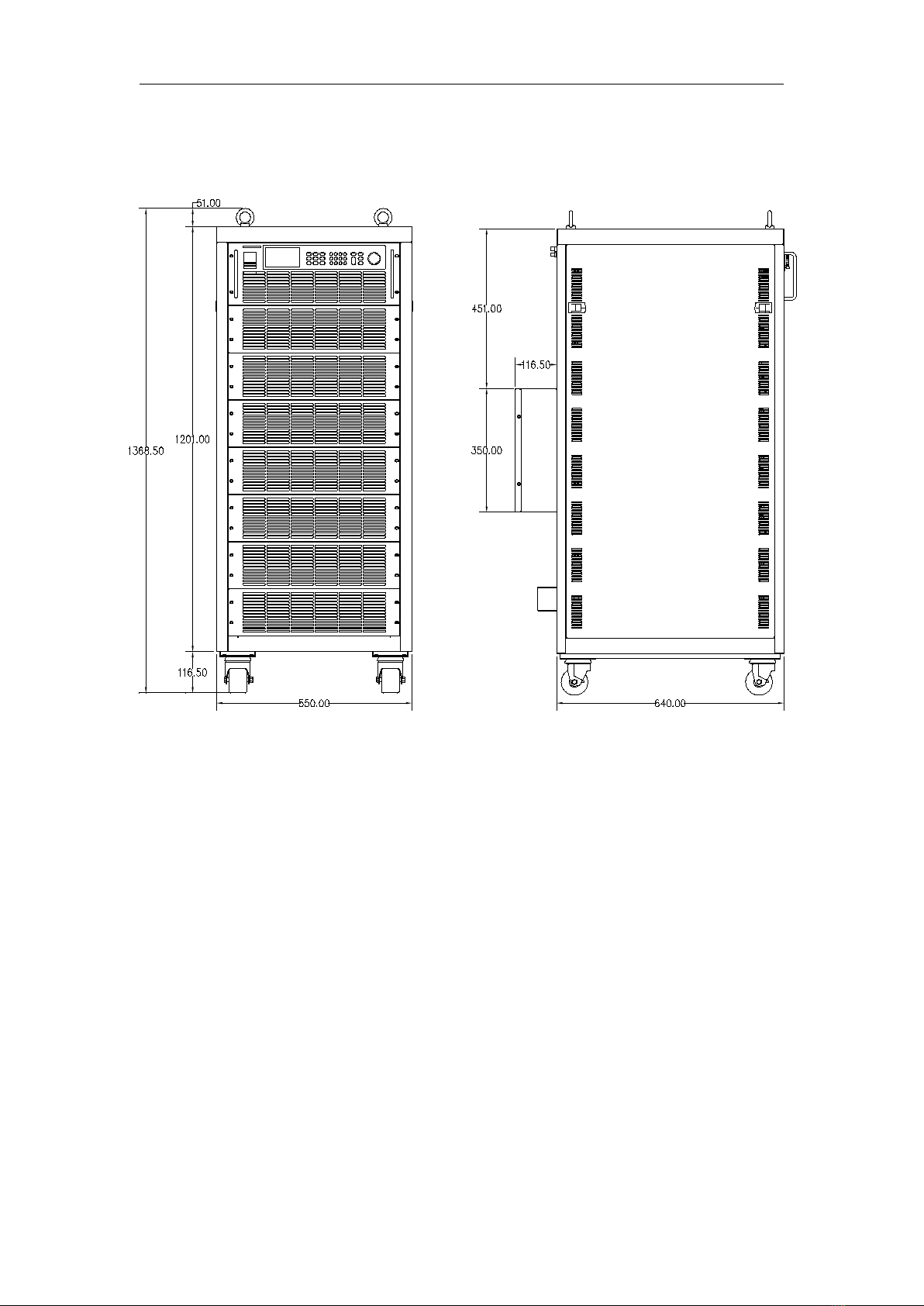

1.3.5. 20U-30kW/36kW.................................................................................................... 6

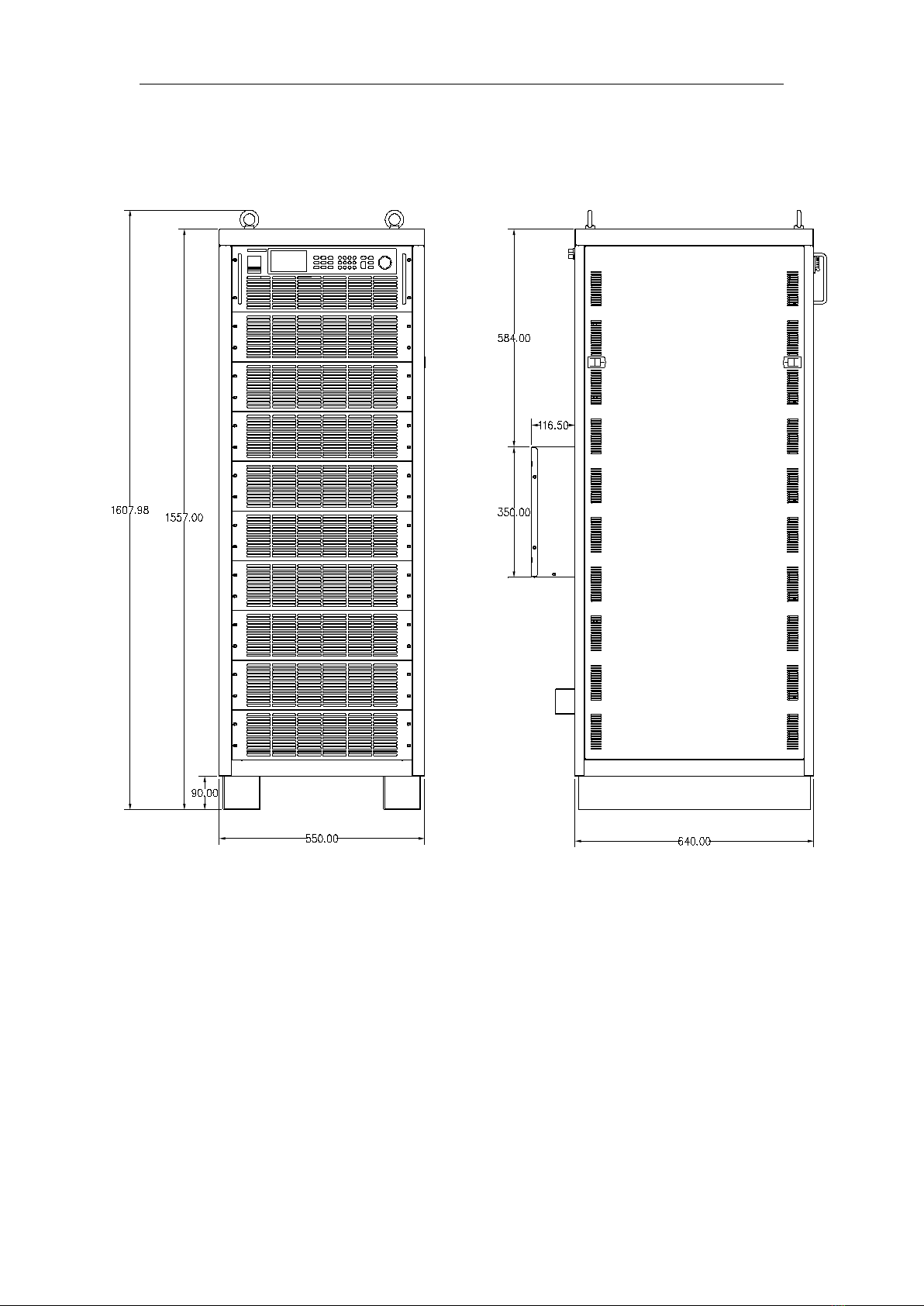

1.3.6. 26U-42kW/48kW.................................................................................................... 7
1.3.7. 32U-54kW/60kW.................................................................................................... 8
1.4. Specification....................................................................................................................... 9
1.4.1. Performance Specification (6kW)......................................................................... 9
1.4.2. Performance Specification (8kW).......................................................................10
1.4.3. Performance Specification (10kW).....................................................................11
1.4.4. Performance Specification (12kW).....................................................................12
1.4.5. Performance Specification (18kW).....................................................................13
1.4.6. Performance Specification (24kW).....................................................................14
1.4.7. Performance Specification (30kW).....................................................................15
1.4.8. Performance Specification (36kW).....................................................................16
1.4.9. Performance Specification (42kW).....................................................................17
1.4.10. Performance Specification (48kW)...................................................................18
1.4.11. Performance Specification (54kW)...................................................................19
1.4.12. Performance Specification (60kW)...................................................................20
2. Quick Guide................................................................................................................................21
2.1. Examine Instrument.........................................................................................................21
2.2. Front Panel........................................................................................................................22
2.3. Keyboard...........................................................................................................................22
2.4. Screen Display.................................................................................................................. 24
2.5. Rear Panel......................................................................................................................... 25
2.6. Installation........................................................................................................................ 26
2.6.1. Preparation before connecting AC Input..........................................................26
2.6.2. AC Input................................................................................................................. 27
2.6.3. Self-check at power on........................................................................................27
2.7. Connection with DUT (Device Under Test).................................................................. 27
2.7.1. Input connection...................................................................................................27
2.7.2. V-sense connection..............................................................................................28
2.7.3. Prallel Connection.................................................................................................29
3. Function Description............................................................................................................... 30
3.1. Local & Remote Operation Mode.................................................................................30
3.2. Static Test..........................................................................................................................30
3.2.1. Constant Current Mode.......................................................................................31
3.2.2. Constant Voltage Mode...................................................................................... 32
3.2.3. Constant Resistance Mode..................................................................................34

Faithtech FT68200 Operation Manual
V
3.2.4. Constant Power Mode......................................................................................... 35
3.3. Dynamic Test.................................................................................................................... 36
3.4. Slew rate and minimum conversion time.................................................................... 38
3.5. Input Control.................................................................................................................... 39
3.6. Short circuit simulation...................................................................................................39
3.7. System Menu configuration...........................................................................................40
3.8. Set Menu Configuration................................................................................................. 41
3.9. Trigger............................................................................................................................... 43
3.10. Von & Voff......................................................................................................................43
3.11. Current Limit...................................................................................................................44
3.12. Voltage remote sense...................................................................................................45
3.13. Current Monitoring....................................................................................................... 45
3.14. Analog Programming....................................................................................................46
3.15. Instantaneous Two Times Overpower Loading.........................................................47
3.16. Protection....................................................................................................................... 48
3.17. Sequence Test................................................................................................................ 50
3.18. Discharge Test................................................................................................................52
3.19. OCP Test..........................................................................................................................53
3.20. OPP Test..........................................................................................................................55
3.21. Battery Internal Resistance Test.................................................................................. 56
3.22. Load Effect Test..............................................................................................................58
3.23. LED Test...........................................................................................................................59
3.24. Dynamic SWEEP.............................................................................................................62
3.25. Compound Modes CV+CC, CR+CC, CP+CC............................................................. 63
3.26. Parallel.............................................................................................................................64
3.27. Vp+ / Vp- Capture.............................................................................................................66
3.28. Time Measurement....................................................................................................... 67
3.29. Save and Recall.............................................................................................................. 69
3.30. Power Save..................................................................................................................... 71
3.31. External Control............................................................................................................. 71
3.32. Output Signal................................................................................................................. 73
4. Automatic Test..........................................................................................................................74
4.1. Edit Auto Test File............................................................................................................74
4.2. Run Auto Test File............................................................................................................76
4.3. Self-starting of Auto Test............................................................................................... 77
5. Communication Description..................................................................................................78
5.1. Communication Configuration...................................................................................... 78
5.2. Interface definition.......................................................................................................... 79
5.2.1. RS232......................................................................................................................79
5.2.2. RS485 and CAN.....................................................................................................79
5.2.3. USB (serial).............................................................................................................80
6. Troubleshooting....................................................................................................................... 81
Appendix A: Functions and Model Version........................................................................... 82
Appendix B: Precautions for Battery test...............................................................................83

Faithtech FT68200 Operation Manual
1
1. Overview
1.1. Introduction
The FT68200 series ultra-high-power electronic loads is the result of Faith's
dedication to the design, manufacture and maintenance of electronic loads for more than
ten years. The power density is twice as high as the general load, which reduces the space
occupation. The extremely wide load range, ultra-fast dynamic frequency, and rich test
functions increase the application coverage. The powerful overload capacity improves the
reliability of the load.
FT68200 has a variety of communication interfaces such as LAN/RS232/RS485/USB,
supports SCPI, Modbus, CANopen communication protocols, and can meet users'
integrated development needs.
As the flagship load of Faith Technology, its high performance, high precision, and
high reliability have become the industry benchmark.
1.2. Features
Power density up to 6kW/3U
Voltage range 150V, 600V, 1200V
Current range 100A/kW (150V), 70A/kW (600V), 40A/kW (1200V)
Voltage Accuracy (0.025%+0.025%F.S.)
Current Accuracy (0.05%+0.05%F.S.)
Sampling speed 500kHz
50kHz dynamic current, 30kHz dynamic SWEEP
Sampling V/I data transmission rate up to 1000Hz
Master-slave parallel operation, power expandable up to 600kW
Operation modes CC, CV, CR, CP, CV+CC, CR+CC, CP+CC
Short circuit simulation, instantaneous overpower loading capability
OCP, OPP, LED simulation, Load effect, Battery inner resistance & discharge test
Time measurement, (Vpk+/-) measurement
20 sequence test files, each with 100 steps, sequence file can be linked
50 Auto test files, each with 20 steps, self-starting is allowed
OPP, OCP, OVP, OT, RV protections
Galvanically isolated analog interface provides current programming and

Faithtech FT68200 Operation Manual
2
monitoring capability
TFT color LCD screen, Chinese/English menua interface
Standard RS232, RS485, LAN, USB (serial), optional GPIB or CAN interface
Support SCPI, Modbus, CANopen protocol
1.3. Dimension
1.3.1. 4U-6kW

Faithtech FT68200 Operation Manual
3
1.3.2. 7U-8kW/10kW/12kW

Faithtech FT68200 Operation Manual
4
1.3.3. 11U-14kW/16kW/18kW

Faithtech FT68200 Operation Manual
5
1.3.4. 14U-20kW/22kW/24kW

Faithtech FT68200 Operation Manual
6
1.3.5. 20U-30kW/36kW

Faithtech FT68200 Operation Manual
7
1.3.6. 26U-42kW/48kW

Faithtech FT68200 Operation Manual
8
1.3.7. 32U-54kW/60kW

Faithtech FT68200 Operation Manual
9
1.4. Specification
1.4.1. Performance Specification (6kW)
Model
FT68206A/E-150-600
FT68206A/E-600-420
FT68206A/E-1200-240
voltage
150V
600V
1200V
Current
600A
420A
240A
Power
6000W
6000W
6000W
Umin @Imax
1.5V@600A
14V@420A
20V@240A
Constant Current
Range
60A
600A
42A
420A
24A
240A
Resolution
1mA
10mA
0.7mA
7mA
0.4mA
4mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Constant Voltage
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
Constant Resistance
Range
0.009～50Ω
0.09～250Ω
0.053 ～
286Ω
0.53 ～
1429Ω
0.186 ～
1000Ω
1.86 ～
5000Ω
Accuracy
Vin/Rset*(0.2%)+0.2%IF.S
Vin/Rset*(0.2%)+0.2%IF.S
Vin/Rset*(0.2%)+0.2%IF.S
Constant Power
Range
6000W
6000W
6000W
Accuracy
0.2%+0.2% F.S.
0.2%+0.2% F.S.
0.2%+0.2% F.S.
Dynamic
T1&T2
10us～60S
10us～60S
10us～60S
Resolution
2us
2us
2us
Accuracy
1us+20PPM
1us+20PPM
1us+20PPM
Slew Rate
0.001 ～
0.6A/us
0.01～6A/us
0.0001 ～
0.4A/us
0.001 ～
4A/us
0.0001 ～
0.24A/us
0.001 ～
2.4A/us
Current Measurement
Range
60A
600A
42A
420A
24A
240A
Resolution
1mA
10mA
0.7mA
7mA
0.4mA
4mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Voltage Measurement
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
AC INPUT
220VAC±10%, (50～60)Hz , 360VA
Temp
(0～40)℃
Weight
40kg
Dimension
482.6mm(W) x 177.0mm(H) x 662.2mm(L)

Faithtech FT68200 Operation Manual
10
1.4.2. Performance Specification (8kW)
Model
FT68208A/E-150-800
FT68208A/E-600-560
FT68208A/E-1200-320
voltage
150V
600V
1200V
Current
800A
560A
320A
Power
8000W
8000W
8000W
Umin @Imax
1.5V@800A
14V@560A
20V@320A
Constant Current
Range
80A
800A
56A
560A
32A
320A
Resolution
1.5mA
15mA
1mA
10mA
0.5mA
5mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Constant Voltage
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
Constant Resistance
Range
0.007～38Ω
0.07～188Ω
0.04～214Ω
0.4～1071Ω
0.139 ～
750Ω
1.39 ～
3750Ω
Accuracy
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S.
Constant Power
Range
8000W
8000W
8000W
Accuracy
0.2%+0.2% F.S.
0.2%+0.2% F.S.
0.2%+0.2% F.S.
Dynamic
T1&T2
10us～60S
10us～60S
10us～60S
Resolution
2us
2us
2us
Accuracy
1us+20PPM
1us+20PPM
1us+20PPM
Slew Rate
0.001 ～
0.8A/us
0.01～8A/us
0.0001 ～
0.5A/us
0.001 ～
5A/us
0.0001 ～
0.32A/us
0.001 ～
3.2A/us
Current Measurement
Range
80A
800A
56A
560A
32A
320A
Resolution
1.5mA
15mA
1mA
10mA
0.5mA
5mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Voltage Measurement
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
AC INPUT
220VAC±10%, (50～60)Hz , 480VA
Temp
(0～40)℃
Weight
62kg
Dimension
482.6mm(W) * 310.0mm(H) * 712.2mm(L)

Faithtech FT68200 Operation Manual
11
1.4.3. Performance Specification (10kW)
Model
FT68210A/E-150-1000
FT68210A/E-600-700
FT68210A/E-1200-400
voltage
150V
600V
1200V
Current
1000A
700A
400A
Power
10000W
10000W
10000W
Umin @Imax
1.5V@1000A
14V@700A
20V@400A
Constant Current
Range
100A
1000A
70A
700A
40A
400A
Resolution
1.6mA
16mA
1.2mA
12mA
0.7mA
7mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Constant Voltage
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
Constant Resistance
Range
0.006～30Ω
0.06～150Ω
0.032 ～
171Ω
0.32～857Ω
0.112 ～
600Ω
1.12 ～
3000Ω
Accuracy
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S.
Constant Power
Range
10000W
10000W
10000W
Accuracy
0.2%+0.2% F.S.
0.2%+0.2% F.S.
0.2%+0.2% F.S.
Dynamic
T1&T2
10us～60S
10us～60S
10us～60S
Resolution
2us
2us
2us
Accuracy
1us+20PPM
1us+20PPM
1us+20PPM
Slew Rate
0.001 ～
1A/us
0.01 ～
10A/us
0.0001 ～
0.65A/us
0.001 ～
6.5A/us
0.0001 ～
0.4A/us
0.001 ～
4A/us
Current Measurement
Range
100A
1000A
70A
700A
40A
400A
Resolution
1.6mA
16mA
1.2mA
12mA
0.7mA
7mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Voltage Measurement
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
AC INPUT
220VAC±10%, (50～60)Hz , 600VA
Temp
(0～40)℃
Weight
67kg
Dimension
482.6mm(W) * 310.0mm(H) * 712.2mm(L)

Faithtech FT68200 Operation Manual
12
1.4.4. Performance Specification (12kW)
Model
FT68212A/E-150-1200
FT68212A/E-600-840
FT68212A/E-1200-480
voltage
150V
600V
1200V
Current
1200A
840A
480A
Power
12000W
12000W
12000W
Umin @Imax
1.5V@1200A
14V@840A
20V@480A
Constant Current
Range
120A
1200A
84A
840A
48A
480A
Resolution
2mA
20mA
1.4mA
14mA
0.8mA
8mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Constant Voltage
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
Constant Resistance
Range
0.005～25Ω
0.05～125Ω
0.027 ～
143Ω
0.27～714Ω
0.093 ～
500Ω
0.93 ～
2500Ω
Accuracy
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S.
Constant Power
Range
12000W
12000W
12000W
Accuracy
0.2%+0.2% F.S.
0.2%+0.2% F.S.
0.2%+0.2% F.S.
Dynamic
T1&T2
10us～60s
10us～60s
10us～60s
Resolution
2us
2us
2us
Accuracy
1us+20PPM
1us+20PPM
1us+20PPM
Slew Rate
0.001～1.2A/us
0.01 ～
12A/us
0.0001 ～
0.8A/us
0.001 ～
8A/us
0.0001 ～
0.48A/us
0.001 ～
4.8A/us
Current Measurement
Range
120A
1200A
84A
840A
48A
480A
Resolution
2mA
20mA
1.4mA
14mA
0.8mA
8mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Voltage Measurement
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
AC INPUT
220VAC±10%, (50～60)Hz , 720VA
Temp
(0～40)℃
Weight
72kg
Dimension
482.6mm(W) * 310.0mm(H) * 712.2mm(L)

Faithtech FT68200 Operation Manual
13
1.4.5. Performance Specification (18kW)
Model
FT68218A/E-150-1800
FT68218A/E-600-1260
FT68218A/E-1200-720
voltage
150V
600V
1200V
Current
1800A
1260A
720A
Power
18000W
18000W
18000W
Umin @Imax
1.5V@1800A
14V@1260A
20V@720A
Constant Current
Range
180A
1800A
126A
1260A
72A
720A
Resolution
3mA
30mA
2.1mA
21mA
1.2mA
12mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Constant Voltage
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
Constant Resistance
Range
0.003～17Ω
0.03～83Ω
0.018～95Ω
0.18～476Ω
0.062 ～
333Ω
0.62 ～
1667Ω
Accuracy
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S.
Constant Power
Range
18000W
18000W
18000W
Accuracy
0.2%+0.2% F.S.
0.2%+0.2% F.S.
0.2%+0.2% F.S.
Dynamic
T1&T2
10us～60s
10us～60s
10us～60s
Resolution
2us
2us
2us
Accuracy
1us+20PPM
1us+20PPM
1us+20PPM
Slew Rate
0.001 ～
1.8A/us
0.01 ～
18A/us
0.001 ～
1.2A/us
0.01 ～
12A/us
0.0001 ～
0.72A/us
0.001 ～
7.2A/us
Current Measurement
Range
180A
1800A
126A
1260A
72A
720A
Resolution
3mA
30mA
2.1mA
21mA
1.2mA
12mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Voltage Measurement
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
AC INPUT
220VAC±10%, (50～60)Hz , 1070VA
Temp
(0～40)℃
Weight
110kg
Dimension
482.6mm(W) * 488.0mm(H) * 712.2mm(L)

Faithtech FT68200 Operation Manual
14
1.4.6. Performance Specification (24kW)
Model
FT68224A/E-150-2400
FT68224A/E-600-1680
FT68224A/E-1200-960
voltage
150V
600V
1200V
Current
2400A
1680A
960A
Power
24000W
24000W
24000W
Umin @Imax
1.5V@2400A
14V@1680A
20V@960A
Constant Current
Range
240A
2400A
168A
1680A
96A
960A
Resolution
4mA
40mA
2.8mA
28mA
1.6mA
16mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Constant Voltage
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
Constant Resistance
Range
0.002～13Ω
0.02～63Ω
0.013～71Ω
0.13～357Ω
0.046 ～
250Ω
0.46 ～
1250Ω
Accuracy
Vin/Rset*(0.2%)+0.2%IF.S.
Vin/Rset*(0.2%)+0.2%IF.S
Vin/Rset*(0.2%)+0.2%IF.S
Constant Power
Range
24000W
24000W
24000W
Accuracy
0.2%+0.2% F.S.
0.2%+0.2% F.S.
0.2%+0.2% F.S.
Dynamic
T1&T2
10us～60S
10us～60S
10us～60S
Resolution
2us
2us
2us
Accuracy
1us+20PPM
1us+20PPM
1us+20PPM
Slew Rate
0.001 ～
2.4A/us
0.01 ～
24A/us
0.001 ～
1.6A/us
0.01 ～
16A/us
0.001 ～
0.96A/us
0.01 ～
9.6A/us
Current Measurement
Range
240A
2400A
168A
1680A
96A
960A
Resolution
4mA
40mA
2.8mA
28mA
1.6mA
16mA
Accuracy
0.05%+0.05%F.S.
0.05%+0.05%F.S.
0.05%+0.05%F.S.
Voltage Measurement
Range
30V
150V
120V
600V
240V
1200V
Resolution
0.5mV
2.5mV
2mV
10mV
4mV
20mV
Accuracy
0.025%+0.025%F.S.
0.025%+0.025%F.S.
0.025%+0.025%F.S.
AC INPUT
220VAC±10%, (50～60)Hz , 1420VA
Temp
(0～40)℃
Weight
156kg
Dimension
482.6mm(W) * 621.0mm(H) * 712.2mm(L)
