Falcon E9541 Manual

F900 SERIES
User, installation and servicing instructions
COUNTERTOP
GRIDDLES
E9541, E9541CR, E9541R, E9581, E9581CR, E9581R
Read these instructions before use
T100948
Published: 12/05/17
DATE PURCHASED:
MODEL NUMBER:
SERIAL NUMBER:
DEALER:
SERVICE PROVIDER:
REV 4

2
Falcon Foodservice Equipment
HEAD OFFICE
Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of appliance life, dispose of appliance and any replacement parts in a safe
manner, via a licensed waste handler. Appliances are designed to be dismantled
easily and recycling of all material is encouraged whenever practicable.
Dear Customer,
Thank you for choosing Falcon Foodservice Equipment.
This manual can be downloaded from www.falconfoodservice.com or scan
here.
IMPORTANT: Please keep this manual for future reference.

3
SYMBOLS.
• SPANNER • SCREWDRIVER • COOKING OIL • GREASE
• SPARK IGNITION • FLAME •WARNING • VIEWPORT
•ALLEN KEY •IGNITER •C SPANNER

4
These instructions are only valid if the country code appears on the
appliance. If the code does not appear on the appliance, refer to the
technical instructions for adapting the appliance to the conditions for use
in that country.
Installation must meet national or local regulations. Attention must be paid
to: safety (installation & use) regulations, health and safety at work act,
local and national building regulations, fire precautions act.
To prevent shocks, all appliances must be earthed.
This appliance has been CE-marked on the basis of compliance with the
Low Voltage and EMC Directives for the voltages stated on the data plate
This equipment is for professional use only and must be used by qualified
persons.
The installer must instruct the responsible person(s) of the correct
operation and maintenance of the appliance.
Only competent persons are allowed to service this appliance.
Unless otherwise stated, parts which have been protected by the
manufacturer must not be adjusted by the installer.
Take care when moving an appliance fitted with castors.
The appliance must be serviced regularly by a qualified person. Service
intervals should be agreed with the service provider.
Check that no damage has occurred to the appliance, power cable, or plug
during transit. If damage has occurred, do not use this appliance.
Installation, periodic testing, repair and fixed wiring connections should
only be undertaken by a competent electrician.
Ensure power cable is routed free from the appliance to avoid damage.
We recommend supplementary electrical protection with the use of a
residual current device (RCD)
The appliance has been designed and approved to use Falcon Kick plates,
non Falcon kick plates could potentially adversely affect the performance
of the appliance by restricting the air to the appliance.

5
CONTENTS
1.0 APPLIANCE INFORMATION................................................................................................. 6
2.0 OPERATION............................................................................................................................. 7
2.1 COMPONENT PARTS ...............................................................................................................7
2.2 USING THE GRIDDLE................................................................................................................ 7
3.0 CLEANING AND MAINTENANCE ........................................................................................ 7
4.0 SPECIFICATION...................................................................................................................... 8
5.0 DIMENSIONS / CONNECTION LOCATIONS..................................................................... 9
6.0 INSTALLATION ...........................................................................................................................10
6.1 SITING / CLEARANCES .................................................................................................................10
6.2 ASSEMBLY ...................................................................................................................................10
6.3 COMMISSIONING........................................................................................................................12
6.4 SUITING .................................................................................................................................13
7.0 SERVICING.................................................................................................................................. 15
7.1 CONTROL PANEL REMOVAL ........................................................................................................15
7.2 ELEMENT TRAY REMOVAL .......................................................................................................... 16
7.3 OPERATING THERMOSTAT REMOVAL.........................................................................................17
7.4 ELEMENT REMOVAL.................................................................................................................... 18
7.5 SAFETY THERMOSTAT REMOVAL (CHROME GRIDDLE ONLY).....................................................18
7.6 SAFETY THERMOSTAT RESET (CHROME GRIDDLE ONLY)............................................................19
7.7 CIRCUIT DIAGRAMS..................................................................................................................... 20
7.8 WIRING DIAGRAMS.....................................................................................................................24
8.0 FAULT FINDING.......................................................................................................................... 28
9.0 SPARE PARTS............................................................................................................................ 28
10.0 SERVICE INFORMATION.......................................................................................................29

6
1.0 APPLIANCE INFORMATION
This appliance has been CE-marked on the basis of compliance with the relevant EU
directives for the heat inputs, gas pressures and voltages stated on the data plate.
A - Serial No
B - Model No
C - Flue Type
D - Gas Category
E - Gas Pressure
F - Gas Type
G - Gas Rate
H - Total Heat Input
I - Electrical Rating
J - Total Electrical Power
K - Magnetic Field Frequency
L - Electrical Phase Loading

7
2.0 OPERATION
2.1 COMPONENT PARTS
A –Griddle plate
B –Power neon (red)
C –Heat demand
neon (amber)
D –Thermostat
control knob
E –Fat jug
2.2 USING THE GRIDDLE
2.2.1 Before use, clean the appliance. See section 3.
2.2.2 Set temperature control to desired setting.
2.2.3 To switch the unit off, turn temperature control to `off` position.
3.0 CLEANING AND MAINTENANCE
3.1 Turn off and cool down.
3.2 Scrape off burnt on food.
3.3 Remove other debris using a cloth.
3.4 Clean fat jug.
3.5 The flue capper can be removed for cleaning, but must be replaced before use.
DO NOT USE METAL UTENSILS ON CHROME GRIDDLE.
FAILURE DUE TO LACK OF PROPER CLEANING IS NOT
COVERED BY WARRANTY.

8
4.0 SPECIFICATION
4.1 This unit is suitable for AC supplies only
4.2 The standard terminal arrangement is Three phase (400V 3N~) for all variants.
4.3 To convert the appliance from three phase to single phase supply, insert links
between phases 1, 2 and 3. Consideration must be given to required draw of current.
THIS APPLIANCE MUST BE EARTHED.
Live 1 ( Phase 1)
Brown
Live 2 ( Phase 2)
Black
Live 3 ( Phase 3)
Grey
Neutral
Blue
Earth
Yellow/Green
E9541, E9541CR, E9541R
Phase
Min
Max
Actual (A)
L1
8.6
10.03
9.56
L2
8.6
10.03
9.56
L3
E9581, E9581CR, E9581R
Phase
Min
Max
Actual (A)
L1
8.6
10.03
9.56
L2
17.2
20.07
19.12
L3
8.6
10.03
9.56
IF ANY CURRENT IS OUT WITH THESE TOLERANCES, THE
CAUSE MUST BE INVESTIGATED AND RECTIFIED.

9
5.0 DIMENSIONS / CONNECTION LOCATIONS

10
6.0 INSTALLATION
6.1 SITING / CLEARANCES

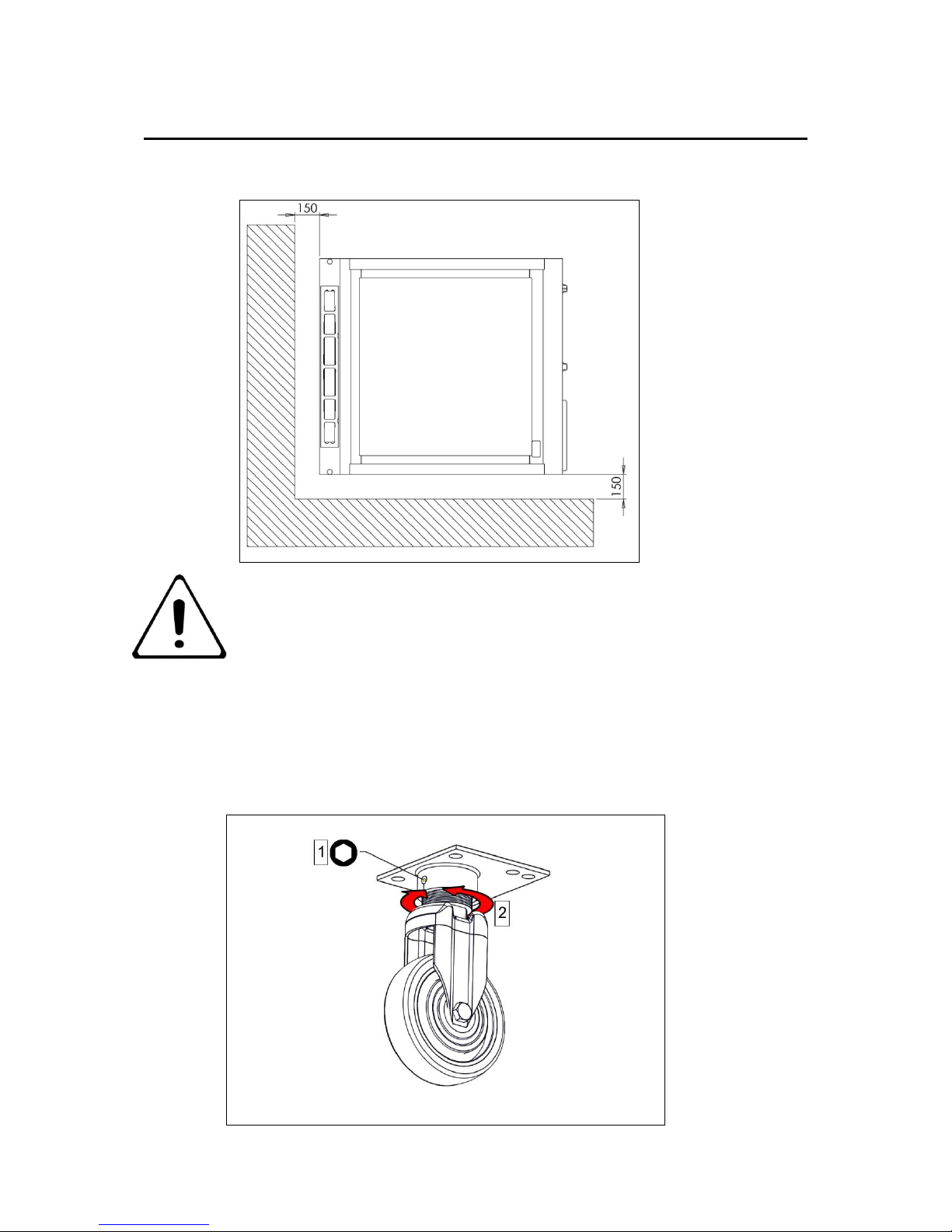

Where this appliance is to be positioned in close proximity to a wall,
partitions, kitchen furniture, decorative finishes, etc., it is recommended
that they be made of non-combustible material; if not, they shall be clad
with a suitable non-combustible heat insulating material, and that the
closest attention be paid to fire prevention regulations. If suiting, the
necessary clearances to any combustible wall must be the largest figure
given for individual appliance instructions.
6.2 ASSEMBLY

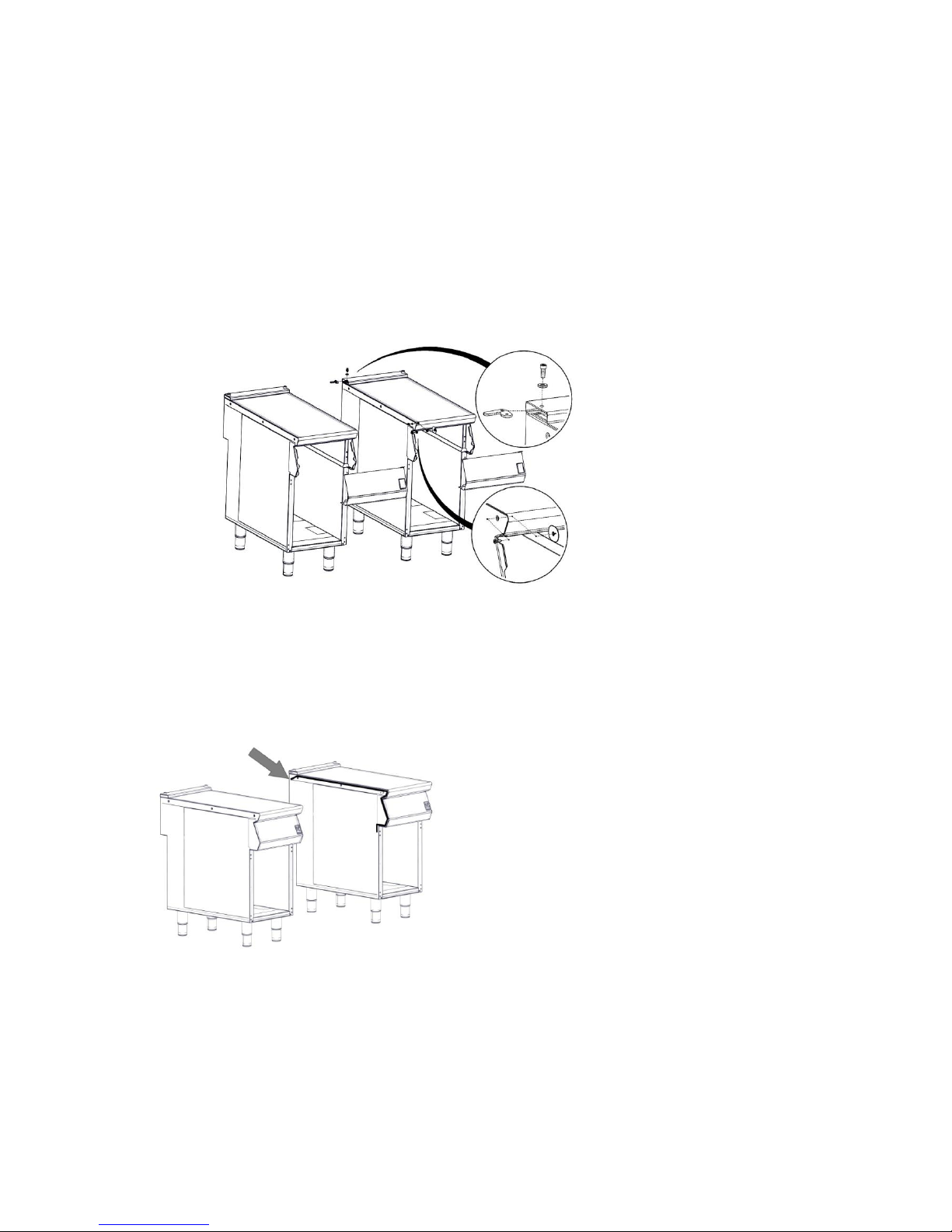

6.2.1 Position appliance and level using feet adjusters as shown below.400 wide models
on stands should be fitted with the anti tilt device.
