Falcon TBM-18 User manual

2.4 GHz
WIRELESS
SURVEILLANCE SYSTEM
Operating Instructions
Te st e d Co m p l y
With FCCStandards
Model # TBM-18
BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND,
AND FOLLOW THESE INSTRUCTIONS.
Be sure to save this booklet for future reference.

1
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO AVOID THE RISK OF ELECTRICAL SHOCK, ALWAYS MAKE SURE THE
PRODUCT IS UNPLUGGED FROM THE ELECTRICAL OUTLET BEFORE RELOCATING,
SERVICING, OR CLEANING IT.
•This product is intended for non-commercial, household use in providing video surveillance.
•This product is not a toy.
•Do not use the product for any other purpose.
•Keep the product out of the reach of children and pets. Children do not intend this product for
use.
•Do not leave the product unattended while it is in use. Always unplug the product from the
electrical outlet when it is not in use.
•Keep the product away from direct sunlight, open flame or other heat sources, humidity or
dusty environments.
•Do not block any ventilation openings. Install the product in accordance with the operating
instructions.
•Do not use attachments not recommended or sold by the product manufacturer, as a risk of fire,
electrical shock, or serious personal injury may result.
•Unplug the product from the electrical outlet prior to putting on or removing parts.
•Plug the product into a standard 120V AC electrical outlet.
•Do not use this product with a voltage converter.
•Do not plug or unplug the product from the electrical outlet with a wet hand, as a risk of
electrical shock exists.
•Disconnect the plug (do not pull on the Power Cord) from the electrical outlet.
•Do not allow the Power Cord to hang (i.e., over the edge of a table or counter) where it may be
tripped over or pulled.
•Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit the product.
•If using an extension cord, the marked electrical rating of the cord set or extension cord should
be at least as great as the electrical rating of the product.
•Never operate this product if it has a damaged Power Cord or plug, malfunctions or is not
working properly, has been dropped, or damaged. This product has no user-serviceable parts.
Do not attempt to examine or repair this product yourself. Only qualified service personnel
should perform any servicing.
•This product is intended for personal, non-commercial, non-industrial, household use only.
Do not use outdoors.

2

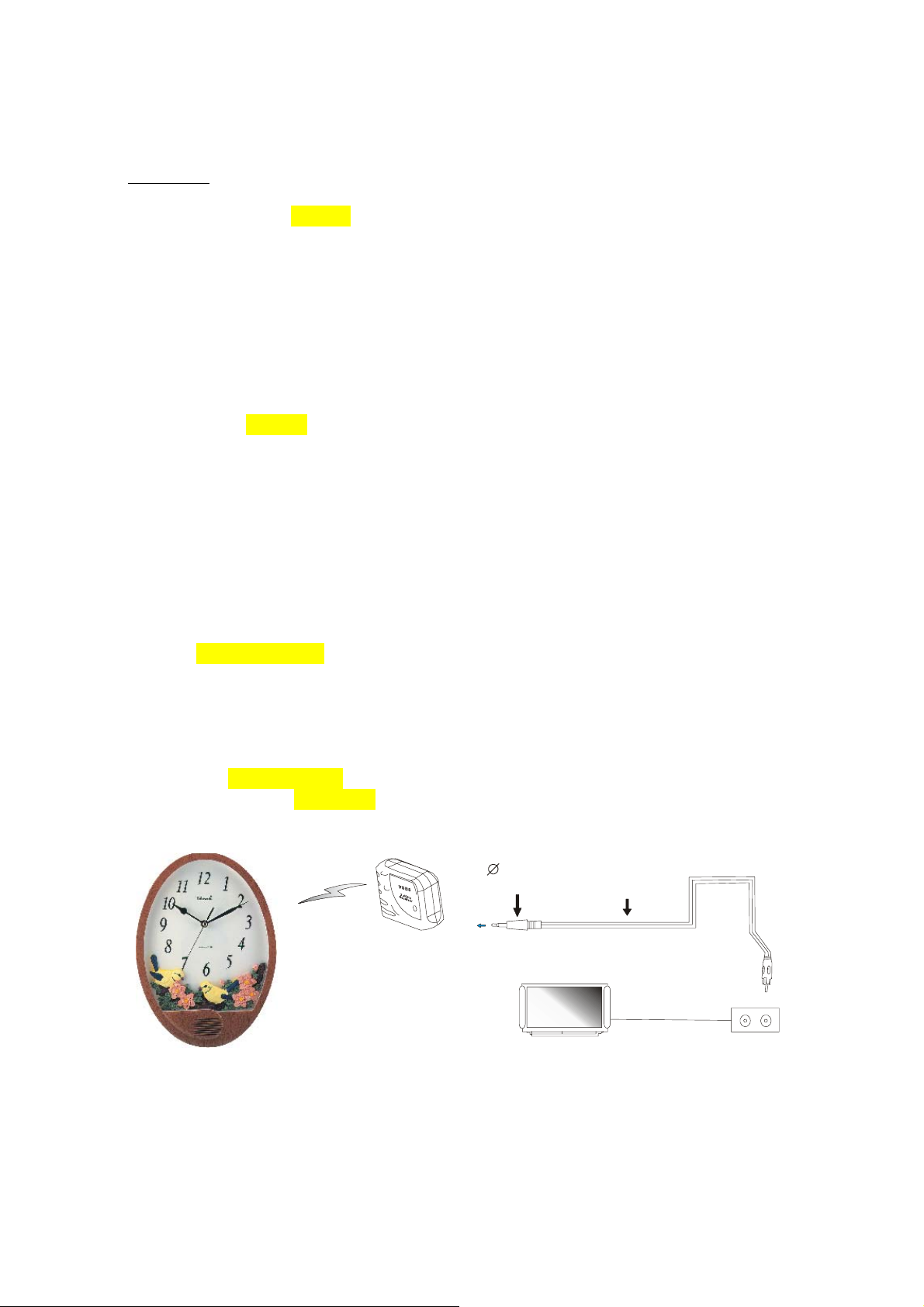

General Description:
The wireless, Bear Video Camera (Model #TBM-18) transmits video and audio signals at a
frequency of 2.4 GHz to the video signal receiver (Model #VSB8RX). The video signal receiver
outputs these signals via cable to your TV/VCR for monitoring and/or recording.
Equipment & accessories:
1. 1 x Bear Video Camera (Model # TBM-18)
2. 1 x Receiver (Model #VSB8RX) 3. 1 x Audio/Video Cable 4. 2 x AC Power Adaptor (DC 9V)
Bear Camera
real eye
(right eye)
DC-9V
Power
ON /OFF
Channel
Switch
DC-9V
9V Battery
(This part is
option for user)
Battery
room
and SW Board
AC Power
Adaptor

3
Installation:
Bear Video Camera (Model #TBM-18)
1. Power by either the Battery and DC power of the Bear video camera.
2. Position the video camera in the desired location.
NOTE: The transmission range of the Bear video camera at open side up to 150 ft. Real
distance is depends on its operating environment. If you are receiving poor video images from
the camera, try shortening the transmission range. Reposition and/or adjust the Bear video
camera if video transmission is being degraded by obstructions in its operating environment.
3. Select the desired transmission channel for the Bear video camera.
NOTE: The Model #TBM-18 Bear video camera has four (4) different transmission channels.
The Bear video camera has been set to transmit on CH 1 at the factory. Do not set and/or use
more than one (1) video camera on the same transmission channel in order to prevent signal
interference and unclear picture reception.
a. Remove the Channel Switch rubber grommet from the Bear video camera (front) base.
(Refer to the diagram in the “Equipment and accessories” section.)
b. Use a small, blunted, pointed object to slide Channel Switch inside of the base opening,
as desired (Channel 1-4).
c. Securely reattach the Channel Switch rubber grommet onto the video camera base.
NOTE: Reference the “Receiver (Model #VSB8RX)” section to update the receiver
channel selection.
4. Open the Bear Camera Battery Zip put 9V battery in the battery room or connects the AC
Power Adaptor Jack end to the DC Input Jack end of the Bear Video camera.
5. Plug the AC Power Adaptor into a standard 120V AC electrical outlet.
6. Unplug the AC Power Adaptor from the electrical outlet when it is not in use or is left
unattended.
7. When DV9V Plug in Jack the Battery power will Auto switch off.
8. Please use 9V ALKALINE Battery for battery source
Receiver (Model #VSB8RX):
CAUTION: Make all of the necessary wire jack connections before plugging the AC Power
Adaptor into an electrical outlet, as a risk of electrical shock may exist. Keep away from water,
fire raindrop and high humidity
1. Insert the 3.5Ø cable plug into the A/V Output Jack of the receiver.
2. Insert the (yellow & white) cable plugs into the Video Input and Audio Input Jacks of your TV,
as appropriate.

4
2.4GHz
Receiver
(VSB8RX)
Yellow
Plug
Video /Video
Cable
TV
V
ideo
Input
Jack
3.5 Plug
Audio
Input
Jack
White
Plug
2. Connect the AC Power Adaptor Jack end to the 9V DC Power Input Jack of the receiver.
3. Select/match the receiver channel to the desired video camera transmission channel.
4. Plug the AC Power Adaptor into a standard 120V AC electrical outlet.
5. Slide the ON/OFF Switch to the ON position.
6. Television Set configuration:
a. Turn on the power to the television set (TV).
b. Switch the TV channel to the VIDEO/LINE INPUT position.
c. Adjust the TV volume and picture, as desired.
7. Unplug the AC Power Adaptor from the electrical outlet when it is not in use or is left
unattended.
Video Recording Setup:
1. Follow the normal setup procedures for the Bear video camera and receiver.
2. Insert the (yellow & white) cable plugs into the Video Input and Audio Input Jacks of your
VCR, as appropriate.
3. Connect another video/audio cable from your VCR to the Video Input and Audio Input Jacks
of your television set.
TV
V
CR
V
ideo Cable
3.5 Plug
Video
Input
Jack
Audio
Input
Jack
Yellow
Plug
White
Plug

5
This Therefore unit is for those who TV set without A/V port
2.4GHz
Receiver
(VSB8RX)
Video /Video
Cable
3.5 Plug
Coaxial
Cable
Input Signal
Selector
TVAntenna
TVOUT
ANTIN
VIDEO
MODULATOR
ANTENNASWITCH
VHF/UHF
A/VIN
AC Adapter
Y
ellow
Plug
White
Plug
Transfer
Connector
TROUBLESHOOTING
Check the power supply:
• Ensure the both the transmitter and receiver are
properly connected and set.
• Ensure both the transmitter and receiver power
indicators illuminate.
Ensure the video cable is well connected.
Ensure the TV channel is set to “Video.”
Set the receiver to the channel with the clearest signal.
No picture after turning on the TV.
Shorten the transmission range/distance between the
transmitter and receiver. Reposition and/or adjust the video
camera.
Check to ensure the receiver channel is set properly for the
desired video camera.
Unclear picture reception.
Shorten the transmission range/distance between the
transmitter and receiver. Reposition and/or adjust the Bear
camera. Check 9V Batter power is running out or not.
Unclear picture focus. The video camera is set at 4.9 ft (1.5 m) with a Free focus
feature.
Ensure the audio cable is well connectedNo Sound From TV Check volume level is set properly for desire.

6
TECHNICAL SPECIFICATIONS
Transmitter Receiver
Power Supply
(AC Power Adaptor) Input: 110V AC
Output: 9V, 350 mA
Operating Temperature 32 °F (0°C) ~ 126°F (45°C)
Operating Environment 70 °F (25°C) ~ 112°F (40°C)
Channels Four (4)
ReceiverSensitivity-- -90dBm
Channel Space 18 MHz
Frequency Stability (±) 250 KHz (±) 200 KHz
A/V Modulation Type Frequency Modulation (FM)
Video Input Format NTSC --
Video Output Format -- NTSC
Video Output Level 1Vp – p @ 75 Ω, >38
dB
Net Weight 21.85 oz. (620g)
Dimensions 16.93 x 12.98 x 6.69 in (430x330x45mm)
NOTE: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IMPORTANT INFORMATION REQUIRED BY THE FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference; and (2) this device must
accept any interference received, including interference that may cause undesirable operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio elevation
reception, which can be determined by turning the equipment off and on. The user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.

7
LIMITED WARRANTY
This item is warranted to be free from defects in materials or workmanship for a period of one (1)
year from the original date of purchase under normal household use. Within the warranty period,
we will either repair or replace the product at our option. This warranty extends only to the
original retail purchaser, and excludes any damage to the product resulting from accident or
misuse. The product is not warranted when used in a commercial or business environment.
The above warranty is complete and exclusive. The warrantor expressly disclaims liability for any
special, incidental, indirect, or consequential damages in connection with the purchase or use of
this product or costs over the original purchase price.
Any implied warranties arising by operation of law shall be limited in duration to the terms of this
warranty.
This warranty gives you specific legal rights and you may have other rights, which vary by
jurisdiction.
Camera, Receiver and other
Components Made in Taiwan
AC Adaptors Made in China
Package in Taiwan

2.4 GHz
WIRELESS
SURVEILLANCE SYSTEM
Operating Instructions
Te st e d Co m p l y
With FCCStandards
Model # TCM-30
BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND
FOLLOW THESE INSTRUCTIONS.
Be sure to save this booklet for future reference.

1
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO AVOID THE RISK OF ELECTRICAL SHOCK, ALWAYS MAKE SURE
THE PRODUCT IS UNPLUGGED FROM THE ELECTRICAL OUTLET BEFORE
RELOCATING, SERVICING, OR CLEANING IT.
•This product is intended for non-commercial, household use in providing video surveillance.
•This product is not a toy.
•Do not use the product for any other purpose.
•Keep the product out of the reach of children and pets. This product is not intended for use
by children.
•Do not leave the product unattended while it is in use. Always unplug the product from the
electrical outlet when it is not in use.
•Keep the product away from direct sunlight, open flame or other heat sources, humidity or
dusty environments.
•Do not block any ventilation openings. Install the product in accordance with the operating
instructions.
•Do not use attachments not recommended or sold by the product manufacturer, as a risk of
fire, electrical shock, or serious personal injury may result.
•Unplug the product from the electrical outlet prior to putting on or removing parts.
•Plug the product into a standard 120V AC electrical outlet.
•Do not use this product with a voltage converter.
•Do not plug or unplug the product from the electrical outlet with a wet hand, as a risk of
electrical shock exists.
•Disconnect the plug (do not pull on the Power Cord) from the electrical outlet.
•Do not allow the Power Cord to hang (i.e., over the edge of a table or counter) where it may
be tripped over or pulled.
•Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit the product.
•If using an extension cord, the marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the product.
•Never operate this product if it has a damaged Power Cord or plug, malfunctions or is not
working properly, has been dropped, or damaged. This product has no user-serviceable
parts. Do not attempt to examine or repair this product yourself. Only qualified service
personnel should perform any servicing.
•This product is intended for personal, non-commercial, non-industrial, household use only.
Do not use outdoors.
