Fame Audio MS Pro 38D-S User manual

ENGLISH
Important safety instructions! Please read before connection!
DANGER! (Electrical shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, the device must not be used!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer. In the case of a malfunction of the device, operation must also be stopped
immediately until the device has been repaired by a specialist!
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged in any
way, it must be replaced immediately with an original spare part from the manufacturer.
Always make sure that the grounding of the device is maintained. Use only the supplied
power cords and always maintain the side grounded contacts. Make sure that the sockets
used have a properly functioning protective earth.
Failure to do so may result in fire or death due to electric shock!
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the risk of suffocation.
Ensure that children never use the appliance unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by swallowing
parts!
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a well-ventilated location away from direct heat sources,
naked flames, combustible materials, and liquids. A minimum distance of 1 m is required.
Do not tape or cover the ventilation slots of the unit, or insert objects into the unit.
Hint! (Operating conditions)
In advance, it must be clarified with the manufacturer whether the device is also suitable
for indoor use. (PI20)
Never expose the device to direct rain, moisture or liquids, as this can lead to damage.
Vibrations, dust or sunlight can also cause damage, avoid them!

ENGLISH
Hint! (Condensation)
To avoid condensation in the unit, the unit should adapt to the ambient temperature
before commissioning.
Hint! (Unwanted odours)
A new product can sometimes lead to unwanted odours. This reaction is normal and
disappears after a few minutes.
Hint! (Damage to the loudspeaker membrane due to feedback)
Avoid feedback by keeping the microphone away from activated loudspeakers that are
used to listen to the signal at the same time. If necessary, switch off the loudspeakers
completely.
Hint! (Sensitive microphone capsule)
To avoid damage to the microphone capsule - never open the basket of the microphone!
Hint! (Sound pressure level/noise level interval)
Observe the specified sound pressure level/noise level interval to prevent destruction of
the diaphragm caused by extreme levels.
Symbols on device and packaging:
The lightning flash symbol warns the user of uninsulated voltages and the risk of
electric shock.
The exclamation mark symbol draws the user’s attention to important maintains and
operating instructions in the manual.
The lightning warns you of dangerous voltage accessible from the outside. A connection
to any terminal marked with this symbol may only be made with a ready-made cable
that complies with the manufacturer's recommendations or with cables installed by
qualified personnel.
Only suitable for indoor use.
Read the manual
Please read and follow the warnings and recommendations carefully to ensure safe
and trouble-free use.

ENGLISH
Congratulations on your new Fame Audio MS Pro 38D-S!
Thank you for choosing a Fame Audio product. Through efficient development and economical
production, Fame Audio enables high quality products at a fantastic price.
Please read the instruction manual carefully to learn about all the features of this
product and keep it for future use.
Have fun with your new product!
Your Fame Audio Team
Guarantee:
The current general terms and guarantee conditions
of the Music Store professional GmbH apply.
You can view it at: www.musicstore.de
If you have any questions or suggestions,
please contact us:
Music Store professional GmbH
Istanbulstr. 22-26
51103 Cologne
Managing Director: Michael Sauer
WEEE-Reg.-No. DE 41617453
Tel: [phone]
Fax: [phone]
[e-mail]
Intended use:
The product Fame Audio MS Pro 38D-S is optimized for use as a microphone. The device may
only be used for this purpose and in accordance with the operating instructions. Other purposes as
well as operation under other operating conditions are expressly not intended and can lead to
damage to property or personal injury! No liability is assumed for damage resulting from improper
use.
It must be ensured that the device is operated exclusively by trained and competent users who are
in full possession of their mental, physical and sensory abilities. The use of other persons is
expressly only permitted at the request of a person responsible for their safety, who instructs or
supervises the use.

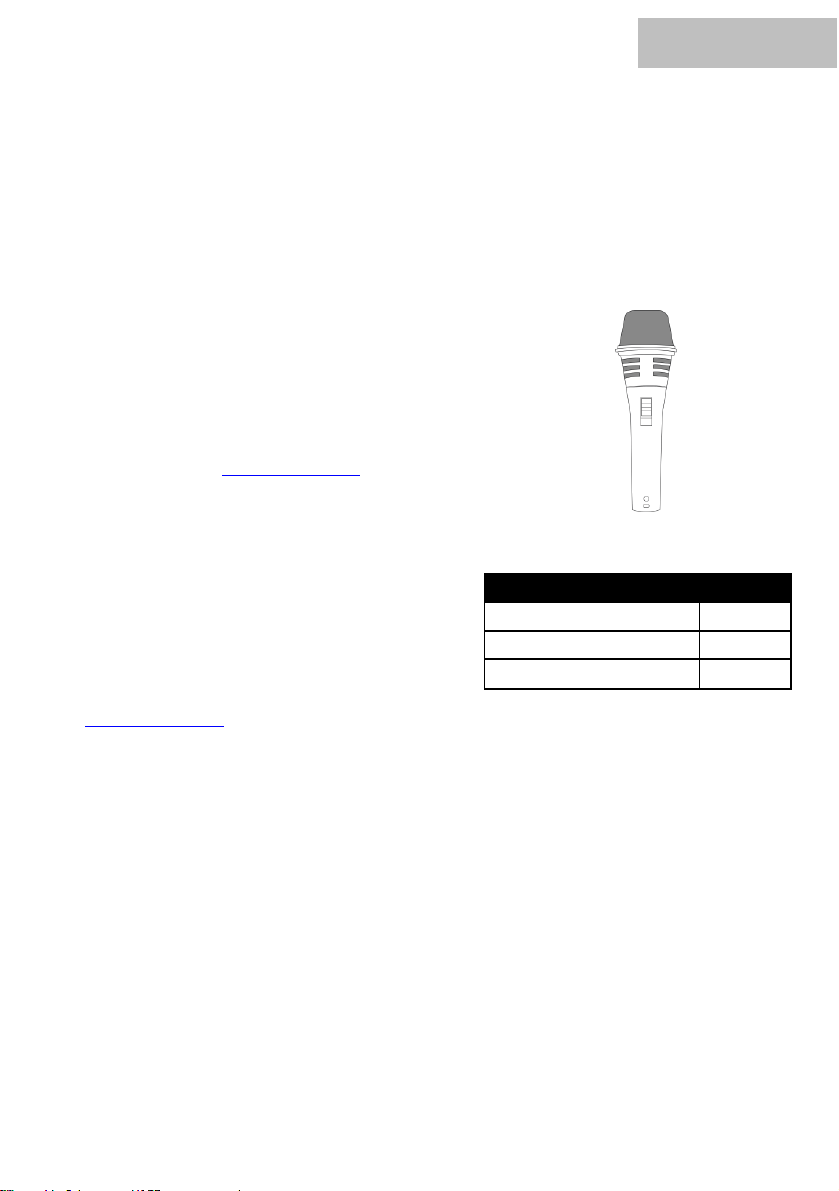

Content
Quantity
FAME Audio MS Pro 38D-S
1
Mount
1
Manual
1
Scope of delivery:

ENGLISH
Installation:
Be sure to check the device for damage before use. Use the original packaging or a suitable
transport or storage packaging to protect the product optimally from influences such as dust,
moisture, etc. when not in use.
Equipment and use:
This dynamic microphone has a three-pin XLR connector and is supplied with a suitable holder.
Due to its characteristics the FAME Audio MS Pro 38D-S is used for vocal and speech pickup.
Set up:
All connections of the device should be made before switching on. Only use high-quality and
undamaged cables that are as short as possible for the connections.
Configuration of the 3-pole XLR jack:

ENGLISH
Polar characteristics:
Microphones have one or more directional characteristics to achieve better results in recording
sound, depending on the application. Sound arriving at the basket and capsule from certain
angles can be cancelled, attenuated or not affected at all. How strong or weak these effects are
depends on the microphone. The main characteristics include omnidirectional, figure-of-eight and
club, while the cardioid, wide cardioid, supercardioid and hypercardioid characteristics are a
mixed form.
Example application 1: Ball
Since the omnidirectional characteristic has no cancellations due to the design of the microphone,
sound from all directions can be picked up almost equally.
Example application 2: Kidney
Sound hitting the rear of the cardioid is cancelled/attenuated in the cardioid characteristic. The
focus here is on the direct signal.
Example Application 3: Eight
The figure of eight is suitable for duet recordings in which the singer/speaker are facing each
other. Side-impacting sound is attenuated/eliminated so that only direct sound is recorded.

ENGLISH

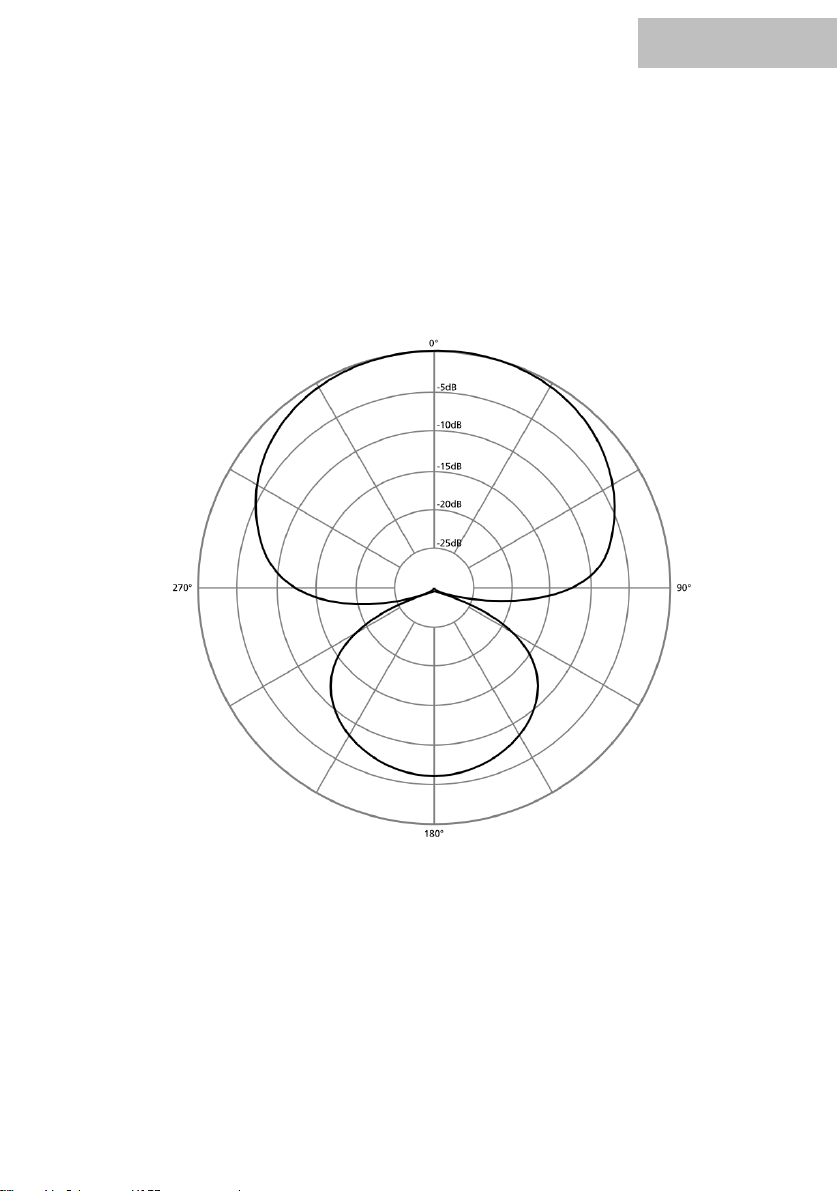

FAME Audio MS Pro 38D-S - Hypercardioid characteristic::
The FAME Audio MS Pro 38D-S is characterized by its hypercardioid polar pattern, which offers a
narrow recording angle and a higher shielding against ambient noise, but does not suppress rear
sound as much as the cardioid pattern, so it is important to pay attention to the correct
placement of stage monitors.
Due to its acoustic characteristics, it is suitable for picking up individual sound sources that are to
be recorded in noisy environments, especially for picking up vocals and speech.
(The drawing is for general illustration only and may vary depending on the microphone)

ENGLISH
Technical data:
Troubleshooting:
The following overview serves as an aid for quick troubleshooting. If you are unsure, contact the
manufacturer, the dealer or the corresponding specialist personnel. Never open the device on
your own!
Model
MS Pro 38D-S
Principle
Dynamic
Polar Pattern
Hypercardioid
Frequency
50 - 16000 Hz
Sensitivity
-56dB±3dB (0 dB=1 V/Pa at 1kHz)
Impedance
19Ω±20% at 1KHz
On/Off-Switch
Yes
Symptom
Troubleshooting:
No Sound
Check the cable for damage (cuts, extreme kinks,
etc.) and replace it if necessary.
Check the wiring. Plugs must be fully inserted and
locked in place!
Check that the 48V phantom power on the
console/interface is switched on.
Check the preamplifier setting on the
console/interface/etc.
Delayed Sound
Change the buffer size in the DAW settings. The
lower the number, the lower the latency. (Note:
with a low buffer size, the computer needs more
power. Depending on the computer, this can lead
to higher performance losses). For more
information, please refer to the manual of the
respective digital audio workstation.

ENGLISH
Hint! (Adjustable characteristics)
When taking pictures, pay attention to the adjustable characteristics and read the
instructions in the manual.
The adjustable low-cut filter also leads to a different recording result, as sub-bass
frequencies are filtered out.
If the specified corrections have not led to success, please contact our service staff. The contact
details can be found at www.musicstore.de
Cleaning:
Regular cleaning of the device from impurities and dust increases the durability of the product.
Always disconnect the appliance from the power supply before cleaning! Never clean the
appliance wet! A dry microfibre cloth is best.
Ventilation grilles and openings should always be kept free of dust and dirt. Suitable compressed
air sprays are recommended for this application.

ENGLISH
Environmental protection:
The company MUSIC STORE professional GmbH always strives to reduce the burden of packaging
to a minimum. The use of environmentally friendly and recyclable materials is of fundamental
importance to us. Please dispose of and recycle the packaging components after use properly.
Disposal of packaging:
Ensure that paper packaging, plastic materials, etc. are separately recycled. Observe the
corresponding disposal instructions on the packaging.
Disposal of batteries:
Batteries do not belong in the garbage! Please keep batteries in accordance with the
official collection points or disposal stations in accordance with the specifications.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the WEEE
Directive (Waste Electrical and Electronic Equipment) in its currently valid version.
The device will be disposed of by an approved waste disposal company or your local waste
disposal office. The regulations valid in your country must be observed!
Manufacturer: MUSIC STORE professional GmbH,
Istanbulstraße 22-26,
51103 Cologne, Germany

ENGLISH
MS ID: PAH0021449-000
04/2020
