Famsun TCXT Series User manual

TCXT Series
Spouting Permanent Magnet
Operation Manual
Prior to use, please read through this operation manual
carefully and keep it properly for reference in the future.

Foreword
1. Thanks for purchasing FAMSUN T XT Series Spouting Permanent Magnet.
2. This Operation Manual is an important technical document for safe and proper operation of
FAMSUN T XT Series Spouting Permanent Magnet (thereafter called Magnet).
3. Prior to operation, please read this Operation Manual carefully and get to know the safety
instructions, performances, requirements for installation and operation etc. of the magnet in order
to adroitly operate and use the equipment, and to create more benefits.
4. The equipment must be operated in accordance with this Manual. Improper operation or breach of
the operation regulations will cause severe losses.
5. Following are Safety-Alert Symbol and signage words in this Manual.
  
6. Prior to use, please read through this Manual and well understand the signage words, especially
the safety signs.
7. Operators and maintenance personnel are required to read through the Operation Manual in order
to operate and maintain the equipment prior to use.
8. Keep the Manual in a place near the equipment so as to look it up at any time.
9. omprehensive understanding of this Operation Manual is a must to operate and maintain the
equipment.
10.Please timely contact our ompany to order a new Operation Manual of the equipment if the
manual is missing or damaged.
11.If the equipment is transferred to a third party, please pass this manual along with the equipment.
12.Following are some explanations about the application and the warranty of the equipment.

Applications: Used for separation of ferrous impurities in the unprocessed materials.

Warranty item: Spouting magnet body.

Warranty period: Within 1 year after purchase of the equipment, except wearing parts.
[Note]:
(1) FAMSUN o., Ltd. reserves the copyright of this document and related contents. The recipient of
this Manual shall recognize the copyright and shall not provide the document wholly or partially to
a third party without FAMSUN’s authorization in writing beforehand, and shall not use it for other
purposes.
(2) No notification shall be given should the relative contents and specifications change.
(3) The foreign language version of this Operation Manual is translated based on the hinese
version of this Operation Manual of FAMSUN o., Ltd. Therefore, in case of divergence, the
hinese version of this Operation Manual shall govern.

Contents1
CONTENTS
1 Safety ...................................................................................................................................... 1-1
1.1 Environment conditions ................................................................................................... 1-1
1.2 Explanation of warning signs ........................................................................................... 1-1
1.3 General safety instructions .............................................................................................. 1-2
1.4 Safety instructions for transportation storage and installation ..................................... 1-2
1.5 Safety instructions in operation inspection and maintenance ....................................... 1-3
1.6 Personal protection .......................................................................................................... 1-3
1.7 Explosion protection: Precautions against dust explosion and fire hazard ...................... 1-5
1.8 Other safety precautions (environmental protection measurements) ............................ 1-6
2 General description of equipment ....................................................................................... 2-1
2.1 Adaptability and application ............................................................................................ 2-1
2.2 Main structure and working principle .............................................................................. 2-1
2.2.1 Main structure ..................................................................................................... 2-1
2.2.2 Working principle ................................................................................................ 2-2
3 Specifications of Spouting Permanent Magnet ................................................................ 3-1
3.1 Model nomenclature ....................................................................................................... 3-1
3.2 Product specs main technical parameters and performance indicators ........................ 3-1
4 Transportation and installation ............................................................................................ 4-1
4.1 Transportation .................................................................................................................. 4-1
4.2 Installation ....................................................................................................................... 4-1
5 Service and operations......................................................................................................... 5-1
5.1 Precautions of operation.................................................................................................. 5-1
5.2 Functional inspection before operation ........................................................................... 5-1
5.3 Use and operation ............................................................................................................ 5-1
6 Repair and maintenance ...................................................................................................... 6-1
6.1 Instructions of repair and maintenance ........................................................................... 6-1
6.2 Daily inspection and regular inspection ........................................................................... 6-1
6.2.1 List of daily inspection items ............................................................................. 6-1
6.2.2 List of regular inspection items ......................................................................... 6-1
6.3 Common malfunctions and troubleshooting ................................................................... 6-1
6.4 Tools for repair and maintenance .................................................................................... 6-2
6.5 Spare parts ....................................................................................................................... 6-2
6.5.1 Spare parts .......................................................................................................... 6-2
6.5.2 Exploded diagrams ............................................................................................ 6-3
6.5.3 Order list of spare parts ..................................................................................... 6-6
7 Appendix ................................................................................................................................. 7-1
7.1 Documents with shipment ............................................................................................... 7-1

Contents2
7.2 Contact information ......................................................................................................... 7-1

1-1
1 Safety
1.1 Environment conditions
Please install the equipment according to the following conditions for safe operations.

1

Install the equipment indoors with following conditions:
Ambient temperature range: -10

+40

Relative humidity range: 30%~85%
Altitude: less than 1000m
Keep indoor clean and well vented
Ensure to keep the equipment far away from corrosive gas, inflammable &explosive gas,
and steam.

2

To facilitate use, operation, maintenance, and inspection of the equipment, please
reserve adequate clearances around the magnet.
(Refer to scaled drawing for installation in Fig. 4-1).

3

Please place the equipment level.
1.2 Explanation of warning signs

1

The safety warning signs are classified as the following categories to assist in better
understanding of the Operation Manual.

2

These warning signs have been set up according to the operating regulations and
safety instructions for the equipment. In order to avoid dangerous accidents, this
Operation Manual also includes detailed preventions. Please operate the equipment
according to the instructions based on comprehensive understanding of the warning
signs.
Table 1 1 Safety warning signs
The sign warns: In order to avoid death and serious injury
accidents, please operate the equipment according to relevant
stipulations of safety instructions.
This sign warns: In order to avoid potential dangerous
accidents and serious injuries, please follow relevant
guidelines of safety instructions to operate the equipment.
This sign warns: In order to avoid minor and potential moderate
injuries, please operate the equipment according to relevant
stipulations of safety instructions.

1-2
1.3 General safety instructions

1

The said equipment operators herein refer to all workers who participate in operation,
inspection, repair, and maintenance etc.

2

The equipment operator must possess satisfactory understanding of the Operation
Manual.

3

As to the following safety instructions, it’s the responsibility and obligation of the
enduser owner to inform all the operation team members of the contents in this
Operation Manual.

4

While following all the safety instructions herewith, the users must comply with all other
safety regulations and stipulations to prevent accidents.

5

All related employees shall receive safety education. The enterprise management
should be in charge of the training and observe the national, local, and the other
internal safety regulations of the enterprise.

6

The equipment supplier and representatives will not take any liability for the damage
caused by the enduser due to failure to comply with the operation regulations.

7

Please install, operate the equipment in a correct way. Whoever taking off the safety
devices or destrying their fuctions shall take the responsibility of the consequencies.

8

Any modifications to the equipment may not alter the functions and safety
performances of the equipment.

9

Operation of the magnet shall comply with all the regualtions to prevent accidents.

10

FAMSUN o., Ltd will decline any responsibility for the accident or equipment
damage caused by fail to comply with the regulations of the Manual and by lack of
above-mentioned conditions for control system. If FAMSUN is requested to take the
responsibility, we will reserve the right to investigate and affix the responsibility to the
party who is liable.
1.4 Safety instructions for transportation, storage, and installation

1

The equipment must be placed and handled by professionals.

2

Use designated tools (steel cable, crane, hoist etc.) to lift the equipment according to
the specified sequence and method.

3

Authorized staff only for entering the site to perform lifting operation.

4

In order to prevent serious injury accidents, no one is allowed to present under the
equipment being lifted.

5

The capacity of hoisting tools should be greater than the total weight of the equipment.

6

For temporary storage of the equipment, place the equipment level and indoors. Keep
the room clean and temperature normal.

7

For transportation, it is not allowed to damage the equipment by packing. Report to the

1-3
manager immediately in case of any equipment damage or missing parts by
transportation.

8

In installation, allow enough clearances around the equipment for future maintenance
and parts replacement.

9

Prior to installation, all equipment parts must be kept in their original packages. The
equipment parts and packing boxes should be properly covered and stored in places
sheltered from rain, sunlight and damp.
1.5 Safety instructions in operation, inspection and maintenance

1

The operation, inspection, repair and maintenance of the equipment shall be carried
out only by the trained technical personnel according to the applicable specifications
provided together with the equipment. Electric installation shall be performed only by
professionals per the relevant electric safety standards in their practice.

2

Do not operate when the safety protection device and access door are open. On the
other hand, do not open the access door until the equipment comes to full stop.

3

If any trouble occurs to the safety protection device of the access door, please repair or
replace it at once.

4

When the safety guards or access door have to be opened or the safety devices have
to be disassembled in order to inspect, adjust, repair and maintain the equipment or
replace the parts, required safety action plans must be in place prior to such
operations.

5

Do not do such work as inspection, maintenance and cleaning etc. until the material
flow has completely stopped going through the spouting magnet.

6

When performing maintenance and inspection work with a welder or other tools that
can generate sparks, take strict safety precautions against dust explosion and
combustion (refer to "Explosion protection").

7

If any parts are found as damaged, please repair or replace them immediately.
1.6 Personal protection

1

All the mechanical equipment manufactured by FAMSUN o., Ltd includes safety
devices that are consistent with modern technical frontier and generally effective
safety rules prior to leaving the factory so that the customers can use the equipment
in accordance with the regulations.

2

If the operators employed lack of communication skills of reading and writing, the
owner holds the responsibility to explain to them clearly where danger exists and
warn them that special attention should be exercised.

1-4

3

In order to ensure safety and health for the workers during production process, it is
required to use personal protection equipment (such as gloves, breathing masks
and safety shoes) during operation.

4

Obey the special regulations of accident prevention in the operation manual provided
by FAMSUN.

5

The enterprises are obligated to execute following regulations to ensure operators'
safety.
①The guard of the coupling must be mounted at any time and kept in place. It is very
dangerous when they are opened or dismantled. It may cause casualty accident.
②Keep the safety limit switches in good order. Never bypass or discard them.
③Switch the drive motor off completely to stop the equipment for inspection,
commissioning, repair and maintenance, which can be accomplished through a
full-phase cut-off and lockable switch installed near the equipment or on the
operation desk or the control panel on site. It is not enough only to screw off the
fuse wire!
④If the equipment needs other energy such as pneumatic, hydraulic, steam or hot
water, it is necessary to cut off the energy supply or turn off the switches, and to
release the pressure in the internal pipeline system of the equipment.
⑤As for handling heated or cooled parts and components of the equipment, watch for
the danger of burning or scalding as well as frostbiting.
⑥If you have pressed the emergency-stop switch to shut down the equipment and
you want to reset the switch, it is not permissible to only re-press this button rather
to turn on the main switch to restart the equipment.
⑦If some equipment is equipped with a partial shutdown system, special care should
be exercised. Read the instruction manuals attached to the equipment carefully. In
such equipment with a partial shutdown system, temperature will rise because
pressure or vacuum will build up if in service for a while.
⑧leaning, lubricating and oiling of the equipment or its parts and components may
go only when the equipment is not in running. If you have to climb on or enter the
equipment to do such work, the following rule shall be mandatory without exception:
cut the motor power supply off completely and lock out the switch with warning tag
attached. Take safety measures for climbing as well.
⑨Be careful: never do sampling from inside of the equipment unless there is no
danger. Usually, the samples can be taken from the pipe under the equipment
rather than inside of equipment.
⑩lean out the deposited dust, dirt and extra materials frequently. Keeping the
equipment clean can enhance production safety and the housekeeping level of
workshop and is also beneficial to prevention of dust explosion.

1-5
⑪In case of oil (grease) leakage, clean it up immediately and seal well the place
where leakage occurs. Oil or grease leakage on the floor will easily bring hazards
to the operators.
⑫During operation, the equipment must be equipped with safety devices, which may
be neither removed/abandoned nor reduced in functions. Otherwise, FAMSUN will
not be responsible for any accidents resulted wherefrom, and will reserve the right
to ascertain where the responsibility lies.
1.7 Explosion protection: Precautions against dust explosion and fire hazard

1

General housekeeping

Keeping the work place free of combustible dusts is an essential condition for
production safety.

Do not pile bagged or bulk materials up between machines.

In order to reduce dust emission to surrounding areas, keep all conveying devices,
cyclone, and filter bags in good condition without any leakage especially at pipes
and covers of the conveying devices.

In order to reduce dust explosion hazard, clean dusts out frequently and effectively
everywhere.

Keep all motors free of deposited dusts.

2

Regular inspection and maintenance

heck the safety devices such as speed monitor or the like apparatus regularly, at
least once a week.

heck and clean the magnetic separator, at least once a day.

In order to avoid heat generation, check the functions of all main shafts and
bearings, at least once a week, and fill up with lubricant on regular basis.

3

Electric apparatus
Regularly check the electric apparatus and articles and keep the following in mind:

Do not use any flashlights and other lamps without shielding or explosion-proof
glass.

Do not use any extra-long cables or electric heater.

Repair or replace the electric apparatus and equipment immediately if any failure
occurs.

Do not install the cables without conduits on the floor.

ut off the power supply of the equipment after work.

Assign an electrician to check the insulation of all the power lines of electric network
according to relevant regulations, at least once a year.

4

Smoking and welding

Smoking is forbidden, which is applicable to all workers and staff of the enterprise

1-6
as well as guests, customers, outcomers, and drivers visiting the plant.

If in need to use the tools such as welding equipment or soldering lamp (flame
soldering lamp) etc. for repair or installation, do as best as possible to arrange the
work in a special workshop or on a designated site.

In case of occasional welding or the like work directly in production area or
warehouse, submit a written application to the supervisor in charge beforehand for
written approval. Perform such operations only with specific safety measures in
place, such as laying water soaked canvas or the covering canvas special for the
surrounding area with fire extinguishers readily available. After completion of the
operation, monitor the welding site and the surrounding area for at least 10 hours.

The gas cutting sparks are very dangerous. They can travel across through the
narrow clearance of walls and drop downstairs or to the next rooms, or even fly off
10m away in distance. If the sparks drop in dusts, fire accident may occur at any
time.

Welding is prohibited on a running conveyor. If the welding work is required, shut
down the equipment first, and then make a thorough cleaning and isolate both
sides of the welding site securely with materials like mineral wool to avoid
connections with other conveying devices, silos or tanks. If the work is to be done
on the chutes or conveying pipes, it is necessary to disassemble them or
disconnect their lower ends with silo or tank and seal them to avoid welding sparks
entering the conveying pipes or silos.

5

Beware of static electricity
To ensure the safety of electric circuits and avoid explosion as a result from spark
discharge, remove the painting at the electric connections.
1.8 Other safety precautions (environmental protection measurements)
If you decide not to use the equipment any longer after it has been used for a certain
number of years (such as 8-10 years), take the following measures for environmental
protection and parts reutilization.

1

Drain the fluids inside of the equipment (like motor oil, gearbox oil, brake oil and
coolant etc.) into special containers and send them to the designated workshop.

2

Pick up the plastic parts for reutilization.

3

Sort out the metal parts for special handling.

2-1
2 General description of equipment
2.1 Adaptability and application
T XT Series Spouting Permanent Magnet is the product developed by FAMSUN and
mainly used for separation of ferromagnetic metal inclusion from the material flow. The magnet
serves feed mills, grain & oil processing plants, solvent factories, and breweries etc. in all sizes.
2.2 Main structure and working principle
2.2.1 Main structure
T XT series magnet consists of three main parts of cylindrical housing, permanent magnet
element, and door as shown in Fig. 2-1.
○
1 ylindrical housing ○ 2 Permanent magnet element ○ 3 Door

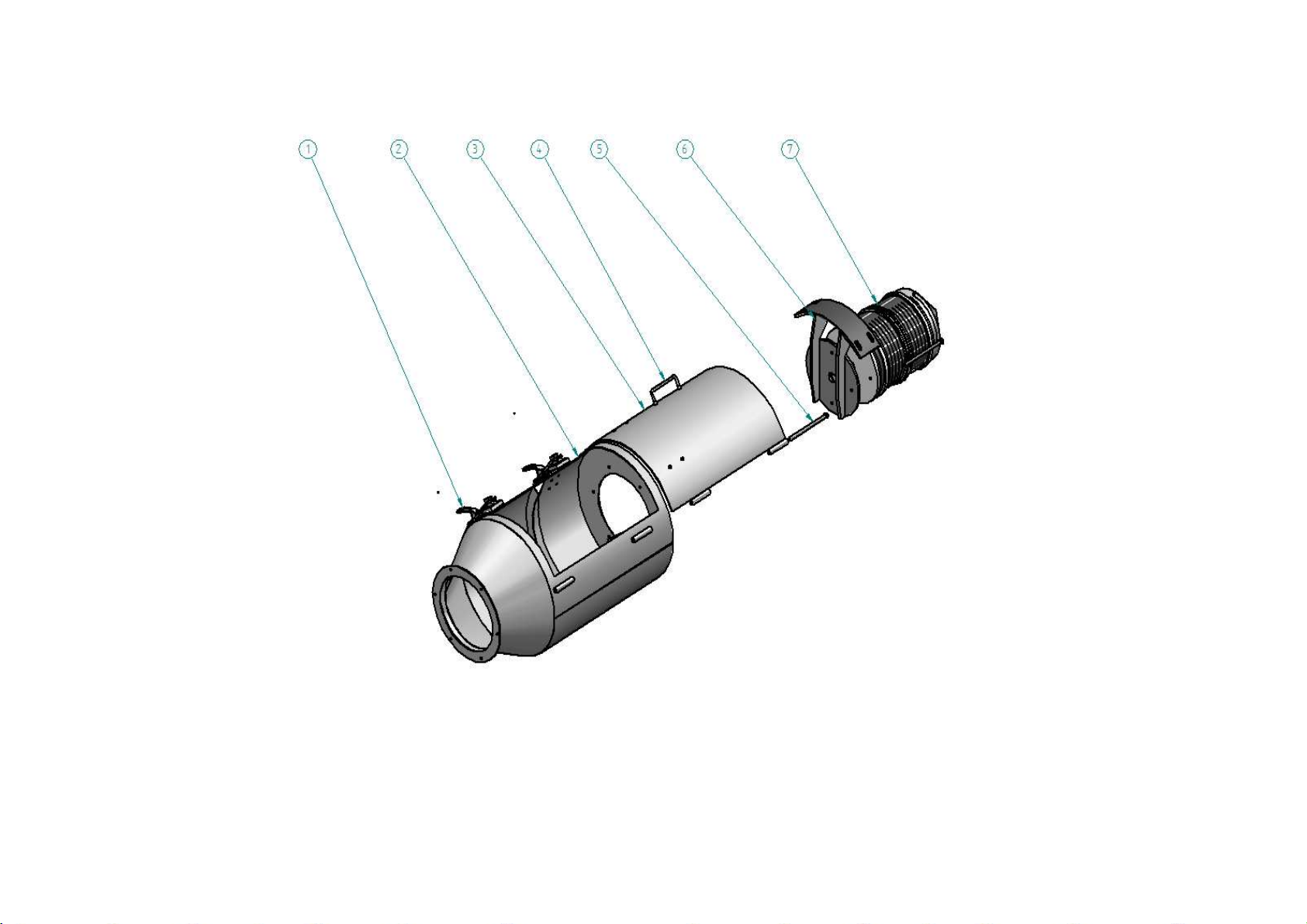

Fig. 2 1 Structural diagram of TCXT Series Spouting Permanent Magnet

2-2

1

ylindrical housing
The cylindrical housing supports the magnetic core in place and allows a pathway for
the material flow to go through. Wholly made of welded stainless plates, it provides
material inlet at the top and material outlet at the bottom.

2

Permanent magnet element
The permanent magnet element is composed of outer drum, magnetic block and
magnet pole plates. The outer drum is in stainless steel while magnetic block is of
high-performance composite permanent magnetic material.

3

Door
The door holds the permanent magnet element at position. The door allows regular
cleaning of ferrous metal inclusion adhered to the surface of the magnet pole plates
when open.
2.2.2 Working principle
The materials carrying granular particles (mealy powder) along with ferromagnetic
metal inclusion enter into the cylindrical housing via the inlet of the magnet and form
fairly even annular flow around the magnetic core. The ferromagnetic metal inclusion
will adhere to the surface of the magnet pole plates due to magnetization by the
magnetic field whereas the granular (mealy) materials shall flow through out via the
outlet at the bottom. Hence, the separation of metal impurities is achieved.

3-1
3 Specifications of Spouting Permanent Magnet
3.1 Model nomenclature
The magnet model consists of industry code, assortment code, model code, main spec,
and material code (as shown below).
T X T □□
Material code: A/B (stainless/partial stainless)
Main spec: Diameter of permanent magnet
element (cm)
Model code: Spouting
Assortment code: Magnetic separator
Industry code: General equipment of grain &
oil processing
3.2 Product specs, main technical parameters, and performance indicators
Refer to Table 3-1 for product specifications, main technical parameters, and performance
indicators.
Table 3 1 Product specs, main technical parameters, and performance indicators
Item\Specification T XT15_A T XT20_A T XT25_A T XT30_A T XT40_B
Diameter of
permanent magnet
part (mm)
φ150 φ200 φ250 φ300 φ400
Diameter of outer
drum (mm) φ300 φ400 φ480 φ540 φ680
Overall height (mm) 750 788 842 901 1190
apacity
(t/h)
Meal 10 20 35 45 80
Granular 15 30 50 70 100
Efficiency of
deironing ≥99％
Magnetic field
intensity (T) ≥0.3
Weight (kg) 73 113 150 202 290

4-1
4 Transportation and installation
4.1 Transportation

1

Hoisting
In order not to damage the equipment, the cables and steel boom shall be capable of
handling the weight of the hoisted equipment and long enough. The carrying capacity
of the hoist shall be more than 1.2 times of the equipment weight to be hoisted.

2

Transportation
①For shipment before ex-works delivery, whether to use a packing case is
determined according to the actual conditions. If a packing case is not used in the
transportation, protection against water invasion shall be taken and the goods
shall be prevented from collision and overturn of the equipment.
②If a packing case is used, the equipment and accessories shall be fixed securely
inside of the case and proper clearances shall be reserved from the boards of the
packing case to avoid collision and damage in the transportation. If the height is
in excess of the standard, partial packing is advised.
③During transportation, any overturn, heavy loads or collision are not allowed onto
the equipment body.

3

Storage
①If the equipment is to be stored in the open air, the facilities for prevention from rain,
sunshine and water accumulation should be available. When the equipment is to
be stored indoors, the measures for ventilation and damp proof shall be taken.
②The equipment should be stored in a ventilated, dry and cool place for long-term
storage with damp proof measures. The exposed surfaces without painting
should be covered with anti-rust oil.
4.2 Installation

1

The magnet is delivered generally as an entity. First, check for any damage by
transportation at unpacking. arefully count the documents and accessories along with
the shipment against the packing list and make a complete record with pictures. Only
are the specially trained technical personnel allowed to do the installation for the
equipment made by FAMSUN Ltd. according to the specifications and standards
provided by the shipment.

2

To prevent any big impurities from entering the magnet to plug up, it is advised to place
the magnet after a scalper.

4-2

3

Install the magnet in a vertical spouting below an upright straight length≥500mm.
Position it on the floor or ground level for convenient cleaning of ferrous impurities.

4

Since the impact force of the material flow may disturb the magnet by interference to
iron attraction, it is necessary to control the material falling speed <1m/s by placing a
baffle device above the magnetic core.
For detailed information, see Fig. 4-1 scaled drawing and Table 4-1 dimensions.
Fig. 4 1 Scaled drawing of TCXT series magnet
Table 4 1 Dimensions of TCXT series magnet
Model size
Dimension T XT15_A
T XT20_A T XT25_A T XT30_A T XT40_B
A 460 560 640 700 840
B 750 788 842 901 1190
300 400 480 540 680

4-3
D 150 200 250 300 400
E 185 250 300 350 450
F 210 280 330 380 480
G 10 10 10 10 10
n 4 6 6 6 8

5-1
5 Service and operations
5.1 Precautions of operation
Note: Besides the safety instructions specified in hapter 1, the directives below shall also
be followed during the equipment operation:

1

Do not hit the permanent magnet element in the operation because of its brittle
character in nature.

2

Due to the strong magnetic field by the magnet, do not place electric instruments,
watches and other easily magnetized objects in the surroundings.
5.2 Functional inspection before operation

1

heck if the conical top cover of permanent magnet element is worn out.

2

heck if the magnetic force of the magnet is getting down.

3

heck if metal impurities are still on the surface of the permanent magnet core.

4

heck if sealing around the door is good.
5.3 Use and operation

1

The operators should well know the structure, performances, and the operation of the
equipment and receive the training organized by FAMSUN o., Ltd.

2

In case of abnormal circumstances such as material leakage during operation, stop
feeding materials immediately and find out the causes. Resume the operation until all
troubleshooting is completed.

3

onduct cleaning and necessary checking after each work shift.

6-1
6 Repair and maintenance
6.1 Instructions of repair and maintenance
Note: Besides safety instructions in hapter 1, comply with the following instructions for
repair and maintenance.

1

In order to ensure deironing effects and to avoid plugups inside of the magnet housing
due to heavy adhesion of excessive metal impurities on the surface of magnet
element, every work shift should open the door on regular basis to manually clean
out all the attracted metal and other impurities.

2

Under normal conditions, the magnet does not need to magnetize in 6-7 years. If the
magnetic force shows obvious weakening, magnetization or magnet replacement is
required in timely fashion.

3

Replace the conical top cover of the magnet element in no time upon severe wear due
to the direct impacting and friction by material flow.
6.2 Daily inspection and regular inspection
If abnormality is found to the magnet during daily or regular inspection, stop using the
magnet and take immediate steps to ensure the normal conditions back to the magnet
before resuming operation.
6.2.1 List of daily inspection items
Table 6 1 List of daily inspection items
No. Section Inspection items ycle Method Solution
1
onical top cover
of magnet
element
If severely worn out Daily Inspection Replacement
2 Surface of
magnet element
If metal impurities staying Daily Inspection leaning
3 Door If closed well Daily Inspection Adjustment
6.2.2 List of regular inspection items
Table 6 2 List of regular inspection items
No. Section Inspection items ycle Method Solution
1 Permanent
magnet element
If magnetic force weakening 6 mon. Inspection hecking
2 Door sealing If damaged 6 mon. Inspection Replacement
3 Fasteners If loosening Monthly Inspection Adjustment
6.3 Common malfunctions and troubleshooting
Table 6 3 Common malfunctions and troubleshooting
Malfunction auses Troubleshooting
Plugup
Too many metal impurities
attached to magnet
element
lean out impurities
Metal impurities found
in the product
Magnetic force weakening
Replace the permanent magnet
element
Excessive feeding Reduce feeding

6-2
Door leaking Door seal damaged Replace door seals
Deformation of the door Fix it or replace with a new door
6.4 Tools for repair and maintenance
Table 6 4 Tools for repair and maintenance
No. Tool name Specification Function
1 A set of socket
wrenches For regular bolts & nuts
2 Screw driver Tighten the screws
3 Vernier caliper Length measuring
4 Tape ruler Length measuring
5 Long ruler Length measuring
6 Scraper leaning
7 Gauss meter Magnetic measuring
8 Metal brush leaning
9 Air gun leaning
6.5 Spare parts
Important note:
FAMSUN guarantees repairing or replacing parts without any charge to the customer
(excluding wearing parts) due to quality defects in manufacturing within one year from the
date of leaving the factory (the date on the invoice) under normal use and safekeeping by
the customer, excluding the operations not in accordance with the operating instructions
and human factor.
We continue to undertake the support to maintenance and repair after one year from the
date of leaving the factory to ensure normal use of the customer, but the expenses shall be
borne by the customer.
6.5.1 Spare parts
Some parts and components of the equipment are worn out gradually upon operation. If
such parts are still in use after being worn out, the performance of equipment shall be
affected and dangerous accident may occur accordingly. Therefore, these parts and
components shall be replaced in timely fashion upon certain service limit. The spare parts
in this Operation Manual are also called wearing parts.
Timely and accurate ordering of spare parts will inspire your production. So in order to
purchase correct spare parts when placing an order, please indicate the corresponding
serial number, code, description of the spare part and the quantity required in the order list.
And provide us with the order list via regular mail or e-mail. If it is possible, please attach
sketch(es) of the spare parts to be ordered. Wearing parts should be included in the spare
parts list.

6-3
6.5.2 Exploded diagrams
Fig. 6 1 Exploded diagram of TCXT Series Spouting Permanent Magnet
