F&U PAC-1030 User manual

INSTRUCTIONS MANUAL
PAC-1030

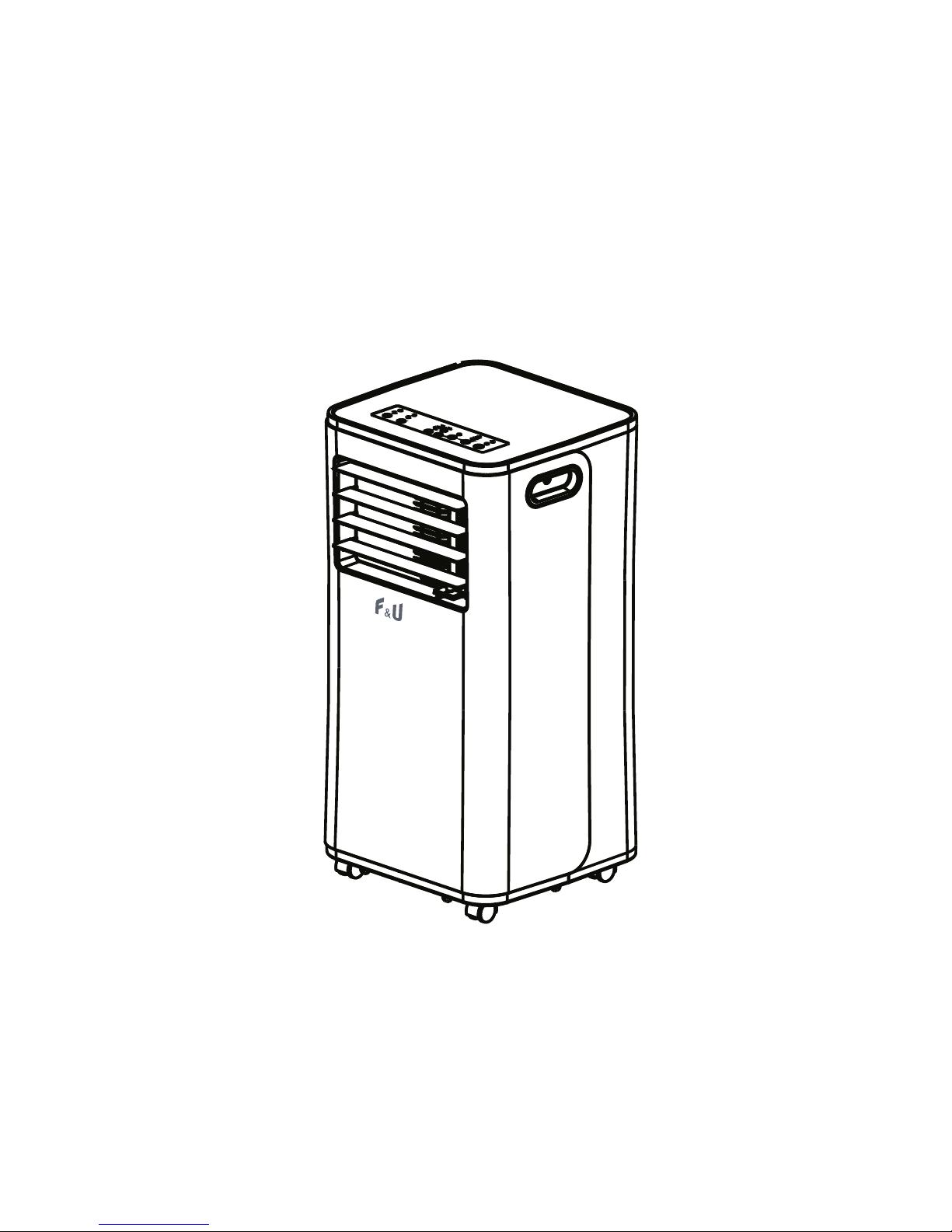

PORTABLE AIR CONDITIONER
Read and save these instructions for future reference

Content
I. Notes
II. Features and Components
III. Installation and Adjustment
IV. Control Setting
V. Drainage Instructions
VI. Maintenance
VII. Troubleshooting
VIII. Appendix
Thank you for choosing this luxurious and elegant portable air conditioning. Please keep the
manual for later review, and read the manual carefully before use.

I. Notes
Notes:
The air conditioning is only suitable for indoor use, and not suitable for other applications.
Follow local grid interconnection rules while installing the air conditioning and ensure
that it is properly grounded. If you have any question on electrical installation, follow the
instructions of the manufacturer, and if necessary, ask a professional electrician to install
it.
Place the machine in a flat and dry place and keep a distance of above 50cm between the
machine and the surrounding objects or walls.
After the air conditioning is installed, ensure that the power plug is intact and firmly
plugged into the power outlet, and place the power cord orderly to prevent someone from
being tripped or pulling out the plug.
Do not put any object into the air inlet or outlet of the air conditioning. Keep the air inlet
and outlet free from obstructions.
When drainage pipes are installed, ensure that the drainage pipes are properly connected,
and are not distorted or bended.
While adjusting the upper and lower wind-guide strips of the air outlet, pluck it with
hands gently to avoid damaging wind-guide strips.
When moving the machine, make sure that it is in an upright position.
The machine should stay away from gasoline, flammable gas, stoves and other heat
sources.
Don't disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause a
machine malfunction or even bring harm to persons and properties. To avoid danger, if a
machine failure occurs, ask the manufacturer or professionals to repair it.
Do not install and use the air conditioning in the bathroom or other humid environments.
Do not pull the plug to turn off the machine.
Do not place cups or other objects on the body to prevent water or other liquids from
spilling into the air conditioning.
Do not use insecticide sprays or other flammable substances near the air conditioning.
Do not wipe or wash the air conditioning with chemical solvents such as gasoline and
alcohol. When you need to clean the air conditioning, you must disconnect the power
supply, and clean it with a half-wet soft cloth. If the machine is really dirty, scrub with a
mild detergent.
The appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and maintenance shall not
be made by children without supervision.
II. Features and Components
Features
New look, compact structure, streamlined machine.
With cooling, dehumidification and fan function, Continuous Water Drainage Function.
Control panel with LED display. The machine is beautiful and elegant. Product is equipped with
high-quality remote control for easy operation. It adopts a user-friendly remote control design.
Outdoor interface is set high to facility assembly and keep the smooth flow of the heat pipe.
Air filtration capability.
Timer function.
Protection function of automatically restarting the compressor after three minutes, a variety of
other protection functions.
Components:

III. Installation and Adjustment
1. Installation:
Warning: before using the mobile air conditioning, keep it upright for at least
two hours.
The air conditioning can be easily moved in the room. In the moving process, ensure that the air
conditioning is in the upright position and placed on a flat surface. Do not install and use the air
conditioning in the bathroom or other environments where humidity is present.
1.1 Install the heat pipe assembly (as shown in Fig.1): screw the heat pipe assembly (exhaust
fitting end) into the exhaust port on the rear panel.
Exhaust Pipe Assembly
Window Sealing Plate Assembly

1.2 Install the window sealing plate assembly

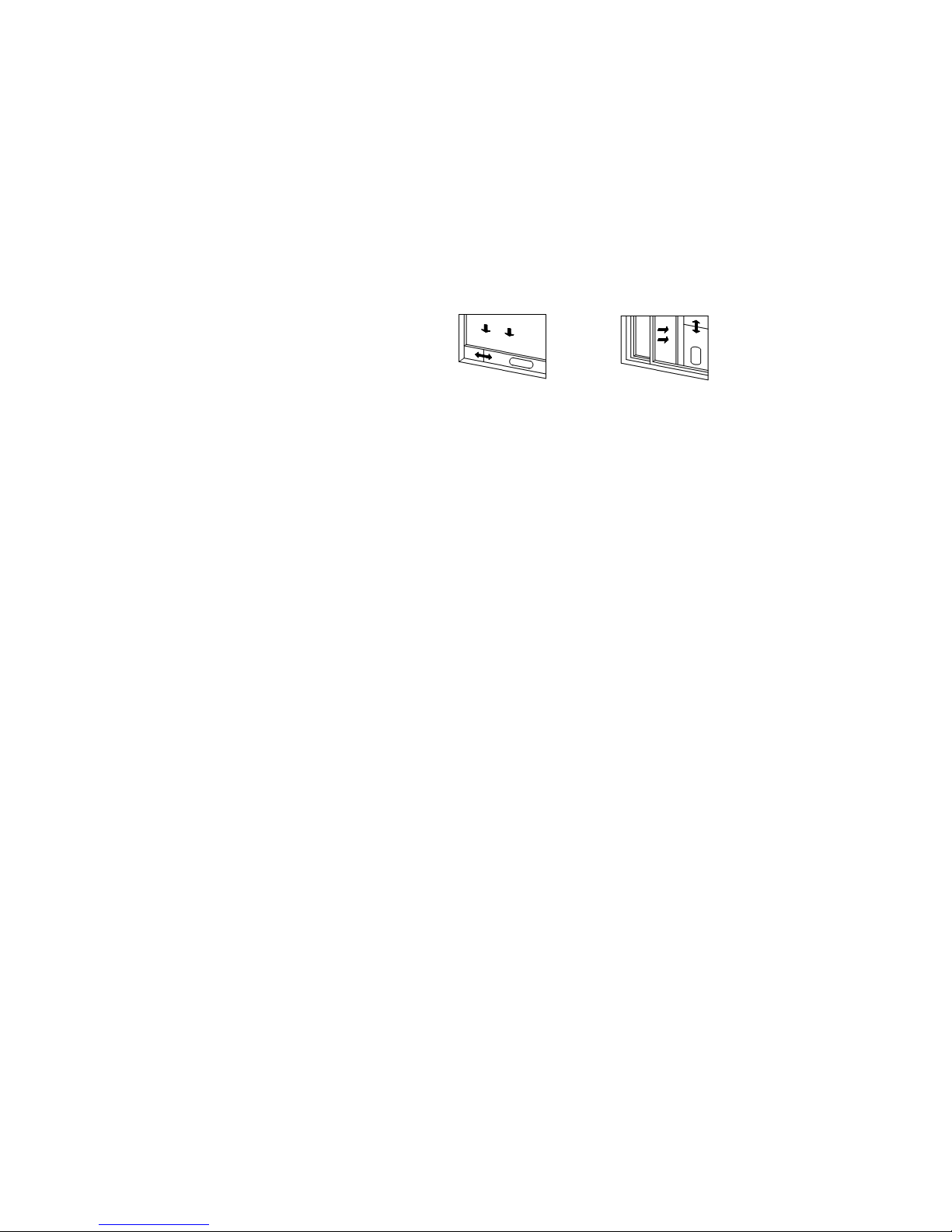

1) Half open the window, and mount the window sealing plate assembly to the window (as shown
in Fig.2 and Fig.3); the assembly can be placed in horizontal and vertical direction.
2) Pull various components of the window sealing plate assembly open, adjust their opening
distance to bring both ends of the assembly into contact with the window frame, and fix various
components of the assembly.
1.3 Install the body
1) Move the machine with installed heat pipe and fittings before the window, making sure that
the distance between the body and walls or other objects shall be least 50 cm (as shown in Fig.4).
2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the
window sealing plate assembly (as shown in Fig.5 and Fig.6) .
Fig.1
Fig.3
Fig.2
Fig.4

Notes: 1. the flat end of the exhaust pipe joints must be snapped into place.
2. The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep the
ventilation of the exhaust pipe unblocked.
Important Notice
The length of the exhaust hose shall be 280~1,500mm, and this length is based on the
specifications of the air conditioning. Do not use extension tubes or replace it with other different
hoses, otherwise it may cause malfunction. Exhaust host must be not blocked; otherwise it may
cause overheating.
IV. Control Panel Setting
I. Operating instructions:
LED Control Panel is as follows:
1. Power Key 2. Mode Selection Key 3. Sleep Key 4. Down Key
5. Up Key 6.Fan Speed Selection Key 7. Timer Key
Fig.5
Fig.6

When the machine is connected to the mains for the first time, a buzzer noise indicates that
the machine is at standby status.
1. Power Key: press the key to turn on and off the machine. In the case of power on, press
this key to turn off the machine; in the case of power off, press this key to turn on the
machine.
2. Mode Selection Key: In the case of power on, press this key to switch between
cooling → dehumidification →fan → cooling mode.
3. Sleep Mode:
In cooling Mode, Press the UP and Fan Key to turn on the sleep mode, then the unit will
work on Energy-Saving and quiet mode.
4, 5. Up Key and Down Key: press the two keys to change the temperature or setting time,
as follows:
While setting the temperature, press the up key or down key to select the required temperature
(not available in fan or dehumidifying mode).
While setting the timer, press the up key or down key to select the required time.
6. Wind Speed Selection Key:
In cooling and fan mode, press the key to select high or low wind speed operation.
This key in dehumidifying mode is invalid, and the fan will forcibly choose low wind speed
operation.
7. Timing Key:
When the unit is turned on, press this key to turn off the timer; when the unit is turned off,
press this key to turn on the timer.
Press this key and when the timer symbol flashes, press the up and down key to select the
desired value.
Timer can be set within the range of 1-24 hours and the value is increased/decreased by one
hour.
Note:
1. Sleep mode can not be turned on during the dehumidifying or Fan mode!
2. When the inner unit chassis water is full, the waterfull indication will light on, the buzzer
will alarm for several second and the compressor will stop working.

II. Operating Instructions of the Remote Control
The remote control Panel is as follows:
Instructions for use:
1. Power: Press to turn on or turn off the machine.
2. Timer: press to set the timer.
3. Down: press to reduce the temperature or timer set value.
4. Mode: press to switch between cooling, dehumidifying, fan.
5. Up: press to increase temperature and timing set value.
6. Fan: press to select high, low wind speed.
7. Sleep Mode: Press to turn on the sleep mode.
III. A Variety of Protection Functions
3.1 Frost Protection Function:
In cooling, dehumidifying or economic power saving mode, if the temperature of the exhaust
pipe is too low, the machine will automatically enter into protection status; if the temperature
of the exhaust pipe rises to a certain temperature, it can automatically revert to normal
operation.
3.2 Overflow Protection Function:

When the water level in the water pan exceeds the warning level, the machine will
automatically sound an alarm, and the "FULL" indicator light will flash. At this point, you
need to move the drainage pipe connecting the machine or the water outlet to sewer or other
drainage area to empty the water (details see Drainage Instructions at the end of this chapter).
After the water has been removed, the machine will automatically return to the original state.
3.3 Automatic Defrosting (cooling models have this function):
The machine has automatic defrosting function.
3.4. Protection Function of the Compressor
To increase the service life of the compressor, it has a 3-minute delay booting protection
function after the compressor is turned off.
V. Drainage Instructions
1. Manual drainage:
1) When the machine stops after the water is full, turn off the machine power and unplug the
power plug.
Notes: Please move the machine carefully, so as not to spill the water in the water pan at the
bottom of the body.
2) Place the water container below the side water outlet behind the body.
3) Unscrew the drainage cover and unplug the water plug, the water will automatically flow into
the water container.
Notes:
1. Keep the drainage cover and the water plug properly.
2. During drainage, the body can be tilted slightly backwards.
3. If the water container cannot hold all the water, before the water container is full, stuff the
water outlet with the water plug as soon as possible to prevent water from flowing to the floor or
the carpet.
4) When the water has been removed, stuff the water plug, and tighten the drainage cover.
Notes: 1. Restart the machine after the water plug and drainage cover are installed, otherwise
condensate water of the machine will flow to the floor or the carpet.

2. Continuous drainage (Optional) (only applicable to cooling & dehumidifying mode), as
shown in figure:
1) Unscrew the drainage cover, and unplug the water plug.
2) Set the drainage pipe into the water outlet.
3) Connect the drainage pipe to the bucket.
VI. Maintenance
Cleaning: before cleaning and maintenance, turn off the machine and unplug the plug.
1. Clean the surface
Clean with surface of machine with a wet soft cloth. Don't use chemicals, such as benzene, alcohol,
gasoline, etc.; otherwise, the surface of the air conditioning will be damaged or even the whole
machine will be damaged.
2. Clean the filter screen
If the filter screen is clogged with dust, and the effectiveness of the air conditioning is reduced, be
sure to clean the filter screen once every two weeks.

2.1: Clean the upper filter screen frame
1) Clasp the wedging block of the EVA filter screen frame with hands. Force down from the outside
to remove the EVA filter screen frame. Unscrew four screws fixing the EVA filter screen and the rear
housing to remove the EVA filter screen (as shown in the above figure).
2) Put the EVA filter screen into warm water with neutral detergent (about 40℃ / 104℃) and dry it
in the shade after rinsing clean.
Unit Storage:
1: Unscrew the drainage cover, unplug the water plug, and discharge the water in the water pan into
other water containers or directly tilt the body to discharge the water into other containers.
2: Turn on the machine, adjust it to low-wind ventilation mode, and maintain this state until the
drainage pipe becomes dry, so as to keep the inside of the body in a dry state and prevent it from
mildewing.
3: Turn off the machine, unplug the power plug, and wrap the power cord around the wrapping post;
install the water plug and the drainage cover.
4: Remove the exhaust pipe and keep it properly.
5: Cover the air conditioning with a plastic bag. Put the air conditioning in a dry place, keep it out
of the reach of children, and take dust control measures.
6: Remove batteries of the remote control and keep them properly.
Note: ensure that the body is placed in a dry place and keep all machine components properly.

VII. Troubleshooting
Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to
failure of the warranty card, and may cause damage to users or their properties.
Problems
Reasons
Solutions
The air
conditioning
does not work.
There is no electricity.
Turn it on after connecting it to a socket with
electricity.
The overflow indicator displays "FL".
Discharge the water inside.
The ambient temperature is too low or
too high
Recommend to use the machine in at the
temperature of 7-35 ℃ (44-95 ℃).
In cooling mode, the room temperature
is lower than the set temperature; in
heating mode, the room temperature is
higher than the set temperature.
Change the set temperature.
In dehumidification mode, the ambient
temperature is low.
The machine is placed in a room with an
ambient temperature of greater than 17 ℃ (62
℃).
The cooling or
heating effect is
not good
There is direct sunlight.
Pull the Curtain.
Doors or windows are open; there are
a lot of people; or in cooling mode,
there are other sources of heat.
Close doors and windows, and add new air
conditioning.
The filter screen is dirty.
Clean or replace the filter screen.
The air inlet or outlet is blocked.
Clear obstructions.
Big Noise
The air conditioning is not placed on a
flat surface.
Put the air conditioning on a flat and hard
place (to reduce noise).
The compressor
does not work.
Overheat protection starts.
Wait for 3 minutes until the temperature is
lowered, and then restart the machine.
The remote
control does not
work.
The distance between the machine and
the remote control is too far.
Let the remote control get close to the air
conditioning, and make sure that the remote
control directly faces to the direction of the
remote control receiver.
The remote control is not aligned with
the direction of the remote control
receiver.
Batteries are dead.
Replace batteries.

Displays 'E1'.
The pipe temperature sensor is
abnormal.
Check the pipe temperature sensor and related
circuitry.
Displays 'E2'
The room temperature sensor is
abnormal.
Check the room temperature sensor and
related circuitry.
Note: If problems not listed in the table occur or recommended solutions do not work, please
contact the professional service organization.
VIII. Appendix
Schematic Diagram for Cooling & Heating model
For all the technical and specific parameters, please refer to product nameplate.
Condenser
Compressor
Evaporator
Capillary

NOTICE ABOUT RECYCLING
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life,
should be disposed of separately from your household waste. Please dispose of
this equipment at your local community waste collection/ recycling centre.
In the European Union there are separate collection systems for used electrical and electronic
products.
Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
Herewith, Amiridis-Savvidis S.A. states that this product, complies with the requirements of
below directives:
EMC-Directive: 14 / 30 / EU
Low Voltage Directive: 14/ 35 / EU
ErP Directive 09 / 125 / EC
CE Marking: 93 / 68 / EEC
RoHS Directive: 11 / 65 / EU
The detailed declaration of conformity can be found at www.fandu.gr
Exclusive importer in Greece:
Amiridis – Savvidis S.A.
87A, 17th Noemvriou str, P.C. 55534
Thessaloniki – Greece
T: [phone] | F: [phone]
www.amiridis-savvidis.gr
