SPECIFICATION SHEET
Product Specifications subject to change

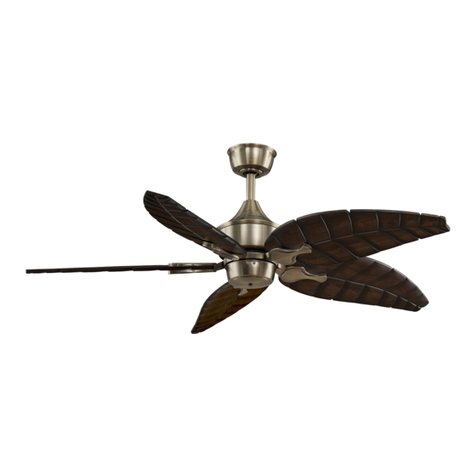

The Islander®
FP320 Series
Select Finishes

7´ min
Floor
Ceiling
Blade Sweep
Traditional Blades:
18˝Blade - 44˝
22˝Blade - 52˝
B4000 Series Wood Blades:
22˝Blade - 52˝
25˝Blade - 58˝
Net Hanging Weight: 16 lbs
5¾˝dia
20° Blade Pitch
A
9˝
The Islander®Fan Assembly – FP320¾¾
10983 Bennett Parkway
Zionsville, IN 46077
Toll Free [phone]
FAX [phone]
Outside U.S. call [phone]
Visit Our Website www.fanimation.com
INSTALLATION REQUIREMENTS:
Ceiling fan attaches to electrical junction box securely anchored and capable of withstanding a minimum load of 50 lbs.
ELECTRICAL REQUIREMENTS:
Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. 220 VAC, 50 Hz export
version is available.
FAN SPEEDS:
Material, shape, and size of fan blade will affect the speed of the fan. In general, the larger blades (22”) will turn slower
than the smaller blades (18”) and the narrower blades (narrow oval & oar shaped) will turn faster than the wide oval
blades. For comparison the ISP1 blade set (22” wide oval palm blade set) turns at approximately the following speeds:
1st Pull-High-70 rpm, 2nd Pull-Medium-50 rpm, 3rd Pull-Low-25 rpm. The ISD4 (22” narrow oval woven bamboo) turns
at approximately the following speeds: 1st Pull-High-103 rpm, 2nd Pull-Medium-73 rpm, 3rd Pull-Low-33 rpm. (All speeds
listed are approximate and are given for comparison only)
CONTROL OPTIONS:
Optional controls are: C1 or C2 wall controls; C4 remote control with canopy receiver; SW50 switch cap receiver with
C20 remote and/or C21 wall control.
LIGHTING OPTIONS:
Optional lighting fitters and light kits are available, including a single bowl fixture with a maximum of 180 watts and a
variety of four-light fixtures with a maximum of 240 watts. See catalog or visit our website, www.fanimation.com for more
lighting options.
DOWN ROD OPTIONS:
The Islander®fan comes with a standard 6˝down rod. Optional down rods are available in 12˝, 18˝, 24˝, 36˝, 48˝, 60˝, and
72˝. For installations requiring a longer down rod, a down rod coupler is available. The Islander®fan can be mounted on a
sloped ceiling up to 30°. Optional sloped ceiling kits are available for up to 52°. Call tech support for more information.
BLADE SETS:
Blade sets consist of either 4 blades or 5 blades depending on blade style. Mounting only four blades is an option and
will increase speed and airflow. See catalog or visit our website, www.fanimation.com for more blade selections.
Available Finishes
AB Antique Brass
BL Black (Damp)
MW Matte White (Damp)
OB Oil-Rub’d Brnz (Damp)
PW Pewter
RS Rust (Damp)
SN Satin Nickel
Dimensions shown in inches
Copyright 2007 Fanimation, Inc. 2007/12
Distance from Ceiling
to Edge of Blade A
Fan w/6˝downrod 15˝
Fan w/12˝downrod 21˝
Fan w/18˝downrod 27˝
Fan w/24˝downrod 33˝
Fan w/36˝downrod 45˝
Fan w/48˝downrod 57˝
Fan w/60˝downrod 69˝
Fan w/72˝downrod 81˝
