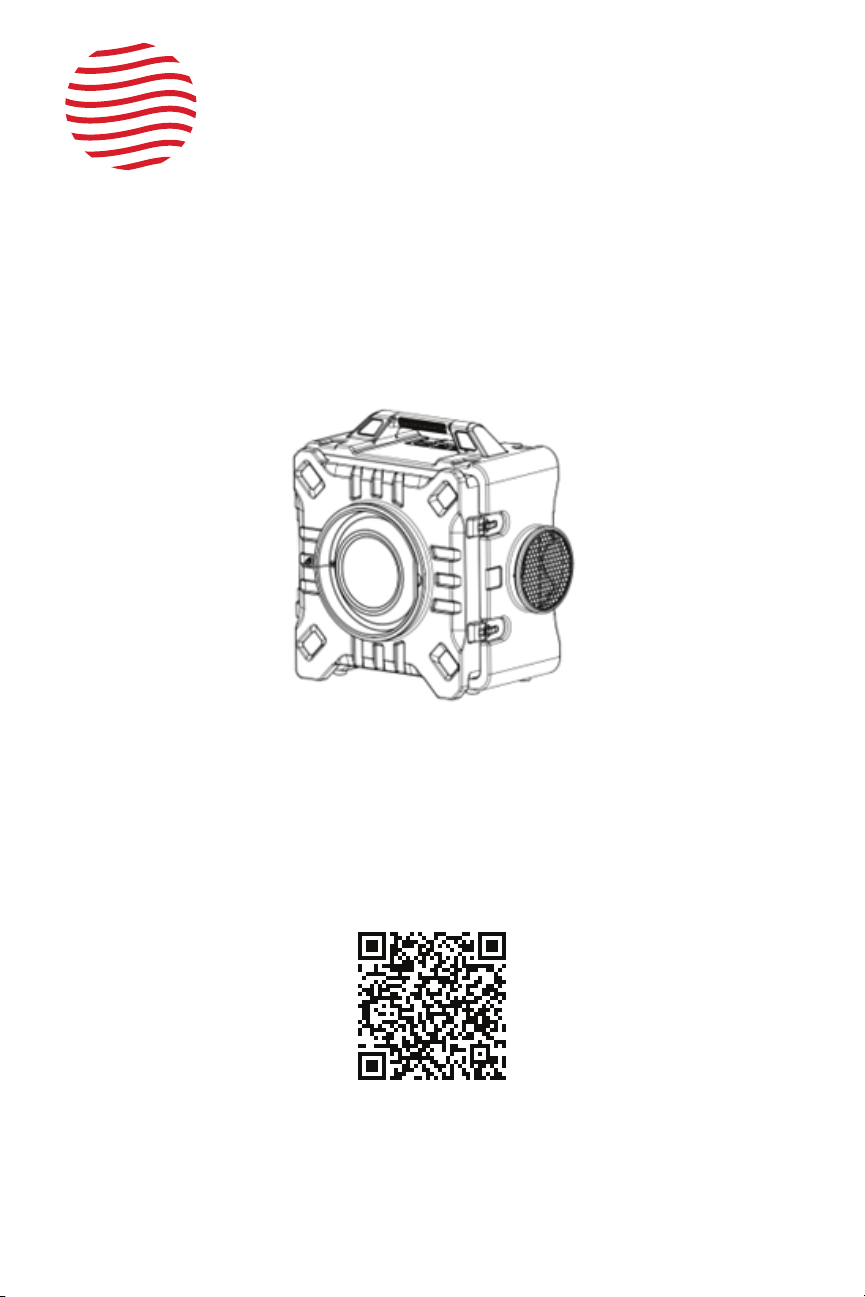

Fanmaster ASP-500-MF3 User manual

FA NM A ST E R
cooling heating ventilation extraction
INSTRUCTION MANUAL
MODEL: ASP-500-MF3
MASTERFILTER AIR SCRUBBER PURIFIER
TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS &
INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS
SCAN ME

FOR YOUR INFORMATION
Thank you for purchasing a Fanmaster Masterlter air scrubber purier. Please read this
instruction manual carefully before using this appliance.
Disclaimer:
Fanmaster reserves the right to make alterations to specications, quantities,
dimensions, for production or other reasons, subsequent to publication.
While we believe the information is accurate and complete, we make no warranty
or representation for any particular purposes. The information is offered in good faith
and with the understanding that any use of the units or accessories in breach of the
directions and warnings in this document is at the sole discretion and risk of the user.
Disposal Guidelines:
Do not dispose of this product with general household waste. This product must be
disposed according to the laws governing Waste Electrical and Electronic Equipment.
If required, contact your local authorities for information regarding the available
disposal facilities.

1. GENERAL SAFETY RULES & WARNINGS
• PLEASE READ INSTRUCTIONS CAREFULLY.
• PLACE INSTRUCTION MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. DO NOT ALLOW
ANYONE WHO HAS NOT READ THESE INSTRUCTIONS TO ASSEMBLE, ADJUST OR OPERATE THIS
APPLIANCE.
• IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION
MAY RESULT IN CAUSING PROPERTY DAMAGE, SERIOUS INJURY OR LOSS OF LIFE.
• FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS
APPLIANCE, CAN RESULT IN DEATH, SERIOUS INJURY AND PROPERTY LOSS OR DAMAGE FROM
HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, AND/OR ELECTRICAL SHOCK.
• ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR
SERVICE THIS APPLIANCE. IF YOU NEED ASSISTANCE OR REQUIRE INFORMATION SUCH AS AN
INSTRUCTION MANUAL, LABELS, ETC. CONTACT FANMASTER.
• DO NOT STORE OR USE GASOLINE, PETROL OR ANY OTHER FLAMMABLE OR COMBUSTIBLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS APPLIANCE.
• THE ELECTRICAL SYSTEM TO WHICH THE APPLIANCE IS CONNECTED MUST COMPLY WITH
LOCAL REGULATIONS. A RESIDUAL-CURRENT DEVICE (RCD) MUST BE INSTALLED.
• UNPLUG THE APPLIANCE BEFORE PERFORMING ANY MAINTENANCE OPERATIONS.
• ALWAYS CHECK THE POWER CABLE BEFORE USING THE APPLIANCE. IT MUST NOT BE BENT,
TAUT, STRETCHED, CRUSHED OR ANY WAY DAMAGED.
• IF THE POWER CORD AND/OR PLUG IS DAMAGED, IT MUST BE REPLACED BY FANMASTER, A
SERVICE AGENT OR A QUALIFIED PERSONS.
• DO NOT LEAVE THE APPLIANCE UNATTENDED WHEN IN USE.
• NEVER USE THE APPLIANCE WITH WET HANDS OR WHEN EITHER THE APPLIANCE OR THE POWER
CABLE IS WET.
• CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
• THE APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH
REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LOCK OF EXPERIENCE &
KNOWLEDGE.
• PLEASE MAKE SURE ALL PLASTIC PACKAGING IS REMOVED FROM ALL FITLERS BEFORE
OPERATION.
• THIS APPLIANCE CONTAINS A UV EMITTER. DO NOT STARE AT THE LIGHT SOURCE.
• DO NOT USE AN ADAPATER WITH THIS APPLIANCE.
• BREATHING HAZARD - WHEN USING THIS APPLIANCE IN A CONTAINMENT AREA, ALWAYS
TURN OFF POWER TO OPEN COMBUSTION APPLIANCES SUCH AS FIREPLACES, FURNACES,
WATER HEATERS & HVAC SYSTEMS TO AVOID THE RISK OF BACK-FLOW CARBON MONOXIDE
FUMES.
• IF THE FILTER CHANGE LIGHT ILLUMINATES DURING THE REMEDIATION PROCESS, IMMEDIATELY
CHANGE THE HEPA/ACTIVATED CARBON FITLER.
• TIPPING HAZARD - USE CAUTION WHEN STACKING THIS APPLIANCE. DO NOT STACK MORE
THAN THREE (3) UNITS ON TOP OF EACH OTHER.
• THIS APPLIANCE IS NOT DESIGNED TO BE CONTINUOUSLY USED 24 HOURS 7 DAYS A WEEK AS
IT WILL SHORTEN THE PRODUCT LIFE.
FOR YOUR INFORMATION

2. PRODUCT DESCRIPTION & SPECIFICATIONS
PRODUCT DESCRIPTION
Industrial air scrubber purier designed to remove particles from the air and
surrounding surfaces and odours.
SPECIFICATIONS
MODEL ASP-500-MF3
Air Flow (L/s) (CFM) 238
Rated Power 0.18KW
Voltage (V/Hz) AC220-240V/50
Current Rating (A) 0.80
Plug Connection 3 Pin 10amp
Cable Length (m) 3
Filters
1st stage: G4 Pleated Disposable Cardboard Filter
2nd stage: G4 Activated Carbon Filter
3rd stage: H13 HEPA Filter
UV-C Light Sterilisation
Filter Size (mm)
Pre Filter: 400x400x20
ACF: 400x400x20
H13: 450x430x56
Air outlet Dia (mm) 195
Filtered Aream (m2) up to 100
Fan Speed Variable
Hour Meter Yes
Filter Replacement/Clean
Indicator Light Yes
Noise (dBa) 65
Weight (kg) 16.5 / 18.5
Product Dimensions (mm) (W)620x(D)410x(H)645
Packaged Dimensions (mm) (W)635x(D)415x(H)670
• When the unit total working time adds up to 2000 hours, the lter warning light will
ash with an alarm on the control panel. (To reset the machine, push the UV-C
light switch 3 times continuously in 5 seconds after Reset the lter service time)
• UV-C sterilization lamp fault detection function: when the UV-C sterilization lamp
does not work, the alarm will keep ringing.

3. GETTING TO KNOW YOUR APPLIANCE2. PRODUCT DESCRIPTION & SPECIFICATIONS

4. HOW IT WORKS
The ASP-500-M3 works by drawing the contaminated air into the air inlet which passes
through a 3 stage ltration process that removes 99.97% of airborne particles and is
then sterilised with a UV-C Light with the clean ltered air is then expelled back out
via the air outlet. It removes dust particles and other airborne contaminants that
carry mould spores, germs, and viruses from the air and surrounding surfaces.
The ASP-500-M3 is tted with a lter replacement indicator which will light up when
the HEPA lter needs to be replaced. The ASP-500-M3 can be positioned vertically or
horizontally and can be multi-stacked (horizontally) in storage. Ducting (200mm) can
be attached.
Three (3) stage ltration & UV-C Light process:
1st Stage: Pre-lter G4 Pleated Disposable Cardboard Filter – captures initial dust &
allergen particles.
2nd Stage: G4 Activated Carbon Filter – multi-pore activated carbon lter adsorbs
& removes Volatile Organic Compounds (VOCs), odours, formaldehyde and other
gaseous pollutants.
3rd Stage: H13 HEPA Filter – captures even smaller particles, up to 0.3 microns. Helps
control and prevent the growth of bacteria and mould. Capturing 99.97% of dust &
allergen particles.
UV-C Light: UV-C Light sterilises the ltered air. UV-C technology works by
deactivating the DNA of microorganisms like bacteria & viruses disrupting their ability
to multiply & spread.
USES
• Air purifcation
• Dust control
• Odour control
• Remediation & Restoration works (wate, re & mould damage)
APPLICATIONS
• Constructions sites
• Ofces
• Commerical - hotels, kitchens
• Warehouses, workshops, factories
• Rental/Hire
5. USES & APPLICATIONS
6. ASSEMBLY & OPERATING INSTRUCTIONS

4. HOW IT WORKS 6. ASSEMBLY & OPERATING INSTRUCTIONS
ASSEMBLY
There is minimal assembly required. REMOVE PLASTIC PACKAGING FROM FILTERS -
open the cover via releasing the two (2) latches and remove the plastic packaging
from all three lters. Failure to do so will cause risks or damage to the appliance. The
appliance will not work.
OPERATING INSTRUCTIONS
1. Place the appliance so that it is in an upright vertical position (placed on the
rubber feet).
2. Connect the plug to the relevant power source.
3. Open the air inlet cover on the opposite side of the control panel (lters)
4. Turn the appliance on by turning the Variable Speed Control.
5. The appliance can be operated in ther vertical or horizontal position.
6. To turn appliance off turn the Variable Speed Control anti-clockwise.
Remove the appliance from the carton. If the appliance is damaged, please
contact Fanmaster or where you purchased the appliance from.
AUXILIARY OUTLET/DAISY CHAIN
Maximum Amps: 10A
Maximum Units: Link up to 3 air scrubber puriers

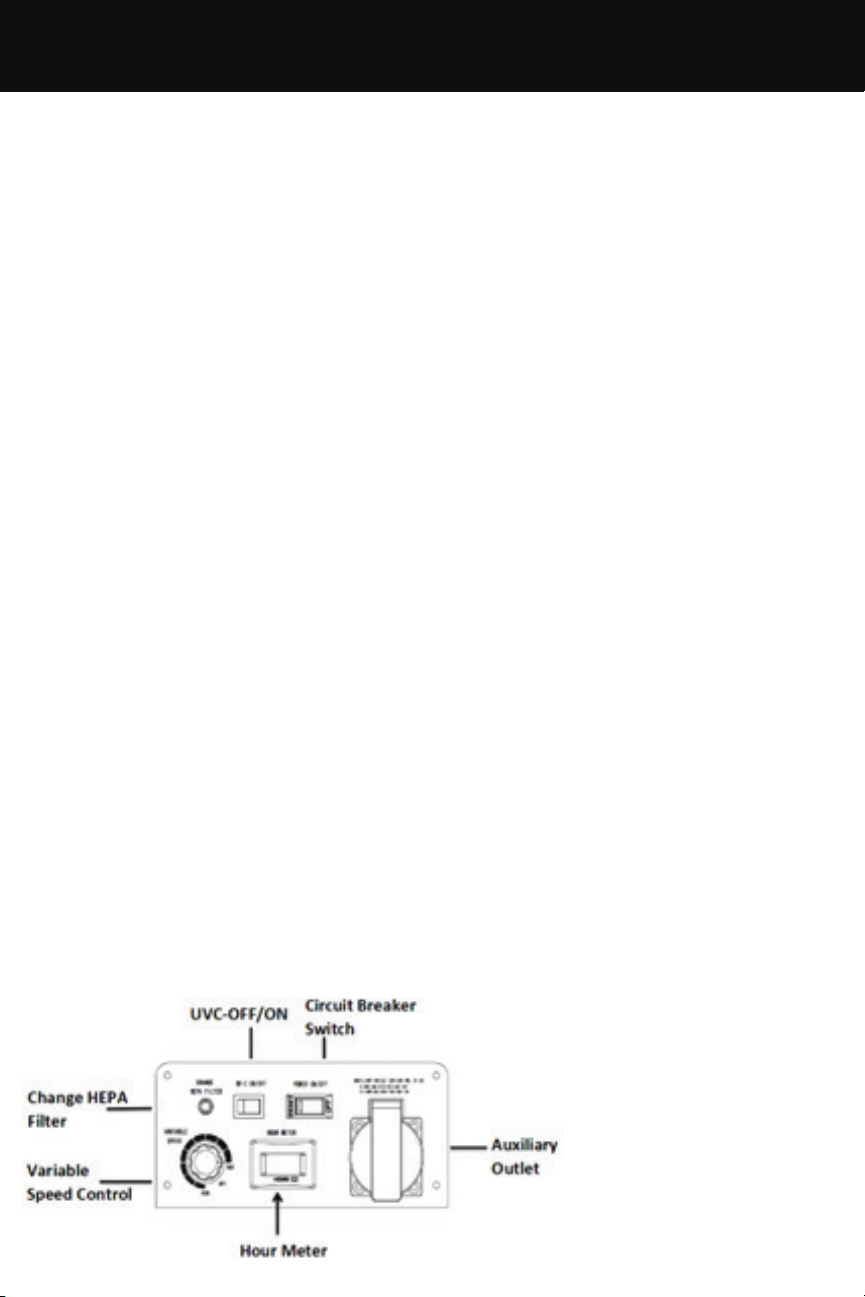

CONTROL PANEL
Variable Speed Control - controls the air ow (clockwise to increase)
Circuit Breaker Switch - protects the unit if there is more than 10amps passing through
the circuit, the unit will cut off the power.
Hour Meter - indicates the running time of the unit
UVC On/Off - controls the UV-C Lamp
Change HEPA Filter - indicates when to replace/clean the HEPA Filter

7. CLEANING, MAINTENANCE & STORAGE
• Before starting any maintenance task, shut down, unplug the appliance.
• Do not attempt any electrical repair yourself. If the appliance needs service or
repair, contact a qualied person.
• When cleaning, make sure that water does not enter the unit.
• Do not open the enclosure to clean the inner parts. Do not spray water into the
appliance.
• Never use solvents, gasoline, toluene and similar aggressive chemicals to clean
the appliance.
Regularly wipe the enclosure using a soft sponge or cloth. For very dirty parts, use a
sponge wetted with lukewarm water and a mild detergent, then dry using a clean
cloth. Clean or replace the lters as required. Check the power cord and plug for
any damages, if damaged replace the cord or plug immediately by a qualied
person only.
STORAGE
• Clean the unit before storing for long periods of time.
• Keep stored inside.
8. WIRING DIAGRAM

9. TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
No Power
Plug is loose or not
connected correctly Check plug connection
Faulty or damaged power
cord Check & replace
No air ow Filters are blocked Replace lters
Air inlet or outlet is blocked Check for bloackages
UV-C Lamp not
working
Drain pipe is clogged Clean out drain pipe
Faulty Replace
Not positioned correctly Check placement
• When the unit total working time adds up to 2000 hours, the lter warning light will
ash with an alarm on the control panel. (To reset the machine, push the UV-C
light switch 3 times continuously in 5 seconds after Reset the lter service time)
• UV-C sterilization lamp fault detection function: when the UV-C sterilization lamp
does not work, the alarm will keep ringing.

10. WARRANTY
Any claim under this warranty must be made within 12 months of the date of
purchase of the product. To make a claim under the warranty, take the product
(with proof of purchase) to the store where you purchased the product or go to
https://www.fanmaster.com.au/support.
This warranty is given by Fanmaster Pty Ltd
ABN: 45 353 934 457
Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232
P: 1300 900 345
E: [email protected]
This warranty is provided in addition to other rights and remedies you have under law:
Our goods come with guarantees which cannot be excluded under the Australian
Consumer Law. You are entitled to replacement or refund for a major failure and
to compensation for other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Exclusions: This warranty does not cover:
• Any defects caused by an accident, misuse, abuse, improper installation or
operation, lack of reasonable care, unauthorized modication, loss of parts,
tampering or attempted repair by a person not authorized by the distributor.
• Any product that has not been installed, operated or maintained to a
satisfactory level.
• Any damage caused by improper power input or improper cable connection.

10. WARRANTY

N11664
MADE IN CHINA
Fanmaster Pty Ltd | 1/6-8 Yalgar Road, KIRRAWEE NSW 2232
1300 900 345 | [email protected] | www.fanmaster.com.au
