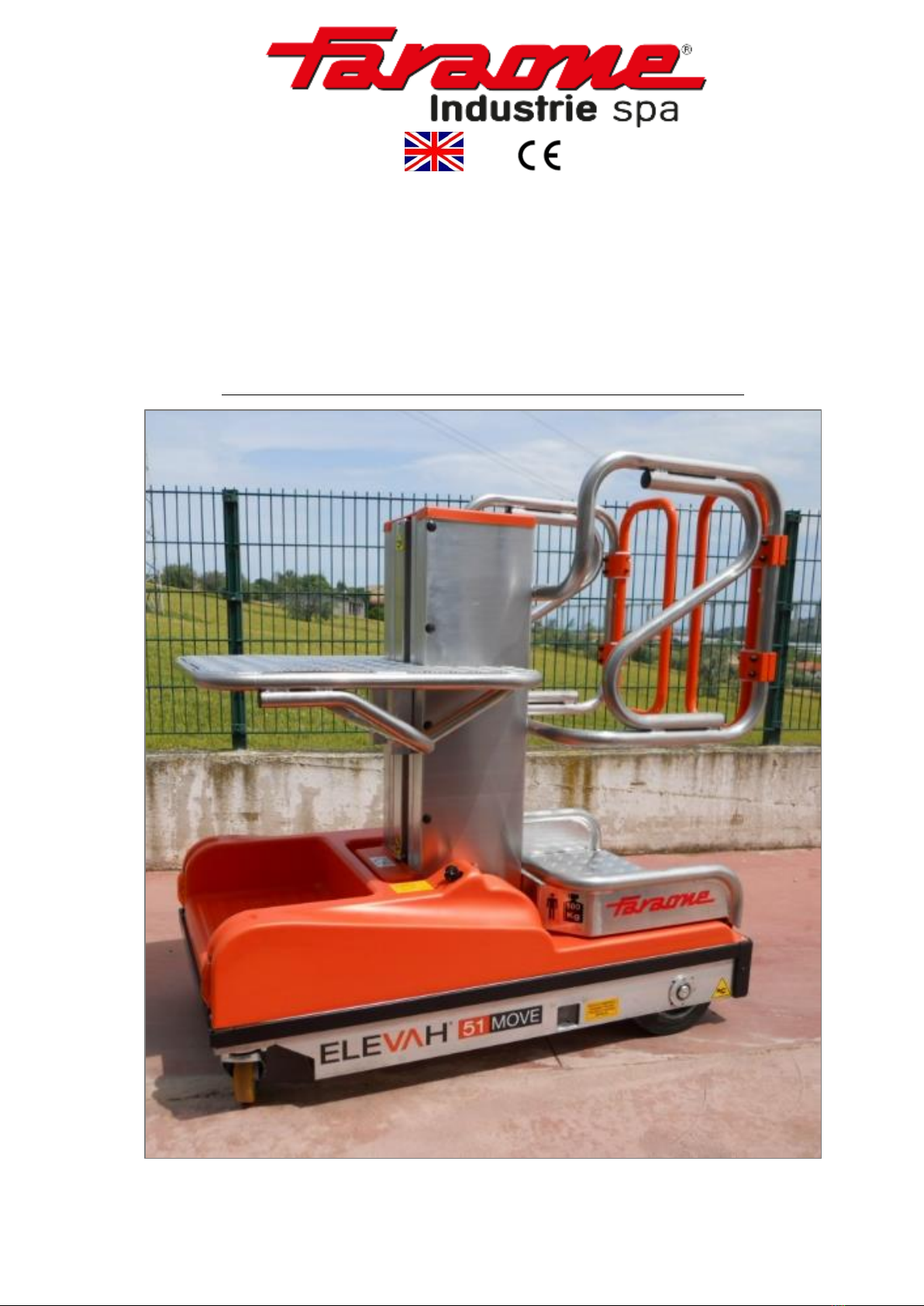

Faraone ELEVAH 51 MOVE Operation instructions

STOCK PICKER
ELEVAH 51 MOVE
USE AND MAINTENANCE INSTRUCTIONS
Translation of the original instructions
This document is the property of Faraone Industrie Spa
Any total or partial reproduction without written authorisation by the author or owner is forbidden

USE AND MAINTENANCE MANUAL - SECTION 0
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 0-1
INTRODUCTION
INDEX
INTRODUCTION .................................................................................................................... 0-1
INDEX ............................................................................................................................................................................ 0-1
INTRODUCTION ............................................................................................................................................................ 0-2
SYMBOLS AND TERMS ................................................................................................................................................ 0-2
TECHNICAL ASSISTANCE - WARRANTY ................................................................................................................... 0-3
NOTICES ....................................................................................................................................................................... 0-3
SAFETY PRECAUTIONS ....................................................................................................... 1-1
GENERAL INFORMATION ............................................................................................................................................ 1-1
PRELIMINARY PROCEDURES ..................................................................................................................................... 1-2
OPERATION .................................................................................................................................................................. 1-3
GENERAL TECHNICAL DATA .............................................................................................. 2-1
OVERALL DIMENSIONS ............................................................................................................................................... 2-2
BASIC CONSTRUCTIVE DATA ..................................................................................................................................... 2-4
PREPARATION AND INSPECTION ...................................................................................... 3-1
PERSONNEL TRAINING ............................................................................................................................................... 3-1
FUNCTIONAL TEST ...................................................................................................................................................... 3-2
SAFETY WARNINGS FOR THE OPERATORS ............................................................................................................ 3-3
CONTROLS, LIGHTS AND MACHINE OPERATION ............................................................ 4-1
INTRODUCTION ............................................................................................................................................................ 4-1
MACHINE OPERATION ................................................................................................................................................. 4-1
CHARGING THE BATTERY .......................................................................................................................................... 4-1
CAGE CONTROL CONSOLE ........................................................................................................................................ 4-3
ACTIVATION PEDAL SWITCH ...................................................................................................................................... 4-6
PARKING THE MACHINE ............................................................................................................................................. 4-8
TRANSPORT AND LIFTING PROCEDURES ............................................................................................................... 4-8
EMERGENCY PROCEDURES .............................................................................................. 5-1
EMERGENCY OPERATION .......................................................................................................................................... 5-1
REPORTING THE ACCIDENT ...................................................................................................................................... 5-2
DAILY INSPECTION .............................................................................................................. 6-1
ROUTINE MAINTENANCE .................................................................................................... 7-1
MONTHLY MAINTENANCE ........................................................................................................................................... 7-2
MAINTENANCE EVERY THREE MONTHS .................................................................................................................. 7-2
MAINTENANCE EVERY SIX MONTHS ......................................................................................................................... 7-3
MAINTENANCE EVERY TWO YEARS ......................................................................................................................... 7-3
MAINTENANCE EVERY FIVE YEARS .......................................................................................................................... 7-3
MAINTENANCE OPERATING INSTRUCTIONS ................................................................... 8-1
LIFTING THE CAGE FOR MAINTENANCE .................................................................................................................. 8-1
BATTERY MAINTENANCE ............................................................................................................................................ 8-2
HYDRAULIC OIL CHANGE ........................................................................................................................................... 8-2
TRANSMISSION MOTOR .............................................................................................................................................. 8-3
CHECKS ON LIFTING CHAINS ..................................................................................................................................... 8-6
ATTACHED DOCUMENTATION ........................................................................................... 9-1
ATTACHMENT 1 – Layout for the application of the stickers ........................................................................................ 9-1
ATTACHMENT 2 - Fluid power layout ........................................................................................................................... 9-3
ATTACHMENT 3 - Electrical layout ............................................................................................................................... 9-4
ATTACHMENT 4 – Inspection certificate ....................................................................................................................... 9-6
ATTACHMENT 5 – Declaration of conformity ................................................................................................................ 9-7
MAINTENANCE LOGBOOK ................................................................................................ 10-1

USE AND MAINTENANCE MANUAL - SECTION 0
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 0-2
ENGLISH
INTRODUCTION
The purpose of this use and maintenance manual is to supply the users with the essential information
for carrying out the procedures for safe and correct operation of the machine, for the purposes for
which the same has been manufactured.
All information contained in this manual must be read and understood before making any attempt to
operate the machine.
THIS MANUAL IS A VERY IMPORTANT DOCUMENT; ALWAYS KEEP IT NEAR THE MACHINE.
Due to continuous improvements to the products, IMA Faraone Spa reserves the right to amend the
technical data without any prior notice. For updated information, contact IMA Faraone Spa.
ATTENTION
REMEMBER NO EQUIPMENT IS SAFE IF THE OPERATOR DOES NOT OBSERVE THE
SAFETY PRECAUTIONS
SYMBOLS AND TERMS
ATTENTION
The danger symbol recalls the attention to potential dangers that might
cause injuries. To avoid possible injuries or fatal accidents, comply with
all safety instructions that follow the symbol.
Arrows are used in the pictures of the machine to indicate the specific
points described in the text of the manual.
• Stock picker: Machine designed exclusively to carry, lift, stack or arrange loads on shelving,
controlled by an operator stationed in the driver's seat, which can be raised at the same time as
the load handling device.
• Cage: A position from which the operator is able to control all driving positions and handle the
load.
• Loading platform: Platform from where to load goods to carry, lift, stack or arrange on shelving.
• Extending structure: A structure connected to the frame that supports the cage and enables
movement from the cage to the required position.
• Frame: Machine Base.

USE AND MAINTENANCE MANUAL - SECTION 0
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 0-3
TECHNICAL ASSISTANCE - WARRANTY
The Client must make sure to have the serial number of the machine and an accurate description of
the problem or of the information to be provided before contacting the Manufacturer.
The warranty period is 12 months from the date of the purchase invoice.
Said warranty covers faulty components and the labour required for servicing, if this is carried out at
the Manufacturer's premises (the transport of the machine is borne by the purchaser).
The warranty is valid provided all rules laid down for correct use of the machine are complied
with.
The machine is designed and built to last years, as long as it is always used for the purposes
it is intended for and that the inspections and maintenance described herein are carried out.
Faraone Industrie Spa deems it necessary to conduct an extensive analysis of all of the
structural components every 10 (ten) years, to confirm their integrity.
NOTICES
In compliance with legislation in force in the country where the machine is stationed and operating,
the owner of the stock picker must find out whether a declaration is required when the machine is
commissioned and for any periodical tests that are carried out thereafter.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 1-1
SAFETY PRECAUTIONS
GENERAL INFORMATION
This section illustrates the necessary precautions for the correct and safe use and for machine
maintenance. To guarantee correct use of the machine, it is essential to establish a daily routine
procedure based on the instructions provided in the manual. Also, to guarantee safe operation of the
machine, it is necessary for a qualified person to establish a maintenance programme based on the
information provided in this manual; such programme must be scrupulously followed.
The owner/user/operator/company granting in leasing/person receiving in leasing the machine, must
not accept responsibility of its operation before having carefully read the manual and completed the
training and the functioning procedures, guided by an experienced and qualified operator.
For further information relating to safety, training, inspection, maintenance, application and
operation, contact Faraone Industrie Spa.
ATTENTION
THE NON COMPLIANCE WITH THE SAFETY PRECAUTIONS LISTED IN THE MANUAL MAY
CAUSE DAMAGES TO THE MACHINE AND TO THE PROPERTY AND INJURIES OR FATAL
ACCIDENTS.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 1-2
PRELIMINARY PROCEDURES
Operator training and know-how
• Carefully read the manual before using the machine.
• Use the machine only after complete training by authorised personnel.
• The use of the machine is allowed exclusively to authorised and qualified personnel.
• Read carefully and follow all the WARNING statements and the operational instructions reported
on the machine and in the manual.
• Use the machine for the applications falling within those envisioned by Faraone Industrie Spa.
• All operational personnel must familiarise with the emergency operations and controls of the
machine, as specified in the manual.
• Carefully read and comply with all company, local and government Standards in force, relating
to machine operation.
Inspection of the work place
• Before using the machine, the operator must take the necessary precautions to avoid any danger
in the work place.
• Do not activate the machine on lorries, trailers, railway wagons, boats, scaffolding or similar,
unless Faraone Industrie Spa has approved the operation in writing.
• The machine can be switched on at temperatures between -15°C and 40°C. Contact Faraone
Industrie for values relating to machine operation at temperatures not within the indicated range.
• The machine cannot be started in environments declared ATEX, unless specifically indicated in
the EC certificate of conformity delivered with the machine in question.
Machine inspection
• Use the machine only after having carried out the functional verifications and inspections. For
further instructions, consult Section 3 of this manual.
• Activate the machine only after having carried out all assistance and maintenance interventions
envisioned by the requirements specified in this manual.
• Make sure all safety devices work properly. Any amendments to such devices constitute violation
of the safety Standards.
• Do not activate the machine whose signs or adhesives indicating the safety Standards or
instructions are illegible or missing.
• Avoid the accumulation of debris on the floor of the machine. Avoid mud, oil, grease and other
slippery substances coming into contact with shoes and with the floor of the machine.
ATTENTION
ANY AMENDMENTS OR ALTERATIONS TO THE MACHINE MAY ONLY BE APPLIED
EXCLUSIVELY WITH PRIOR WRITTEN AUTHORISATION FROM THE PRODUCER.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 1-3
OPERATION
General information
• A self-propelled Stock Picker is a machine designed exclusively to carry, lift, stack or arrange
loads on shelving, controlled by an operator stationed in the driver's seat, which can be raised at
the same time as the load handling device.
• Do not activate a faulty machine. If a fault occurs, switch-off the machine.
• Do not suddenly move the control switches or levers from one position to the opposite one, going
via the neutral position; always bring the switch to neutral position before moving it in the position
corresponding to the next function. Activate the controls by applying slow and even pressure.
• If there are any people on the work platform, allow personnel to operate the machine from the
ground only in the event of an emergency.
• Completely lower the extending structure and disconnect the power supply before moving away
from the machine.
• You are reminded to charge batteries in a well-ventilated area.
Risk of falls
• Prior to using the machine, ensure all railings and gates are fastened in the correct position.
• Keep both feet firmly on the floor of the cage. Do not arrange ladders, boxes, steps, planks or
similar items on the cage to increase the range of action.
• Do not use the extension unit to climb on or off the cage.
• Pay maximum attention when entering or exiting the cage. Ensure the extending structure is
completely lowered. Face the machine when entering or exiting the cage. Always maintain "three
contact points" with the machine, ensuring both hands and one foot or one hand and both feet
are continuously in contact with the machine when entering and exiting.
Danger of electrocution
With regard to the safety distances from live parts of power lines and electrical systems that are not
protected or not sufficiently protected to be complied with when carrying out non-electric jobs, at net
clearance deriving from the type of job, the equipment used and the materials handled, as well as
the lateral shifting of the conductors owing to the action of wind and lowering of heights due to heat
conditions, refer to the Laws regarding safety in the workplaces of the country where the machine is
operating.
For Italy, refer to Legislative Decree 81/08, annex IX “Values of rated operating voltages of electrical
machines and systems”.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 1-4
Danger of overturning
• Before driving the machine, the user must be familiar with the work area surface. While driving,
do not exceed the admitted transversal and longitudinal slopes.
• Do not lift the cage on a slope or on irregular or soft surfaces.
• Before driving the machine on floors, bridges, lorries and other surfaces, check their maximum
capacity values.
• Do not exceed the maximum capacity of the machine.
• Keep the machine chassis at a minimum distance of 0.5 m from holes, unevenness, descents,
obstacles, debris, hidden holes and other potential dangers found at ground level.
• Do not attempt to use the machine as a crane. Do not tie the machine to an adjacent structure.
• Do not increase the dimension of the cage or loading platform with unauthorised extensions or
by extending the platform.
• If the extending structure or cage remain jammed so that one or more wheels are lifted from the
ground, it is necessary for the operator to climb off the cage, before attempting to free the
machine. To stabilise the machine and have personnel climb down from the cage, use a crane,
forklift trucks or other adequate equipment.
Danger of crushing and impact
• All operational and ground personnel must wear the safety equipment required for their case.
• When using the machine or lifting or lowering the cage, check the distances above, at the sides
and below the said cage.
• Do not lean out of the rails of the cage when the machine is running.
• When driving in areas where visibility is limited by obstacles, always have a person precede the
vehicle to signal any dangers.
• While driving, always keep non-operational personnel at a minimum distance of 2,0 m from the
machine.
• Adjust the driving speed according to the following conditions: ground surface, traffic, visibility,
slope, location of the personnel and other factors that represent danger of collision or injuries to
personnel.
• Take into account braking distances, regardless of the speed of the machine.
• Do not drive at high speed in reserved or tight areas or when reversing.
• Always pay maximum attention to avoid any obstacles from hitting the operational controls and
people in the cage or from interfering with them.
• Make sure the operators of other machines, overhead or at ground level, know that there is a
Stock Picker in the area.
• Warn personnel not to work, stand or transit underneath the lifted cage.

USE AND MAINTENANCE MANUAL - SECTION 1
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 1-5
Towing, lifting and carrying
• Do not allow personnel to stand on the cage while towing, lifting and carrying.
• Tow the machine exclusively in case of emergency, fault, power supply cut-off or to load/unload
it. Consult the "Emergency procedures" section in this manual.
• Before towing, lifting and carrying, ensure the cage is completely retracted and emptied.
• Do not pull or push a blocked or disabled machine.
• While lifting the machine by means of a forklift, arrange the latter exclusively in correspondence
of the appropriate areas of the same machine. Lift by means of a lifting device with adequate
capacity.
For information regarding lifting, refer to the relative section in the manual.

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 2-1
GENERAL TECHNICAL DATA
ATTENTION
SELF-PROPELLED STOCK PICKER ELEVAH 51 MOVE IS A MACHINE DESIGNED
EXCLUSIVELY TO CARRY, LIFT, STACK OR ARRANGE LOADS ON SHELVING,
CONTROLLED BY AN OPERATOR STATIONED IN THE DRIVER'S SEAT, WHICH CAN BE
RAISED AT THE SAME TIME AS THE LOAD HANDLING DEVICE.
THE STOCK PICKER IS DESIGNED TO CIRCULATE IN CLOSED ENVIRONMENTS ON
PREPARED SMOOTH HORIZONTAL SURFACES.
FURTHERMORE, IT CAN ALSO BE USED OUTDOORS IN THE TOTAL ABSENCE OF WIND
AND ATMOSPHERIC PRECIPITATIONS.
THE STOCK PICKER MUST ONLY BE USED FOR THE PURPOSE IT WAS DESIGNED FOR.
ANY OTHER USE IS CONSIDERED IMPROPER.

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 2-2
OVERALL DIMENSIONS
ELEVAH 51 MOVE
Measurements expressed in mm

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 2-3
GENERAL TECHNICAL DATA OF THE STOCK PICKER
ELEVAH 51 MOVE
Value
Weight of the machine: (Overall)
330 kg
Machine height: (in transport position)
143 cm
Maximum resting pressure on ground: per wheel/stabiliser
(*)
115 daN
Maximum passable slope: (in transport position)
10% - 5°
Maximum longitudinal work slope:
5% - 3°
Maximum transversal work slope:
5% - 3°
Maximum transmission speed: (with cage lifted- in transport
position)
0.47 m/s – 0.71 m/s
Machine base: (length x width)
141 cm x 77 cm
Power supply
2 GEL Batteries
12V - 75 Ah
Operator in the cage:
1
Maximum capacity in the cage and in the loading platform:
200 kg
Maximum capacity of loading platform:
100 kg
Cage maximum height:
(between ground and floor of cage)
3 m
Maximum height of loading platform:
(between ground and platform)
4.01 m
Minimum height between ground and loading platform:
69 cm
Loading platform run:
64 cm
Internal measurements of cage:
69 cm x 57 cm
Measurements of loading platform:
78 cm x 76 cm
Table NOTE:
* : Maximum pressure of the stabiliser/wheel considering the weight of the machine plus the maximum load on the cage
are fully distributed on only one side of the machine (fully asymmetrical load)

USE AND MAINTENANCE MANUAL - SECTION 2
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 2-4
BASIC CONSTRUCTIVE DATA
MACHINE FRAME: The frame of the machine (called base) is completely made of aluminium
profiles with rectangular sections. All essential components are installed on the frame for normal
machine operation in stable conditions.
EXTENDING STRUCTURE: The extending structure is made of special extruded aluminium alloy
profiles that slide along each other on sliding blocks with nylon wheels. The kinematic connection
between profiles is set up using chains.
A fluid power cylinder is installed between the first and second profile that, powered by the hydraulic
control unit, enables to lift the structure. The chains connect the extendible structure elements to
each other so that these can simultaneously lift.
CAGE AND LOADING PLATFORM: The cage and loading platform are built entirely of extruded
aluminium profiles. The base floors are built with 3 mm thick, non-slip, chequered, aluminium sheet
steel.
EXPOSURE TO VIBRATIONS: The stock picker does not produce vibrations that place the health
of the operators at risk. The weighted acceleration to which the entire body is subjected is less than
0.5 m/s2
ACOUSTIC EMISSIONS: The A-weighted emission sound pressure level is below 70dB
ATTENTION
THE STOCK PICKER ELEVAH 51 MOVE HAS BEEN INSPECTED BY THE MANUFACTURER
FOR THE PURPOSE OF CALCULATING THE MAXIMUM ADMISSIBLE TRANSVERSE AND
LONGITUDINAL ANGLES.

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 3-1
PREPARATION AND INSPECTION
PERSONNEL TRAINING
The stock picker is a machine designed to carry, lift, stack or arrange loads on shelving; accordingly,
it is essential that it be used and serviced exclusively by trained personnel.
The machine cannot be used by persons under the influence of alcohol or drugs or subject to
epileptic attacks, dizziness or loss of physical control.
Operator training
Operator training must include the following:
1. Use and limits of the platform and emergency controls, on the ground, and of the safety systems;
2. Signs/labels for controls, instructions and warnings on the machine;
3. Regulations defined by the employer and government standards;
4. Knowledge of the mechanical operation of the machine sufficient to enable recognising of a fault;
5. Safe methods for using the machine in presence of overhead obstacles, other moving equipment
and obstacles, depressions, holes and descents.
Training supervision
Training must be carried out under the supervision of a qualified person, in an open space and free
from obstacles and must continue until the trainee is able to safely activate and use the machine.
Operator responsibility
The operator must be trained with regard to responsibility and authority to switch-off the machine in
case of fault or in presence of other unsafe conditions, both relating to the machine and to the work
area.
NOTE: the owner shall provide qualified personnel for training both at the time of delivery of the first
units and later, if requested by the user or by personnel.

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 3-2
FUNCTIONAL TEST
At the end of the "DAILY INSPECTION" (section n°6), carry out a functional test of all plants in an
area free from overhead obstacles and at ground level.
ATTENTION
IF THE MACHINE DOES NOT WORK PROPERLY, SWITCH IT OFF IMMEDIATELY. WARN
MAINTENANCE PERSONNEL OF THE PROBLEM. DO NOT USE THE MACHINE UNTIL IT IS
DECLARED SAFE TO USE.
Carry out a functional test as detailed below.
1. Check the correct operation of the manual descent valve (EMERGENCY DESCENT).
2. From the control console of the cage, carry out the detailed operations.
a. Ensure the control console is correctly assembled and securely fastened;
b. Lift and lower the cage checking lifting and lowering happen regularly;
c. Ensure all machine functions are disabled when activating (pressing) the emergency stop
button.
d. Activate all functions and check the correct operation of all end run switches, main and
activation switches.
e. Machine brakes – Drive the machine on a slope (not exceeding the nominal functioning
capacity on a slope) and stop it to ensure the brakes hold it;
f. Inclination alarm – With the cage completely lowered, drive the machine on a surface with
a slope greater than the maximum slope admitted in any direction (do not exceed the
maximum nominal operational capacity on a slope). Any attempt to lift the cage makes the
machine signal an inclination that exceeds the admissible range;
g. Transmission speed reduction – When the cage is lifted, the transmission speed is reduced
compared to the speed with the cage lowered;
h. Make sure the loading deck is working correctly. Make sure that it travels smoothly without
any jerky movements, and that its up/down movement is not obstructed. Make sure all of
its parts are intact.

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 3-3
SAFETY WARNINGS FOR THE OPERATORS
Do not install and use the machine in the following cases:
OUTDOORS IN PRESENCE OF WIND
(DANGER OF STABILITY LOSS AND OVERTURNING)
NEXT TO AERIAL OBSTACLES (electric lines, protrusions, etc.)
(DANGER OF ELECTROCUTION AND IMPACT)
WITH EXCESSIVE CAPACITIES COMPARED TO ADMITTED LIMITS
(DANGER OF STABILITY LOSS AND OVERTURNING)
ON FLOORING WITH MINOR RESISTANCE OF THE WEIGHT OF THE MACHINE
(DANGER OF STABILITY LOSS AND OVERTURNING)
IN ALL CIRCUMSTANCES NOT EXPRESSLY INDICATED AMONG THE USE CONDITIONS
INDICATED IN THIS MANUAL
(GENERAL DANGER)
ATTENTION
THE ELECTRICAL SYSTEM OF THE PLATFORM IS NOT IN ANTI-EXPLOSIVE EXECUTION
(NO ATEX): THEREFORE YOU SHOULD CAREFULLY AVOID ITS USE IN AREAS SUBJECT
TO ATEX RISK.

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 3-4
During the moving phase (on the ground):
ü Cautiously move the machine avoiding sudden manoeuvres;
ü DO NOT TRANSPORT PERSONS on the base frame of the machine and in any other
position except for in the position inside the cage;
ü Check the structural condition and cleanliness of the surfaces on which the machine is used
(verify the surface is suitable for the weight of the machine in work conditions).
During the ascent and descent phase:
ü Observe the maximum admissible capacity weights in the cage;
ü Ascertain overhead obstacles are not present along the trajectory, in vertical;
ü Do not induce dangerous vibrations and/or oscillations such to entail stability loss of the machine
and cause an eventual overturning.
ATTENTION
THE STOCK PICKER IS PROVIDED WITH AN AUTOMATIC BASE LEVELLING VERIFICATION
SYSTEM. WHEN THE MACHINE EXCEEDS THE MAXIMUM SLOPE ALLOWED BY THE
MANUFACTURER (see the technical characteristics of the machine), IT EMITS A WARNING
SOUND. IN THESE CONDITIONS, WITH THE CAGE IN STAND-BY POSITION, THE MACHINE
CAN STILL MOVE WHEREAS, WITH THE CAGE LIFTED, EACH MOVEMENT IS PREVENTED
APART FROM CAGE DESCENT.
Prohibition signs:
Prohibition to overload the machine beyond the limits indicated
Prohibition to use the machine as an aerial platform to carry out works from heights
Prohibition to remove or tamper with the stability devices of the machine (sensors,
ballasts, etc.)
Prohibition to remove or tamper with the safety and protection devices of the machine
Prohibition to climb on or off the cage in places other than the provided gate
Prohibition to increase outreach or work height of the machine using additional
equipment (for example, ladders)
Prohibition to induce oscillations on the machine so as not to make it unstable
Prohibition to install any additional device that increases the wind load on the machine
(for example, warning signs)
Prohibition to come into contact with live electrical conductors
Prohibition to climb on/off the cage when elevated
Prohibition to lift/lower the cage without operator on board

USE AND MAINTENANCE MANUAL - SECTION 3
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 3-5
When using the machine, the manufacturer recommends using the following personal protective
equipment:
Protection of the lower limbs
SLIP-PROOF SHOES
ATTENTION
THE USE OF ANY OTHER SPECIFIC PERSONAL PROTECTIVE DEVICES MUST BE
CHECKED BASED ON THE ASSESSMENT OF SPECIFIC RISKS, CARRIED OUT BY THE
EMPLOYER

USE AND MAINTENANCE MANUAL - SECTION 4
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 4-1
CONTROLS, LIGHTS AND MACHINE OPERATION
INTRODUCTION
ATTENTION
THE MANUFACTURER DOES NOT HAVE ANY DIRECT CONTROL OVER MACHINE
APPLICATION AND OPERATION. THE USER AND THE OPERATOR ARE REQUIRED TO
OBSERVE THE CORRECT SAFETY PROCEDURES.
The stock picker models ELEVAH 51 MOVE are electric machines equipped with a cage assembled
onto a lifting mechanism with aluminium uprights.
The stock picker is DESIGNED TO CARRY, LIFT, STACK OR ARRANGE LOADS ON SHELVING,
CONTROLLED BY AN OPERATOR STATIONED IN THE DRIVER'S SEAT, WHICH CAN BE
RAISED AT THE SAME TIME AS THE LOAD HANDLING DEVICE.
The main control station is located in the cage. The operator can drive the machine and lift and lower
the cage from the control console of the cage.
Vibrations generated by machines do not constitute any danger for the operator who is inside the
cage.
The level of continuous sound pressure (A measurement) in the cage is less than 70 db (A).
MACHINE OPERATION
Preliminary operations
It is necessary for the following control conditions to be satisfied, before activating the machine from
the controls.
• The voltage of the batteries must be sufficient to activate the machine.
• The machine's main power switch on the control station in the cage must be set at ON.
• The emergency stop switch located on the control station in the cage must be on RESTORE.
CHARGING THE BATTERY
The machine is equipped with a battery charger with a.c. voltage input/d.c. voltage output. The
battery charger stops charging automatically when the batteries are fully charged.
ATTENTION
KEEP SPARKS, OPEN FLAMES OR LIT TOBACCO AWAY FROM THE BATTERIES. PROVIDE
ADEQUATE VENTILATION DURING CHARGING. DO NOT CHARGE A FROZEN BATTERY.
NOTE: when the battery charger is connected to an a.c. socket, the transmission function of the machine is
deactivated.

USE AND MAINTENANCE MANUAL - SECTION 4
STOCK PICKER ELEVAH 51 MOVE – Rev. 08_2020
Page 4-2
Battery charging procedure
1. Park the machine in a well-ventilated area, near an a.c. electric socket;
2. Turn the main switch to OFF and remove the key;
3. Connect the battery charger to a correctly installed socket and earthed according to current
regulations.

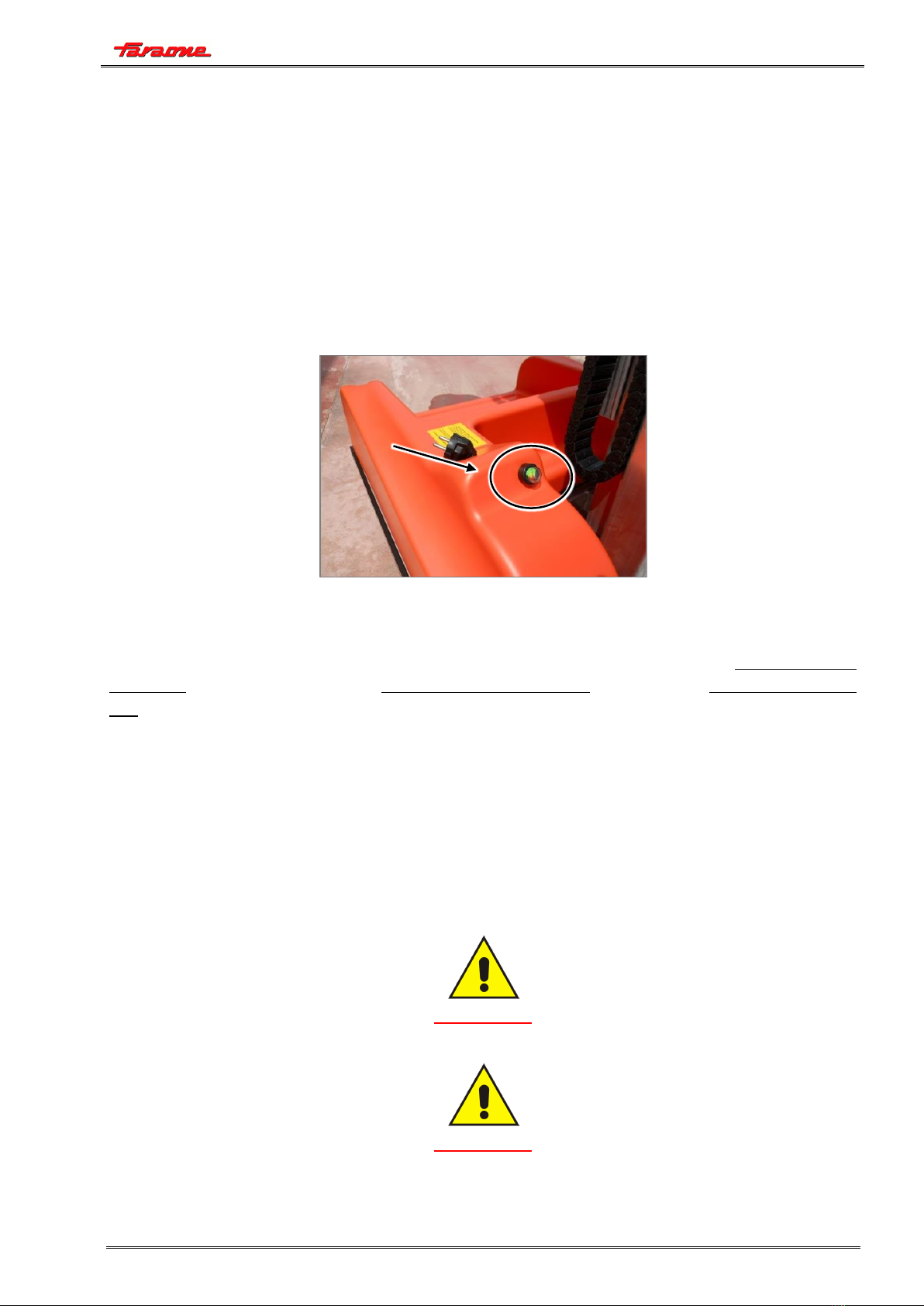

Battery charge status lights
The battery charge status lights are located on the side of the machine's base.
The RED LED, when charging the battery, indicates the beginning of the charging cycle.
Charging finishes automatically without warning the operator, and is indicated by a GREEN LED
coming on.
While using the machine, the battery status will switch from completely charged (indicated by the
green Led), to the partially charged (indicated by the orange Led) to low battery (indicated by the red
Led).
Carry out the following operations carefully:
ü Charging must be carried out in a well-ventilated area, where it is forbidden to smoke and use
open flames;
ü It is recommended to avoid using any possible source of sparks near batteries charging.
ü We recommend using anti-static clothing;
ü Do not lift or tilt the batteries;
ü Do not attempt to start the machine;
ATTENTION
IT IS RECOMMENDED NOT TO LET THE BATTERIES GO COMPLETELY FLAT.
ATTENTION
WHEN THE MACHINE IS PUT OUT OF SERVICE FOR A LONG PERIOD, THE BATTERIES
MUST BE COMPLETELY AND EVENLY CHARGED AT LEAST ONCE A WEEK AND KEPT
WITH THE PLUG DISCONNECTED TO AVOID THE SAME BATTERIES GOING FLAT.
