INSTRUCTION BOOK

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/ instruction book www.forsmw.com
2
INTRODUCTION ...................................................................................................................................3
1. SAFETY REGULATIONS........................................................................................................................4
2. SAFETY DEVICES................................................................................................................................7
3. GENERAL DESCRIPTION ....................................................................................................................11
4. TECHNICAL SPECIFICATION ...............................................................................................................12
5. DIMENSIONAL DIAGRAM..................................................................................................................13
6. INSTALLATION ................................................................................................................................16
8. SERVICE /MAINTENANCE..................................................................................................................24
9. EC DECLARATION OF CONFORMITY (SAMPLE) ......................................................................................31

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/ instruction book www.forsmw.com
3
INTRODUCTION
High demands are placed on manufacturers in respect of conforming to the directives that have
been drawn up for the product they produce. This product is covered by the Machinery
Directive, and the CE marking indicates that is satisfies the requirements in the Directive. On
delivery, it is the incumbent on the dealer to provide operating instructions for the product.
Product presentation
FARMA energy cutters make your work in the forest more efficient and consequently more
productive. Felling, gathering, cutting and loading everything from trees and brush to bushes
and stumps can be performed easily.
Trees are cut rapidly and the fixed blade is easy to maintain. The location of the centre of
gravity makes it easy to position the grapple directly by the root. The FARMA Energy cutter is a
combined grapple and felling head that is often used for clearing energy wood. It is simple to
istall, ad eplaes the gapple loade’s egula gapple tool. The FARMA Eeg utte is
recommended for FARMA cranes from size C 4.6 upwards.
Even if you have experience of this type of product, we recommend that you read our
instructions carefully in order to familiarise yourself with the product. The instructions contain
information that is vital for safety and efficiency, as well as to ensure the validity of the factory
guarantee. When the product you have purchased is delivered, check that is has not sustained
any delivery or transport damage. If there should be any such damage, or if any parts are
missing, contact your dealer immediately.
Fors MW products conforms to EC directive 2006/42/EU.
Manufacturer:
Dealer:
AS FORS MW
TULE 30
765 05 SAUE
Tel: + 372 679 0000
www.forsmw.com

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
4
1. SAFETY REGULATIONS
We understand your desire to get started with your FARMA Energy cutter as
quickly as possible. In order to avoid unwanted operational stoppages or, in
the worst case scenario, hazardous situations, please acquaint yourself first
with the machine's functions and its safety instructions.
For your safety, it is extremely important that you follow the instructions
presented in this instruction manual.
Follow the safety regulations relating to the correct safety equipment and work clothes.
The energy cutter may only be used when all the safety devices have been checked and
protection is in place.
Check that no unauthorised persons are within the safety distance of 45 m when using the
cutter.
Only wear clothing that is appropriate for the work. Loose-fitting clothes can entail a
considerable risk of becoming caught while working.
There is always a risk of slipping when working with the cutter. Watch out for the blade's
cutting edge and always maintain your distance from the cutter head.
When the work is complete, the cutter must always be parked folded up on the ground or the
trailer.
Always pay attention when working close to electrical cables. Maintain
a safe distance. Bear in mind the risk of unforeseen movements. If the
cutter should come into contact with a power line for any reason:
Warn people in the vicinity of the crane/cutter not to touch the
machine;
Do not touch any metal parts;
Remove the crane's arm system or cutter from live cables.

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
5
Forbidden to raise or lower the cutter before the
log is cut off!
It is important that you adjust the speed as you approach the log and will clamp around the
tree. Approach always the material to be cut so that the felling head is at 90 degree angle to
the log. Once you started the cutting movement, one must not raise or lower the cutter before
the log is completely cut off. To shake the cutter up and down will risk the knife and the jaws to
unanticipated stress and risk of breaking.

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
6

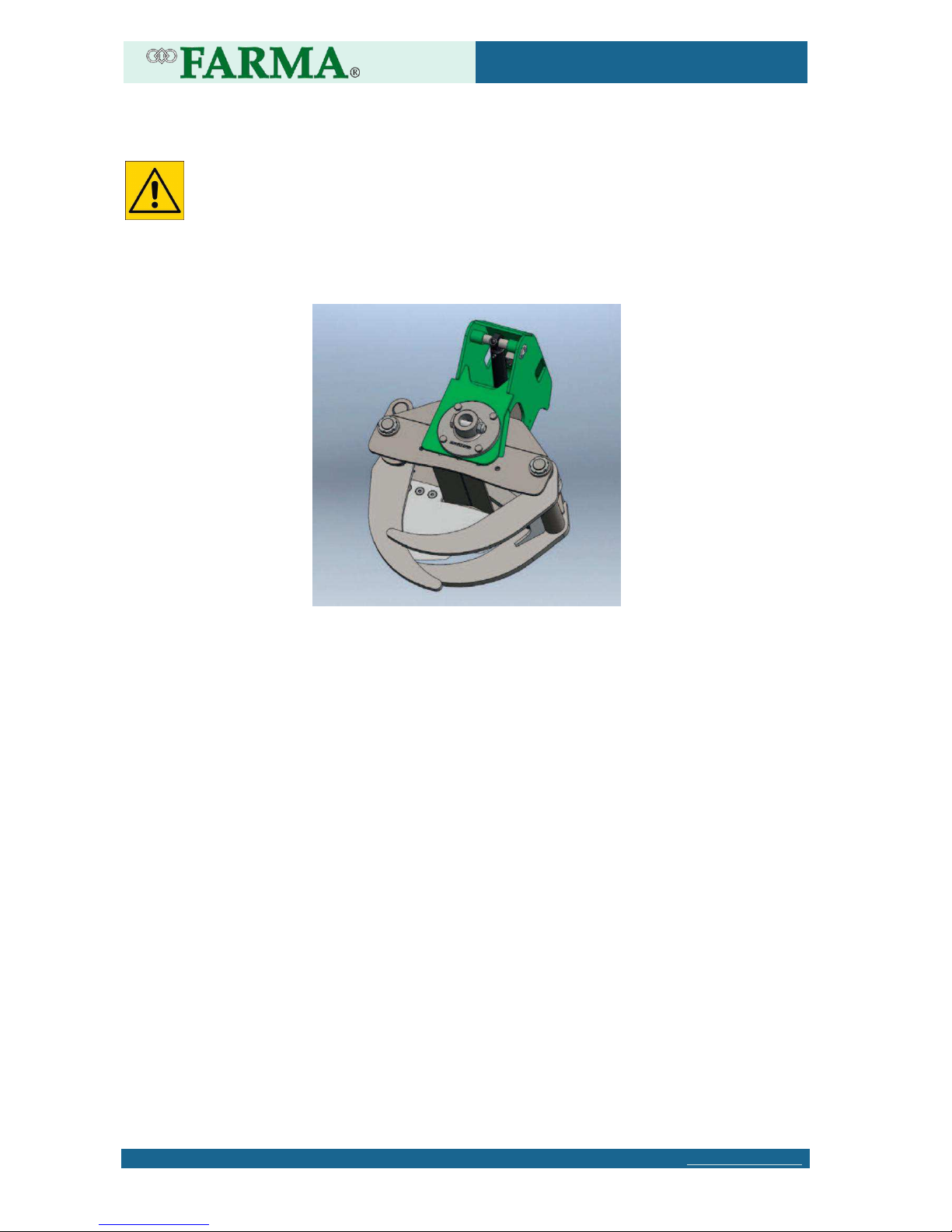

It is absolutely prohibited to stand under a raised machine!
Note: To reduce the risk of injuries, always keep the cutter's grapple arms outside of the blade
when the cutter is not in operation. See figure below.

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
7
2. SAFETY DEVICES
2.1 Position of labels

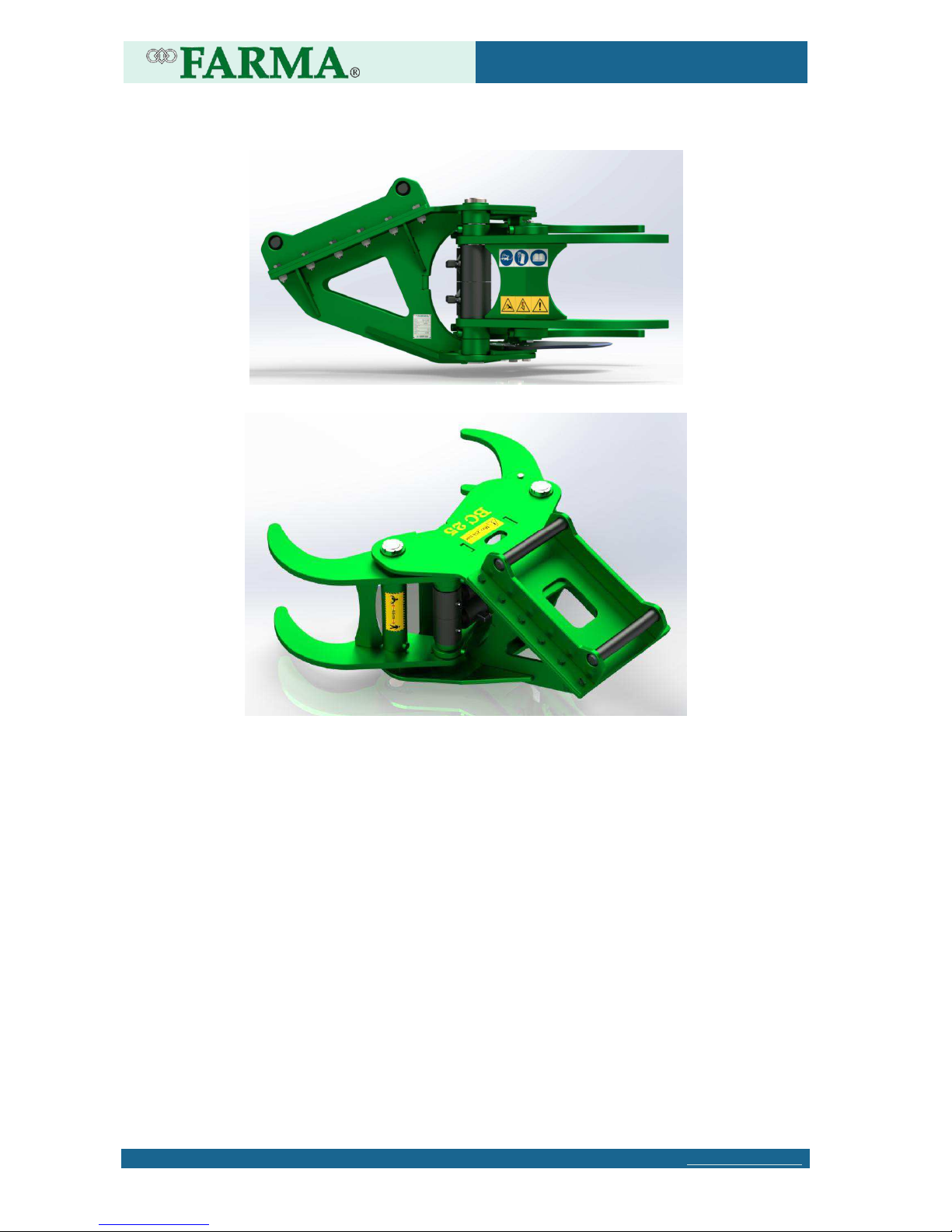

BC18 for cranes position of labels:
BC18 for excavators position of labels:

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
8
BC25 position of labels:

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
9
2.2 Presentation of labels
WARNING!
Warning triangle and instruction manual label.
The cutter is supplied with a warning triangle alongside the
instruction manual decal in order to reinforce the
requirement for the user to read the entire instruction
manual carefully before starting to use the cutter. Ignoring
this can be potentially fatal.
INFORMATION
Label for the use of safety equipment.
These labels challenge the user to employ appropriate
safety equipment in order to avoid injury when using the
cutter.
DANGER!
Safety distance 45 meters
This decal shows the importance of taking great care when
okig ithi the eeg utte’s safet zoe. Alas
keep a lose ee o ad oito the utte’s safet zoe.
Carelessness can result in direct danger to life.
DANGER!
Risk of crushing injuries
There is a risk of clamping or crushing injuries during work and
maintenance.
DANGER!
Hydraulic fluid under pressure
Hot hydraulic fluid at high pressure levels can occur in the hydraulic
system. Take care when connecting, and replace poor quality hoses.
WARNING!
Warning of contact with electrical cable
Always pay attention when working close to electrical cables. Maintain a
safe distance. Bear in mind the risk of unforeseen movements.

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
10
INFORMATION
Lubrication
This decal is used to show the importance of regular lubrication of the
cutter.
INFORMATION
Data plate of energy cutter

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
11

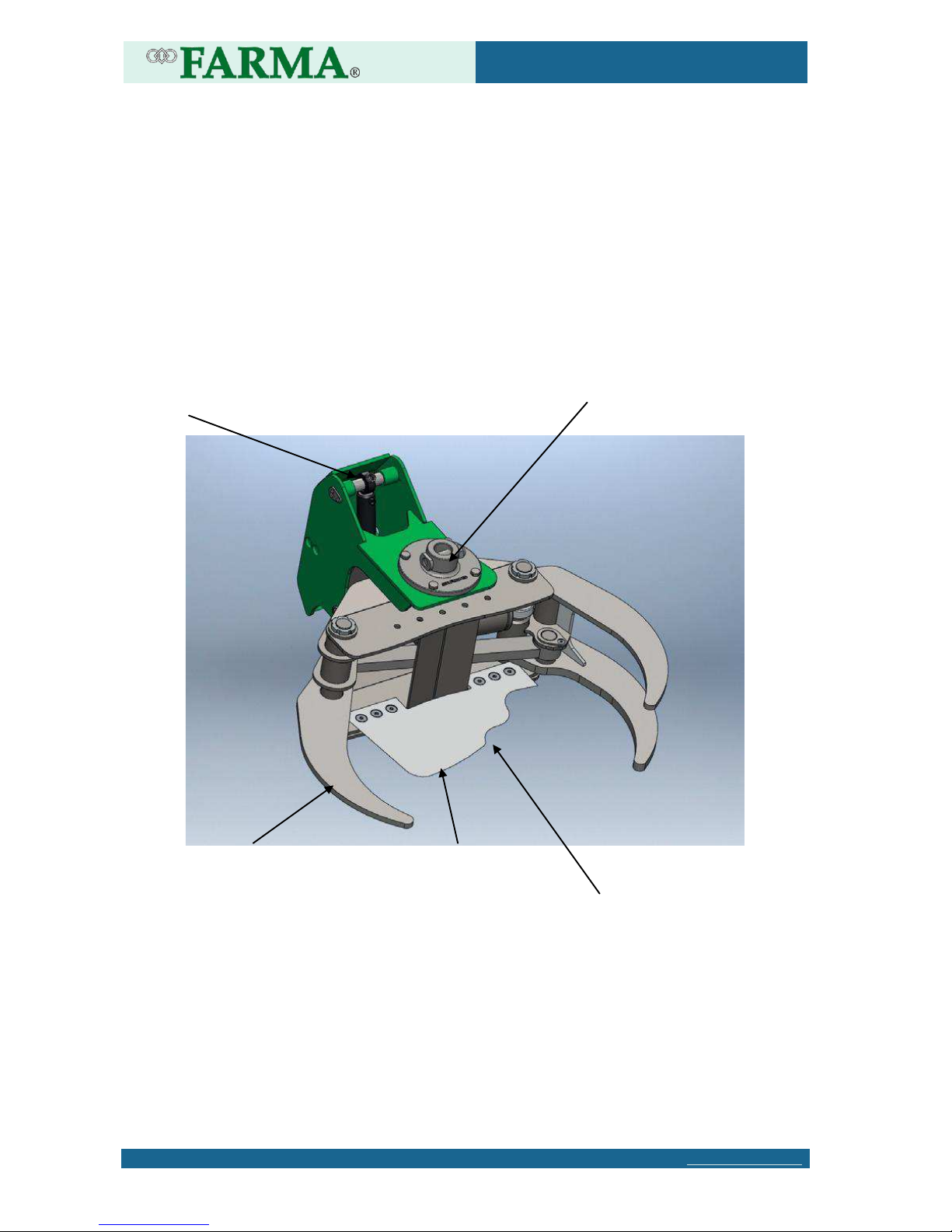

3. GENERAL DESCRIPTION
Principal components and functional devices
The energy cutter comprises the following principal components and functional devices.
The cutter is mounted with the flange plate
(diameter 49 or 59 mm) directly on the
rotator shaft in the same way as a normal
grapple. It is possible to flange the rotator
directly onto the BC18, without a flange plate.
Tilt cylinder
This is illustrative photo to describe cutter components
The cutter tilts down automatically when the stem or stems
have been cut off and the pressure in the grapple cylinder
reaches a factory preset value.
Similarly, the cutter tilts back up automatically to the cutting
position when the grapple claws are opened fully.
Cutting blade
Grapple claw

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
12

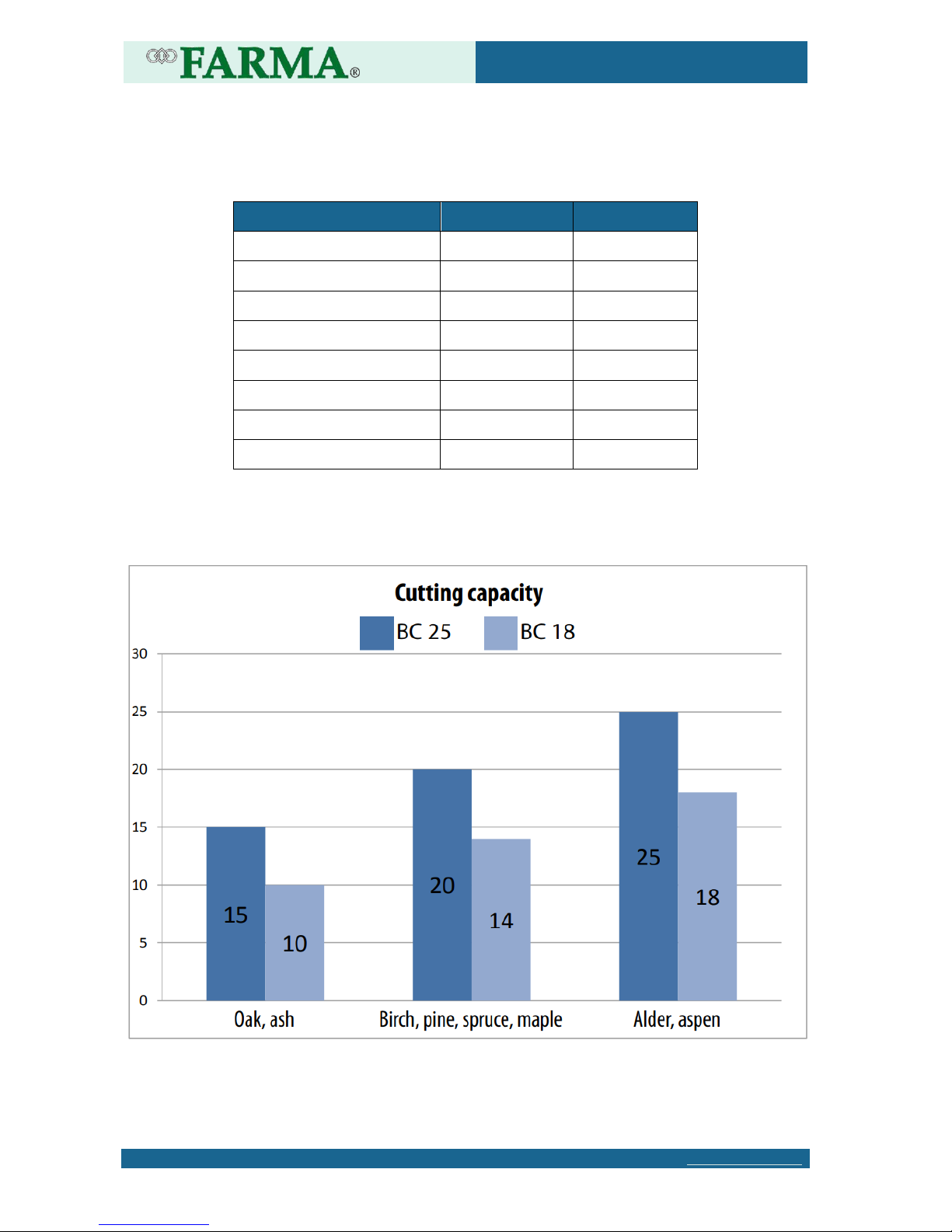

4. TECHNICAL SPECIFICATION
Technical data
BC18
BC25
Max. cutting diameter
180 mm*
250 mm*
Max. grapple opening
660 mm
890 mm
Max. height
437 mm
630 mm
Max. pressure
19.0 MPa
25.0 MPa
Recommended oil flow
40-60 l/min**
40-60 l/min**
Tilt angle
90 degrees***
-
Size, rotator mount
49/59****
-
Weight
190 kg
350 kg
* The maximum cutting diameter ultimately depends on the choice of tree species.
** Can be used at 25 l/min, although operation becomes slow.
*** BC18 for cranes
**** This model is supplied with a replaceable rotator mount.
Bear in mind that there are many aspects that can influence the potential to cut a tree of 18/25
cm, these include the tree species, moisture, and ambient temperature and whether the tree is
frozen.

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
13

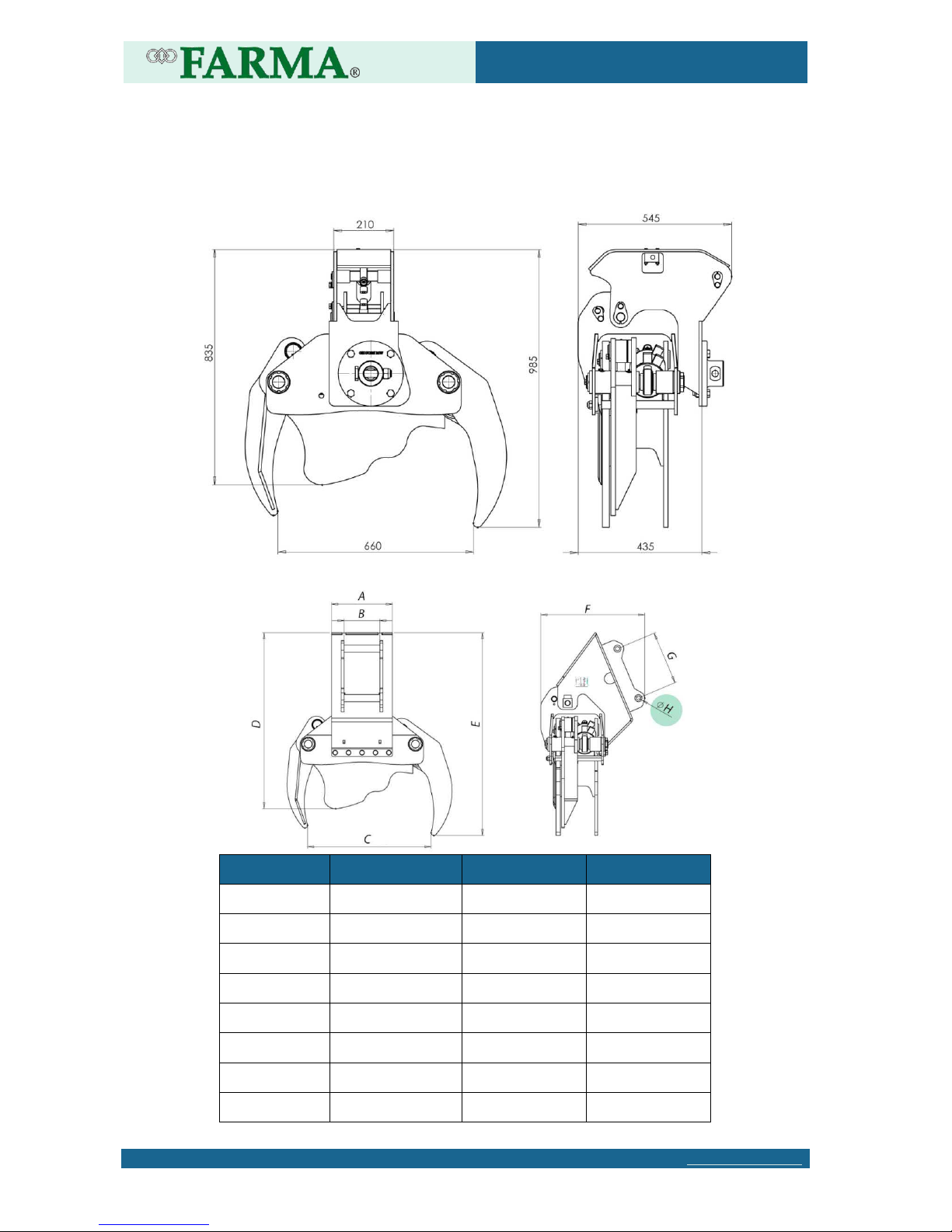

5. DIMENSIONAL DIAGRAM
Dimensionf of BC 18 for cranes:
Dimensions of BC18 for excavators:
Measure
S30/180
S40
S45
A
340 mm
340 mm
340 mm
B
185 mm
200 mm
295 mm
C
660 mm
660 mm
660 mm
D
985 mm
985 mm
1015 mm
E
1135 mm
1135 mm
1165 mm
F
555 mm
580 mm
600 mm
G
230 mm
300 mm
430 mm
H
Ø30 mm
Ø40 mm
Ø45 mm

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
14

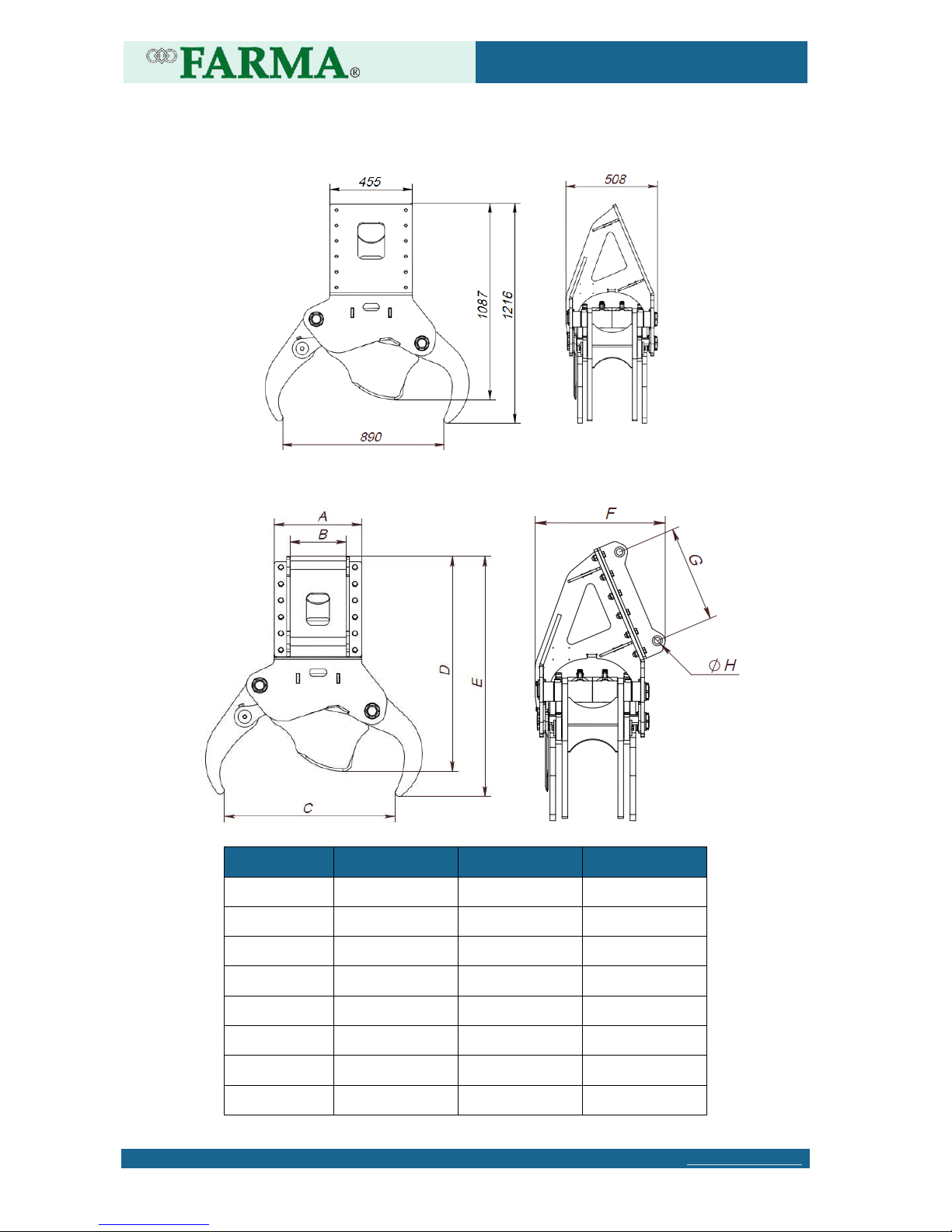

Blank BC25:
Dimensions of BC25 for excavators:
Measure
S40
S45
S30/180
A
455 mm
455 mm
455 mm
B
200 mm
293 mm
182 mm
C
890 mm
890 mm
890 mm
D
1087 mm
1114 mm
1087 mm
E
1216 mm
1243 mm
1216 mm
F
572 mm
580 mm
513 mm
G
300 mm
430 mm
230 mm
H
Ø40 mm
Ø45 mm
Ø30 mm

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
15
Measure
MS03
MM10/MH10
MS08
A
455 mm
455 mm
455 mm
B
205 mm
205 mm
295 mm
C
890 mm
890 mm
890 mm
D
1087 mm
1087 mm
1110 mm
E
1216 mm
1216 mm
1239 mm
F
537 mm
537 mm
631 mm
G
Ø50 mm
Ø50 mm
Ø60 mm

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
16
6. INSTALLATION
Installing the cutter unit by the loading arms/boom
The cutter is installed on the rotator via the journal/shaft. No separate hydraulic hoses or
electrical cables are required here for use. The cutter is connected directly in place of the
grapple claw. See figure below.
Journal/shaft
Rotator connection

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
17

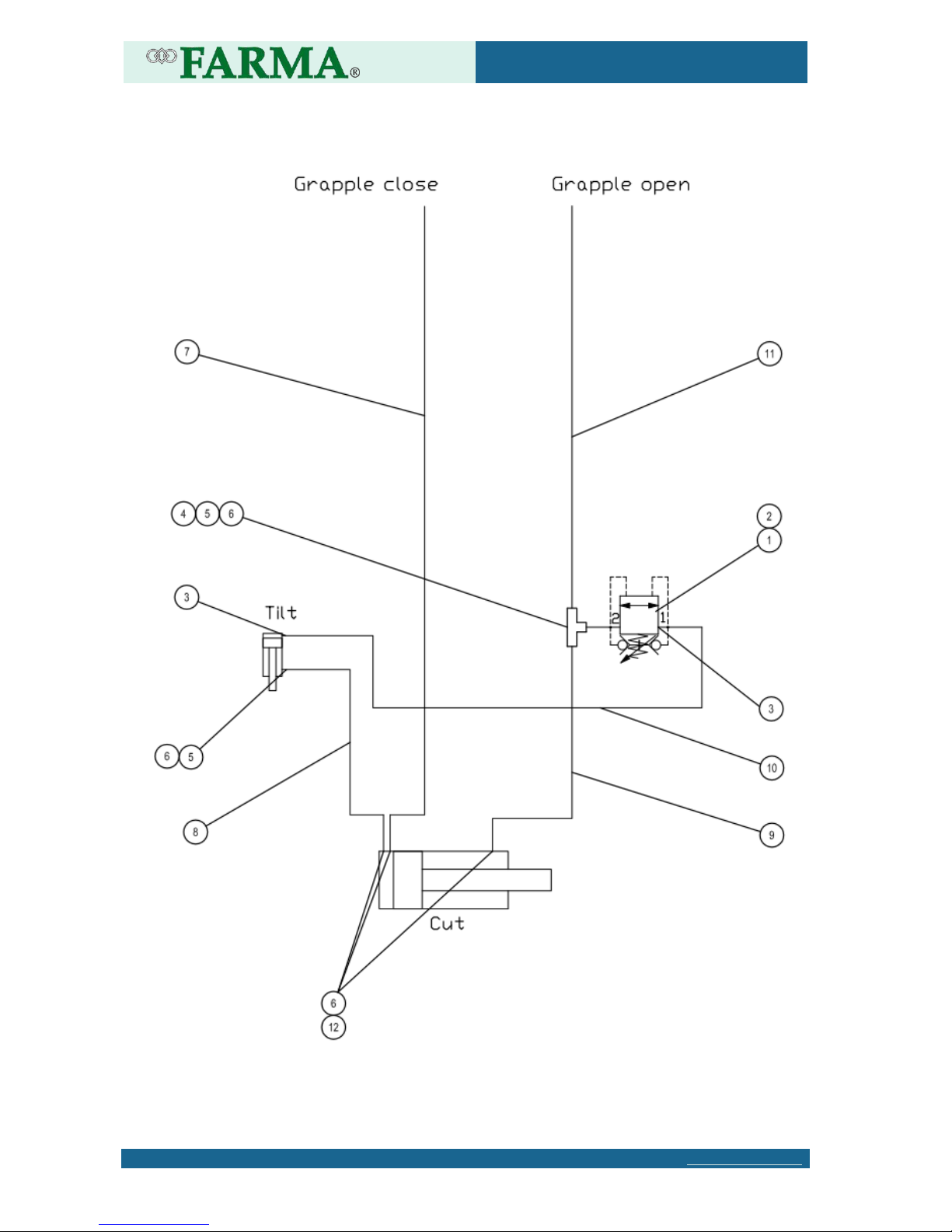

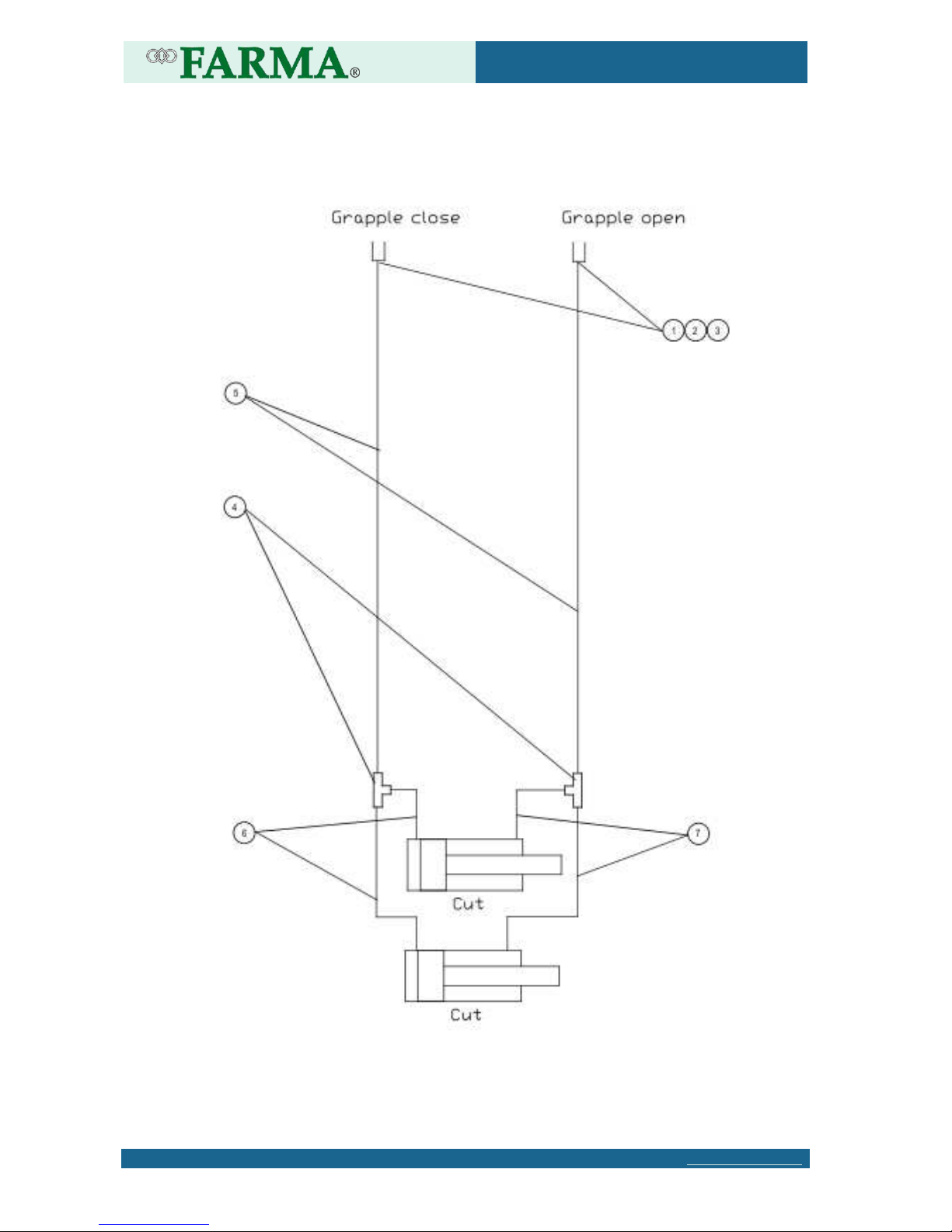

Hydraulic scheme BC18

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
18
Main parts of hydraulic scheme BC18 (FMWH00005):
Pos. No
Description
QTY.
1
Valveblock
1
2
Relief valve
1
3
Agle ipple 0°
2
4
T-nipple
2
5
Straight nipple
2
6
Rubber seal
5
7
Hose
1
8
Hose
1
9
Hose
1
10
Hose
1
11
Hose
1
12
Cartridge nipple
3

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
19
Hydraulic scheme BC25

ENERGY CUTTER BC18/BC25
Original instruction
AS Fors MW EN_V1.3-2018W02/Instruction book www.forsmw.com
20
Main parts of hydraulic scheme BC25 (FMWH00042):
Pos. No
Description
QTY.
1
Bayonet coupling
2
2
Dust cover
2
3
Rubber bonded seal
2
4
T-nipple
2
5
Hose
2
6
Hose
2
7
Hose
2
