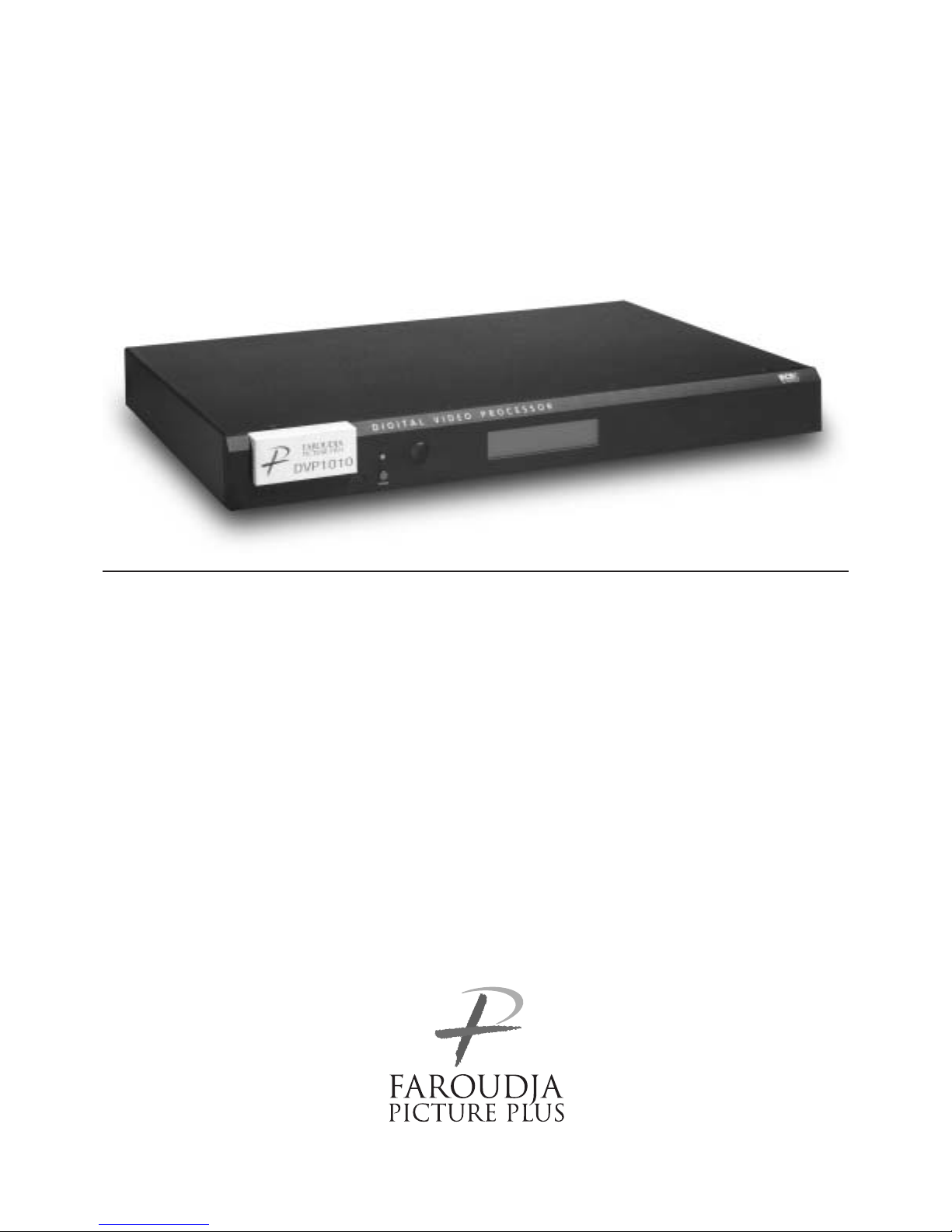

Faroudja Dvp1010 User manual

DVP1010

Digital Video Processor

Installation and

Operations Manual

NTSC/PAL Model

™

QUICK START

INSTRUCTIONS

The DVP1010 requires only a few adjustments to

be set for proper operation. However, since the

processor must be integrated with a display device,

and the settings on one will affect the other, careful

attention must be made to the settings on both

products.

CONNECTIONS

Read the complete Owner’s Manual for the DVP1010

before installation.

Also review the owner’s manual of the display. Most

display devices require specific settings to properly

integrate with an external processor.

Be sure to connect all sources to the proper inputs of

the DVP1010.

Note on DVDs: For proper aspect ratio and to insure

the highest quality image from the DVD player, be

sure to set the DVD screen shape to 16:9 in the DVD

player's Setup menu. See the DVD player's owner's

manual for details

Connect the proper cables from the output of the

DVP1010 to the display device. Be sure the cables

are not crossed.

DVP1010 SETUP

•Plug the processor into the wall power.

The unit will go through initialization identifying

the output resolution.

•Turn the unit on and press the Menu button

on the remote for about seven seconds to

enter the Setup menu. Press Menu again

to return to the User Menu.

•Use the Function Up/Down buttons to select

different Functions, press the Left/ Right

buttons to change Values.

•Select Digital (DVI) or Analog (BNCs) output

•Select output type. When using the analog

output, RGBHV is recommended.

•Select the proper output scan rate.

•Composite Sync on H should be Off.

•Select the screen shape of your display.

DISPLAY POSITION AND

ALIGNMENT

The next step in the setup procedure is to align the

display device to the processor. Be sure to follow all

directions for setting up the display found in the

display’s manual. Using a test DVD with the Safe

Area test pattern, align the image size, position and

blanking first using the controls found in the display

device. Only use these controls in the DVP1010 if the

display device does not offer these controls or if there

is not enough range.

Note: Some displays do not respond to the H & V

position controls when using DVI.

SETTING DISPLAY PROFILES

The DVP1010 stores up to eight profiles for NTSC

and eight profiles for PAL. Each profile stored

contains all the settings for the unit at the time the

information was stored. This allows the installer to

store scan rates, screen shapes, etc. for multiple

displays that may be using in the theater. Store the

current settings by selecting the profile number (1-8)

in the OSD and then hit Store on the remote. Profiles

can also be stored in the Setup menu. See the

manual for more details.

IMAGE ALIGNMENT

The final step is optimizing the image. Use a test

pattern DVD to optimize the display and processor.

Set the brightness and contrast using the controls in

the display.

Adjust the gray scale of the display using the color

temperature controls in the display.

Reduce the detail or sharpness control in the display

to 0 or 1 (if available).

Using video material, adjust the Detail on the

DVP1010. Use of the Detail circuit is affected by the

quality of the material being viewed. High quality

sources need a lower Detail setting. DVDs or satellite

sources that are poor quality (compression artifacts)

can be cleaned up by reducing the detail level. Low

bandwidth sources such as VHS can be improved by

increasing the detail. Customized settings can be

stored as Profiles.

QUICK START OPERATION MENU

image could be burned in to the display device. Use

special care when projecting video games or

computer program images.

About the installation place

Do not install the processor in a place that cannot

support its weight securely, or that does not allow

for proper heat ventilation.

IMPORTANT SAFEGUARDS

IMPROPER USE OF THIS EQUIPMENT CAN

RESULT IN POTENTIAL ELECTRICAL SHOCK

OR FIRE HAZARD.

In order not to defeat the safeguards incorporated

into this product, observe the following basic rules for

its installation, use and service.

– All the safety and operating instructions should be

read before the product is operated.

– The safety and operating instructions should be

followed and retained for future reference.

– All warnings on the product and in the operating

instructions should be adhered to.

– Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning.

– Do not use attachments not recommended by the

product manufacturer as they may be hazardous.

– Do not use this product near water. Do not use

immediately after moving from a low temperature to

high temperature, as this causes condensation,

which may result in fire, electric shock, or other

hazards.

– Do not place this product on an unstable cart,

stand, or table. The product may fall, causing serious

injury to a child or adult, and serious damage to the

product. The product should be mounted according

to the manufacturer’s instructions, and should use a

mount recommended by the manufacturer.

– When the product is used on a cart, care should be

taken to avoid quick stops, excessive force, and

uneven surfaces which may cause the product and

cart to overturn, damaging equipment or causing

possible injury to the operator.

– Slots and openings in the cabinet are provided for

ventilation. These ensure reliable operation of the

product and protect it from overheating. These

openings must not be blocked or covered. (The

openings should never be blocked by placing the

product on bed, sofa, rug, or similar surface. It should

not be placed in a built-in installation such as a

bookcase or rack unless proper ventilation is

provided and the manufacturer’s instructions have

been adhered to.)

iii

SAFETY PRECAUTIONS

SAFETY

PRECAUTIONS

IMPORTANT INFORMATION

WARNING : TO PREVENT FIRE OR SHOCK

HAZARDS, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION :

To reduce the risk of electric shock, do not remove

cover. Refer servicing to qualified service personnel.

This product is equipped with a 3-blade grounding-

type plug to satisfy UL, CUL, TUV, FCC rules.

If you are unable to insert the plug into the outlet,

contact your electrician.

FCC INFORMATION (U.S.A. ONLY)

CAUTION :

Changes or modifications not approved by Faroudja

could void the user’s authority to operate the

equipment.

Note: This equipment has been tested and found to

comply with the limits for a Class B digital devices,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will

not occur in a particular installation. If this equipment

does cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encourage to try to

correct the interference by one or more of the

following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment.

– Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

About burning-in of the display device

Do not allow the same still picture to be projected for

a long time or an abnormally bright video picture to

be projected. Do not project video images with high-

intensity or high contrast on a screen. The video

– This product should be operated only with the type

of power source indicated on the label. If you are not

sure of the type of power supply to your home,

consult your product dealer or local power company.

– This product is equipped with a three-wire plug.

This plug will fit only into a grounded power outlet. If

you are unable to insert the plug into the outlet,

contact your electrician to install the proper outlet. Do

not defeat the safety purpose of the grounded plug.

– Power-supply cords should be routed so that they

are not likely to be walked on or pinched by items

placed upon or against them. Pay particular attention

to cords at doors, plugs, receptacles, and the point

where they exit from the product.

– For added protection of this product during a

lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the

wall outlet and disconnect the cable system. This will

prevent damage to the product due to lightning and

power line surges.

– Do not overload wall outlets, extension cords, or

convenience receptacles on other equipment as this

can result in a risk of fire or electric shock.

– Never push objects of any kind into this product

through openings as they may touch dangerous

voltage points or short out parts that could result in a

fire or electric shock. Never spill liquid of any kind on

the product.

– Do not attempt to service this product yourself as

opening or removing covers may expose you to

dangerous voltages and other hazards. Refer all

service to qualified service personnel.

– Unplug this product from the wall outlet and refer

service to qualified service personnel under the

following conditions:

a) When the power supply cord or plug is damaged.

b) If liquid has been spilled, or objects have fallen on

the product.

c) If the product has been exposed to rain or water.

d) If the product does not operate normally by

following the operating instructions. Adjust only those

controls that are covered by the Operation Manual,

as an improper adjustment of controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to normal

operation.

e) If the product has been dropped or damaged in

any way.

f ) When the product exhibits a distinct change in

performance – this indicates a need for service.

– When replacement parts are required, be sure the

service technician has used replacement parts

specified by the manufacturer or with same

characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock, or

other hazards.

– Upon completion of any service or repairs to this

product, ask the service technician to perform safety

checks to determine that the product is in proper

operating condition.

– The product should be placed more than one foot

away from heat sources such as radiators, heat

registers, stoves, and other products (including

amplifiers) that produce heat.

– When connecting other products such as VCR’s,

and personal computers, you should turn off the

power of this product for protection against electric

shock.

– Use only the accessory cord designed for this

product to prevent shock.

The power supply voltage rating of this product is AC

120 V, the power cord attached conforms to the

following power supply voltage. Use only the power

cord designated by our dealer to ensure Safety and

EMC. When it is used by other power supply voltage,

power cable must be changed.

Ensure that the power cable used for the projector is

the correct type for the AC outlet in your country.

Consult your product dealer.

*DO NOT allow any unqualified person

to install the unit.

Be sure to ask your dealer to install the unit since

special technical knowledge and skills are required

for installation and connection to multiple devices.

If installation is performed by an unqualified person,

it may cause personal injury or electrical shock.

SAFETY PRECAUTIONS

Quick Start ...............................................................................................................................................a

Installation ................................................................................................................................................2

Connections .............................................................................................................................................2

Connecting HDTV Satellite Receivers.......................................................................................................3

Front Panel Control ..................................................................................................................................4

System Firmware Setup ...........................................................................................................................4

Processor IR Remote and On-Screen-Display Operation .......................................................................6

Operating the Processor ..........................................................................................................................7

Test Pattern List .......................................................................................................................................9

RS232 Programming Instructions and Commands .................................................................................9

Help Menus ............................................................................................................................................12

Default On-Screen-Display .....................................................................................................................13

Specifications ........................................................................................................................................14

Warranty .................................................................................................................................................15

No part of this document may be copied, photocopied, translated, or reproduced to any electronic medium or

machine readable form without prior consent, in writing, from Faroudja.

The Faroudja name, logo and Picture Plus are registered trademarks of Faroudja.

The Faroudja DVP1010 is covered by the following United States patents:

4,030,121, 4,179,705, 4,240,105, 4,262,304, 4,847, 681, 4,864,389, 4,876,596, 4,893,176, 4,916,526,

4,967,271, 4,982,280, 4,989,090, 5,014,119, 5,025,312, 5,159,451, 5,237,414.

A Division of Genesis Microchip Corp.

Made in USA

TABLE OF CONTENTS

Rev. 6/04

INSTALLATION

Unpacking

Remove the DVP1010 unit from the shipping

container and examine it for any signs of shipping

damage or missing items (check inventory list below).

All shipping materials should be saved if the unit is to

be moved or returned for service. Shipping unit back

to Faroudja for service not in the original box may

result in voiding warranty or additional cost.

Placement

The processor can be either placed on a table or rack

mounted. A rack mounting installation kit is included.

Securely mount the side rack brackets with the

screws that are provided with the kit.

Ventilation

The unit uses convection to cool. A fan is not

needed. As hot air raises out of the top vent, cool air

is drawn in from the bottom and side. These vents

must not be blocked. When rack mounted, a

minimum of 1.75” (1 rack unit height) of free space is

required above and below the unit to allow for proper

cooling. A forced air fan should be added to the rack

installation if power amps are located in the same air

space. Do not install unit above power amps.

Connections

Because of the high performance of the DVP1010

unit it is very important to use the highest quality

cables possible, for both input and output signals.

To avoid AC ground loop problems, the source

equipment, DVP1010 unit and projector should all be

running on the same grounded AC power line (one

rated for the power requirements).

1. S-Video input (4-pin DIN) for sources such as

DVDs, Satellite systems, S-VHS tape decks

(when using S-VHS tapes only),

Hi-8 tape decks.

2. Composite video input (BNC) for sources such

as Laserdisc players, cable TV, VHS tape

decks, 8mm tape decks.

3. YPrPb/RGBs Input (BNC): 480i and HDTV

scan rates are sent to the internal processor

and then output at the selected scan rate. If

the output is set to analog RGBHV or digital

DVI, the unit will automatically transcode the

YPrPb HDTV to RGBHV.

Note on DVDs: For proper aspect ratio and to

insure the highest quality image from the DVD

player, be sure to set the DVD screen shape

to 16:9 in the DVD player's Setup menu. See

the DVD player's owner's manual for details.

4. High scan rate input (D15F) for sources such

as HDTV signals or computers are passed

through to the projector. The signal is sent to

the outputs in the same format as the input

unless Transcoding is selected. YPrPb from

HDTV sources can be transcoded to RGBHV,

as well. Use a BNC to D15 breakout cable if

necessary. The Green, Red, Blue BNCs are

used for YPrPb.

5. D15F connector output for use with computer

monitors or to a second display device. Use

only short cable runs. This output can be used

at the same time as the BNC outputs.

6. DVI Input. The DVI Input will automatically

process 480i, 480P,720P and 1080i signals.

Computer rates are passed through to the DVI

output if any of the pass-through inputs are

selected. The DVP1010 will not convert a

computer DVI output to the analog output.

7. DVI Output: Digital output interface for

compatible displays. All processed analog

and digital inputs are output to this connector

as well as computer scan rates when the

pass-through input is selected. Maximum

cable length is 50ft with a high quality DVI

cable. For longer lengths a distribution system

or fiber optic system must be used.

8. BNC connectors for main output with RGBHV

or YPrPb signals to display devices. Cable

runs up to 100ft are okay if good quality cables

are used. For YPrPb outputs use:

Red = Pr

Green = Y

Blue = Pb

RGBHV is recommended.

INSTALLATION

Inventory

1-DVP1010 Unit 1- Remote + Batteries

1-Owner’s Manual 1- Warranty Card

1- Power Cord

12 4 5 6 7

3910

11 13

INSTALLATION

Note: If analog computer signals are to be used,

the YPrPb output format cannot be used.

9. IR receiver connection allows for use with

external IR receivers so unit can be installed

behind walls. (3.5mm, 3 pin, Tip = +5 - +12V

Pulse, Sleave = Gnd)

10.12V trigger to activate automatic screen

relays. Voltage is constant when unit power is

on. (12V @ 100mA Max. 3.5mm 2 pin

connector, Tip = +12V, Sleave = Gnd)

11. RS232 D9F connection for use with RS232

control systems. This connection also allows

for firmware upgrades to the DVP1010.

12. AC Power connection.

13. RS232 Output - Not Active - for future

upgrades

Note: The DVI or analog RGBHV outputs cannot be

active at the same time. Select the output type in the

Setup menu prior to use of the processor.

Connecting HDTV Satellite Receivers

Since HDTV ready satellite receivers offer different

signal types, they require special attention for

connection to the processor. Every receiver is

different so be sure to consult the receivers manual

for details. For this manual, we will assume the

receiver being used operates as follows:

1. Non HDTV material is output from the receiver

via an S-video connection

2. HDTV material is output via YPrPb outputs

3. If available, HDTV material is also output via a

DVI connector.

The following diagram offers one way to connect

the system.

Note: The DVP1010 pass-through input will “pass ”

the input signal to the output stage in the same

format as the input signal, i.e. analog HDTV in –

analog HDTV out, DVI HDTV in – DVI HDTV out.

HDTV Cross-Conversion

The DVP1010 can cross-convert 480p, 720p and

1080i HDTV signals to the selected output of the

processor. Any HDTV signal connected to the YPrPb

BNC or DVI inputs will be cross-converted. Any

HDTV or PC signal connected to the D15 input will be

passed-through without processing. PC signals via

the DVI input will be sent to the pass-through.

To pass-through HDTV signals to avoid processing,

select the passthrough input. DVI is passed through

to the DVI output and analog YPrPb is passed

through as analog RGB (select trancode).

HDCP Compatibility

The DVP1010 is a HDCP (High Definition Content

Protection) compatible processor. This means that

when used with a HDCP encrypted source (satellite

and DVD via DVI) and a HDCP compatible display

device, the digital signal can be processed and

viewed on the display device. If a non-HDCP source

is used, the image can also be viewed (Note: check

the display device manual to be sure this is possible

when using the DVI input). If a non-HDCP compatible

display is used, HDCP encrypted sources cannot be

viewed.

Note: When first selecting a HDTV source with

HDCP there can be an interruption of the video

image for up to 20 seconds while the HDTV source

unit communicates with the display device to verify

compatibility.

HDMI Connectors

To use sources or displays that use the HDMI

connector, simply use a HDMI to DVI converter cable

(Not supplied. See www.pacificable.com).

With this hookup viewing the different sources is as follows:

SOURCE USE THIS USE THIS

INPUT OUTPUT

Non-HDTV YPrPb or S-Video DVI or RGBHV

HDTV Rates (480p,

720p,1080i) with YPrPb or DVI DVI or RGBHV

and without HDCP

Computer VESA RGB RGBHV or DVI

1024x768 (D15) or (DVI) Pass-Through

DVP1010

-Video

Input

PrPb

Input

Display

BHV DVI

-Video DVI

Satellite Receiver

PrPb

HDTV

Input DVI

Input

Alt.

Conn.

Set Input to Transcode

FRONT PANEL CONTROL

1. Firmware Reset: push a small paper clip into

this opening to reset the unit’s CPU.

Note: Use this reset only if the unit will not

respond to commands. It will not erase

custom settings. Use the Factory Restore

command in the Setup Menu to completely

reset firmware. See the setup section of the

manual for details.

2. Power/Standby: Press to turn the unit On

(LED turns Green) or to Standby (Red).

3. Infrared Receiver Window

4. LCD Readout: Provides information on control

of the processor. Displays current Function

being used, matching the On-Screen-Display.

When in the Setup Menu, the OSD is not

available, use the LCD display.

SYSTEM FIRMWARE SETUP

Now that all the sources and cables are connected,

the processor’s firmware needs to be setup for the

installation. Be sure to go through the Setup menu

before doing the final setup of the display.

When the unit is first plugged in it will go through an

initializing procedure and display the output

resolution. Do not send any commands to the unit

during this initialization period. Once this initialization

is completed the unit is instant-on.

Note: All display devices have specific setup

steps that must be completed to insure

proper operation with the DVP1010 and

other sources. Be sure to carefully

follow those instructions as well as

the instructions for this processor.

To enter the Setup menu, press and hold the Menu

button on the remote for five seconds.

Setup Functions can only be viewed on the front

panel LCD, not from the OSD.

Press the Function Up or Down to select the available

Functions. Press the Value Up or Down keys to

change values or to select options.

SETUP MENU FUNCTIONS

Set: NTSC SCAN RATE

Select the required scanrate by using the right and

left arrows. When the desired rate is displayed on the

LCD display, press the STORE key. The DVP1010 will

ask you "Are you sure" and press the STORE key

again. The scanrate is now selected.

Set: PAL SCAN RATE

(This new command is in addition to the NTSC scan

rate selection. When the processor detects a PAL

signal, the output rate will switch to the rate

selected here.)

Set: Active Output

Analog/Digital (Default)

This must be selected to determine if the Analog

(BNC) or Digital (DVI) output is used. Both outputs

cannot be used at the same time.

Set: Screen Shape

Wide Screen / 4:3 / Wide 4:3

Note: This sets the processor for the screen shape of

the display to be used. If this is not set properly, the

aspect ratio selection for the different sources

located in the user menu will be incorrect.

•Wide Screen-Choose this when the screen is

Widescreen and the projector will provide the

anamorphic vertical squeeze.

Example: A 16:9 plasma, a digital or CRT projector

set to Anamorphic using a wide angle screen or when

using a Panamorph lens, or a 1280x720 digital

projector.

•4:3 – Choose this when the projector is 4:3

and the screen is 4:3

Example: using a 1024x768 digital projector on a 4:3

screen.

•Wide 4:3-Choose this when the digital

projector operates as 4:3 and the screen is

Widescreen. (Not available on units scanning

at rates below 720p)

Example: A digital projector that has a 4:3 display

chip that locks the aspect ratio when sent the native

resolution and then displayed on a wide angle screen.

SETUP

12 3 4

SETUP

Set: Black Level

0 (Default)-7.5

Note: This sets the correct setup level for the

component input only. It can be used to get correct

black levels for certain displays. In most cases it

should be left at 0.

Set: DVI Input Level

0-255 (Default) / 16-235

Note: This sets the correct level range for the DVI

input. 0-255 is correct for video sources, 16-235 is a

range sometimes used by computer video cards.

Output Format (Analog)

RGB (Default) /YPrPb

Note: Selecting RGB means connecting the

processor to the display via five wire analog RGBHV.

This function is not active when DVI output is

selected. DVI is always RGBHV.

Composite Sync on H

On/Off (Default)

Note: this function is not active when YPrPb output

is selected

Note: Each input on the DVP1010 can be activated

or deactivated to simplify operation so unused inputs

are not accessed when cycling through the inputs

with the remote control.

Set: Video Input

Enabled (Default) /Disabled
