Farpointe Data RANGER WRR-44-OSDP User manual

This Quick Start Guide is intended for experienced installing technicians. It is a basic reference to ensure all connections are properly made.
Installation and wiring of systems must be in accordance with the National Electrical Code, ANSI/NFPA 70.
1.0 Introduction
Long Range Transmitters and Receivers with an integrated receive
antenna comprise Farpointe Data’s high frequency, long-range
identification solution known as Ranger. Intended for security access
control applications, Ranger’s wireless communications are based
upon a secure, digital, anti-playback routine. The four-channel Ranger
Receiver (Channels A, B, C & D), model WRR-44-OSDP, allows Ranger
Transmitter data to be sent over four separate outputs. However, OSDP
is limited to Channel A. Formatting of the OSDP output is dependent
upon the data encoded on each individual Ranger Transmitter.

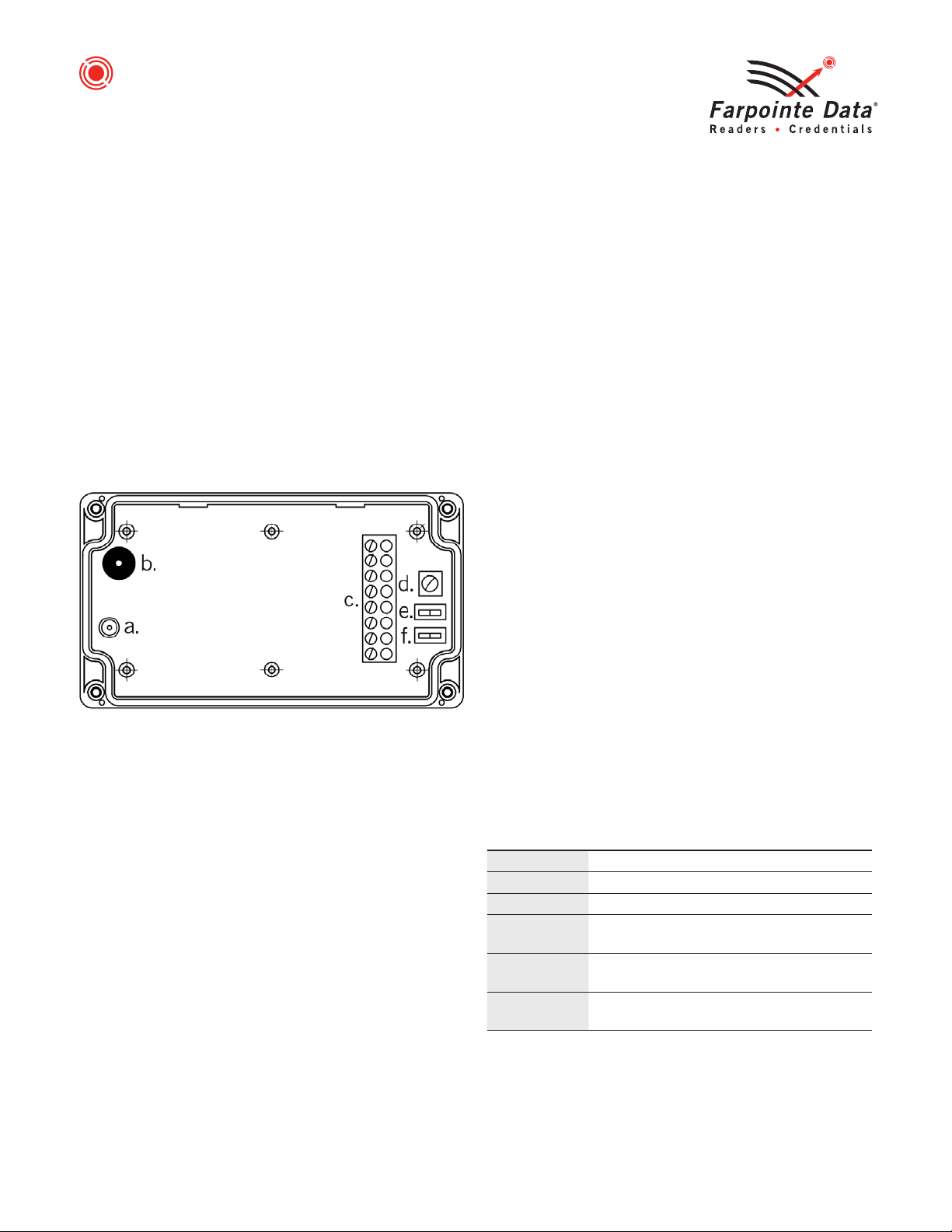

2.0 Receiver Layout
3.0 Cable Requirements
Cable, 22 or 24 AWG [65 mm or 51 mm] twisted pair, over-all shield
and UL approved (Belden 8273, or equivalent).
Maximum bus length: 4,000 ft – 24 AWG (1,219 m)
Maximum distance between: 1,640 ft – 24 AWG (500 m)
4.0 Output Formats
The SIA standard OSDP protocol is supported for clear and secure
channel communication.
Default Address: 0
Default Baud rate: 9600bps (bits per second)
Default Secure Channel Key:
SCBK_D = 0x303132333435363738393A3B3C3D3E3F.
OSDP Protocol Technical Support:
SIA OSDP Application Profile: Basic Reader (OSDP v2.2 and higher)
5.0 Grounding
Shield (drain) continuity must run from the Receiver to the access
panel. Further, the shield and Receiver ground must be tied together
at the access panel, and must connect to an earth ground at one
point only.
6.0 Power
Power required is 12 VDC nominal at 120 mA. The Receiver may be
powered by the access panel. A linear power supply is recommended
for best operation.
7.0 Mounting
The Receiver may be mounted indoors or outdoors. The base of
the enclosure includes a drill template providing mounting provisions
to a wall box (standard North American and European), as well as pre-
drilled holes in the four corners allowing mounting to a flat surface.
Use supplied #6 mounting screws, or equivalent security screws,
for installation.
8.0 Read Range Adjustment
As shipped, the Receiver is set for the maximum read range, which is
nominally up to 200 feet (61 m). For optimal read range, it is important
that the Receiver be mounted as far from potential interference sources
as possible. These sources may include, but are not limited to, large
metal and concrete obstructions, as well as magnetic fields and radio
transmissions. Further range varies based on the height a Receiver is
installed, how a user may hold a Transmitter when being used, and
where the Transmitter is being used. Read range may vary for each
installation. Read range may be reduced by gently adjusting the
Receiver’s range pot in the counter-clockwise direction.
9.0 Read Mode
Reader (OSDP “PD”) operation is controlled by the access panel
(OSDP “ACU”) per the OSDP specification.
10.0 External LED Indicator
Refer to the information below for explanation on the Receiver’s
external LED indicator operation:
LED State Description
Green Initial power up
Amber Normal powered on state
Flash Green An activated Transmitter button press has
been received and processed
Flash Red A non-activated Transmitter button press
has been detected
Off Receiver is not powered on, or failed to
power up successfully
11.0 Antenna Switch
As shipped, the Receiver’s Antenna Switch is set in the INT (internal)
position. Read range can be extended using a separate, external
antenna attached to Receiver’s on-board 6.19 mm SMA jack
connector. If a separate, external antenna is used, then the switch
should be set in the EXT (external) position. For installations requiring
a separate, external antenna, please refer to the WRR-44 External
Antenna Reference Document.
Legend:
a. Antenna Connector
b. Audio Beeper
c. 10-PIN Terminal Block
d. Read Range Adjustment
e. Antenna Switch
f. Beeper Switch
QUICK START GUIDE
WRR-44-OSDP RANGER®LONG-RANGE
433-MHz RECEIVER WITH OSDP SUPPORT

© 2012-2021 Farpointe Data, Inc. All rights reserved. Farpointe Data®,
Pyramid Series Proximity®, Delta®, Ranger®, and CONEKT®are the registered
U.S. trademarks of Farpointe Data, Inc. All other trademarks are the property
of their respective owners.
12.0 Beeper Switch
As shipped, the Receiver’s Beeper Switch is set in the ON position.
If the installation technician prefers to disable the beeper and
External LED Indicator, then the Beeper Switch should be set in
the OFF position.
13.0 10-Pin Terminal Block Reciever Cabling
Terminal Function Output Channel
AD0 Button One RS-485 Tx+ A
AD1 Button One RS-485 Tx- A
BD0 Button Two Data 0 B
BD1 Button Two Data 1 B
CD0 Button Three Data 0 C
CD1 Button Three Data 1 C
DD0 Button Four Data 0 D
DD1 Button Four Data 1 D
GND Power OVDC (Ground) –
+VDC Power 12VDC Nominal –
NOTES: Apply positive voltage only to the +VDC Pin on the Terminal
Block. Output Channel A can have OSDP capability added, but must
be specified at time of order.
14.0 Connection
Connection must be done in accordance with NFPA 70. Do not
connect to a receptacle controlled by a switch. Connect to a power
limited DC voltage source.
15.0 Troubleshooting
Possible Cause Corrective Action
No data received/Transmitter
not enrolled
Transmitter must be clicked twice
to be learned by the Receiver upon
initial Receiver power up
OSDP misconfiguration,
not configured for OSDP,
secure channel mismatch
Confirm panel is configured for
OSDP. Confirm panel and reader are
both configured for Secure Channel
(or both unencrypted.) Confirm PD
address and speed.
Incorrect cabling Verify gauge, connections and
cabling length
Not enough power 12 VDC recommended
Incorrect card used Verify if card technology
is supported
Reader/access panel not
properly grounded
Earth ground needed—verify shield
and reader ground are tied at access
panel and connect to ground at
one point
Supply generating
interference
Linear power supply recommended,
verify switching power supply
before use
Operating Temperature: –40° F to 149° F (–40° C to +65° C)
Operating Humidity: 5% to 95% relative humidity non-condensing
IP Rating: IP67
Many Farpointe Data Readers carry the following certifications:
FCC Compliance Statement: This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by Farpointe Data could
void the user's authority to operate the equipment.
Product can be used without license conditions or restrictions in all European Union
countries, including Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Spain,
Sweden, United Kingdom, as well as other non-EU countries, including Iceland,
Norway, and Switzerland.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause unde-sired operation of the device.
Cet appareil est conforme à Industrie Canada exempts de licence standard RSS (s).
Le fonctionnement est soumis aux deux conditions suivantes : (1) ce dispositif ne
peut pas provoquer d’interférences et (2) ce dispositif doit accepter toute
interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement du dispositif.
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
QUICK START GUIDE
WRR-44-OSDP RANGER®LONG-RANGE
433-MHz RECEIVER WITH OSDP SUPPORT
www.farpointedata.com P/N: 01672-002 ∙ Rev. 1
Farpointe Data, Inc.
2195 Zanker Road
San Jose, CA 95131 USA
Office: [phone]
Fax: [phone]
[email protected]
Farpointe Data reserves the right to
change specifications without notice.
Apr-16-2021
