FarragTech CARD G User manual

OPERATING MANUAL
FIT 01.09
Version 6.15 ENGLISH
April 2010
FarragTech GmbH
Dammstrasse 61
A-6922 Wolfurt
+43.5574.83800
+43.5574.83800 11
[e-mail]
www.farragtech.com

CONTENT
CARD G / FIT 1 V 6.15 E / April 2010
1. CONTENT
1.CONTENT _____________________________________________________________1
2.GENERAL INFORMATION _____________________________________________3
2.1 THE IMPORTANCE OF THIS MANUAL _____________________________________________ 3
2.2APPLICATION FIELD __________________________________________________________ 3
2.3LIABILITY AND WARRANTY_____________________________________________________ 3
2.4MISUSE ____________________________________________________________________ 4
2.5COPYRIGHT _________________________________________________________________ 4
2.6MANUFACTURER_____________________________________________________________ 4
2.7APPLIED SAFETY SIGNS _______________________________________________________ 5
3.GENERAL SAFETY INFORMATION ____________________________________6
4.TRANSPORTATION AND STORAGE___________________________________7
5.NAME PLATE _________________________________________________________8
6.HOW IT WORKS_______________________________________________________9
7.TECHNICAL DATA __________________________________________________ 11
8.SET UP AND INSTALLATION _______________________________________ 13
8.1COMPRESSED AIR HANDLING AND SUPPLY ______________________________________13
9.FIRST START-UP____________________________________________________ 15
9.1COMPRESSED AIR AND ELECTRICAL CONNECTIONS_______________________________15
9.2EXHAUST AIR FILTER ________________________________________________________16
9.3LOADING AND UNLOADING ___________________________________________________16
9.4EXTERNAL SLEEP-SIGNAL ____________________________________________________17
9.5INSTALLATION OF EXTERNAL ALARM DEVICES ___________________________________17
9.6DATA COMMUNICATION _____________________________________________________18
9.7FIRST START UP____________________________________________________________18
9.8ADDITIONAL CHECK POINTS AT FIRST START UP __________________________________19
10.SWITCHING OFF ____________________________________________________ 22
11.OPERATION BASICS ________________________________________________ 23
12.MENU STRUCTURE _________________________________________________ 24
12.1EASY MODE________________________________________________________________25
12.2EXTENDED MODE ___________________________________________________________27
12.3SYSTEM PARAMETERS _______________________________________________________30

CONTENT
CARD G / FIT 2 V 6.15 E / April 2010
13.DATA INPUT ________________________________________________________ 32
14.NAVIGATION ________________________________________________________ 35
15.START SCREEN AND LANGUAGE SELECTION ______________________ 37
16.EASY MODE _________________________________________________________ 39
17.EXTENDED MODE ___________________________________________________ 40
17.1MAIN SCREEN AND OPERATION _______________________________________________ 40
17.2ENERGY AND DATA SCREENS _________________________________________________ 45
17.2.1 ENERGY SCREEN ________________________________________________________________________________ 45
17.2.2INPUT STATUS SCREEN __________________________________________________________________________ 46
17.2.3OUTPUT STATUS SCREEN _______________________________________________________________________ 47
17.3PROCESS DATA SCREEN _____________________________________________________ 48
17.4DRYING PARAMETERS _______________________________________________________ 50
17.5CONVEYING PARAMETERS____________________________________________________ 53
17.6RECIPES __________________________________________________________________ 55
17.6.1STANDARD RECIPES _____________________________________________________________________________ 55
17.6.2CUSTOMER RECIPES _____________________________________________________________________________ 57
17.7WEEKLY TIMER___________________________________________________________ 58
17.7.1WEEKLY TIMER GENERAL ________________________________________________________________________ 58
17.7.2WEEKLY TIMER LOADING ________________________________________________________________________ 61
17.7.3DATE AND TIME _________________________________________________________________________________ 62
17.8FAULTS SCREEN____________________________________________________________ 63
17.9STATUS REPORT ___________________________________________________________ 65
17.10SYSTEM PARAMETERS _______________________________________________________ 66
17.10.1DATA TRANSFER ________________________________________________________________________________ 68
17.10.2LAN SETTINGS __________________________________________________________________________________ 71
17.10.3UNIT SELECTION_________________________________________________________________________________ 72
18.FAULTS AND REMEDY ______________________________________________ 75
18.1FAULTS WITH DISPLAY TEXT __________________________________________________ 75
18.2FAULTS WITHOUT DISPLAY TEXT ______________________________________________ 82
19.MAINTENANCE______________________________________________________ 83
20.SPARE PARTS LIST _________________________________________________ 84

GENERAL INFORMATION
CARD G / FIT 3 V 6.15 E / April 2010
2. GENERAL INFORMATION
2.1 THE IMPORTANCE OF THIS MANUAL
This manual contains all the necessary
information for installation, operation, trouble shooting and maintenance of CARD G FIT series. It
is, therefore, very important that the user reads this manual before installing any CARD G FIT unit
and before setting the dryer in operation.
2.2 APPLICATION FIELD
The CARD G FIT series are
compressed air dryers designed only to dry hygroscopic plastic resins as described in this
manual. It is not permitted to use this dryer series in other fields, to dry other materials or to
operate this dryer series in a different way other than described in this manual without a written
agreement from .
and its sales representatives are not responsible for any damage or injury resulting
from installation, operation or maintenance works not performed according to the instructions in
this manual and any additional written instructions for special applications from .
2.3 LIABILITY AND WARRANTY
The warranty provided with the
CARD G FIT series is based on the TERMS AND CONDITIONS OF SALES of and/or
any additional written agreement between the owner/operator and or its
representative. The warranty is void if the CARD G FIT is not installed, operated or maintained
according to the instructions in this manual. No parts or components of the CARD G FIT series
are to be changed or replaced without a written instruction of or its representative.
is not responsible for any damage or injury resulting from altering, replacing or
changing any part or component of the CARD G FIT without written instructions from
. The user is requested not to allow anyone but qualified personnel to install, start up
or operate the CARD G FIT and only as instructed in this manual. Wear and tear parts and
components are not included in the standard warranty provided with the CARD G FIT series. In
case of discrepancies in the text of this manual, do not install, start up, operate or perform any
maintenance works on the CARD G FIT series without contacting or its
representative to clarify the correct text.

GENERAL INFORMATION
CARD G / FIT 4 V 6.15 E / April 2010
is not liable for any damage or injury resulting from the misuse of CARD G FIT,
installation, start up, operation or maintenance not complying with the instructions in this
manual.
2.4 MISUSE
Installing, starting up, operating, repairing or performing maintenance on CARD G FIT without
reading and complying with the instructions in this manual or any written instructions from
regarding the use of CARD G FIT series is considered misuse. Altering, replacing or
changing any part or component of the CARD G FIT without written instruction from
is considered misuse. Using the CARD G FIT for other than its intended purpose is considered
misuse. is not responsible for any damages or injuries resulting from misuse.
2.5 COPYRIGHT
All copyrights of this manual are reserved for . This copy of the manual is provided
for the owner/operator of the CARD G FIT series and their personnel. The information included in
this manual and any part thereof must not be copied, distributed or made available to a third
party without the written permission of . Doing so may result in legal action against
the owner/operator.
2.6 MANUFACTURER
The name and the contact information of the manufacturer are printed on the front page of this
manual. The version and the release date of this manual are also printed on the front page of this
manual. The user may use the contact information of the manufacturer or the representative to
discuss any matters related to the CARD G FIT series of this manual.

GENERAL INFORMATION
CARD G / FIT 5 V 6.15 E / April 2010
2.7 APPLIED SAFETY SIGNS
The following safety signs are often
applied in this manual and their meaning is described below:
This denotes danger for man and equipment.
Damage to equipment may occur if not followed.
This is useful information for operation of equipment.

GENERAL SAFETY INFORMATION
CARD G / FIT 6 V 6.15 E / April 2010
3. GENERAL SAFETY INFORMATION
Only qualified and trained personnel are allowed to deal with equipment.
The owner/operator is responsible for following the instructions in this manual and fulfilling
the official safety requirements.
This manual does not contain the general safety instructions. The user is responsible for
obtaining and following the local safety information as required or requested by the local
authorities and insurance companies.
The CARD G FIT is to be installed and operated according to the data on the name plate of
the unit and according to the instructions in this manual. Any deviation requires the written
permission of .
This manual describes the standard CARD G FIT series. It does not contain constructional
details or modifications made by to meet the user’s expectations.
The user is to contact for any missing information or for any required
information.
Successful operation of CARD G FIT is achieved, when the unit is installed according to the
valid mechanical and electrical standards.
Wear and tear may lead to unsafe operation or unsatisfactory results. The owner/operator
is responsible for inspecting the equipment periodically and insuring that every component
is in good condition and safe to use. Defective parts must be replaced by new and approved
parts. Only qualified and trained personnel are allowed to remove or replace any
components.
Only qualified electricians are permitted to deal with wiring and wired components of the
equipment.
The electrical switch cabinet is to be kept closed at all times. Only qualified personnel are
permitted to open the cabinet.
The user is to use the proper cleaning material especially when using liquids and
detergents. No liquids are allowed on or near any electrical component of the equipment.
Damages and/or injuries may occur if the user does not follow the instructions in this
manual. is not responsible for any damages or injuries resulting from
installations or operations which are not in accordance with the instructions.
The user is responsible for forwarding this manual and any additional instructions from
to the owner/operator of the CARD G FIT in case of selling, renting or giving the
unit to a third party.

TRANSPORTATION AND STORAGE
CARD G / FIT 7 V 6.15 E / April 2010
4. TRANSPORTATION AND STORAGE
All CARD G FIT units are completely assembled, tested and packed
in a cardboard box by the manufacturer before they are delivered to the user.
The box is not suitable for transportation by fork lifts, pallet jaks and cranes.
To transport the unit using any of the above, the box must first be placed on a
suitable pallet and may then be moved.
DO NOT SHAKE OR DROP THE UNIT EVEN WHEN PACKED IN THE BOX. The
CARD G FIT includes sensitive electronic components which might get
damaged.
The standard delivery terms of the CARD G FIT series are ex-works unless
otherwise agreed upon in writing. The box including the CARD G FIT and any
accessories delivered with the main equipment are to be inspected upon arrival
at the owner’s/operator’s destination and prior to signing the delivery
documents provided by the shipping company. Any signs of damage must be
documented on the shipping documents before signing. The equipment must be
inspected and any signs of damage must be reported to the shipping company
and the insurance company within 72 hours from the delivery time. Failing to do
so may void all claims for shipping damages.
It is also necessary to inform and its representative about any
transportation damage to destination or when moving the equipment on the
owner’s/operator’s properties.
The CARD G FIT contains electronic and electrical components and therefore it
must be protected from rain and snow even when stored in the shipping box.
The unit must be stored in a good enviroment and ambient air temperature
between -20°C [-4°F] and +50°C [122°F]. Dew and moisture condensation must
be avoided in the storage area.
The CARD G FIT and accessories must be in operation environments (+20°C
[68°F] to +50°C [122°F] and relative humidity up to 80% without condensation)
for a period of 3 hours before it can be set in operation.

NAME PLATE
CARD G / FIT 8 V 6.15 E / April 2010
5. NAME PLATE
The name plate of the CARD G FIT is mounted on the back side of the unit and it contains
important operation data. The example below shows the name plate of a CARD 3G FIT.
The name plate contains the following information:
Unit type
Serial number
Year of manufacture
Operating voltage and frequency
Maximum electrical power consumption
Manufacturer and manufacturer’s address
It is very important to read the electrical power data on the name plate and
insure it matches the connected power supply before operating the
CARD G FIT.
The owner/operator is to contact before operating the unit in case
of unreadable data on the name plate to obtain this important data.
will also send a replacement name plate to the owner/operator.
THE OWNER/OPERATOR IS RESPONSIBLE FOR MAINTAINING A READABLE
NAME PLATE ON THE UNIT AT ALL TIMES.

HOW IT WORKS
CARD G / FIT 9 V 6.15 E / April 2010
6. HOW IT WORKS

HOW IT WORKS
CARD G / FIT 10 V 6.15 E / April 2010
The compact midget dryers of the CARD G (Compressed Air Resin Drier Giant) series consist of
an insulated stainless steel drying hopper surrounded by a stainless steel housing. The
CARD G FIT unit is able to control a Venturi- or Vacuum loader for loading.
The main electrical power is to be connected to the CARD G FIT unit through the included power
cord which is to be plugged in to the customers own electrical supply (1N~230V/50Hz or
2~220V/60Hz). Compressed air is to be supplied through the hose connector (1.1) on the back of
the unit.
The CARD G FIT is switched on through the main switch on the back. The display of the FIT-
controller (5.2) will illuminate when power is available.
As soon as the drying process is started, the solenoid valve (1.2) releases dry compressed air
(with a maximum pressure dew point of 5°C [41°F] at 7bars [102PSI] and maximum oil content of
3mg/m³ [3ppm]) to flow into the dryer. The pressure of the air is reduced by the pressure
regulator (1.4). The air passes at almost atmospheric pressure through the process heater (1.7)
and is warmed up to the required drying temperature. The temperature sensor (1.8) reports the
actual process air temperature to the FIT-Controller to maintain the desired temperature at high
accuracy. The hot dry air gets into the hopper through the air distributer (1.10), dehumidifies the
resin on its way to the top and exhausts through the air outlet filter (6.5) to the ambient.
A preset pressure switch (1.3) will send an alarm if compressed air is missed or the air pressure
is too low. A temperature limiter (1.9) alarms in case of excess temperature in the process
heater. In both cases, the FIT shuts down the process heater to protect of thermal overload.
The FIT-controller is also capable to control an optional material loader to load resin into the
dryer. A one- or two-components venturi type (4.7) or self contained vacuum loader can be used.
Electrical power for a vacuum loading unit must be supplied from an external source. Standard
provisions to connect control signals for a proximity switch or flap (3.2) as well as for a solenoid
valve or motor blower (3.3) and a compressed air coupling (1.13) are provided on the back of the
dryer housing.
The CARD G FIT series is equipped with a strobe light (5.3) and an optional dry contact (4.6) for
external alarm devices to alarm the operator in case of a malfunction.
A sight glass (6.7) in the upper part of the unit indicates the resin level in the drying hopper.
CARD G FIT units are equipped with a SUB-D-interface (3.10) to connect to the production
machine, thus allowing the production machine to control the dryer and to collect data and fault
messages of the drying process.
The CARD G FIT can be integrated to a local or public network through an optional Ethernet-jack
(4.6) on the back of the unit. This offers the possibility to monitor and record process data and to
control the drying process over the World Wide Web.

TECHNICAL DATA
CARD G / FIT 11 V 6.15 E / April 2010
7. TECHNICAL DATA
CARD 1G FIT
HOPPER VOLUME [l / US gal] 1 / 0.3
MAX.POWER CONSUMPTION [W]
200
OPERATING VOLTAGE [V]
1N~230 / 2~220V
OPERATING FREQUENCY [Hz]
50 / 60
EXTERNAL FUSE [A]
10
ELECTRICAL CONNECTION CROSS SECTION [mm² / AWG] 1.0 / 18
COMPRESSED AIR CONNECTION [mm / inch] 8 / 0.315
COMPRESSED AIR CONSUMPTION [Nm³/h / cfm] 1.0 / 0.6 1
COMPRESSED AIR PRESSURE [bar / PSI] 6 ... 10 / 87 ... 145
MAX.DEWPOINT OF COMPRESSED AIR AT 7BAR (102PSI) [°C / °F] 5 / 41
MAX.RESIDUAL OIL CONTENT [mg/m³ / ppm] 3 / 3
ADMISSIBLE AMBIENT TEMPERATURE [°C / °F] +20 ... +70 / +68 ... +158
ADMISSIBLE AMBIENT HUMIDITY [%] 80 (no condensation!)
CARD 1G FIT E-Box
HEIGHT H[mm / inch] 310 / 12.2 280 / 11.0
WIDTH W [mm / inch] 200 / 7.9 152 / 6.0
DEPTH D [mm / inch] 138 / 5.4 133 / 5.2
WEIGHT [kg / lb] 4 / 8.8 4 / 8.8
1Constant compressed air consumption

TECHNICAL DATA
CARD G / FIT 12 V 6.15 E / April 2010
CARD 3G FIT CARD 6G FIT
HOPPER VOLUME [l / US gal]
3 / 0.8 6 / 1.6
MAX.POWER CONSUMPTION [W]
200W
OPERATING VOLTAGE [V]
1N~230 / 2~220
OPERATING FREQUENCY [Hz]
50 / 60
EXTERNAL FUSE [A]
10
CONNECTION CROSS SECTION [mm² / AWG] 1.0 / 18
COMPRESSED AIR CONNECTION [mm / inch] 8 / 0.315
COMPRESSED AIR CONSUMPTION [Nm³/h / cfm] 2.0 / 1.2 13,0 / 1.8 1
COMPRESSED AIR PRESSURE [bar / PSI] 6 ... 10 / 87 ... 145
MAX.DEWPOINT OF COMPRESSED AIR AT 7BAR (102PSI) [°C / °F] 5 / 41
MAX.RESIDUAL OIL CONTENT [mg/m³ / ppm] 3 / 3
ADMISSIBLE AMBIENT TEMPERATURE [°C / °F] +20 ... +70 / +68 ... +158
ADMISSIBLE AMBIENT HUMIDITY [%] 80 (no condensation!)
HEIGHT H[mm / inch] 410 / 16.1 498 / 19.6
WIDTH W [mm / inch] 285 / 11.2 310 / 12.2
DEPTH D [mm / inch] 205 / 8.1 230 / 9.1
WEIGHT [kg / lb] 9 / 19.8 11 / 24.3
1Constant compressed air consumption

SET UP AND INSTALLATION
CARD G / FIT 13 V 6.15 E / April 2010
8. SET UP AND INSTALLATION
CARD G FIT units are designed for direct installation on
the extruder of the production machine.
Make sure that the CARD G FIT unit is absolutly vertical to insure proper
material flow through the hopper.
Avoid direct heat radiation and hot air being blown towards the switch
cabinet of the CARD G FIT unit.
To install the CARD G FIT on an extruder, a flange needs to be mounted on the base plate of the
unit. This flange can then be slid on the steel base plate on the extruder. Locking the release
handle fastens the CARD G FIT on the extruder’s base plate. Opening the shut-off slide releases
the dried material to drop into the extruder.
8.1 COMPRESSED AIR HANDLING AND SUPPLY
Compressed air quality has a great influence on the drying
results. Proper industrial compressed air handling and installation is therefore requested to
guarantee proper function and good drying results. No special air quality is required. Standard
industrial compressed air quality is required:
Pressure dew point of 5°C [41°F] at 7bar [102PSI]
Residual oil content of 3mg/m³ [3ppm]

SET UP AND INSTALLATION
CARD G / FIT 14 V 6.15 E / April 2010
Compressed air must be dried with a refrigeration dryer to the lowest possible dew point and
filtered at the highest possible pressure available right after the air compressor or the receiver
tank in the plant room.
The compressed air pressure at the compressed air inlet on the CARD G FIT
must not fall below 6bar [87PSI] at any time.
All compressed air supply lines to the CARD G FIT must be dimensioned to the
same size (or bigger) of the provided compressed air hose delivered with the
CARD G FIT unit to guarantee proper operation.

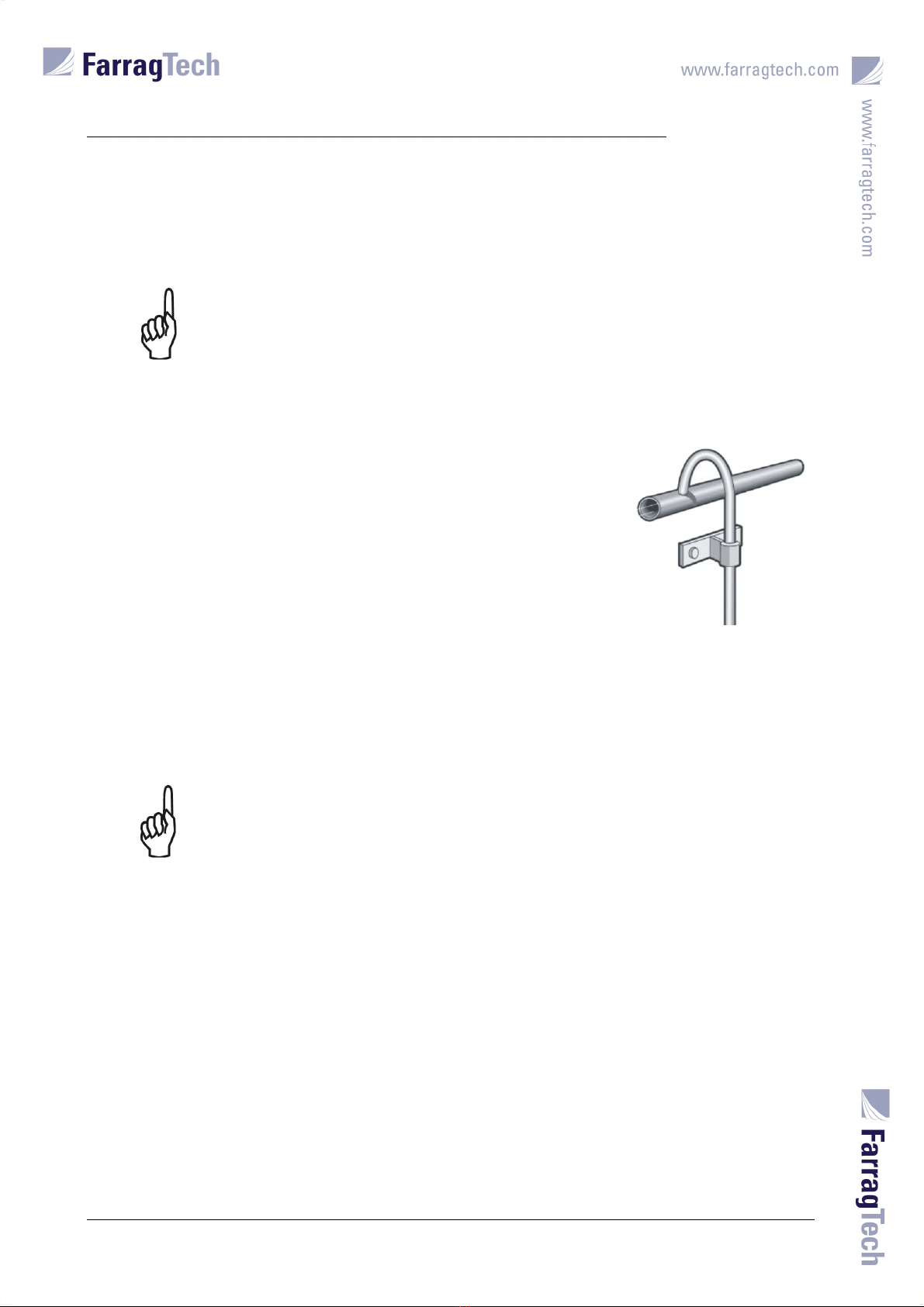

The main compressed air pipe is to be installed vertically and
upwards from the top of the receiver tank to the highest possible
level in the plant. The horizontal lines should be installed with a slight
slope downwards from the top of the main vertical pipe at 1-2° with a
condensate receiver at the lowest point of the horizontal line.
Branches should be attached on top of the horizontal line. The
compressed air temperature should never be lower at the end of the
line than it is at the receiver tank in the plant room or in between to
avoid condensation inside the compressed air pipe work.
It is strongly recommended to install a refrigeration dryer on the branch from the main
compressed air main pipe work to the CARD G FIT, if condensation is likely in the main lines or in
the branch to the dryer. The capacity of the dryer should match or exceed the maximum air flow
requirement of all units supplied from the line.
It is always recommended to install a liquid separator and an air filter on the
branch to the CARD G FIT.

FIRST START-UP
CARD G / FIT 15 V 6.15 E / April 2010
9. FIRST START-UP
Hint:
Following numbers refer to the operating principle in chapter 6 on page 9.
9.1 COMPRESSED AIR AND ELECTRICAL CONNECTIONS
The power supply 1N~230V/50Hz or 2~220V/60Hz to the CARD G FIT is
to establish with the power cable delivered with the unit. The tables in chapter 7 / page 11 are
helpful to size the external fuses for the main power supply.
ATTENTION!
A grounding wire (PE) is included in the power cable. A locally tested
grounding system is crucial for safe operation of the CARD G FIT.
Compressed air is to be supplied by the customer and delivered to the hose connector (1.1) on
the CARD G FIT through the included compressed air hose.
The compressed air must be dehumidified and filtered. It must not
exceed a maximum pressure dew point of 5°C [41°C] at 7bar [102PSI]
and a residual oil content of 3mg/m³ [3ppm] to ensure a safe operation
and proper drying results!
The inner diameter of all compressed air lines leading to the CARD G
FIT must not be smaller than the inner diameter of the delivered
compressed air hose.
At all times, the air pressure at the compressed air inlet on the
CARD G FIT must be within minimum 6bar [87psi] and maximum 10bar
[145PSI].
Malfunctions during operation of venturi type loaders may occur if upper points are ignored. For
safe operation, it is important to ensure sufficient compressed air supply with minimum 6bar
[87PSI] according to the values for the compressed air consumption in chapter 7 on page 11 at
any time.
An external dry contact may be connected to pin 2 and 3 at the 4-poles plug (3.2) on the plug
panel to lower the drying temperature (SLEEP-Mode). The voltage to the external contact is
supplied by the CARD G FIT (24V DC – see wiring diagram in the annex).

FIRST START-UP
CARD G / FIT 16 V 6.15 E / April 2010
A USB memory stick may be attached to the FIT-controller to record operating data. The operator
is allowed to select different kinds of process data which are to be saved.
In case of power failures, data on the USB storage device might get
corrupted. It is highly recommended to save the data regularly to an external
storage medium.
9.2 EXHAUST AIR FILTER
Due to transportation, the exhaust air filter (6.5) is mounted on the inside of the lid. At the first
start up, it must be changed to the outside of the lid.
9.3 LOADING AND UNLOADING
The FIT-controller of the CARD G FIT is programmed to control one loader to automatically load
material into the drying hopper. A venturi type loader (one- or two-components) may be bolted to
the lid of the dryer and connected to the provisions provided on the back of the CARD G FIT. The
electrical power (24V DC) for the solenoid valve of a venturi loader can be plugged to the
connection (3.3). The proximity switch of the venturi loader can be plugged to the connection
(3.2). Compressed air to operate the venturi loader may be taken from the outlet (1.13).

FIRST START-UP
CARD G / FIT 17 V 6.15 E / April 2010
To use a vacuum loader to load the dryer is also possible. The flapper gate signal can be plugged
to the connection (3.2). The electrical power for the solenoid valve to clean the loader (24V DC)
and the electrical power for the motor contactor (24V DC) may be plugged to the connection (3.3).
The compressed air required for cleaning the filter of the vacuum loader may be supplied through
the outlet (1.13). The electrical power needed to operate the vacuum loader must be supplied
from an external source. An air outlet filter must necessarily be mounted on the vacuum loader.
ATTENTION!
The maximum allowable weight of the loading device must not exceed
9kg [20lb] (Danger of Tilting!).
The dried material inside the CARD G FIT is unloaded by gravity feed. Moving the drier on the
steel base plate of the extruder releases or stops the material flow (additionally to the slide).
Locking the release handle fastens the CARD G FIT in the appropriate position.
9.4 EXTERNAL SLEEP-SIGNAL
The SLEEP MODE is a very important
function programmed in the FIT-controller. The set drying temperature will be lowered to avoid
material degradation if material is not withdrawn from the drying hopper for a certain time.
Unless a loading unit is connected to the CARD G FIT, a dry contact (24V DC) can be provided
through pin 2 and 3 on the plug for the proximity switch or flap (3.2) on the back to allow an
external signal activating and deactivating the SLEEP MODE (see chapter 17.4 on page 50 and the
wiring diagram at the end of this manual for further information).
9.5 INSTALLATION OF EXTERNAL ALARM DEVICES
Standard CARD G FIT units are equipped with a strobe light to
alarm the operator in case of malfunction. They can also be equipped with an optional dry
contact (4.6) at the plug panel. If the unit is powered on, the drying process is switched on and
there has not been an alarm for an adjustable time period, the contact will supply high signal.
This is useful in case that the dryer is not installed close to or in sight of the operator.
Dry two-way contact
Max. operating voltage: 24V DC
Max. operating current: 5A / AC1

FIRST START-UP
CARD G / FIT 18 V 6.15 E / April 2010
9.6 DATA COMMUNICATION
The SUB-D plug (3.10) on the plug panel can be used for different kinds of communication with
external devices and with the production machine.
9.7 FIRST START UP
Only qualified personnel are permitted to deal with CARD G FIT units.
It is strongly recommended to read this manual before attempting to start up
the CARD G FIT unit.
It is strongly recommended to check proper set up and installation of the unit
and all components is completed before attempting to start up the CARD G FIT
unit.
It is important to double check that the electrical power supply matches the
data on the name plate of the unit and that the main compressed air supply to
the CARD G FIT unit matches the required specification.
Contact and/or its representative for any question regarding the
set up and the installation before start up.
The CARD G FIT unit may be started up by qualified personnel after insuring following points:
Make sure that the first set up and the installation are properly done.
Make sure that all mechanical accessories (flange, loading unit …) are mounted
properly and securely.
Make sure that the exhaust air filter is mounted on the outside of the lid of the unit
(or on the loading unit).
Make sure that all electrical connections to the loading device are established (if
controlled by the CARD G FIT).
Make sure that the compressed air connections to the loading device (if used) are
established.
Make sure that the power supply cord is attached to the unit and the electrical
power supply matches the data on the name plate.
Make sure that the main compressed air supply is connected and released.
