Introduction
Congratulations on your purchase of the RF-700WPS2 Rocketfish PC
power supply. This power supply has an efficiency rating of over 80%
and is a low-noise power supply with Green Model Power.

3RF-700WPS2
Safety information
The power supply meets safety UL EN60950 and FCC.
Do not open the cover on the power supply case. Dangerous
voltages are present inside the cover. Your warranty is void if the
cover is removed.
Features
• 700W peak 60S (550W continuous)
• Intel ATX12V 2.2 / EPS12V2.91
• Seven (7) output voltages
• Silent fan speed control
• Built in DC remote ON/OFF, PG/PF TTL signal
•NVIDIASLI™-readycertified
• Total protection: Over Voltage/Low Voltage/Short Circuit/Over
Load/Over Current Protection
•Cablemanagement
• Power efficiency 80% (minimum) at full load
Package contents
• RF-700W PS2 power supply with connector cables
• UL AC power cable
•4screws
•UserGuide

4
Installing the power supply
To install the power supply:

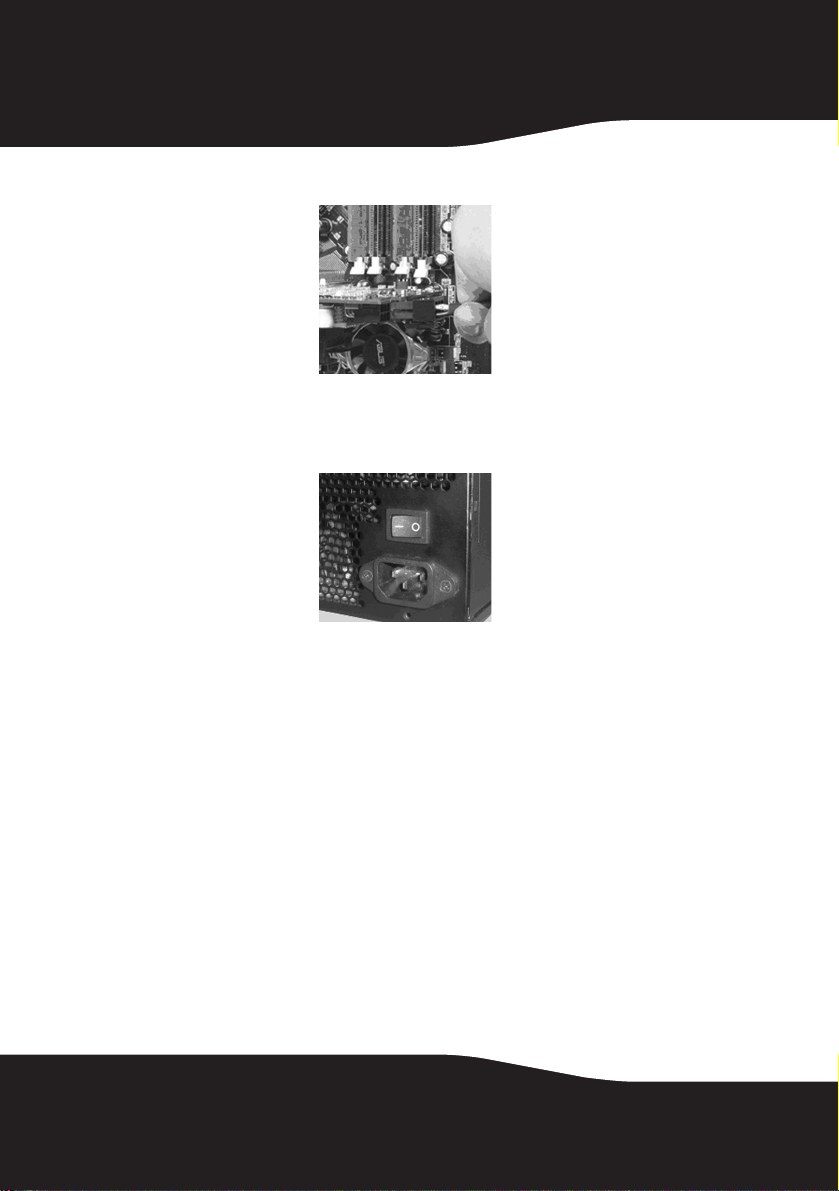

1Open your computer case.
2Position the power supply into your case, then secure it with the screws
provided.
3Connect the 20/24-pin main power connector to the 24-pin connector
on your motherboard.
4Connect the 4/8-pin +12V power connector to the 4/8-pin connector on
your motherboard.

5RF-700WPS2
5Connect all of the following that apply to your computer:
• The 4-pin peripheral device power connector to any peripheral
device.
• The floppy drive power connector to the floppy drive.
• The Serial ATA connector to any hard drives that have a Serial ATA
interface.

6
• The 6-pin +12V power connector(s) to the PCI-E graphic card(s).
6Close your computer case.
7Connect the power cord to the power supply.
8Switch the I/O switch to I.
9Turn on your computer.
Troubleshooting
If the power supply fails to function correctly, check the following:
• Make sure that the power cord is plugged into a powered electrical
outlet.
• Make sure that the power cord is plugged into the power supply.
• Make sure that the I/O switch is in the Iposition.
• Make sure that all power connectors are connected to the motherboard
and devices correctly.

7RF-700WPS2
Specifications
Input Voltage: 100V-240V
Active PFC: Power Factor: >0.9
Efficiency: 80%(min.) at full load (typical)
Input Current: 115Vac / 8.0A; 230Vac / 4.0A max.
Inrush Current: 110A max. When AC input 230Vac at 77°F (25°C) cold
start
Input Frequency: 47Hz~63 Hz.
Leakage Current: 3.5mA max.
Operating temperature range: 32°F to 122°F (0°C to 50°C)
Shipping/storage temperature: -4°F to 158°F (- 20°Cto 70°C)
Relative humidity: 5% to 95%
Harmonic: IEC-1000-3-2 CLASS D
MTBF 100Khrs minimum at 77°F (25°C)
AC input & DC output voltages
AC input: 100V /240Vac 47~63HZ
DC output:
DC Spec +12V1 +12V2 +12V3 +5V +3.3V -12V +5VSB
AMP 18.0A 18.0A 16.0A 28.0A 30.0A 0.8A 3.0A
Max Power 492W 140W 9.6W 15W

8

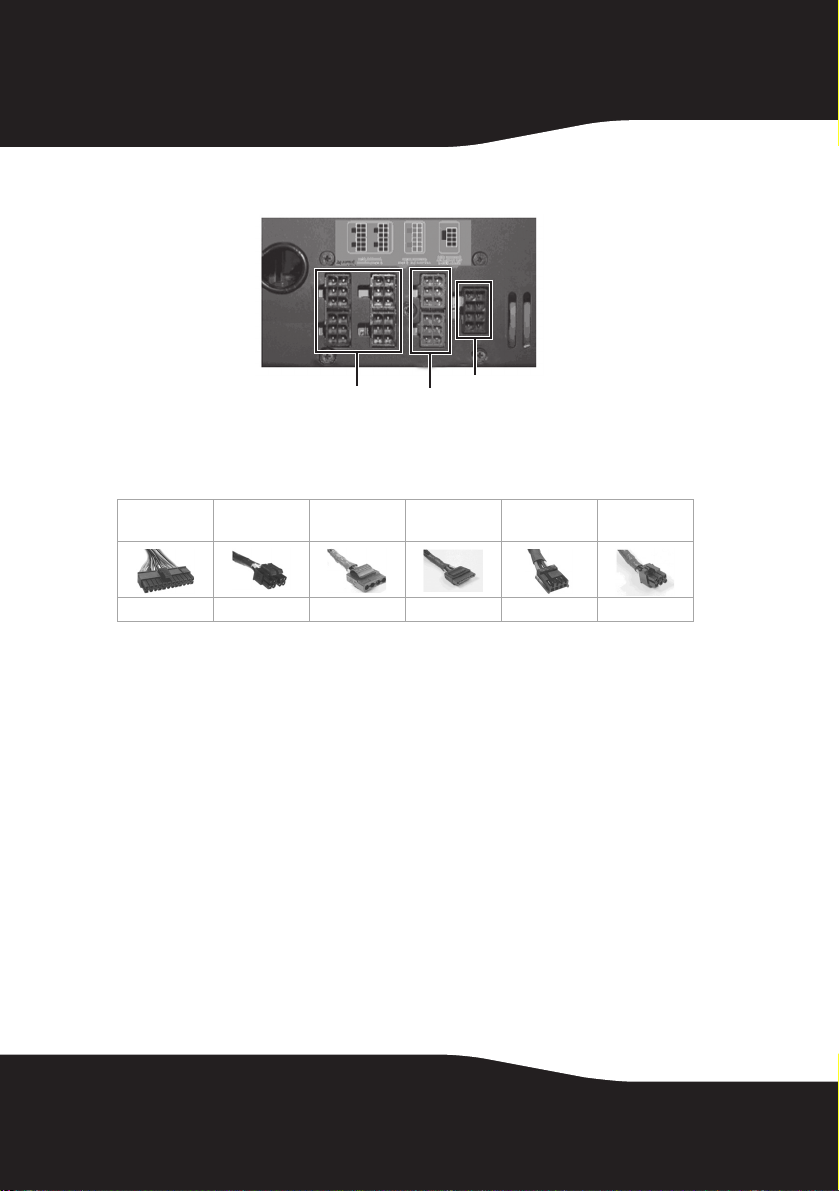

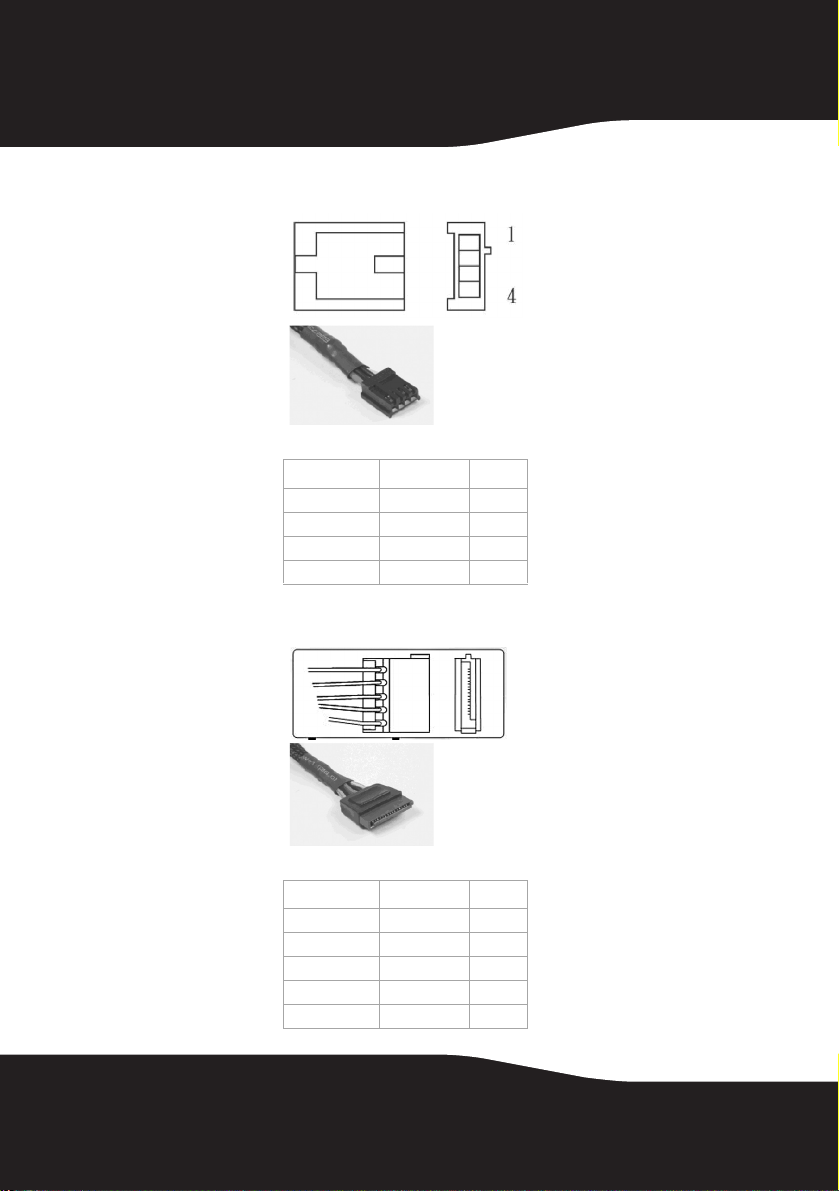

Cable management
Wire configuration
20+4PIN Main
Power
EPS12V
8(4+4)PIN
5.25” HDD Serial ATA 3.25” FDD PCI-E 6P
117612
For Serial ATA Connector For PCI-E
Connector
For CPU Connector

9RF-700WPS2

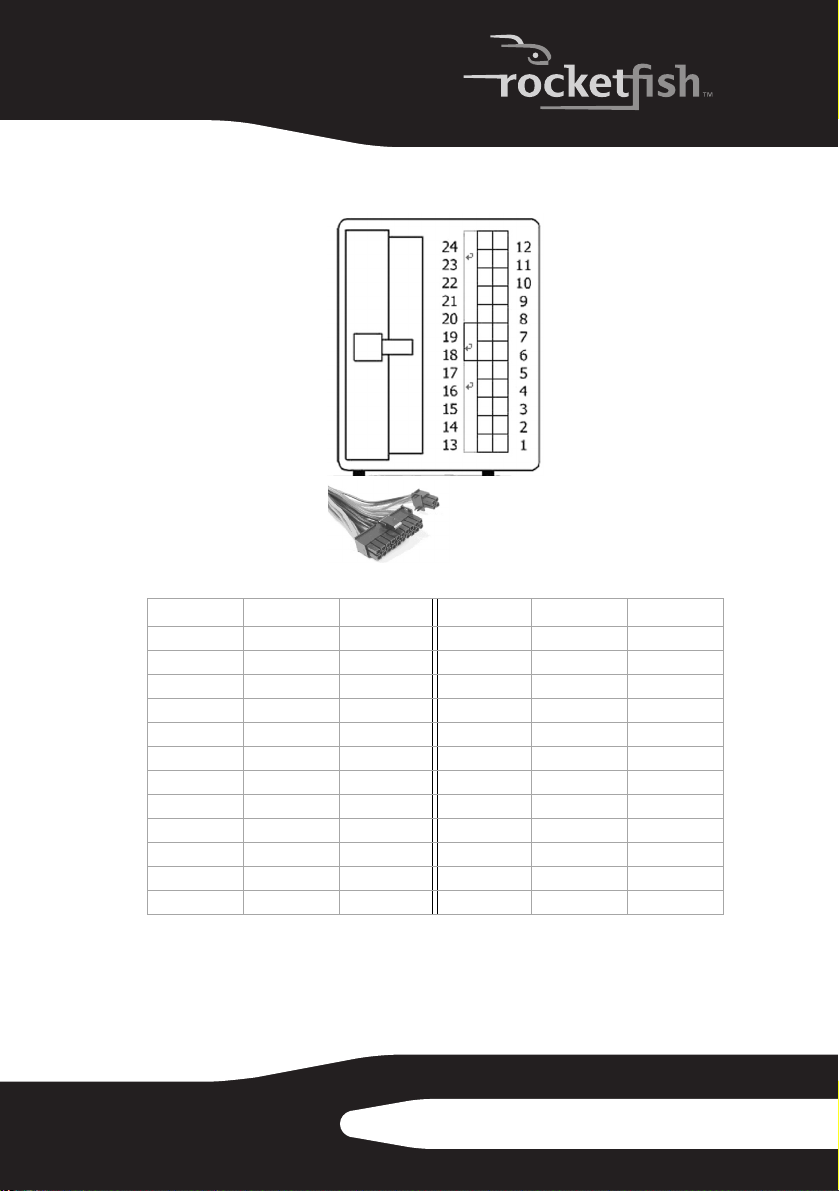

Main power connector
Signal Color Pin Pin Color Signal
+3.3 V Orange 1 13 Orange +3.3 V
+3.3 V Orange 2 14 Blue -12 V
COM Black 3 15 Black COM
+5 V Red 4 16 Green PS_ON#
COM Black 5 17 Black COM
+5 V Red 6 18 Black COM
COM Black 7 19 Black COM
PWR ON Gray 8 20 N/C N/C
+5 Vsb Purple 9 21 Red +5 V
+12 DC Yellow 10 22 Red +5 V
+12 DC Yellow 11 23 Red +5 V
+3.3 V Orange 12 24 Black COM

10

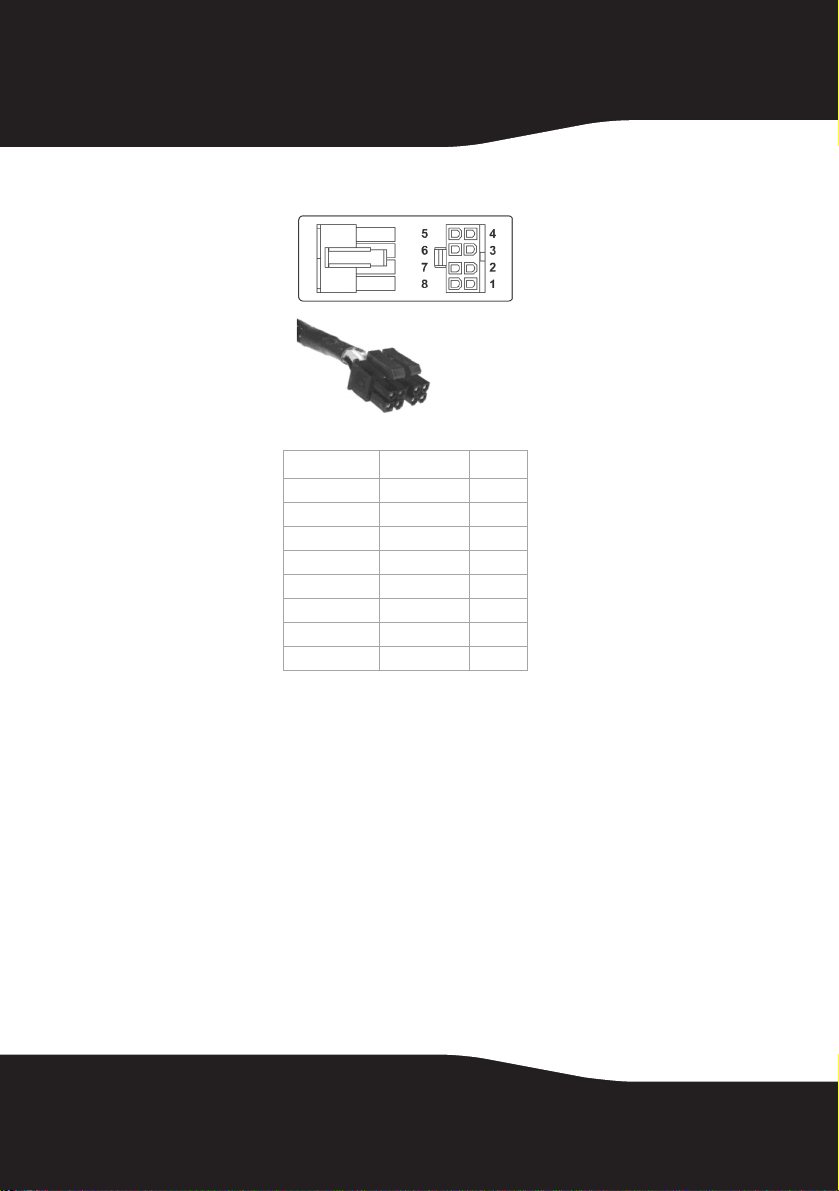

12V connector (8 pin (4+4) pin)
Color Signal Pin
Black COM 1
Black COM 2
Black COM 3
Black COM 4
Yellow/Black +12 VDC 5
Yellow/Black +12 VDC 6
Yellow +12 VDC 7
Yellow +12 VDC 8
