feather&black Cleo User manual

Cleo Ottoman Bed –Assembly Instructions
Product size:
Double: H150 x L209 x W152cm
King: H150 x L219 x W167cm
Superking: H150 x L219 x W197cm
If you require any advice during assembly, please call our customer service team on 01243 380600
Please retain these assembly instructions for future use
Produced in Romania for Feather & Black 1www.featherandblack.com

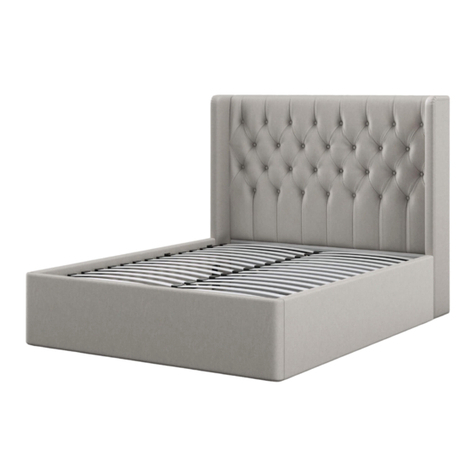

Cleo Ottoman Bed
IMPORTANT –READ CAREFULLY –RETAIN FOR FUTURE REFERENCE
•You must ensure that the mattress is on the bed frame before operating the lift mechanism-
Failure to do so could result in injury.
•Keep hands clear of the mechanism when opening or closing the ottoman.
•Beware of entrapment –Never reach in through the mechanism to access the storage area.
•Always ensure that the ottoman is FULLY opened before accessing the storage area.
•Do not exceed the maximum weight as specified in the table below:
Produced in Romania for Feather & Black 2www.featherandblack.com
Bed Bed Size Min Weight (kg) Max Weight (kg)
Cleo Ottoman
Bed
Double 30 70
King 30 70
SuperKing 30 70

Cleo Ottoman Bed
Thank you for purchasing this Cleo Ottoman Bed.
Please read these instructions fully prior to
assembly to familiarise yourself with the various
stages of construction. Carefully open all packs
supplied and check the contents against the parts
and fittings check list.
Do not destroy any of the packaging until you are
certain that you have all the necessary parts for
the assembly.
This item is heavy once assembled. Please try to
assemble the item as close as possible to the point
of use. Take care when moving the item to avoid
personal injury or damage to the product and
always lift rather than drag.
There are small components used in the
construction of this furniture as well as plastic
packaging, these should be kept away from young
children whilst assembling.
Product Safety
All assembly fastenings should always be tightened
properly, and care should be taken to ensure that
no fittings are loose.
Periodically check and ensure that all components
are in their proper position, free from damage, and
that all connectors are tight.
Please note depending on the lighting, positioning
and surroundings of your room, the shade of the
colour can sometimes appear slightly different.
Over a period of time the colour might lighten or
fade slightly due to light exposure.
Product Care
To clean, slightly moisten cloth with water and
wipe surfaces. A damp cloth holds dust and
prevents damage. repeat with a dry, soft, lint-free
cloth. Do not use abrasives or cleaning products
which may contain ammonia or solvents.
Produced in Romania for Feather & Black 3www.featherandblack.com
Before you start
Number of people required to assemble
Two people to assemble the product and
two people to lift in to position.
Time to assemble
Necessary tools
Missing parts or faulty products
If you are missing any fixtures or fittings
during assembly, or a part is unfortunately faulty
please call our customer service team on 01243
380600
1 Hour

Cleo Ottoman Bed
Produced in Romania for Feather & Black 4www.featherandblack.com
Components supplied (not actual size)
A: Headboard Qty: x1
B: Footboard Qty: x1
C: Side Panel (left & right) Qty: x2
D: Base Boards Qty: x2
E: Slat Frame (left & right) Qty: x2
F: Ottoman Arms (left & right) Qty: x2
G: Pistons Qty: x2
H: Support Bar Qty: x2
I: Mattress Stopper Qty: x2
J: Ottoman Lift Strap Qty: x1

Cleo Ottoman Bed
Produced in Romania for Feather & Black 5www.featherandblack.com
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180
Fixtures and fittings supplied (not actual size)
H1: M6 x 55mm
Qty: x4
H2: M6 Nut
Qty: x16
H3: Lock
Qty: x4
H4: M6 x 70mm
Qty: x4
H5: M6 x 40mm
Qty: x8
H6: Metal Washer
Qty: x16
H7: Allen Key
Qty: x1
H8: M6 x 30mm
Qty: x10
H9: Spanner
Qty: x1
Velvet Glove
Qty: x1 Lift strap Qty: x2

Cleo Ottoman Bed
Produced in Romania for Feather & Black 6www.featherandblack.com
1.
2.

Cleo Ottoman Bed
Produced in Romania for Feather & Black 7www.featherandblack.com
3.
4.

Cleo Ottoman Bed
Produced in Romania for Feather & Black 8www.featherandblack.com
5.
6.

Cleo Ottoman Bed
Produced in Romania for Feather & Black 9www.featherandblack.com
7.
8.

Cleo Ottoman Bed
Produced in Romania for Feather & Black 10 www.featherandblack.com
9.
H7: Allen Key
Qty: x1 H9: Spanner
Qty: x1
H2: M6 Nut
Qty: x16
H1: M6 x 55mm
Qty: x4

Cleo Ottoman Bed
Produced in Romania for Feather & Black 11 www.featherandblack.com
10.
11.
x2

Cleo Ottoman Bed
IMPORTANT –READ CAREFULLY –RETAIN FOR FUTURE REFERENCE
•Use caution when operating, always use the handle when lifting
•Note: This bed uses a pressurised mechanism.
•To be operated by adults only
•Please ensure that children and pets are kept away from the bed when operating the lift
mechanism.
•Keep children and pets away from the storage area.
•Do not overload the internal storage base.
•Do not stand inside the internal storage area of the bed
•Before removing the mattress secure the frame to ensure it does not open unexpectedly.
•Do not attempt to lie on the mattress when the ottoman is in the raised position.
•When lifting the ottoman remove all bedding except the fitted sheet.
•You must ensure that the mattress is on the bed frame before operating the lift mechanism-
Failure to do so could result in injury.
•Keep hands clear of the mechanism when opening or closing the ottoman.
•Beware of entrapment –Never reach in through the mechanism to access the storage area.
•Always ensure that the ottoman is FULLY opened before accessing the storage area.
•Do not exceed the maximum weight as specified in the table below:
Produced in Romania for Feather & Black 12 www.featherandblack.com
Bed Bed Size Min Weight (kg) Max Weight (kg)
Cleo Ottoman
Bed
Double 30 70
King 30 70
SuperKing 30 70
