Fedders Trion Owner's manual

E
N
G
L
I
S
H
1
High Efficiency Console
Electronic Air Purifier
Installation • Operation • Maintenance
CAUTION
Read installation, operation, and maintenance
instructions carefully for safe operation. Exercise
normal precautions when working with electricity.
Unplug unit from power source before servicing.
To reduce the risk of electric shock, 120V/60Hz models
have a polarized plug (one blade is wider than the other).
This plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician to install
the proper outlet. Do not alter the plug in any way.
Introduction

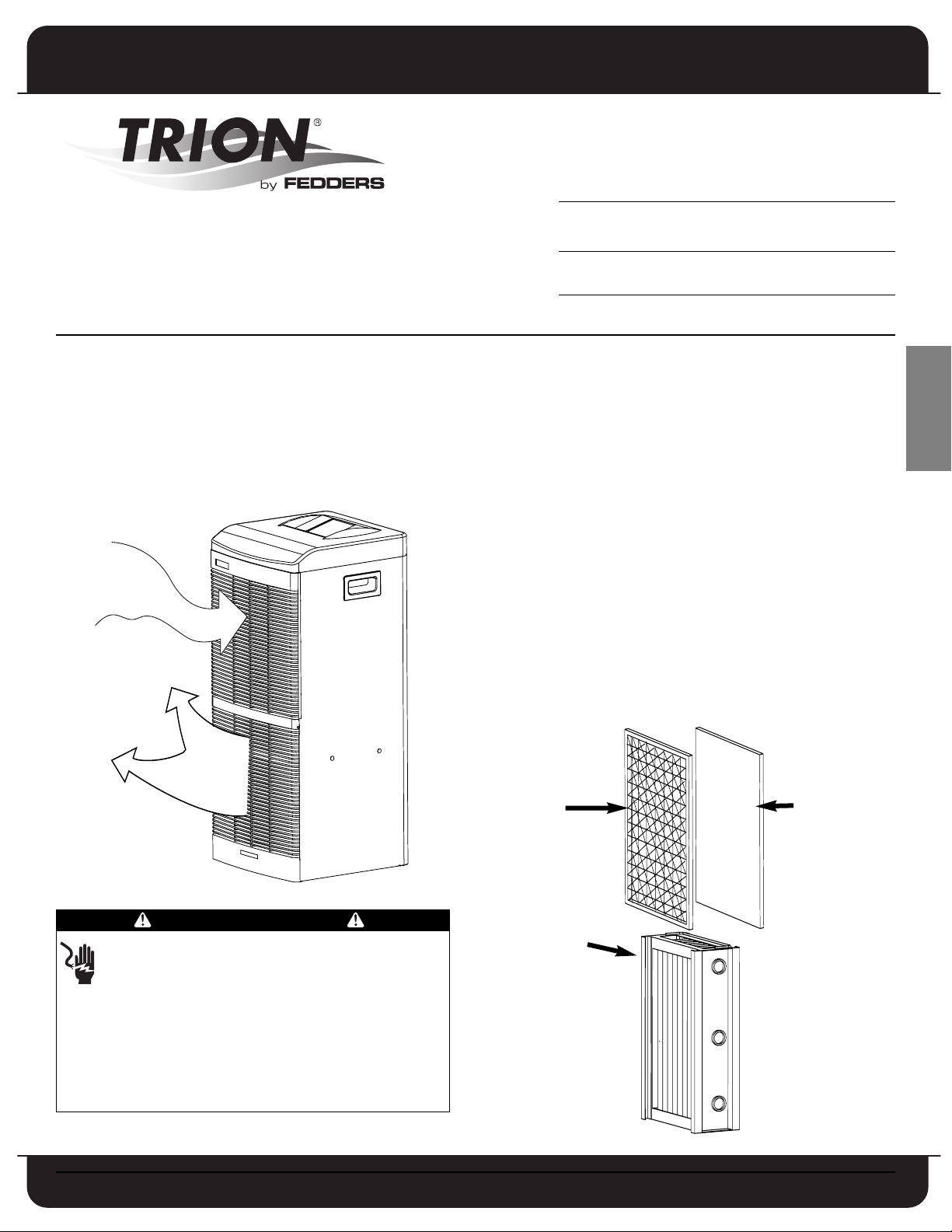

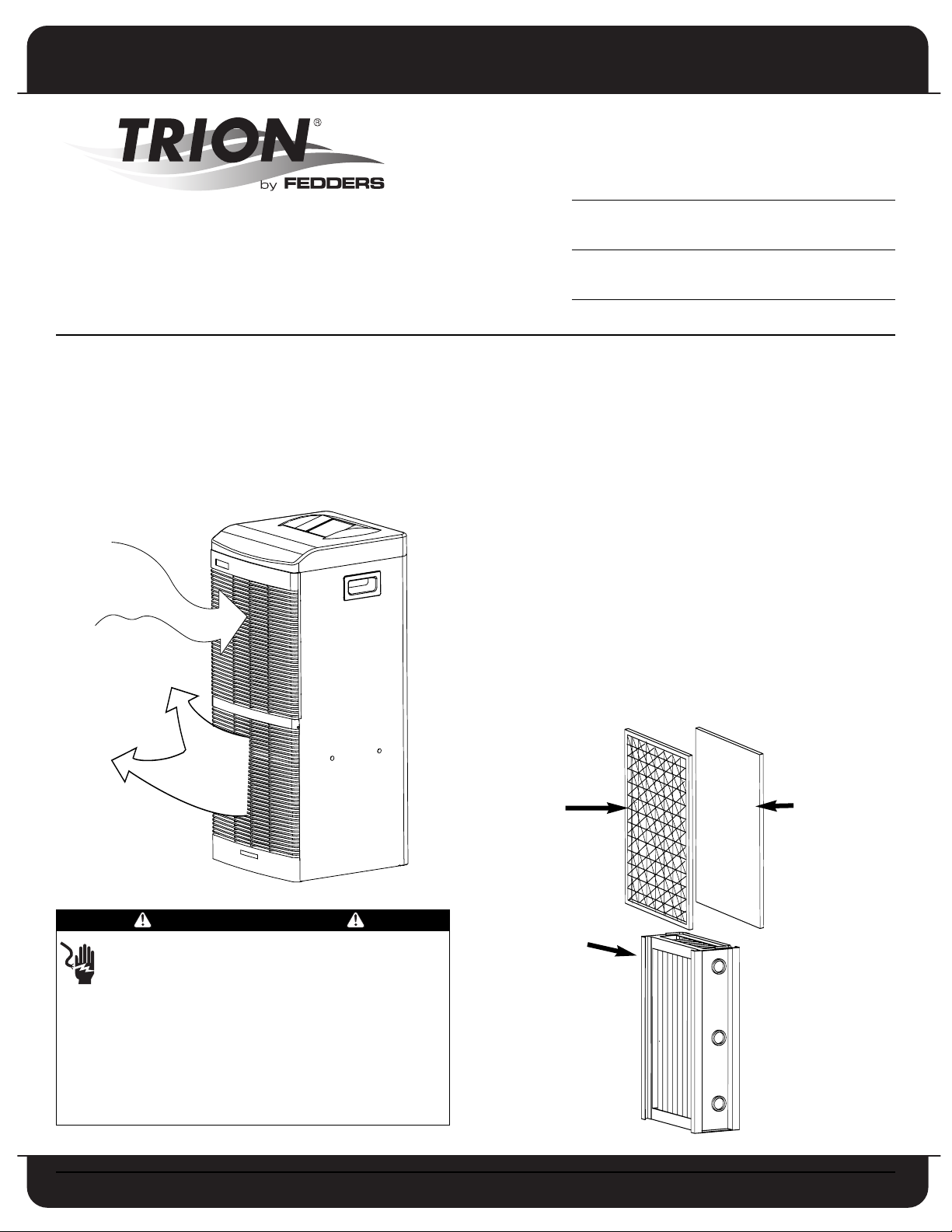

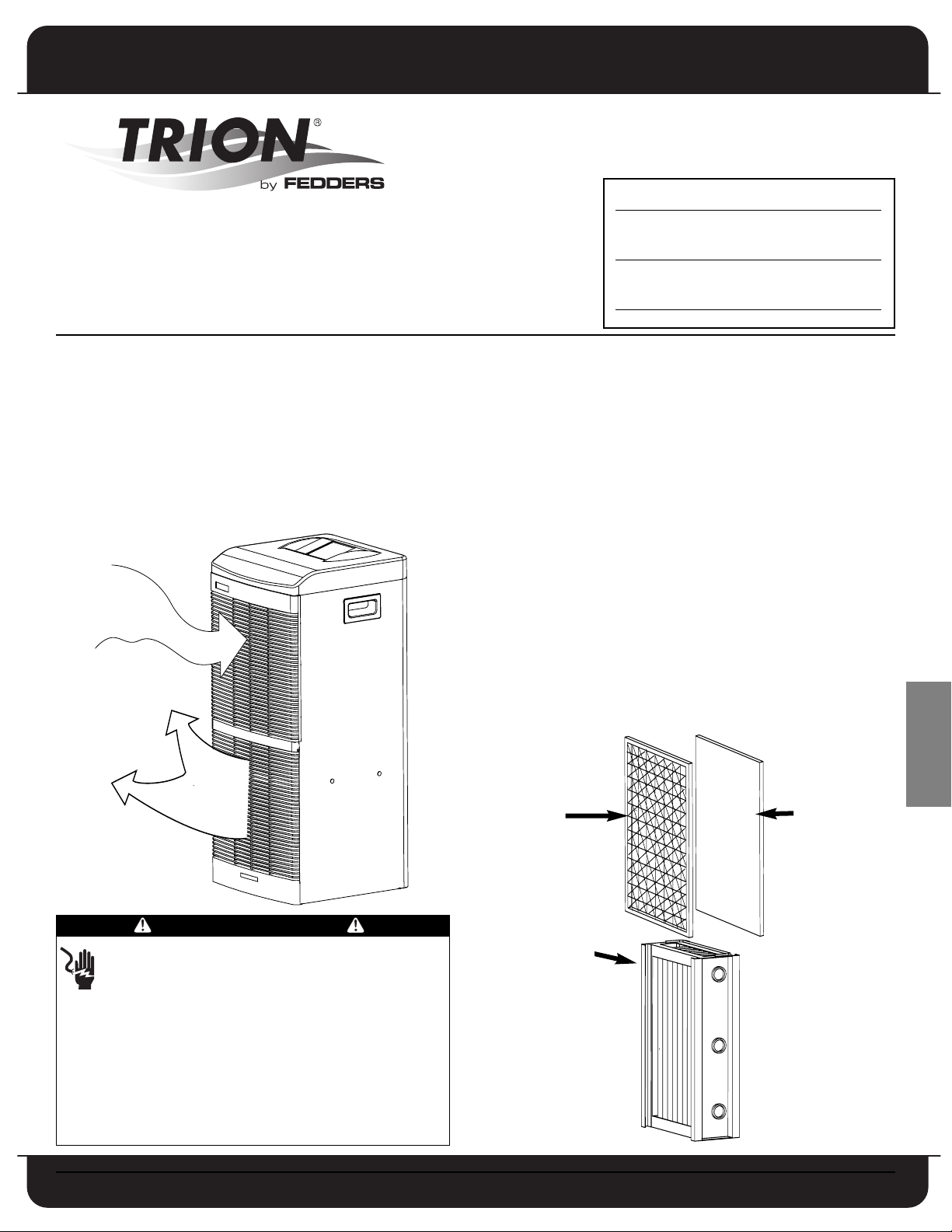

Polluted air is drawn into the Air Purifier through the top
half of the front grille and clean air is discharged back into
the room through the bottom half of the front grille. Your
Electronic Air Purifier is ideal for large rooms and has been
designed for continuous operation. For best results, operate
your air cleaner continuously on low speed.
Dust
Pollen
Smoke
Clean
Air
Pre-filter
Electronic
Filter
Charcoal Filter
Three stages to cleaner air
Your air cleaning system features a three stage filter
assembly. Each unique stage of the filter assembly has a
removable filter:
Stage 1: Mesh Pre-filter
The pre-filter traps large particles such as hair, lint, and large
dust particles.
Stage 2: Electronic Filter
The air then passes into the electronic filter. The smaller
particles in the air such as dust, smoke, and pollen receive a
positive electrical charge as they pass through the ionizing
section of the Electronic Filter. The positive charged particles
then enter the collecting section which uses a series of
alternately charged aluminum plates to attract and retain
the particles. It works like a powerful magnet and the
particles remain fixed to the plates through natural
adhesion until removed by the washing process.
Stage 3: Charcoal filter
In the final stage air passes through a Charcoal Filter that
removes household odors.
157251-001 6/05 Rev. B
Model
Serial Number
Date of Purchase
For future reference write down the model, serial
number, and date of purchase. Use these numbers
in any correspondence.

2
Filter
Access
Cover
Filter
Assembly
Getting Started

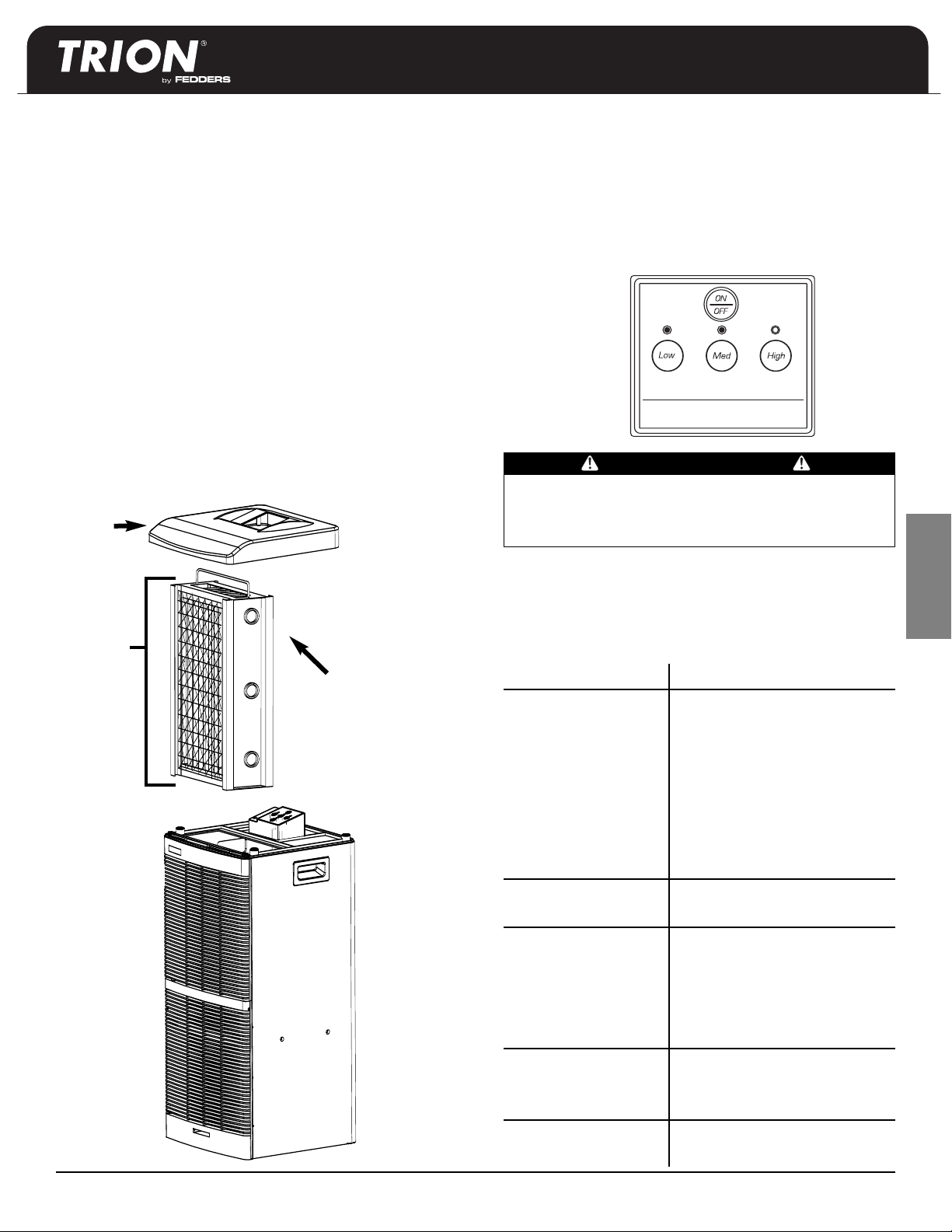

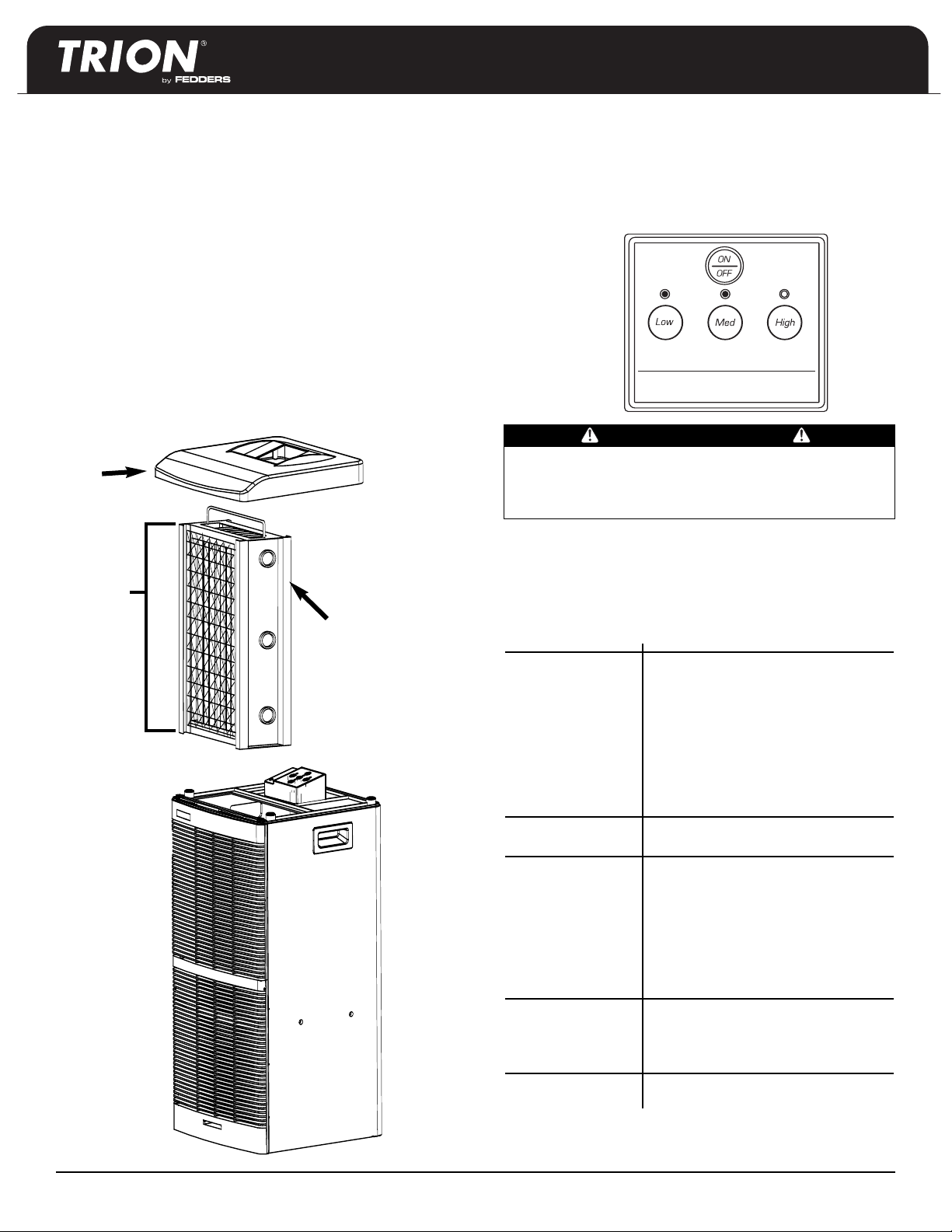

Install the charcoal filter
Remove the Charcoal Filter included with the air purifier
from the sealed plastic bag. To install the Charcoal Filter,
remove the Filter Access Cover by lifting upward. Lower the
Charcoal Filter into the filter rails located on the rear of the
Electronic Filter with the white side of the charcoal filter
facing the electronic filter. Replace the Filter Access Cover.
Location
This Air Purifier can be used in any room in the house or in
any workspace as long as air can freely circulate into the
upper grille and out through the lower grille. The unit
should never be placed near computers, radios, or TVs or
near sources of heat (such as stovetops and ovens).
Plug the unit in
Plug the unit into a polarized household electrical outlet.
Your air cleaner is now ready for operation.
Operation
Power the unit by pressing the On/Off button and then
press the button corresponding to the desired speed. Your
Electronic Air Purifier is designed for continuous operation
which also provides maximum efficiency in removing
airborne polutants.
Electronic Air Cleaner
WARNING
DO NOT USE THIS ELECTRONIC AIR CLEANER
WHEN OXYGEN IS BEING USED OR WHEN
COMBUSTIBLE GASES ARE PRESENT.
Diagnostic Checklist
Should you ever have any questions or concerns about the
operation of your Air Cleaning System, the chart below lists
potential problems and solutions.
Condition Checkpoints
Unit fails to turn on Make sure the power cord is
plugged in.
Set the On/Off switch to On
Set the fan to the desired speed.
Make sure the Filter Access Cover is
properly installed.
Make sure the Electronic Filter is
properly installed.
Unit does not Wash the Electronic Filter.
remove pollutants
Unit snaps (arcs,Wash the Electronic Filter and dry
crackles and pops) thoroughly. Occasional snapping or
arcing sound is normal.
Prolonged or continuous arcing
is an indication that the filter has been
damaged and you should consult a
customer service representative.
Interference with Move unit to a different location away
Radio and TV from TV or Radio.
Clean the Electronic Filter if dirty.
Unit does not Have unit serviced.
operate properly
Install the Charcoal
Filter on this side of
the Filter Assembly,
with the white side
facing the electronic
filter and the blue
side facing out.

Cleaning Instructions
If the Air Purifier is in constant use, the Electronic Filter and
metal mesh Pre-filter require washing about once a month
toremove the particles collected from the air. If the unit
snaps frequently during operation, this is an indication that
the Electronic Filter needs to be cleaned.
Remove the Filter Assembly
Remove the Filter Access Cover by lifting upward. Lift the
Filter Assembly out of the cabinet using the handle on the
top of the filter.
The front filter is the metal mesh Pre-filter, the Electronic
Filter is the middle (large) filter, and the Charcoal Filter is in
the back of the Filter Assembly.

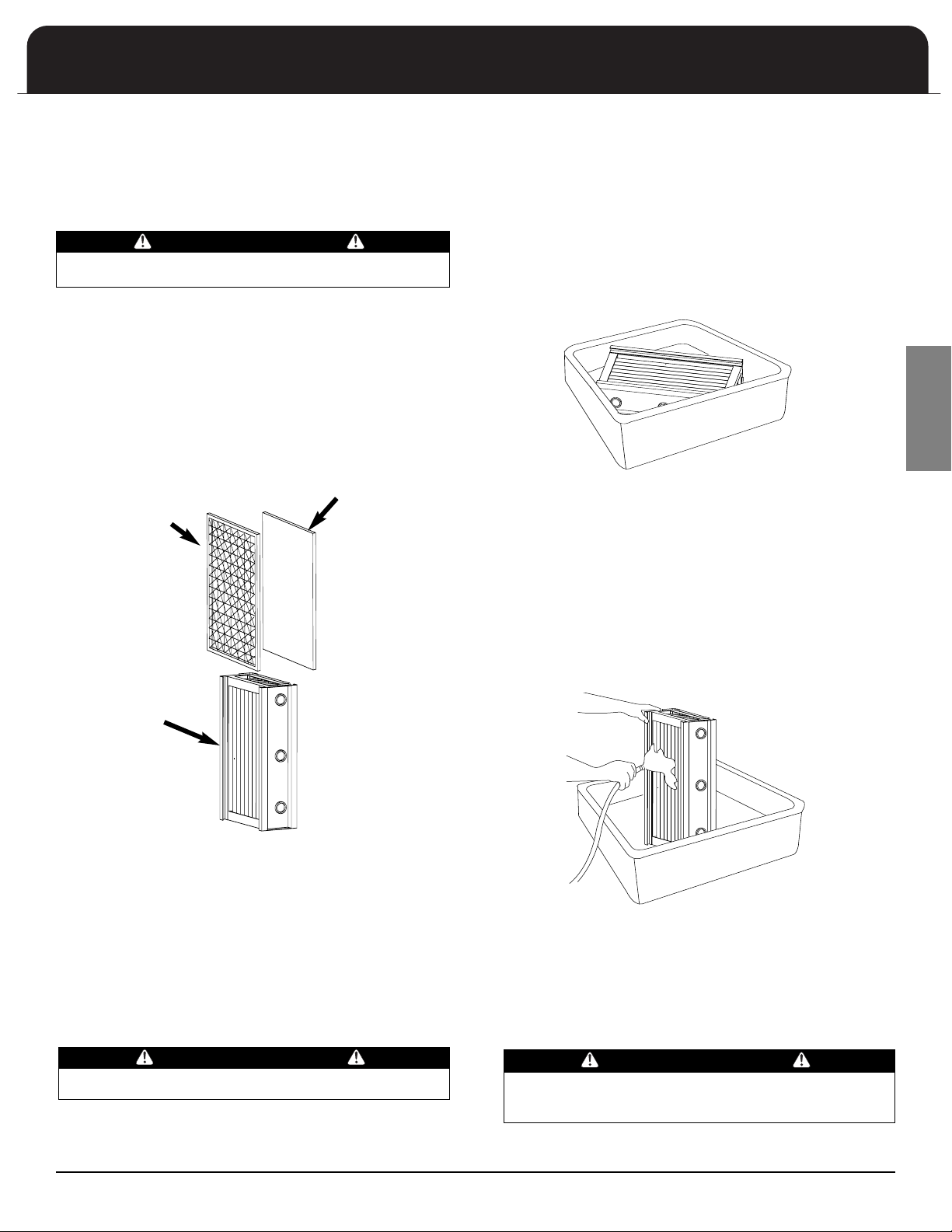

Wash the Pre-filter
Slide the metal mesh Pre-filter out of the filter rails located
on front side of the Filter Assembly.
Rinse thoroghly with warm water. Set aside to dry.
Wash the Electronic Filter
The Electronic Filter is designed so that it can be cleaned
using dishwashing detergent and hot water. Make a good
soaking solution in a tub or large basin, then completely
immerse the Electronic Filter and soak for 20 to 30 minutes
in the soaking solution.
After the Electronic Filter has soaked sufficiently, agitate
the cell up and down in the soaking solution until clean. If
the Electronic Filter is extremely dirty, spray it with a
common household cleaner or Electronic Air Cleaner
solution. Allow the filter to soak for five additional minutes
before proceeding with the rinse instructions.
Thoroughly rinse both sides of the Electronic Filter. If a
sprayer is available, spray with water.Check to make sure
each plate in the Electronic Filter is clean. Shake as much
water out of the Electronic Filter as possible. Allow the filter
to air dry a minimum of one hour before returning to
service.
Washing Tips
When handling the Electronic Filter, be careful not to
damage or distort wires or metal plates as this will cause
excessive snapping or arcing during operation.
Note: Slight discoloration of cell plates is normal after use
and does not affect the performance of the Electronic Air
Purifier.
3
CAUTION
UNPLUG UNIT FROM POWER SOURCE BEFORE CLEANING.
CAUTION
DO NOT WASH THE CHARCOAL FILTER.
Pre-filter:
Rinse with
warm water.
Electronic Filter:
Soak in soapy water
and rinse clean.
Charcoal Filter:
Do not wash
Electronic Air Purifier
E
N
G
L
I
S
H
Remove the Charcoal Filter
Lift the Charcoal Filter out of the filter rails located on the
rear side of the Filter Assembly.
Do not wash the charcoal filter. Washing the Charcoal Filter
will destroy its ability to absorb odor. However, lint and dirt
buildup can be removed with a vacuum cleaner using a
brush attachment.
Odor absorpton effectiveness will gradually deteriorate and
the Charcoal Filter should be replaced every three to four
months.
CAUTION
DO NOT CLEAN THE ELECTRONIC FILTER IN
DISHWASHER.

4

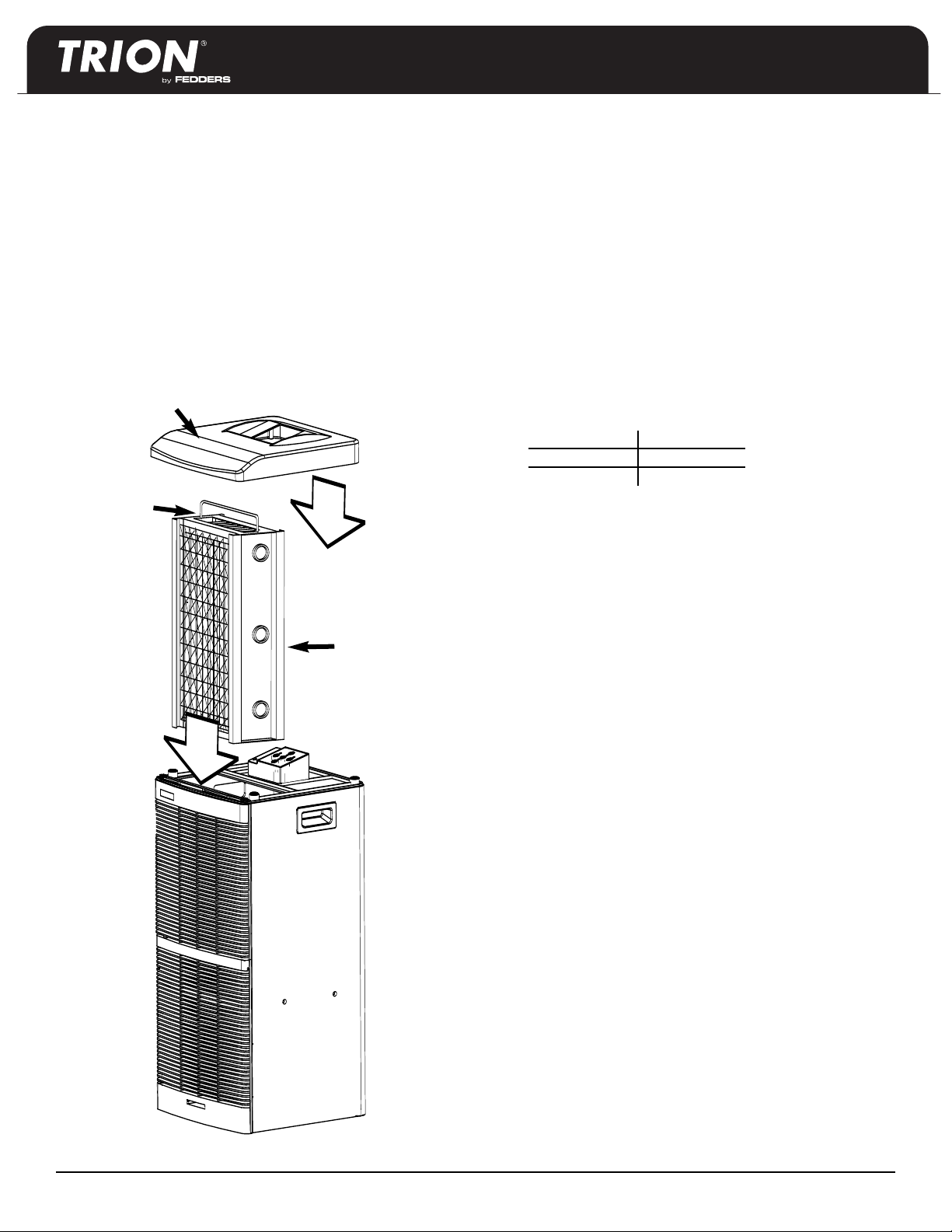

Reinstalling the Filter Assembly
Wipe down the interior and outside of the cabinet with a
soft, dry cloth.
Re-assemble the Filter Assembly.
Make sure the filters are dry before reinstalling.
Using the handle, lower the Filter Assembly into the cabinet.
The tabs in the cabinet and notches in the Filter Assembly
end plates ensure the filter is correctly positioned.
Replace the Filter Access Cover. An electrical interlock switch
prevents the unit from operating if the Filter Assembly or
Filter Access Cover is not replaced correctly.
Note: An occasional ‘arcing’ sound is normal when
operating the unit immediately after cleaning and should
stop within a few minutes of operation.
Filter Access Cover
Filter Assembly
Handle
Replacement Filters
If replacement filters are needed please contact your dealer.
The part numbers below will help you order the correct
filters for your electronic air purifier.
Item Part number
Pre-filter 123324-003
Charcoal filter 310200010-001
Questions & Answers
How can I get the most out of my Electronic Air Purifier?
For peak efficiency in maintaining air quality, we
recommend that the unit be operated continuously.
MyAir Purifier makes a snapping sound...
You may notice an occasional snapping or arcing sound
coming from your unit. This is a normal occurrence that
happens when large particles are electrically charged in the
Electronic Filter. Prolonged or continuous arcing is an
indication that the filter should be cleaned or that the filter
has been damaged.

Electronic Air Purifier
5
E
N
G
L
I
S
H
Air Purifier Limited Five-Year Warranty
This Limited Warranty covers Trion by Fedders Air Purifiers.Fedders
warrants that all new Trion by Fedders Air Purifiers are free from defects in
material and workmanship under normal, noncommercial use and service.
Fedders will remedy any such defects if they appear within 60 months from the
date of purchase, subject to the terms and conditions of the Limited Five-Year
Warranty stated below:
1. THIS LIMITED FIVE-YEAR WARRANTY IS GRANTED BY THE MANUFACTURER
THROUGH ITS AUTHORIZED SERVICE ORGANIZATION, CARECO, 415 WABASH
AVE., P.O. BOX 200, EFFINGHAM, IL 62401.
2. This warranty shall extend only to any noncommercial owner who has
purchased the appliance Air Purifier other than for purposes of resale.
3. All components are covered by this limited warranty except expendable items
such as filters.
4. In order to obtain the benefits of this limited five-year warranty, the owner
must notify CareCo Service Dept., 415 Wabash Ave., P.O. Box 200, Effingham,
Illinois, 62401, or call 1-866-829-2440 or email
[email protected].
5. Warranty work will be performed within a reasonable time, after notice of
defect and delivery to CareCo Warranty,subject to delays beyond CareCo’s
control.
6. CareCo will not be responsible for loss of use of any product, loss of time,
inconvenience, or any other indirect, incidental or consequential damages
with respect to person or property, whether as a result of breach of warranty,
neglect or otherwise. SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
LIMITATION OR EXCLUSION IN THE PRECEDING SENTENCE MAYNOT APPLYTO
YOU.
7. THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAYALSO HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
8. Any warranty by CareCo of merchantability, fitness for use or any other
warranty (express, implied statutory), representation or guarantee other than
those set forth herein, shall expire at the expiration date of this express
limited warranty. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY LASTS, SO THE LIMITATION IN THE PRECEDING
SENTENCE MAYNOT APPLY TO YOU.
9. The manufacturer reserves the right to make changes in the design and
material of its products without incurring any obligation to incorporate such
changes in units manufactured prior to the effective date of such change.
415 Wabash Ave., P
.O. Box 200, Effingham, IL 62401,
Phone: [phone]
email: [email protected]
