Feelgood PY6 User manual

3X6M GREENHOUSE
PY6
PART LIST
DIMENSION
QUANTITY
NO. 1
1135MM
26
Box - 1
NO. 2
1135MM
4
Box - 1
NO. 3
1080MM
4
Box - 1
NO. 3a
1080MM
8
Box - 1
NO. 4
1128MM
12
Box - 1
NO. 5
1263MM
4
Box – 2
NO.5a
1263MM
4
Box – 2
NO. 6
775MM
4
Box – 2
NO. 7
1170MM
4
Box – 2
NO. 8
1190MM
4
Box – 2
NO.9
1055MM
2
Box – 2
NO.10
1280MM
6
Box – 3
NO.11
1245MM
4
Box - 2
NO.12
1170MM
1
Box - 2
NO. 13
1000MM
1
Box - 3
Page 1 of 7

N0.14
1000MM
1
Box - 3
NO.15
1000MM
1
Box-3
NO.16
1000MM
1
Box - 3
1335MM
2
Box - 3
NO.17
1420MM
1
Box - 3
NO.18
1420MM
1
Box - 3
NO.19
CONNECTER AND ACCESSORIE SHEET
NUMBER
QUANTITY
NUMBER
QUANTITY
20
8
21
16
Box – 3
Box - 3
22
8
23
4
Box - 3
Box - 3
24
4
25
32
Box - 3
Box - 3
26
6
27
26
Box - 3
Box - 3
M6X40
M6X45
28
2
29
ROOF COVER
1
Box - 3
ONE SET
Box - 3
DOOR CABLE
1
Box - 3
Page 2 of 7

Page 3 of 7

SET UP AS BELOW ILLUSTRATION
STEP I - Lay all roof parts (1, 4, 5 and 5a) flat on the floor and connect like below with part 20 and 21
The curved part 10 can now also be fitted, Once these are in place the central spine (part 11 and 12 can be bolted into place, 12 is the last bar in the spine please refer to diagram below
carefully, here use screw M6X45)
Page 4 of 7

STEP II –Inserting legs
Lift up one side insert tube No.3 and No.3a, leg 3 at both ends, leg 3a in the middle.
STEP III
Repeat step II lift up and install the other legs.
STEP IV – Create ground frame
Page 5 of 7

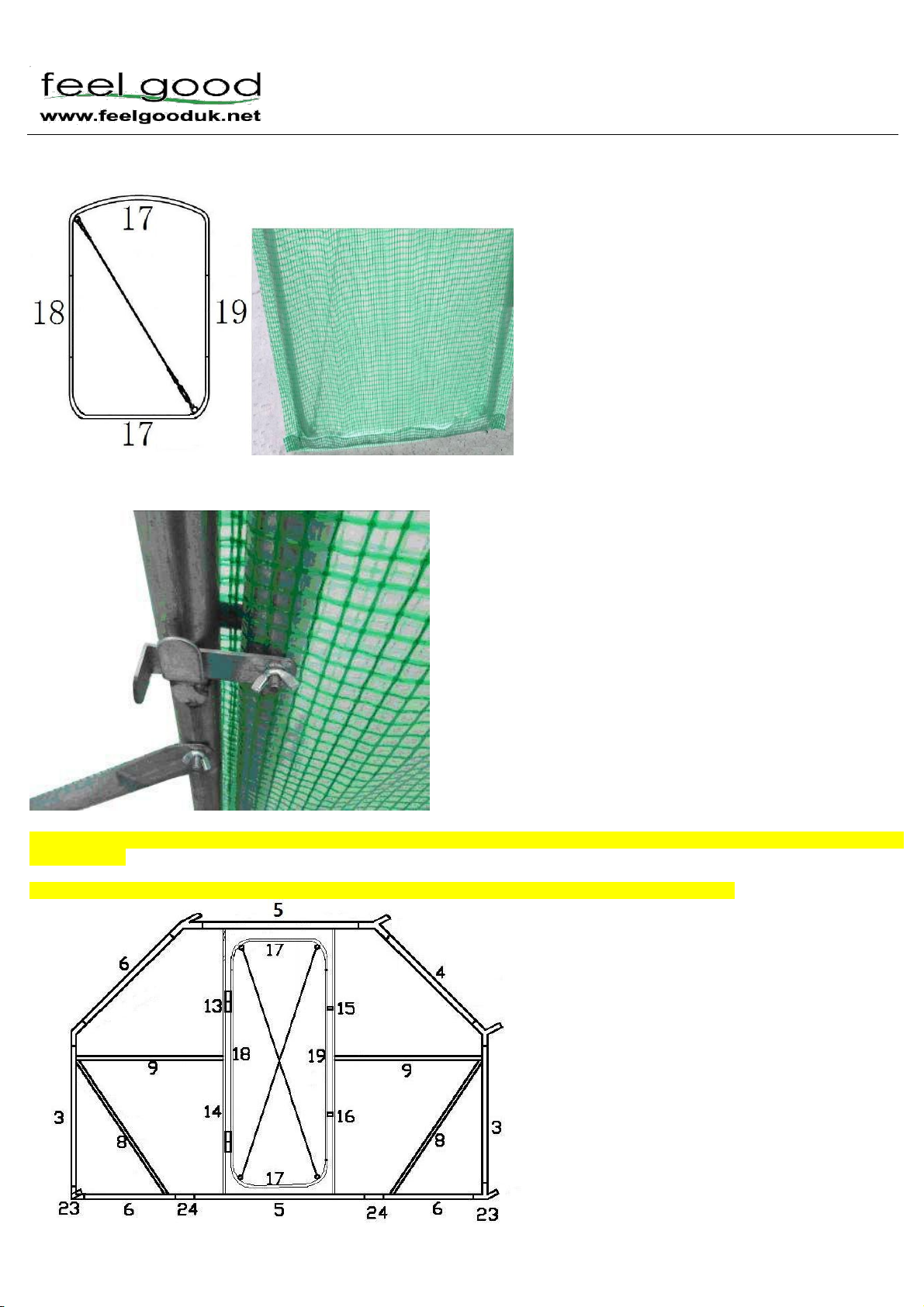

STEP V Assemble the door frame like the diagram, secure the corners of the door frame using the door cable set. Pull the door cover
onto the door frame and seal it with the velcro.
STEP VI Attach the door lock. Make a small hole through the fitted door cover to match the hole that is pre drilled on the door
(Tube No.18), make it small enough so just a screw can fit through. Next thread through the locking screw and tighten like the
picture.(Use screw M6X40)
STEP VII Screw tube 13, 14, 15 and 16 to tubes 5, the tubes already have the thread and nut inside – screw bolt in from the other
side of tube 5 (Use screw M6X40)
STEP VIII – Position and screw bracing bars (7, 8 and 9) into place – see first diagram to view all positions. (Use screw M6X40)

STEPVIII
Pull the greenhouse cover over the main frame and secure the cover to the frame by using the Velcro
STEPIX
Side water collector. Use and adjust the buckle ties on the waterspout fabric to make it gather water when is needed.
