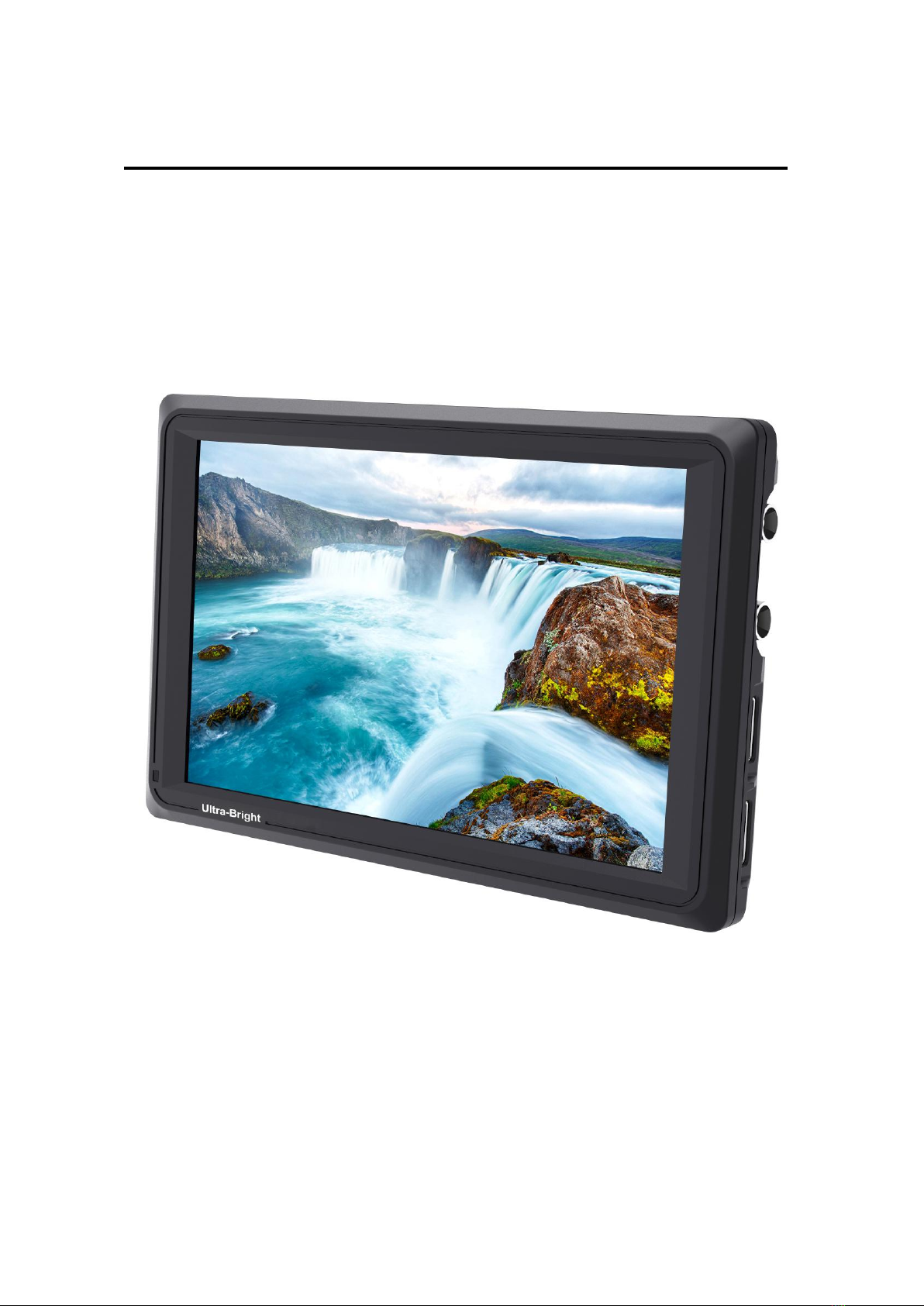

Feelworld FW279 User manual

7" 2200nit Ultra Bright
Daylight Viewable Field Monitor
User Manual

1
Product Overview
Thank you for purchasing our photography, broadcasting kits color
LCD monitor, which adopts advanced integrated digital signal
processing circuits and professional IPS LED panel, which makes it
high brightness, low power consumption, stable performance, etc. It
is equipped with SDI (Optional), HDMI input and output, which
make it wide application, casing compact, simple operation,
portable convenience and strong compatibility.
Advanced features include Histogram, False Colors, Zebra
Exposure, Focus Assist, Nine Grid, Embedded Audio, Center
Marker, Safe Frames, Color Temp., Picture Setting, Color Setting
etc., ideal portable lightweight as viewfinder and video monitor.
The monitor is equipped with an external battery plate; you can use
the power adapter supply or use the external battery for power
supply.
To insure the best use of the unit, please read the
user’s manual carefully
CAUTION
● Please avoid the heavy impact and drop onto the ground when
move the product.
● Please do not cover the vents and holes on the enclosure and
do not place the machine on a bed, sofa, and rug to ensure
good ventilation. Otherwise it will lead to overheating and
reduce the service life.
● The screen of this product is made of glass. Please do not drop
the screen towards the ground. Keep away from injury if the
screen is broken.

2
● Keep the product away from the heat source, such as the
radiator, the water heater, the stoves and the other heating
products.
● Avoid the prolonged exposures to the sun as the LCD screen
will be damaged.
● Please use the qualified adapter or battery if need.
● To avoid damaging the product, please do not take apart or
repair the unit by yourself without the adjustable components in
the unit.
● To maintain the LCD screen better, please notice the ways as
below to avoid the scratch, the discoloration and the other
damages.
1. Please refrain from using the hard objects to hit the screen.
2. Please do not force to wipe the screen.
3. Please do not use the chemical solutions to clean the screen.
4. Please do not spray any detergent on the screen.
5. Please do not write on the screen directly.
6. Please do not stick on the screen.
7. Please simply wipe with a clean soft cloth and make sure no
water on the screen.
● To protect the plastic cover better, please follow these ways as
below to avoid the damages;
1. Please do not use the chemical solutions to clean the cover.
2. Please keep away from the volatile things.
3. Please keep away from the rubber.
4. Please do not clean the case hard.
5. Please simply wipe with a clean soft cloth and make sure no
water on the cover.

3
Features
● IPS Full HD LCD panel
●Support 4K HDMI signal input and output
3840×2160p (30/29.97/25/24/23.98 Hz) / 4096×2160p (24Hz)
●Histogram is a quantitative tool to inspect the image brightness,
to guide the exposure control
●Analog stereo L/R, embedded audio display
●Focus Assist (Focus edge can be Red, Green, Blue)
●Zebra and False Color function, convenient to guide the using
light when shooting and the post production
●Check Field (Red, Green, Blue, Mono)
● Anamorphic Mode
●Image Flip (H, V, H/V)
●Image Freeze
●Image Nine Grid, zoom one of the images to realize the full screen
●Image Zoom-in function.
●Pixel to Pixel
●Marker Types, Safe Frames and Center Marker
●Display and adjust the image Color Temp
●Brightness, Contrast, Tint, Saturation and Color Temp
Adjustment.
●Support varieties of the different types of the battery brands
(F970, LP-E6, D28S, U60)
●Speaker and earphone output

4
CONTENTS
1. Product Description ------------------------------------------- 5
1.1 Front Panel/ Button Instruction ------------------------------ 5
1.2 Rear Panel Instruction ----------------------------------------- 6
1.3 Battery Plate ----------------------------------------------------- 7
2. Menu Operation Instruction ---------------------------------- 9
3. Menu Function Instruction ---------------------------------- 10
4. Technical Parameters ----------------------------------------- 20
5. Trouble Shooting ----------------------------------------------- 21

5
1. Product Description

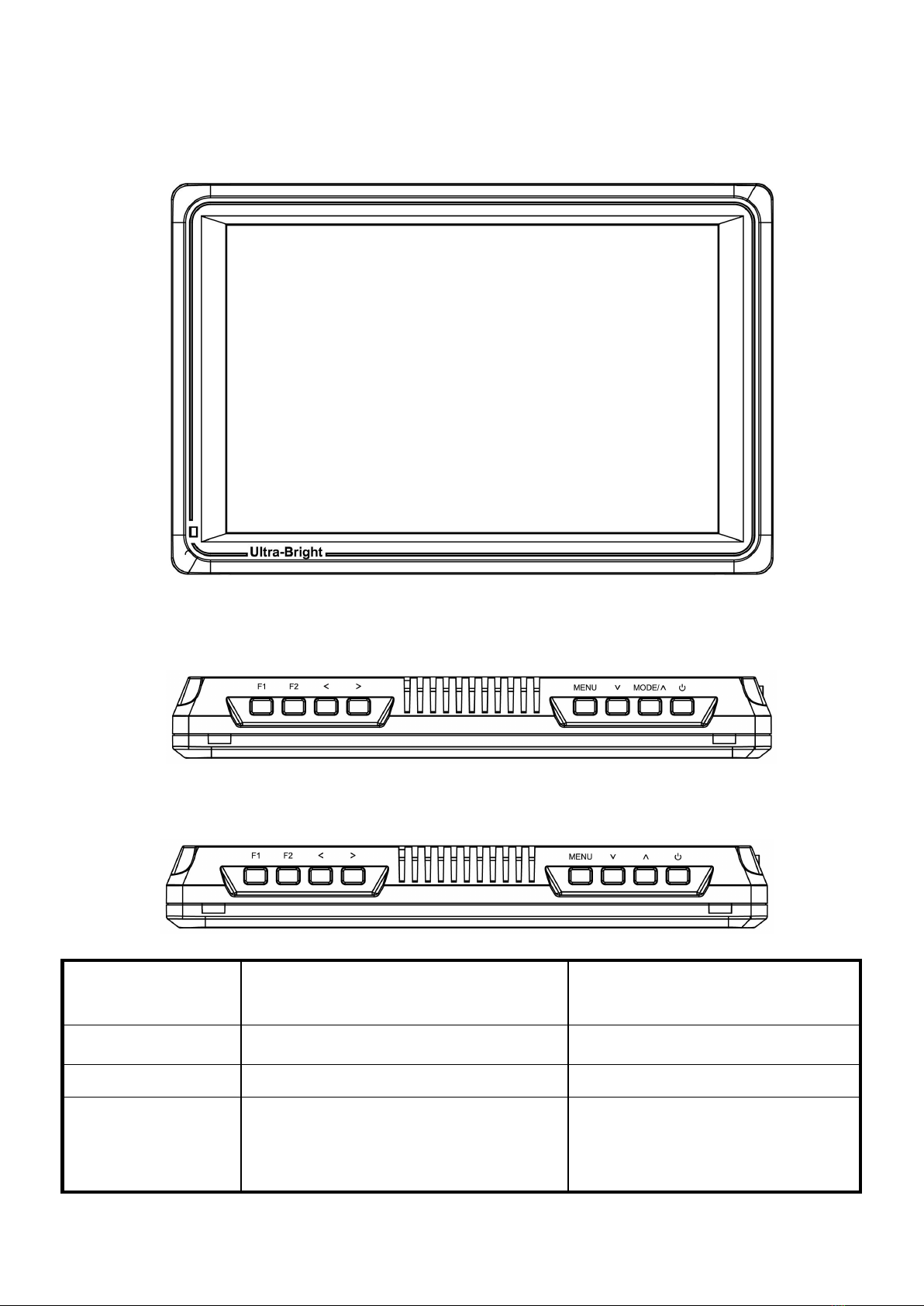

1.1 Front Panel/ Button Instruction
SDI Version:
W/O SDI Version:
Button
Function when OSD is not
displayed
Function when OSD is
displayed
F1
Custom button F1
/
F2
Custom button F2
/
＜
press < button for volume shortcut,
then press < and > button to adjust
the volume
Decrease or adjust value of
selected parameter

6
＞
press > button for backlight
shortcut, then press < and > button
to adjust backlight brightness
Increase or adjust value of
selected parameter
MENU
Display OSD main menu
Return to previous OSD menu
∨
/
Select next menu item
MODE/∧
(SDI Version)
Signal input selection
Select previous menu item
∧
(W/O SDI Version)
/
Select previous menu item
Power on/off button

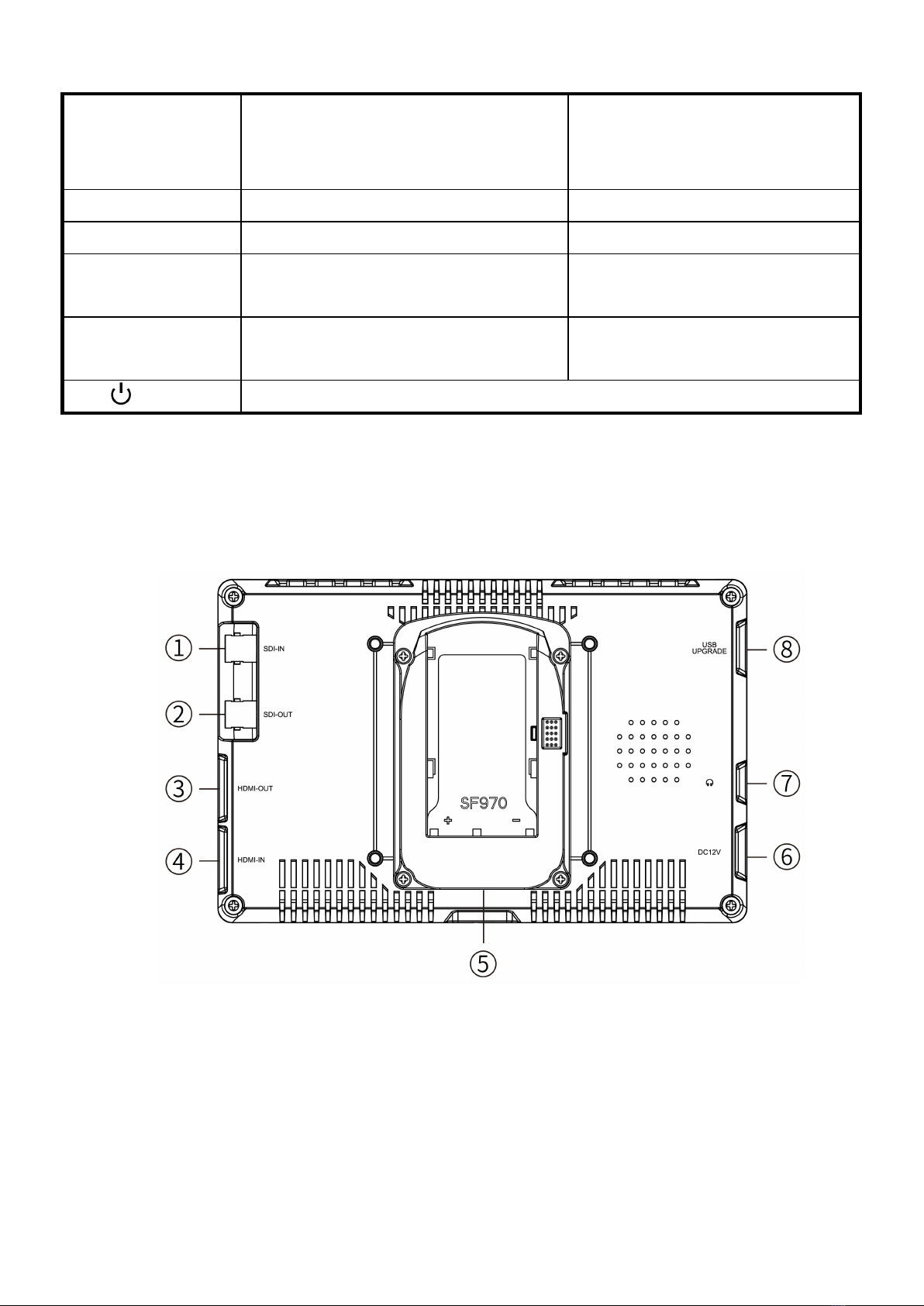

1.2 Rear Panel Instruction
①.SDI-IN: SDI signal input (Optional)
Note: No SDI version does not have this interface
②.SDI-OUT: SDI signal output (Optional)
Note: No SDI version does not have this interface
③.HDMI-OUT: HDMI signal output

7
④.HDMI-IN: HDMI signal input
⑤.F970 battery plate (Standard)
⑥.DC power input interface
⑦. : Earphone output port
⑧.USB upgrade port
1.3 Battery Plate
There is a battery plate installed on the back of the monitor, you
can assemble the corresponding battery to power the monitor.
There are many different battery plates. Customers can choose the
suitable battery plate according to the battery.
Battery Plates in different models as below:
F970 LP-E6 D28S U60
●Sony F970 battery plate for battery of Sony DV:
Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530
QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70
QM51D QM51 FM71 FM70 series
●LP-E6 battery plate for battery of Canon DV:
Canon LP-E6
●D28S battery plate for battery of Panasonic DV:
Panasonic D55 554S D54SE D40 D35 D33 D32 D28 D25 D22
series

8
●U60 battery plate for battery of Sony DV:
SONY BP-U30/U60/U90, domestic U62/U65/U66/U95/U98 series.
●Four types of batteries corresponding to the upper battery
plates.
F970 LP-E6 D28S U60
Remark: Different specifications of the battery have different
capability. The working time for the monitor will be different. Higher
capability (working time) will be longer. Please take off the battery
from the monitor if you don’t use the monitor in a long time.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACE
BY AN INCORRECT TYPE
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS

9
2. Menu Operation Instruction
After correctly connect to the power supply, the indicator will
turn (Red), press to turn on monitor power, the indicator will
be Yellow, and then input signals, the indicator will turn
Green from Yellow.
2.1 Press “MENU” button to enter OSD main menu, and press
“＜” or “＞” button to go through the secondary menu function.
2.2 Then press “∨” button to enter secondary menu (cursor
move to secondary menu position).
Press “∨” or “MODE/∧” button to move cursor and select the
items in the secondary menu.
2.3 After select the items in the secondary menu, press “＜” or “＞”
button to adjust the item parameters.
2.4 Press “MENU” button to confirm the item adjustment and exit
the menu.

10
3. Menu Function Instruction
Image (Including 2 pages)
★Pic. Mode: Standard, Mild, User, Dynamic
Select ‘user’ to adjust Brightness, Contrast, Saturation,
Sharpness.
★Brightness: 0～100
To adjust image's brightness.
★Contrast: 10～100
To adjust the brightest and the darkest ratio of the image,
please note the sense of picture when adjust, proportion

11
too high or too low will make the picture lose the color.
★Saturation: 0～100
To adjust color concentration.
★Sharpness: 0～100
Also called ‘Resolution’, is an indicator for the image plane
definition and image edge sharpness. If sharpness is
higher, then the details contrast on the image is higher, the
image is more clearly.
★Color Temp.: 6500, 9300, User
Select image white color temperature of the monitor.
When select ‘user’, adjust the Red, Green, Blue to meet
the different user's requirement for the different Color
Temp.
★Tint: 0～100
To adjust the image cool and warm hue.

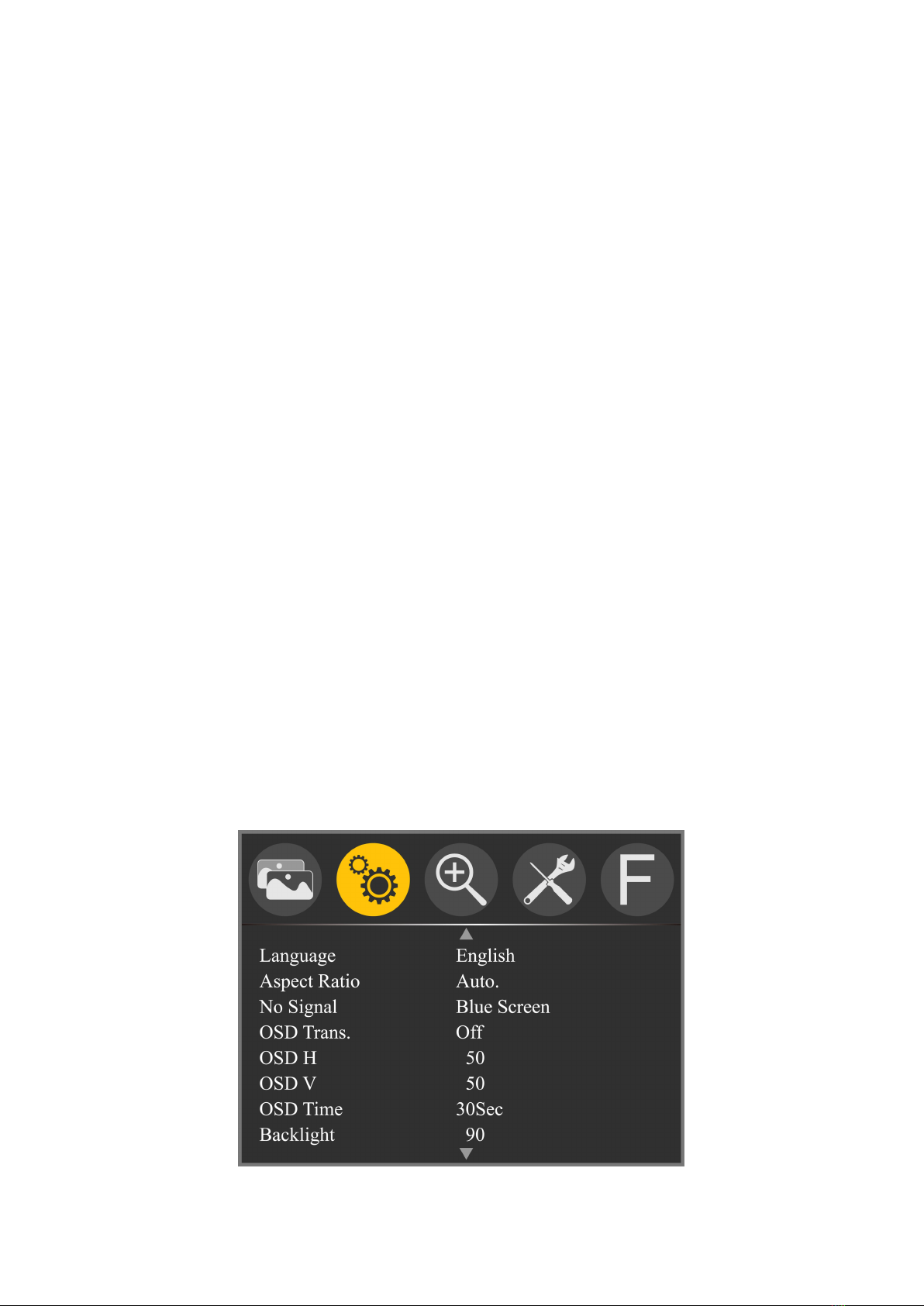

Setting (including 2 pages)

12
★Language: English, 简体中文, Español, Português,
Français, Nederlands, Deutsch,日本語,繁體中文
To select the display menu language.
★Aspect Ratio: Auto., 4:3, 16:9, Just Scan,
Panorama, P2P
To select the image aspect ratio.
★No Signal: Blue Screen, Red Screen, Green Screen,
Black Screen, White Screen
To select the screen background color when no signal.
★OSD Trans.: Off, Low, Middle, High
The transparent of image background when menu display.
★OSD H: 0～100
To adjust the OSD position in horizontal.
★OSD V: 0～100
To adjust the OSD position in vertical.
★OSD Time: Off, 10Sec, 20Sec, 30Sec
The function is to adjust the menu time.
★Backlight: 0～100

13
To adjust the brightness of screen backlight.

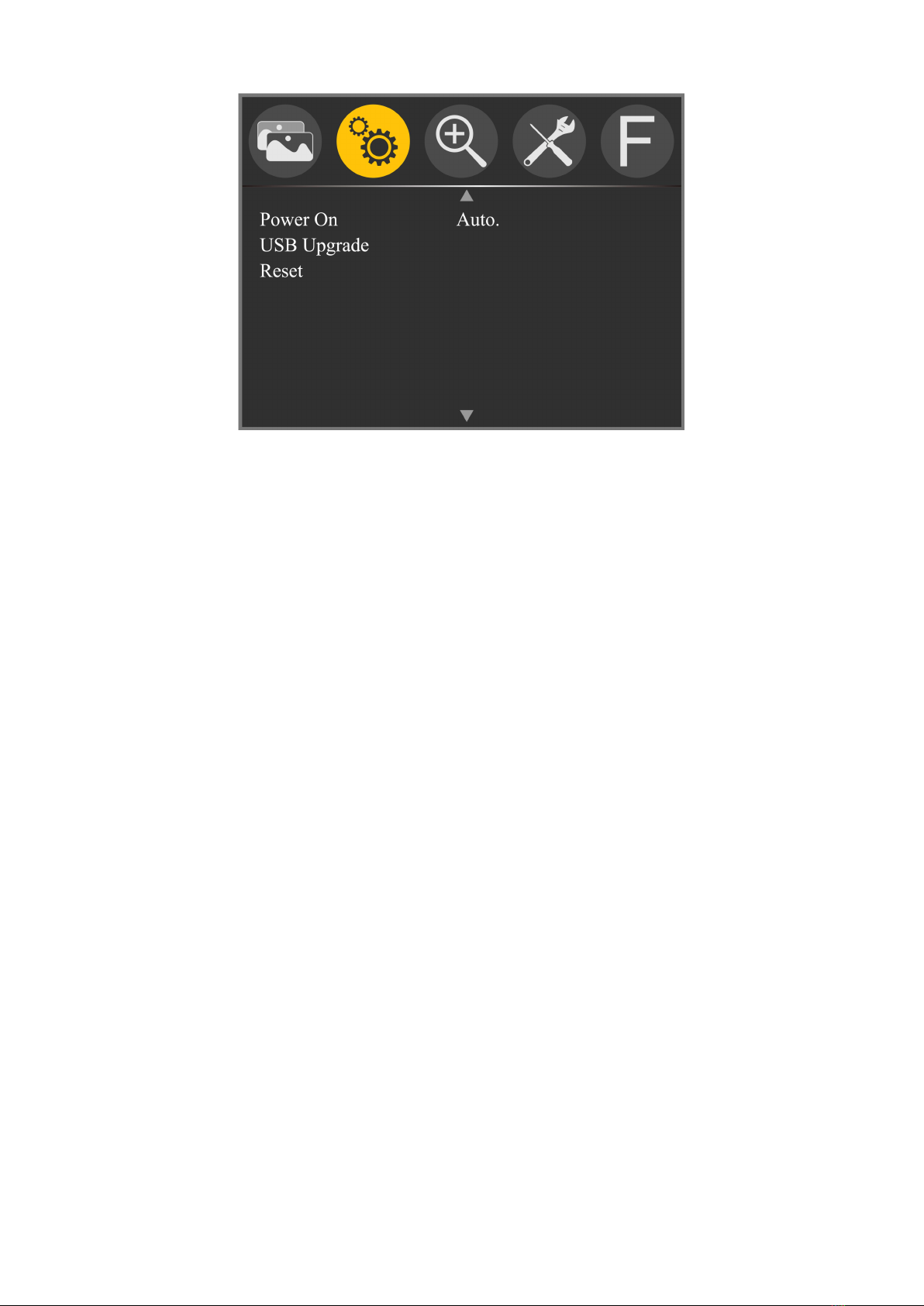

★Power On: Auto., Manual
When select the Auto., the monitor will turn on when input
power. But if select the manual, it is standby when input
power, need to press button to turn on the power.
★USB Upgrade
When need to upgrade the native data application
software, copy the file to the U disk, connect the USB
cable with upgrade USB port, press “＞” button to confirm.
After the upgrade, monitor will automatically restart.
★Reset
Press“＞” button to confirm, back to original setting.
Zoom
★Nine Grid Zoom: Off, On
After turning on the Nine Grid function, then turn on this
function, you can press “＜” or “＞” button to choose a
image, and then press “∨” or “MODE/∧” button to zoom

14
the image to full screen. Press “∨” or “MODE/∧” to exit
the local zoom function. (To achieve this function, you
need to first open the Nine Grid function.)
★Zoom: Off, 4X, 9X, 16X
Image Zoom function, to help the photographer observe
more careful image by changing it.
★Zoom Mode: Off, Mode1, Mode2
Zoom All, L/R Zoom, U/D Zoom can be customized.
Zoom All: 0～100
To adjust the image to zoom in or zoom out.
L/R Zoom: 0～100
To adjust the proportion of the image Left and Right to
Zoom In or Zoom Out.
U/D Zoom: 0～100
To adjust the proportion of the image Up and Down to
Zoom In or Zoom Out.
★Scan Mode: Under Scan, Over Scan
The scan mode can be selected.

15

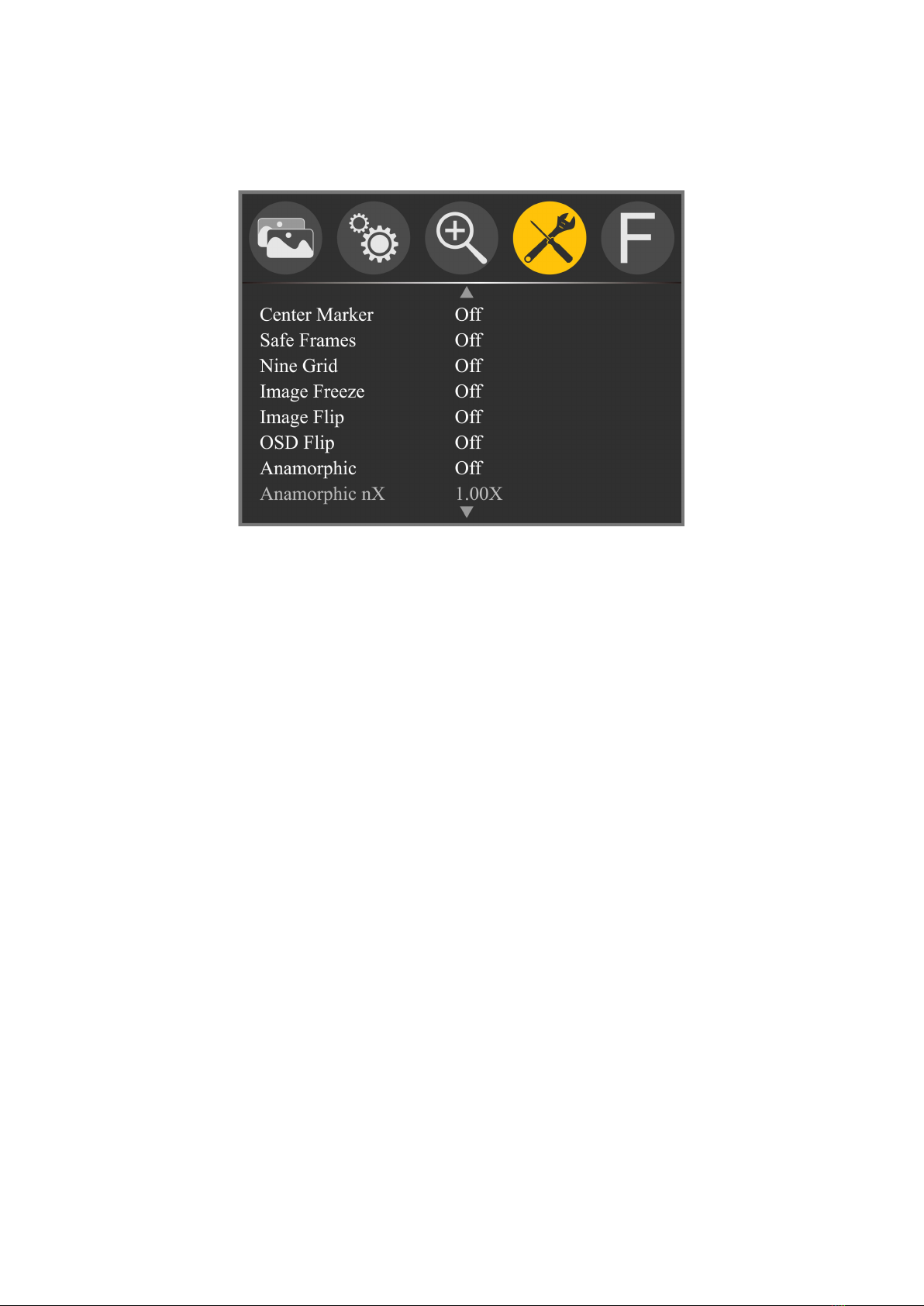

Function (Including 3 pages)
Menu of Page One
★Center Marker: Off, On
To set center mark (cross mark) display.
★Safe Frames: Off, 80%, 85%, 90%, 96%, 93%, 2.35:1
To select the screen marker.
★Nine Grid: Off, On
To make the image segmented into nine grids.
★Image Freeze: Off, On
The current picture still (capture function).
★Image Flip: Off, H_V Flip, H Flip, V Flip
Image Flip function.
★OSD Flip: Off, On
After turning on the Image Flip, turn on this function again
to achieve the OSD Flip function.
★Anamorphic: Off, 1.3X, 2.0X, 2.0X MAG, User
It uses together with some side screen film lens to restore

16
the real proportion of scene. Under the "user" adjustment
item, the Anamorphic nX can be customized.
★Anamorphic nX: 1.20X~2.00X
Customizable anamorphic adjustment is available.

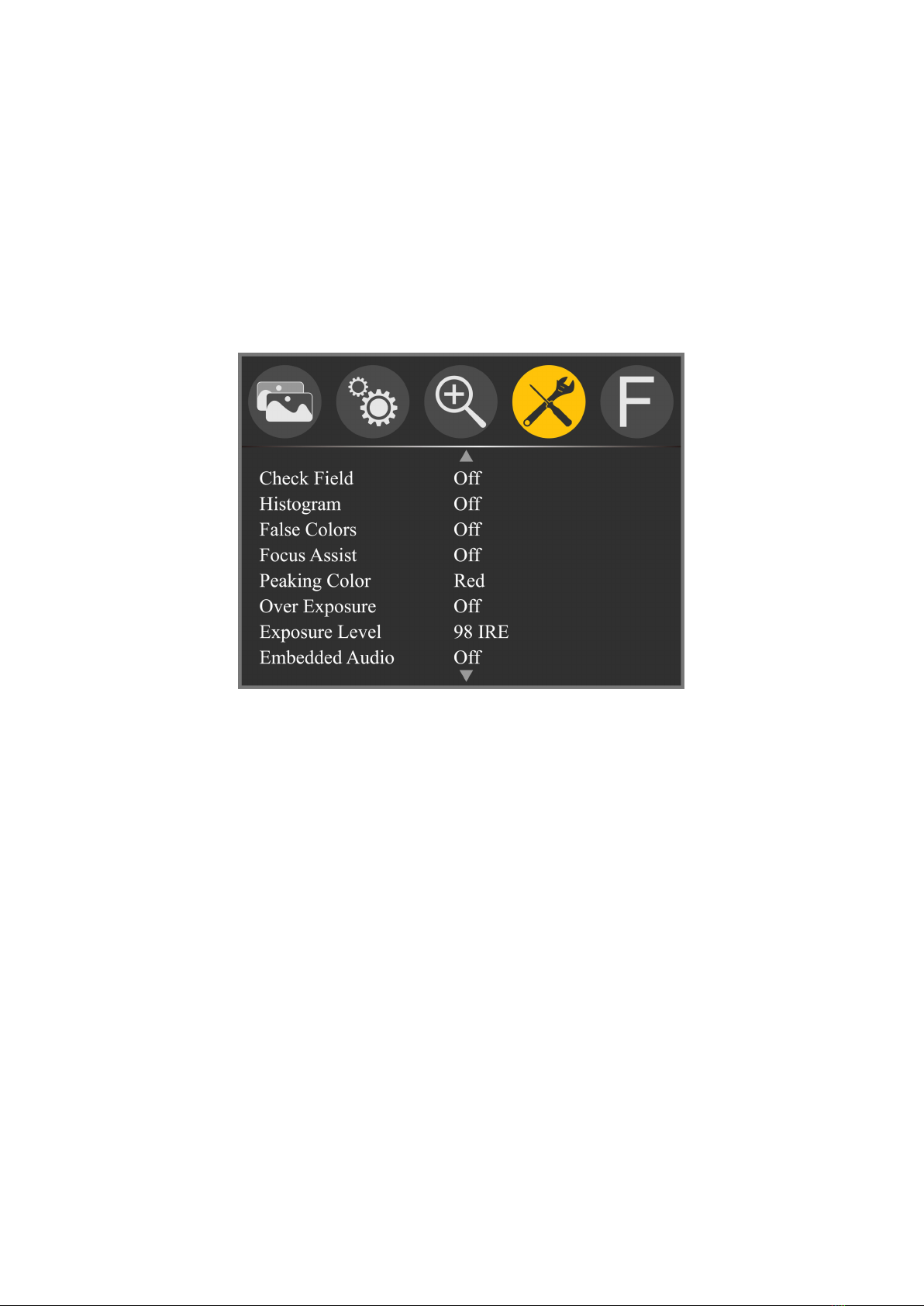

Menu of Page Two
★Check Field: Off, Mono, Red, Green, Blue
To switch among Color, Mono, Red, Green, Blue.
★Histogram: Off, On
It stands for the image pixels numbers in each level of
brightness and shows the brightness distribution of pixels
in the image.
★False Colors: Off, On
It is the analysis of the whole image brightness and
display False Color. It is convenient to guide using light
when shooting and post production.
★Focus Assist: Off, On
By sharpening the edge of images to help photography for

17
focusing operation.
★Peaking Color: Red, Green, Blue
Due to the image color is colorful when shooting in natural
light, so the user may react to the edge of the single line
not too sensitive, at this time to change the auxiliary focal
edge line color will improve the sensitivity of the image
contour. It is convenient during filming tracking in focus.
The edge line color can be chosen according to the site
situation to select red, green and blue.
★Over Exposure: Off, On
To turn on or off this function.
★Exposure Level: 1～100 IRE
When exposure exceeds the preset value, the monitor
screen appear the twill, it is to reflect the picture
exposure conditions, so as to suggest the photographer
adjust the aperture to obtain proper exposure.
★Embedded Audio: Off, On
The Audio Level Meters provide numerical indicators and
headroom levels. The audio meter is green, and will turn
yellow when exceeds -20dB, and turn red when exceeds
-9dB.

18
Menu of Page Three
★Ratio Marker: Off, 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1,
2.35:1
Image display ratio marker.
★Mark Color: Red, Green, Blue, Black, White
To select the above high contrast mark color according to
different image.
★Mark Width: 1～7
To select the above mark color display width.
★Modified Mark: 0～6
Adjust the brightness of the image outside tag line to
highlight the inside tag line of image.

19
Custom Button Setting F1～F2
★F1/ F2: Center Marker, Safe Frames, Check Field,
Focus Assist, Aspect Ratio, Image Flip, Image Freeze,
Histogram, False Colors, Over Exposure, Embedded
Audio, Nine Grid, Zoom, Anamorphic
To set the 2 shortcut custom button F1, F2 on the panel.
For example: When in OSD menu “ ”, press “∨”
button to select F1, and press “＜” or “＞”button to pop-up
function items and and press “MODE/∧” or “∨” button to
select one of them, such as “Focus Assist”, and press
“MENU” button to confirm.
So when you exit OSD menu, you could press F1 directly
in the front of panel to turn on “Focus Assist” function.
You could press “∨” button to set F2 in the same way.
