FeherGuard FG-BH User manual

STEP 2: TUBE ASSEMBLY
Configuration for L16M*, L18, L18M*, IG20, IG20M*, L20M* and LC25 Tube Sets
STEP 1: SOLAR REEL PLACEMENT:
ASSEMBLY INSTRUCTIONS
for the BLANKET HANDLER (FG-BH)
& WHEELS REEL (FG-1B) REEL SYSTEMS
PLEASE READ ENTIRE INSTRUCTIONS CAREFULLY BEFORE PROCEEDING
REEL SYSTEMS COMPONENTS AND PREPARATION:
Getting started:
Ensure that your system has two cartons consisting of one end carton and
one tube set carton.
Tools required for assembly:
·Portable drill
·Tape measure
·Pencil and Scissors
Tube Carton Parts List:
2 end tubes and 1 center tube
FG-BH Parts List: (FG-BH)
2 End Brackets 4 Casters
2 Handles 2 Bearings
2 Plugs for 3“ diameter tubes
Hardware Kit: 20 Strap Plates
10 Straps 10 Plastic Screws
25 Self-drilling Metal Screws
A.
B.
Determine the best location for the reel system. The widest point of the pool is the preferred locations (see Fig. 1 below).
Small cover extensions may be folded in to avoid using a wider reel.
At the determined location, measure the width of the pool and add 6“ (15 cm).
Ensure minimum of each end tube is inside center tube (see table below right).
Less than minimum insert causes screws to loosen and/or tubes to split.
Insert both end tubes equal distance into center tube
and mark on center tube where inner tubes end
Fig. 2a
Fig. 1
A.
Before starting assembly, trim cover to clear the inside top edge of your pool to eliminate drag when rolling up cover.
Recommended Solar Cover is 12 mil with round bubbles.
Allow an extra 4“ (10 cm) on cover length if installing the reel at mid-point or off-center.
Above-Ground
pools with deck
FG1B Parts List:
2 Wheels 2 Wheel Stops
2 Handles 2 Bearings
Hardware Kit: 20 Strap Plates
10 Straps 10 Plastic Screws
25 Self-drilling Metal Screws
2 Plugs for 3“ diameter tubes
Tube Min. Max. Max. Wet Max.
Insert Width Cover Cover
Weight
L16M* 9” 16’6” (5.03m) 60# (27.3kg) 16x32
L18/L18M* 9“ 18’6“ (5.7 m) 60# (27.3kg) 18x36
IG20/IG20M* 12“ 20’6“ (6.3 m) 60# (27.3kg) 20x40
L20M* 12“ 20’6“ (6.3 m) 60# (27.3kg) 20x40
LC25 24” 25’ (7.6m) 75# (36kg) 25x50
·
·
* Mill tubes tarnish over time. Anodized tubes help reduce tarnishing.
Four Easy Steps:
If you need additional assistance, contact us at [email protected] or call 905-876-4766 Monday to Friday 8:30 a.m. to 5:00 p.m. Eastern Time.
Recommend Safety Glasses
·

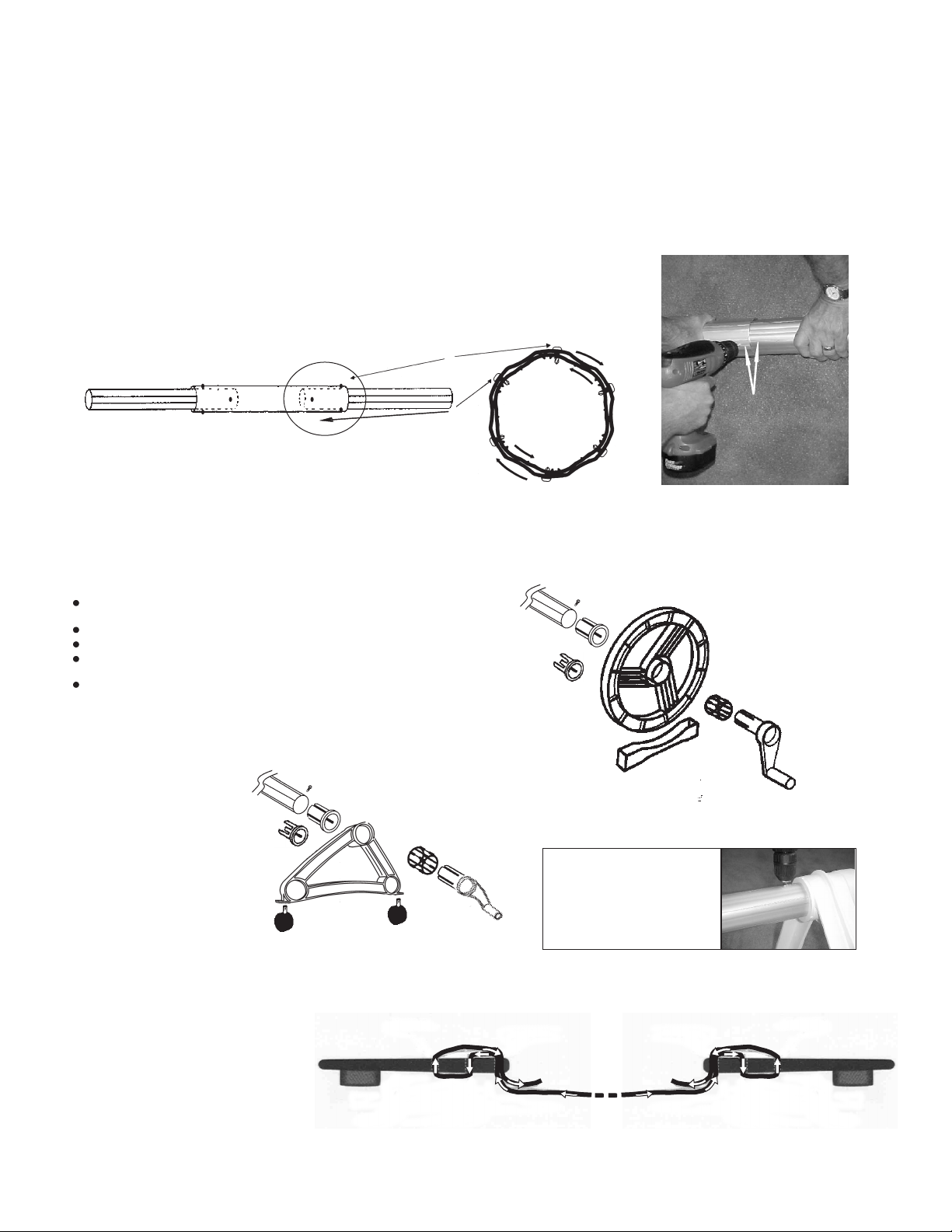

Lock tubes together by rotating the center tube in the opposite direction to end tube. HOLD TUBES LOCKED WHILE YOU
INSTALL FIRST SELF-DRILLING SCREW ON A DRILL LINE, 1“ (2.5 cm) back from end of center tube at Location ”C1”
(see Fig. 3 & 4).
Place 2 more self-drilling screws at Location “C2” & “C3” - 1 screw at every second drill line
around tubes (see Fig. 3).
At “D” locations install 3 screws around the center tube at every second drill line, 1“ (2.5 cm)
back from where you marked the end of the inner tube from Fig. 2A (see also Fig. 3).
Repeat for other end tube.
STEP 3: ASSEMBLE ENDS
Fig. 7
Strap end
3. FG-502
Wheel
FG-002
Wheel Stop
FG-1B END
1. FG-PLGL
(3“ diam. Tube)
IMPORTANT:
FG-CK1
FG-CK1
FG-BH END
1. FG-PLGL
(3“ diam. Tube)
FG-BH PLACE LONG SIDE OF
TRIANGLE TOWARD LONGEST
SECTION OF COVER.
Assemble in numerical order (see Fig. 5 or 6):
Fig. 6
5. When ends are
assembled insert screw
through tube in line with
bump on plug rim, 1“ (2.5
cm) from tube end - at
BOTH ends.
Bearing
2. FG-BEA005
3. End
Bracket
4. FG-HANC
Handle
Fig. 4
B.
C.
D.
E.
C3
C2
End tube End tube
Center tube
C
D
C1
C1
Fig. 3
Drill lines DO NOT
line up when tubes
are locked
Drill lines DO NOT
line up when tubes
are locked
Tubes Must be in Locked Position
Drill Lines DO NOT line up when tubes are locked
D3
D2
D1
D1
THIS STEP REQUIRES A TOTAL OF 12 SELF-DRILLING SCREWS DO NOT pre-drill holes or over-tighten screws.
STEP 2: TUBE ASSEMBLY - CONTINUED
Fig. 5
Plugs:
1. FG-PLG
(31/2“ diam. Tube)
OR
Insert Plug (#1) into End Tube. (Use the 2 plugs with appropriate
diameter for your tube. You can discard the other set)
Place Bearing (#2) inside End Bracket or Wheel (#3).
Push Handle (#4) through Bearing and into Plug.
Insert 1 self-drilling screw (#5) through tube in line with bump on
plug rim and 1“ (2.5 cm) from tube end. (see Fig. 7).
Repeat for other end.
Insert
Screw
5. Insert Screw 1“ (2.5 cm) from
tube end (See Fig. 7)
5. Insert Screw 1“ (2.5 cm) from
tube end (See Fig. 7)
2. FG-BEA005
Bearing
4. FG-B-HAN
Plugs:
1. FG-PLG
(31/2“ diam. Tube)
OR
Tube End
Strap Plate
Strap end
Fig. 8
STEP 4: STRAP ATTACHMENT
Attach a Strap Plate to EACH end
of all Straps provided (see Fig. 8).
Cover End
Strap Plate
Strap
To Insert Casters, please see attached
CASTER INSERTION instructions.

Safe Use of Your Solar Reel:
Care and Storage:
Check screws periodically and tighten, if necessary. The solar reel may be stored outside for the winter.
It is not recommended to disassemble it for storage inside.
In order to protect the warranty on your solar cover, it is essential to use a protective cover when the it is rolled up
on the reel. In the summer use a White Sheet with UV inhibitors and in Winter, a Winter Jacket.
If not provided, they can be purchased from your pool retailer or by completing the enclosed order form.
·Solar Reel systems are designed solely to remove solar covers and are not made to support people or any other weight.
Solar covers must be completely removed before entry into the pool. Under no circumstances, should one swim in a pool
partially covered with the solar cover.
When you start to roll up the cover, all straps must take hold of the cover at the same time.
Adjust the strap lengths if necessary.
For Systems Placed at Pool End (Rectangular Pools) (Fig.11)
Cover
(bubbles
down)
Fig. 11
Fig. 12
For Systems placed at Mid-Pool or Off Center (Round, Oval or Irregularly Shaped Pools) (Fig. 12)
Strap end
Cover is
folded
“Pinched Fold”
(bubbles in)
Strap end
Fold cover where system will be placed
(bubbles in). Pierce hole through both sides of
cover, 1“ (2.5 cm) back from the fold and
straight down (perpendicular) from a strap plate
already attached to tube. Push threaded plastic
screw through holes in cover then tighten
snugly into plate. Repeat for remaining straps.
Place straps evenly
along fold.
D.
Pinched
Fold
Pierce hole through cover, 1“ (2.5 cm) back from
edge of cover and straight down (perpendicular)
from a strap plate already attached to tube.
Push threaded plastic screw through hole in
cover then tighten snugly into plate. Repeat for
remaining straps.
Choose either Fig. 11 OR Fig. 12 - the appropriate instructions below for your pool shape. If you have determined a mid-pool or
off-center placement, it will be easier if you move the cover away from the pool and fold it (bubbles in) on a flat surface.
C.
Strap Plate to Cover
Strap Plate to Cover
STRAP ATTACHMENT - TO COVER
PLASTIC Screw
PLASTIC Screw
·
Tube
Fig. 10
METAL
Self-Drilling
Screw
Strap
Plate
with
Strap
Square corner Radius corner
First strap plate is placed 6“ (15 cm) in from inside edge of pool or at start of radius corner.
Place system across widest point of pool if radius corners are greater than 6”.
Pool
B. 6“ (15 cm)
Space 10 strap plates evenly between outside marks
Mark strap plate location on tube drill lines. First strap plate is
placed 6“ (15 cm) in from inside edge of pool or at the start of the
radius corner (see Fig. 9).
Attach strap plates to the tube with metal screws (see Fig. 10).
DO NOT pre-drill holes or over-tighten screw.
Use all straps provided.
A.
STRAP ATTACHMENT - TO TUBE
Fig. 9

Thank you for buying the Blanket Handler or the Wheels Reel Solar Cover Reel System.
We know it will make solar cover handling easy for you.
FeherGuard “Three Year” Warranty Registration
Please Print
PURCHASER: ______________________________________________________________________________
ADDRESS: __________________________________________________________ CITY: _________________
STATE/PROVINCE/COUNTRY: ____________________________________ ZIP/POSTAL CODE: __________________________
___________________________________ ________________________________ ______________________
MODEL # PURCHASE DATE STORE LOCATION
Three Year Warranty:
FeherGuard warrants for a period of three years from the date of delivery to the original consumer
purchaser, that the Blanket Handler or the Wheels Reel Solar Cover Reel System shall be free from
defects in workmanship or material, under normal use and in accordance with FeherGuard’s
written installation and use instructions. FeherGuard at its option shall supply free of charge any
part found to be defective in workmanship or material.
Any implied warranties are limited in duration to the three-year period from the date of delivery to
the original consumer purchaser. Excluded from this warranty are all consumables (bearings,
straps, strap plates, screws). Tarnishing or discoloration of mill aluminum tubes can occur.
This is not a warranty issue as tarnishing does not affect tube performance.
This Warranty is void if there is evidence of purchaser abuse, improper installation or normal wear.
FeherGuard will not be liable for incidental or consequential damages resulting from any defects in
workmanship or material. Some States/Provinces/Countries do not allow the exclusion or
limitation of incidental or consequential damages, so the foregoing limitations or exclusions may
not apply.
This Warranty gives the claimant specific legal rights. The provisions of this Warranty are in
addition to and not a modification of or a subtraction from the statutory warranties and other rights
and remedies contained in applicable local legislation.
To validate Warranty, return this registration form within 30 days of purchase. You may also register
your warranty online on our Home Page at www.feherguard.com.
FeherGuard Products Ltd. 3153 Steeles Avenue West #5
Milton, Ontario CANADA
L9T 2V4
Specifications subject to change without notice.
12/10
FG1B or FG-BH
(circle one)
