Corner Kit - 80326
UNIVERSAL SAFETY
1986
SINCE
IMPACT TECHNOLOGY
APPROVED
CORNER KIT
ASSEMBLY AND OPERATION INSTRUCTIONS
MIMCLIP SYSTEM
JUMP DIRECTION AND POSITION JUMP DIRECTION AND POSITION
45°-75°
75°-90°

INFORMATION ABOUT THE CORNER KIT
The Corner Kit has been designed and
developed specically to greatly reduce the
risk of rotational falls.
The most important element of this kit is
that it will not break the fence or risk injury
to the horse if hit vertically. The rail is only
released when impacted horizontally by the
horse. The risk of a resulting rotational fall
is thus reduced.
It is essential to follow the recommended dimensions on the fence for the
correct function. If the recommended procedure is not correctly followed it
may cause the failure of the device.
For your own safety and that of others please note the following step by step
advice for correct preparation and installation. It is important that you follow your
own health and safety requirements when constructing this kit.
WARNING!
Ensure that you have all parts of the Corner Kit.
Be aware of the risk of injury when handling heavy rails,
posts and the tools for mounting.
FENCE DIMENSIONS
MIN-MAX SIZEB:
MIN-MAX SIZEA:
inch
6 – 8
mm
150 - 200
DIAMETER
inch
9 – 11
mm
225 - 275
inch
8-9
mm
200-225
MIN-MAX DIAMETER
inch
8 – 12
mm
200 - 300
MIN-MAX WEIGHT
lb
175 - 240
kg
80 - 110
MAXIMUM LENGTH
12
mm
ft
3600
SQUARE POSTROUND POST RAIL
A B
Jumping
direction
Jumping
direction

Jumping direction
IMPORTANT
Secured to
the ground
BF70A
Part no 8XCF18F Part no 12X
4X
8X 4X 2X
POST TOP
SECTION
M-TS10X90 POST BOTTOM
SECTION
RAIL
not included not included not included
A00454
Part no 4X
Minimum-Maximum
45°-90°
IMPORTANT
The clips F18F must be placed
on ALL posts.
YELLOW CLIP

1a
STEP
4X
IMPORTANT
When mounting, make sure the
hinge is mounted as shown in
this picture to ensure correct
activation.
15-17 inch 380-420 mm
IMPORTANT
Make sure you follow
these measurements for
correct fence
release/function
0-10 inch
0-250 mm
Square posts
MIN
130mm
5.1”
50mm
2”

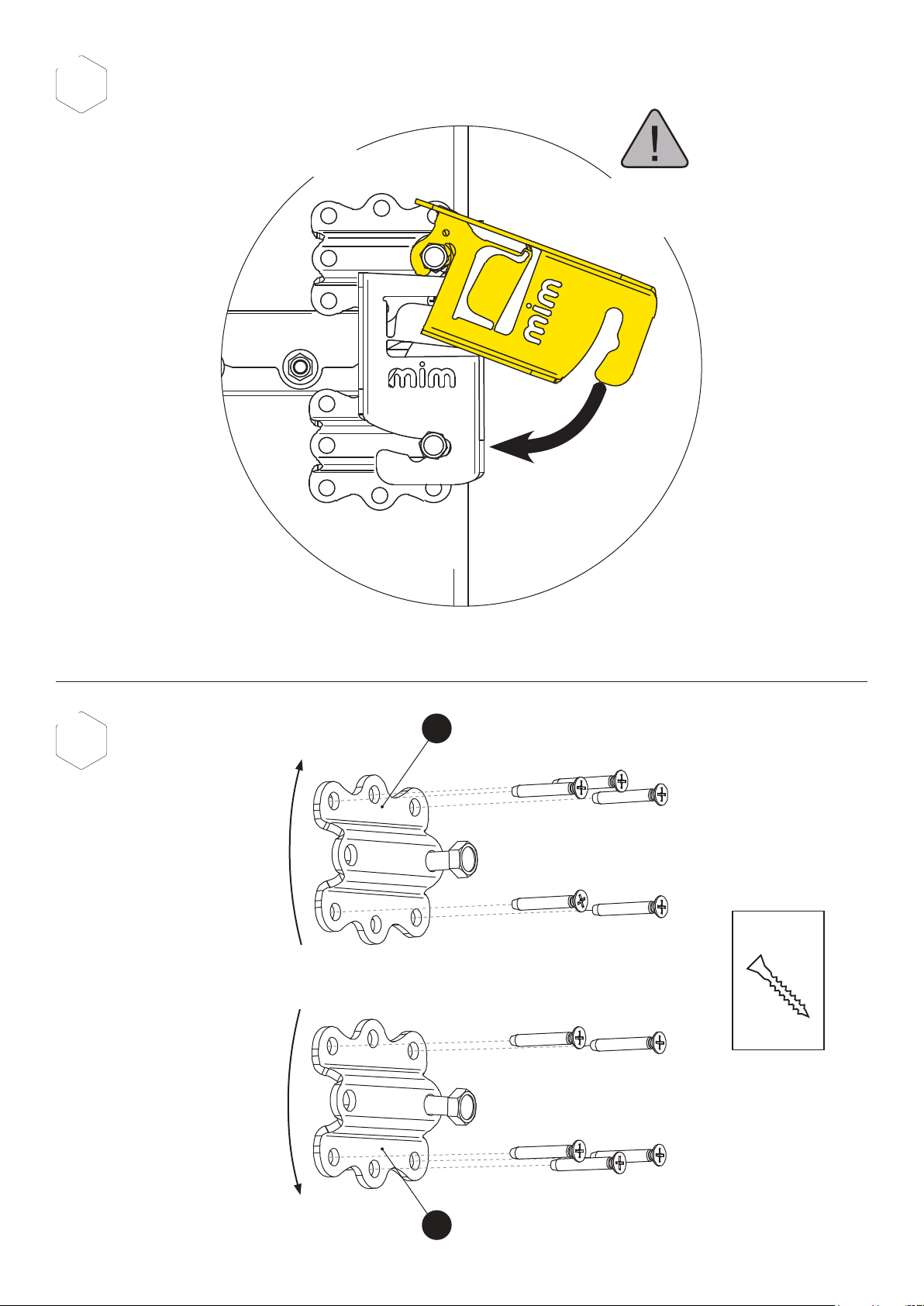

1b
STEP
2
STEP
32X
not included
Round posts
4X 4X
Cut offs
Cut offs
MIN
130mm
5.1”
70mm
2 3/4”
20mm
3/4”
IMPORTANT
Aligned cuts for torsional rigidity

3
STEP
4X
16X
not included

4
STEP
4X
IMPORTANT
USE M12 or UNC 1/2”
to make sure the horizontal rail
is rigid xed to the posts.

5
STEP
top view top view
Square 90° degrees angle
Jumping direction
CORRECT alignment of the clip WRONG alignment of the clip
4X 8X
M-TS10X90
IMPORTANT
USE
Drilling pattern 80326-DP
Add material to create a at
surface large enough for
the clip holders to be placed
correctly when round posts
are used
IMPORTANT
9.3” ± 0.5”
237 ± 15 mm
6.7” ± 0.5”
170 ± 15 mm

6
STEP
4X
4X
40X
not included
Distance between brackets
should be adjusted to avoid
clip C rattling.
IMPORTANT
Rotate the pieces C
around the bolt’s possition
if necessary
7
STEP
C
C

4X
8
STEP
Remove this bolt when the
corner kit is wider than 75°.
This will facilitate
the fence releasing.
IMPORTANT
45°-75°
75°-90°

9
STEP
Make sure it’s clearance
during activation
IMPORTANT
Fill out the gap with a xed lower post and
a loose stub above to avoid “foot trap”.
IMPORTANT
Connect the stub
with 3.6 mm
zip ties
IMPORTANT

mimclip.mimsafe.com
200 mm
8 inch
Corner Kit - 80326 Edition 2020-12
The advantages of the Corner Kit The advantages of the MIMclip
1. It has been produced with safety being the rst and
foremost important factor.
2. Reduces the possibility of rotational falls.
3. FEI approved number FEI15SWE.
4. Controlled movement of fence during release.
5. Reconstruction time is less than 30 seconds.
6. The parts are made of powder coated steel and can
be left outside, no maintenance is required.
7. The very highest quality of product from Sweden
ISO 9001.
The MIMclip (F18F) breaks on impact.
The ag is bent when the clip is exposed
to fatigue. In both cases the clip must be
replaced. The top section is connected
to the post with a hinge that makes the
fence easy to reconstruct. This saves
time, guarantees fair and correct judging
for riders and contributes to the overall
safety of the sport.
The ag is bent when fatigued.
IMPORTANT
When top section is released the distance between top section and ground
should be minimum 200 mm.
If distance between ground and top section is less, then place an object which
will prevent the top section falling into the SAFE AREA
WARNING
To procect the fence mechanism when
released, put a dampening material
between the safe area and the released
part of the fence.

OXER KIT
MIMCLIP SYSTEM
UNIVERSAL SAFETY
1986
SINCE
IMPACT TECHNOLOGY
APPROVED
mimclip.mimsafe.com
Oxer Kit - 80329
ASSEMBLY AND OPERATION INSTRUCTIONS
JUMP DIRECTION AND POSITION

INFORMATION ABOUT THE OXER KIT
The Oxer Kit has been designed and
developed specically to greatly
reduce the risk of rotational falls.
The most important element of this
kit is that it will not break the fence or
risk injury to the horse if hit vertically.
The rail is only released when impacted
horizontally by the horse. The risk of a
resulting rotational fall is thus reduced.
It is essential to follow the recommended dimensions on the fence for the
correct function. If the recommended procedure is not correctly followed
it may cause the failure of the device.
For your own safety and that of others please note the following step
by step advice for correct preparation and installation. It is important to
ensure that you follow your own health and safety requirements when
constructing this kit.
WARNING!
Ensure that you have all parts of the Oxer Kit.
Be aware of the risk of injury when handling heavy rails,
posts and the tools for mounting.
FENCE DIMENSIONS
MIN-MAX SIZE
inch
6 – 10
mm
150 - 250
MIN-MAX SIZE
inch
6 – 10
mm
150 - 250
MIN-MAX DIAMETER
inch
8 – 12
mm
200 - 300
MAXIMUM LENGTH
13.1
mm
ft
4000
POST RAIL
MIN-MAX WEIGHT
lb
110 - 265
kg
50 - 120

4X8X 2X4X4X4X
POSTM-TS10X90 RAILM-MM12NyM-BR12x22x2sM-SM12x120
not included not included
Jumping direction
AF65
Part no 4XBF64A5 Part no 4XCF70A Part no 8XDF18C Part no 12X
IMPORTANT
The posts must be:
PARALLEL,
VERTICALLY LEVELLED
& FRONTAL ALIGNED
RED CLIP
IMPORTANT
Secured to
the ground

1
STEP
2
STEP
4X4X4X
M-MM12NyM-BR12x22x2sM-SM12x120
4X
2X
ADJUST TO
CORRECT HEIGHT
IMPORTANT
The A & B pieces must be:
PARALLEL to
each other
ALIGNED to each other
IMPORTANT
The BOLTS must be:
B
A
B
A

3
STEP
3
STEP
4X
4X
*
*alternative
4
STEP
4X
2X
not included
2X
not included
8X
not included

5
STEP
5
STEP
*
*alternative
2X
2X 2X
not included
2X
not included
12X
not included

6
STEP
4X
4X
7
STEP
8
STEP
4X
D
90
C
8X
not included
2X
M-TS10X90
The C pieces must be:
PARALLEL AND
HORIZONTALLY LEVELLED
DISTANCE BETWEEN
C PIECES
The C pieces must be:
PARALLEL AND
HORIZONTALLY LEVELLED
(±10°)

mimclip.mimsafe.com
Oxer Kit - 80329 Edition 2020-12
The advantages of the Oxer Kit The advantages of the MIMclip
1. It has been produced with safety being the rst
and foremost important factor.
2. Reduces the possibility of rotational falls.
3. FEI approved number FEI09SWE.
4. Controlled movement of fence during release.
5. Reconstruction time is less than 30 seconds.
6. The parts are made of powder coated steel and
can be left outside, no maintenance is required.
7. The very highest quality of product from Sweden.
The MIMclip (F18C) breaks on impact.
The ag is bent when the clip is exposed
to fatigue. In both cases the clip must be
replaced. The top section is connected
to the post with a hinge that makes the
fence easy to reconstruct. This saves
time, guarantees fair and correct judging
for riders and contributes to the overall
safety of the sport.
The ag is bent when fatigued.
200 mm
8 inch
SAFE AREA
WARNING
When rail is released the distance
between rail and ground should be
minimum 200 mm.
If distance between ground and
rail is less, then place object which
prevent rail falling into the
SAFE AREA
WARNING
To procect the fence mechanism when
released, put a dampening material
between the safe area and the released
part of the fence.
