Feider Machines FAP1440 User manual

Instruction manual
IMPORTANT ─Please carefully read this manual to understand the whole of the machine before use.To
reduce the risk of injury, user must read instruction manual.
BUILDER SAS
ZI – 32, rue Aristide Bergès, 31270 Cugnaux, France
MADE IN PRC
01

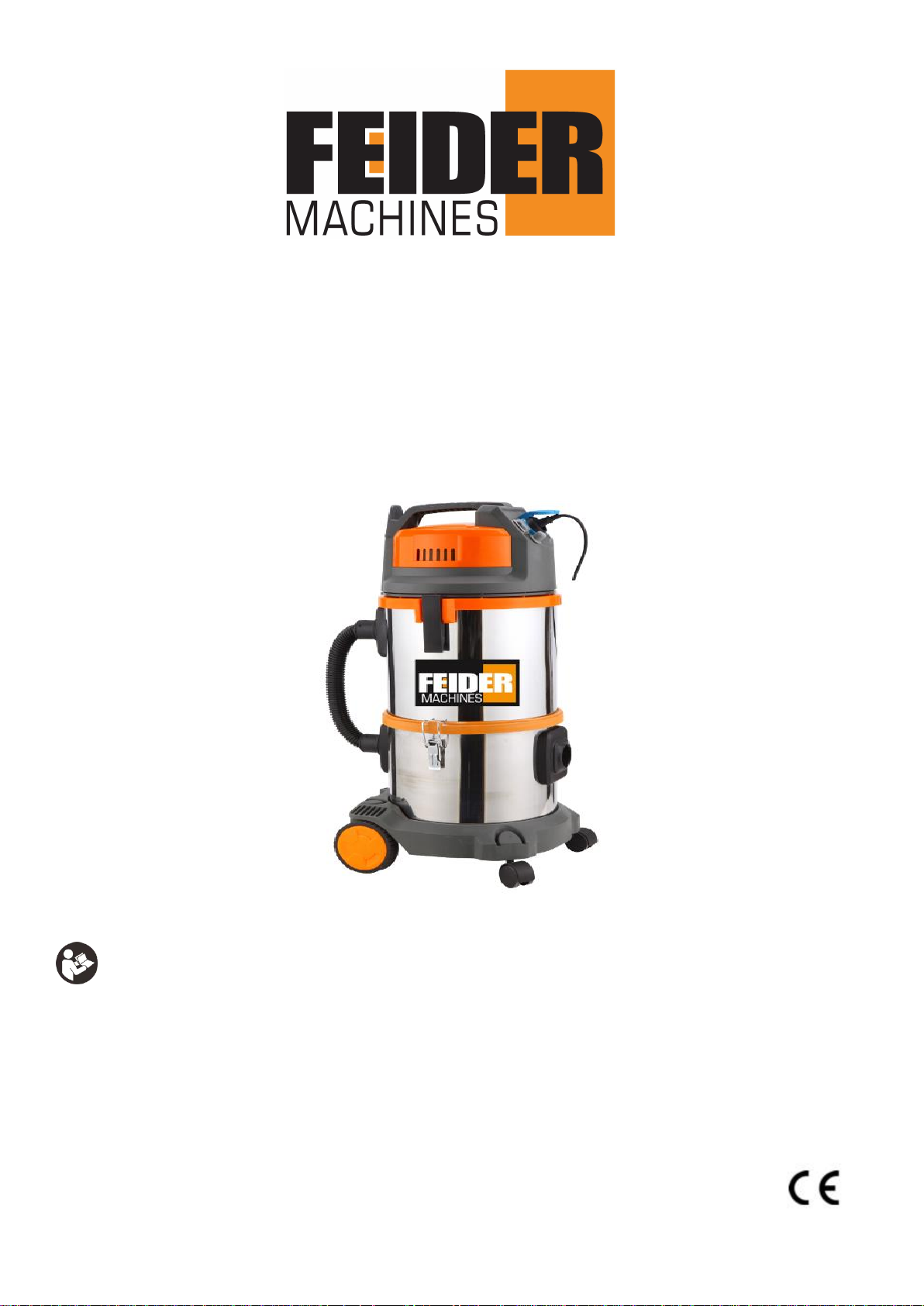

WATER FILTER VACUUM CLEANER 40L
Model: FAP1440

TABLE OF CONTENTS
WARNING..........................................................................................................2
Technical data....................................................................................................5
Items supplied....................................................................................................5
Overview of nozzles...........................................................................................6
Assembly ..........................................................................................................6
Wet vacuum - cleaning......................................................................................7
Dry vacuum-cleaning.........................................................................................8
Maintenance – cleaning.....................................................................................9
CE Declaration of Conformity.............................................................................10
WARRANTY.......................................................................................................11
PRODUCT FAILURE.........................................................................................12
WARRANTY EXCLUSIONS..............................................................................13
WARNING:
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
02

to avoid a hazard.
Check that the mains voltage corresponds
to the details on the type plate.
Only connect to a proper 220-240 volt,
50/60Hz socket.
Minimum fuse protection 13A.
Pull the mains plug out of the socket when:
the unit is not in use, before opening the
unit, before cleaning and maintenance.
Never clean with solvents.
Do not use the cable to pull the plug out of
the socket.
When unit is ready for use, do not leave
unattended Safeguard from children.
Care must be taken that the mains
connection lead is not damaged by being
driven over, crushed, stretched, etc.
The unit must not be operated if the mains
connection lead is not in perfect condition.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent to a similarly qualified person in order
to avoid a hazard.
On no account vacuum: burning matches,
03

glowing ashes and cigarette ends,
inflammable, corrosive, fire hazard or
explosive substances, vapours and liquids
This unit is not suitable for vacuuming dust
which is damaging to health.
Store the unit in a dry place.
Do not operate a defection unit.
Servicing only by an authorized after-sales
service point.
Use only for operations for which the unit is
intended.
Take great care when cleaning stairs.
Use only manufacturer’s attachments and
spare parts.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
IPX4 is only granted by connect an IPX4
04

plug to socket-out of the appliance or
the cover of the socket-out is closed.
Max. load of socket-out: 2000W.
Technical data:
1.Rated power:3400W(1400W motor,max.load of socket-out:2000W)
2.Voltage.:220-240V
3.Frequency.:50/60Hz
4.Insulation class.:Class I
Items supplied:
1、Handle
2、ON/OFF switch
3、Top section
4、Filter basket
5、Transparent window
6、Clasp
7、Upper Tank
8、Vacuum hose connection
9、Idler wheel
10、Flexible vacuum hose
11、Vacuum tube
12、air inlet
13、Large vacuum nozzle
14、Cotton bag
15、Crevice nozzle
16、Speed controller
17、Socket outlet
18、Botton Tank
05

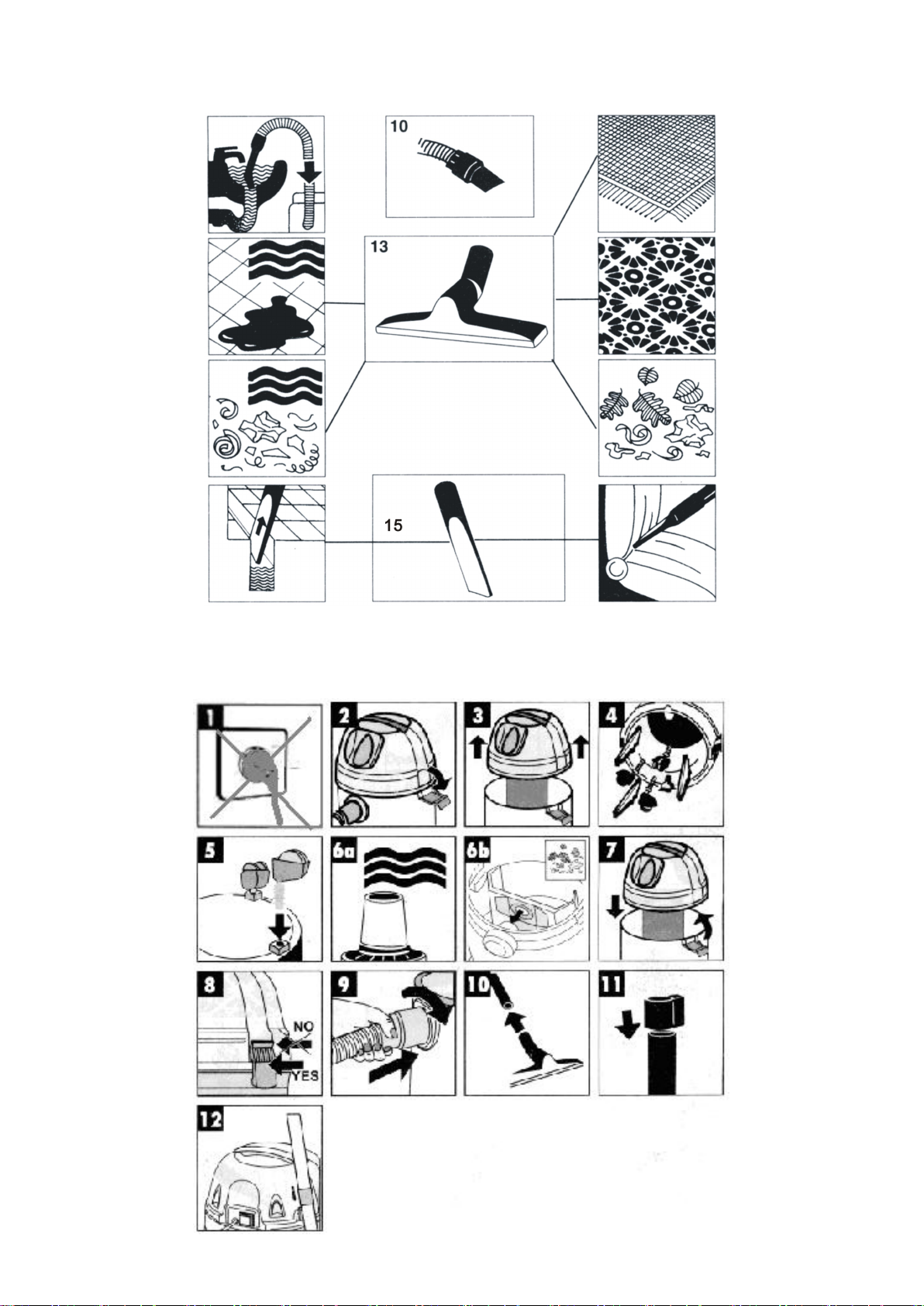

Overview of nozzles
Assembly
06

Please note:
Figure 6a:Use the supplied foamed plastic filter for wet vacuum-cleaning
Figure 6b:Use the supplied dust bag for dry vacuum-cleaning
Insert the plug and turn on the switch, then appliance starts to work (Figure 4 & 5a or 5b)
When push the switch to the “I” position, the vacuum cleaner will work; when push the switch to the
“O” position, vacuum cleaner will not work.
The outer facility for the socket’s power is below 2000W.
The dust bag included upon delivery is not suitable for wet vacuum-cleaning!
Wet vacuum - cleaning
Unplug before change filter (Figure 1)
Pull the supplied foamed plastic filter over the filter basket (Figure 2) for wet vacuum-cleaning.
Insert the plug and turn on the switch, then appliance starts to work (Figure 4 & 5a or 5b)
When push the switch to the “I” position, the vacuum cleaner will work alone; when push the switch
to the “O” position, vacuum cleaner will not work; when push the switch to the “II” position, while the
tool which is connected with the socket working, the vacuum cleaner also work 3-5 seconds later,
while the tool stop working, the vacuum cleaner also stop working.
Pls note:When use wet function,install the hose into upper tank,use upper tank and brush to suction
water.After wet use,pull out water and clean the tank.
The outer facility for the socket’s power is below 2000W.
The dust bag included upon delivery is not suitable for wet vacuum-cleaning!
07

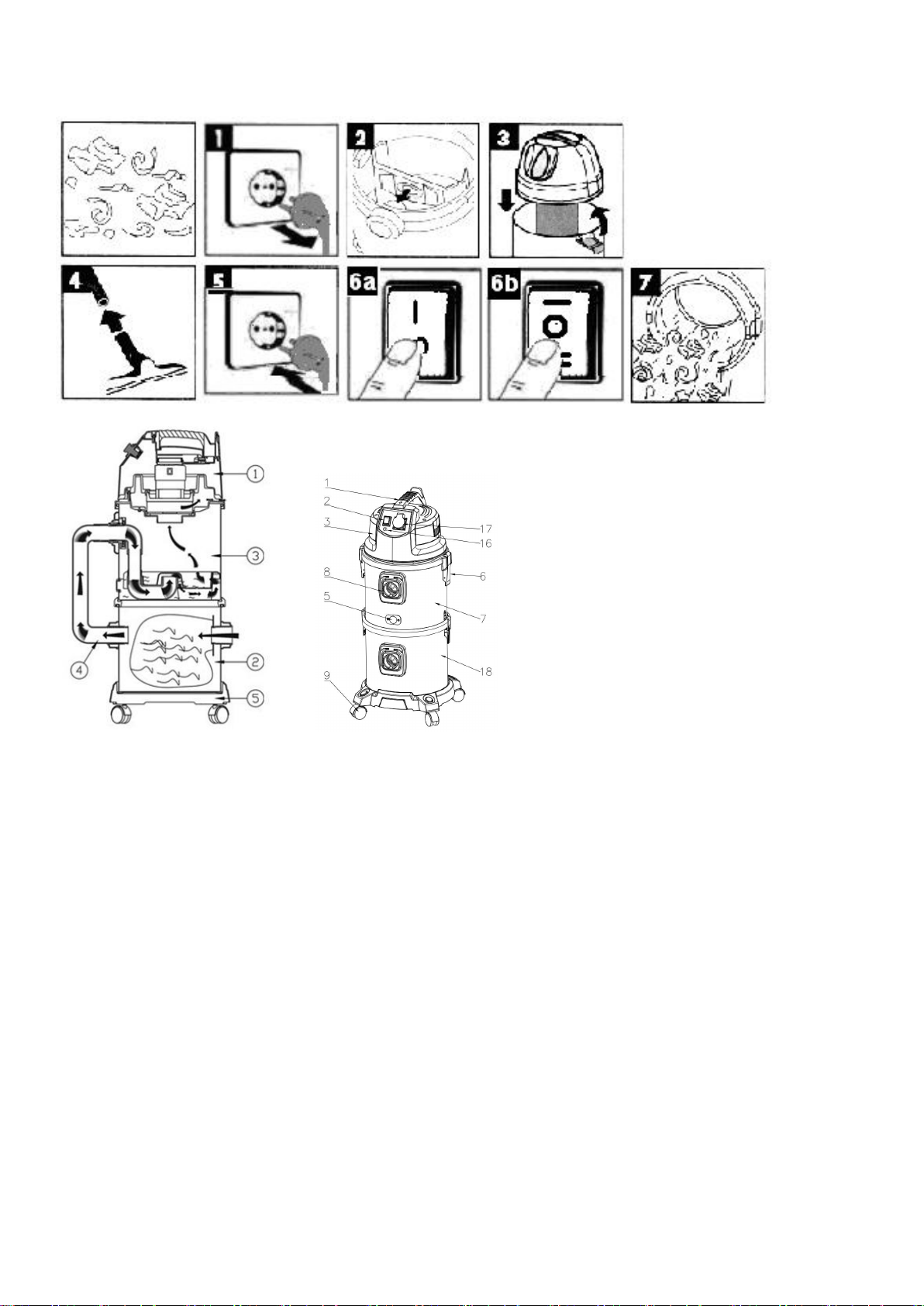

Dry vacuum-cleaning
Unplug before change filter (Figure 1), then take out the bag and empty the dust or replace the bag.
Slip the dust bag onto the socket(figure 2) for dry vacuum-cleaning.
Insert the plug and turn on the switch, then appliance starts to work (Figure 5 & 6a or 6b)
When push the switch to the “I” position, the vacuum cleaner will work; when push the switch to the
“O” position, vacuum cleaner will not work.when push the switch to the “II” position, while the tool
which is connected with the socket working, the vacuum cleaner also work 3-5 seconds later, while
the tool stop working, the vacuum cleaner also stop working.
The outer facility for the socket’s power is below 2000W.
The dust bag is suitable only for dry vacuum-cleaning!
Pls note:The dry function is mostly use with sanders,
1.assemble the connect hose between the upper tank and bottom tank like (left hand 4)
2.Assemble the dust bag into the bottom tank(like left hand 2)
3.Put in some water in upper tank,the water level should be in middle through the transparent window.(like right
hand 5)
4.Insert the sander plug into the “right hand 17” socket,the vacuums switch turn to “6b” ,then turn on sanders
switch for sanders using.
08

5.Switch “6b” is only used when vacuums connect with sanders.
The dust bag is suitable only for dry vacuum-cleaning!
Maintenance – cleaning
Unplug before maintenance (Figure 1)
Take off the foamed plastic filter (Figure 3), and wash by water (Figure 5)
IMPORTANT:Do not use detergents to clean the filter. The filter must be thoroughly dry before the
machine is used.
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. Electric and electronic
equipment can be hazardous for the environment and for human
health since they contain hazardous substances.To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.
09

CE Declaration of Conformity
DECLARATION OF CONFORMITY
BUILDER SAS
ZI - 32 rue aristide Bergès - 31270 Cugnaux - France
Tel : [phone] Fax : [phone]
States that the designated below machine :
Water filter vacuum cleaner
applicable European Directives, based on the application of European harmonized standards. Any
unauthorized modification of the apparatus voids this declaration.
Satisfies the requirement of the Council Directives:
EC- Low voltage directive 2014/35/EU
EC Directive of Electromagnetic Compatibility 2014/30/EU
Rohs Directive 2011/65/EU &（EU）2015/863
and conforms with the norms:
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019
EN 60335-2-2:2010+A11:2012+A1:2013
EN 62233 : 2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
Done at Cugnaux : 07/07/2021
Philippe MARIE/PDG
10
S/N: 20210868376-20210868625
is in conformity with the essential requirements and other relevant provisions of the
Model: FAP1440

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identifed as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insufcient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specifcations
without notice. Consequently, the product may be diferent from the information contained therein, but a
modifcation will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can fnd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these fles: invoice or sales receipt, photo
of the identifcation plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
WARRANTY
11

WHAT TO DO IF MY MACHINE BREAKS DOWN?
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping of the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
• http://www.briggsandstratton.com/eu/fr
• http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
• https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].
If you bought your product on a website:
a) Empty the fuel tank if your product has one.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
If you bought your product in a store:
a) Empty the fuel tank if your product has one.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
PRODUCT FAILURE
12

THE WARRANTY DOES NOT COVER:
• Start-up and setting up of the product.
• Damage resulting from normal wear and tear of the product.
• Damage resulting from improper use of the product.
• Damage resulting from assembly or start-up not in accordance with the user manual.
• Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
• Periodic and standard maintenance events.
• Actions of modifcation and dismantling that directly void the warranty.
• Products whose original authentication marking (brand, serial number) has been degraded, altered or
withdrawn.
• Replacement of consumables.
• The use of non-original parts.
• Breakage of parts following impacts or projections.
• Accessories breakdowns.
• Defects and their consequences linked to any external cause.
• Loss of components and loss due to insufcient screwing.
• Cutting components and any damage related to the loosening of parts.
• Overload or overheating.
• Poor power supply quality: faulty voltage, voltage error, etc.
• Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs
and more generally the costs related to the immobilization of the product.
• The costs of a second opinion established by a third party following an estimate by a SWAP-Europe repair
station
• The use of a product which would show a defect or a breakage which was not the subject of an immediate
report and/or repair with the services of SWAP-Europe.
• Deterioration linked to transport and storage*.
• Launchers beyond 90 days.
• Oil, petrol, grease.
• Damages related to the use of non-compliant fuels or lubricants.
* In accordance with transport legislation, damage related to transport must be declared to carriers within 48
hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by the
delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notifcation by registered letter with acknowledgement within 72
hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site). Batteries must
be charged before being stored.
WARRANTY EXCLUSIONS
13
