Feig Electronic ID SCANNDYgun User manual

IDENTIFICATION
H90315-0e-ID-B
USER GUIDE
ID SCANNDYgun
RFID-/Barcode Scanner with Gun Grip and Big Trigger Button

IDENTIFICATION
ID SCANNDYgun
Note
USER GUIDE
Page 2 of 39
Note
Note
© Copyright by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg (Germany)
Tel.: +49 2203 10 334 777
http://www.feig.de
http://www.panmobil.com
support@panmobil.com
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge.
FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions.
FEIG ELECTRONIC GmbH does not give any guarantee promise for perfect function in cross environments
and does not give any guarantee for the functionality of the complete system which incorporates the subject
of this document.
FEIG ELECTRONIC GmbH calls explicit attention that devices which are subject of this document are not
designed with components and testing methods for a level of reliability suitable for use in or in connection
with surgical implants or as critical components in any life support systems whose failure to perform can
reasonably be expected to cause significant injury to human health. To avoid damage, injury or death the
user or application designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this
document and makes no representation that they are free of patent infringement. FEIG ELECTRONIC GmbH
does not convey any license under its patent rights nor the rights of others.

IDENTIFICATION
ID SCANNDYgun
Contents
Page 3 of 39
Contents
Contents
1Safety Instructions 5
2Revision History of Documentation 6
3Scope of Delivery 7
4Product Description 8
5Technical Data 15
6Operation 16
6.1 Charging the Battery ....................................................................................................... 16
6.2 Device Reset .................................................................................................................... 16
6.3 SCANNDY System Menu................................................................................................. 17
6.3.1 Menu Item „Run Program“.................................................................................... 18
6.3.2 Menu Item „Date & Time“ ..................................................................................... 18
6.3.3 Menu Item „Barcode“............................................................................................ 18
6.3.4 Menu Item „Wi-Fi“ ................................................................................................ 20
6.3.5 Menu Item „HF“ .................................................................................................... 21
6.3.6 Menu Item „UHF“ ................................................................................................. 21
6.3.7 Menu Item „Bluetooth“.......................................................................................... 22
6.3.8 Menu Item „Display“ ............................................................................................. 25
6.3.9 Menu Item „Sound“ .............................................................................................. 25
6.3.10 Menu Item „Power“ ........................................................................................... 26
6.3.11 Menu Item „Security“ ........................................................................................ 26
6.3.12 Advanced Device Configuration........................................................................ 26
6.4 Scanning .......................................................................................................................... 27
6.4.1 1D Laser .............................................................................................................. 27
6.4.2 1D/2D Imager....................................................................................................... 28
6.4.3 RFID .................................................................................................................... 29

IDENTIFICATION
ID SCANNDYgun
Contents
Page 4 of 39
7Bluetooth Connection 30
8Wi-Fi Connection 32
9Transmitting Barcode and/or RFID Data to a Host 33
10 Troubleshooting 34
11 Maintenance and Cleaning 35
12 Disposal 36
13 Approvals 37
13.1 USA (FCC) and Canada (IC) ............................................................................................ 37
13.2 Europe (CE)...................................................................................................................... 38
14 Warranty 39

IDENTIFICATION
ID SCANNDYgun
1Safety Instructions
Page 5 of 39
1 Safety Instructions
Safety Instructions
►Please read this user guide carefully and follow the given instructions and safety instructions before
using the device.
►The device may only be used for the intended purpose designed by the manufacturer.
►This user guide should be conveniently kept available at all times for each user.
►Unauthorized changes and the use of spare parts and additional devices which have not been sold or
recommended by the manufacturer may cause fire, electric shocks or injuries. Such unauthorized
measures shall exclude any liability by the manufacturer.
►The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid for the
device. The manufacturer shall not be held legally responsible for inaccuracies, errors, or omissions in
the manual or automatically set parameters for a device or for an incorrect application of a device.
►Repairs may only be executed by the manufacturer.
►Installation, operation and maintenance procedures should only be carried out by qualified personnel.
►Use of the device and its installation must be in accordance with national legal requirements and local
electrical codes.
►When working on devices the valid safety regulations must be observed.

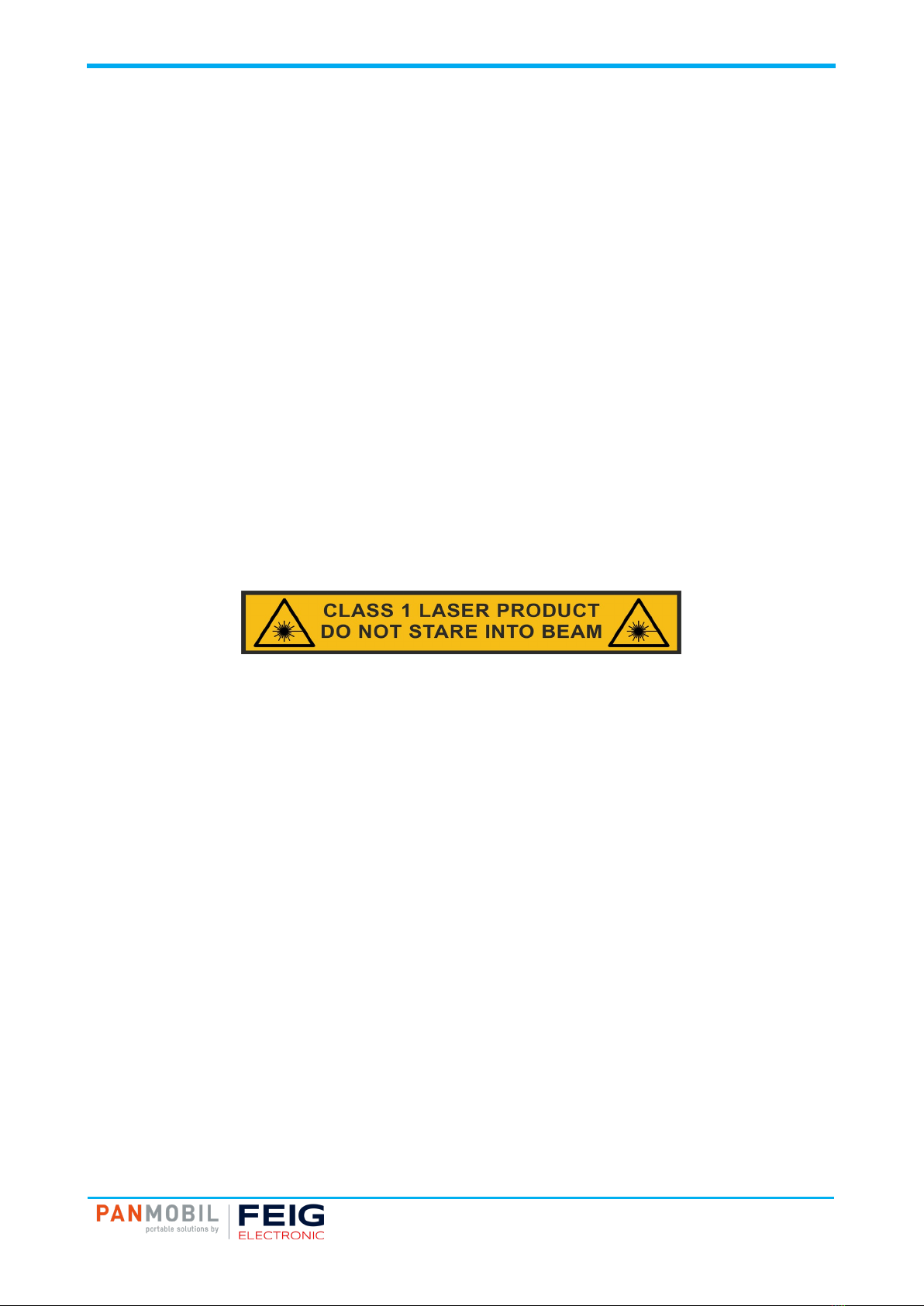

►Use of controls or adjustments or performance of procedures other than those specified herein may
result in exposure to hazardous visible laser light. The laser scanner utilizes a low-power laser diode.
Although staring directly at the laser beam momentarily causes no known biological damage, avoid
staring into the beam as one would with any very strong light source, such as sunlight. Avoid that the
laser beam hits the eye of an observer, even through reflective surfaces like mirrors, etc.
►Do not crush, puncture, short circuit or place the LiPo battery in fire or water. To reduce the risk of fire or
burns, do not attempt to open, disassemble, or service the battery pack. Do not expose the unit to
temperatures above 60 °C (140 °F). Only charge the battery with the battery charger intended by the
manufacturer. Do not deep discharge the battery. Do not use damaged batteries.
►Switch off your wireless device whenever you are instructed to do so by airport or airline staff. Consult
airline staff and ask for the device’s use in-flight.
►Wireless devices may affect medical electrical equipment. Therefore they should be switched off
wherever you are requested to do so in hospitals or healthcare facilities to prevent interference with
sensitive medical equipment.
►It is recommended by pacemaker manufacturers to maintain a minimum of 15 cm (6”) between a
handheld wireless device and a pacemaker to avoid potential interference. Therefore persons with
pacemakers should not carry the device in a breast pocket. These recommendations are consistent with
independent research and recommendations by Wireless Technology Research. If you have any reason
to suspect that interference is taking place, turn off your device.
►Do not take note or use the device while driving. When driving a vehicle, driving is your first
responsibility, therefore give full attention to driving.
►RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles.
You should consult the manufacturer of any equipment that has been added to your vehicle.
►Do not place the device in the area over the air bag or in the air bag deployment area. Improperly
installed wireless equipment could result in serious injury when the air bag inflates.
►Observe restrictions on the use of radio devices in fuel depots, chemical plants and areas where the air
contains chemicals or particles such as grain, dust or metal powder as well as any other area where you
are advised to turn off your vehicle engine.

IDENTIFICATION
ID SCANNDYgun
2Revision History
Page 6 of 39
2 Revision History of Documentation
Revision History
Revision
Date
Description
0 13.05.2019 Initial version

IDENTIFICATION
ID SCANNDYgun
3Scope of Delivery
Page 7 of 39

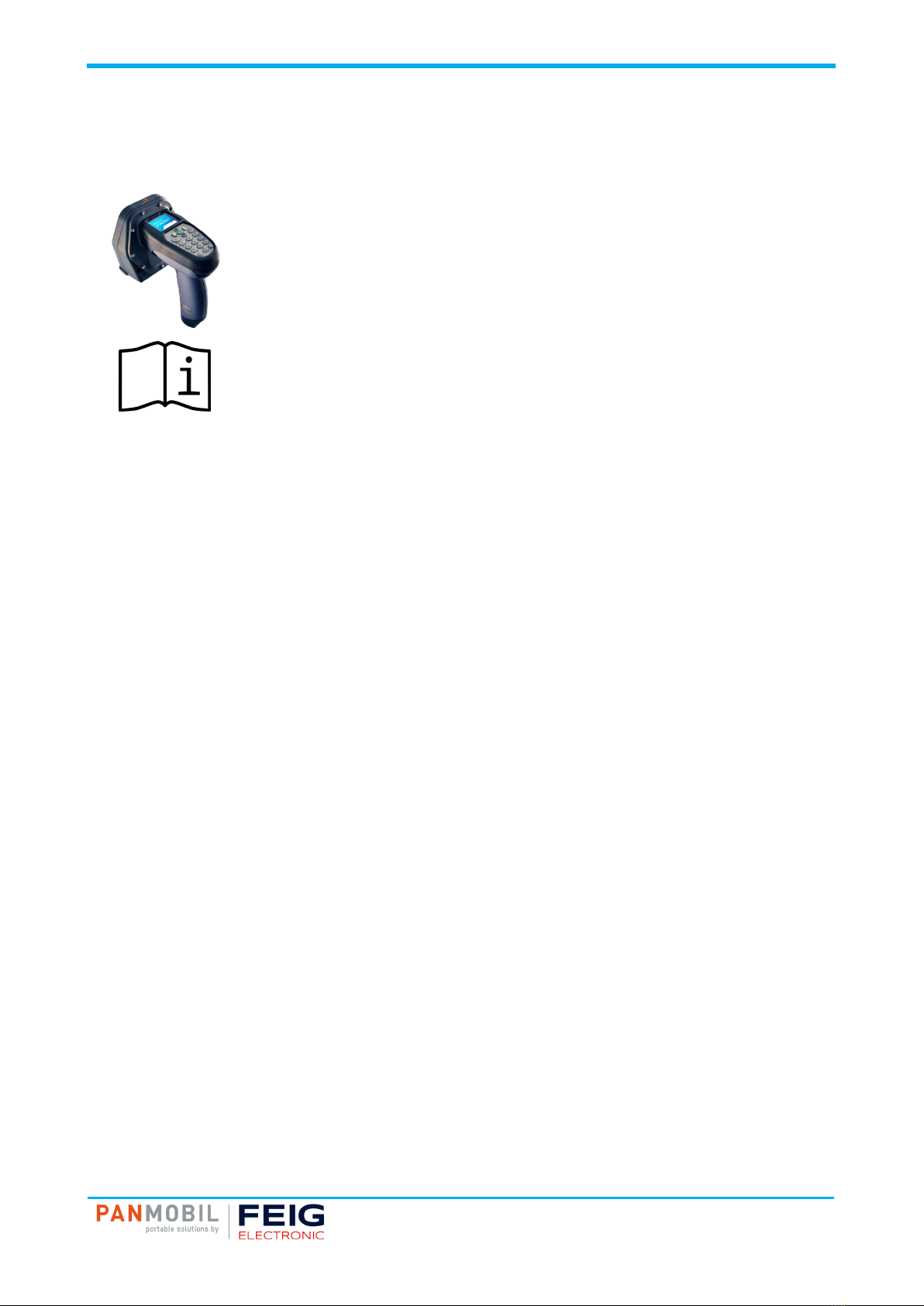

3 Scope of Delivery
Scope of Delivery
The scope of delivery includes following components:
1 x ID SCANNDYgun (incl. protective rubber cover)
1 x ID SCANNDYgun User Guide
After unboxing please make sure, that all listed parts have been delivered properly and in good condition.

IDENTIFICATION
ID SCANNDYgun
4Product Description
Page 8 of 39
4 Product Description
Product Description
The SCANNDYgun series devices from FEIG ELECTRONIC capture and store barcode and RFID data for a
variety of uses and transmit barcode and RFID data to a host via USB connection, Bluetooth or WiFi. This
document provides basic instructions for using the SCANNDYgun series device.
Fig. 1: ID SCANNDYgun display top view
Label
Description
Function
1 Left LED (green)
Left LED (red)
Green LED: Lights up green when the SCANNDYgun is turned ON.
When the battery level is empty, it flashes every 2 sec.
(Further function can be user defined with the programming interface.)
Red LED: Lights up red if connected to a battery charger (USB or power
adapter).
2 Right LED (yellow)
Right LED (blue)
Yellow LED: Lights up yellow if a barcode or RFID tag was read
successfully. Is flashing yellow (500ms) when connected to USB (USB
memory stick mode).
Blue LED: Lights up blue if Bluetooth connection is established.
Is flashing blue every second while connecting to a Wi-Fi network.
Is flashing blue every 5 seconds when connected to a Wi-Fi network.
(Further function can be user defined with the programming interface.)
3 Rubber Protector Protective rubber cover to protect the device from splash water, dust and
drops. It is recommended not to use the device without the rubber protector.

IDENTIFICATION
ID SCANNDYgun
4Product Description
Page 9 of 39
4 Full Color OLED Display Full color OLED display with 1.45“ and a resolution of 160 x 128 pixels.
Label
Description
Function
5+6 Hidden Reset Keys The hidden system reset keys are located in the upper left and right corners
of the rubber keypad. Press the rubber keypad on both corners at the same
time to reset the device.
NOTE:
A system reset can result in loss of data and/or configuration settings.
7 Navigation Key UP Press the up navigation key to move the cursor up.
(Further function can be user defined with the programming interface.)
8 Navigation Key RIGHT Press the right navigation key to move the cursor to the right side.
(Further function can be user defined with the programming interface.)
9 Navigation Key DOWN Press the down navigation key to move the cursor down.
(Further function can be user defined with the programming interface.)
10 Navigation Key LEFT Press the left navigation key to move the cursor to the left side.
(Further function can be user defined with the programming interface.)
11 Trigger Key Press the trigger key to start the barcode reader.
(Further function can be user defined with the programming interface.)
12 Cancel/Clear Key Press the cancel/clear key to cancel a function or to clear keyboard inputs.
(Further function can be user defined with the programming interface.)
Fig. 2: ID SCANNDYgun function keys top view

IDENTIFICATION
ID SCANNDYgun
4Product Description
Page 10 of 39
13 ON/OFF / OK Key Default: ON/OFF key
When OFF: Shortly press the key to boot the device.
When ON: Press the key for 3 seconds to shut the device down.
When ON: Shortly press the key to confirm messages or inputs.
(Further function can be user defined with the programming interface.)
12+13 Launcher Mode Fall back Configuration mode
Follow the instructions below to set the device into the Launcher Mode.
1. Switch off the device.
2. Press and hold key 10 (DOWN) and key 13 (OK) until you hear a beep
(this may take several seconds).
3. Connect the device to a PC via USB.
4. The device will be mounted as a removable drive “SCANNDY”.
5. You can now modify and save the settings.
6. Press key 11 (Trigger) until you hear a beep.
The device will now restart with the new settings.

IDENTIFICATION
ID SCANNDYgun
4Product Description
Page 11 of 39
Fig. 3: ID SCANNDYgun alphanumeric keypad top view
Label
Description
Function
14 Alphanumerical Keys Shortly press these keys to input digits or alphabetical characters.
(Further function can be user defined with the programming interface.)
15 Dot / Toggle Numeric/Alpha
Key
Shortly press this key to input the dot character.
Press this key for 1 second to toggle between numeric and alphabetical
mode.
(Further function can be user defined with the programming interface.)
16 Comma / Function Key Shortly press this key to input the comma character.
Press this key for 1 second to toggle between comma and function key
mode.
(Further function can be user defined with the programming interface.)

IDENTIFICATION
ID SCANNDYgun
4Product Description
Page 12 of 39
Fig. 4: ID SCANNDYgun back and bottom view
Label
Description
Function
17 Direct Connect Interface Interface to connect the direct connect cable.
NOTE: The interface can be USB or RS232. Please check the product
label for information on the interface type. Do not connect a USB
configured device to an RS232 cable and vice versa. This may damage
components inside the device.
18 Main Communication
Interface (Gun Grip??)
Communication and battery charging interface.
19 Battery Cover Open the battery cover to access the battery.
20 Battery Cover Release
Button
Turn the battery cover release button counter-clockwise by 45° to remove
the battery cover..
21 Battery Contacts Battery contacts for charging the Li-Ion battery.
ENSURE NOT TO DAMAGE THE PINS WHEN INSERTIG THE
RECHARGEABLE BATTERIES! WATCH OUT FOR THE POLARITY!

IDENTIFICATION
ID SCANNDYgun
4Product Description
Page 13 of 39
Fig. 5: ID SCANNDYgun front view
Label
Description
Function
22 Protection Glass Protection glass for the barcode reader. To have the best reading
performance, keep the glass clean and free of scratches.
23 RFID Good Read LED Lights red when an RFID tag has been read successfully.
24 Barcode Reader 1D laser barcode reader or 1D/2D code imager.
25 Long Range RFID Antenna
(option)
Antenna for long range RFID reader/writer.

IDENTIFICATION
ID SCANNDYgun
4Product Description
Page 14 of 39
Fig. 6: ID SCANNDYgun docking station device overview
Label Description Function
1 Communication and Battery
Charging Interface
USB Host interface
Optional RS232 interface
Device battery charging interface
2 Power LED (green)
Charging LED (red) for the
Spare Battery
Constant green when the docking station is powered ON.
Constant red while spare battery is charging inside the spare battery
charging slot (4).
3 Blue LED Bluetooth connection LED.
Constant blue when a device is connected via Bluetooth.
4 Spare Battery Charging Slot Charges the spare battery.
5 Mini-USB Interface Mini-USB to PC interface
6 Connector for Power Supply Connector for power supply.
DO NOT USE OTHER POWER ADAPTERS THAN THE ORIGINAL FROM
FEIG ELECTRONIC!
7 Main Communication RJ45 main communication interface.
Please check the product label for information on the interface type.

IDENTIFICATION
ID SCANNDYgun
5Technical Data
Page 15 of 39
5 Technical Data
Technical Data
Mechanical Data
Housing Robust ABS with rubber protector
Dimension (W x H x D) 150 mm x 104 mm x 146 mm
(5.91“ x 4.09“ x 5.75“)
Weight 412 g (0.91 lbs)
Protection Class IP 54 (with rubber protector)
Color black, gray
Electrical Data
Barcode (optional)
RFID (optional)
1D: EAN-8, EAN-13, UPC-A, UPC-E Code 128, Code 39,
Code 93, Interleaved 2of5, Chinese 2of5, Codabar,
Codablock_F
2D: DataMatrix, QR Code, Micro QR, Aztec Code,
Maxi Code, PDF417, MicroPDF
13,56 MHz: ISO 15693, ISO 14443-A, Mifare
860–930 MHz: EPC Gen 2, ISO 18000-6-C
Interfaces
•USB
•WiFi
•Bluetooth
USB mass storage, USB HID, USB Ethernet, USB Serial
2.4 GHz (IEEE 802.11 b/g)
Bluetooth Class 2, HiD SPP
Battery 1500 mAh Lithium Ion, 3.7 V
Indicators LED (red, green, yellow, blue)
Buzzer
Vibration feedback
Keyboard Alphanumeric keyboard with 19 keys
Display OLED color display, 1.45”, 160 x 128 Pixel, RGB
CPU ARM9, 400 MHz
Memory 128 MB RAM
1 GB Flash (500 MB internal / 500 MB external)
Operating System Embedded Linux
Proof of Data Non-volatile memory
Date / Time Real-time clock
Supported OS Win 7 / Win 8 / Win 10 (32 and 64 bit) / Server 2003/2000
Programming ECLIPSE IDE for C/C++, ScanndyFormsLanguage
Configuration MasterSetup
Environmental Conditions
Temperature Range
•Operation
•Storage
0 °C up to 50 °C (32 °F up to 122 °F)
-20 °C up to 60 °C (-4 °F up to 140 °F)
Humidity 5 % up to 95 % (non-condensing)
Drop 1.6 m drop to concrete
Standard Compliance
RoHS, WEEE, CE, Apple iOS (MFi), Android

IDENTIFICATION
ID SCANNDYgun
6Operation
Page 16 of 39
6 Operation
Operation
6.1 Charging the Battery
Before the first operation, the main battery should be fully charged by using the included USB charging
cable. As long as the battery is charging the red LED will light solid red. After the battery is fully charged the
red LED turns off. A full recharge of the battery takes approx. 4 hours.
To charge the battery follow the instructions below:
1. Place the SCANNDYgun into the docking station
2. Plug the power adapter into the wall outlet.
3. The green LED on the docking station will light solid green.
4. As long as the battery is charging, the red LED lights solid red.
5. After the battery is fully charged the red LED turns off.
6.2 Device Reset
To reset the ID SCANNDYgun press and hold the hidden reset keys 5 and 6 at the same time (see Product
Description on page 8).
NOTE:
A system reset may result in loss of data and/or configuration settings.

IDENTIFICATION
ID SCANNDYgun
6Operation
Page 17 of 39
6.3 SCANNDY System Menu
From the application main menu press the Cancel key (12) to enter the SCANNDY system menu. To protect
the system settings from unauthorized access, you will be prompted to enter a password.
In factory default the system menu password is left blank. Simply press the OK key (13) if you are prompted
to enter the password.
NOTE:
This description is only valid for devices with factory-installed software. Devices with custom
software can behave different, depending on the programming.
Use the up (7) and down (9) navigation keys to highlight a menu item. Use the navigation key left (10) to
select a menu item or right (8) to exit a sub menu.

IDENTIFICATION
ID SCANNDYgun
6Operation
Page 18 of 39
6.3.1 Menu Item „Run Program“
Highlight the menu item “Run Program” and press the left navigation key (10) to exit the system menu and
return to the installed application.
6.3.2 Menu Item „Date & Time“
Highlight the menu item “Date & Time” and press the left navigation key (10) to enter the date and time
settings.
Simply type the date and time by using the alphanumeric keys (14). The entered date and time will overwrite
the existing entry. Press the left navigation key (10) to accept and save the entered date and time or press
the right navigation key (8) to cancel the input and return to the main menu.
6.3.3 Menu Item „Barcode“
Highlight the menu item “Barcode” and press the left navigation key (10) to enter the barcode settings.
Highlight the barcode menu item “Symbology” and press the left navigation key (10) to enter the symbology
menu.

IDENTIFICATION
ID SCANNDYgun
6Operation
Page 19 of 39
Enabled barcode symbologies are marked with the character “*”. To disable or enable barcode a symbology,
highlight the corresponding symbology and press the Trigger key (11).
To enter the barcode symbology settings, highlight the corresponding symbology and press the left
navigation key (10).
Example for Code 39 settings:
To change the barcode symbology configuration, highlight the corresponding menu item and press the left
navigation key (10). The modified configuration will be saved automatically when pressing the right
navigation key (8) to exit the sub menu.
Use the same procedure for all barcode symbology settings.

IDENTIFICATION
ID SCANNDYgun
6Operation
Page 20 of 39
6.3.4 Menu Item „Wi-Fi“
Highlight the menu item “Wi-Fi” and press the left navigation key (10) to enter the Wi-Fi settings.
SSID
Enter the SSID of the wireless network you want the device to connect to.
Key
Enter the password for the selected network.
DHCP
Set DHCP to “yes” to assign an IP address from the DHCP server.
(IP, Netmask, Gateway, DNS1 and DNS2 can be left blank.)
Set DHCP to “no” to use a specific IP address.
(IP; Netmask, Gateway, DNS1 and DNS2 must be specified.)
Mode
Set the wireless mode.
Set the mode to “Ad-Hoc” to connect to another wireless device (channel must be specified).
Set the mode to “Infrastructure” to connect to a wireless network (channel must not be specified).
Host
Enter the IP address or the name of the host to which the device should be connected to.
Port
Enter the port from the host to send and receive data.
Region
Enter the region where the device is used.
Press the right navigation key (8) to save the settings and return to the system main menu.
This manual suits for next models
1
Table of contents
Other Feig Electronic Barcode Reader manuals

Feig Electronic
Feig Electronic PAN MOBIL ID PM ECCO+ User manual

Feig Electronic
Feig Electronic OBID i-scan ISC.PRHD102 User manual

Feig Electronic
Feig Electronic PAN MOBILE ID smartSCANNDY User manual

Feig Electronic
Feig Electronic PAN MOBILE ID ECCO Lite User manual

Feig Electronic
Feig Electronic ID PM ECCO+ User manual

Feig Electronic
Feig Electronic OBID i-scan ID ISC.MR100 User manual

Feig Electronic
Feig Electronic OBID i-scan ID ISC PRHD102 User manual
