Feig Electronic PAN MOBILE ID ECCO Lite User manual

IDENTIFICATION
H90313-0e-ID-B
USER GUIDE
ID ECCO:Lite
Compact and Robust RFID-/Barcode Scanner

IDENTIFICATION
ID ECCO:Lite
Note
USER GUIDE
Page 2 of 23
Note
Note
© Copyright by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg (Germany)
Tel.: [phone]
http://www.feig.de
http://www.panmobil.com
[e-mail]
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge.
FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions.
FEIG ELECTRONIC GmbH does not give any guarantee promise for perfect function in cross environments
and does not give any guarantee for the functionality of the complete system which incorporates the subject
of this document.
FEIG ELECTRONIC GmbH calls explicit attention that devices which are subject of this document are not
designed with components and testing methods for a level of reliability suitable for use in or in connection
with surgical implants or as critical components in any life support systems whose failure to perform can
reasonably be expected to cause significant injury to human health. To avoid damage, injury or death the
user or application designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this
document and makes no representation that they are free of patent infringement. FEIG ELECTRONIC GmbH
does not convey any license under its patent rights nor the rights of others.

IDENTIFICATION
ID ECCO:Lite
Contents
Page 3 of 23
Contents
1Safety Instructions 4
2Revision History of Documentation 6
3Scope of Delivery 7
4Product Description 8
5Technical Data 11
6Operation 12
6.1 Charging the Battery ....................................................................................................... 12
6.2 Device Reset .................................................................................................................... 12
6.3 Configuration................................................................................................................... 12
6.3.1 Config.ini Configuration ........................................................................................ 12
6.4Scanning .......................................................................................................................... 16
6.4.1 1D Laser .............................................................................................................. 16
7Bluetooth Connection 17
8Transmitting Barcode Data to a Host 18
9Troubleshooting 19
10 Maintenance and Cleaning 20
11 Disposal 21
12 Approvals 22
12.1 Europe (CE)...................................................................................................................... 22
13 Warranty 23

IDENTIFICATION
ID ECCO:Lite
1Safety Instructions
Page 4 of 23
1 Safety Instructions
Safety Instructions
►Please read this user guide carefully and follow the given instructions and safety instructions before
using the device.
►The device may only be used for the intended purpose designed by the manufacturer.
►This user guide should be conveniently kept available at all times for each user.
►Unauthorized changes and the use of spare parts and additional devices which have not been sold or
recommended by the manufacturer may cause fire, electric shocks or injuries. Such unauthorized
measures shall exclude any liability by the manufacturer.
►The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid for the
device. The manufacturer shall not be held legally responsible for inaccuracies, errors, or omissions in
the manual or automatically set parameters for a device or for an incorrect application of a device.
►Repairs may only be executed by the manufacturer.
►Installation, operation and maintenance procedures should only be carried out by qualified personnel.
►Use of the device and its installation must be in accordance with national legal requirements and local
electrical codes.
►When working on devices the valid safety regulations must be observed.
►Use of controls or adjustments or performance of procedures other than those specified herein may
result in exposure to hazardous visible laser light. The laser scanner utilizes a low-power laser diode.
Although staring directly at the laser beam momentarily causes no known biological damage, avoid
staring into the beam as one would with any very strong light source, such as sunlight. Avoid that the
laser beam hits the eye of an observer, even through reflective surfaces like mirrors, etc.
LASER RADIATION! DO NOT STARE INTO BEAM! CLASS 2 LASER PRODUCT
P ≤ 1 mW λ = 663 nm
►Do not crush, puncture, short circuit or place the LiPo battery in fire or water. To reduce the risk of fire or
burns, do not attempt to open, disassemble, or service the battery pack. Do not expose the unit to
temperatures above 60 °C (140 °F). Only charge the battery with the battery charger intended by the
manufacturer. Do not deep discharge the battery. Do not use damaged batteries.
►Switch off your wireless device whenever you are instructed to do so by airport or airline staff. Consult
airline staff and ask for the device’s use in-flight.
►Wireless devices may affect medical electrical equipment. Therefore they should be switched off
wherever you are requested to do so in hospitals or healthcare facilities to prevent interference with
sensitive medical equipment.
►It is recommended by pacemaker manufacturers to maintain a minimum of 15 cm (6”) between a
handheld wireless device and a pacemaker to avoid potential interference. Therefore persons with
pacemakers should not carry the device in a breast pocket. These recommendations are consistent with
independent research and recommendations by Wireless Technology Research. If you have any reason
to suspect that interference is taking place, turn off your device.
►Do not take note or use the device while driving. When driving a vehicle, driving is your first
responsibility, therefore give full attention to driving.
►RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles.
You should consult the manufacturer of any equipment that has been added to your vehicle.

IDENTIFICATION
ID ECCO:Lite
1Safety Instructions
Page 5 of 23
►Do not place the device in the area over the air bag or in the air bag deployment area. Improperly
installed wireless equipment could result in serious injury when the air bag inflates.
►Observe restrictions on the use of radio devices in fuel depots, chemical plants and areas where the air
contains chemicals or particles such as grain, dust or metal powder as well as any other area where you
are advised to turn off your vehicle engine.

IDENTIFICATION
ID ECCO:Lite
2Revision History
Page 6 of 23
2 Revision History of Documentation
Revision History
Revision
Date
Description
0 29.03.2019 Initial version

IDENTIFICATION
ID ECCO:Lite
3Scope of Delivery
Page 7 of 23
3 Scope of Delivery
Scope of Delivery
The scope of delivery includes following components:
1 x ID ECCO:Lite
1 x USB Charging Cable
1 x ID ECCO:Lite User Guide
After unboxing please make sure, that all listed parts have been delivered properly and in good condition.

IDENTIFICATION
ID ECCO:Lite
4Product Description
Page 8 of 23
4 Product Description
Product Description
The ID ECCO:Lite captures and stores barcodes data for a variety of uses and transmits those to a host via
USB connection or Bluetooth. This document provides a basic instruction for using the ID ECCO:Lite device.
Fig. 1: ID ECCO:Lite device overview
Label Description Function
1 Green LED Lights up green when ID ECCO:Lite is turned ON.
When the battery level is low, it flashes every 2 sec.
2 Yellow LED Lights up yellow while barcode reader is on.
Is off if a read was successful.
3 Red LED Lights up red if connected to a battery charger (USB or power adapter).
Red = Battery charging
Off = Battery fully charged
4 Blue LED Is flashing for 2 seconds when the device is booting (initializing Bluetooth).
Lights up blue when Bluetooth initialization failed (wait for the device to
power off, then restart).
Lights up blue when ID ECCO:Lite is connected to Bluetooth.
5 Key 1
(trigger button)
Power ON and Scan
Batch mode
Press for 1 second to power on the device. The device will immediately start
the barcode laser to read a barcode. Captured barcodes will be stored in the
device memory.
Bluetooth mode
Press for 1 second to power on the device. The blue LED (4) will flash for 2
seconds to initialize Bluetooth.
Bluetooth connected
Blue LED (4) constantly on.

IDENTIFICATION
ID ECCO:Lite
4Product Description
Page 9 of 23
Captured barcodes will be sent to the paired Bluetooth device according to
the profile configured.
Bluetooth not connected
Cache mode activated
Captured barcodes will be stored in the device memory.
Cache mode deactivated
Captured barcodes will be rejected.
6 Key 2
(delete button)
Batch mode
Press for 1 second to power on the device. The device will immediately start
the barcode laser to read a barcode. Captured barcodes will be deleted from
the device memory.
Bluetooth mode
Press for 1 second to power on the device. The blue LED (4) will flash for 2
seconds while initializing Bluetooth.
Bluetooth connected
Blue LED (4) constantly on.
Pressing key 2 shortly = no function
Pressing key 2 for 2 seconds = send static data
Bluetooth not connected
Cache mode activated
Pressing key 2 shortly = no function
Pressing key 2 for 2 seconds = save static data
Cache mode deactivated
Key 2 has no function.
5+6 Key 1 + Key 2
Batch mode only
Pressing key 1 and key 2 for 4 seconds while in Batch mode deletes all
captured data from the data file!
7 Key 3 (custom) Batch mode
Pressing key 3 shortly = no function
Pressing key 3 for 4 seconds = save static data
Bluetooth mode
Bluetooth connected HiD mode
Blue LED (4) constantly on.
Pressing key 3 shortly = toggle Apple keyboard
Pressing key 3 for 4 seconds = send static data
Bluetooth mode
Bluetooth connected HiD SPP / iAP mode
Blue LED (4) constantly on.
Pressing key 3 shortly = no function
Pressing key 3 for 4 seconds = send static data
Bluetooth not connected
Cache mode activated
Pressing key 3 shortly = no function
Pressing key 3 for 4 seconds = save static data
Cache mode deactivated
Key 3 has no function.
8 Key 4 (custom)
Batch mode
Pressing key 4 shortly = no function
Pressing key 4 for 4 seconds = save static data
Bluetooth mode
Bluetooth connected HiD mode
Blue LED (4) constantly on.
Pressing key 4 shortly = no function
Pressing key 4 for 4 seconds = send static data

IDENTIFICATION
ID ECCO:Lite
4Product Description
Page 10 of 23
Bluetooth mode
Bluetooth connected HiD SPP / iAP mode
Blue LED (4) constantly on.
Pressing key 4 shortly = no function
Pressing key 4 for 4 seconds = send static data
Bluetooth not connected
Cache mode activated
Pressing key 4 shortly = no function
Pressing key 4 for 4 seconds = save static data
Cache mode deactivated
Key 4 has no function.
7+8 Key 3 + Key 4
Bluetooth mode only
Blue LED (4) constantly on.
Pressing key 3 + key 4 for second = send data stored while Bluetooth was
not connected
5+6+7+8 Key 1 + Key 2 + Key 3 +
Key 4
System reset
Press all four buttons for 5 seconds to reset the device.
Please note:
The device clock will be reset too! The device configuration will not be
affected by a system reset.
9 USB protection clip
Mini-USB interface
Rubber clip to protect the Mini USB port.
Main communication and battery charging interface.
10 Scanning window Protection glass for the barcode laser. To have the best reading
performance, keep the glass clean and free of scratches.
11 Mounting plate Holder to fix the belt clip (accessories).
12 Int. Li-ion battery Rechargeable Li-ion battery 1250 mAh

IDENTIFICATION
ID ECCO:Lite
5Technical Data
Page 11 of 23
5 Technical Data
Technical Data
Mechanical Data
Housing Double-walled
Inside: robust ABS
Outside: protective rubber coating
Dimension (W x H x D) 87 mm x 48 mm x 26 mm
(3.42“ x 1.89“ x 1.02“)
Weight 96 g (3.39 oz)
Protection Class IP 64
Color black, red
Electrical Data
Barcode (optional) 1D: EAN-8, EAN-13, UPC-A, UPC-E Code 128, Code 39,
Code 93, Interleaved 2of5, Codabar
Interfaces
•USB
•Bluetooth
USB mass storage, USB Serial
Bluetooth Class 1, HiD SPP
Battery 1250 mAh Lithium Ion, 3.7 V
Indicators LED (red, green, yellow, blue)
Speaker
Vibration feedback
Keyboard 4 keys; each key is configurable
CPU AVR 8bit, 32 MHz
Memory 16 KB RAM
6 MB Flash
Date / Time Real-time clock
Supported OS Win 7 / Win 8 / Win 10 (32 and 64 bit) / Server 2003/2000
Configuration MasterSetup
Environmental Conditions
Temperature Range
•Operation
•Storage
0 °C up to 55 °C (32 °F up to 122 °F)
-20 °C up to 60 °C (-4 °F up to 140 °F)
Humidity 5 % up to 95 % (non-condensing)
Drop 1.6 m drop to concrete
Standard Compliance
RoHS, WEEE, CE, FCC

IDENTIFICATION
ID ECCO:Lite
6Operation
Page 12 of 23
6 Operation
Operation
6.1 Charging the Battery
Before the first operation, the main battery should be fully charged by using the included USB charging
cable. As long as the battery is charging the red LED (3) will light solid red. After the battery is fully charged
the red LED (3) turns off. A full recharge of the battery takes approx. 4 to 5 hours.
To charge the battery via USB follow the instructions below:
1. Remove the USB protection clip (9) from the device.
2. Connect the device to the USB port of a computer or to the USB power adapter (accessories).
3. As long as the battery is charging, the red LED (3) lights solid red.
4. After the battery is fully charged the red LED (3) turns off.
6.2 Device Reset
To reset the ID ECCO:Lite press and hold the keys 1, 2, 3 and 4 (see chapter 4 Product Description on page
8.) for 5 seconds.
NOTE:
•By reset the device loses its timestamp. Before continuing to use it you must synchronize the
time settings by connecting the ID ECCO:Lite with the Master Setup. The time thereby will be
automatically synchronized with the system time of your PC.
•Specific configuration settings and data will not be lost by the reset.
6.3 Configuration
The ID ECCO:Lite comes with preinstalled default firmware which can easily be configured to meet the
application requirements. The device function can be determined by modifying the settings in the file
“Config.ini” which is stored on the device memory or using the PC software tool “Master Setup” which is
available for download from www.panmobil.com.
6.3.1 Config.ini Configuration
To configure the ID ECCO:Lite connect the device to your PC by using a mini USB to USB-A cable. The
device will automatically power ON after 2 seconds when the device is connected to the PC. Browse the
removable drive “SCANNDY” and open the file “Config.ini” with the text editor.
[General]
PwrOffDelay=0
Set the timeout in minutes you want the device to power off when it is not in use.
Minimum value for Batch mode = 0 minutes
Minimum value for Bluetooth mode = 3 minutes (values less than 3 will be ignored)
LeftKeyText=”LEFT”
Set the static data you want to be saved or sent by Bluetooth if key 3 is pressed for 4 seconds.
MiddleKeyText=”MIDDLE”
Set the static data you want to be saved or sent by Bluetooth if key 2 is pressed for 4 seconds.

IDENTIFICATION
ID ECCO:Lite
6Operation
Page 13 of 23
RightKeyText=”RIGHT”
Set the static data you want to be saved or sent by Bluetooth if key 4 is pressed for 4 seconds.
DeviceID=”0000”
Set the custom device ID
OutputFormatDB=”%t;%b”
Set the record format for the data record (Batch mode).
OutputFormatBT=”%b”
Set the record format for the data record (Bluetooth mode).
TimestampFormat=”%Y-%m-%d %H:%M:%S”
Set the time format.
Signal=63
reserved
PureScan=0
Activate PureScan mode. In PureScan mode all keys can read barcode. The barcode will be saved or sent
with the button name the code has been read with.
PureScan=0 // PureScan mode deactivated
PureScan=1 // PureScan mode activated
KeyBeep=1
KeyBeep=1 // key click activated
KeyBeep=0 // key click deactivated
[BT]
Available=1
Automatically determined value from the Hardware initialization.
Available=1 // Bluetooth module present
Available=0 // Bluetooth module not found
Enabled=1
Enabled=1 // Bluetooth mode activated
Enabled=0 // Bluetooth mode deactivated
Mode=1
Mode=1 // Bluetooth communication profile Bluetooth HiD
Mode=0 // Bluetooth communication profile Bluetooth SPP
Autoconnect=0
Autoconnect=0 // do not reconnect when Bluetooth connection is lost
Autoconnect=1 // try to reconnect automatically when Bluetooth connection is lost
NOTE: Autocorrect function must be supported by the paired device and the application running on
the paired device.

IDENTIFICATION
ID ECCO:Lite
6Operation
Page 14 of 23
Cache=0
Cache=0 // do not save captured data when Bluetooth is not connected
Cache=1 // save captured data in the device memory when Bluetooth is not connected
Scomp=0
Scomp=0 // do not use SComP communication protocol
Scomp=1 // use SComP communication protocol
NOTE: SComP protocol must be supported by the application running on the paired device! Please
refer to the SComP protocol description.
DevName=”Eccolite”
DevNAME=ECCOLiteXXXXXX // set the friendly name for Bluetooth
iAP=0
iAP=0 // Apple MFI authentication disabled
iAP=1 // Apple MFI authentication enabled
NOTE: For Bluetooth communication over SPP profile Apple devices require iAP to be enabled.
Otherwise it will not be possible to connect the ID ECCO:Lite to an Apple device. For Bluetooth
connection to Android or Windows devices iAP must be disabled.
ProtocolID=””
Set the protocol ID configured in the APP running on the Apple device.
Service=””
Set the service name configured in the APP running on the Apple device.
[Laser]
Set the barcode options required by the application.
GlobalMaxCodeLen=99
GlobalMinCodeLen=
UPCA_Enable=0
UPCA_Verify=1
UPCA_XmitCheck=0
UPCA_SupplDgt=0
UPCA_TruncExp=0
UPCE_Enable=0
UPCE_Verify=1
UPCE_XmitCheck=0
UPCE_SupplDgt=0
UPCE_TruncExp=0
UPCE1_Enable=0
UPCE1_Verify=1
UPCE1_XmitCheck=1
UPCE1_SupplDgt=0
UPCE1_TruncExp=0
EAN13_Enable=1

IDENTIFICATION
ID ECCO:Lite
6Operation
Page 15 of 23
EAN13_Verify=1
EAN13_XmitCheck=1
EAN13_SupplDgt=0
EAN13_ISBN_ISSN=0
EAN8_Enable=1
EAN8_Verify=1
EAN8_XmitCheck=1
EAN8_SupplDgt=0
EAN8_TruncExp=0
C39_Enable=1
C39_Verify=0
C39_XmitCheck=0
C39_MaxLen=99
C39_MinLen=1
C39_FullASCII=0
C39_XmitSS=0
I25_Enable=1
I25_Verify=0
I25_XmitCheck=0
I25_MaxLen=99
I25_MinLen=6
Codabar_Enable=0
Codabar_Verify=0
Codabar_XmitCheck=0
Codabar_MaxLen=55
Codabar_MinLen=5
Codabar_SSType=0
Codabar_XmitSS=1
C128_Enable=1
C128_Verify=1
C128_XmitCheck=0
C128_MaxLen=99
C128_MinLen=1
EAN128_Enable=1
EAN128_Verify=1
EAN128_XmitCheck=0
EAN128_MaxLen=99
EAN128_MinLen=1
C93_Enable=1
C93_Verify=1
C93_XmitCheck=0
C93_MaxLen=55
C93_MinLen=4

IDENTIFICATION
ID ECCO:Lite
6Operation
Page 16 of 23
6.4 Scanning
6.4.1 1D Laser
To scan a barcode follow the steps below:
1. Aim the scanner on the barcode.
2. Press the trigger key (5).
3. Ensure that the scanning line is directed straight on the barcode.
4. The ID ECCO:Lite beeps and the yellow LED (2) lights up to indicate a successful decode.

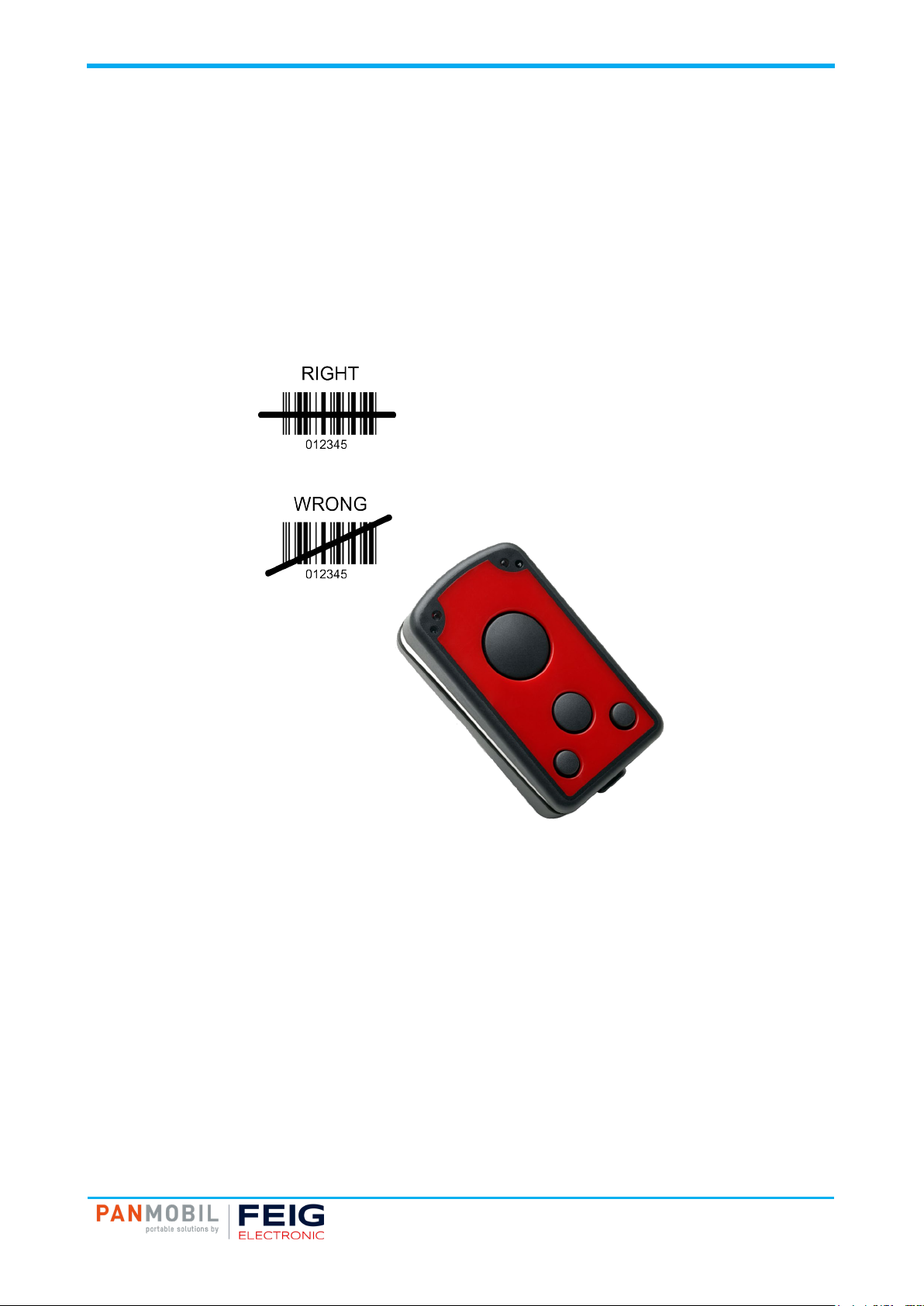

Fig. 2: Barcode Scanner Alignment

IDENTIFICATION
ID ECCO:Lite
7Bluetooth Connection
Page 17 of 23
7 Bluetooth Connection
Bluetooth Connection
To pair the Bluetooth enabled device to a Bluetooth enabled host.
1. Connect the device to the host using the USB port and use the Master Setup to set the data output mode
to Bluetooth.
Select the Bluetooth profile supported by the host or required by the application.
•Serial Port Profile (SPP)
The scanner connects to the host via Bluetooth and emulates a serial connection. The scanner accepts
an incoming connection requested by a Bluetooth host.
•Serial Port Profile (SPP) iAP (connection to Apple devices)
The scanner connects to the host via Bluetooth using the Apple MFI authentication mode. The scanner
accepts an incoming connection requested by a Bluetooth host.
•Bluetooth Keyboard Emulation (HID)
The scanner connects to the host via Bluetooth and emulates a keyboard. The scanner accepts an
incoming connection, requested by a Bluetooth host.
2. Save the settings and disconnect the device from the computer.
On the host computer, launch the third party Bluetooth pairing application and place the application into
discover Bluetooth device mode.
3. Select the ID ECCO:Lite from the discovered device list. The Bluetooth application may prompt you to
scan a passkey it generated, or for you to create one and then scan the PIN code.
4. If the Bluetooth application prompts you to generate a PIN, enter the configured Bluetooth PIN.
DEFAULT: 1234
Once set, the PIN can be changed via Master Setup or in the Config.ini.
5. The blue LED (4) lights up constantly as long as the device is connected.

IDENTIFICATION
ID ECCO:Lite
8Transmitting Data to a Host
Page 18 of 23
8 Transmitting Barcode Data to a Host
Transmitting Data to a Host
Batch mode
All barcodes scanned in batch mode are saved in the file “Output.txt” on the removable drive “SCANNDY”.
Connect the device to the host computer via USB and use the Windows-Explorer to navigate to the device
“SCANNDY”. Copy the file “Output.txt” to the host.
To delete the data from the device just delete the file “Output.txt”.
Transmitting data from a Bluetooth device
When the scanner is paired to a host via Bluetooth, the data transmits to the host after each scanning
procedure and is not stored on the scanner unless the scanner moves out of the range of the host. For out of
range usage you can configure the device to either store the data in a cache memory or do not allow
scanning.
If the device was configured to store the out of range captured data, it stores the data in the file “Output.txt”.
After reconnection press key 3 + key 4 for 2 seconds to transmit all cached data to the host.

IDENTIFICATION
ID ECCO:Lite
9Troubleshooting
Page 19 of 23
9 Troubleshooting
Troubleshooting
Problem
Possible Solution
Device does not turn on. •Make sure the battery is charged.
•Press and hold the keys 1 to 4 for 5 seconds to reset the device.
Laser comes on but device does not
decode barcode.
•Ensure the device is configured to read the type of code being scanned.
•Ensure the code is not defaced. Try to read another barcode.
•Move the device closer to or further from the code. This depends on your
barcode size.
The device is on but does not react on
any keystroke.
•Press and hold the keys 1 to 4 for 5 seconds to reset the device.
By reset the device loses its timestamp. Before you continue to use it,
you must synchronize the time settings by connecting to a host.
Connect the device again with the Master Setup- The time will be
automatically synchronized with the system time of your PC. Specific
configuration settings and data will not be lost by the reset. Stored data
and configuration are not affected by a reset.
Bluetooth is not working. •Ensure that the device is in the correct Bluetooth Mode (HID or SPP).
•Ensure that you are paired correct to your host.
•Renew your pairing with your host system.
Barcode reading ability has degraded. •Maybe the scan window has become dirty. Please clean your scan
window with a soft cloth with water.
Nothing happens when the scan key is
pushed.
•Make sure your device is powered on (green LED on the left must be on).
•Ensure that your keys are correctly configured.

IDENTIFICATION
ID ECCO:Lite
10 Maintenance and Cleaning
Page 20 of 23
10 Maintenance and Cleaning
Maintenance and Cleaning
To clean the lense use a clean and dry cleaning cloth. Do not use chemical cleaners, lyes or similar.
