1 Safety Instructions / Warning - Read before Start-Up !
The device may only be used for the intended purpose designed by for the manufacturer.
The operation manual should be conveniently kept available at all times for each user.
Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
Repairs may only be executed by the manufacturer.
Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
When working on devices the valid safety regulations must be observed.
Please observe that some parts of the device may heat severely.
Before touching the device, the power supply must always be interrupted. Make sure that the
device is without voltage by measuring. The fading of an operation control (LED) is no indicator
for an interrupted power supply or the device being out of voltage!
For installation and dismantling you should wear suitable safety gloves, because parts of an-
tenna housing could be sharp-edged.
CAUTION! The Antenna-Tuner and the Antenna conductor carry voltages up to
1000V.
The Antenna is not water proof and should not be exposed to rain or humidity.
Under extreme circumstances water could seep into the antenna and damage the electronic
circuits.
Special advice for wearers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep
a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in
an immediate proximity of the reader’s antennas for any length of time.

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 6 of 66
M00210-2e-ID-B.doc
2 Maintenance
The antenna ID ISC.ANT1700/740 is a design product with high quality surfaces, and should al-
ways be handled with caution. The antenna was designed to work reliably and flawlessly for years
without special maintenance.
Attention! The surfaces should be cleaned with a clean, soft cloth dampened in a
dishwashing liquid –water solution. The use of alcohol, spirit, thinners, glass clean-
ers or other harsh cleaning liquids is prohibited and will damage the housing.
To improve the durability and the appearance, please follow the instructions below:
Keep the antenna clean and take caret the antenna is not scratched.
Regularly remove dust and other impurities with a soft cloth and a solution of water with a little
dishwashing liquid.
Keep the antenna dry. All kinds of moisture should be avoided during operation and storage.
Precipitation, humidity and liquids contain minerals that will corrode electronic circuits and da-
maging transparent plastic parts.
Protect the antenna from high temperatures. Mount the antenna away from heaters and other
heat sources. Operation under direct sunlight can cause extreme high temperatures and a fad-
ing cause of the surface.
Avoid storing or operating the antenna at dirty or wet locations. The surfaces or electronic
components may be-damaging.
Handle the device with care. Shocks may break internal circuit boards.
Do not try to open the antenna during operation or outside maintenance periods. Non-
professional management can result in damage to the device.
If any device not working properly, please contact the appropriate representative.

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 7 of 66
M00210-2e-ID-B.doc
3 Performance Features of the ID ISC.ANT1700/740 SLx Antennas
The ID ISC.ANT1700/740-SLA antenna is a version with 2 DynamicTuning Board ID ISC.DAT ,
Long Range Reader ID ISC.LRM2000-A, 8- times Multiplexer Module ID ISC.ANT.MUX M8 and
additional signal light and buzzer already mounted.
The ID ISC.ANT1700/740-SLB antenna is a version with 2 DynamicTuning Board ID ISC.DAT and
signal light mounted.
Up to
-two antennas with reader and multiplexer as a single gate,
-three to four antennas with reader and multiplexer as a double gate or triple gate
can be operated.
Depending on the antenna configuration, one, two or all three read orientations of the Smart Tags
and various antenna spacing (gate widths) are possible.
The ID ISC.ANT1700/740-SLA/-SLB is a „single loop“ antenna with tuner and have been optimized
as transmitting and receiving antennas for the ID ISC.LRM2000 Reader. It is however also
possible to operate them with other Readers at a transmission frequency of 13.56 MHz and an
output impedance of 50 . The read ranges indicated in this document and the tuning procedures
may however then vary.
The antennas comprise the electrical antenna conductor, the housing, the ID ISC.DAT Dynamic
Antenna Tuner and the connection cable.The antennas are factory tuned to an impedance of 50 
in a magnetically neutral environment at a distance of 95 cm. When installing in different ambient
conditions the antenna can be retuned using the “DATuningTool“ PC software. After tuning the
antennas will retain their settings as long as the ambient conditions remain unchanged.
The antennas can be used for detecting both product and persons. It is suitable for installation
indoors or outdoors if weather-protected.

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 8 of 66
M00210-2e-ID-B.doc
3.1 Performance Features of the People Counter ID ISC.ANT1700/740-GPC
The product ID ISC.ANT1700/740-GPC, short form “Gate People Counter” or “GPC”, are made for
mounting in the gate antennas ID ISC.ANT1700/740.
A Gate People Counter consist of a People Counter board (PC) and one Radar Detector! The
product ID ISC.ANT.GPC-E Extension Radar Detector is used to extend the People Counter to a
second gate aisles.
The People Counter has two counters per aisle. The values of the incoming and out going persons
will be separately captured.

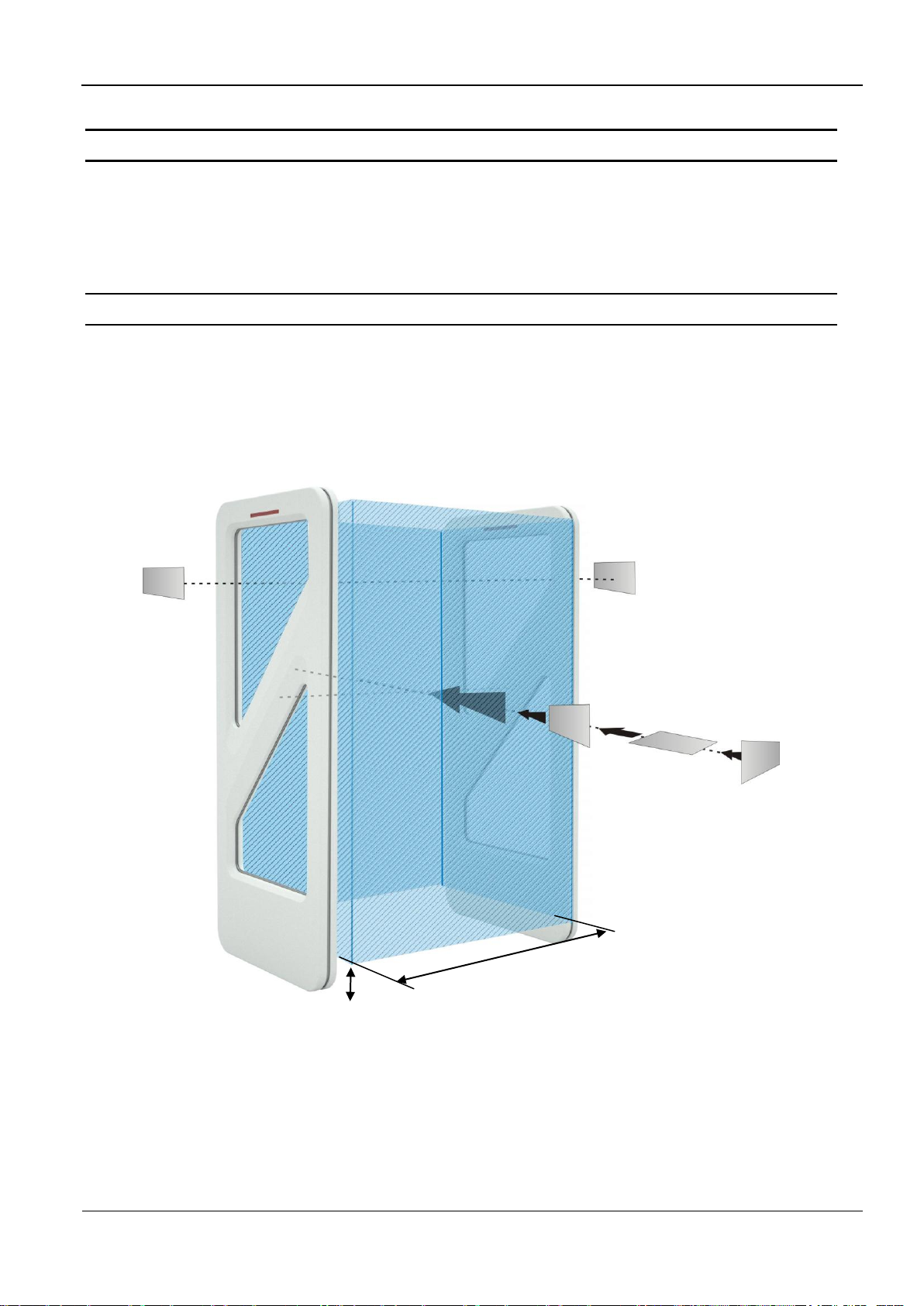

Fig. 1: Gate People Counter Structure (2-3 antennas, 1-2 gate aisles)
A change of the counter values will be stored in the EEPROM of the People Counter Board. With
the command “0x78 Set People Counter” the values could be set/reset to the needed value.
People
Counter 1
Radar
Detector 1
Out / LED 1-3
ID ISC.ANT.GPC-E
Extension Radar Detector
(e.g. 2’nd aisle of the gate)
Radar
Detector 2
Two gate antennas
ID ISC.ANT1700/740-GPC
Reader

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 9 of 66
M00210-2e-ID-B.doc
Radar Detection zone of a single gate
Radar Detection zone with two aisles
Radar Detection zone with three aisles
Radar Detection zone with four aisles

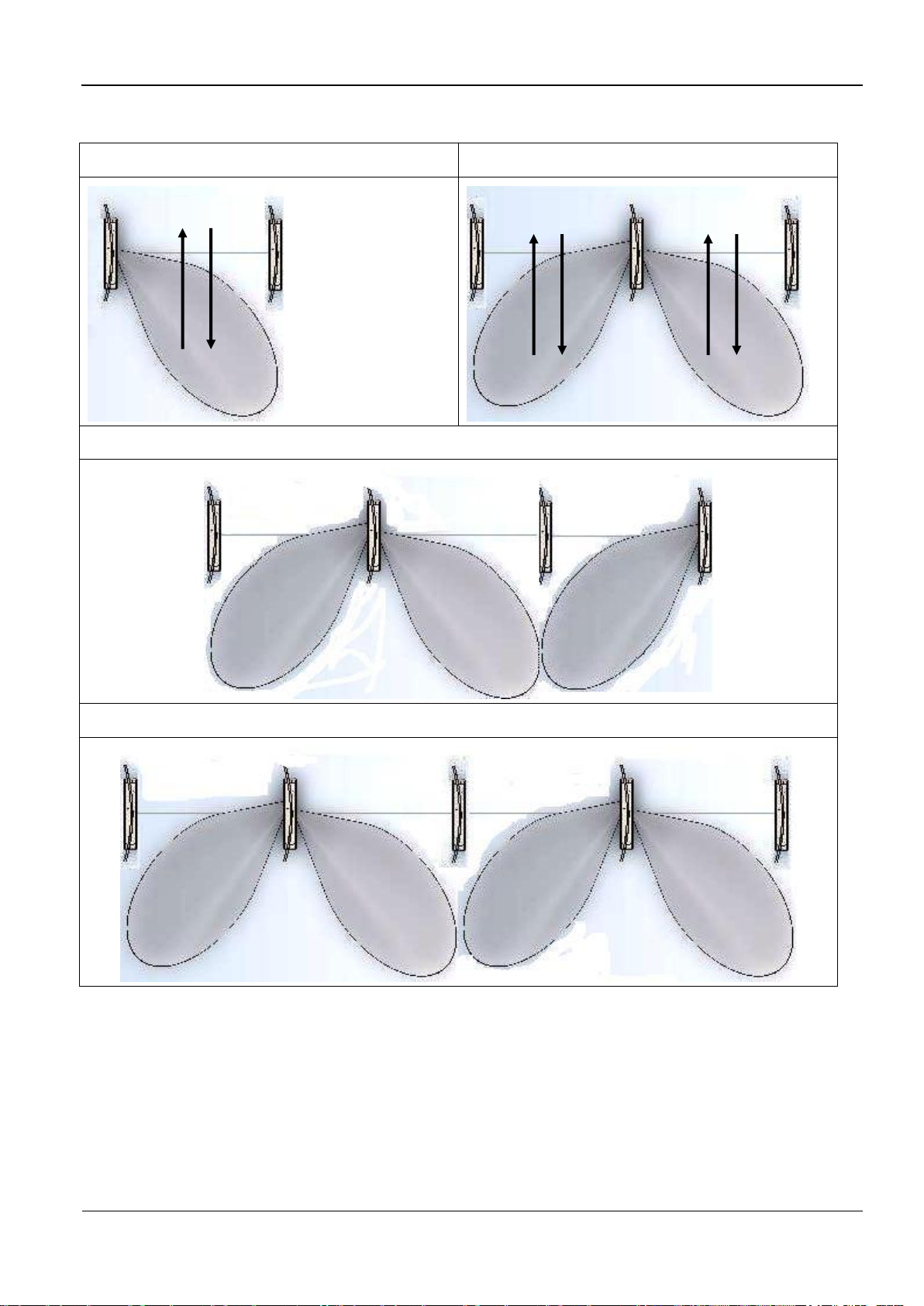

Fig. 2: Top view of the detection areas (2-3 antennas, 1-2 gate aisles)
The People Counter board and the Radar detectors are mounted in the base of the antennas. Due
to the radar beam can pervade the plastic housing of the antenna, no openings a necessary.
The three digital output can be used, to enable a signal light at every gate antenna or activate an
alarm buzzer in the gate antenna.
The Connection between reader and people counter takes place trough the RS485 Interface of the
reader.
Counter 1 | Counter 2
In | Out
Cnt. 1 | Cnt. 2
In | Out
Cnt. 3 | Cnt. 4
In | Out

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 10 of 66
M00210-2e-ID-B.doc
There is no need of a direct connection from the GPC to the Host. All commands from the Host to
the People Counters are embedded in the Pickyback Command of the reader.
Normally, the host poll the GPC by sending protocols. Only, in the Notification Mode, the reader
poll the counter values, automatically, and send data according the reader configuration to the
host.
Generally, there are two possibilities to get the actual people counter values. Either the Host poll
the People Counter periodically or in the Notification Mode of the reader, the reader send a notifi-
cation protocol at every change.

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 11 of 66
M00210-2e-ID-B.doc
3.2 Available Antenna Types
The following products are currently available:
Antenna Type
Description
ID ISC. ANT1700/740-SLA
Clear Gate
Antenna with Reader, Multiplexer ,
dynamic tuning board, signal light and
buzzer
ID ISC. ANT1700/740-SLB
Clear Gate
Antenna with dynamic tuning board
ID ISC.DAT and signal light
ID ISC. ANT1700/740-AGP
Acrylic glass plate window for
Clear antennas
ID ISC.ANT1700/740-GPC
Gate People Counter
People Counter and one piece of radar detector for antenna
ID ISC.ANT1700/740 incl. Mounting and cabling set. (optional)
ID ISC.ANT.GPC-E
Extension Radar Detector
Second radar detector with cable for the second direct parallel aisle
(optional)
Table 1: Available Antenna Types and Accessories
Needed components for at the usage oft he Gate People Counter:
Number of
antennas
Antenna
People Counter (Optional)
ID ISC.
ANT1700/740
-A
ID ISC.
ANT1700/740
-B
ID ISC.
ANT1700/
740-GPC
ID ISC.ANT.
GPC-E
Note
2 Antennas
1
1
1
3 Antennas
1
2
1
1
4 Antennas
1
3
2
1
Table 2 Needed components for gates with People Counter

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 12 of 66
M00210-2e-ID-B.doc
4 Installation and Wiring
Notes:
Before installing the antennas please read 5.1 Project Notes .The spacing of the antennas
in a gate depends on the antenna configuration.
If multiple antennas or gates are connected to different readers, a minimum clearance of
8 m must be kept between the antennas or gates. For shorter distances (1 m –8 m) the
readers must be synchronized. The synchronization of the readers is only possible in one
of the Automatic Modes (Buffered Read, Notification or Scan Mode). Below a distance of 1.5
m the antennas must also be shielded from each other. Otherwise the read range will be
significantly reduced. The antennas must have a minimum distance of 20 cm to all larger
metal parts! At a distance of less than 50 cm between the antenna and metal parts the read
range will be significantly reduced.

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 13 of 66
M00210-2e-ID-B.doc
4.1 Mounting preparation
For assembly the antenna must be carefully unpacked. This is done as described in the following
steps:
1. Place the packed antenna on the floor with the top side facing up. Carefully open the box and
then remove the antenna.
Fig. 3: Antenna in its packaging
2. After that the antenna has to be placed carefully again on the floor. Now you must remove the
two fastening screws (hexagon socket width A/F2,5) of the antenna cover at the antenna foot
and remove it upwards. Fig. 6
Step 1
Step 2
Fig. 4: Opening the antenna base

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 14 of 66
M00210-2e-ID-B.doc
4.2 Dimensions of antenna
The outside dimensions of the antenna are shown in Fig. 5
Fig. 5: Antenna outside dimensions
All dimensions are in mm with general tolerance to ISO 2768 m (mean).
Fig. 6: Opening the antenna base

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 15 of 66
M00210-2e-ID-B.doc

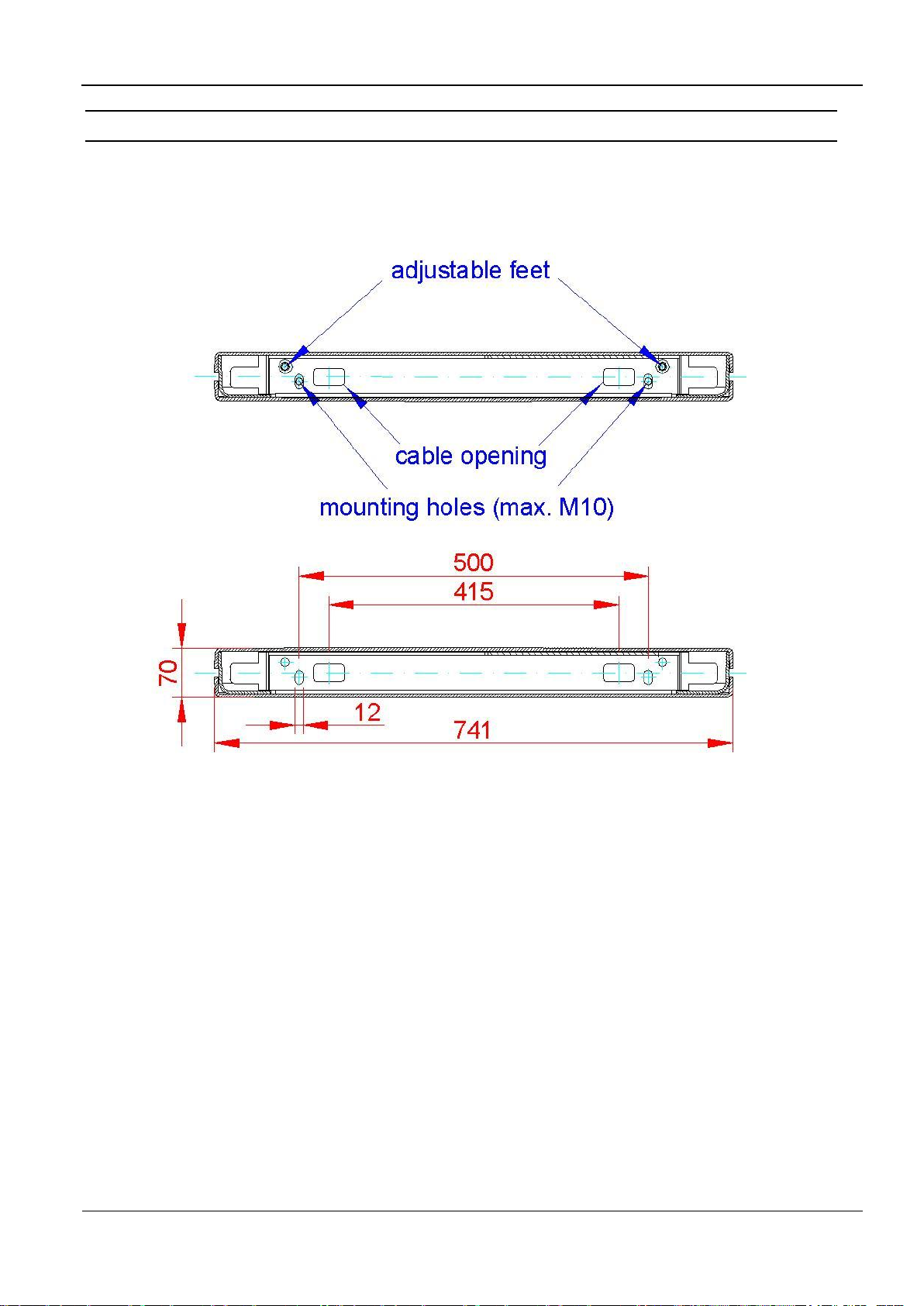

4.3 Drilling the Mounting Holes
If the position of the antennas has been marked or determined a hole template, can be used to
mark and drill the mounting holes and the holes for the cable entry. The dimensions are shown in
Fig. 7:
Fig. 7: Floor plate dimensions
All dimensions are in mm with general tolerance to ISO 2768 m (middle).
The size and type of the screw anchors depends considerably on the strength of the base or floor.
The anchors should be capable of withstanding a permissible load of at least 5 kN per anchor for
all load directions (e.g. for concrete floor Hilti HVA anchors with HAS-(E) M8 threaded rod or Hilti
HIS-N M8 (5/16”) threaded inserts). The size of the mounting holes in the antenna is 10 mm (.39”).
The length of the anchors or bolts should be selected such that they extend at least 50 mm (2.0”)
and a maximum of 65 mm (2.6”) from the floor.
Please follow the mounting instructions of the anchor manufacturer!
Two cable openings are provided for the necessary connection cable (see Fig. 7). The cable
openings are dimensioned such that up to 10 cables having a diameter of 6 mm can be passed
through each opening.
We recommend routing the antenna cables through the cable opening on the Multiplexer side. All
other cables such as the supply voltage and synchronization cable should be routed through the
cable opening on the Reader side.

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 16 of 66
M00210-2e-ID-B.doc
Alternatively the cables can be routed at the sides of the antenna bas like shown in Fig. 8
Fig. 8 Cable routing at the antenna sides

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 17 of 66
M00210-2e-ID-B.doc
4.4 Installing the Antenna Body
The antenna will be screwed on the floor. The transverse antenna conductors in the middle of the
antenna body have to face the same direction at all antennas.(Fig. 9) Use the adjusting screws
(Fig. 10) to align the antenna vertically.
Fig. 9 Transverse conductors facing same direction
Adjusting screws (hexagon socket width A/F5)
Fig. 10: Attaching and aligning the antenna

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 18 of 66
M00210-2e-ID-B.doc
5 Typical Antenna Configuration (Gate Antenna with two Antennas)
The standard configuration of a gate with three-dimensional tag orientation consists of one antenna
ID ISC.ANT1700/740-SLA with reader and multiplexer and one antenna ID ISC.ANT1700740-SLB.
If a tag moves, at horizontal line, through the gate, it can be read at least once. This ensures high
reliability of the antenna system.
5.1 Project Notes
The antenna configuration as described allows detection of a tag moving horizontally through the
capture area of the gate. The tag orientation is non-critical. The tags are detected along a
horizontal axis of motion in certain regions within the antennas. The area of detection depends on
the tag orientation.
The size of the three-dimensional capture area of the antennas is shown in the sketch below.
Fig. 11: Capture area and tag orientation
Notes:
Note that the entire capture area of the antenna is larger than the three-dimensional area
shown in the drawing. This means there are tag orientations in which the tag can be
detected outside the capture area.
GD
20 cm

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 19 of 66
M00210-2e-ID-B.doc
To get a optimal performance the reader has to be configured and run in one of the
Automatic Modes (Buffered Read, Notification or Scan Mode).
If multiple gates are arranged with short distances (1-8m) between each other, these will
mutually interfere with each other. In this case, the readers for the individual gates have to
be synchronized and run in one of the automatic modes.
To achieve three-dimensional capture of the tag in the capture area drawn above, the following
conditions must be met:
-The gate distance GD depends on the antenna configuration (see Table 4: Design notes).
-The tags should be at least ISO card size (46 mm x 75 mm).
-The activation field strength of the tags should be less than or equal to 60 mA/m.
-The distance from tag to tag should be greater than 10 cm. If the tag to tag distance is reduced,
the gate distance GD must be reduced correspondingly. This applies in particular to distances
under 5 cm.
-The maximum number of tags (serial number or data) depends on the traverse speed with
which the tags are brought through the capture area of the gate (see Table 4: Design notes).
The number of tags may be increased in the gate distance GD is correspondingly reduced and
the maximum speed adjusted accordingly.
-The antenna should be at least 50 cm from metal parts.
-The minimum distance between the antennas of a gate and antennas of RFID work station or
terminals (transmitting frequency 13,56 MHz) should be:
Table 3: Minimum Distances
Transmitted
output power
Minimum Distance
<0.5W
1 m
0.5W-1.0 W
2 m
1.1 W –2.0W
3 m
> 2 W
4 m
>= 4 W
8 m
-There should be no interference of the Reader from other electrical devices in the environment.
The Noise Level difference should be less than 20 mV.
-The ID ISC.LRM2000 Reader should be set to an RF power of 4 watts.
-When using ISO 15693 transponders, the Readers should be set as described in 5.2.6 Reader
Configuration with Multiplexer.
-If multiple gates are operated at the same time at a distance of less than 8 m, the Readers
must by synchronized. See Application Note Synchronizing RFID Long Range Readers using
the digital in-/outputs (N11200-1e-ID-B.pdf).

OBID i-scan®
Installation
ID ISC.ANT1700/740-SLA/-SLB
FEIG ELECTRONIC GmbH
Page 20 of 66
M00210-2e-ID-B.doc
Gate with antenna
Type SLA and
Type SLB
Gate distance GD
130 cm
Number of tags at a speed of 1 m/s
-Read serial number
-Read data
16
8
Table 4: Design notes
A minimum distance of 75cm between the two gate antennas is required.
